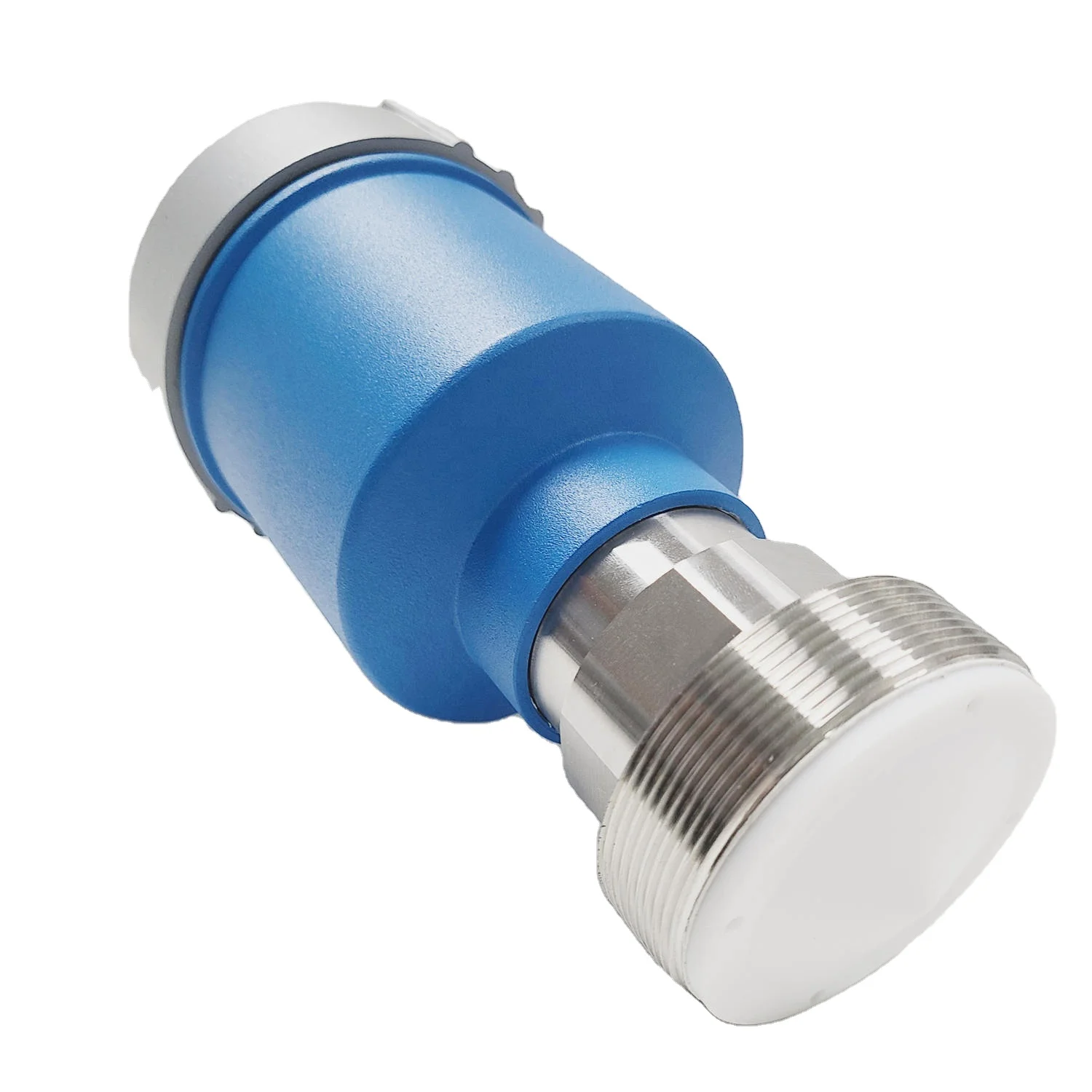

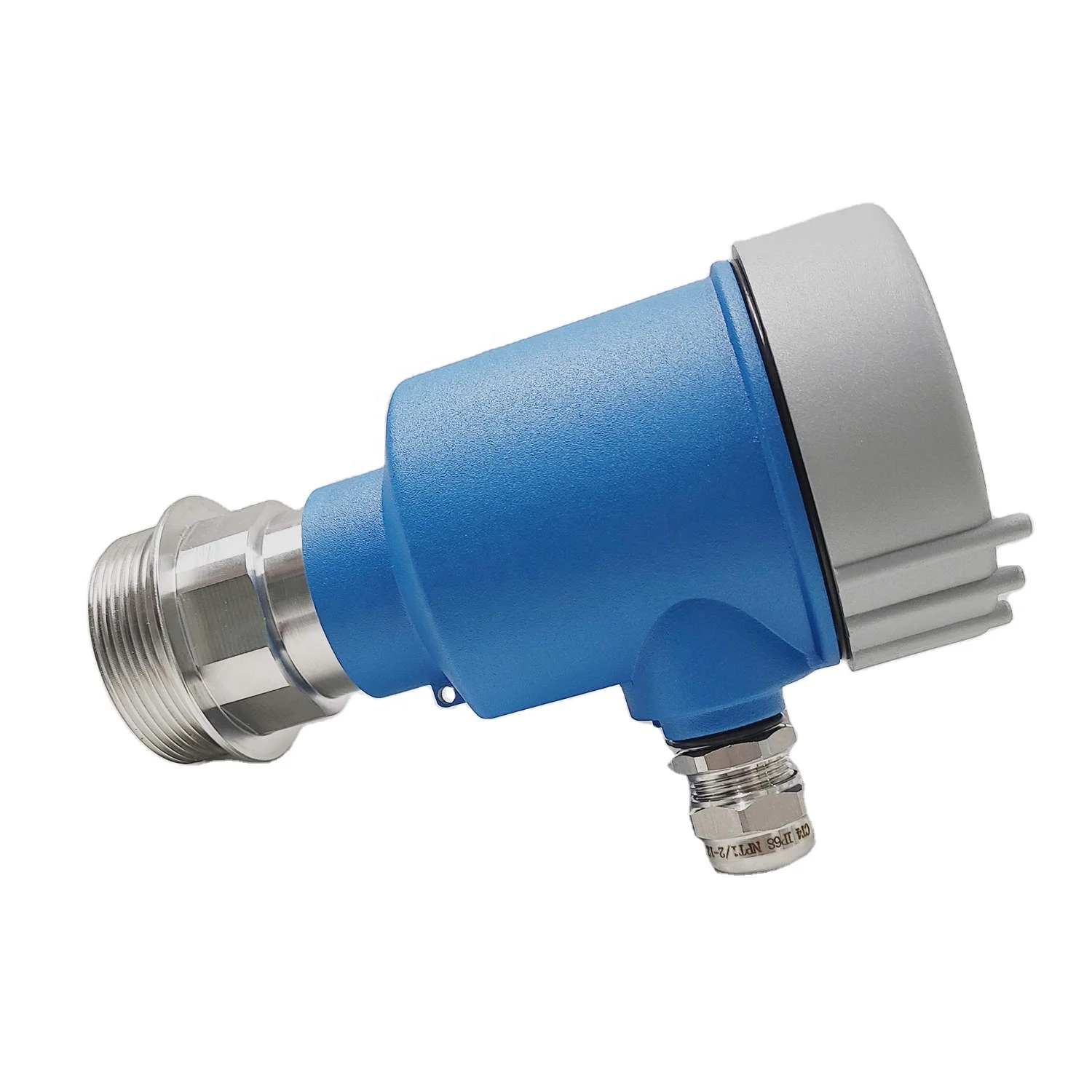

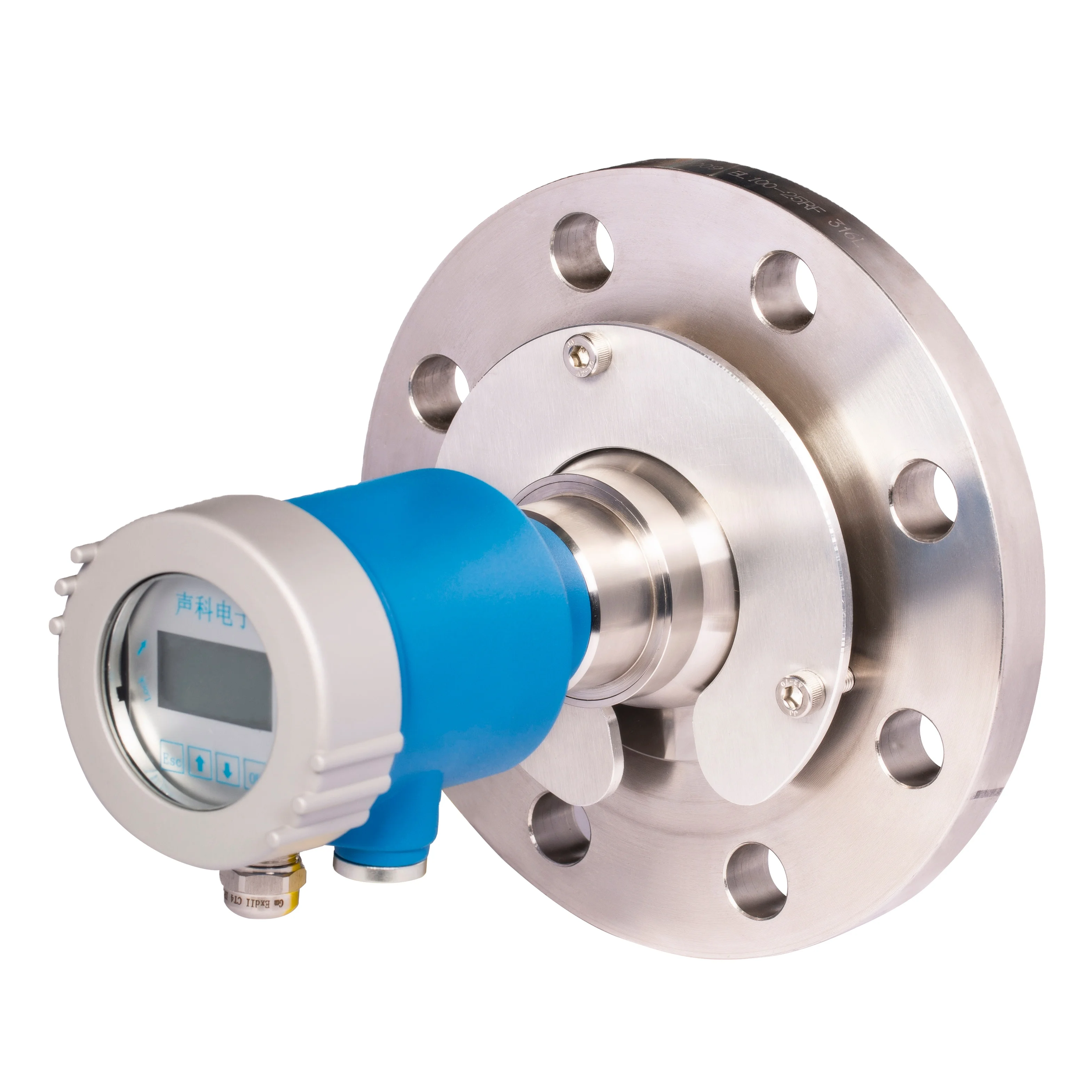

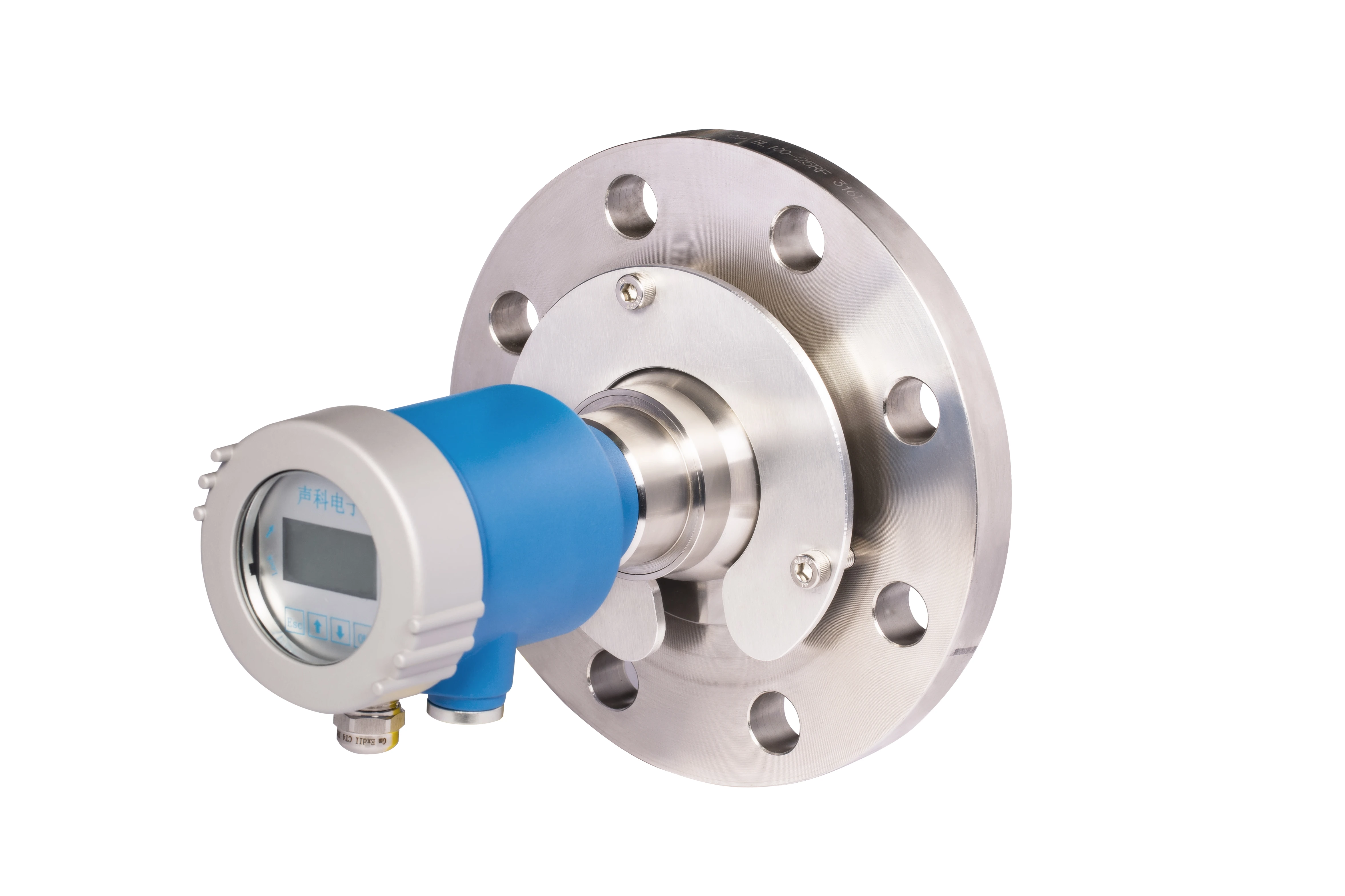

Radar lpg gas cylinder level ultrasonic sensor

Share on (1600933981600):


Price:$160.00 - $220.00

Quantity:


Product Overview

Description



Product Description

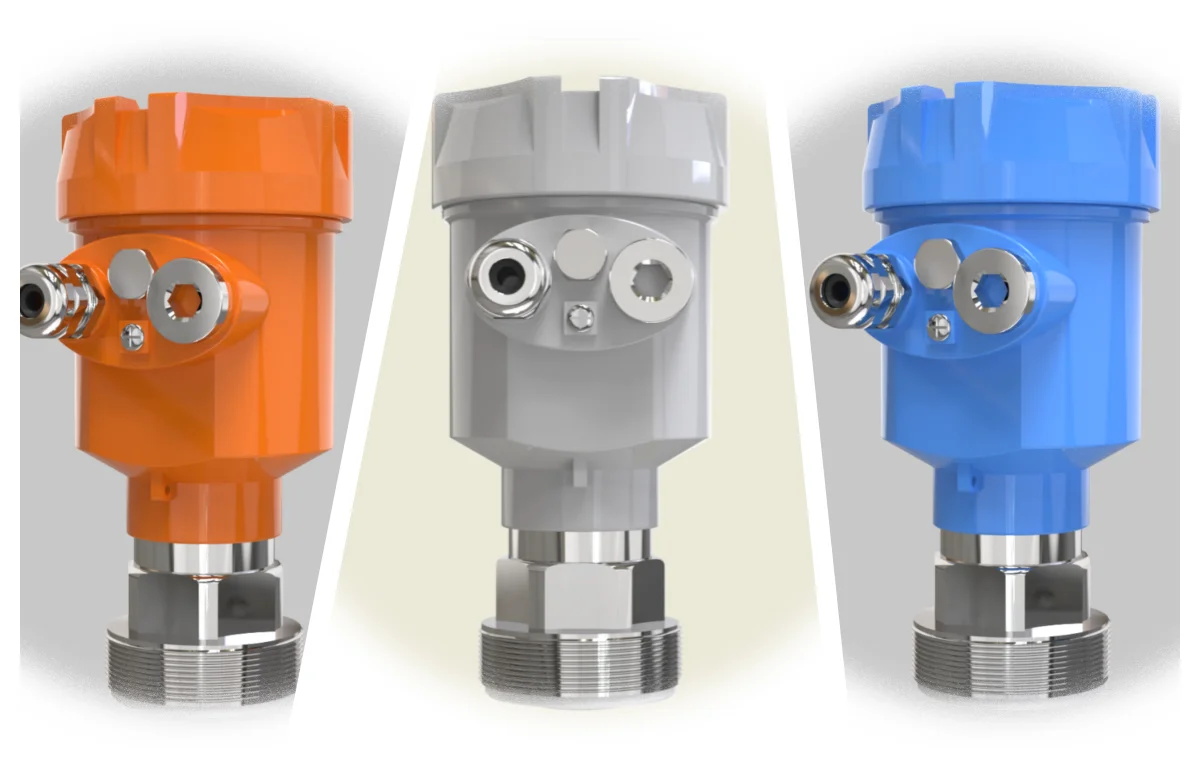

Radar Level Sensor SK-R800N





 25














Product Overview
















80GHz water radar sensor is an electronic device that uses electromagnetic waves to detect targets. Especially suitable for water and sewage industry level measurement.














Parameter











































































ModelSK-R800N
Frequency

78GHz-80GHz


Application

Liquid Solid level measurement(suitable for strong corrosive media)


Max. Range10m      20m     30m     50m
Accuracy±2mm
Power SupplyDC24V(22V-30V)
Signal Output4~20mA HART two-wire(A variety of forms are available)
Process Temperature-40℃~200℃
Process Pressure-1~16bar
Ambient Humidity(0%~95%)RH
Beam Angle
Antenna MaterialPTFE/PFA
Power<0.5W(two-wire)
CommuniationRS485/Modbus
Explosion-proof gradeExdia II CT6Gb
Protection classicIP65/IP67

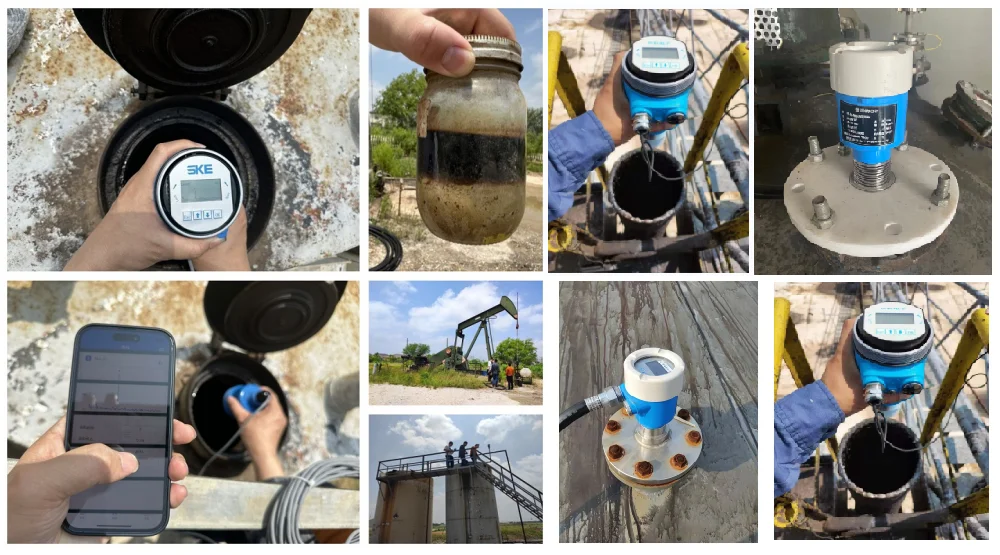

Application

















Advantage





87be804313ef76c2463bf278a8e82920ec33a6a3390c6dfb7528dd462b2ab579eda65908a6c27e6e6508a6f4fe706








Customer Map





111








Company Information





National High-tech Company





Shaanxi Shengke Electronic Technology Co., Ltd. (SKE) was established in 2013, a high-tech enterprise and an integrated circuit enterprise focusing on the research and development, production and sales of a new generation of ultrasonic and radar series products.The product business covers more than 20 countries and regions, and serves more than 100 customers around the world.





 SKE researches sonar technology and millimeter radar wave technology, and applied the technology to the field of industrial automation control. making the work of each measurer more convenient, safety. At present, the two-wire no-contact ultrasonic liquid level sensors, non invasive ultrasonic point level switchs, non-contact ultrasonic oil level meters, non-contact ultrasonic pipeline switchs, 80Ghz Radar level sensors, 80Ghz radar solid level gauges and other products are used in various industries, and their performance has reached the international leading level.





SKE created the brand SinoSK in 2022. At the same time, Anhui ShengKe Microelectronics Co., Ltd. (SKEIC) became a part of SKE. Mainly engaged in research and development, production and sales of millimeter-wave radar chips.





Office






Workshop














Our Certificate












Our Exhibiton





 231








Packaging & Shipping


 Suitable Export Carton Package





236











Delivery Process
