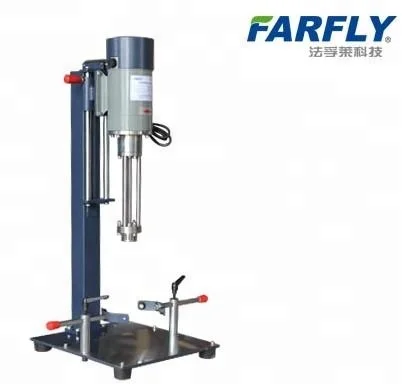

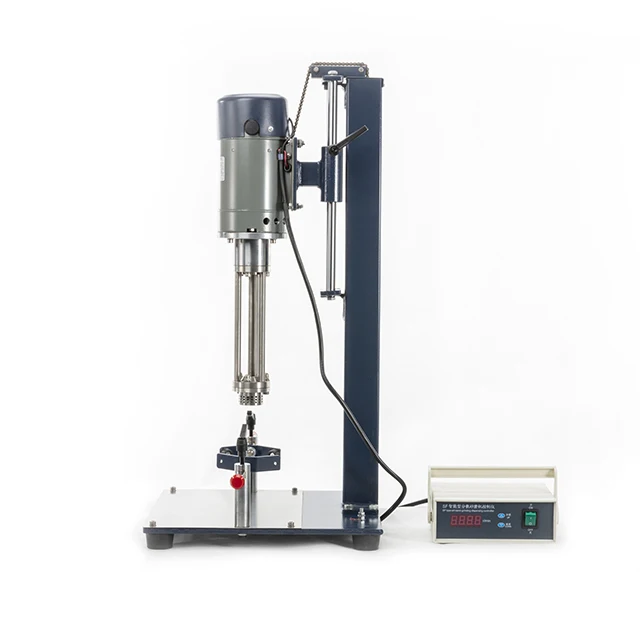

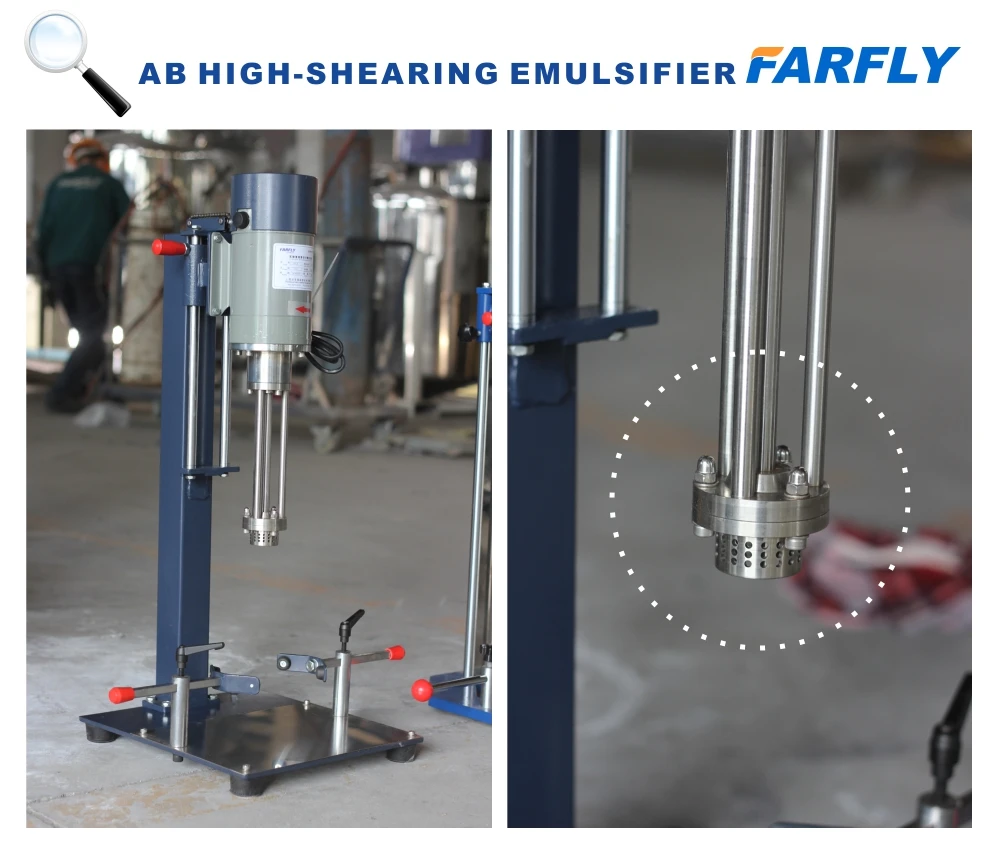

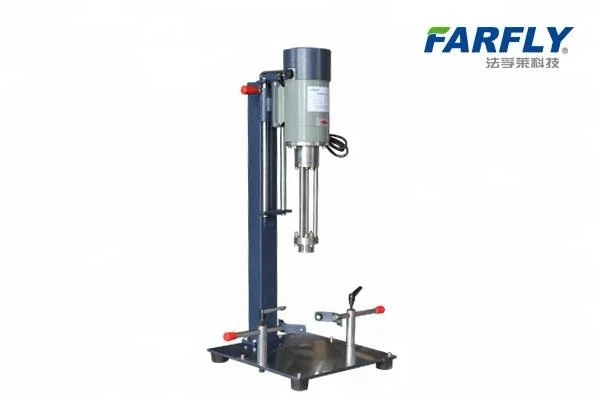

Emulsion Machine Emulsifying Homogenizer Mixer With Hydraulic Lifting FSL IV Lab High Shearing Dispersing Emulsifier Machine
- Category: >>>
- Supplier: Jiangsu Farfly Industrial Intelligent Equipment Co. Ltd.
Share on (1600934018546):
Product Overview
Description
General:
A farfly in batch high shear mixer offers a full range of mier for production scale. The design exceeds the high quality standards necessary to achieve optimal process results and withstand the rigors of difficult processes that require high shear mixing.The high shear mixer doesn't simply mix. It emulsifies, homogenises, solubilises, suspends, disperses and disintegrates solids. Each mixer, with its precision-engineered rotor/stator workhead, far outperforms conventional mixers,improving quality, product consistency and process efficiency.
Features of FSA high-shearing emulsifier :
Capacity
100 - 20,000 litres.

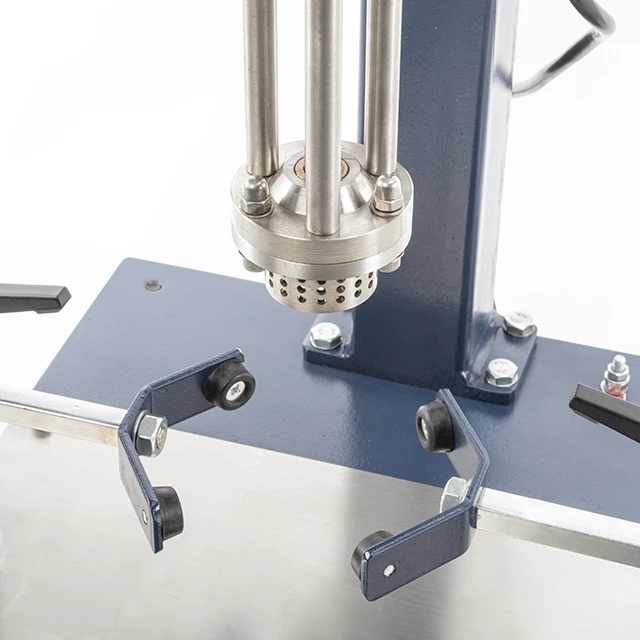

Workheads
Interchangeable workheads available for all models.
Materials of Construction
Product contact in SS304 or 316L stainless steel.
Motor Specification
1-132 kW, TEFC, flame proof, ATEX approved and stainless steel motors available as standard.
Mounting
All mixers can be supplied with either a rectangular or circular flange for mounting on the vessel. Smaller models can be mounted
on specially constructed mobile hydraulic floor stands.
Sealing
Where sealing is required, lip seals and single or double mechanical shaft seals can be supplied.
Cleaning
Simple, easy-to-clean construction.
100 - 20,000 litres.
Workheads
Interchangeable workheads available for all models.
Materials of Construction
Product contact in SS304 or 316L stainless steel.
Motor Specification
1-132 kW, TEFC, flame proof, ATEX approved and stainless steel motors available as standard.
Mounting
All mixers can be supplied with either a rectangular or circular flange for mounting on the vessel. Smaller models can be mounted
on specially constructed mobile hydraulic floor stands.
Sealing
Where sealing is required, lip seals and single or double mechanical shaft seals can be supplied.
Cleaning
Simple, easy-to-clean construction.

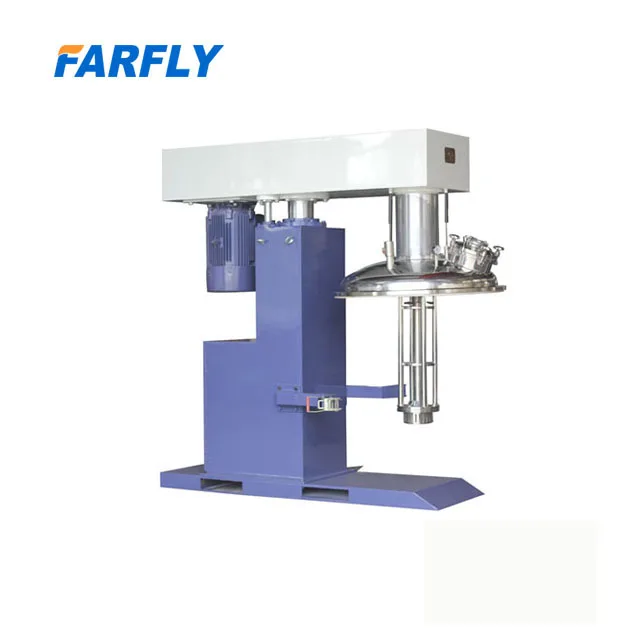

Types of High shearing emulsifier :
Type | Power KW | Handling Capacity L | Speed RPM | L (mm) | W (mm) | H (mm) |
FSY 11 | 11 | 600 | 2900 | 1600 | 900 | 2000 |
FSY 22 | 22 | 1000 | 1440 | 2100 | 1100 | 2400 |
FSY 37 | 37 | 2000 | 1440 | 2300 | 1100 | 2600 |
FSY 55 | 55 | 3000 | 980 | 2700 | 1400 | 2800 |
