Neutral industrial 64CH 8SATA HDDs 4K/8MP Bandwidth 384M Non POE Network Video Recorder support ultra H.265/H.265/H.264
Neutral industrial 64CH 8SATA HDDs 4K/8MP Bandwidth 384M Non-POE Network Video Recorder support ultra H.265/H.265/H.264
Neutral industrial 64CH 8SATA HDDs 4K/8MP Bandwidth 384M Non-POE Network Video Recorder support ultra H.265/H.265/H.264
Neutral industrial 64CH 8SATA HDDs 4K/8MP Bandwidth 384M Non-POE Network Video Recorder support ultra H.265/H.265/H.264
Neutral industrial 64CH 8SATA HDDs 4K/8MP Bandwidth 384M Non-POE Network Video Recorder support ultra H.265/H.265/H.264
Neutral industrial 64CH 8SATA HDDs 4K/8MP Bandwidth 384M Non-POE Network Video Recorder support ultra H.265/H.265/H.264
Neutral industrial 64CH 8SATA HDDs 4K/8MP Bandwidth 384M Non-POE Network Video Recorder support ultra H.265/H.265/H.264

Neutral industrial 64CH 8SATA HDDs 4K/8MP Bandwidth 384M Non POE Network Video Recorder support ultra H.265/H.265/H.264

Share on (1600934163377):


Price:$400.00 - $415.00

Quantity:


Product Overview

Description



Product Description






Features:
* Support Ultra H.265/265/H.264video formats
* 64-channel input
* Third-party IP cameras supported with 0NVIF conformance: Profile S,Profile G, Profile T
* Support 2-ch HD-MI, 1-ch VGA. HD-MI1 and HD-MI2 up to 4K (3840x2160) resolution
* HD-MI1, HD-MI2, VGA independent outputs provided
* Up to 12Megapixels resolution recording
* SupportRAID 0, 1, 5, 6, 10
* 8 SATA HDDs, Up to 10TB for each HDD
* Various fisheye dewarping modes for live view and playback for both web interface and GUI
* Support N+1 Hot spare
* Support for 12V Power output
* ANR technology to enhance the storage reliability when the network is disconnected


Specification


Model
NVR3864-V2
Video/Audio Input
IP Video Input
64-ch
Two-way Audio Input
1-ch, RCA
Network
Incoming Bandwidth
384Mbps
Outgoing Bandwidth
384Mbps
Remote Users
128
Protocols
P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HD-MI/VGA Output
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HD-MI1/HD-MI2(HD-MI audio output is not supported):
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output
1-ch, RCA
Synchronous Playback
16-ch
Corridor Mode Screen
3/4/5/7/9/10/12/16/32
Decoding
Decoding format
Ultra 265, H.265, H.264
Live view/Playback
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability
2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
Hard Disk
SATA
8 SATA interfaces
Capacity
up to 10TB for each HDD
eSATA
1 eSATA interface
Disk Array
Array Type
RAID 0, 1, 5, 6, 10
Smart
VCA Detection
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto trac
king, Object left behind, Object removed
VCA Search
Face search, Behavior search
Statistical Analysis
People counting
External Interface
Network Interface
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface
1 x RS232, 1 x RS485
USB Interface
Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0
Alarm In
16-ch
Alarm Out
4-ch
General
Power Supply
100~240 VAC
Power Consumption: ≤ 25 W (without HDD)
Working Environment
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

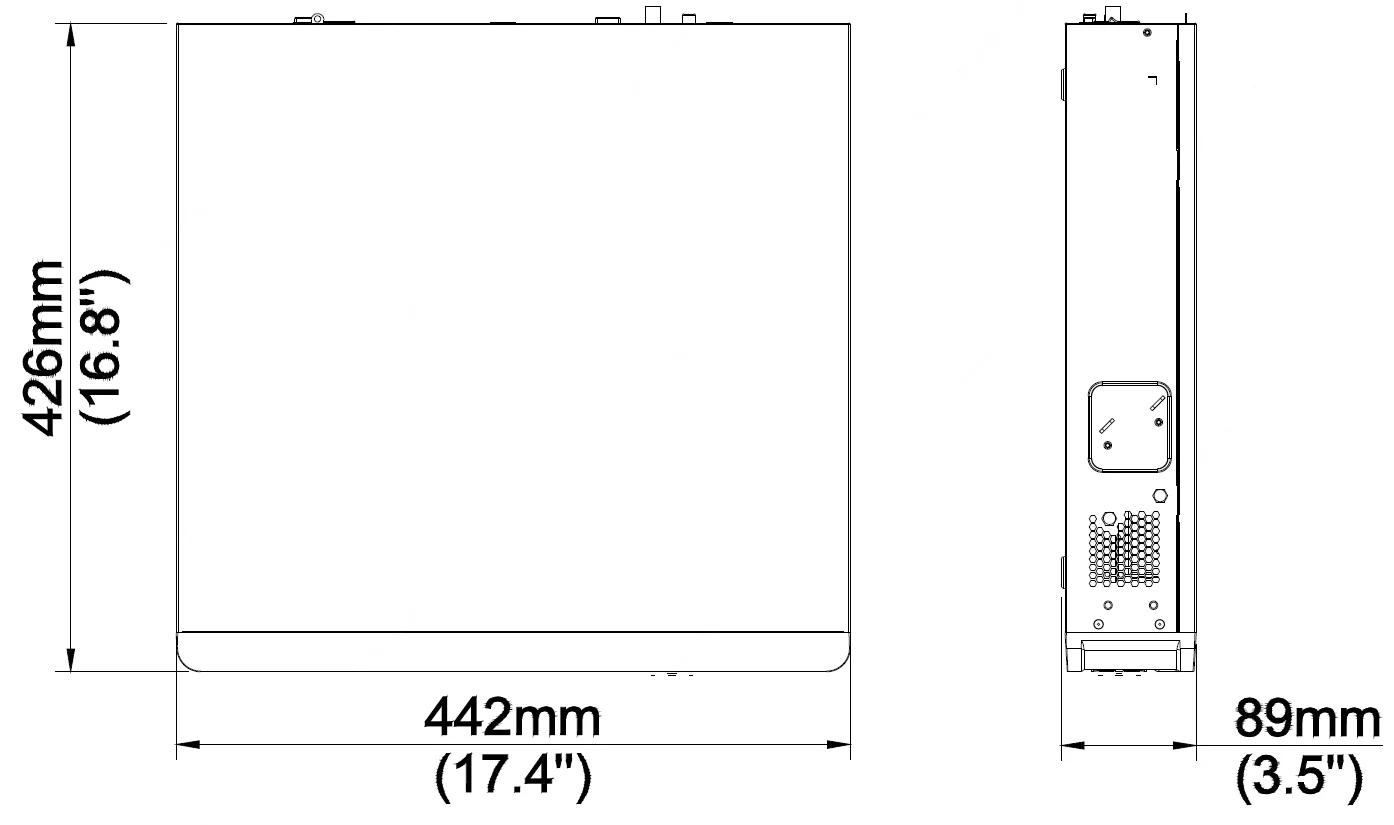

Dimensions (W×D×H)
442mm ×426mm× 89mm (17.4" × 16.8"× 3.5")
Weight (without HDD)
≤ 5.7Kg (12.57lb)


Packing & Delivery




Neutral Packing & OEM
