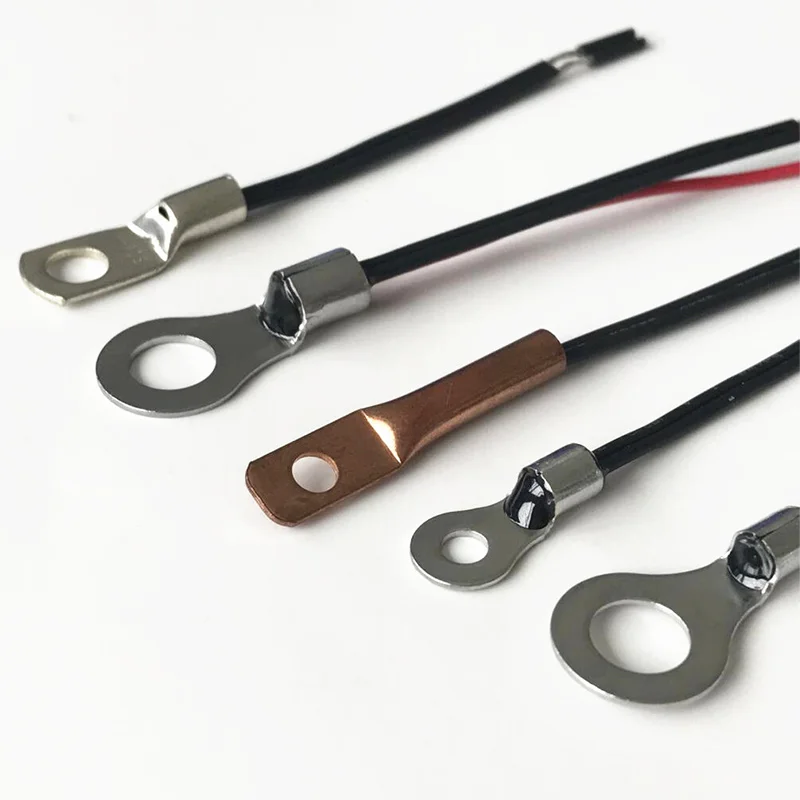

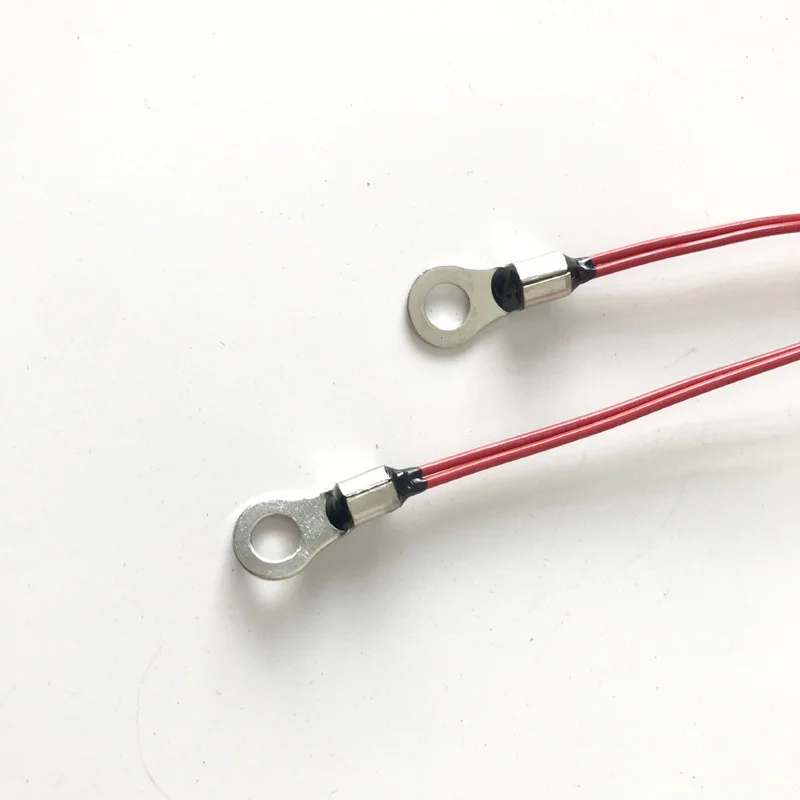

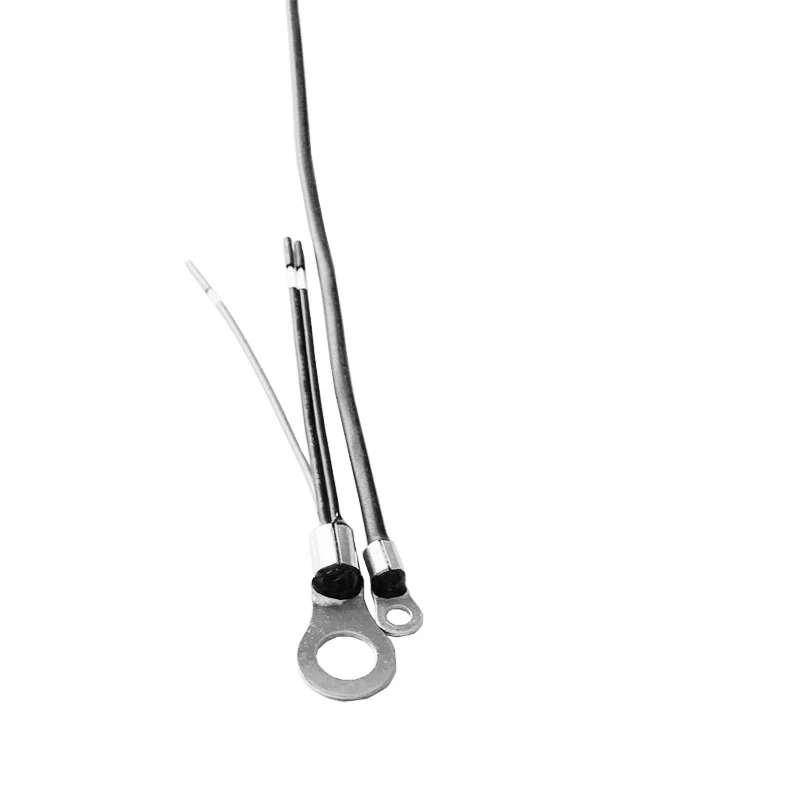

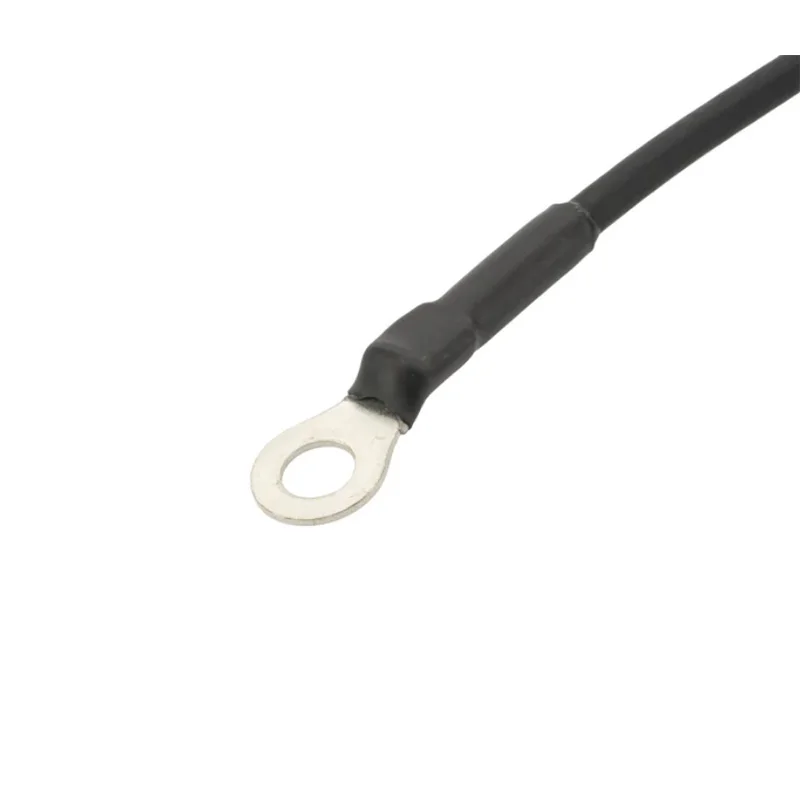

Water Resistant Epoxy Resin NTC Thermistor 10k 3892 Ring Lug Temperature Sensor for Heater
- Category: >>>
- Supplier: Focus Sensing And Control Technology Co. Ltd.
Share on (1600934174425):
Product Overview
Description

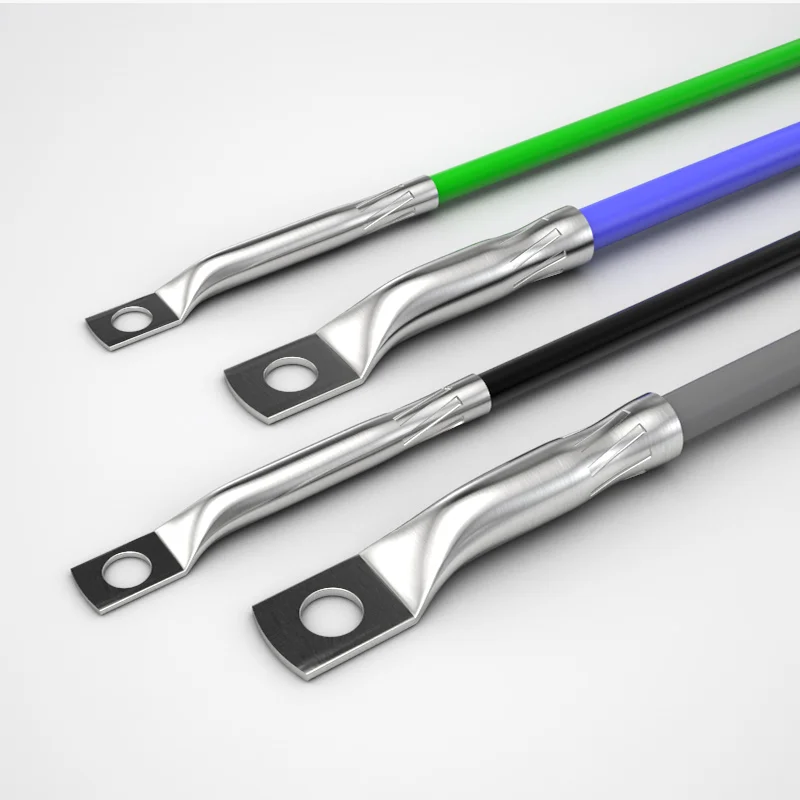

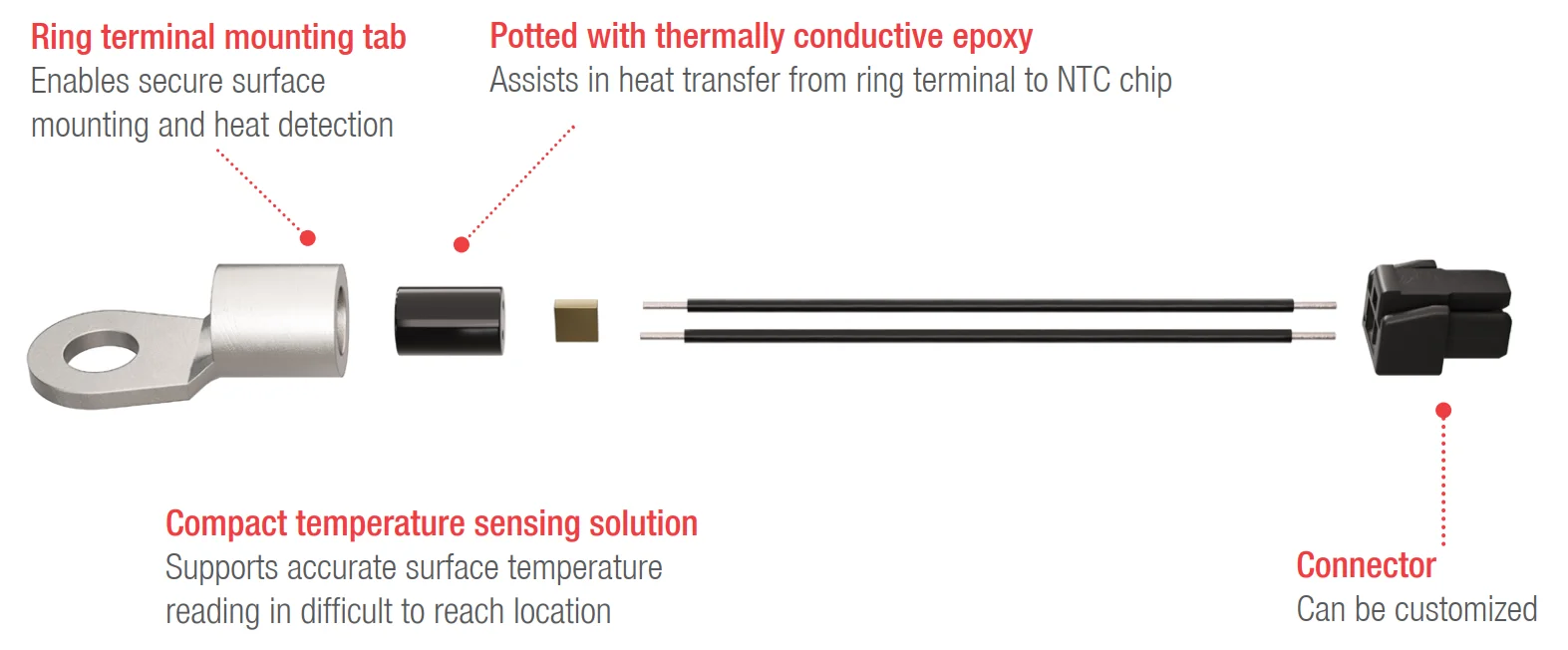

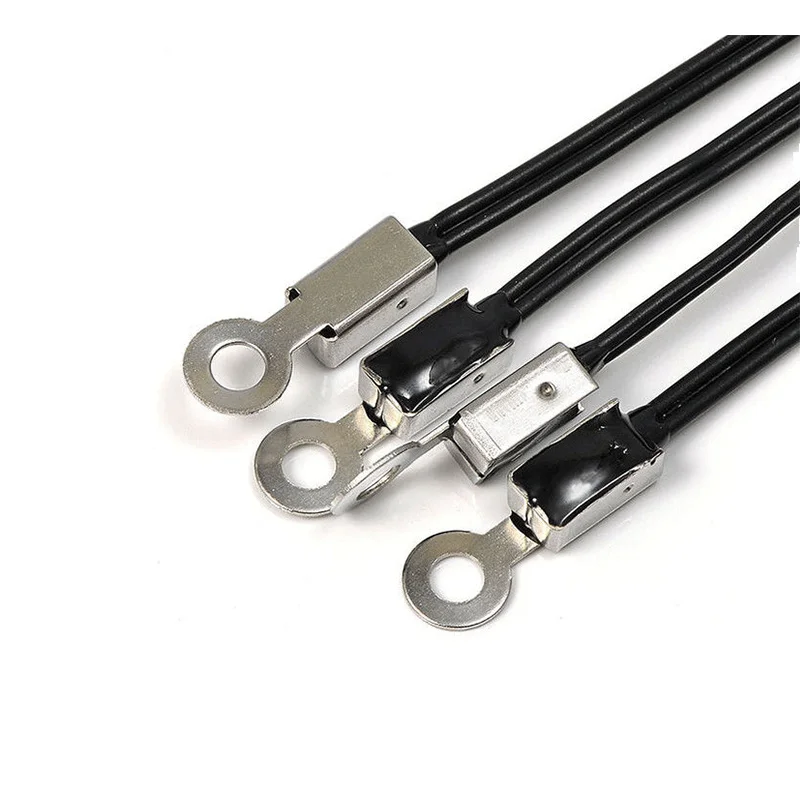

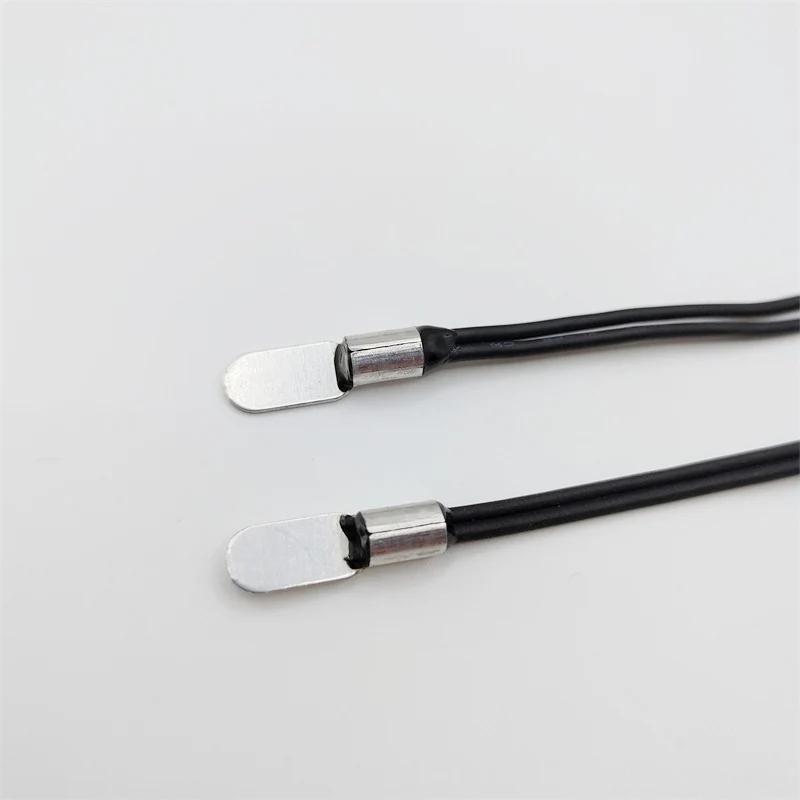

Ring Terminal Temperature Sensors are commonly used in the automotive and industrial markets allowing surface temperature measurement with designs and performance tailored to specific application requirements. The sensors consist of an NTC thermistor located within a ring-terminal, which is screw-fixed into position. The sensors are available in a variety of beta values, resistances, lengths and temperature ranges to meet a diverse range of applications.
PARAMETER | Connector | UNIT |
Resistance @ 25°C | 1, 4.7, 5, 8, 10, 12, 20, 30, 47, 50, 100, 1000 | kohms |
Resistance Tolerance | 1, 2, 3, 5 | % |
Beta Value | 3435, 3950, 3977, 3984, 4000 | K |
Temperature Range | -40 to +150; -40 to +105 | °C |
Thermal Time Constant | < 20 | S |
Temperature Coefficient Resistance | -4.4 | %/°C |
Max Power | 30 | mW |
Dissipation Constant (in air) | 3 | mW/K |

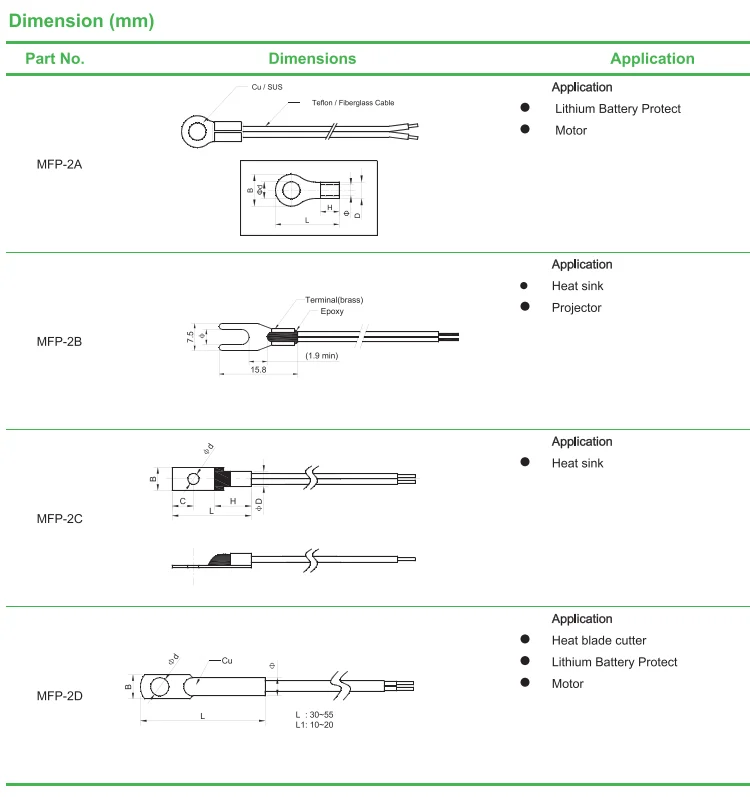

Mounting Hole Diameter | M3.5, M4, M6, M8, M10 | mm |
Wire Material | PVC, Silicone, Teflon | / |
Connector | Molex, JST, or Stripped | / |
◆ Ring lug terminals enable easy and secure surface mounting.
◆ Fast response time.
◆ Completely customizable; offer a variety of housings and lead wire gauges.
◆ Engineered to withstand extreme temperatures -40 to + 150°C.◆ Surface mount sensing with screw-fix location.
◆ Tailored resistance versus temperature.
◆ Environmental protection: IP57 and upwards.
◆ Completely customizable; offer a variety of housings and lead wire gauges.
◆ Engineered to withstand extreme temperatures -40 to + 150°C.◆ Surface mount sensing with screw-fix location.
◆ Tailored resistance versus temperature.
◆ Environmental protection: IP57 and upwards.
Flexible customize the product specifications and shape to match your applications.
ABOUT US
Focus Sensing and Control Technology
Co.,LTD is a Sensor expert works professionally in Temperature, Humidity, Level sensing Fields. We are ISO certified and patented factory located in National Grade High Tech Industry Zone of Hefei city, middle East China close to Shanghai.
Basically we works for 5 main industry lines , household electricity, Automobile, Medical, IoT and Industry. Under our brand name Focusens , we develop and produce thermistors and esistance Temperature Sensors NTC ,PTC
Basically we works for 5 main industry lines , household electricity, Automobile, Medical, IoT and Industry. Under our brand name Focusens , we develop and produce thermistors and esistance Temperature Sensors NTC ,PTC
RTD, we also R&D and manufacture varisous digital temperature sensors, Temp humidity transmitters, door switch sensors as well as float level sensors.All our products are RoHS and Reach compliance, reliability meeting relevant IEC standard or industry standard like AECQ.
Focusens have a project and sales engineer team that have almost 20 years sensor field experience, which enable us flexible and reliable product development and professional customer project support. We annually
develop 50+ new sensor solutions for different applications ,and we’ve exported to over 60 countries ,especially Westen European , South European , North America and South East Asia.
Focusens equipped with advanced processing assembling and testing machines like Auto Chip Selection Machine, Multi-Functional Computer Wire Cutting Machine, Precision Spot Welding Machine, 0.01’ Degree C super high precision thermal bath Machine, Precision constant humidity chamber etc.
Directly buy , distribution, agent or OEM, we welcome various models of cooperation. Drop us contact or visit , start your pleasant experience of cooperation with Focusens.
Directly buy , distribution, agent or OEM, we welcome various models of cooperation. Drop us contact or visit , start your pleasant experience of cooperation with Focusens.
