Bar feeder for cnc torna lathe TCK6340S 5 axis cnc turning machine
- Category: >>>
- Supplier: Shandong Gsk Cnc Equipment Co. Ltd.
Share on (1600934226153):
Product Overview
Description

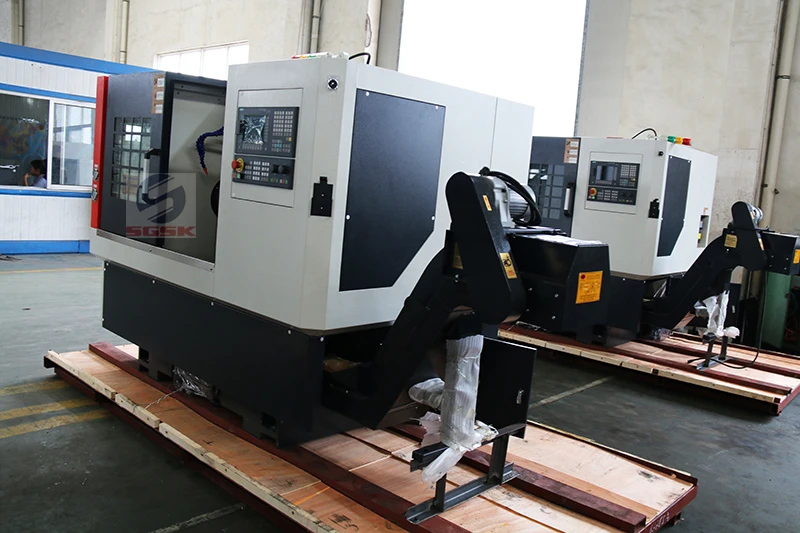

Bar feeder for cnc torna lathe
TCK6340S 5 axis cnc turning machine
Products Description
The main performance characteristics：

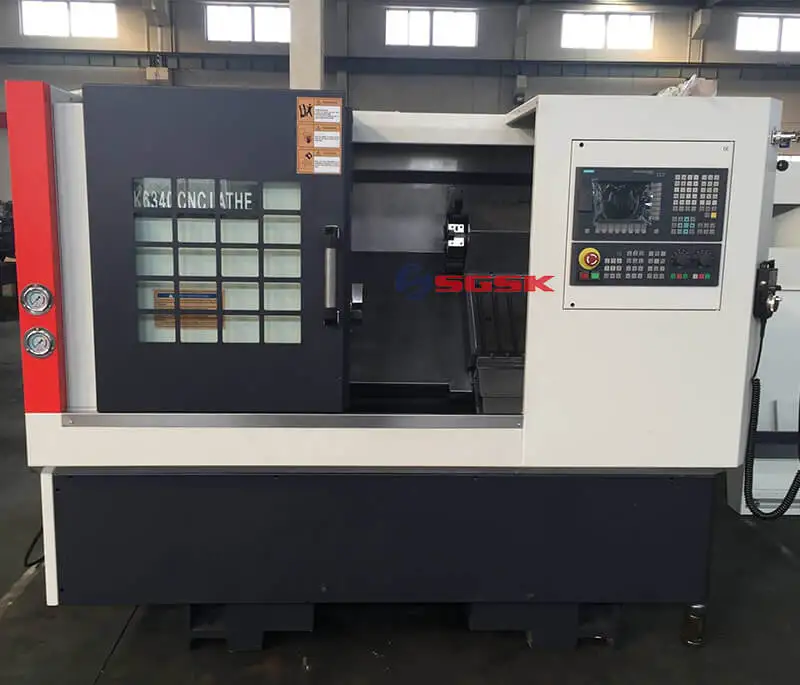

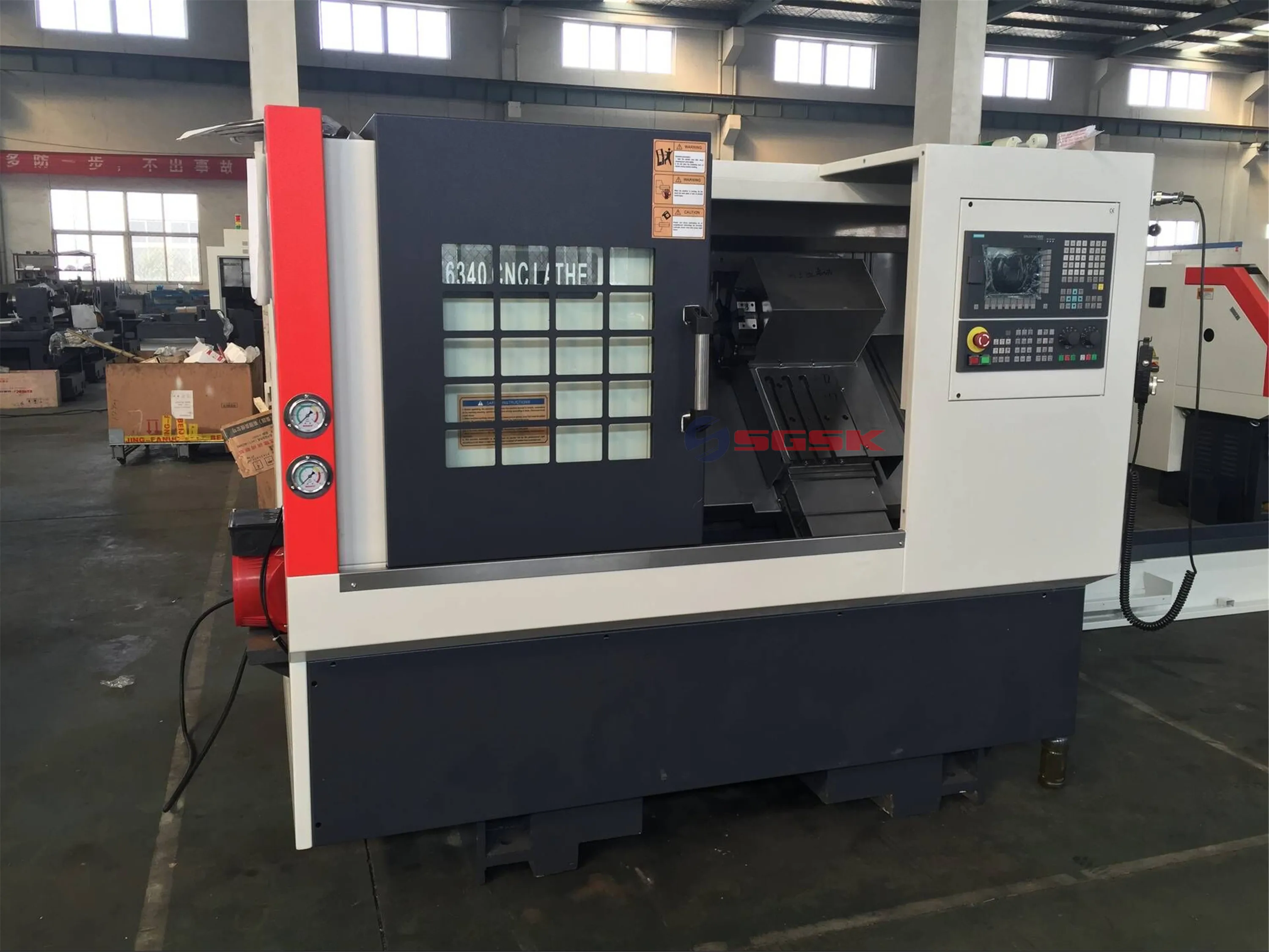

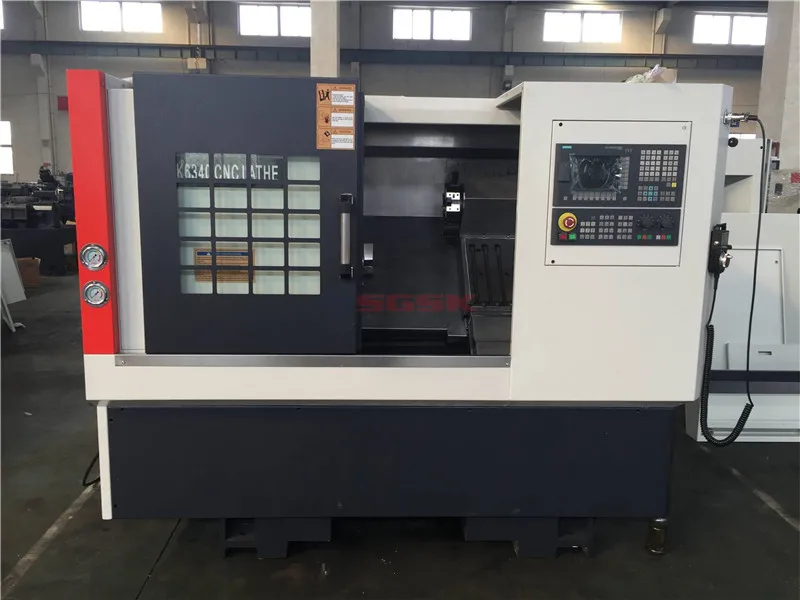

1.45 degrees slant bed CNC lathe

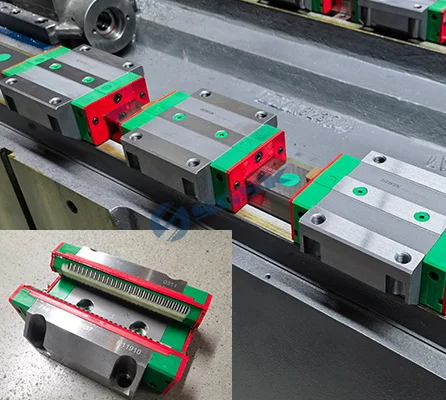

2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure
5.Gang type tool post
Standard Accessories
Fanuc Oi Mate-TD control system
Servo motor 3.7 kw
4 station gang type tool post
8" non thru-hole type hydraulic chuck
Optional Accessories
Main Motor: Servo5.5/7.5KW , Inverter 7.5KW
Turret: 4 station electric turret ,6 station electric turret
Chuck:6″Non-through hole hydraulic chuck ,8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Other optional item: Driving tool turret, automatic
feeding device and manipulator.
1.45 degrees slant bed CNC lathe
2.Higher accuracy Taiwan linear
3.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
4.Screw pre-stretching structure
5.Gang type tool post
Standard Accessories
Fanuc Oi Mate-TD control system
Servo motor 3.7 kw
4 station gang type tool post
8" non thru-hole type hydraulic chuck
Optional Accessories
Main Motor: Servo5.5/7.5KW , Inverter 7.5KW
Turret: 4 station electric turret ,6 station electric turret
Chuck:6″Non-through hole hydraulic chuck ,8″Non-through hole hydraulic chuck (Taiwan)
8″through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Other optional item: Driving tool turret, automatic
feeding device and manipulator.

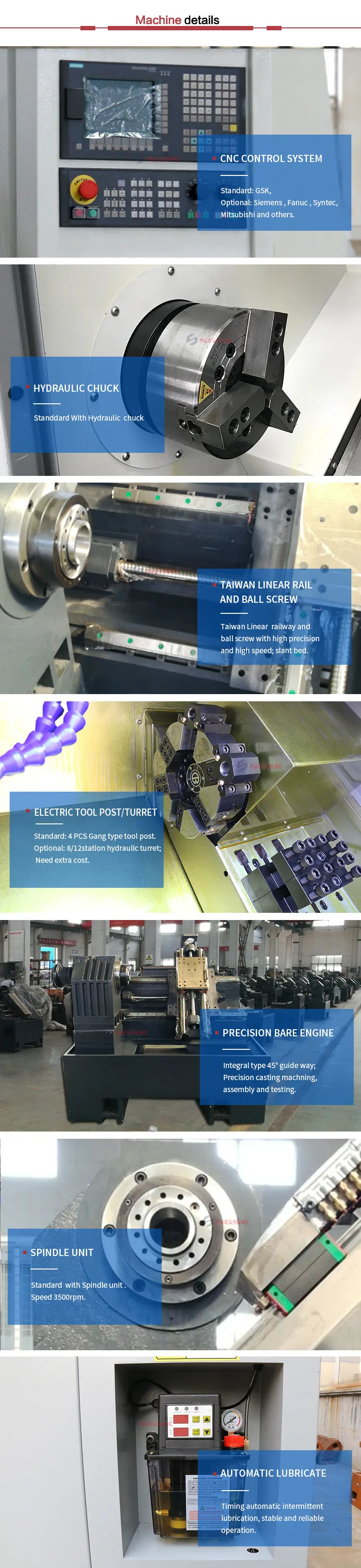

Details Images
SPECIFICATIONS | Units | TCK6340S |
Swing over bed | mm | 400 |
Swing over cross slide | mm | 140 |
Distance between centers | mm | 390/300 |
Spindle bore | mm | 48/56 |
Spindle nose type | - | A2-5 |
Spindle speed steps | - | Stepless |
Spindle speed range | rpm | 3500 |
Turret/tool post | - | Gang type |
Tool size | mm | 20x 20 |
X axis travel | mm | 400 |
Z axis travel | mm | 400 |
X axis rapid traverse | mm/min | 24000 |
Z axis rapid traverse | mm/min | 24000 |
Main spindle motor | kw | 5.5 |
Guide rail type | - | Linear rail |
Machine weight | kg | 2500 |

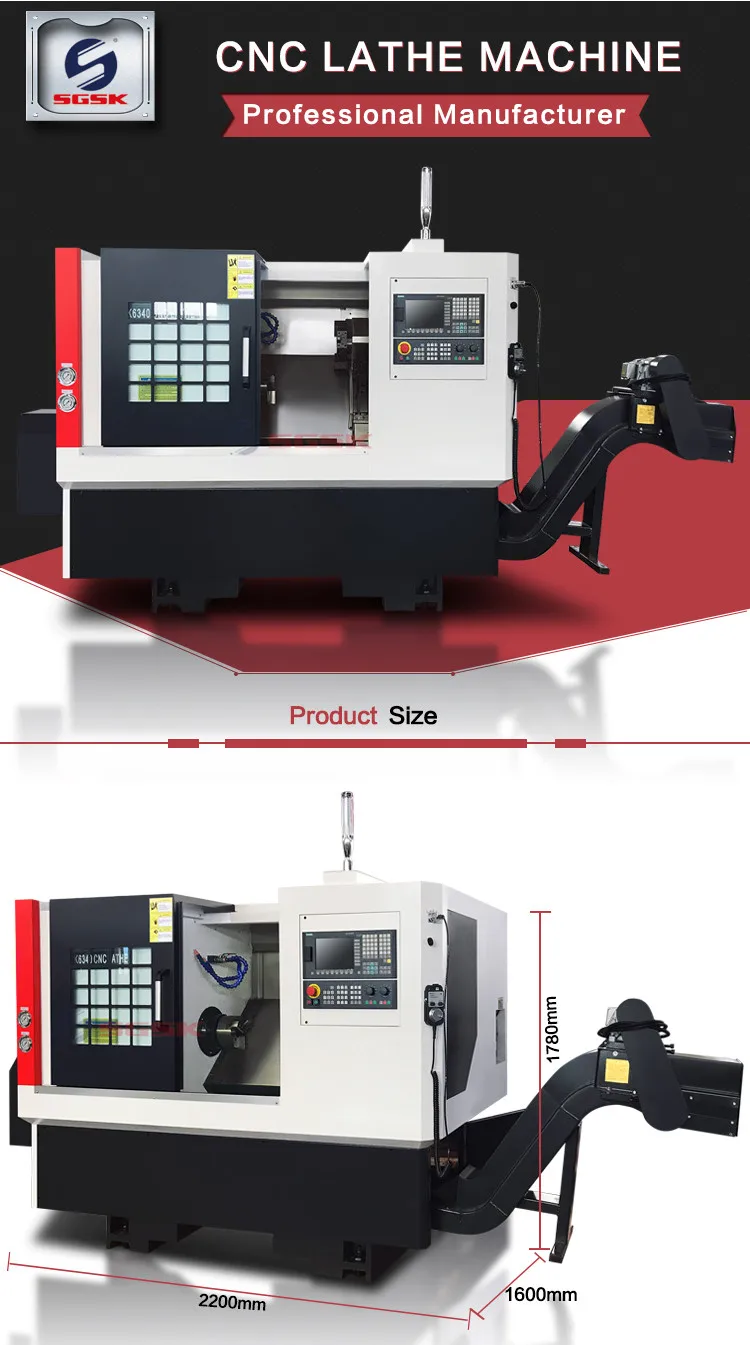

Overall dimension | mm | 2400x1600x1780 |
