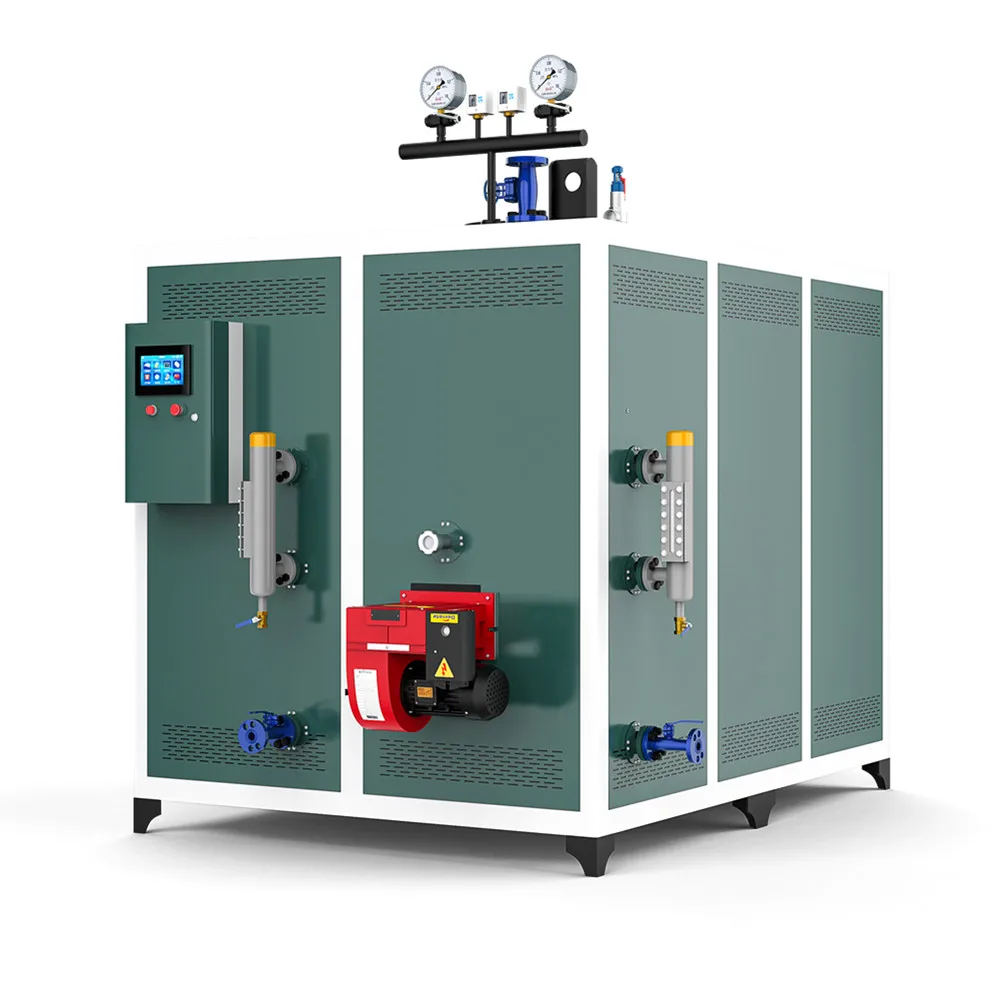

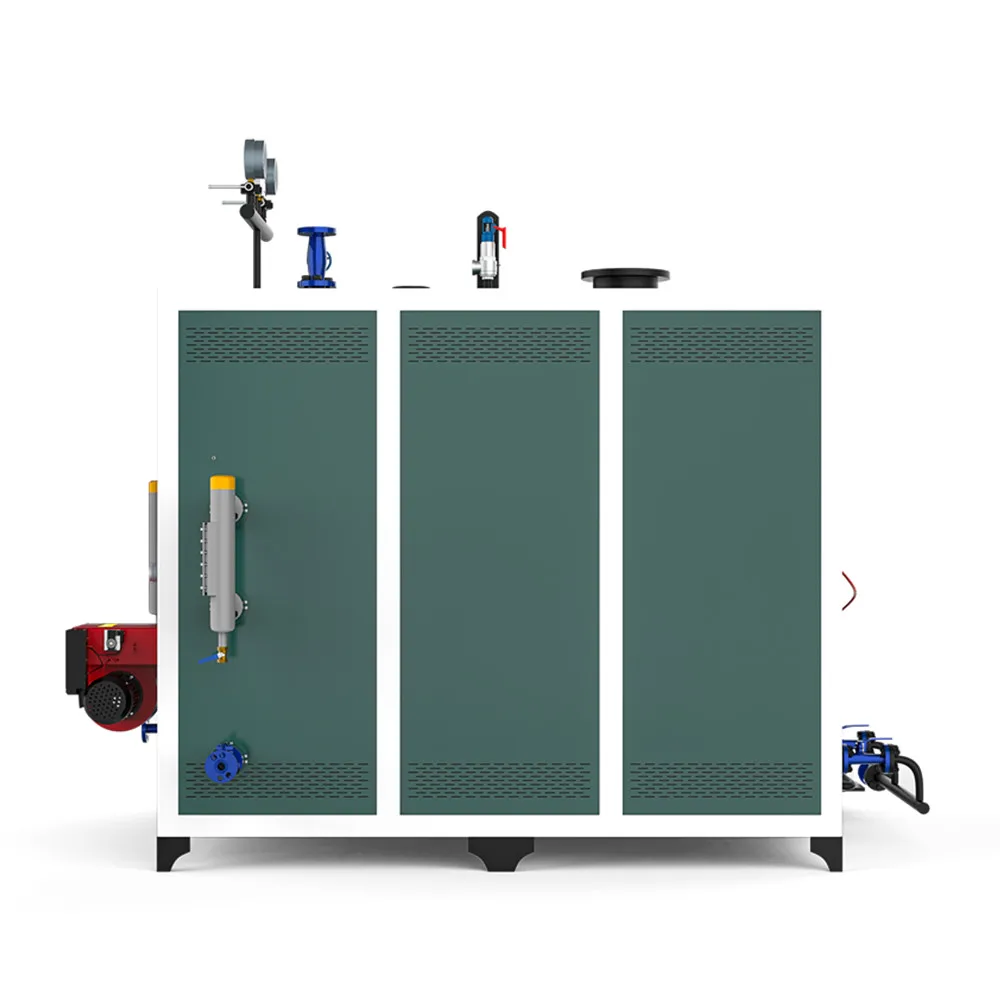

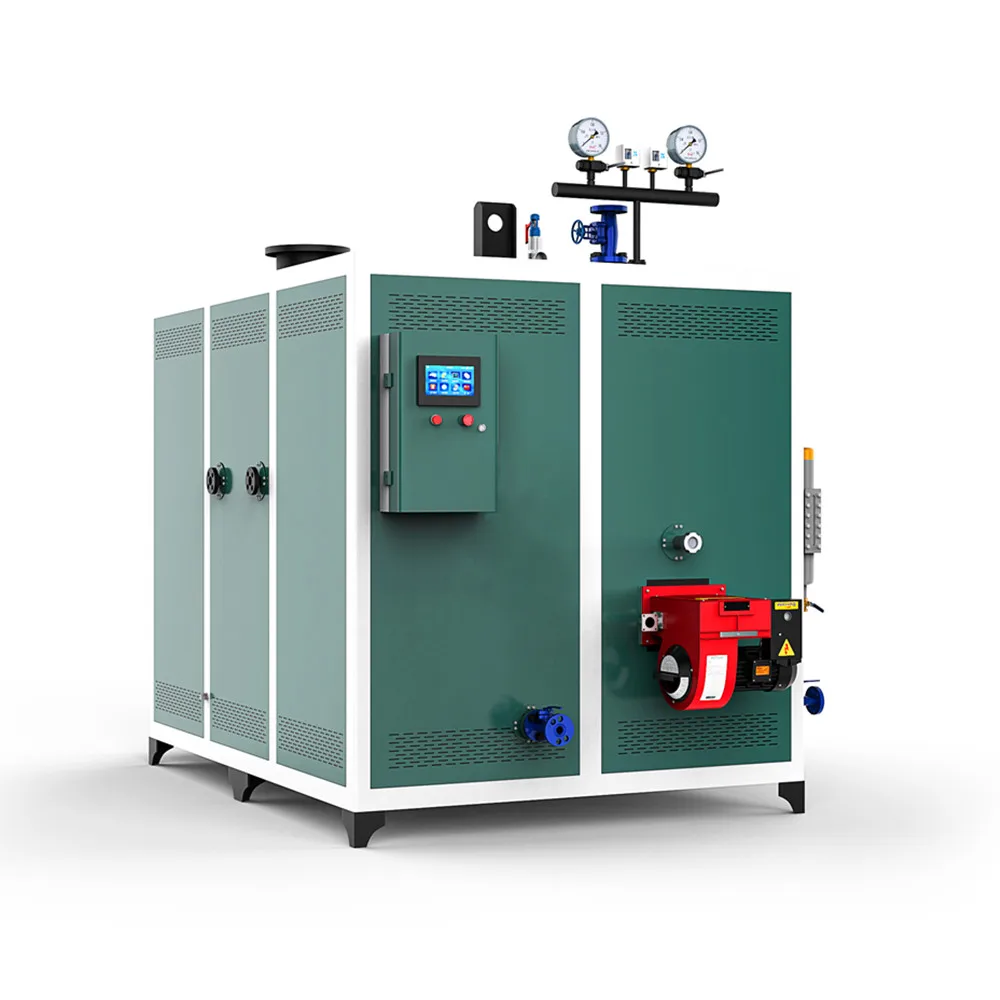

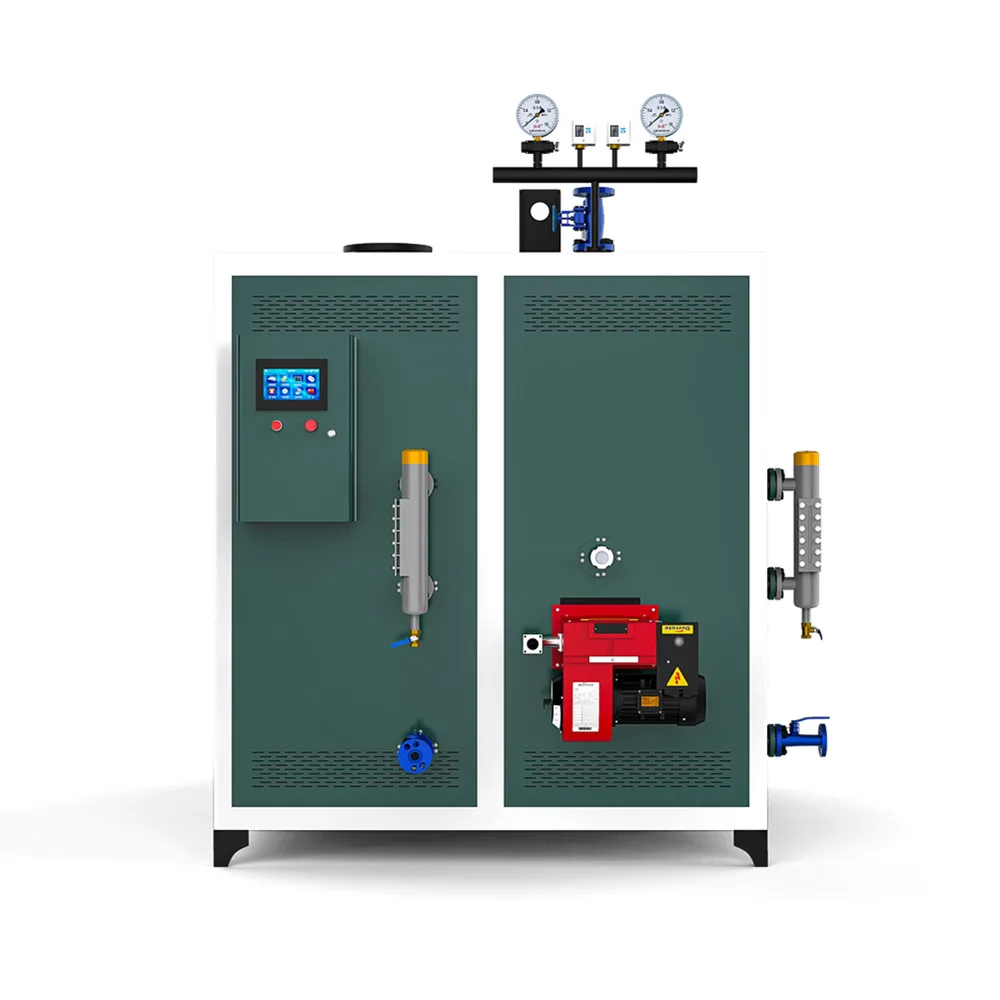

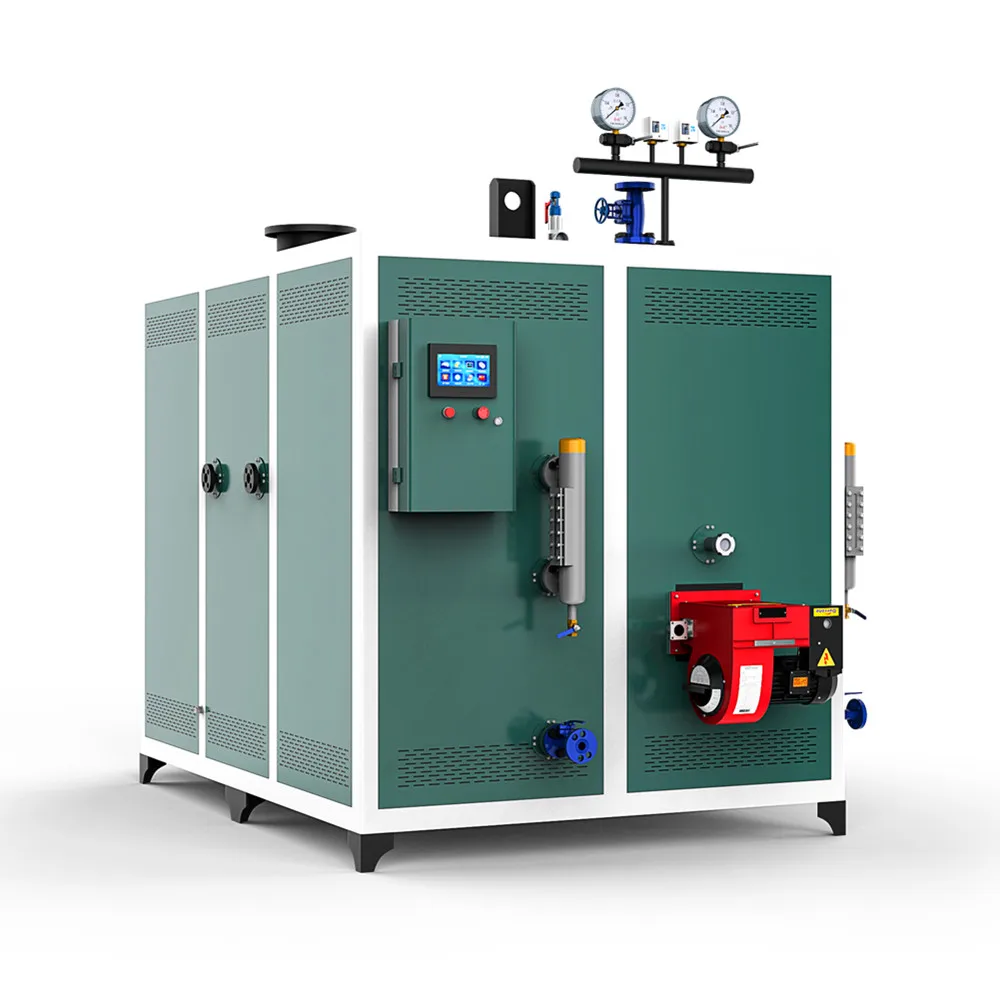

100kg 200kg 500kg 1T Industrial Gas Oil Commercial Boiling Pot 200l Steam Boiler
- Category: >>>
- Supplier: Wuhan Nobeth Thermal Energy Environmental Protection Technology Co. Ltd.
Share on (1600934238239):
Product Overview
Description
100kg 200kg 500kg 1T Industrial Gas Oil Commercial Boiling Pot 200l Steam Boiler
Product Description

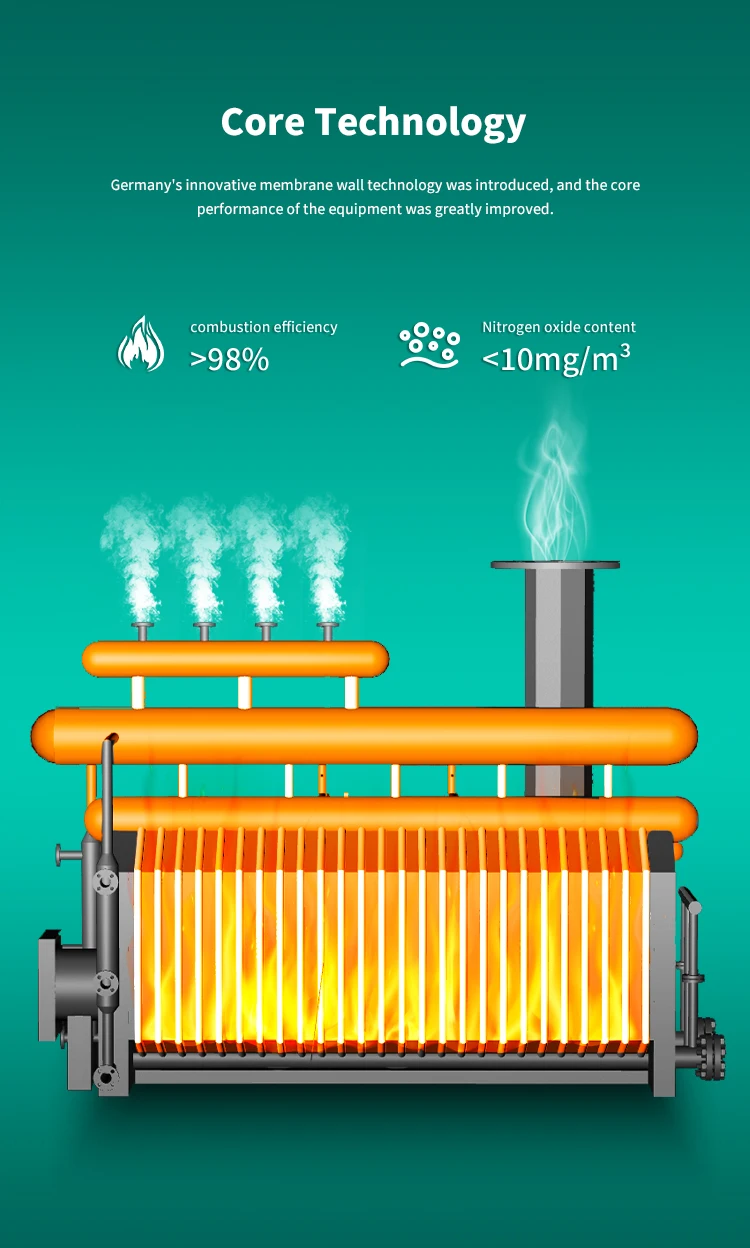

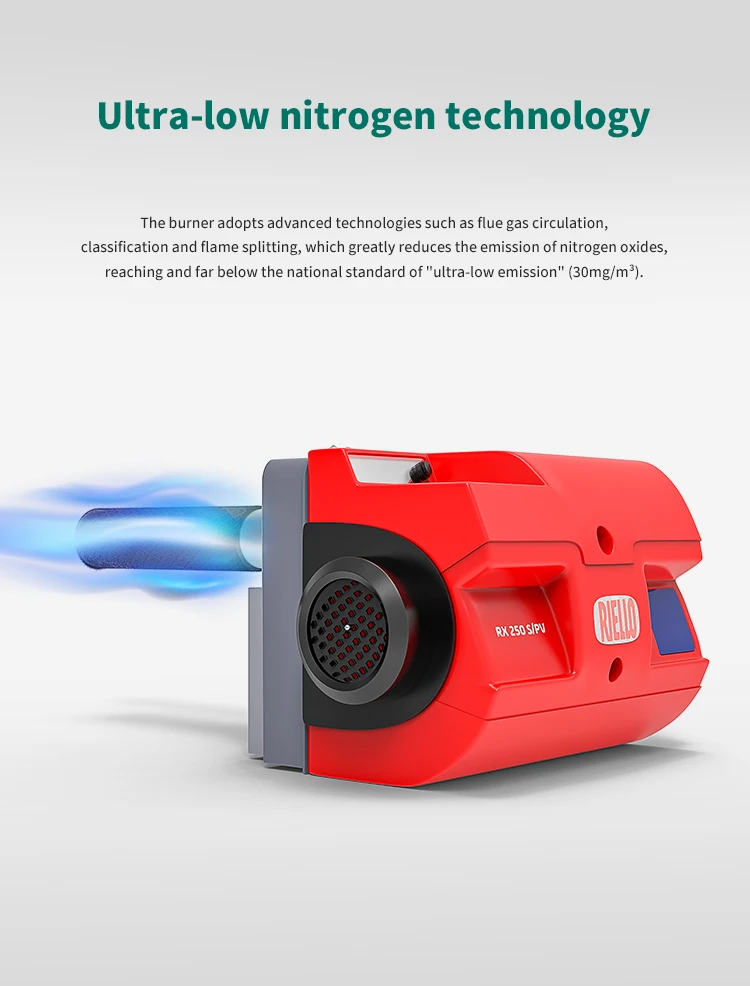

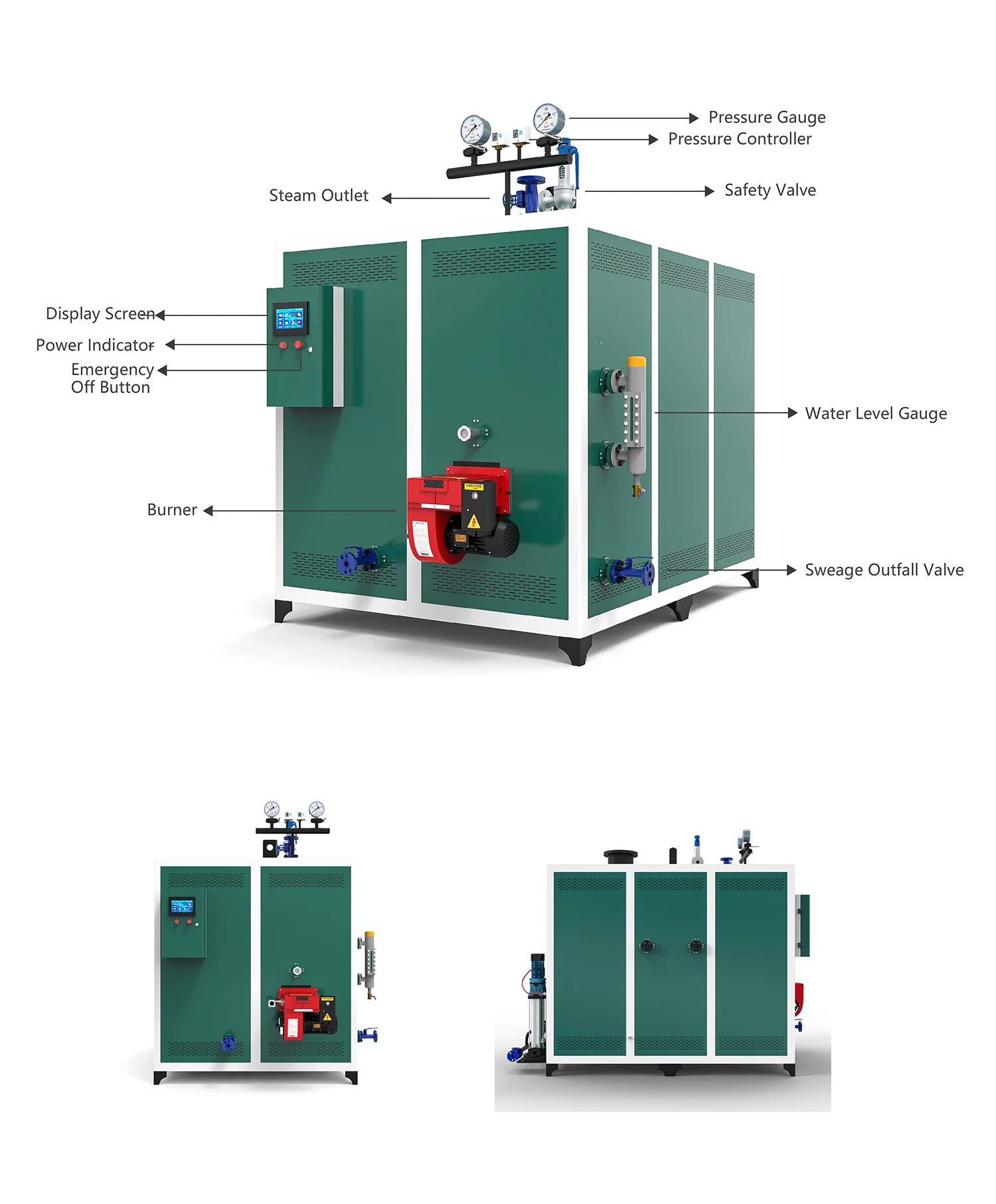

Nobeth fuel gas steam generator takes German membrane wall boiler technology as the core, also equipped with Nobeth’s self-developed ultra-low nitrogen combustion, multiple linkage design, intelligent control system, independent operation platform and other leading technologies. It is more intelligent, convenient, safer and stabler, and has outstanding performance in energy saving and reliability. Compared with ordinary boilers, it is more time-saving, labor-saving, cost-reducing and increasing efficiency.
The exterior design of this equipment strictly follows the process of laser cutting, digital bending, welding molding, and
exterior powder spraying. It can also be customized to create exclusive equipment for you.
The control system develops a microcomputer fully automatic control system, an independent operation platform and a human-computer interactive terminal operation interface,reserving 485 communication interfaces. With 5G Internet technology, local and remote dual control can be realized. Meantime, it can also realize accurate temperature control, regular start and stop functions,operate according to your production needs, improve production efficiency and save production costs.The device is also equipped with a clean water treatment system, which is not easy to scale, smooth and durable. Professional innovative design, comprehensive use of cleaning components from water sources, gallbladder to pipelines,ensure The airflow and water flow are continuously unblocked, making the equipment safer and more durable.
exterior powder spraying. It can also be customized to create exclusive equipment for you.
The control system develops a microcomputer fully automatic control system, an independent operation platform and a human-computer interactive terminal operation interface,reserving 485 communication interfaces. With 5G Internet technology, local and remote dual control can be realized. Meantime, it can also realize accurate temperature control, regular start and stop functions,operate according to your production needs, improve production efficiency and save production costs.The device is also equipped with a clean water treatment system, which is not easy to scale, smooth and durable. Professional innovative design, comprehensive use of cleaning components from water sources, gallbladder to pipelines,ensure The airflow and water flow are continuously unblocked, making the equipment safer and more durable.
Term | Unit | NBS-0.3(Y/Q) | NBS-0.5(Y/Q) |
Natural Gas Consumption | m3/h | 24 | 40 |
Air pressure (dynamic pressure) | Kpa | 3-5 | 5-8 |
LPG Pressure | Kpa | 3-5 | 5-8 |
Machine Power Consumption | kw/h | 2 | 3 |
Rated Voltage | V | 380 | 380 |
Evaporation | kg/h | 300 | 500 |
Steam Pressure | Mpa | 0.7 | 0.7 |
Steam Temperature | ℉ | 339.8 | 339.8 |
Smoke Vent | mm | 159 | 219 |
Pure Water Inlet (Flange) | DN | 25 | 25 |
Steam outlet (Flange) | DN | 40 | 40 |
Gas Inlet (Flange) | DN | 25 | 25 |
Machine Size | mm | 2300*1500*2200 | 3600*1800*2300 |
Machine Weight | kg | 1600 | 2100 |
FAQ
Q1: Are you manufacturer? or trading company? A: Nobeth is a professional boiler manufacturer with 22 years' experience. We are always adhered to the five core principles of energy conservation, environmental protection, efficiency, safety and inspection exemption. It has independently developed more than 200 series of products. Customization is our advantage. Welcome to visit our factory. Q2: OEM,ODM acceptable or not? Absolutely Yes. Q3:Can we visit your factory online? Absolutely no problem. Q4:Can online video inspection before shipment? Absolutely no problem. Q5: What's the MOQ ? Sample order is OK? MOQ:1 set, sample order is no problem. Q6:How to ensure product quality and after-sales service? We have CE, ISO quality certificate, and SGS authentication. Q7: Can it be customized? A: Yes, customized product is acceptable.
