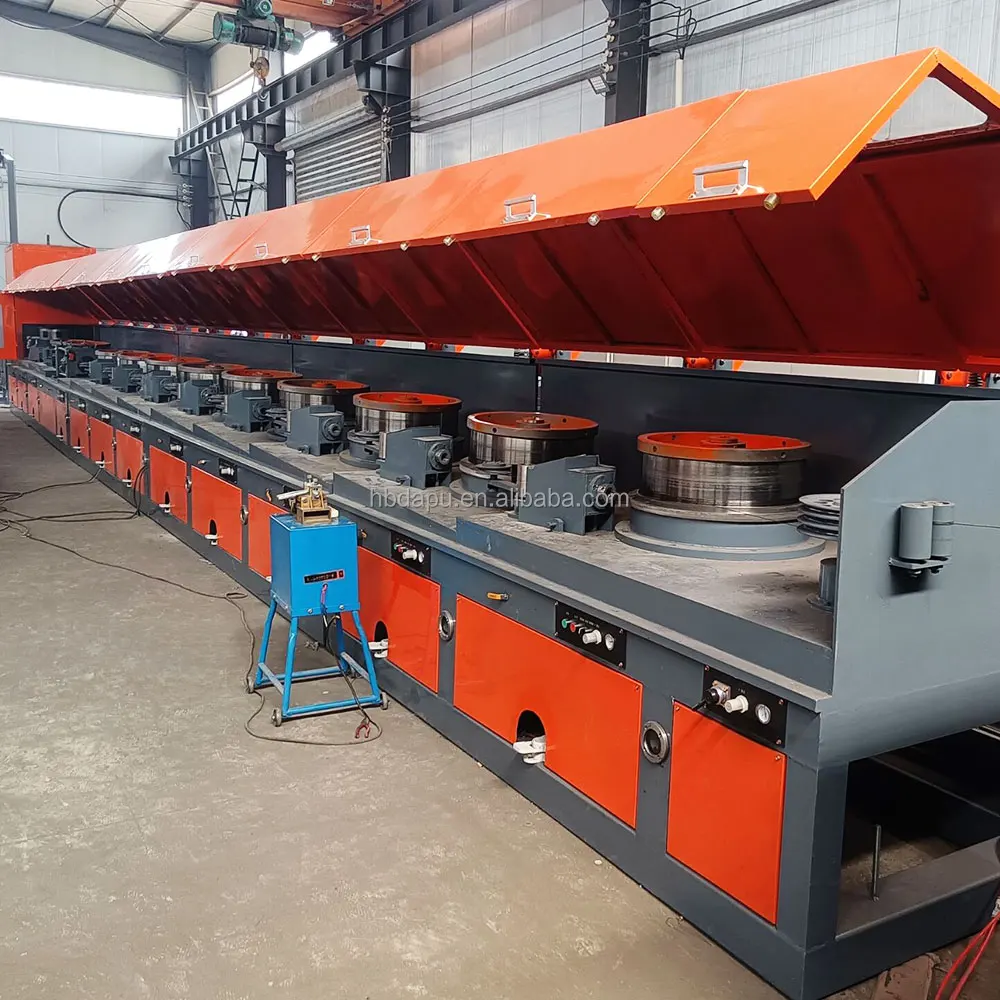

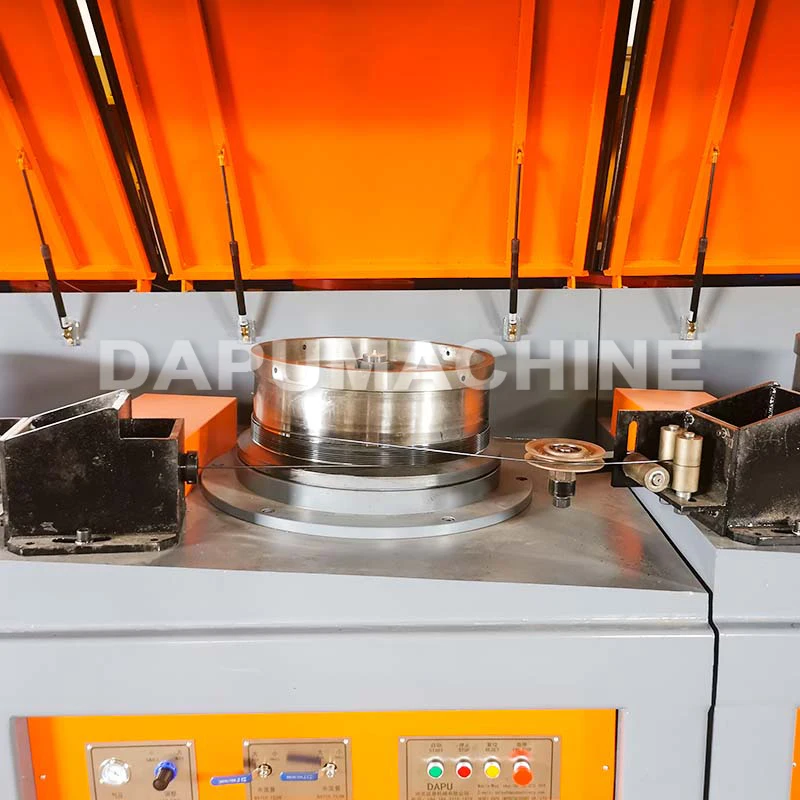

Copper Wire Drawing Machine with Annealing for Construction
The wire drawing machine is used to draw the wire diameter from big to small.
Finished small wire can be used to make nails, binding wire, welding mesh etc. construction site.
| Model | LZ-560 |
| Raw material | Low-carbon steel wire,wire tensile strength≤550MPa |
| Number of blocks | Max.12pcs |
| Input wire diameter | 8.0mm, 6.5mm,5.5mm |
| Output wire diameter | 4mm, 3mm, 2.5mm,2.2mm, 2mm,1.8mm,1.6mm, etc |
| Each motor capacity | 22kw |
| Drawing speed | Max.16-18m/s |
| Each block weight | 1500KGS |

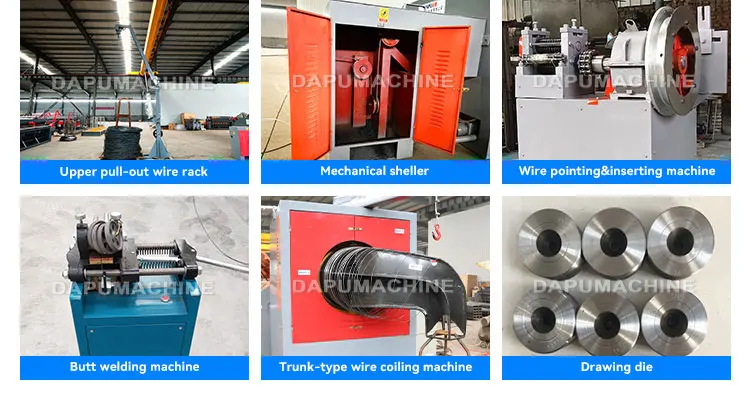

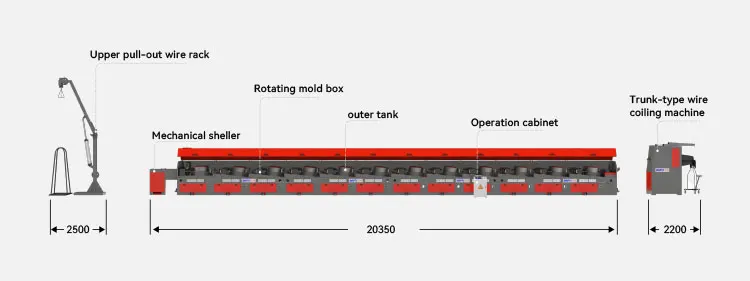

1.Upper pull-out wire rack is used to feed the wire material.
2.Sheller is used to clean steel rust and oxide coating on wire surface.
3. Wire pointing & inserting machine is used to make the wire head sharp, then insert into the drawing die directly.
4.Butt welding machine is used to connect new wire coil when one is finished.

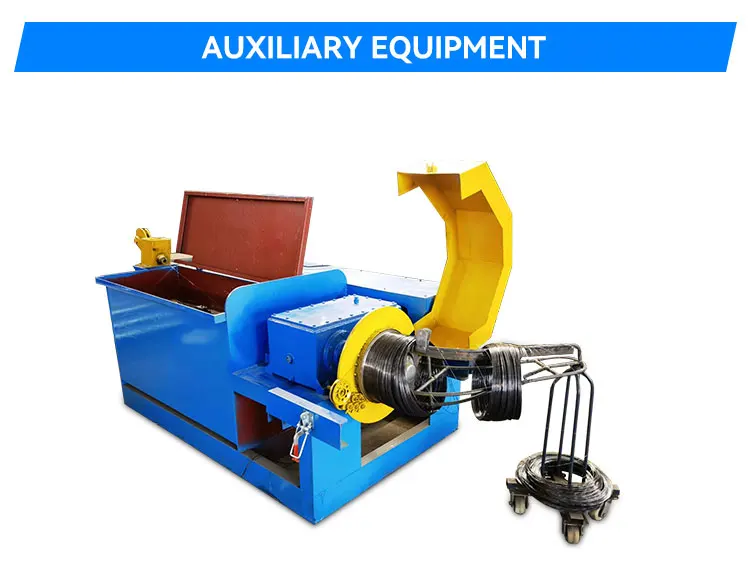

5.Trunk type wire coiling machine is used to coil the finished wire.
6.Wire coiling machine is used to coil the finished wire.
| Model | DLW-350 |
| Raw material | Annealed galvanized wire,black wire etc. |
| Input wire diameter | 3.0mm,2.5mm,2.2mm,2.0mm etc. |
| Output wire diameter | 1.2mm,1.0mm,0.8mm,0.6mm etc. |
| Drawing speed | Max.700m/min |
| Motor capacity | 22kw/30kw/45kw |
| Inverter | 22kw/30kw/45kw |
| Weight | 1800KGS |
1.Guarantee time: One or two years since the machine was installed at buyer's factory but within 18 months from shipment date.
2.Within guarantee time, if the parts are broken, we will send you new one for free.

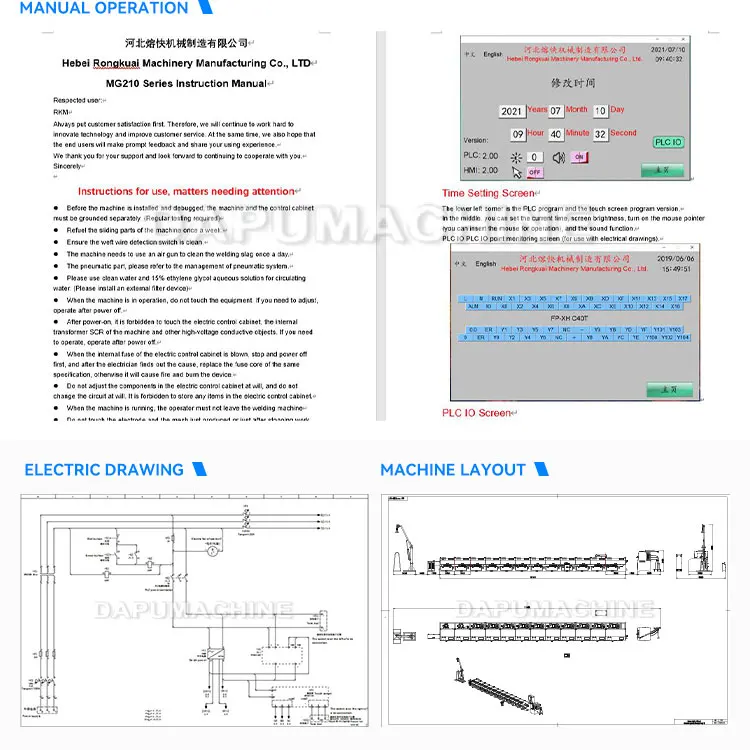

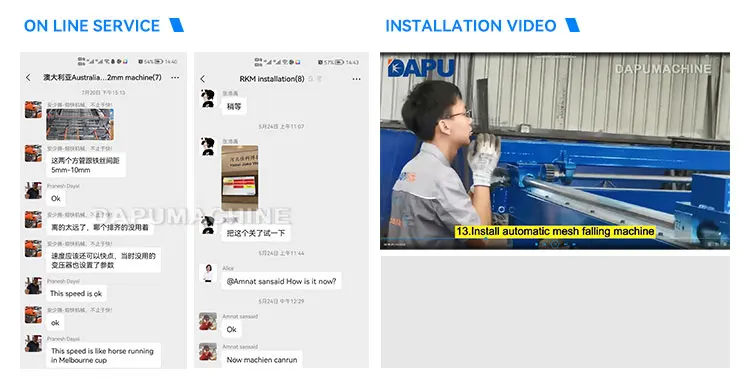

3.We can supply manual book, electric drawing, machine layout, installation video, etc. and our engineer can go to your factory to help you install the machine.
4.After guarantee time, we can supply technical support on line.

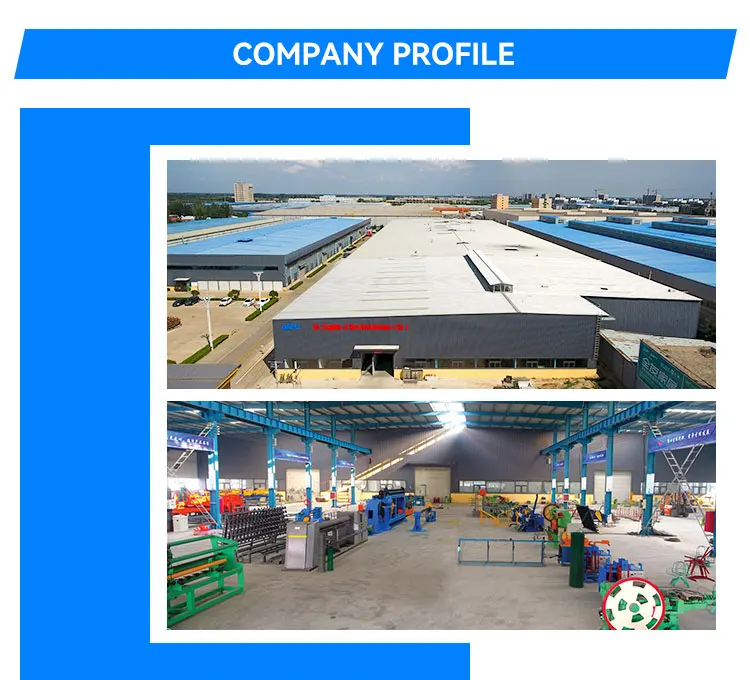

ABOUT US
DAPU company, located in Hebei Province of China, is engaged in designing, manufactu ring and exporting different types of wire mesh machines with European design&techniques.
We have complete and professional aftersales service system to help you install and operate the machines, solve your machine problems.
We can supply installation video, electrical drawing, manual operation, online technical support etc. We can also send the engineer to your place for machine installation and workers’ training.
FAQ
Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
