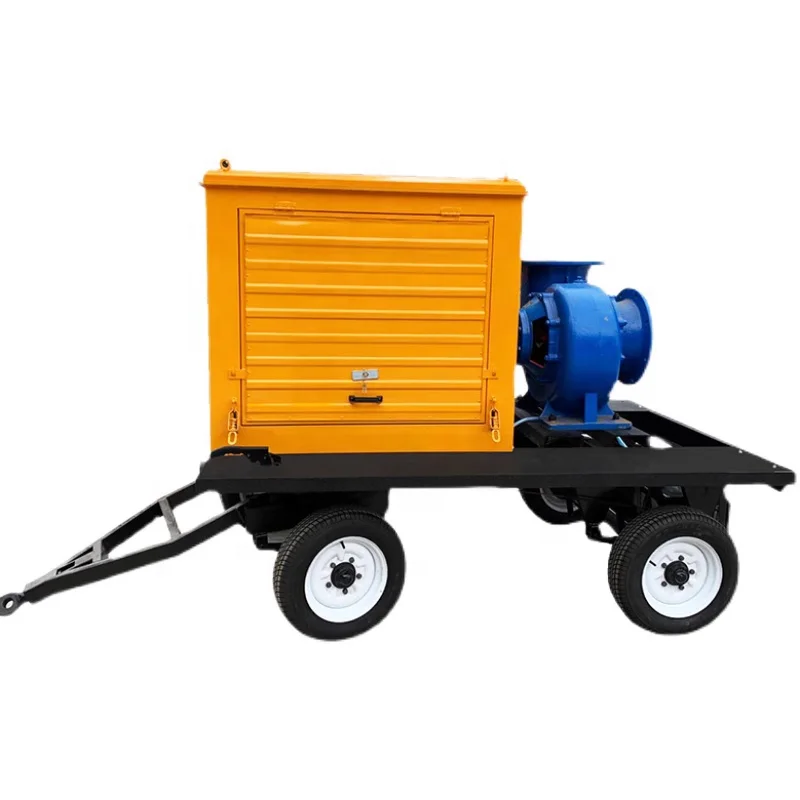

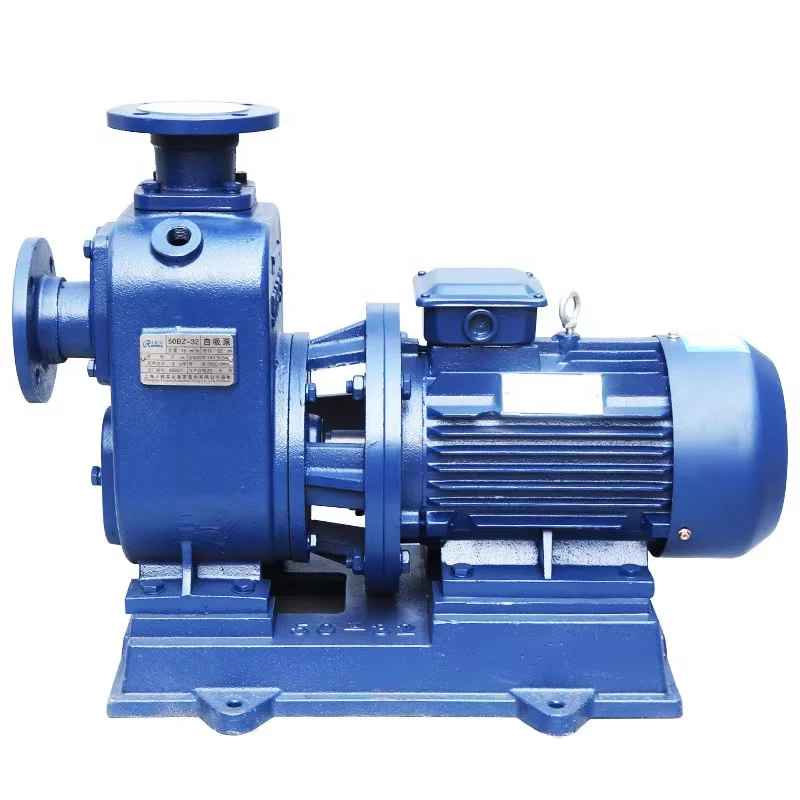

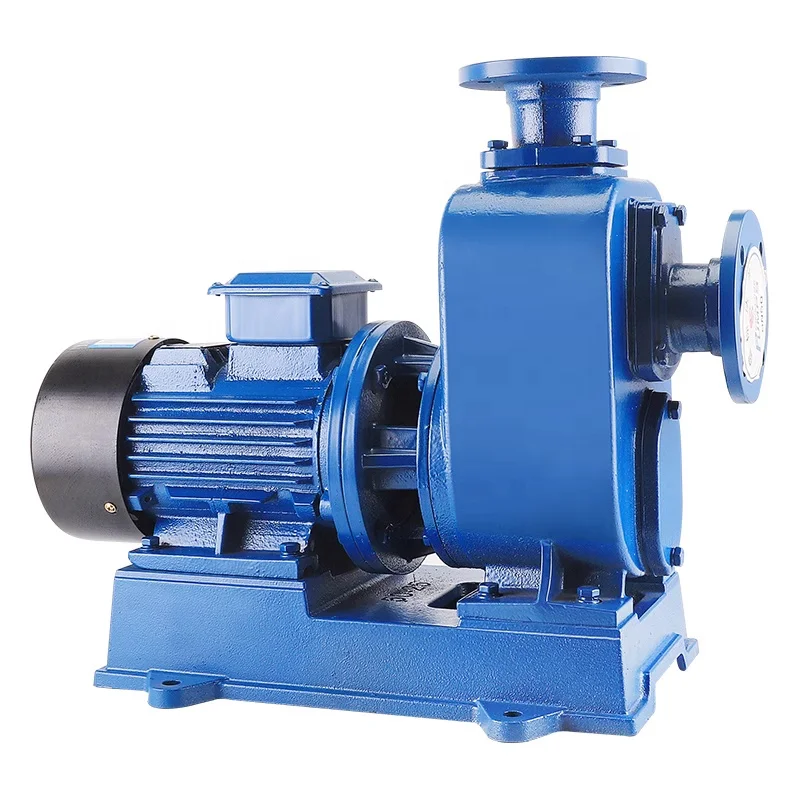

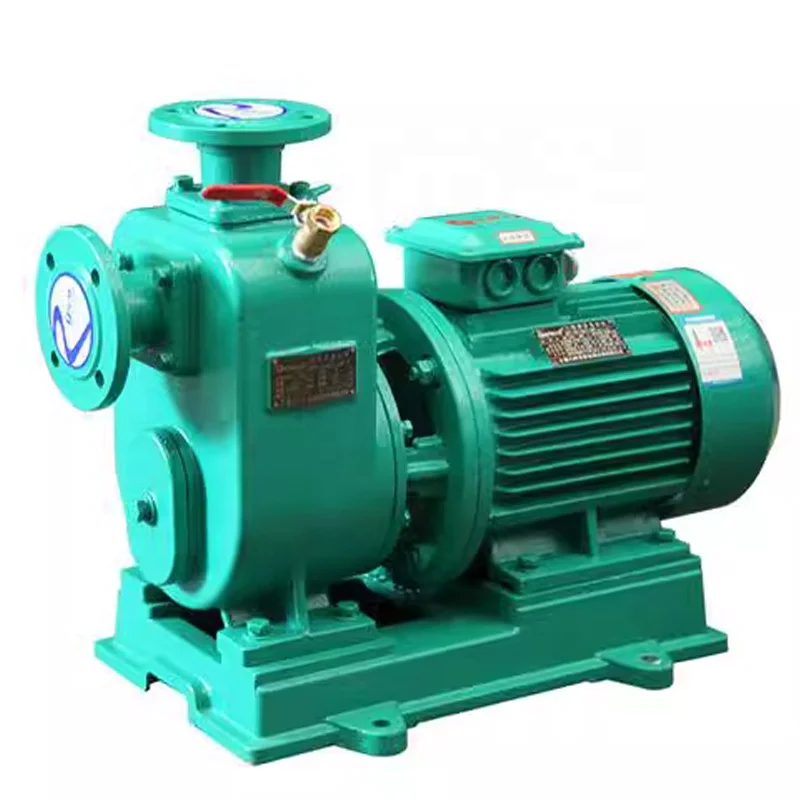

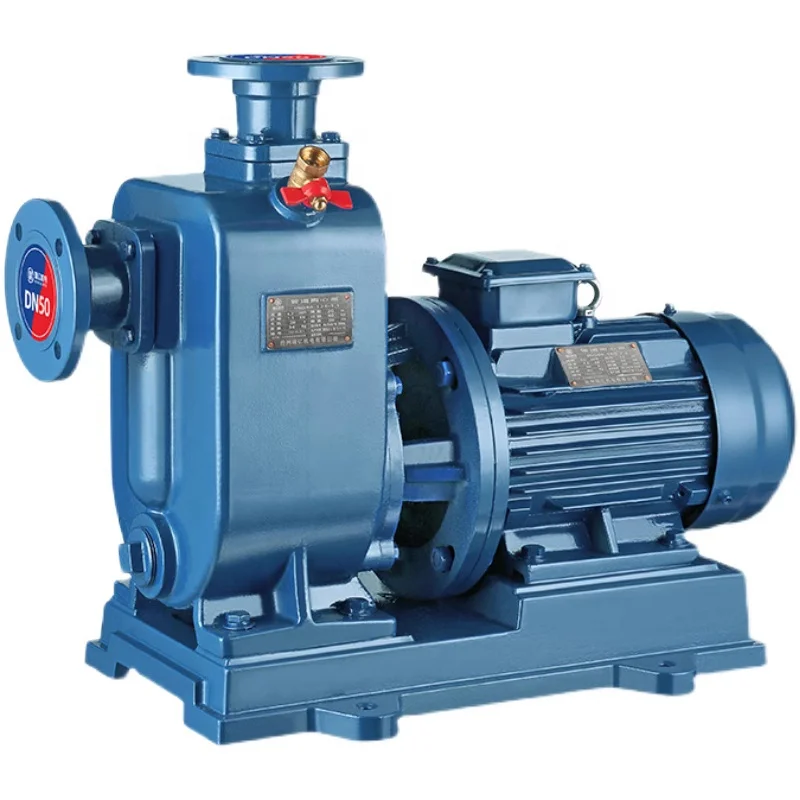

ZX Clear high lift water self priming pumps automatic Vacuum self suction electric centrifugal pumps Split self priming pump
- Category: >>>
- Supplier: Hebei Antai Water Pump Manufacturing Co. Ltd.
Share on (1600934287141):
Product Overview
Description
Product Description
The pump set of self-priming and non-clogged sewage in one, can be like the general water self-priming pump does not need to install the bottom valve, does not need to inject water, but also can be pumped containing large solid particles, long fiber of dirt, sediment waste mine impurities, feces treatment and all engineering sewage, completely reduce the labor intensity of workers, and use, mobile, convenient installation, very little maintenance, stable performance. Ambient temperature ≤45℃, medium temperature ≤60℃, medium PH of cast iron pump is 6-9, stainless steel pump is 1-14, through the maximum diameter of the particle is 60% of the caliber of the pump,Fiber length is 5 times the diameter, the total weight of impurities in the medium does not exceed 15% of the total weight of the medium, and the proportion of the medium does not exceed 1240kg/m³
Specification
item | value |
Warranty | 1 years |
Customized support | OEM, ODM, OBM |
Brand Name | dayu |
Model Number | 40ZW8-15 |
Place of Origin | China |
Hebei | |
Application | Developing World Water Solutions, Drinking water treatment, Wastewater Transport and Flood Control, wastewater treatment |
Horsepower | 2hp |
Power Source | Electric |
Pressure | Low Pressure |
Structure | Single-stage Pump |
Outlet Size | 40mm |
Voltage | 220V/380 |
Power | 4-55KW |
motor | standard |
Product Paramenters
Types | Discharge | Capacity | Head | Power | Speed | |||
(mm) | (m³/h) | (m) | (kw) | (r/min) | ||||
ZW40-15-30 | 40 | 15 | 30 | 3 | 2900 | |||
ZW50-10-20 | 50 | 10 | 20 | 2.2 | 2900 | |||
ZW65-65-25 | 65 | 65 | 25 | 7.5 | 2900 | |||
ZW80-50-60 | 80 | 50 | 60 | 22 | 2900 | |||
ZW100-80-80 | 100 | 80 | 80 | 45 | 2900 | |||
ZW150-180-14 | 150 | 180 | 14 | 15 | 1450 | |||
ZW200-280-28 | 200 | 280 | 28 | 55 | 1450 | |||
ZW250-420-20 | 250 | 420 | 20 | 55 | 1450 | |||
Types | Capacity | Head | Suction | performance | Speed | Power | ||
(m3/h) | (L/s) | （m） | (m) | (min/5m) | (r/min) | （kw） | ||
50ZX15-12 | 15 | 4.2 | 12 | 6.5 | 2.4 | 2900 | 1.5 | |
65ZX25-32 | 25 | 6.9 | 32 | 6 | 1.5 | 2900 | 5.5 | |
80ZX60-70 | 60 | 16.7 | 70 | 6 | 1.2 | 2900 | 22 | |
100ZX100-20 | 100 | 27.8 | 20 | 6 | 1.8 | 2900 | 11 | |
150ZX170-65 | 170 | 47.2 | 65 | 5 | 1.3 | 2900 | 55 | |
200ZX350-65 | 350 | 97.2 | 65 | 5 | 1.5 | 1450 | 110 | |
250ZX550-32 | 550 | 152.8 | 32 | 5 | 2 | 1450 | 75 | |
Company Profile
Hebei Antai Pump Manufacturing Co., Ltd. is based on slurry pump, desulfurization pump, double suction pump, sand and gravel pump as the main products, research and development, design, manufacturing, sales,
Service as one of the professional pump manufacturing enterprises, can provide users with modeling design, installation research, renovation, mapping and customization, machine accessories
Service. Since its establishment, the company has always pursued the enterprise purpose of survival by quality and development by reputation, strengthened enterprise management, and highlighted the service level.
The products are exported to Australia, East West Asia, Russia, Ukraine, Brazil, India, the United States, Canada, and other countries.
The European Union, etc. The registered capital of the company is 12 million yuan, with high-end professional equipment such as casting, processing, assembly, testing and inspection. The main product series are:
ATZJ, ATZJL, ATZXW, ATAH(R), ATM (R), ATHH, ATH, ATL (R), ATSP(R), ATG, ATZGB and other slurry pumps
ATDT, ATDTL, ATTL (R) and other desulfurization pumps, ATS, ATSH and other double suction pumps, ATSQ, ATSG, ATSW and other series of sewage pumps, caliber fan
Circumference 25-1000mm, flow 5-15000³/h, head 5-145m, widely used in waste incineration slag treatment industry, mining, power, coal,
Metallurgy, chemical industry, building materials, water conservancy and other industries. The company has a high level of domestic pump performance test center, with a perfect quality management system,
Strictly implement total quality management, has passed the $1 O9001 quality system certification. The company's manufacturing, sales and service procedures are complete, and products are reliable
Quality, superior performance obtained a number of professional certifications, and has import and export qualifications. Welcome new and old customers at home and abroad to visit our company to discuss cooperation!
We will provide customers with perfect and thoughtful professional services with high quality products. A hold of the hand, forever friends.
Service as one of the professional pump manufacturing enterprises, can provide users with modeling design, installation research, renovation, mapping and customization, machine accessories
Service. Since its establishment, the company has always pursued the enterprise purpose of survival by quality and development by reputation, strengthened enterprise management, and highlighted the service level.
The products are exported to Australia, East West Asia, Russia, Ukraine, Brazil, India, the United States, Canada, and other countries.
The European Union, etc. The registered capital of the company is 12 million yuan, with high-end professional equipment such as casting, processing, assembly, testing and inspection. The main product series are:
ATZJ, ATZJL, ATZXW, ATAH(R), ATM (R), ATHH, ATH, ATL (R), ATSP(R), ATG, ATZGB and other slurry pumps
ATDT, ATDTL, ATTL (R) and other desulfurization pumps, ATS, ATSH and other double suction pumps, ATSQ, ATSG, ATSW and other series of sewage pumps, caliber fan
Circumference 25-1000mm, flow 5-15000³/h, head 5-145m, widely used in waste incineration slag treatment industry, mining, power, coal,
Metallurgy, chemical industry, building materials, water conservancy and other industries. The company has a high level of domestic pump performance test center, with a perfect quality management system,
Strictly implement total quality management, has passed the $1 O9001 quality system certification. The company's manufacturing, sales and service procedures are complete, and products are reliable
Quality, superior performance obtained a number of professional certifications, and has import and export qualifications. Welcome new and old customers at home and abroad to visit our company to discuss cooperation!
We will provide customers with perfect and thoughtful professional services with high quality products. A hold of the hand, forever friends.
FAQ
Q:Are you a factory or trading company?
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production more than 20 years
Q:How can i get the quotation ?
A:Pls help to send the pump flow,head,power,caliber,voltage,frequency and quantity so that we could give you an accurate quotation
Q. What is your delivery time?
A: We have the stock with the sample order,7-15 days for container order. ( Busy season may need more days )
Q:What is your warranty ? What do we do in case of problems?
A:one year quality warranty is provided.In case of our quality problem, we will provide replacement by international courier.Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days
Q.How can we install the pump?
A:We have professional installation team and could provide one stop installation guide
Q:What is your payment terms?
A:Normally, 30% - 50% of total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also acceptable.The sample order payment with Paypal,Western union are both ok.
Q: How to place order?
A:Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production (7-15 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale service.
A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production more than 20 years
Q:How can i get the quotation ?
A:Pls help to send the pump flow,head,power,caliber,voltage,frequency and quantity so that we could give you an accurate quotation
Q. What is your delivery time?
A: We have the stock with the sample order,7-15 days for container order. ( Busy season may need more days )
Q:What is your warranty ? What do we do in case of problems?
A:one year quality warranty is provided.In case of our quality problem, we will provide replacement by international courier.Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days
Q.How can we install the pump?
A:We have professional installation team and could provide one stop installation guide
Q:What is your payment terms?
A:Normally, 30% - 50% of total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also acceptable.The sample order payment with Paypal,Western union are both ok.
Q: How to place order?
A:Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production (7-15 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale service.
