Product Overview
Description
The LMK-AB series
The LMK-AB series of mobile welding fume purification equipment adopts advanced filtering technology, which provides a solution for processing single-station welding fume. This series of equipment is mainly used for the purification of smoke and dust generated in welding, polishing, cutting, grinding and other processes, as well as the recovery of rare metals and precious materials. It has the characteristics of high purification efficiency, low noise, flexible use and small footprint. In order to meet the different requirements of the factory, the mobile dust purifier can be divided into two types: with automatic ash cleaning and without automatic ash cleaning.
1.Structural composition
The main components include: universal vacuum arm, high temperature resistant vacuum hose, vacuum hood (with air volume regulating valve), flame retardant net, flame retardant high-efficiency filter element, clean room, activated carbon filter, ash drawer combination, Burning sound-absorbing cotton, new Korean-style casters with brakes, fans, imported motors and electric control boxes, etc.
2.working principle
Through the gravitational force of the fan, the welding fume is sucked into the air inlet of the equipment through the universal dust suction hood. A flame arrester is installed at the air inlet of the equipment. Coarse dust is directly dropped to the ash hopper, particulate dust is captured on the outer surface by the filter element, the clean air is filtered and purified by the filter element, and then flows into the clean room from the center of the filter element, and the clean air is further purified by the activated carbon filter and then discharged through the air outlet up to standard .
3.place of use
Suitable for arc welding, carbon dioxide shielded welding, MAG welding, carbon arc gouging welding, gas fusion cutting, special welding and other workplaces that generate smoke.
4.Equipment detailed configuration table
（1）Device body
The shell is molded with 2mm thick cold-rolled steel plate, modular design, electrostatic powder spraying, anti-rust, anti-corrosion, connecting parts are made of stainless steel hinges, durable
（2）Universal smoking arm
Built-in Nederman-style high-strength cast aluminum humanoid arm skeleton, 360° arbitrary rotation, self-hovering design, light and flexible, imported pvc steel wire air duct, high temperature resistance 200°C, acid and alkali corrosion resistance, anti-aging, air suction Tube diameter 150/160mm, hose color is dark blue/gray/black (optional), length: 2m/2.5m/3m (optional)
（3）smoking hood
Nederman-style ABS engineering plastic cover, durable, aging and high temperature resistance, guaranteed for 10 years
（4）Handling air volume
1500-3600m³/h
（5）Filter area
12㎡
（6）Purification efficiency
99.9%
（7）Noise
72±3dB
（8）Suction port speed
15-20m/s
（9）Main filter guard
The high-strength carbon steel equalizing plate in front of the main filter element prevents the impact of high-speed dusty smoke on the main filter element and prolongs the service life of the filter element
（10）main filter
Using high-efficiency imported nanofiber filter material, PTFE polyester film-coated filter material, the filtration accuracy is as low as 0.3 microns, Φ325*465mm, and the service life is 1-1.5 years (according to the actual working conditions and the amount of smoke and dust)
（11）Pre-coarse filter dust filter element
The air inlet of the main body has a built-in first-grade carbon steel dense coarse-effect filter to prevent welding slag and sparks from entering the equipment main body
（12）Fire prevention and control system
First-level coarse-effect filtration at the smoking port + second-level coarse-effect filter at the air inlet of the main body + high-temperature-resistant flame-retardant filter element
（13）Motor
Domestic high-quality energy-saving motor, power: 1.5/2.2/3.0kw
（14）power supply 380V/50HZ
（15）power cable Three five-core power cords, standard 2m (excluding plugs)
（16） Electronic control system The electric control panel is simple and clear, and the components are made in China Chint components (Schneider components are optional)
（17）Mesh diffuse air outlet The air outlet of the main body adopts mesh diffuse air outlet, the exhaust air is uniform and soft, avoiding secondary dust on the ground and direct impact on workers, avoiding discomfort
（18）noise reduction system The motor compartment has a built-in noise reduction and sound absorption device to greatly reduce the noise
（19）Swivel casters It is equipped with special new Korean-style universal casters with brakes to facilitate the random movement and positioning of the equipment.
Typical use:
Welding fume purification, manual welding fume purification, welding fume purification
Welding fume purification, manual welding fume purification, welding fume purification
1.Structural composition
The main components include: universal vacuum arm, high temperature resistant vacuum hose, vacuum hood (with air volume regulating valve), flame retardant net, flame retardant high-efficiency filter element, clean room, activated carbon filter, ash drawer combination, Burning sound-absorbing cotton, new Korean-style casters with brakes, fans, imported motors and electric control boxes, etc.
2.working principle
Through the gravitational force of the fan, the welding fume is sucked into the air inlet of the equipment through the universal dust suction hood. A flame arrester is installed at the air inlet of the equipment. Coarse dust is directly dropped to the ash hopper, particulate dust is captured on the outer surface by the filter element, the clean air is filtered and purified by the filter element, and then flows into the clean room from the center of the filter element, and the clean air is further purified by the activated carbon filter and then discharged through the air outlet up to standard .
3.place of use
Suitable for arc welding, carbon dioxide shielded welding, MAG welding, carbon arc gouging welding, gas fusion cutting, special welding and other workplaces that generate smoke.
4.Equipment detailed configuration table
（1）Device body
The shell is molded with 2mm thick cold-rolled steel plate, modular design, electrostatic powder spraying, anti-rust, anti-corrosion, connecting parts are made of stainless steel hinges, durable
（2）Universal smoking arm
Built-in Nederman-style high-strength cast aluminum humanoid arm skeleton, 360° arbitrary rotation, self-hovering design, light and flexible, imported pvc steel wire air duct, high temperature resistance 200°C, acid and alkali corrosion resistance, anti-aging, air suction Tube diameter 150/160mm, hose color is dark blue/gray/black (optional), length: 2m/2.5m/3m (optional)
（3）smoking hood
Nederman-style ABS engineering plastic cover, durable, aging and high temperature resistance, guaranteed for 10 years
（4）Handling air volume
1500-3600m³/h
（5）Filter area
12㎡
（6）Purification efficiency
99.9%
（7）Noise
72±3dB
（8）Suction port speed
15-20m/s
（9）Main filter guard
The high-strength carbon steel equalizing plate in front of the main filter element prevents the impact of high-speed dusty smoke on the main filter element and prolongs the service life of the filter element
（10）main filter
Using high-efficiency imported nanofiber filter material, PTFE polyester film-coated filter material, the filtration accuracy is as low as 0.3 microns, Φ325*465mm, and the service life is 1-1.5 years (according to the actual working conditions and the amount of smoke and dust)
（11）Pre-coarse filter dust filter element
The air inlet of the main body has a built-in first-grade carbon steel dense coarse-effect filter to prevent welding slag and sparks from entering the equipment main body
（12）Fire prevention and control system
First-level coarse-effect filtration at the smoking port + second-level coarse-effect filter at the air inlet of the main body + high-temperature-resistant flame-retardant filter element
（13）Motor
Domestic high-quality energy-saving motor, power: 1.5/2.2/3.0kw
（14）power supply 380V/50HZ
（15）power cable Three five-core power cords, standard 2m (excluding plugs)
（16） Electronic control system The electric control panel is simple and clear, and the components are made in China Chint components (Schneider components are optional)
（17）Mesh diffuse air outlet The air outlet of the main body adopts mesh diffuse air outlet, the exhaust air is uniform and soft, avoiding secondary dust on the ground and direct impact on workers, avoiding discomfort
（18）noise reduction system The motor compartment has a built-in noise reduction and sound absorption device to greatly reduce the noise
（19）Swivel casters It is equipped with special new Korean-style universal casters with brakes to facilitate the random movement and positioning of the equipment.
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
Single arm welding fume extractor
Double arm welding fume extractor

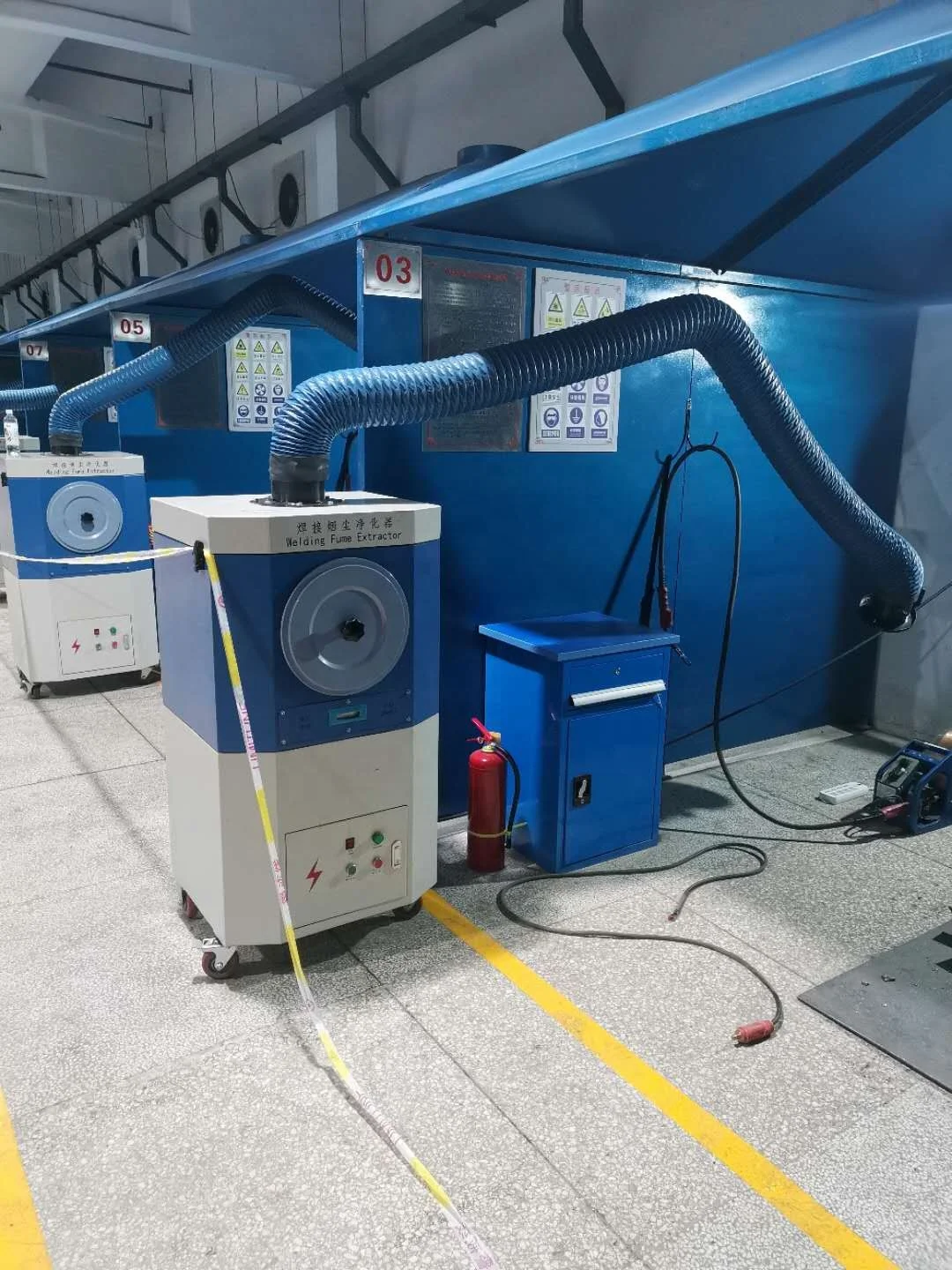

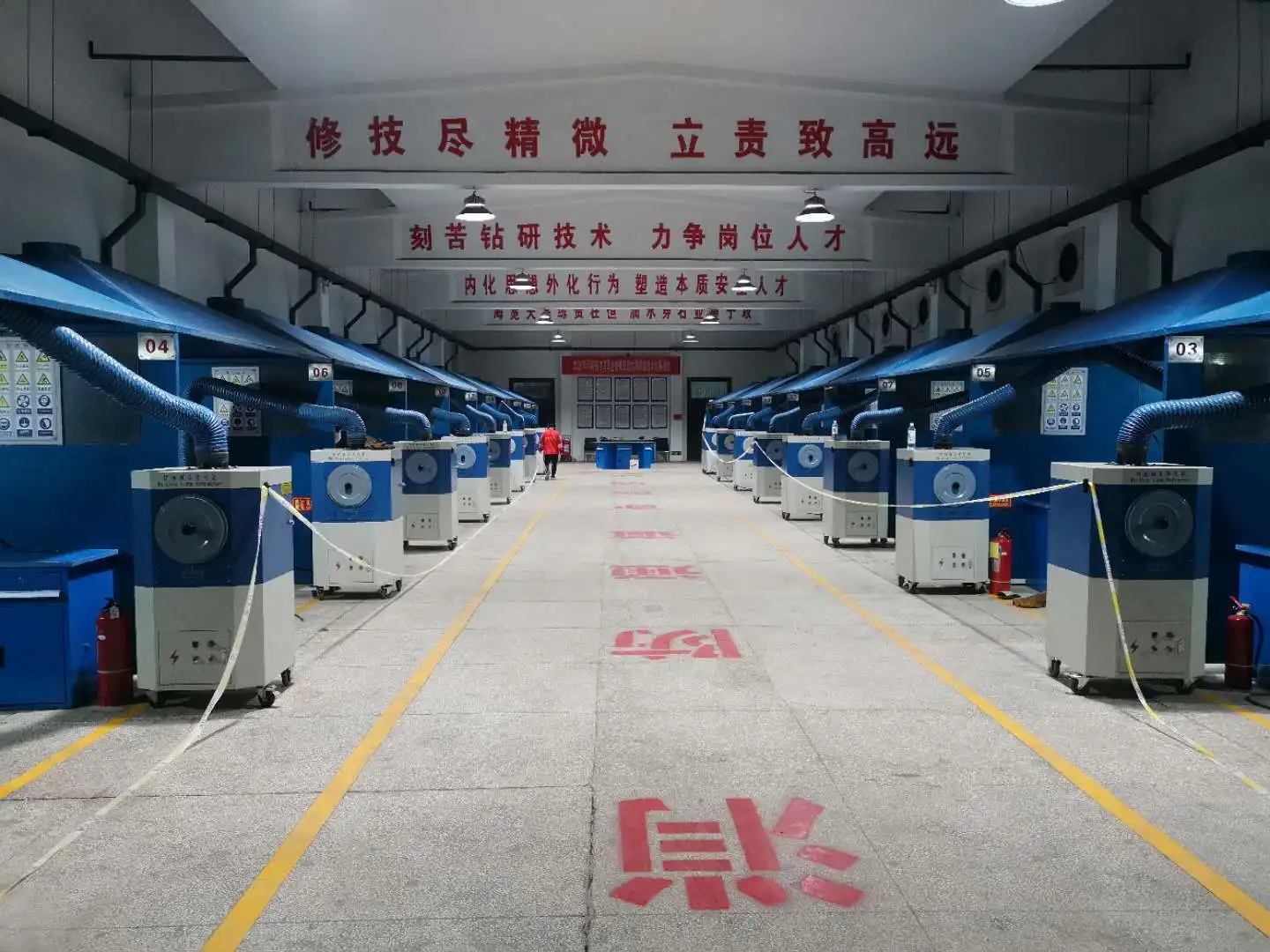

Install and use
PRODUCT SPECIFICATIONS
Equipment type | LMK-AB1200 | LMK-AB1500 | LMK-AB2400 | LMK-AB3600 |
Handling air volume | 1200m³/h | 1500m³/h | 2400m³/h | 3600m³/h |
Filter area | 10㎡ | 12㎡ | 15㎡ | 20㎡ |
Voltage | 380/50V/HZ | 380/50V/HZ | 380/50V/HZ | 380/50V/HZ |
KWvoltage | 1.1KW | 1.5KW | 2.2KW | 3KW |
Noise | 75±10Dba | 75±10Dba | 75±10Dba | 80±10Dba |
Long | 650 | 650 | 650 | 650 |
Wide | 550 | 550 | 550 | 550 |
Height | 1250 | 1250 | 1250 | 1250 |
Suction arm | single-arm | single-arm | single-arm | single-arm/arms |
Efficiency | 99.9% | 99.9% | 99.9% | 99.9% |
Package
Wrapping with plastic film and packed by wooden pallet or wooden case or without package
1. What’s the shipping cost from China to your country?
Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
2. Payment terms, MOQ, warranty, FOB.
Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
Warranty: 12 months.
FOB: Qingdao or others port in CHINA.
3. What’s the package?
Re:Wrapping with plastic film and packed by wooden pallet or wooden case or without package.
4. What about commissioning service?
Re:We can offer commissioning service, the buyer need to afford air tickets.
5. What’s policy for guarantee and broken parts?
Re:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free
Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
2. Payment terms, MOQ, warranty, FOB.
Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
Warranty: 12 months.
FOB: Qingdao or others port in CHINA.
3. What’s the package?
Re:Wrapping with plastic film and packed by wooden pallet or wooden case or without package.
4. What about commissioning service?
Re:We can offer commissioning service, the buyer need to afford air tickets.
5. What’s policy for guarantee and broken parts?
Re:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free
