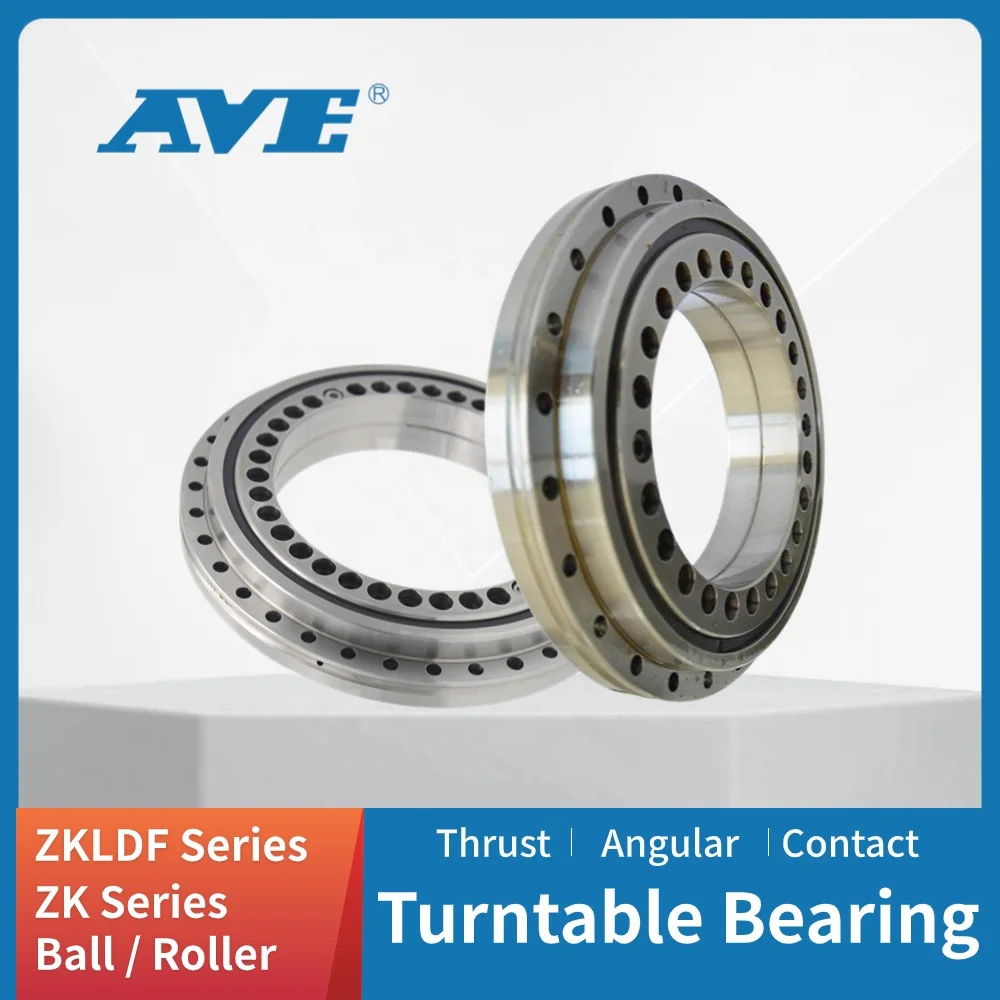

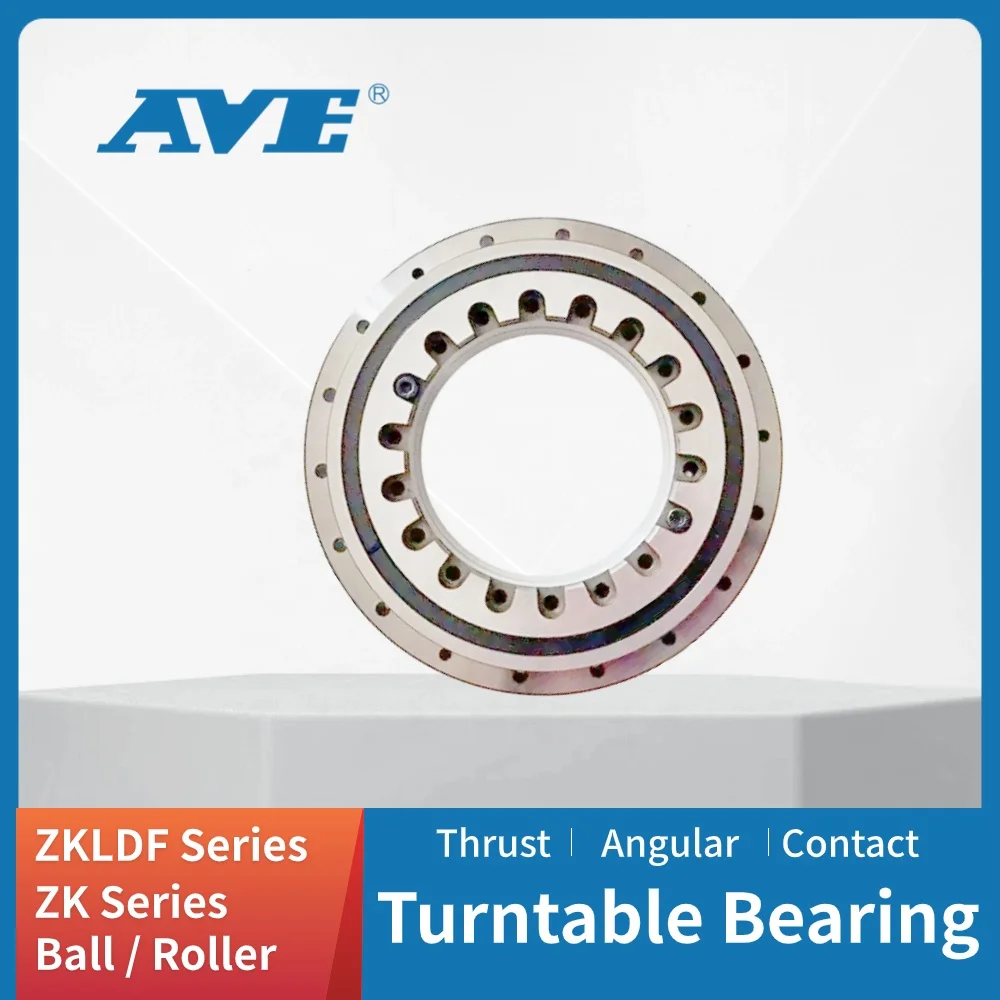

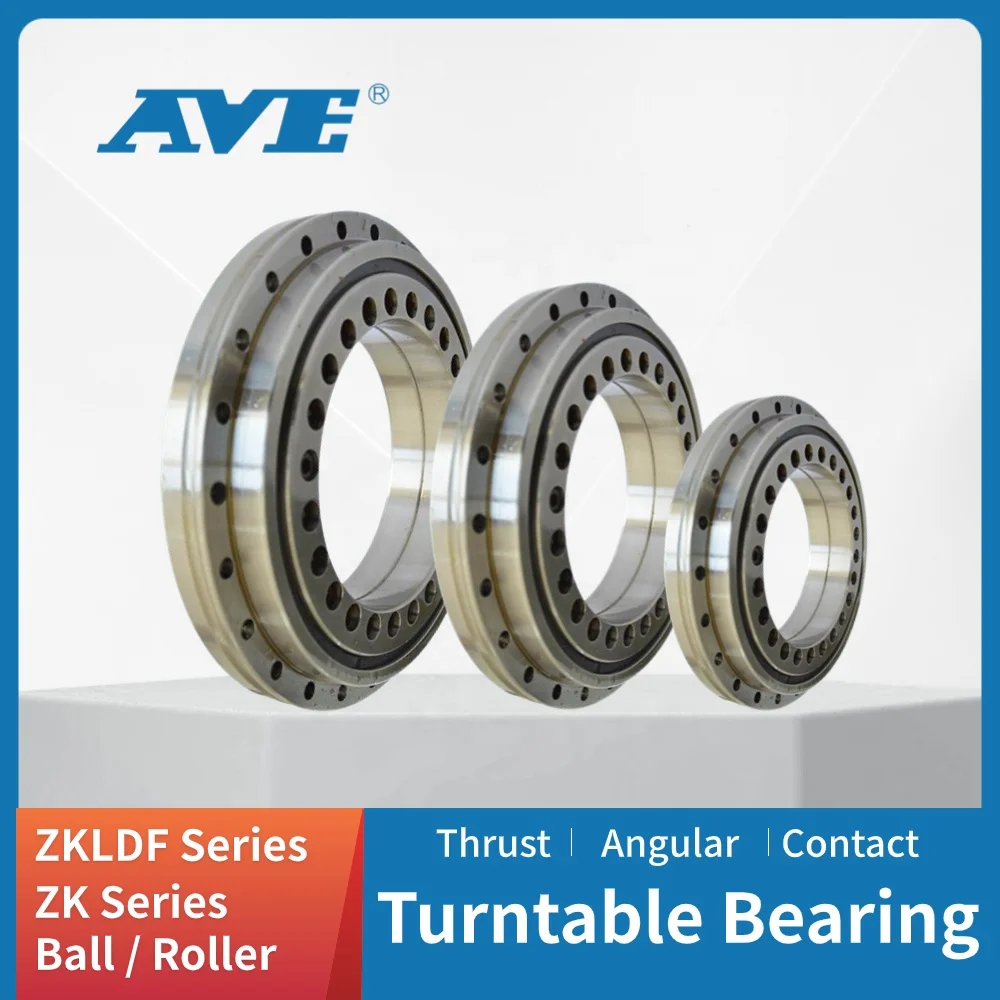

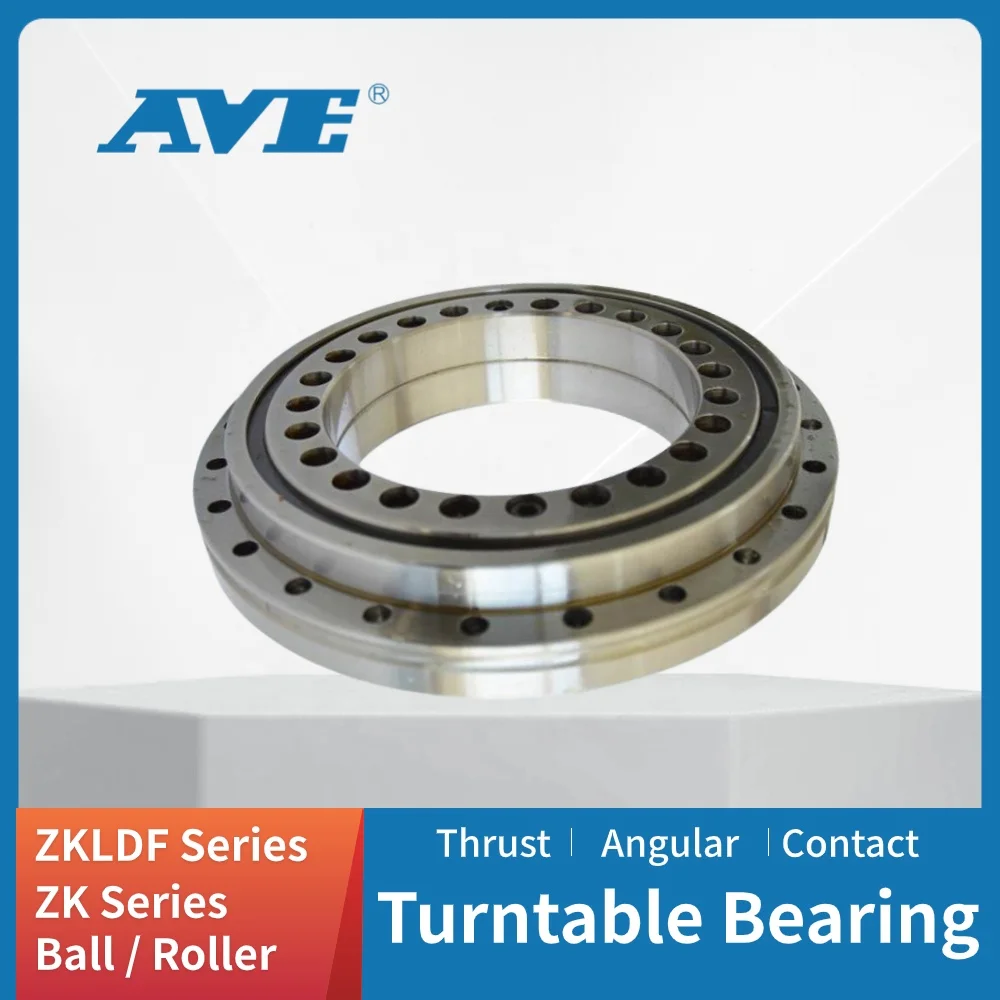

Zkldf Series 150mm X 240mm X 40mm Axial Angular Contact Ball Bearings Series Turntable Bearing I N A Ball Bearing ZKLDF150 B
Zkldf Series 150mm X 240mm X 40mm Axial Angular Contact Ball Bearings Series Turntable Bearing I N A Ball Bearing ZKLDF150-B
Zkldf Series 150mm X 240mm X 40mm Axial Angular Contact Ball Bearings Series Turntable Bearing I N A Ball Bearing ZKLDF150-B
Zkldf Series 150mm X 240mm X 40mm Axial Angular Contact Ball Bearings Series Turntable Bearing I N A Ball Bearing ZKLDF150-B
Zkldf Series 150mm X 240mm X 40mm Axial Angular Contact Ball Bearings Series Turntable Bearing I N A Ball Bearing ZKLDF150-B
Zkldf Series 150mm X 240mm X 40mm Axial Angular Contact Ball Bearings Series Turntable Bearing I N A Ball Bearing ZKLDF150-B
Zkldf Series 150mm X 240mm X 40mm Axial Angular Contact Ball Bearings Series Turntable Bearing I N A Ball Bearing ZKLDF150-B

Zkldf Series 150mm X 240mm X 40mm Axial Angular Contact Ball Bearings Series Turntable Bearing I N A Ball Bearing ZKLDF150 B

Share on (1600934354540):


Price:$133.69 - $139.69

Quantity:


Product Overview

Description







ZKLDF thrust angular contact ball series turntable bearings adopt a two-way 60-degree contact angle and a double volleyball structure design, so they can withstand radial loads, two-way axial loads and overturning moments; the special structure of the brass cage design gives it higher strength, Lower motor torque.
ZKLDF Axial angular contact ball bearings are particularly suitable for precision applications involving combined loads. Their preferred areas of use are bearing arrangements in rotary tables with a main spindle function, for example in combined milling and turning, as well as in milling, grinding and honing heads and in measurement and testing equipment.
ZKLDF Axial angular contact ball bearings，With features of low-friction,high accurancy , high limit rotate speed etc.can bear higher axial load,radial load and with higher tilting rigidity. This kind of bearings are especially suitable for precision
machine tool rotary table,honing heads and measuring testing equipments which bear composite load.

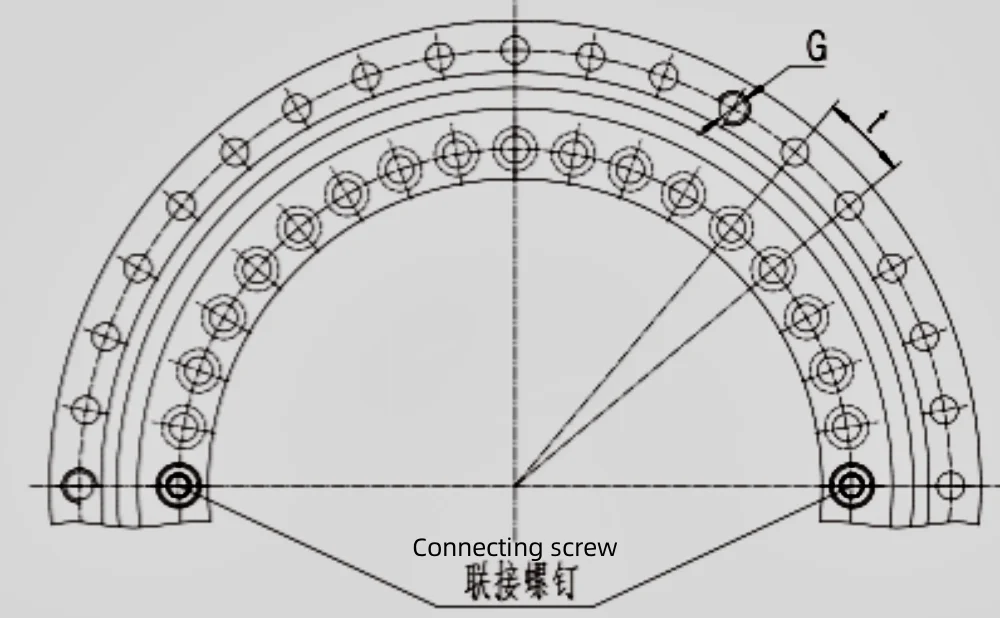

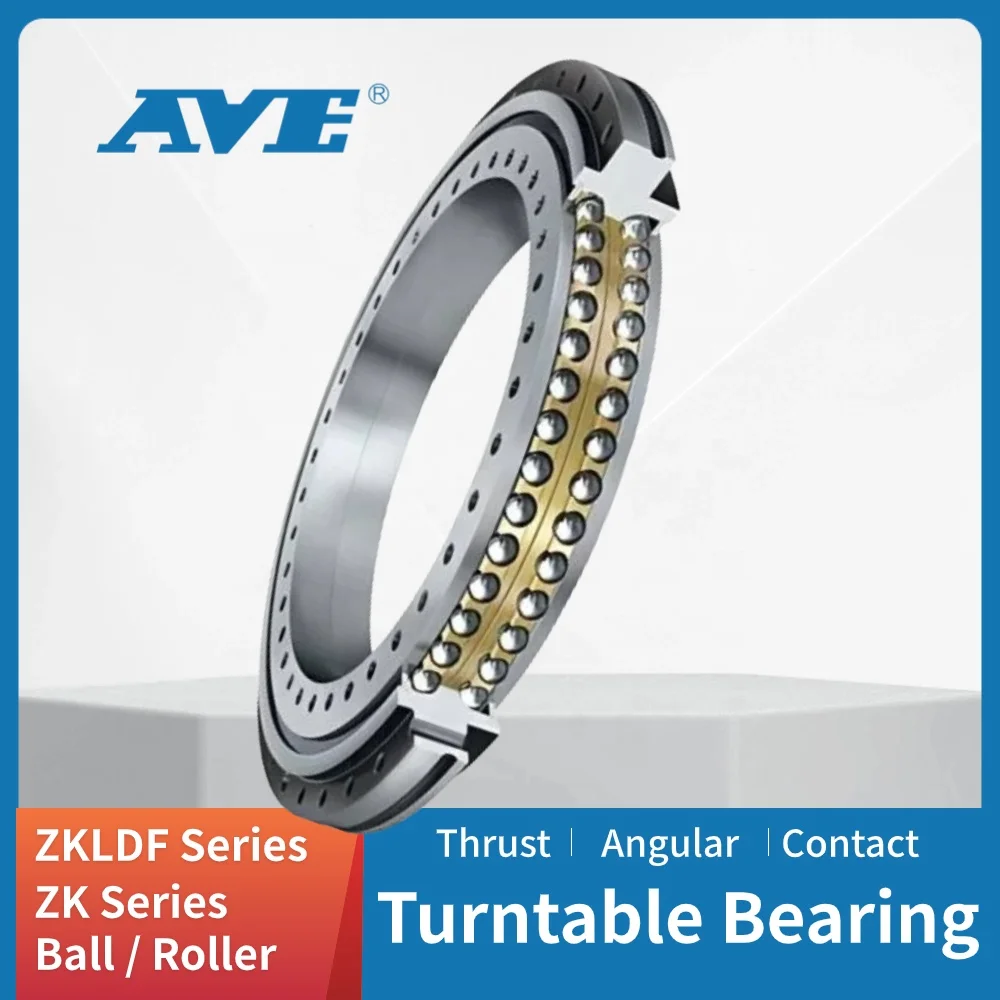

ZKLDF series rotary table bearing includes components of an integral outer ring, two inner rings, two sets of steel balls and brass cage. The contact angle is 60 degree, and the inner part is provided with a mounting hole. It is convenient to install the bearing through the connecting bolt. The two sides of the ZKLDF turntable bearing are provided with sealing covers, which can prevent the external dirt enter in and the lubrication grease go out. This kind bearings can bear radial load, bidirectional axial load and short overturning force due to the bidirectional 60 degree contact ball structure design; the special brass cage design also make it have higher strength and lower friction ratio, which is especially suitable for the situation of ultra-high speed, long-term operation and high requirements for rigidity and accuracy.Bearing Types: ZKLDF100 , ZKLDF120 , ZKLDF150 , ZKLDF180 , ZKLDF200 , ZKLDF260 , ZKLDF325 , ZKLDF395 , ZKLDF460 , ZKLDF580

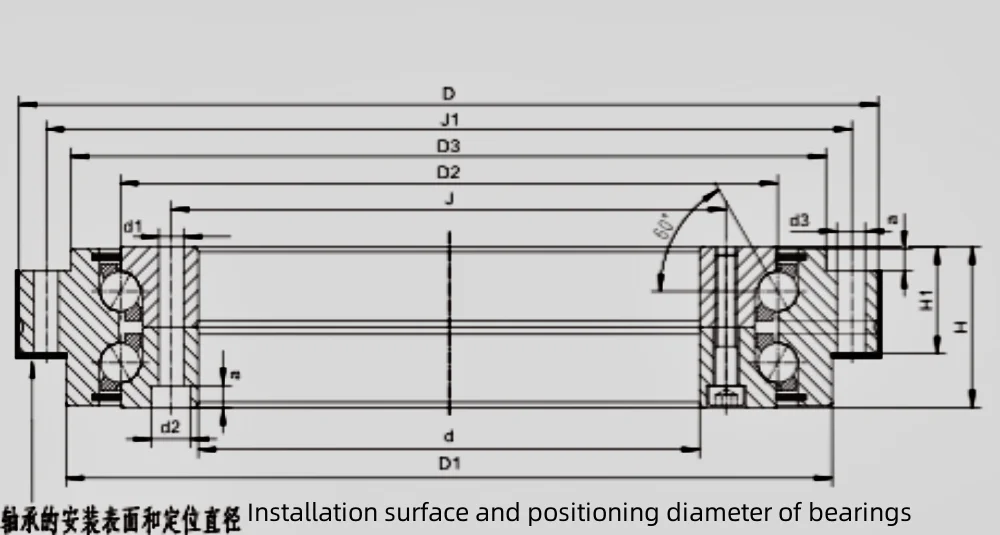

Bearing
Model
Dimension
Model No.
d
D
H
H1
D1
D2
D3
J
J1
ZKLDF100
100
185
38
25
160
136
158
112
170
ZKLDF120
120
210
40
26
184
159
181
135
195
ZKLDF150
150
240
40
26
214
188
211
165
225
ZKLDF180
180
280
43
29
244
221
241
194
260
ZKLDF200
200
300
45
30
274
243
271
215
285
ZKLDF260
260
385
55
36.5
345
313
348
280
365
ZKLDF325
325
450
60
40
415
380
413
342
430
ZKLDF395
395
525
65
42.5
486
450
488
415
505
ZKLDF460
460
600
70
46
560
520
563
482
580
ZKLDF580
580
750
90
60
702
656
700
610
720
