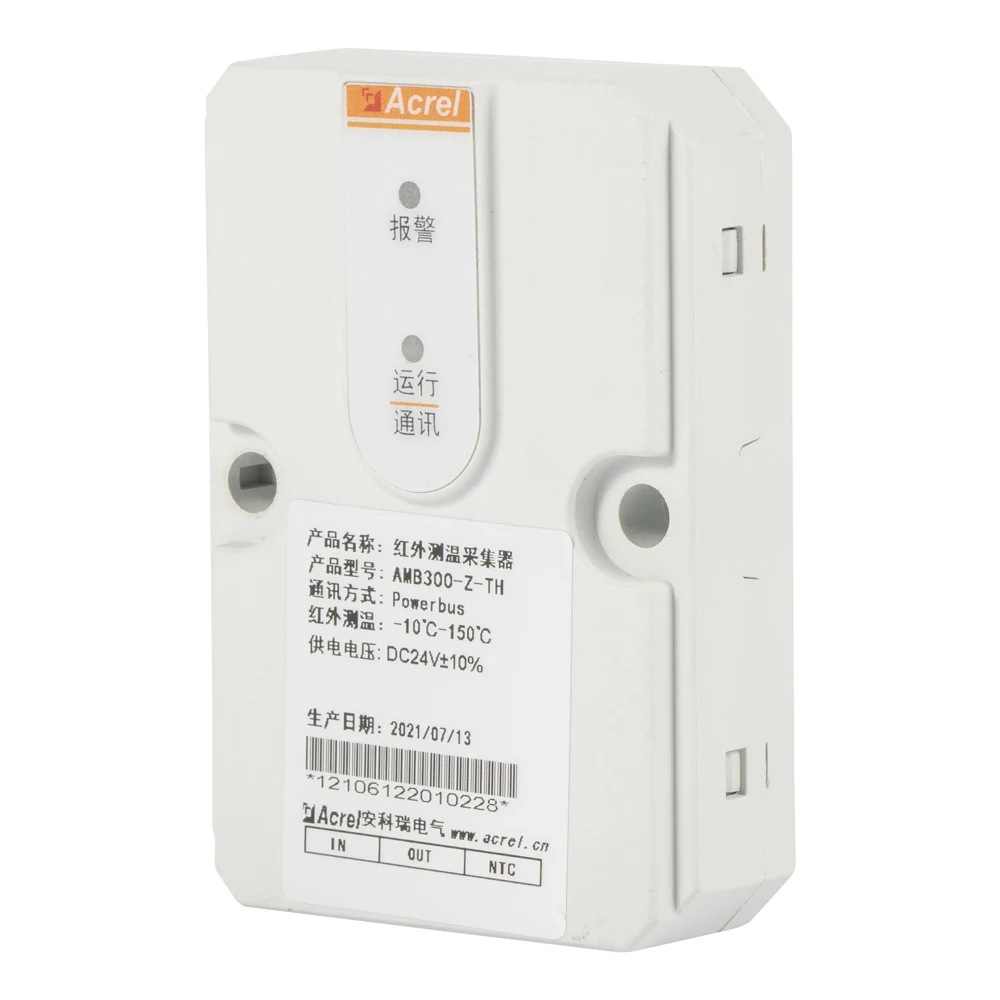

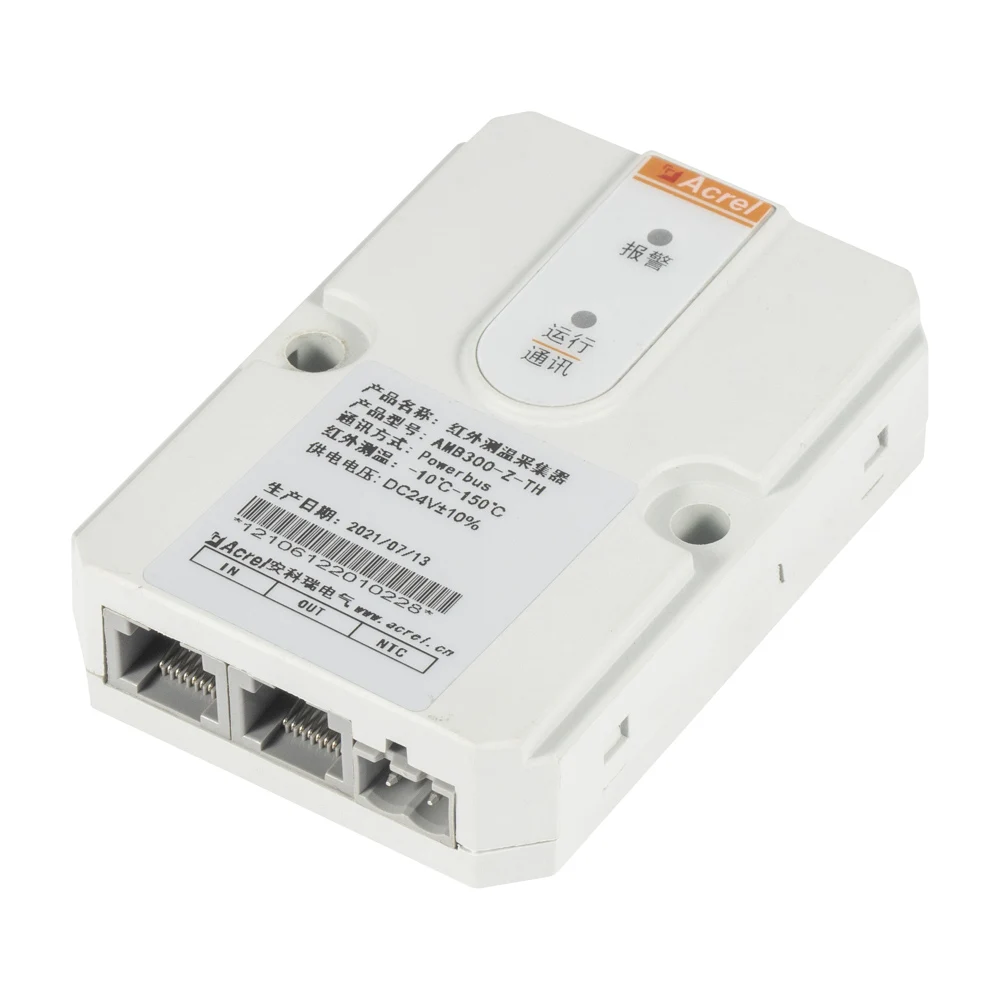

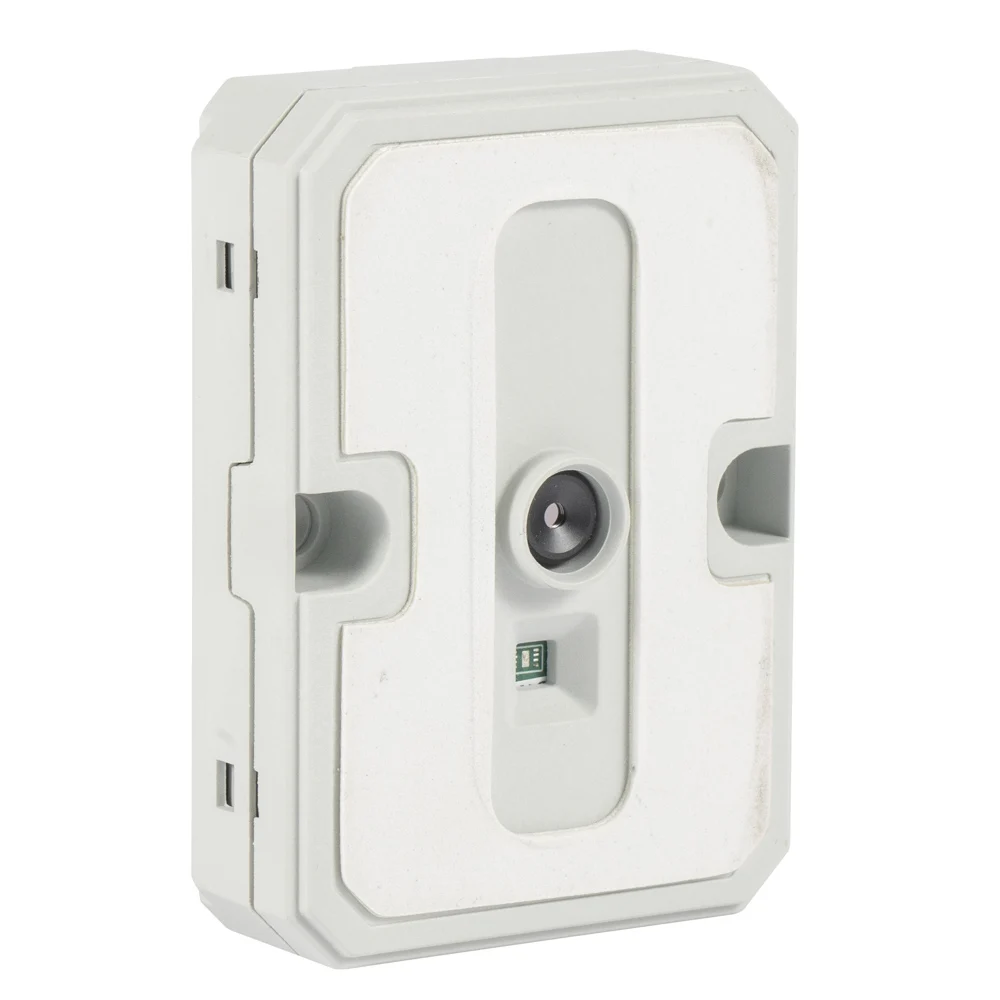

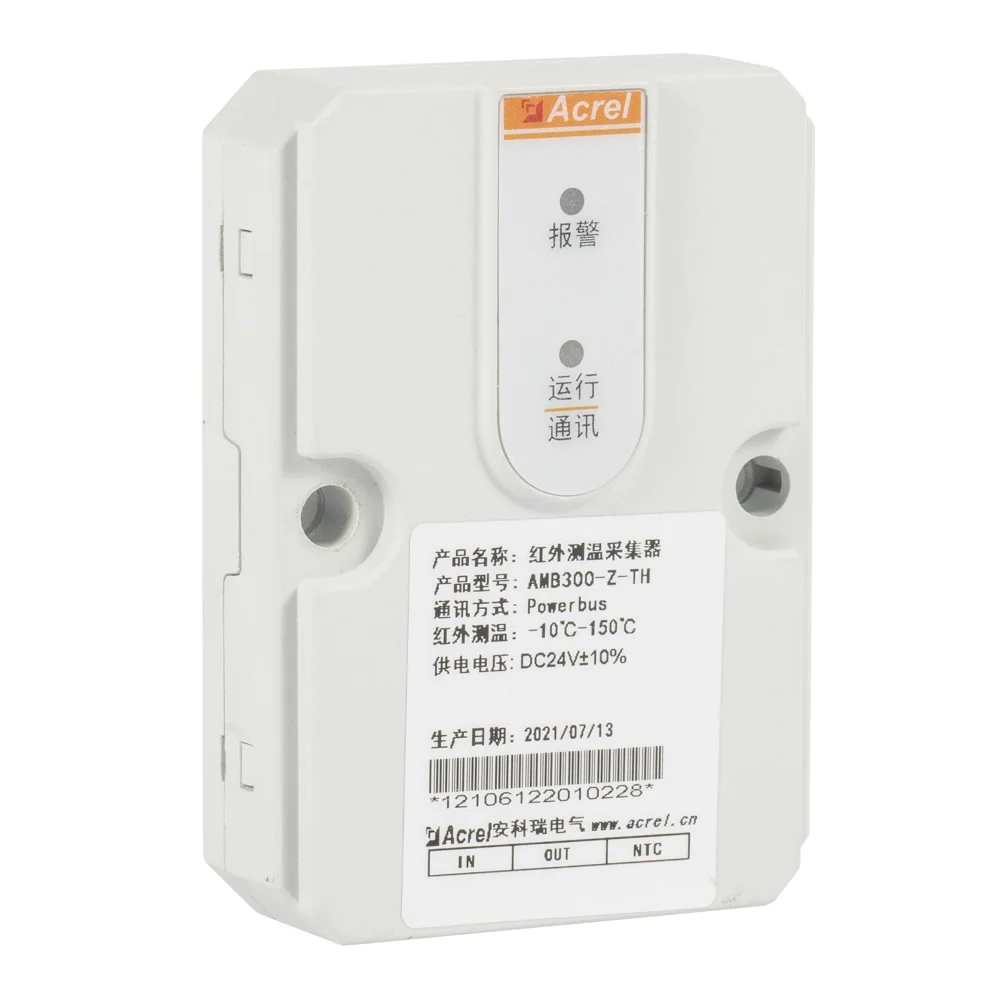

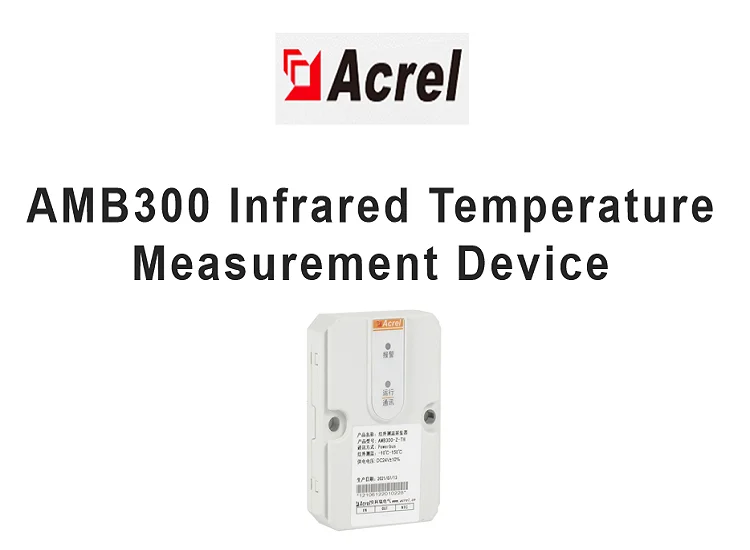

ACREL AMB300 Z TH Low Voltage Busbar Temperature Measurement Device with 1 Channel External NTC Temperature Measurement
- Category: >>>
- Supplier: Acrel E-Business (shanghai) Co. ltd.
Share on (1600934359512):
Product Overview
Description

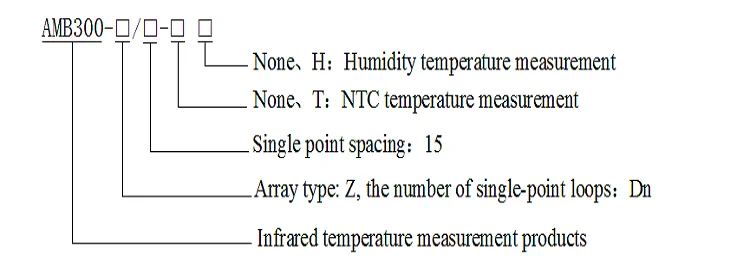

Model Description
Product Introduction
AMB infrared temperature measurement solution is a non-contact infrared temperature measurement device. The product can solve the problem of safe and accurate temperature measurement of busbar slot, upload the temperature data of each phase in the connector to the background in real time, implement monitoring and warning information, and prompt the management personnel to pay attention to the alarm point or take necessary preventive measures. The device is mainly used in the on-line temperature monitoring system of densely insulated bus connector in various fields.
Product Parameter
Items | Value | ||
Measurement | Function | Measuring range temperature, display the highest 4 channels, humidity (optional) | |
Range | Temperature -10℃～150℃, humidity 0%RH-95%RH | ||
Accuracy | (-10℃～85℃)temperature±3℃, (85℃～150℃)temperature±5℃, humidity ±5%RH | ||
NTC temperature measurement range (optional） | Temperature -10℃～150℃ | ||
Auxiliary supply | Power supplied by AMB310 | ||
Communication | Two channels | ||
Protection level | IP51 | ||
Pollution level | 2 | ||
Environment | Whole machine temperature | Working temperature：-20℃～85℃ Storage temperature：-40℃～70℃ | |
Humidity | Relative humidity: ≤93%, no condensing | ||
Altitude | ≤2000m | ||

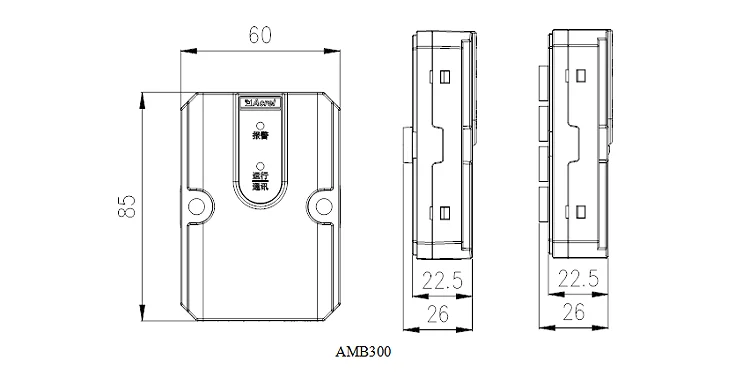

Dimension

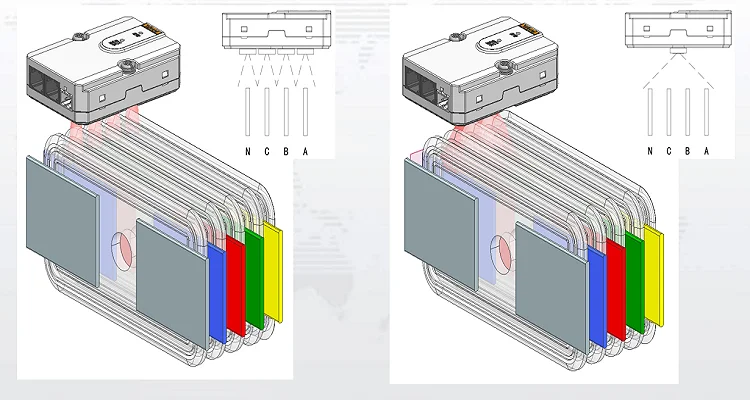

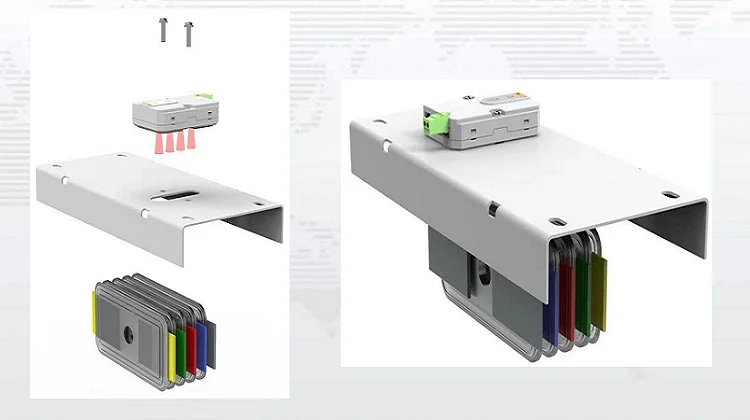

Installation

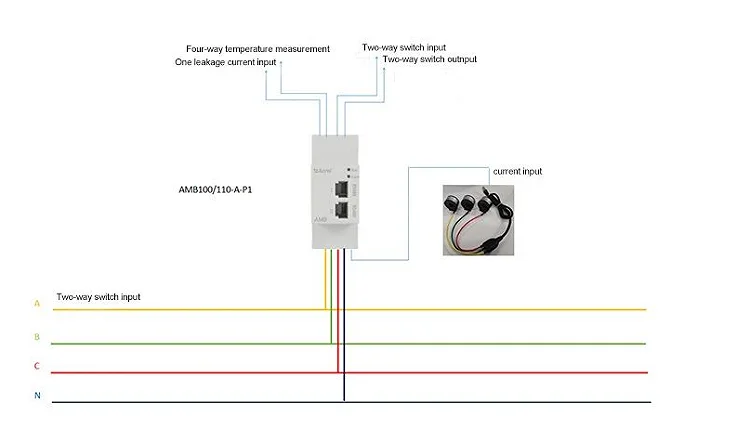

Wiring

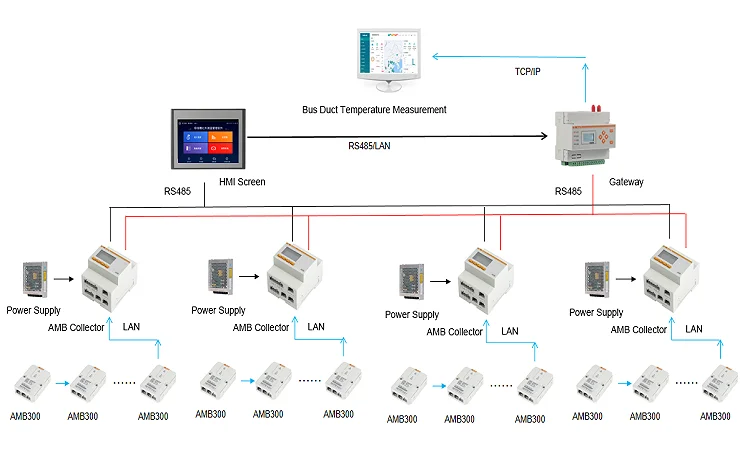

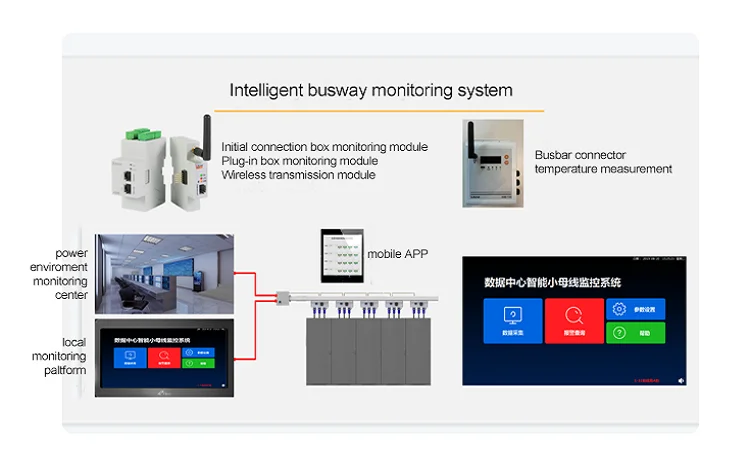

Network

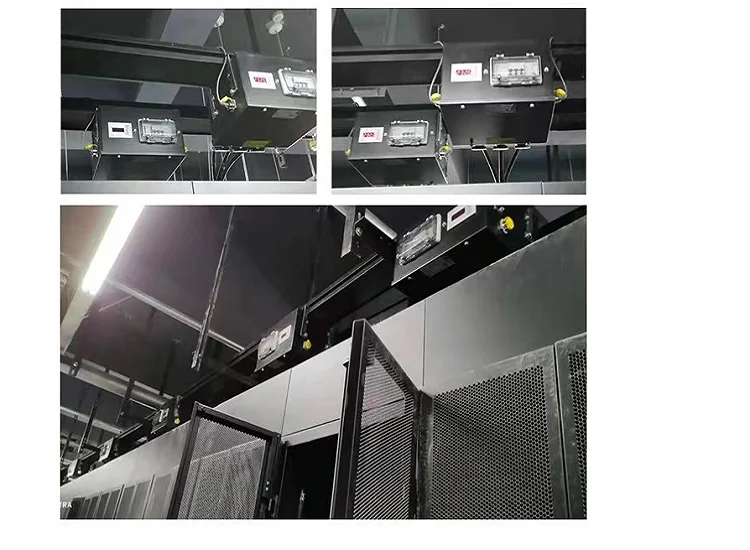

Application
Certificate
FAQ
1. What standard is the main reference for the design of the AMB intelligent small bus monitoring solution?
China Mobile Communication Enterprise Standard QB-H-008-2018 Rack Distribution Bus System.
2. What are the functional requirements for intelligent monitoring of the plug-in box?
Remote measurement: output branch single-phase voltage, single-phase current, active power and real-time operating temperature at the pins of the plug-in box.
3. What are the functional requirements for the intelligent monitoring of the start-end box?
Remote measurement: input the three-phase voltage, three-phase current, frequency, active power, power factor, harmonic content, temperature of the input branch( real-time operating temperature at the connection of the cable/copper bar.
China Mobile Communication Enterprise Standard QB-H-008-2018 Rack Distribution Bus System.
2. What are the functional requirements for intelligent monitoring of the plug-in box?
Remote measurement: output branch single-phase voltage, single-phase current, active power and real-time operating temperature at the pins of the plug-in box.
3. What are the functional requirements for the intelligent monitoring of the start-end box?
Remote measurement: input the three-phase voltage, three-phase current, frequency, active power, power factor, harmonic content, temperature of the input branch( real-time operating temperature at the connection of the cable/copper bar.
Remote signal: input shunt overvoltage/undervoltage, phase loss, overcurrent, frequency.
