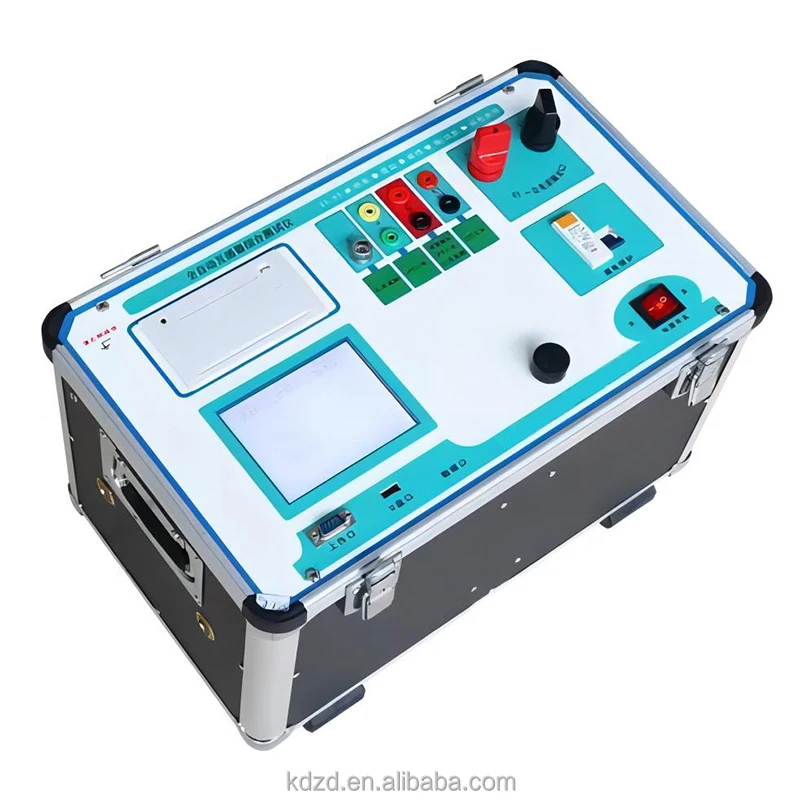

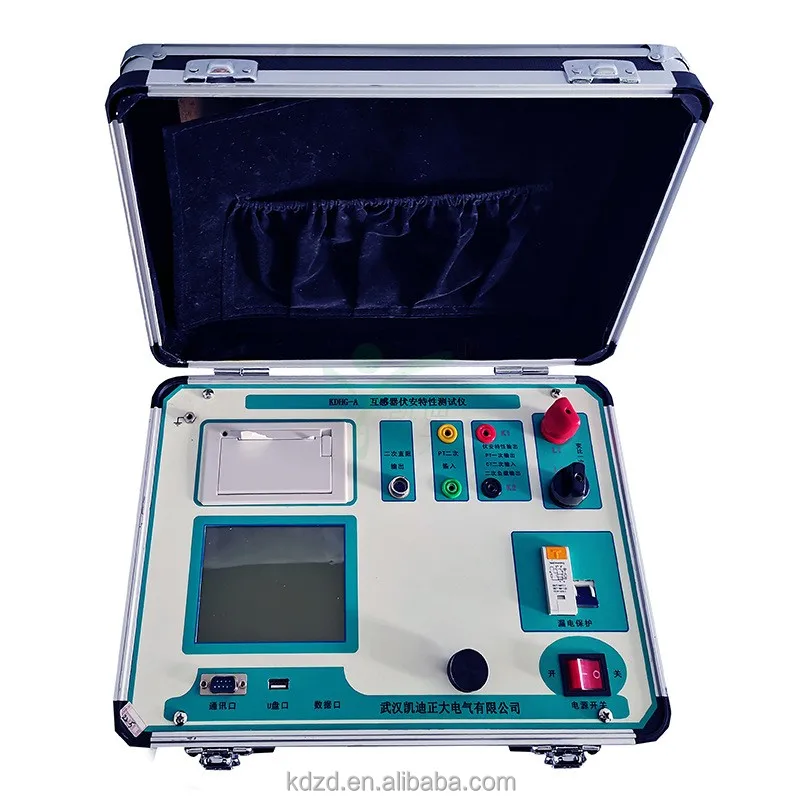

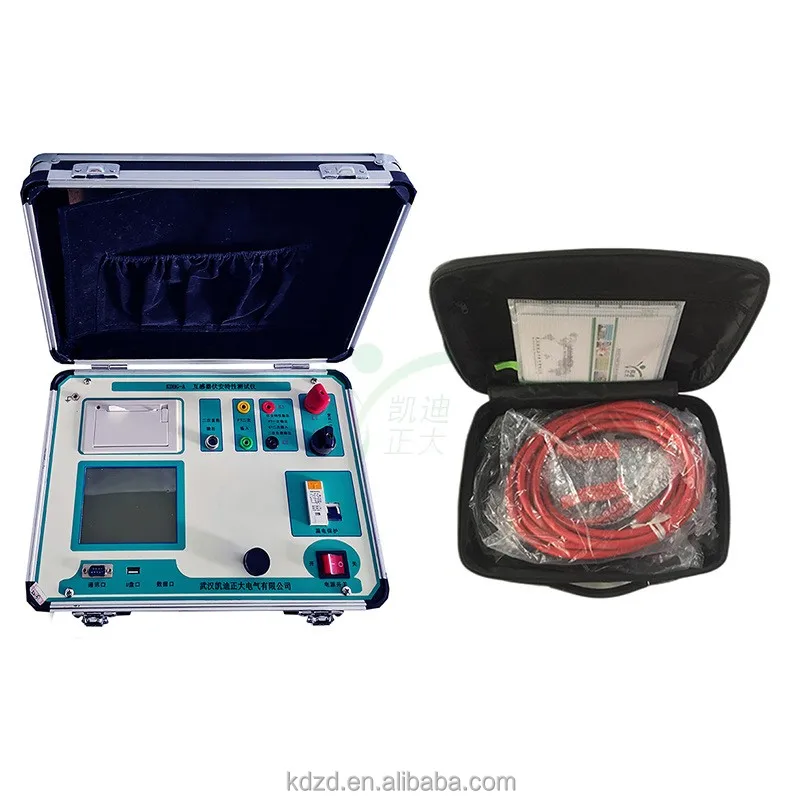

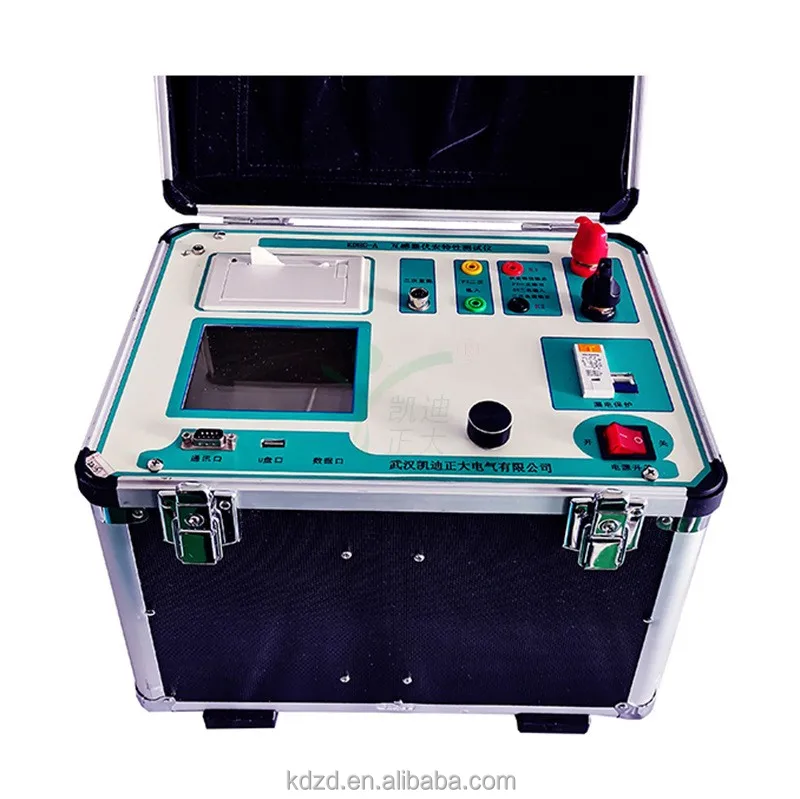

portable various frequency method current transformer/potential transformer ct/pt exciting curve analyzer
- Category: >>>
- Supplier: Wuhan Kaidi Zhengda Electric Co. Ltd.
Share on (1600934534997):

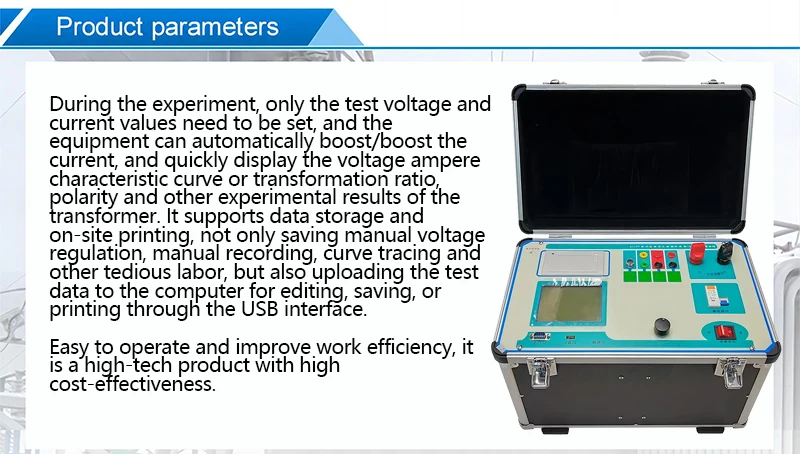

Product Overview
Description
Product Description
Working power supply | AC220V ± 10V |
Voltage output | 0~1000V (20A peak) |
Current output | 0~600A |
Detection accuracy | ≤ 0.5% |
Detection range | 25000A/5A; 5000A/1A |
Operating temperature | - 10 ℃~+50 ℃ |
Storage and transportation | - 25 ℃~+70 ℃ |
Relative humidity | 5~90% (non condensing) |

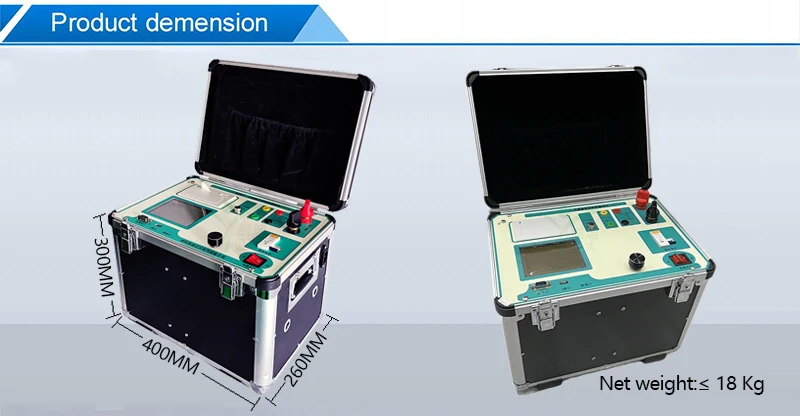

Size | 400x260x300 (mm) |
Weight | ≤ 18 Kg (excluding accessories) |
Main testing functions
For current transformers (CT):
1. Volt ampere characteristic test
2. Transformation ratio test
3. Polarity discrimination
4. 5% and 10% error curves
5. Secondary circuit
6. Automatic demagnetization
7. AC withstand voltage
For voltage transformers (PT):
1. Volt ampere characteristic test
2. Transformation ratio test
3. Polarity discrimination
4. Automatic demagnetization
5. AC withstand voltage
For current transformers (CT):
1. Volt ampere characteristic test
2. Transformation ratio test
3. Polarity discrimination
4. 5% and 10% error curves
5. Secondary circuit
6. Automatic demagnetization
7. AC withstand voltage
For voltage transformers (PT):
1. Volt ampere characteristic test
2. Transformation ratio test
3. Polarity discrimination
4. Automatic demagnetization
5. AC withstand voltage
Main features
1. MBC power supply control technology, single-phase AC220V input power supply, and the working power supply and power supply share one input port, so the design is more scientific and reasonable, and the use is more safe and reliable.
2. The power output of the equipment is the true voltage and current value, and the waveform is a standard sine wave with a frequency of 50-60Hz; It can truly and effectively simulate the real state of the transformer and comply with relevant national maintenance regulations.
3. The maximum voltage output is 0-1000V and the maximum current output is 0-600A when the single machine is 220V input.
4. It can detect the volt ampere characteristics, transformation ratio, polarity, 5% and 10% error curves, CT primary flow, CT demagnetization and other items of CT/PT, so as to easily realize multiple uses of one machine.
5. Single power input port is adopted; Only 8 test ports can complete CT/PT test. The wiring mode is safe and simple, which is very suitable for field use, and can effectively reduce labor intensity and improve work efficiency;
6. The measuring range of CT transformation ratio is 25000A ／ 5A, 5000A ／ 1A. PT transformation ratio test range 500KV: 100V
7. Thermal printer is used to automatically screen and print typical report data, which is very suitable for field data comparison.
8. 1000 groups of test data can be saved without loss after power failure.
9. Easy to connect to new laptops.
10. Small volume and light weight: convenient for on-site use.
Company Profile
Certifications
Product packaging
FAQ
1. How is our product?
We are manufacturer, so preferential price and high quality can guarantee.
2. How soon to get price?
Usually provide within 6 hours once receiving inquiry. If you are very urgent, please call us then we will do in priority.
3. Whal is your terms of delivery?
EXW,FOB, CFR, CIF, ect. Pls select your most conveient and cost effective.
4. When there is difficulty in using ?
We will first provide equipment operation manual, operation video, or provide training through remote video call.
If necessary, engineers will serve on door.
5. What about the leading time for production?
That depends on order qty and product item. For normal items, usually within 3 working days. Delivery time is
determined by the logistics , generally is 5-7 days.
6. How to send?
For most of our customers, we provide door-to-door service. You only to through import customs clearance procedures
and pay the import tariff.
7. How is packing and will the goods be damaged?
We will pack standard export packing for every equipment, so far there is no damage yet, pls no worry.
We are manufacturer, so preferential price and high quality can guarantee.
2. How soon to get price?
Usually provide within 6 hours once receiving inquiry. If you are very urgent, please call us then we will do in priority.
3. Whal is your terms of delivery?
EXW,FOB, CFR, CIF, ect. Pls select your most conveient and cost effective.
4. When there is difficulty in using ?
We will first provide equipment operation manual, operation video, or provide training through remote video call.
If necessary, engineers will serve on door.
5. What about the leading time for production?
That depends on order qty and product item. For normal items, usually within 3 working days. Delivery time is
determined by the logistics , generally is 5-7 days.
6. How to send?
For most of our customers, we provide door-to-door service. You only to through import customs clearance procedures
and pay the import tariff.
7. How is packing and will the goods be damaged?
We will pack standard export packing for every equipment, so far there is no damage yet, pls no worry.
