Product Description

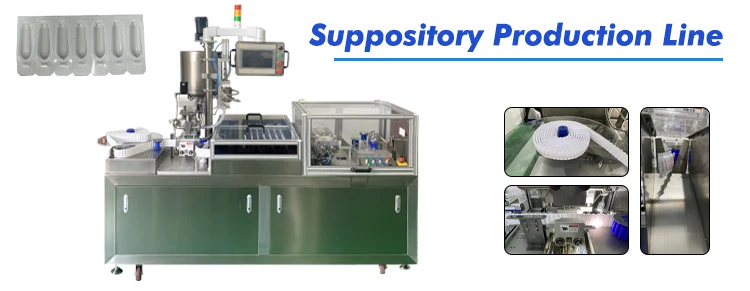

SupLab-3 semi-automatic suppository filling production line has stable and efficient production processes such as filling and sealing, with a production capacity of 4000-5000 capsules per hour.
1. The filling accuracy is ±2%. The filling barrel has an electric heating and heat preservation system. The top is equipped with a uniform mixer for chemical production. The filling
accuracy is high and the pump is sent to the filling head. The barrel rests and refills next time.
2. After sealing and filling, the suppository enters the sealing area: heating mold (heating), sealing mold (batch number).
Technical Parameters
Production capacity | 4500-5000 pieces/hour |
Dose per unit | 0.5—4ml |
Deviation | ＜±2% |
Volume of storing vessel | 50L |
Adapting base material | Synthetic fatty acid glycerides, glycerin gelatin, polyethylene glycol, etc. |
Each distance of suppository | 17.4mm |
Air consumption/minute | 1.3m3/min |
Total power | 5KW |
Working voltage | Three-phase AC 380V |
Working air pressure | ≥0.6Mpa |
Water consumption/hour | 15kg (recycling) |
Weight | 850kg |

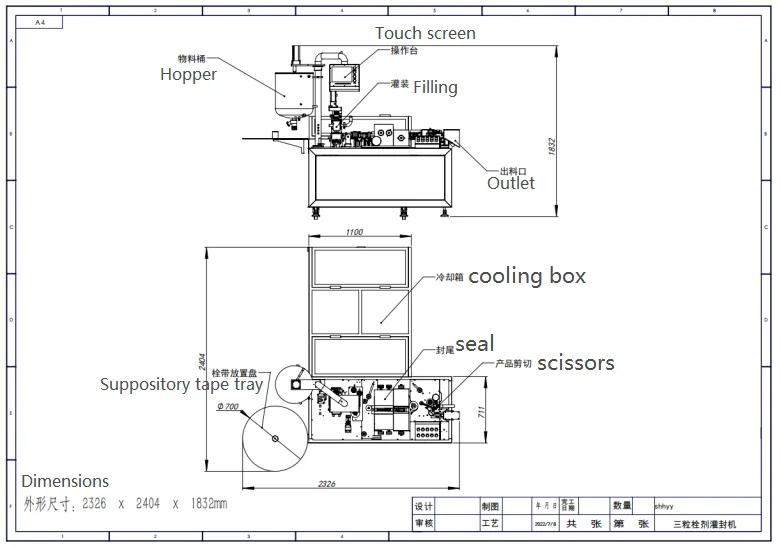

Dimensions(L×W×H) | 2326mm(L)×2404mm(W)×1832mm(H) |
If You Need Other Types Of Pellet Counting Machines,
Please Send An Inquiry To Get
Features
1.SupLab-3 suppository filling and sealing machine is suitable for the production of special shapes such as bullet-shaped and torpedo-shaped suppositories.
2.PLC programmable control and man-machine interface operation, simple operation, convenient adjustment, accurate temperature control and stable operation.
3.Adopt temperature sensor and microcomputer control system to realize high-precision constant temperature control.
4.The liquid storage tank is made of 316L stainless steel, with suitable volume, heat preservation and heating function, and accurate temperature control; a stirring device is installed in the tank to ensure the uniformity of the liquid in the barrel at any time. The liquid storage tank is connected with the filling mechanism through the pipeline, and the liquid is kept warm and circulated to ensure the fluidity of the liquid and meet the needs of filling.
5.Adopt plug-in linear filling mechanism, accurate positioning, no liquid drop, no hanging on the wall; single grain measurement is 0.5-4ml, and the filling error is plus or minus 2%. The design is simple and reasonable, and the operation and maintenance are convenient.
2.PLC programmable control and man-machine interface operation, simple operation, convenient adjustment, accurate temperature control and stable operation.
3.Adopt temperature sensor and microcomputer control system to realize high-precision constant temperature control.
4.The liquid storage tank is made of 316L stainless steel, with suitable volume, heat preservation and heating function, and accurate temperature control; a stirring device is installed in the tank to ensure the uniformity of the liquid in the barrel at any time. The liquid storage tank is connected with the filling mechanism through the pipeline, and the liquid is kept warm and circulated to ensure the fluidity of the liquid and meet the needs of filling.
5.Adopt plug-in linear filling mechanism, accurate positioning, no liquid drop, no hanging on the wall; single grain measurement is 0.5-4ml, and the filling error is plus or minus 2%. The design is simple and reasonable, and the operation and maintenance are convenient.
Product Details

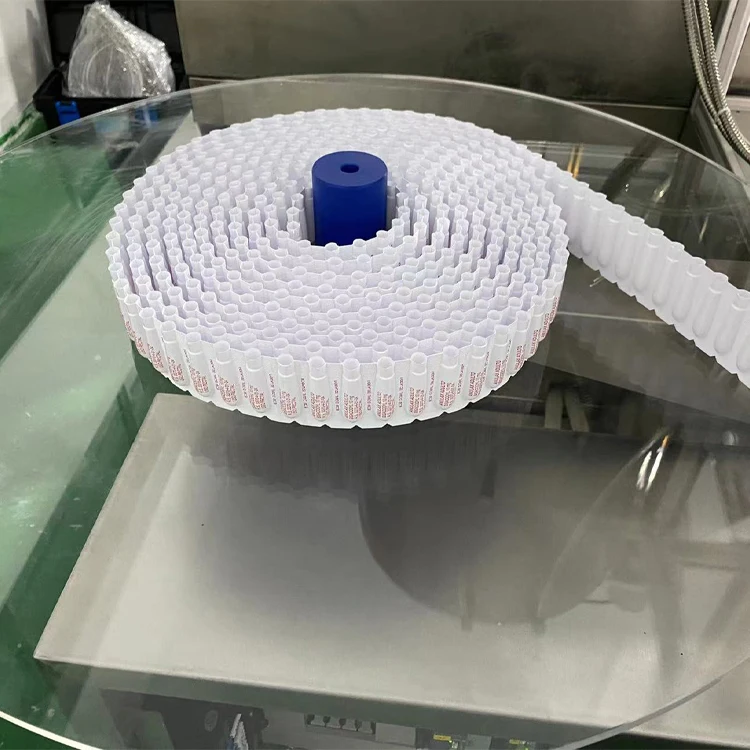

PVC/PE Roll Film Plate
can be customized for the roll film

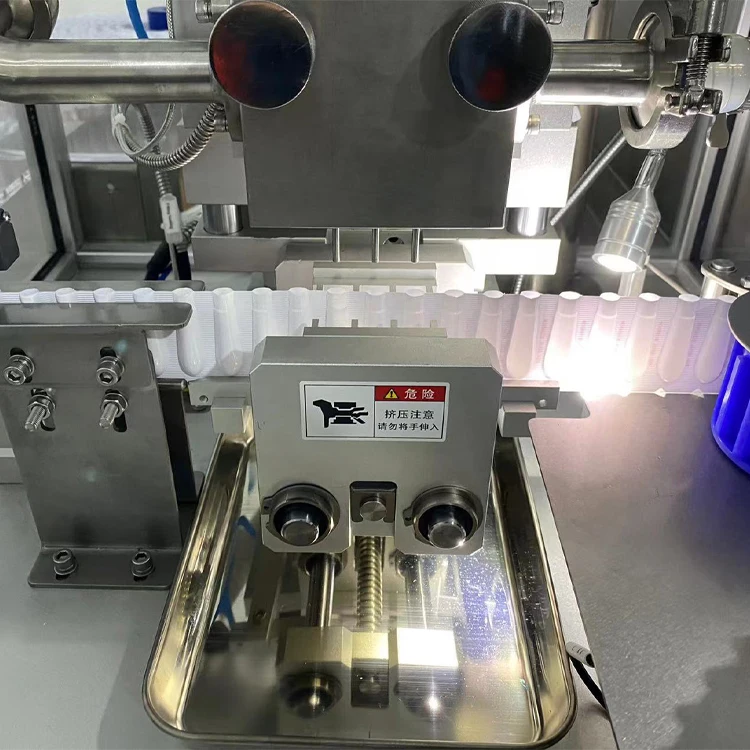

The insertion type linear perfusion mechanism
The filling accuracy is ±2%.
The filling barrel has an electric heating and heat preservation system.
The top is equipped with a uniform mixer for chemical production.
The filling accuracy is high and the pump is sent to the filling head.
he barrel rests and refills next time.

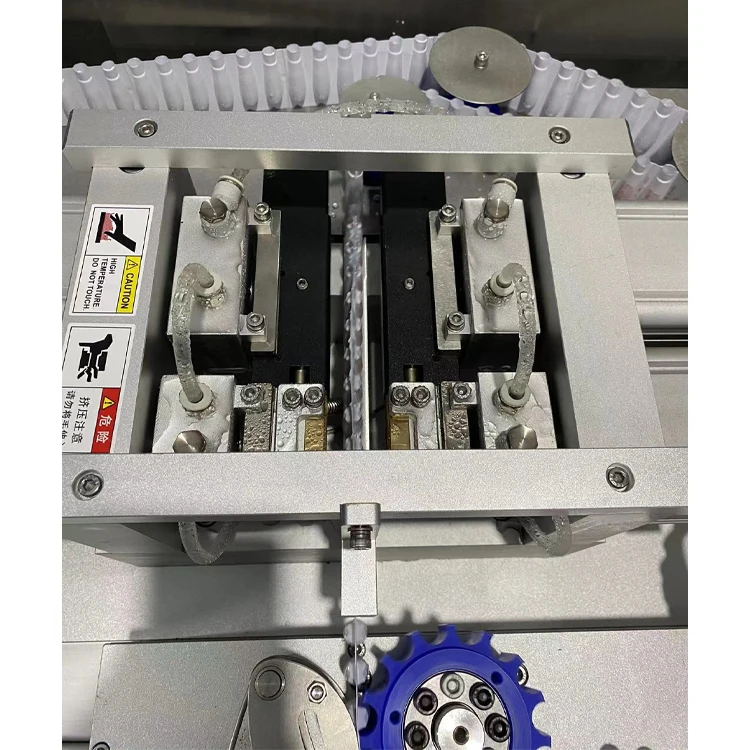

Sealing
Gradually heating
Sealing mouth more firm

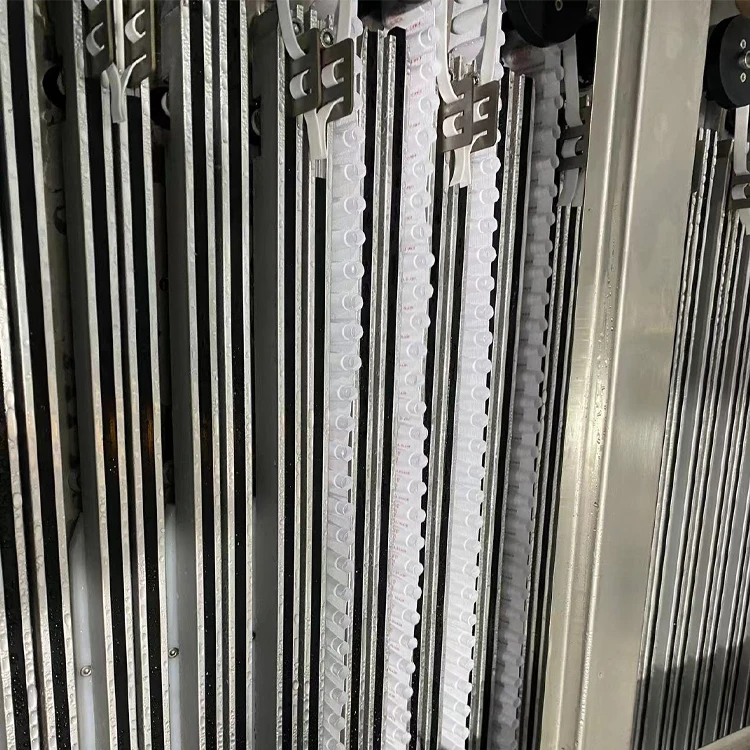

exclusive circulation of water cooling system
latest circulating water cooling technology, which can solve the phenomenon of slag falling off and easy fracture when the product
is torn apart.
exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.
The temperature is adjustable.
is torn apart.
exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.
The temperature is adjustable.

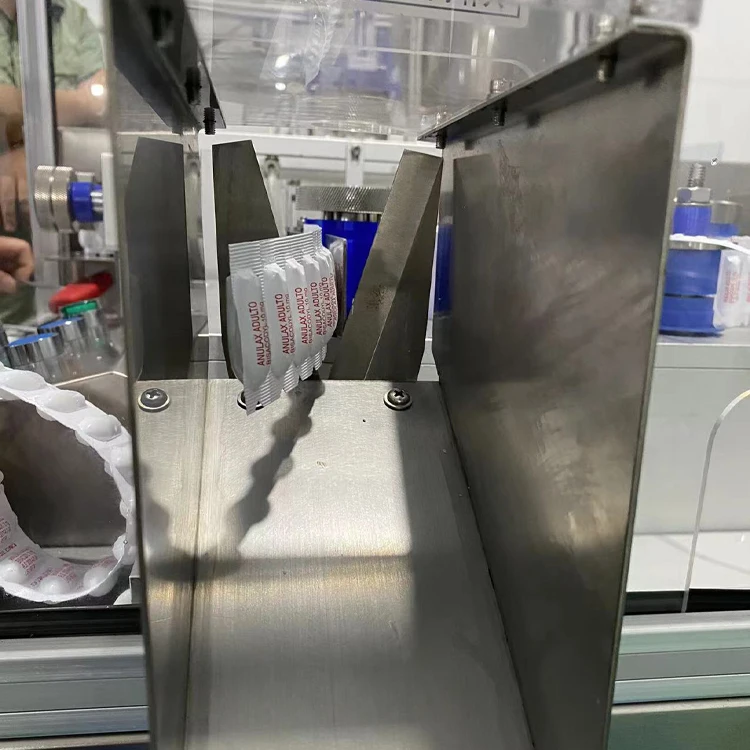

Cutting
The sealing seal should be well sealed, with neat appearance and good value of not less than 99.%.
If You Want To Know More About The Machine Details, Please Send An Inquiry To Get It

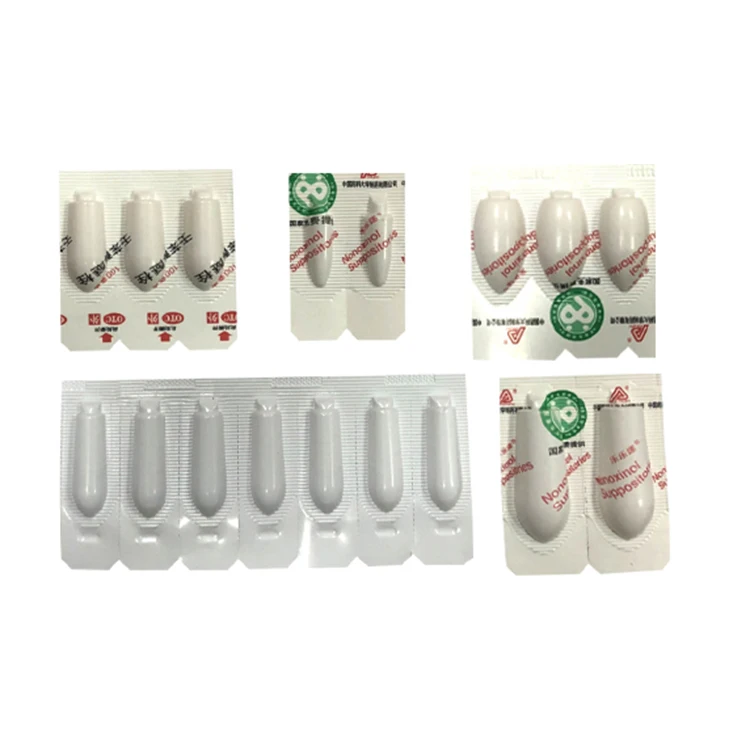

Final Product
