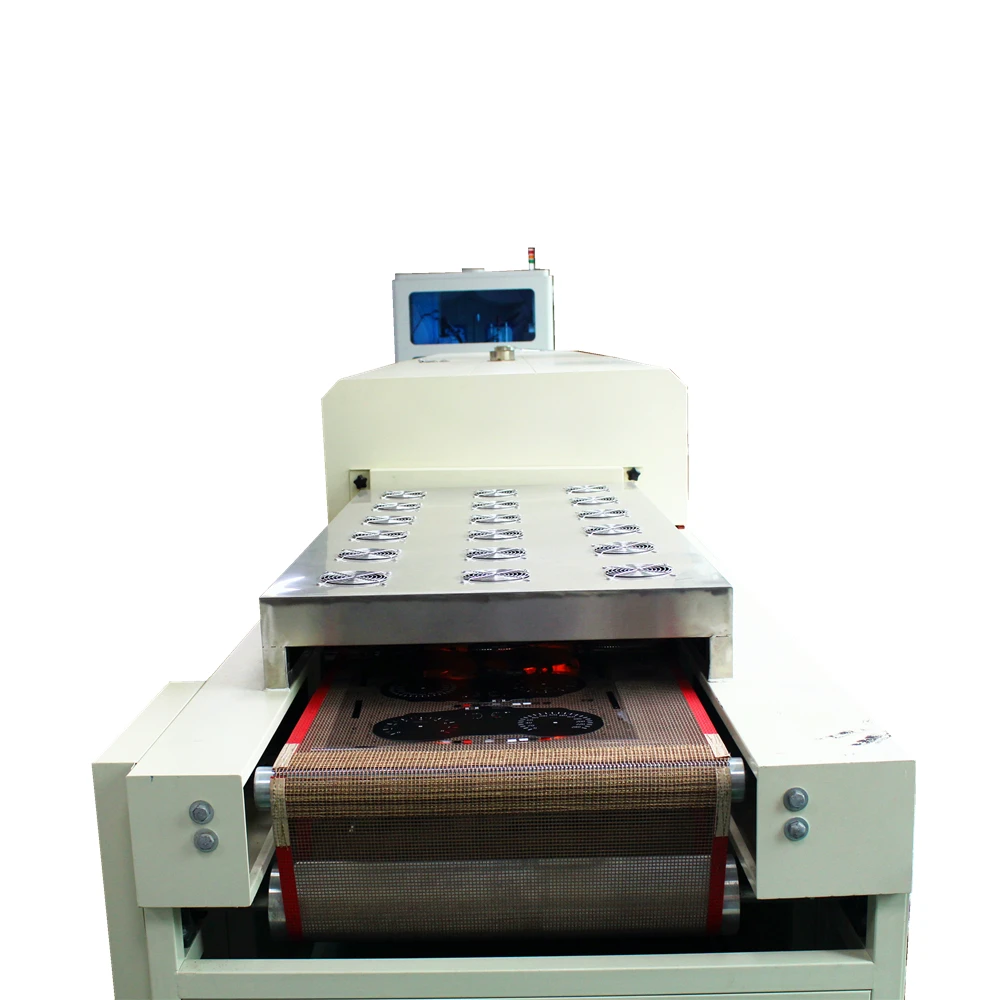

Post-printing equipment -Screen printing conveyor dryer
Mainly used for roll-to-roll PET/PVC and other flexible products, sheet PVC/PET/FPC and other materials after printing IR curing.
Support customized two-layer, three-layer, four-layer and multi-layer structure oven body to achieve space saving and reduce energy consumption.
1、Tunnel oven specifications:Customized
Support customized two-layer, three-layer, four-layer and multi-layer structure oven body to achieve space saving and reduce energy consumption.
1、Tunnel oven specifications:Customized
2、Tunnel furnace power: 30KW
3、The effective width of conveyor belt:customized
4、Tunnel furnace temperature: room temperature 22℃-200℃
Warranty | 1 year |

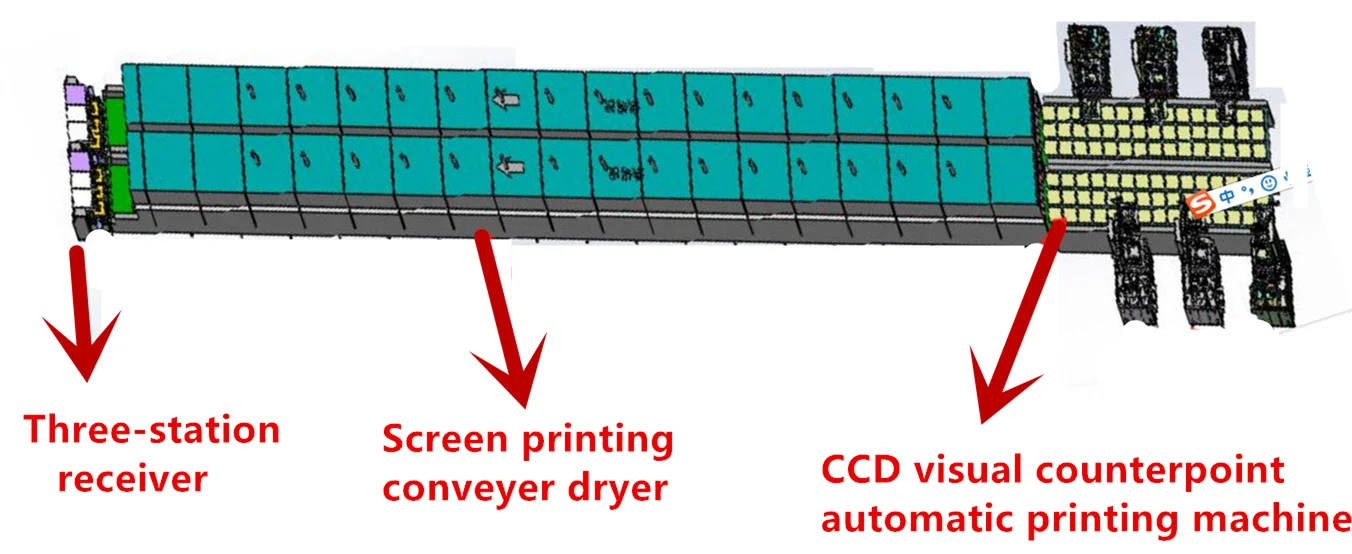

Working Principle
.

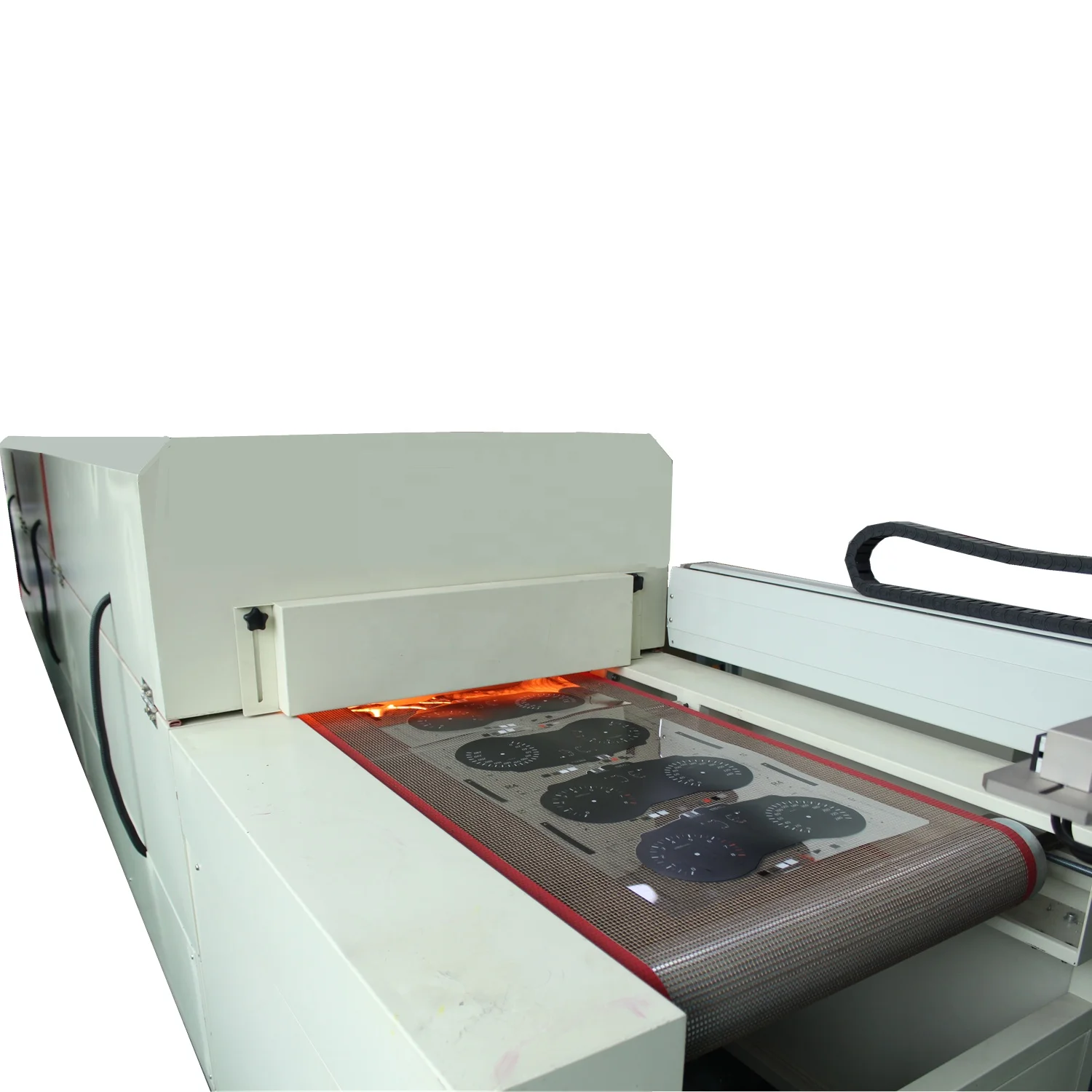

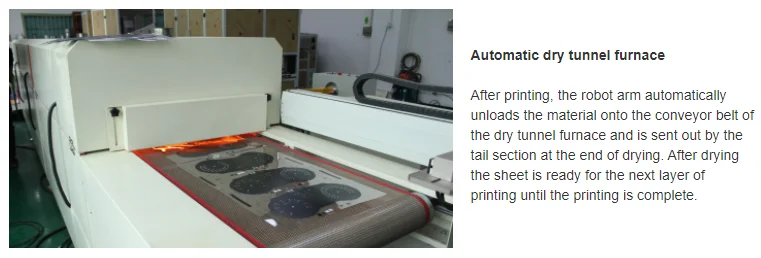

After the material is printed, the robot will suck the printed product to the tunnel oven conveyor line, and after drying in the
multi-layer IR tunnel oven, it will flow to the end of the tunnel where the material will be placed on the thousand layer rack by
human.
multi-layer IR tunnel oven, it will flow to the end of the tunnel where the material will be placed on the thousand layer rack by
human.

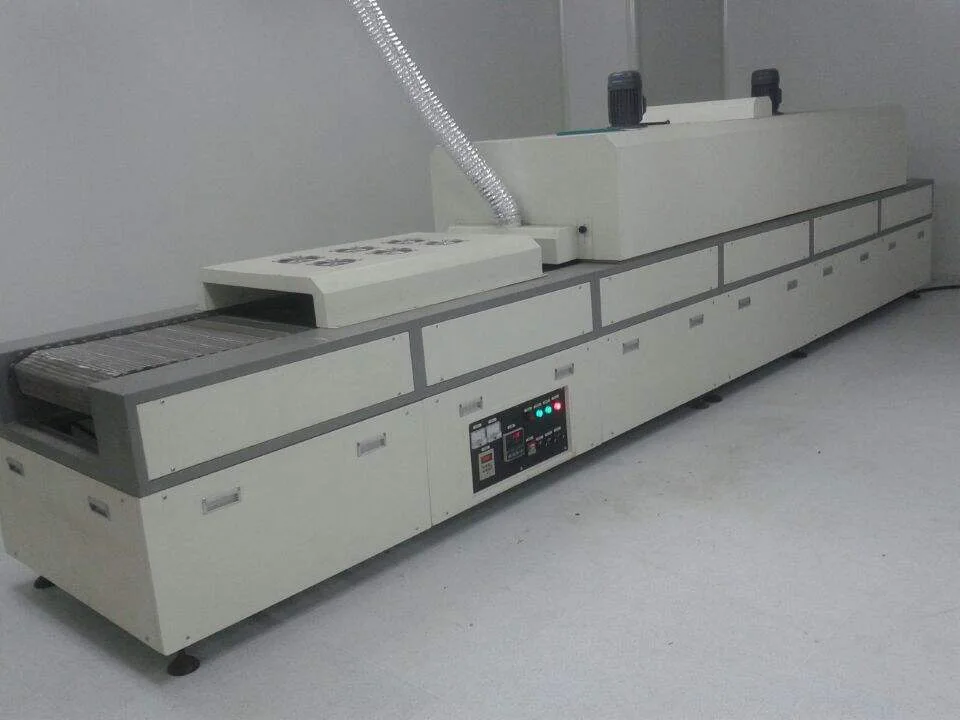

Main structure and configuration：
1、The outer shell of the furnace body is made of T1.5mm cold plate, and the inner shell is made of SUS202, T1.2mm stainless steel plate with hydraulic forming and welding assembly.
1、The outer shell of the furnace body is made of T1.5mm cold plate, and the inner shell is made of SUS202, T1.2mm stainless steel plate with hydraulic forming and welding assembly.
2、The stand is made of T2.0mm, 50*50mm national standard square pass. The bottom is equipped with 3-inch universal wheel with M14 * 100mm adjustable foot cup.
3, insulation using T50 aluminum silicate cotton inside; outside put 100K Sears rock wool, T150mm insulation cotton.

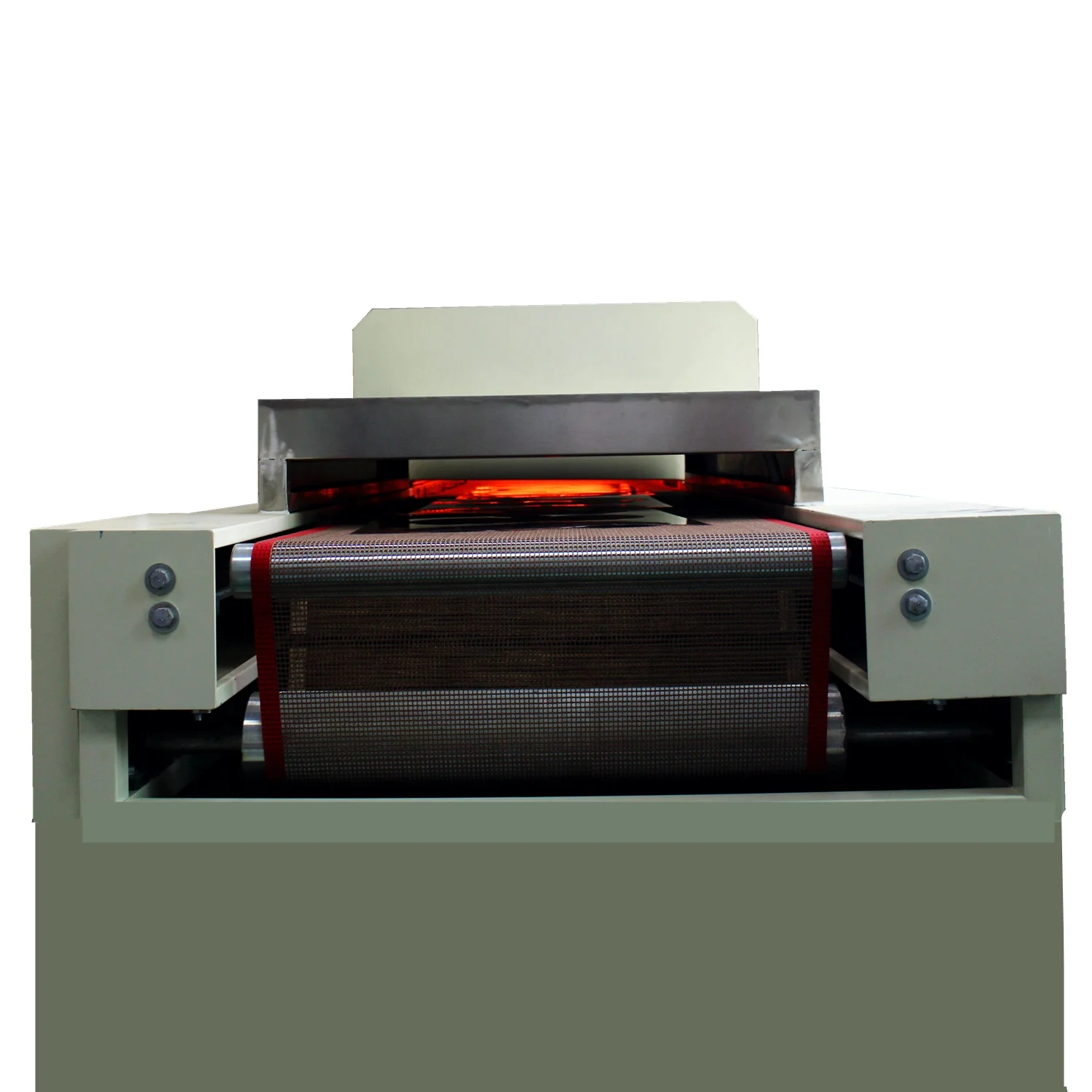

4、The conveyor belt adopts high temperature double line black Teflon mesh belt.
5、Heating using stainless steel heat sink heating tube, the total power of 30KW room temperature 22 ℃-200℃ can wither。
6、The power part adopts 0.5HP gear motor 1:30 with 0.5HP Dexie inverter 3 sets, the head and tail drive shaft adopts
φ30*L600mm chrome-plated steel with bearings, gears, chains, wear rod, etc., a total of 3 sets. All drive shafts are installed outside the insulation cotton, so that the bearings are not easily damaged by high temperature.
φ30*L600mm chrome-plated steel with bearings, gears, chains, wear rod, etc., a total of 3 sets. All drive shafts are installed outside the insulation cotton, so that the bearings are not easily damaged by high temperature.

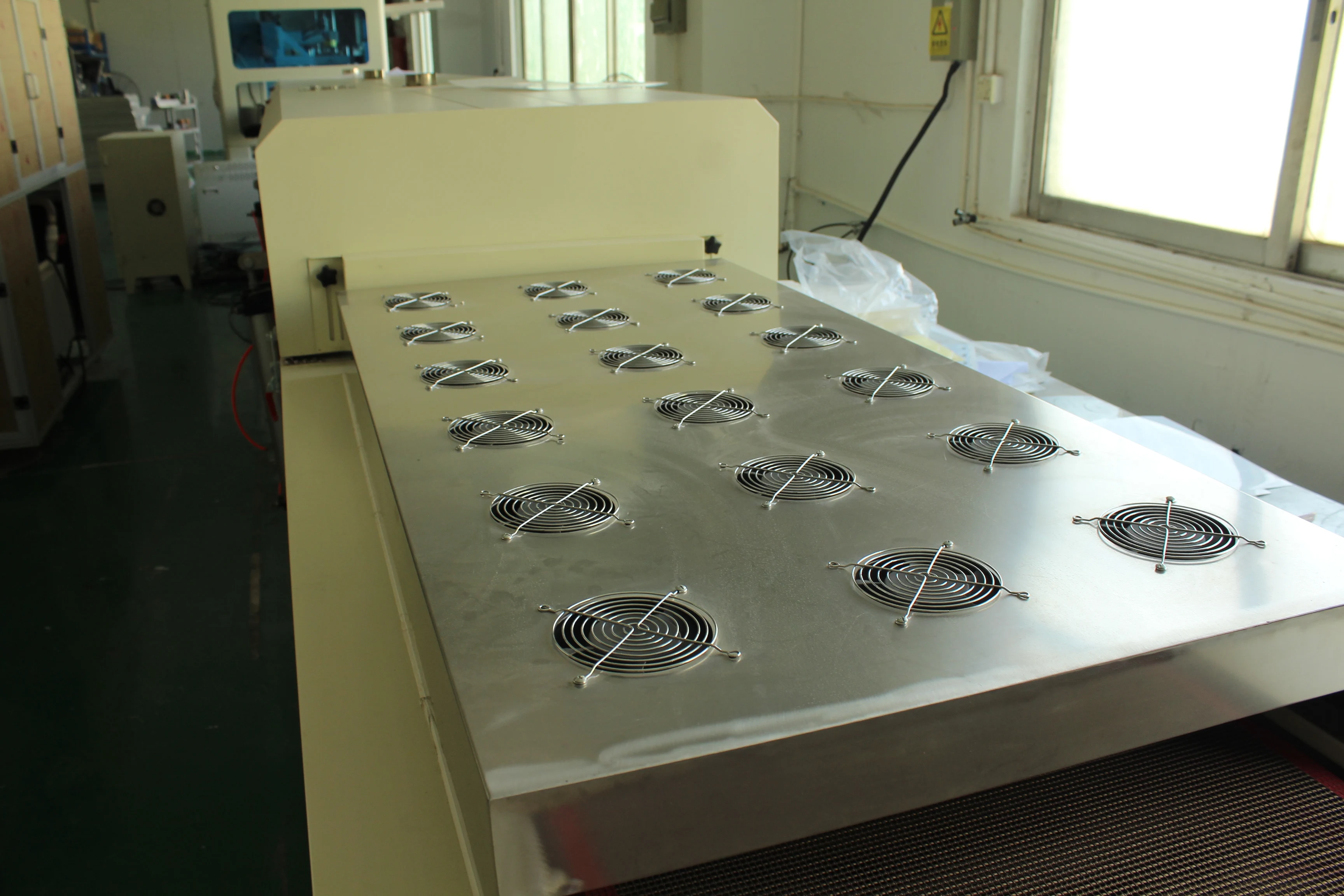

7、The wind is transported up and down, and the wind motor adopts 1HP motor with 3 sets of 10.5 inch wind blades. The upper and lower wind mesh plate adopts SUS201, T1.2mm stainless steel perforated mesh plate.。
8、Cooling wind cover adopts T1.2mm cold plate hydraulic forming, welding production. Cooling fan adopts 0.75KW centrifugal fan 1 set. The air outlet mesh plate adopts stainless steel mesh plate.
9、All imports and exports are sealed, and the import and export height is 50mm high.
10、The electric box is made of T1.0mm cold plate, the electric apparatus adopts Chint contactor, digital display Zhitong temperature meter, heat control adopts Shiguo power regulator, ammeter, indicator light, air switch, selector switch with Tongbao brand wire, wire channel, etc. 11, spray computer white baking paint, other production according to customer requirements custom

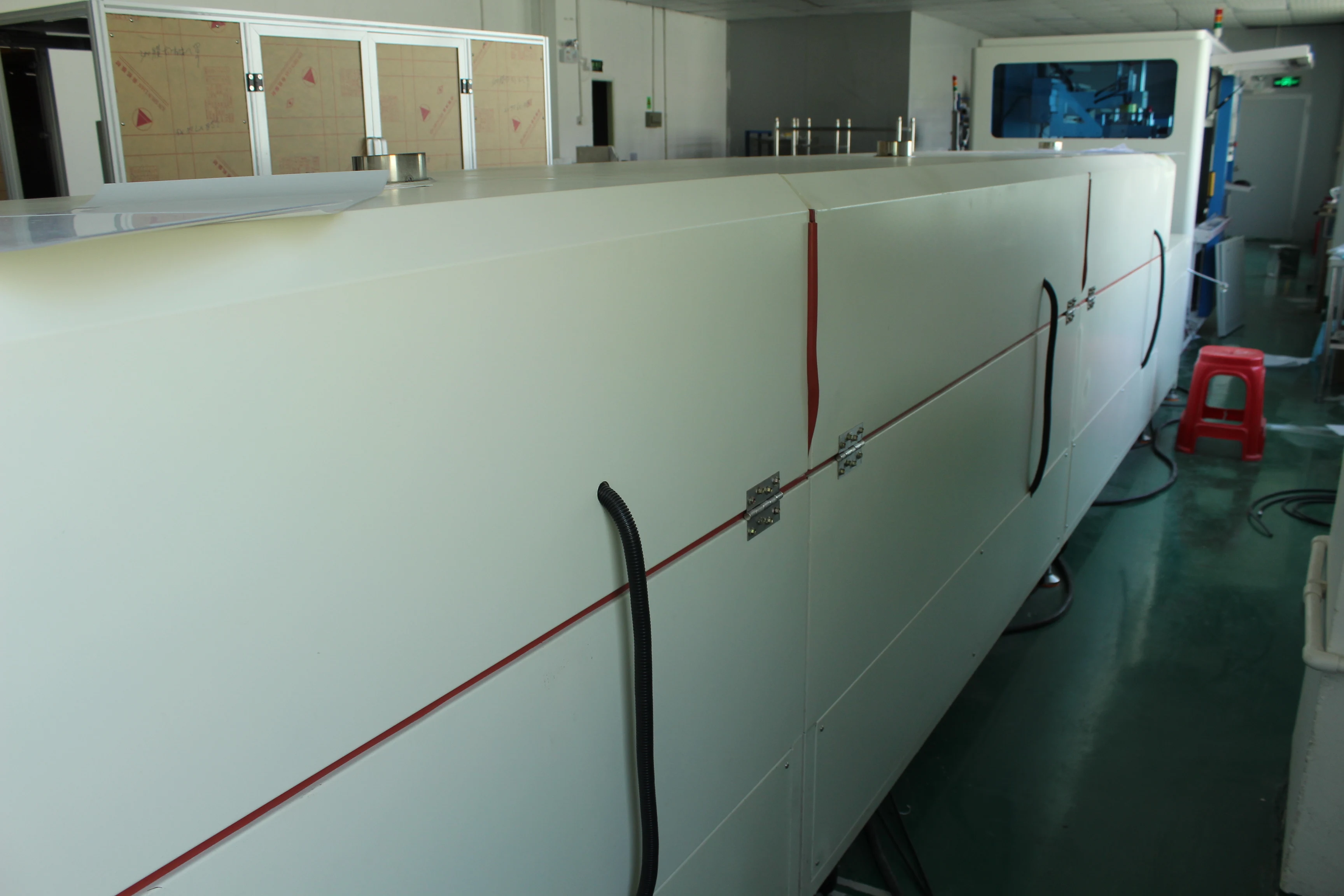

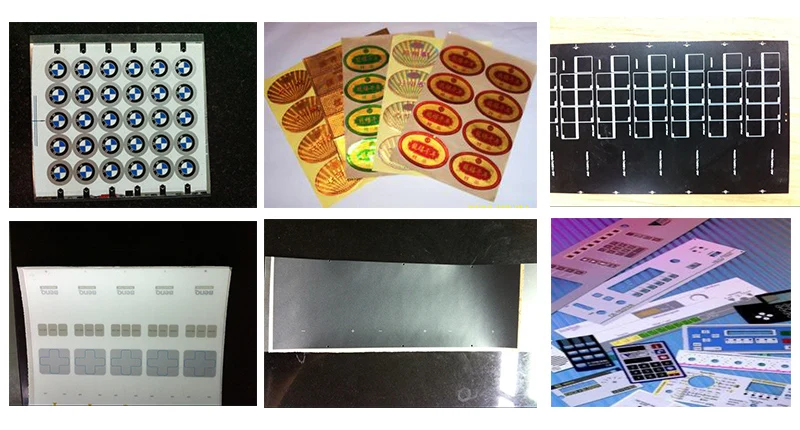

The samples show below
.
