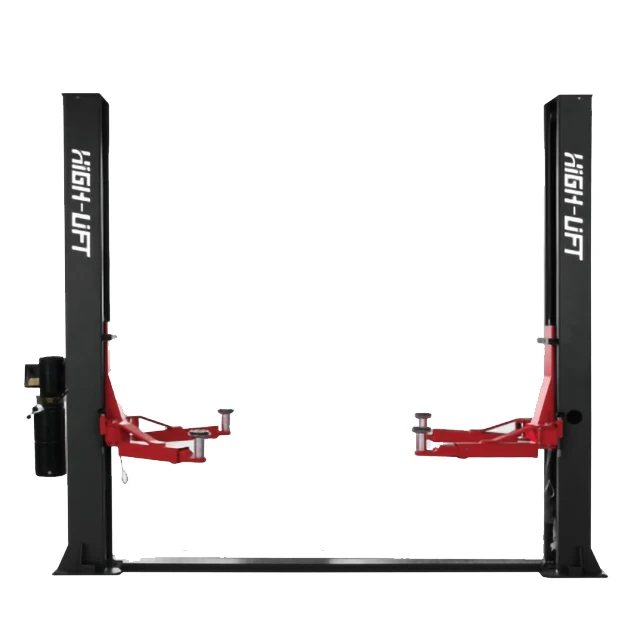

2 post car lifting ramp 4 tons YL140
- Category: >>>
- Supplier: High Lift Equipment Co. Ltd.
Share on (1600934635981):
Product Overview
Description
Products Description

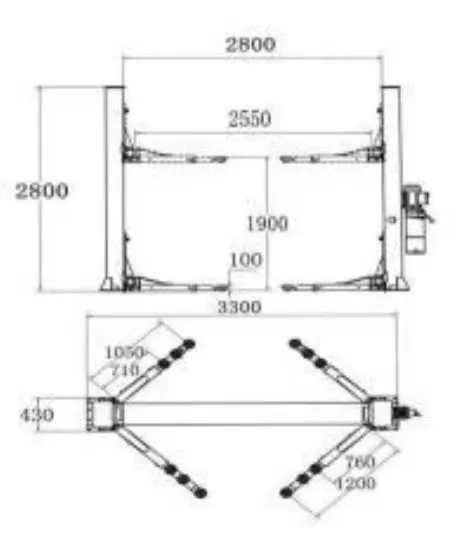

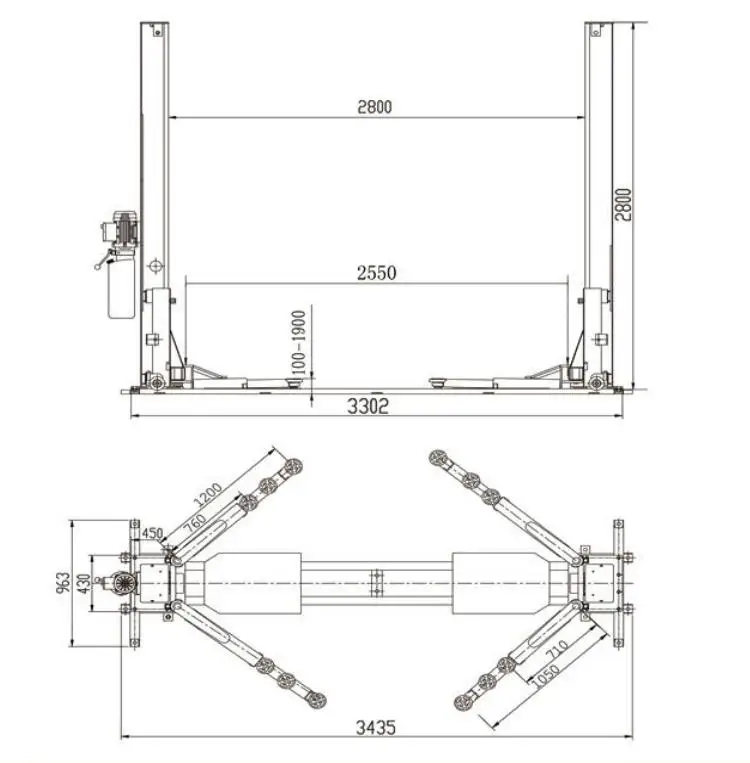

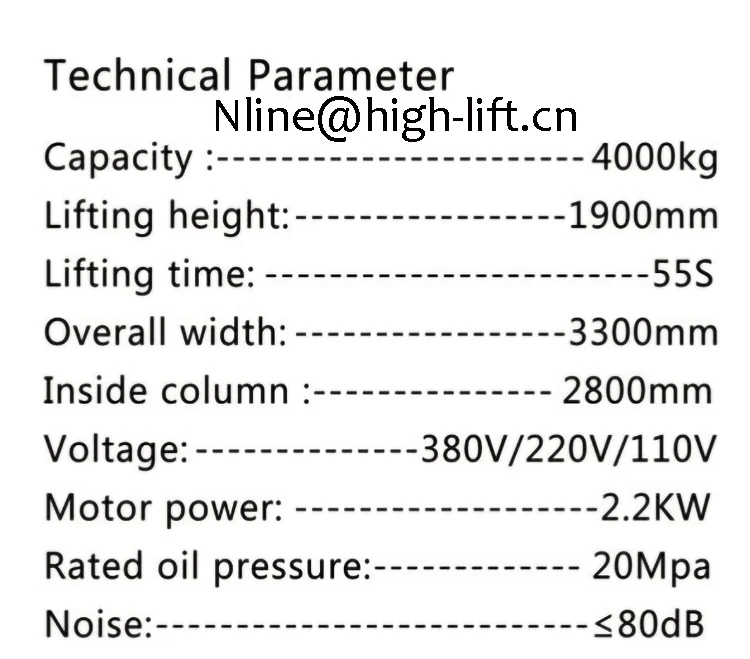

Technical Parameter
Capacity--------------------------4000kg
Lifting height------------------1900mm
Lifting time----------------------------55s
Overall width------------------3300mm
Inside column-----------------2800mm
Voltage---------------380v/220v/110v
Motor power------------------------2.2kw
Rated oil pressure---------------20mpa
Noise------------------------------------≤80db
Lifting height------------------1900mm
Lifting time----------------------------55s
Overall width------------------3300mm
Inside column-----------------2800mm
Voltage---------------380v/220v/110v
Motor power------------------------2.2kw
Rated oil pressure---------------20mpa
Noise------------------------------------≤80db

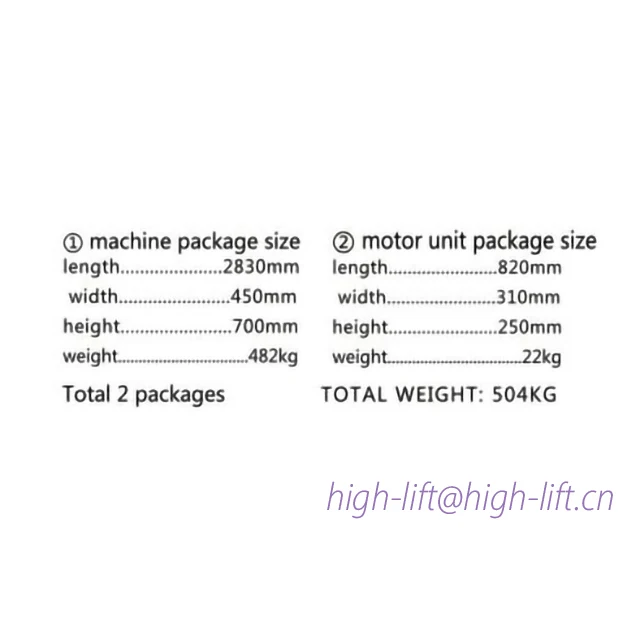

1.machine package size
Length---------------2830mm
Width------------------450mm
Height-----------------700mm
Weight-------------------482kg
Total 2 packages
Length---------------2830mm
Width------------------450mm
Height-----------------700mm
Weight-------------------482kg
Total 2 packages
2.Motor unit package size
Length-----------------820mm
Width------------------310mm
Height-----------------250mm
Weight--------------------22kg
TOTAL WEIGHT:510KG
Length-----------------820mm
Width------------------310mm
Height-----------------250mm
Weight--------------------22kg
TOTAL WEIGHT:510KG
Production Process
1 laser blanking
2 flame cutting
3 saw machine
4 Drill
5 Plane drill
6 Bending
7 Machine welding
8 Spray
9 assembling
10 Pack
11 finished product
