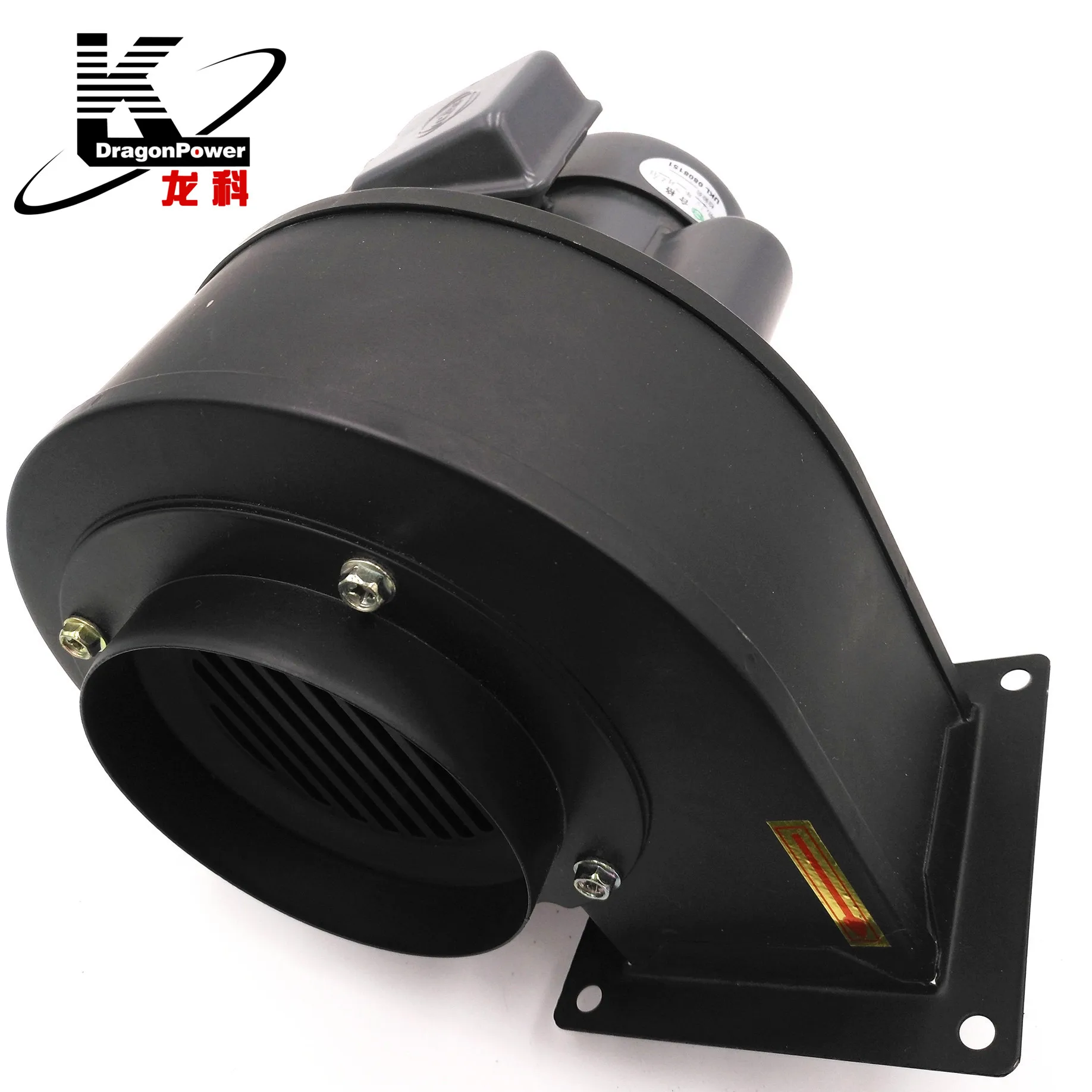

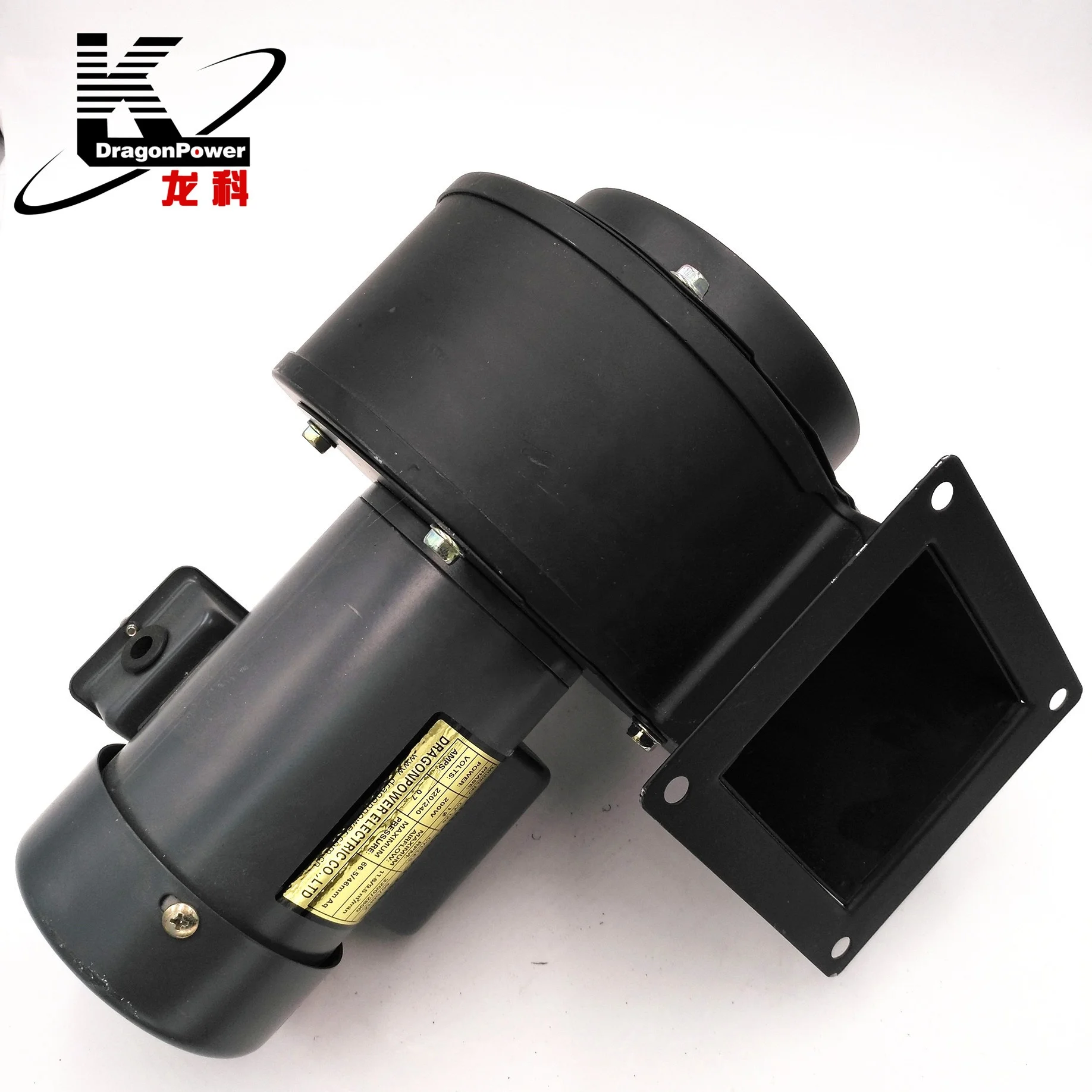

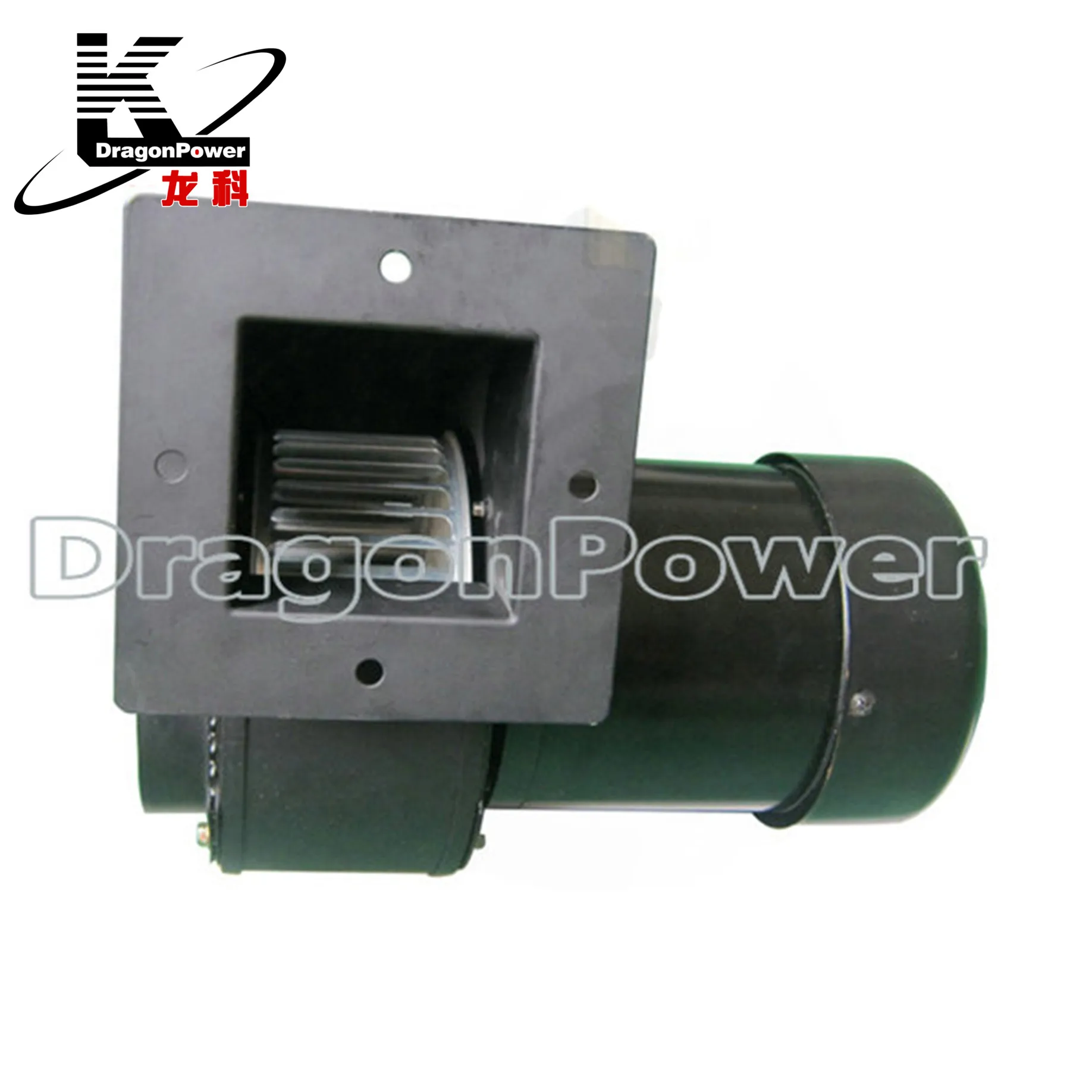

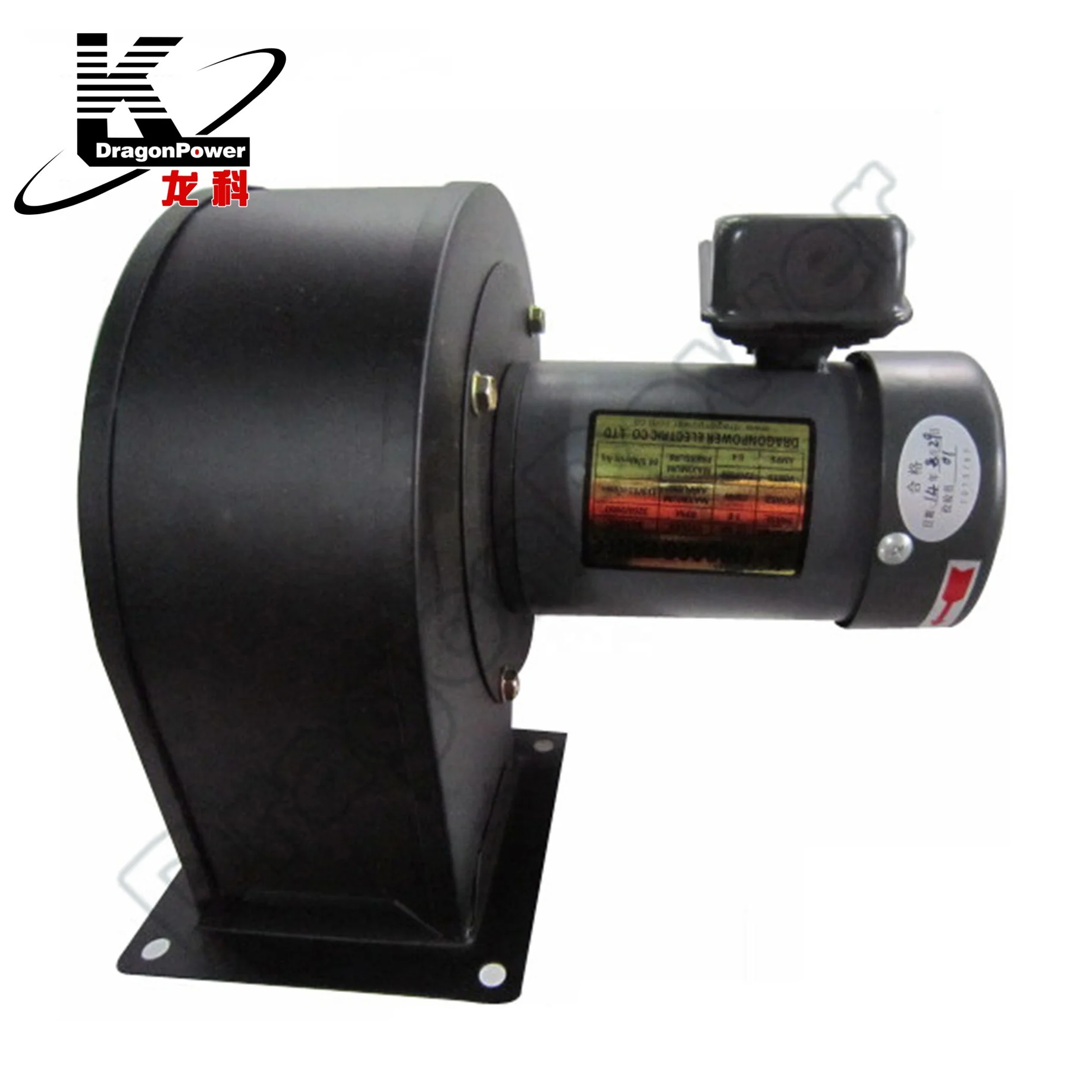

Industrial Small centrifugal blower fan

Product Overview

Description

Description:  Air blown inflatable blower

1. Flexibility with minimum order requirements
2. On-time delivery
3. Technical support ( with overseas service available)
4. Simple ordering procedure: Email, fax or mail.

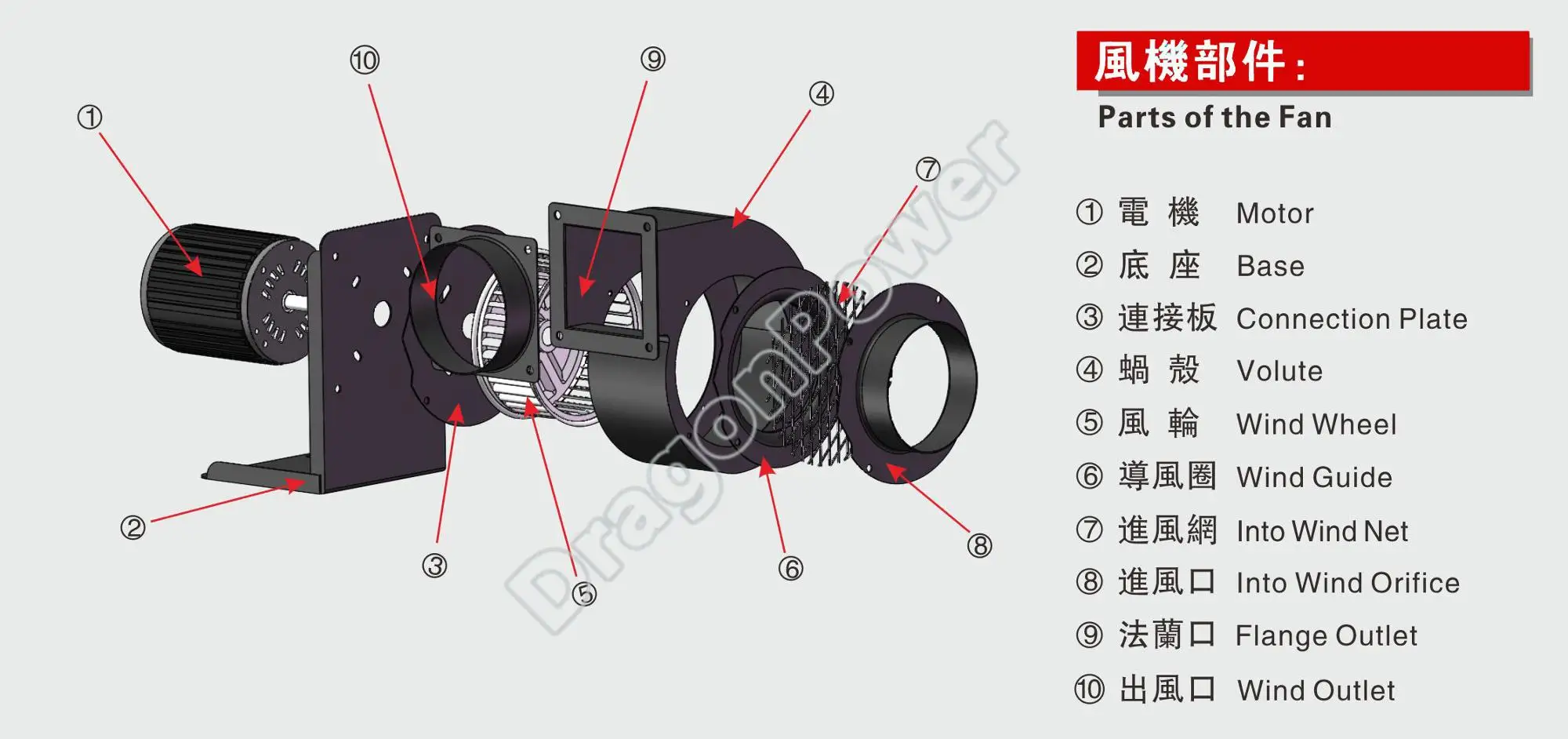

  This series low-noise centrifugal fan which we absorbed advanced technologies at home and abroad. all the structural parts of this fan are using the mold production, and the impeller have been static and dynamic balance proofread.
The impeller and scroll are all powder sprayed, the surface is smooth, bright and corrosion-resistant. The motor cover is also special handled, which helps the cover free from oxidized.
our centrifugal fan are little vibration, low noise, large air volume, easy to install and debug.

Technical datas as follow:



Rated Voltage(V)	Frequency (HZ)	Phase	Current (A)	Output Power (W)	Pressure (mmAq/RPM)	Air Flow (CMM/RPM)	Net Weight (KG)	Volume (m3)	Apply heater surface area (cm2)
110	60	1	6.4	0.37	84/3570	14.8/3460	12	0.035	1700~2500
220	60	1	3.2	0.37	84/3570	14.8/3460
220	50	1	3.5	0.37	58/2980	12.5/2930
220	60	3	2.0	0.37	84/3580	14.8/3460
380	50	3	1.0	0.37	58/2980	12.5/2930

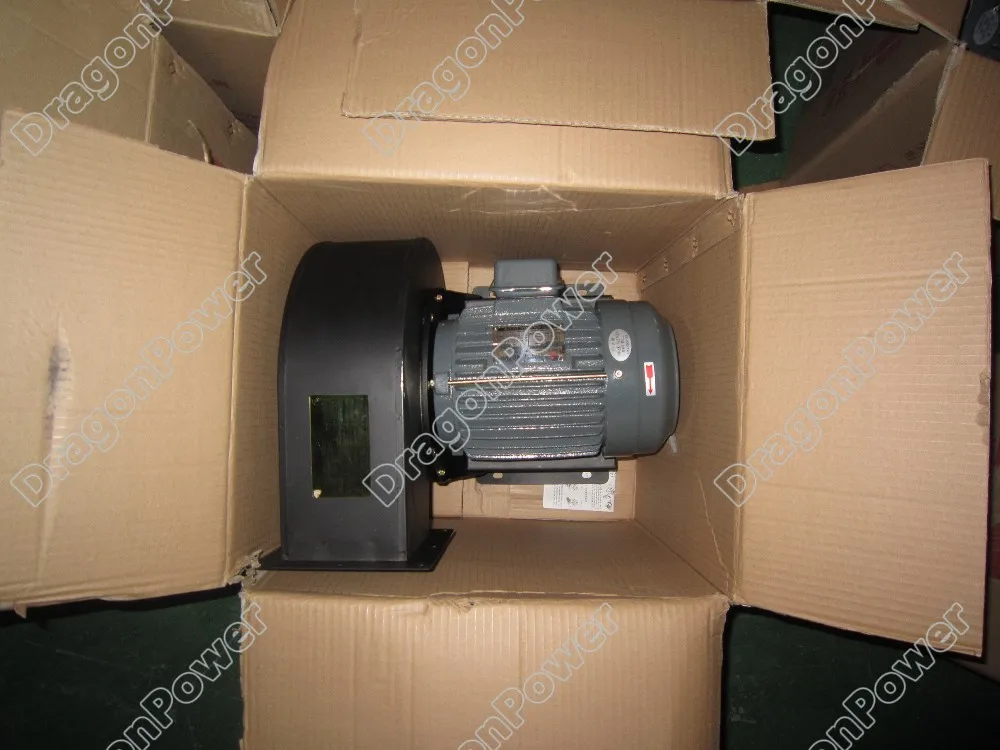

Packing & Shipping

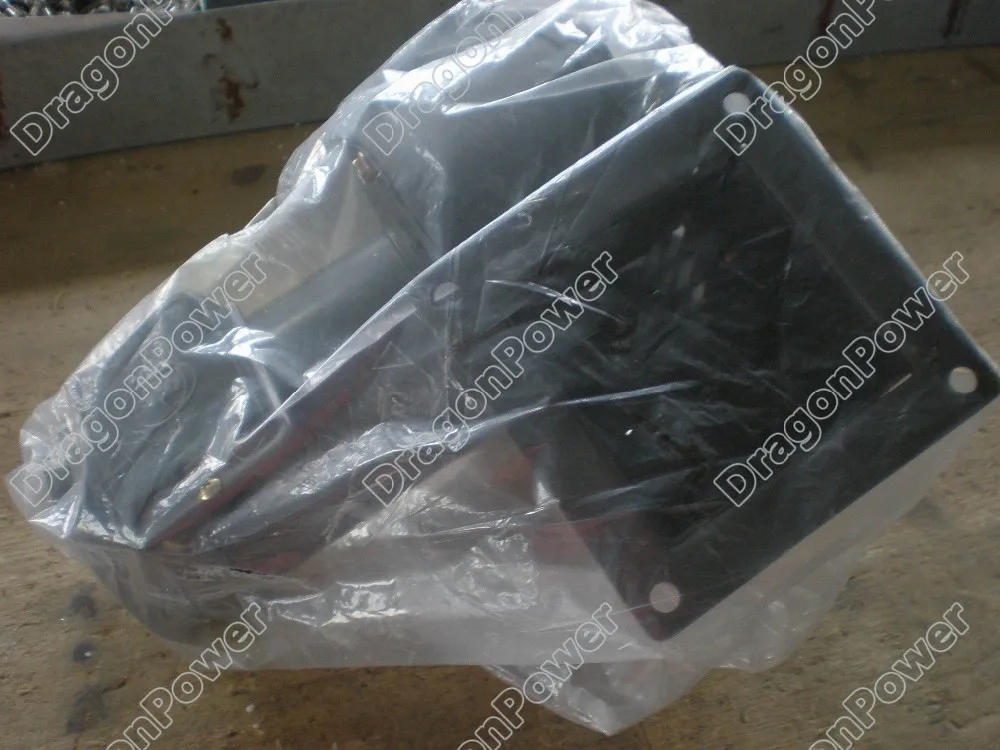

high capacity air blower in plywood case.



Shipment:1.small quantity by DHL,FEDEX 2.Bulk goods by Sea Freight.



Other services we are committed to offer include:

1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.

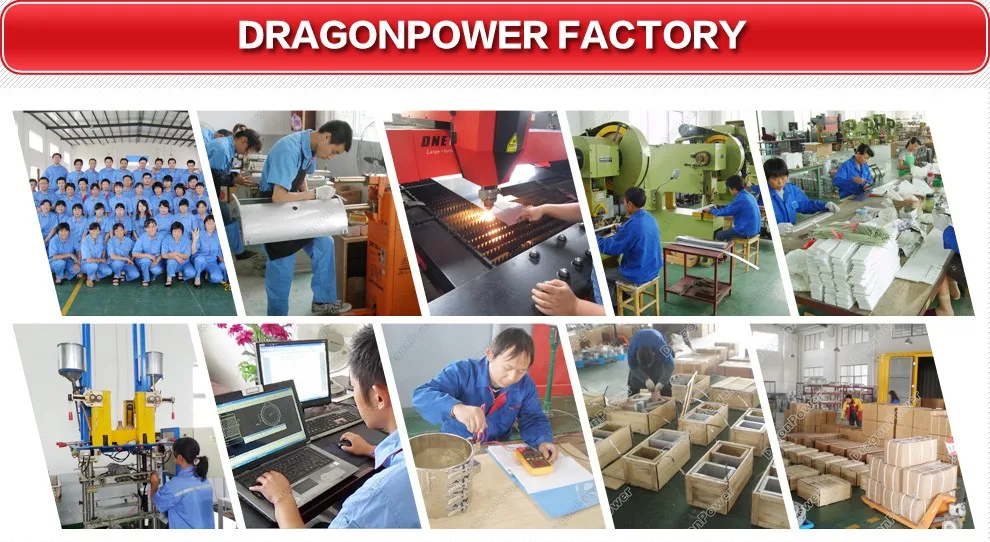

DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services.
