Smoke Detector Alarm Heat Detector Against Case For Fire Alarm System
Smoke Detector Alarm Heat Detector Against Case For Fire Alarm System
Smoke Detector Alarm Heat Detector Against Case For Fire Alarm System
Smoke Detector Alarm Heat Detector Against Case For Fire Alarm System
Smoke Detector Alarm Heat Detector Against Case For Fire Alarm System
Smoke Detector Alarm Heat Detector Against Case For Fire Alarm System
Smoke Detector Alarm Heat Detector Against Case For Fire Alarm System

Smoke Detector Alarm Heat Detector Against Case For Fire Alarm System

Share on (1600934659779):


Price:$5.56-5.73

Quantity:


Product Overview

Description





Product Description

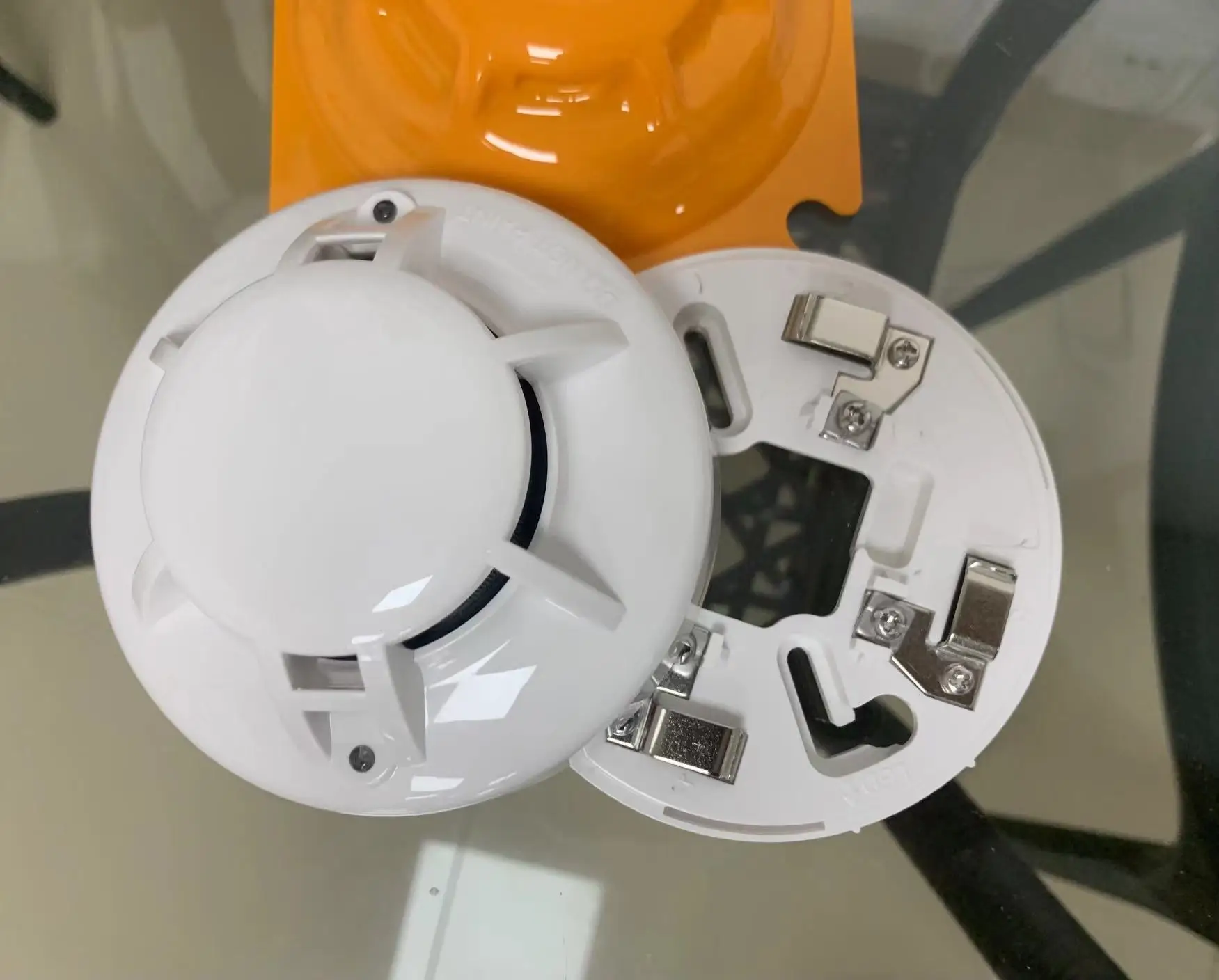

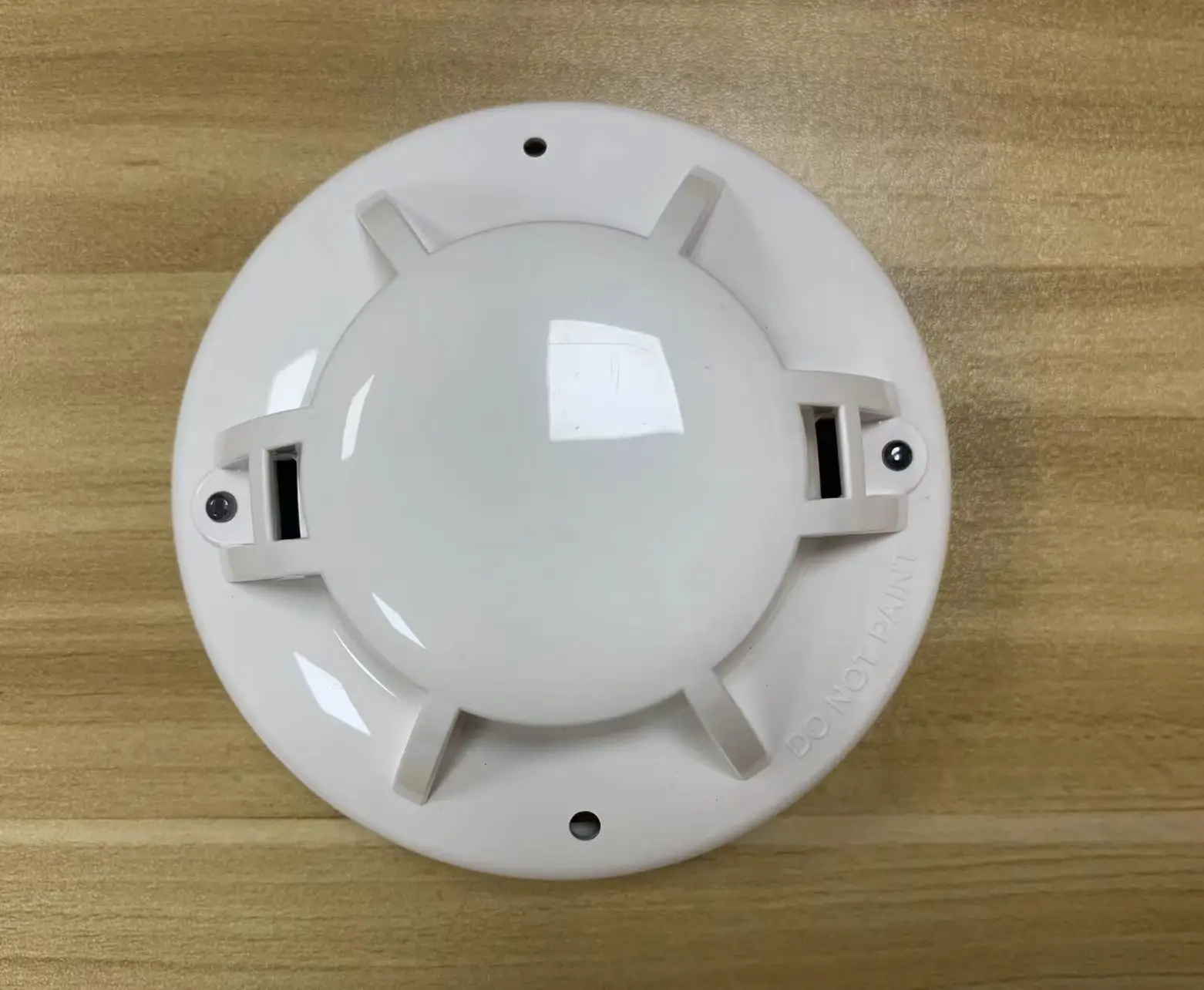

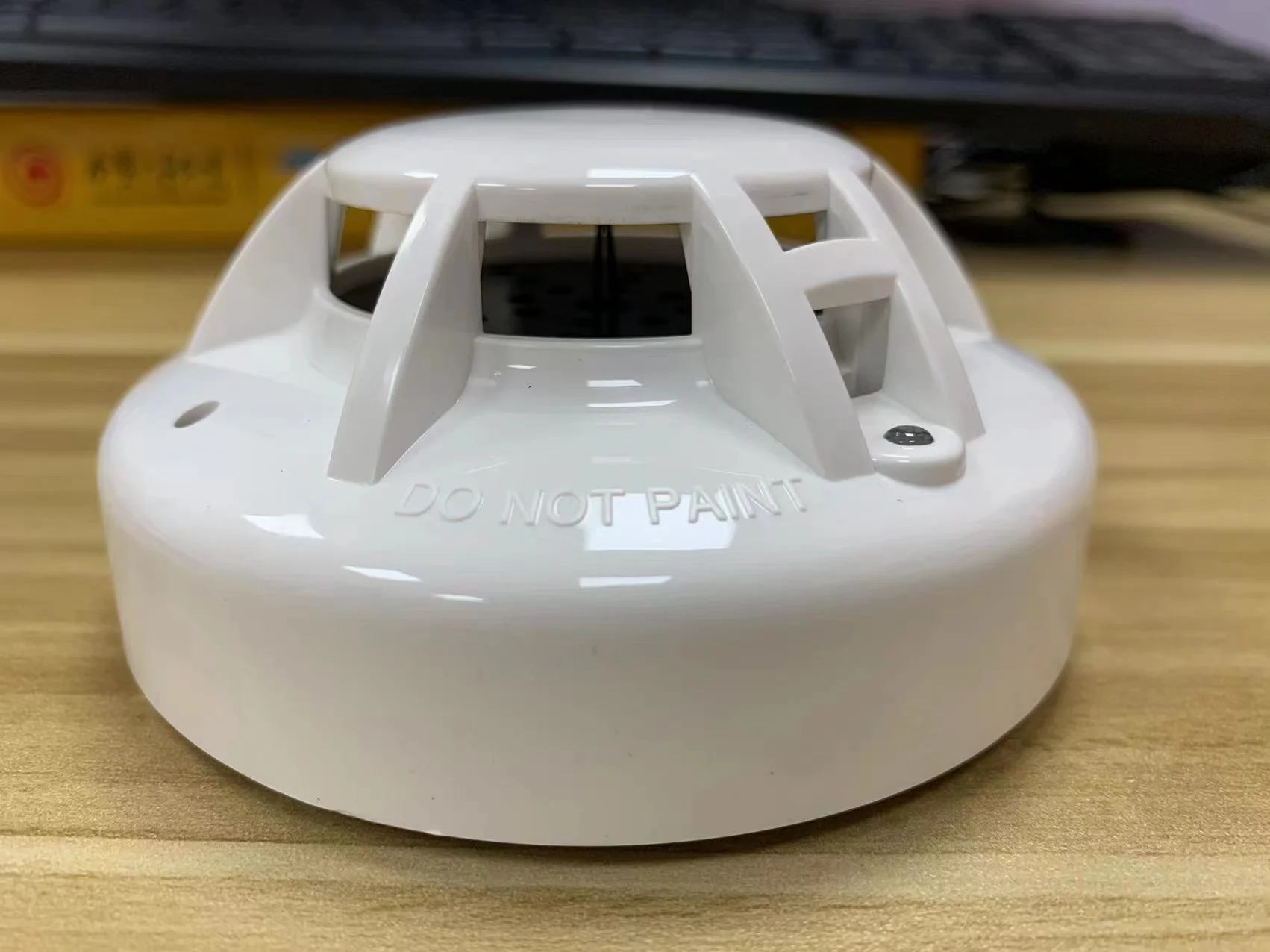

Conventional Photoelectric 2 wire Thermal Alarm Detector

The device is itelligent sensors that utilize a state-of-the-art thermistor sensing circuit for fast response.These sensors are designed to provide open area protection with 50 foot spacing capability. The device is a rate-of-rise temperature sensor with 135℉ fixed temperature alarm.
The device is a rate-of-rise with fixed temperature alarm thermal detector utilizing a state-of-the-art dual thermistof sensing ciruit. These detectors are designed to provide open area protection with 50-foot spacing capability,and are to be used withcompatible control panels only.
Two LEDs on each detector light to provide 360°visibility of the detector indication.




Specification


Operating Voltage:
9 to 28VDC
Standby Current:
≦60µA@24VDC
Maximum Alarm Current:
≦30mA@24VDC
Fixed Temperature Rating:
135℉(57℃)
Operating Temperature:
-10°C to +50°C(14℉ to 122℉)
Operating Humidity:
10% to 93% Relative Humidity,Non-condensing
Diameter:
103mm
Height:
55mm
Weight:
155g


Product Features：

* esay to install and expand
* simple appearance,long term use ,not easy to yellow
* Buit-in imported chips ,the product is more stable and durable
* When a fire alarm occurs, the panel buzzer sounds
