Diesel Generator DG Dry connection SCU Hybrid Energy Solution 500kwh Battery Storage System with Backup 100kw 200kw 500kw
- Category: >>>
- Supplier: Henan Livefun Solar Tech Co. Ltd.
Share on (1600934703670):
Product Overview
Description
Product Description

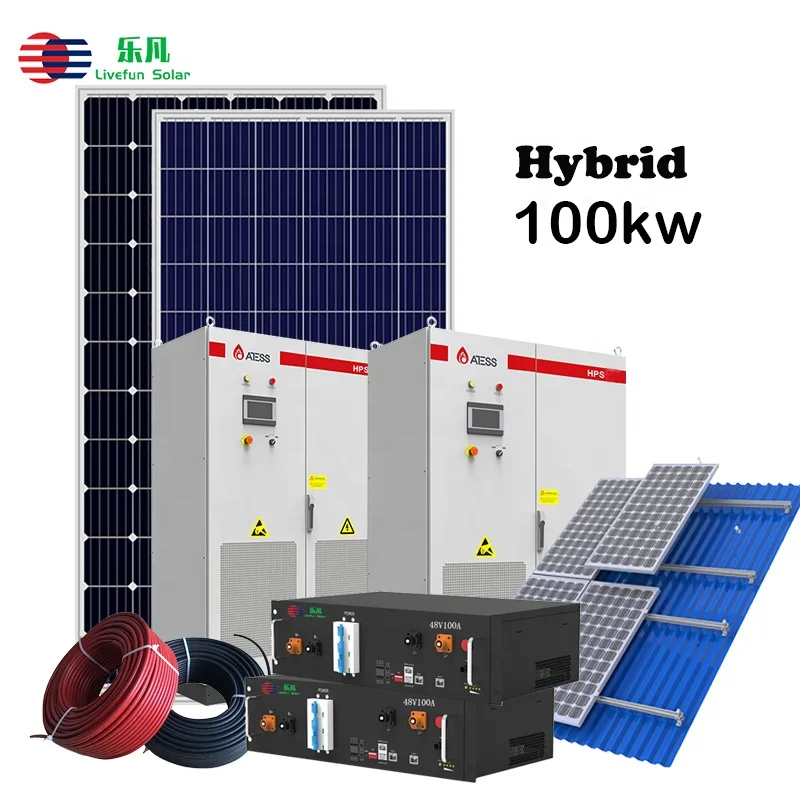

Complete Hybrid Solar Energy Storage System 20Kw 30Kw 50Kw 100Kw 150Kw 200Kw 1MW Off On Grid Solar System With Lithium Battery
Application: Hospital, School, Hotel, Cold room, Farm etc.
More than 10 years engineer support to design solar system solution
Battery can use Gel Battery, LFP Battery. ESS Outdoor Cabinet or ESS Container.

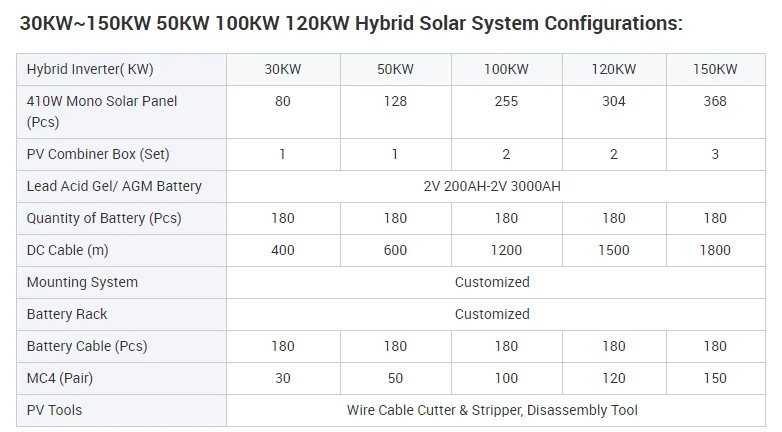

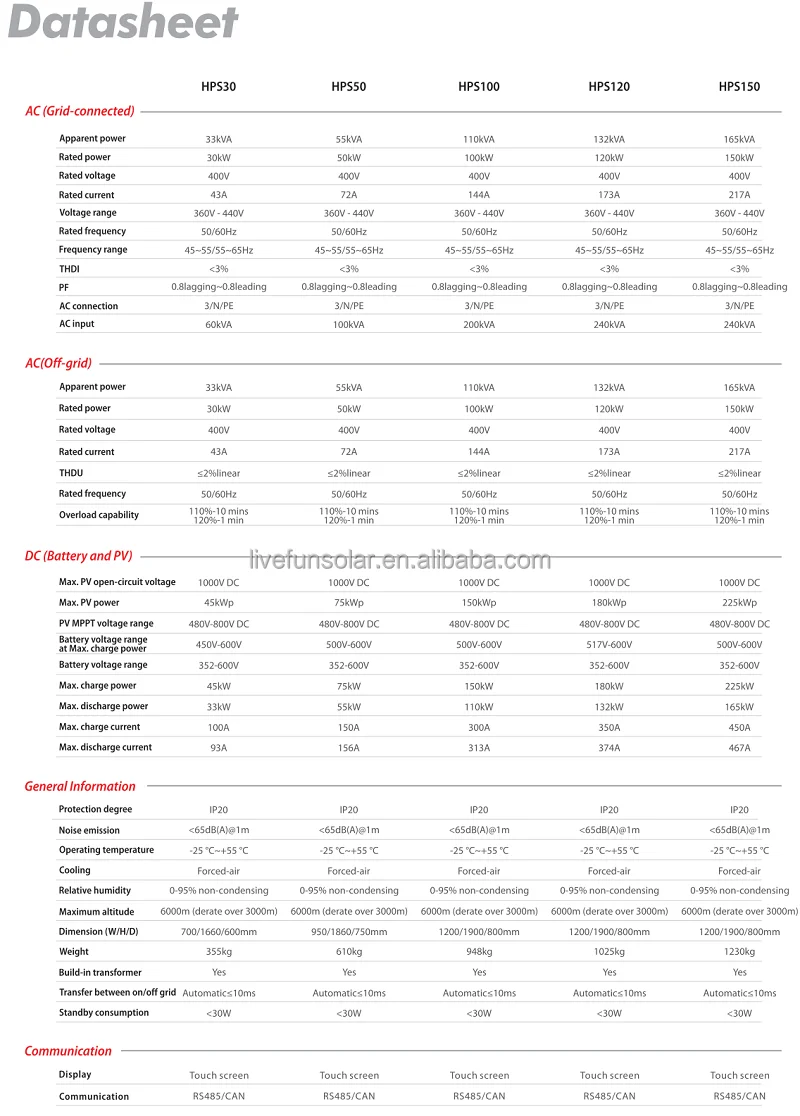

Output | 30kw | 50kw | 100kw | 120kw | 150kw |
Panels | 55pcs | 90pcs | 180pcs | 216pcs | 280pcs |

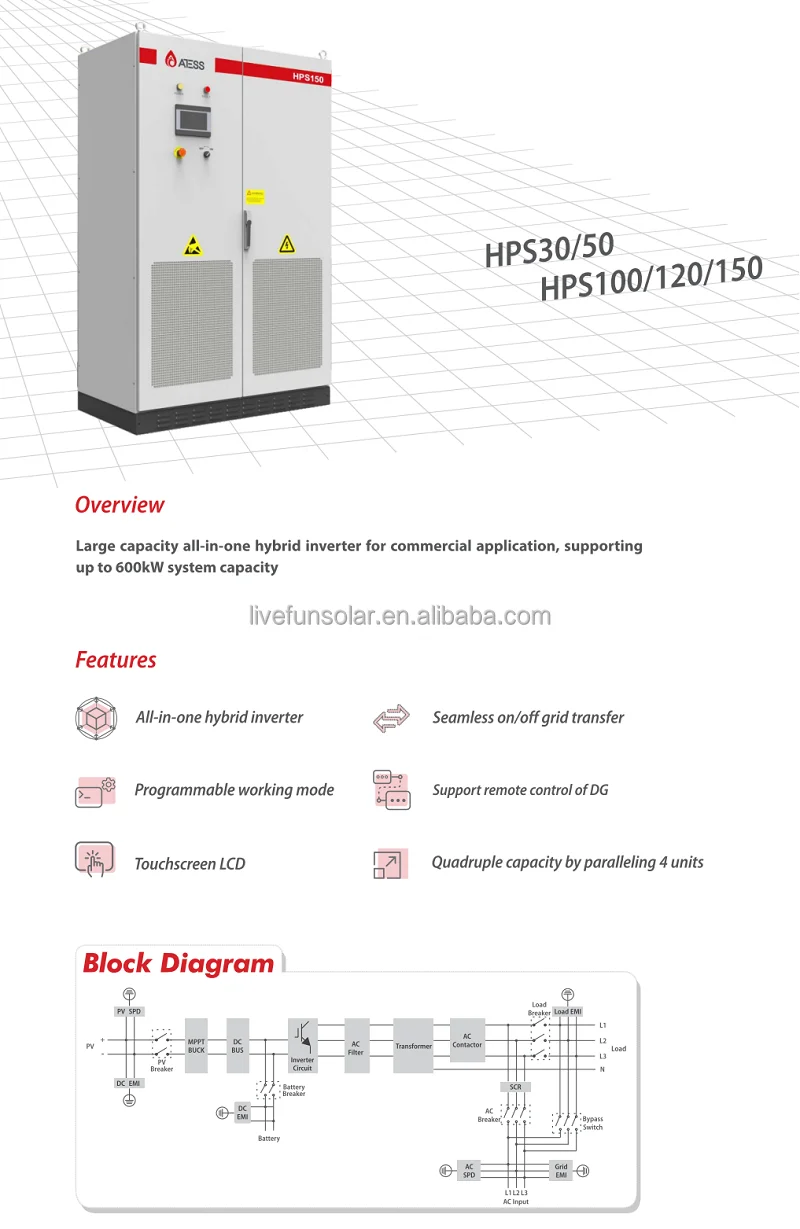

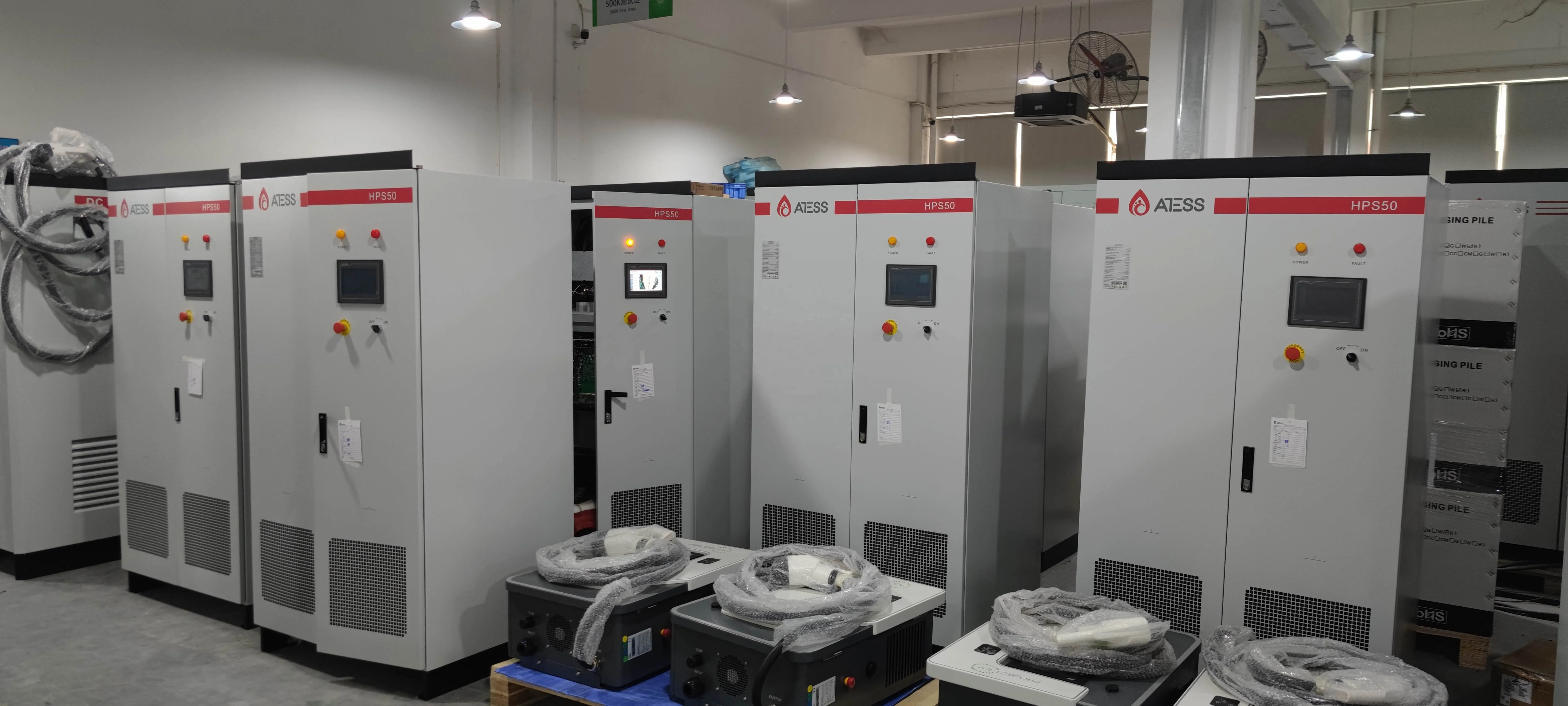

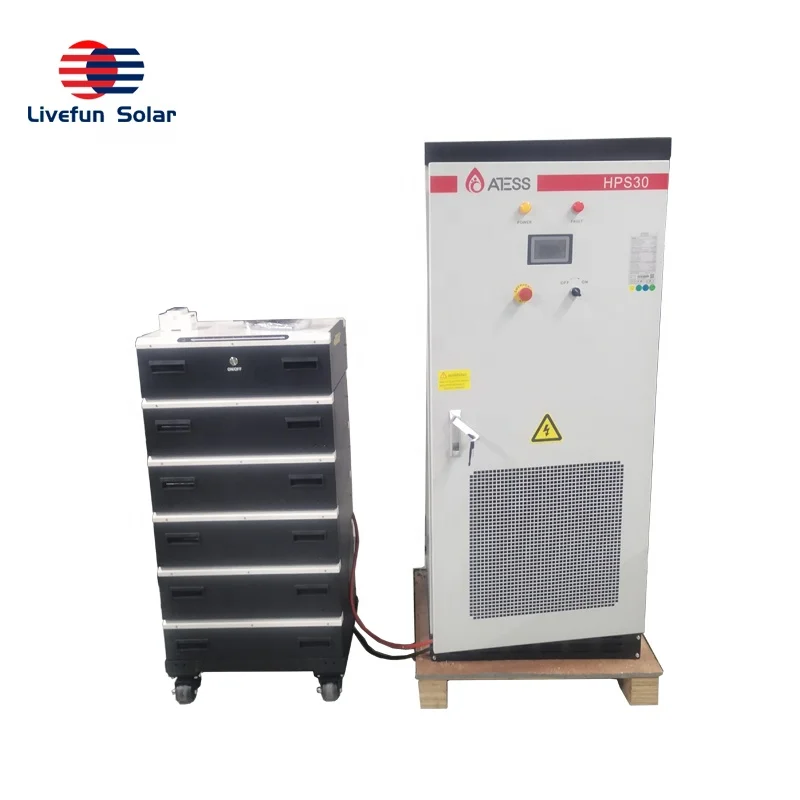

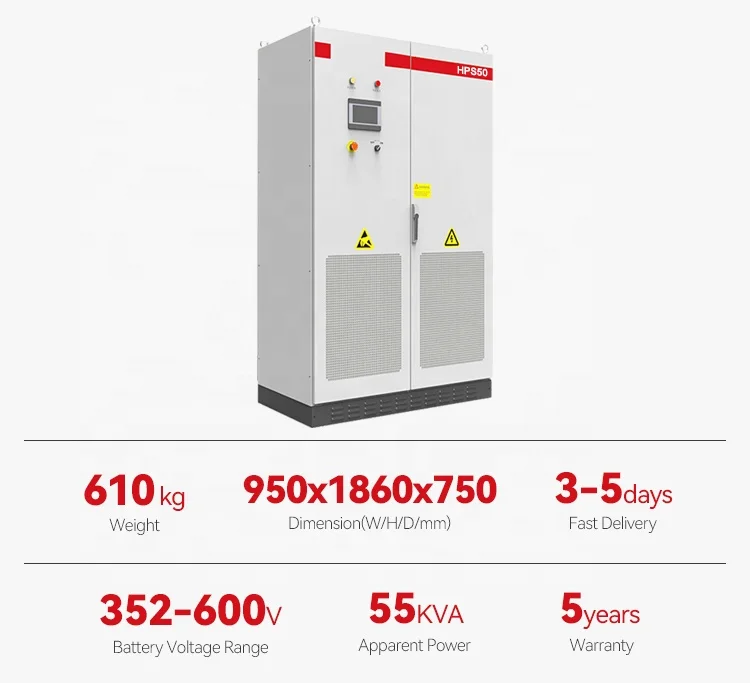

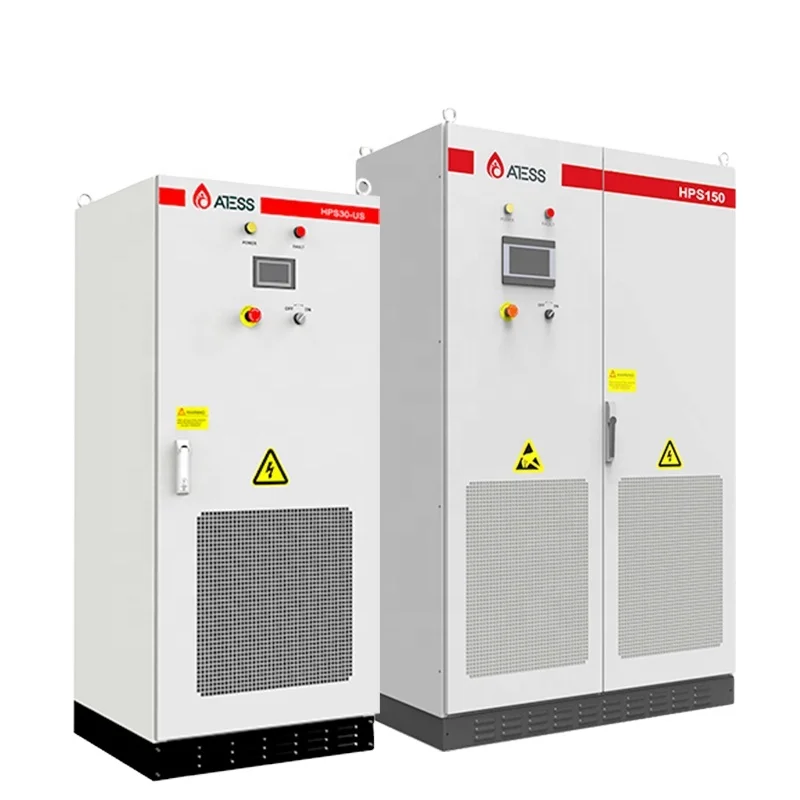

Inverter | HPS30 | HPS50 | HPS100 | HPS120 | HPS150 |
Battery | 80Kwh | 100Kwh | 200Kwh | 250Kwh | 300Kwh |
50kw system
50KW Hybrid Solar Power System Components List | |||
Item | Model | Description | Quantity |

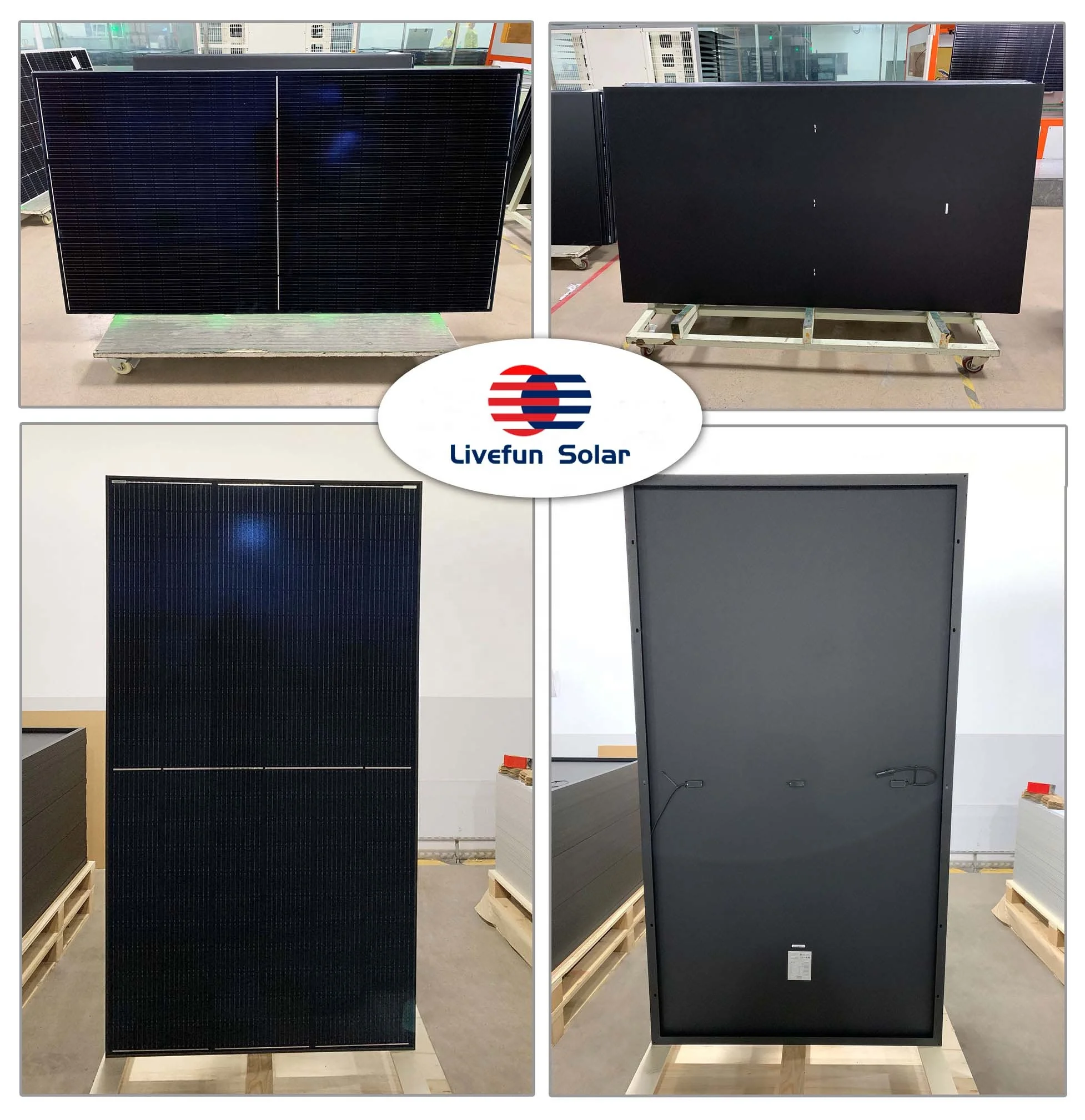

1 | Solar Panel | Mono Perc 455W Solar Panel | 119pcs |
2 | Combiner Box | Customized | 1 pc |
3 | Lithium Battery or Lead Acid Battery | 53.76kwh 512V 105AH lithium battery racks, BMS and battery cables | 1set |
4 | Hybrid Inverter | 50KW grid hybrid inverter 230/380VAC 50HZ built in MPPT controller | 1 pc |
5 | Mounting Support | Roof/Ground | 1 set |
6 | Cable | 4mm² PV cable | 700m |
7 | Connector | Solar Connector | 54pairs |
8 | Tools Bag | Solar Installation tools | 1 set |
100kw system
100KW Hybrid Solar Power System Components List | |||
Item | Model | Description | Quantity |
1 | Solar Panel | Mono Perc 455W Solar Panel | 238pcs |
2 | Combiner Box | Customized | 1 pc |
3 | Lithium Battery or Lead Acid Battery | 104.96kwh 512V 205AH lithium battery racks, BMS and battery cables | 1set |
4 | Hybrid Inverter | 100KW grid hybrid inverter 230/380VAC 50HZ built in MPPT controller | 1 pc |
5 | Mounting Support | Roof/Ground | 1 set |
6 | Cable | 4mm² PV cable | 1200m |
7 | Connector | Solar Connector | 70pairs |
8 | Tools Bag | Solar Installation tools | 1 set |

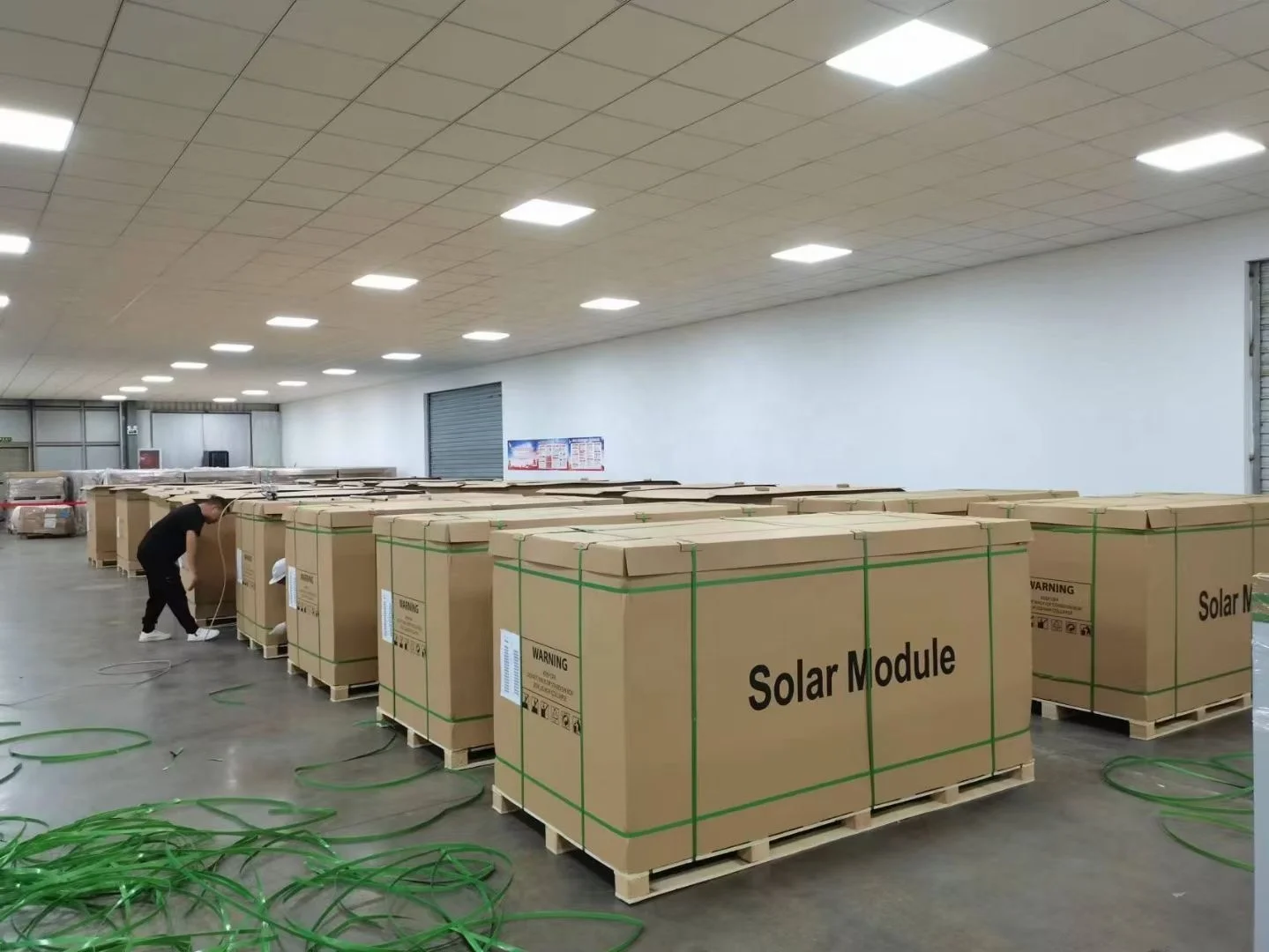

Packaging & Shipping
