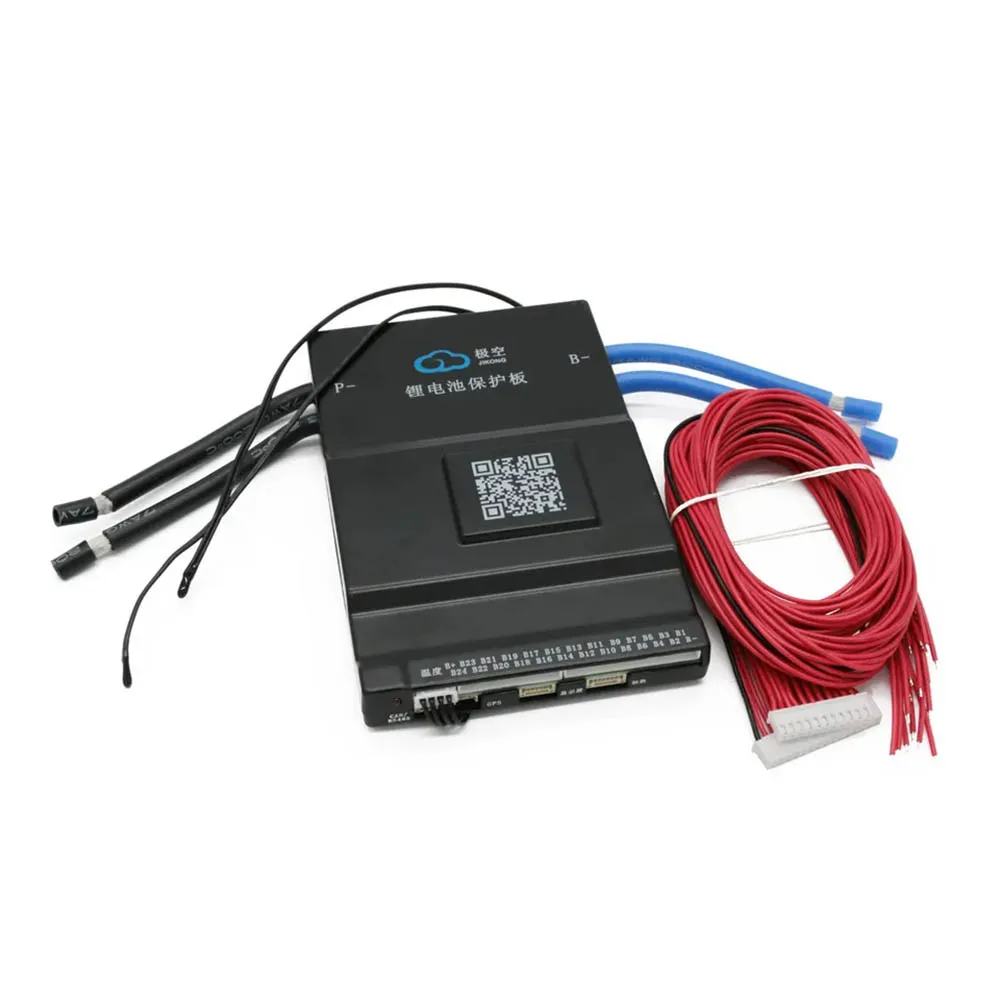

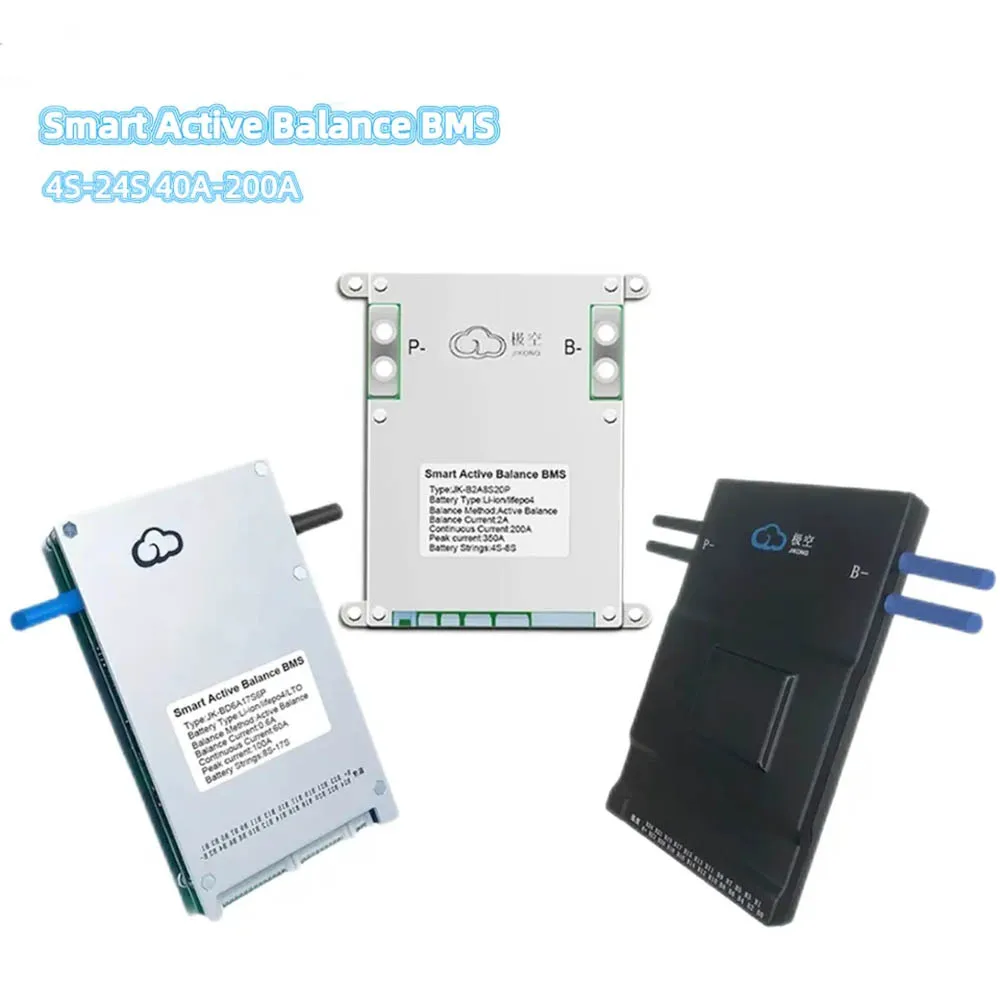

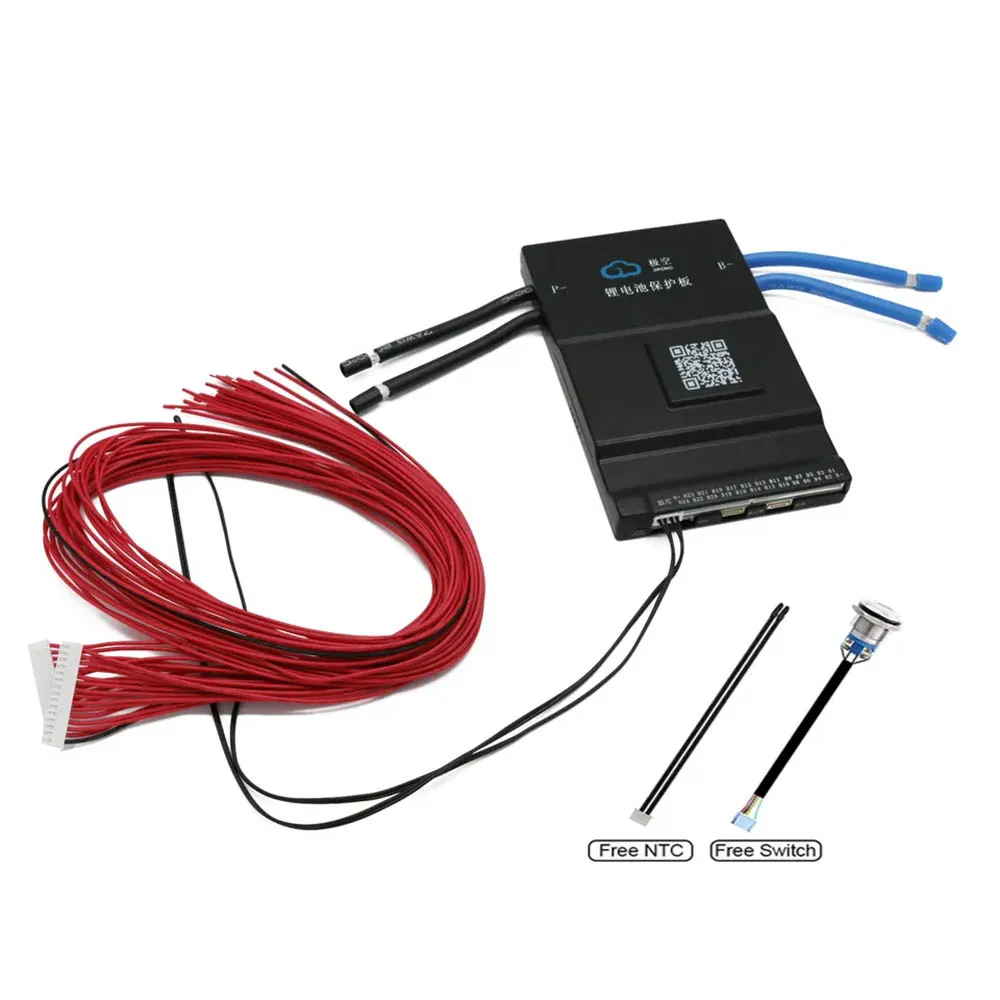

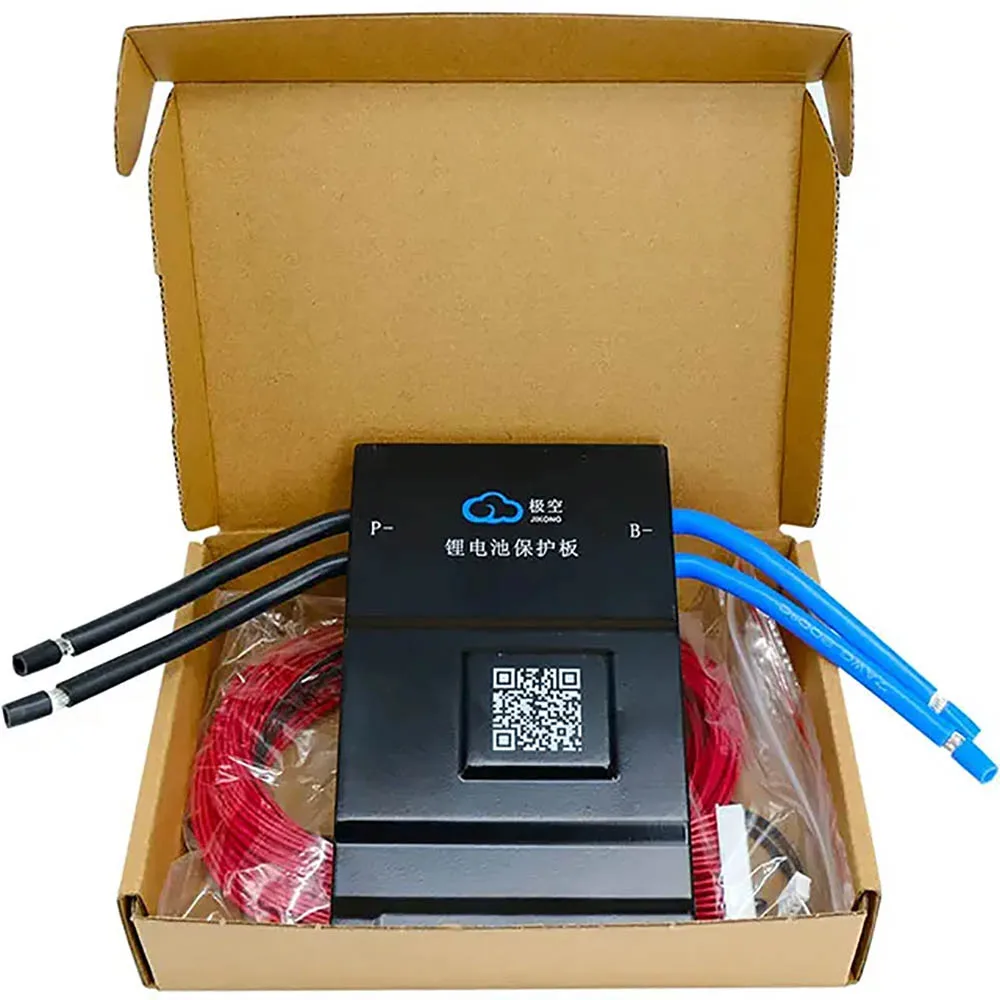

Best Jk B1a8s20p 12v 24v Smart Bms With BT 1a Active Balance Function For Diy Solar Lifepo4 Solar Battery Pack
- Category: >>>
- Supplier: Shenzhen Baisiyu Technology Co. Ltd.
Share on (1600934717397):
Product Overview
Description
Product Description
16S 48V 100A BMS with balance and common port
Specification
item | value |
Place of Origin | China |
Application | For LiFePO4 battery pack |
Brand Name | BSY |
Product name | battery management system bms |
Warranty | 2 years |
Voltage | 48V |
Current | 100A |
Same port with balance function | yes |
Size | 150*102*15mm |
Internal resistance | <20mΩ |
Operating voltage range | 40-58.4V |
Material | PCB |
Weight | 0.5KG |
Operating voltage range | 40-58.4V |
Operating current (MAX) | 100A |
Over-charge protection voltage | 3.75±0.05V |
Over-discharge protection voltage | 2.1±0.1V |
Balanced turn-on voltage | 3.6±0.05V |
Temperature protection value of charging | 75℃ |
Internal resistance | <20mΩ |

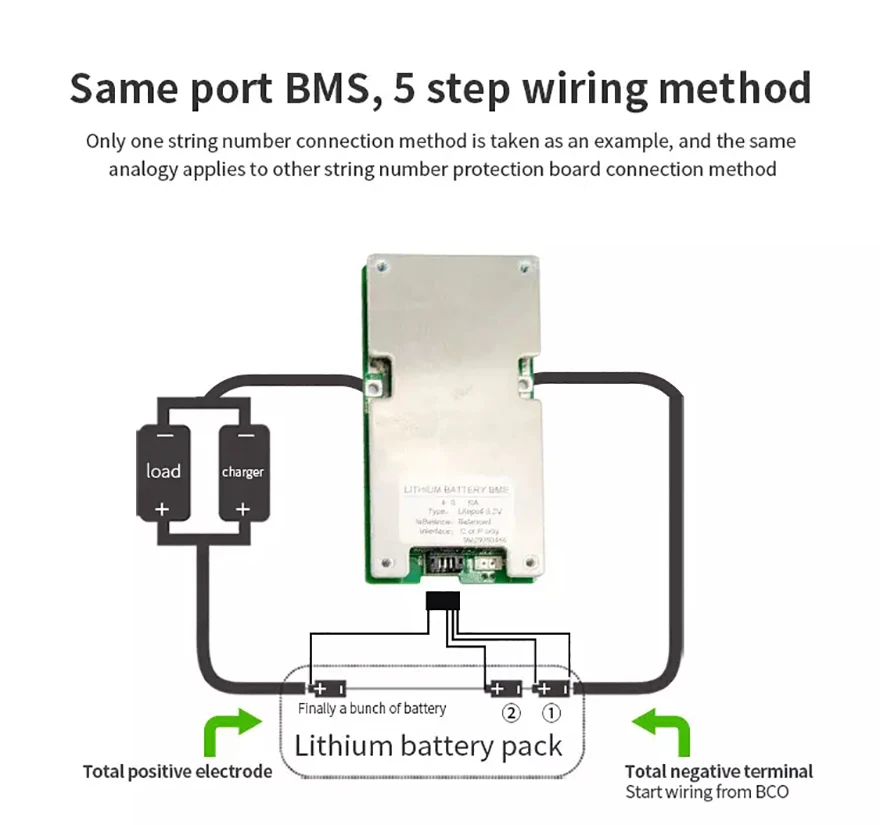

Wiring Method
Note:
When assembling the wiring, weld the cable and the cell correctly, connect the B- of the PCM with the total
negative pole of the cell, and then insert the cable into the needle base on the PCM.
(Note: different connection modes for different strings, and different connection modes for the same port)
Protection
9 Protections
Overcharge protection recovery: After the over-voltage protection appears on the protection board, the battery voltage will going down under the static or discharge state of the battery. When the protection board detects that each voltage is lower than the recovery voltage of the overcharge protection, the protection board will output a signal and turn on the charging MOS tube to charge.
Over-discharge protection: When the battery is under the discharge state, the voltage keeps going down. When the protection board detects that the voltage of any cell is lower than the overcharge protection value, the protection board will start timing immediately. When the time reaches the over discharge protection delay, the output signal of the protection board will turn off the discharge MOS tube, the load lock circuit will work, but, it cannot discharge at this time.
Over-current protection: When the battery is under the static or discharge state, the current suddenly increases. When the protection board detects that the current reaches the overcurrent protection value, the protection board will start timing at that time. When the current duration in the circuit reaches the overcurrent protection delay time, the output signal of the protection board will turn off the discharge MOS tube, and the load lock circuit will work. At this time, the discharge cannot be conducted.
Short-circuit protection: When the battery has a short-circuit fault, it can ensure that the power supply is cut off quickly and reliably to avoid damage to electrical equipment caused by the impact of short-circuit current.
Balance protection:Battery voltage balance, extend the battery life
Temperature control protection: Over-Temperature Protection Makes Batteries Safer
Static electricity protection: Three-proof silicone electrostatic protection
Dust protection: Three-proof silicone seal is better
Moisture protection:Three-proof silicone seal is better

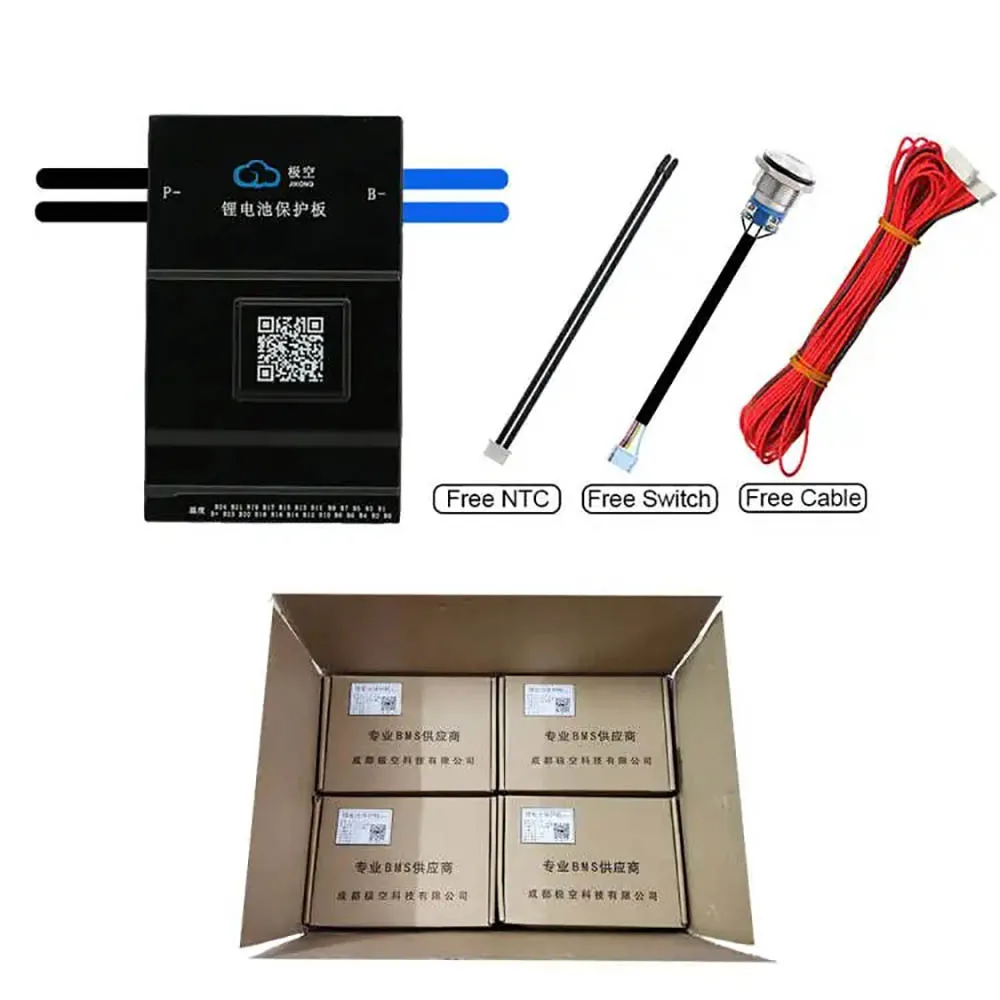

Product packaging
Shipment & Payment
Warehouse
FAQ
Q: What's your products Application
A:Shenzhen Baisiyu Co.,Ltd.is a factory specialized in new energy battery, include solar inverter, portable power station.
3.2V/12V/48V energy storage LiFePO4 battery, Smart and Hardware BMS, LTO battery, and cylinder 21700 18650 battery.
Q:Can you do customized BMS?
A: Yes, we can do customized BMS , just tell me your requirements, both hardware and smart BMS is avaiable.
Q.Does the battery have overcharge and over-discharge protection?
A:Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no
explosion at any circumstance;price to ensure our customers benefit.
Q:Is the battery BMS included?
A:Yes.It's advanced BMS included and very safe to use.
Q:How about your battery delivery time?
A: 1-45 working days after receiving your advance payment. The specific delivery time depends on the country you
A:Shenzhen Baisiyu Co.,Ltd.is a factory specialized in new energy battery, include solar inverter, portable power station.
3.2V/12V/48V energy storage LiFePO4 battery, Smart and Hardware BMS, LTO battery, and cylinder 21700 18650 battery.
Q:Can you do customized BMS?
A: Yes, we can do customized BMS , just tell me your requirements, both hardware and smart BMS is avaiable.
Q.Does the battery have overcharge and over-discharge protection?
A:Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no
explosion at any circumstance;price to ensure our customers benefit.
Q:Is the battery BMS included?
A:Yes.It's advanced BMS included and very safe to use.
Q:How about your battery delivery time?
A: 1-45 working days after receiving your advance payment. The specific delivery time depends on the country you
from and the quantity of your order.
Q: How about your warranty?
A: 3 years warranty.
Q:Do you have other size?
A:Yes.We can provide customized service based on your personal requirements.
Q: How about your warranty?
A: 3 years warranty.
Q:Do you have other size?
A:Yes.We can provide customized service based on your personal requirements.
