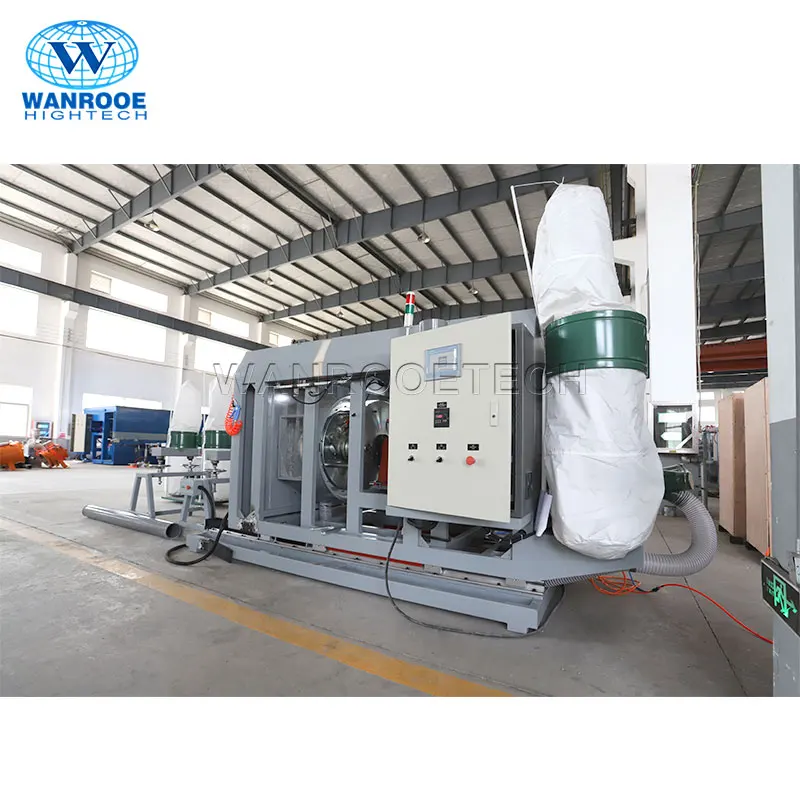

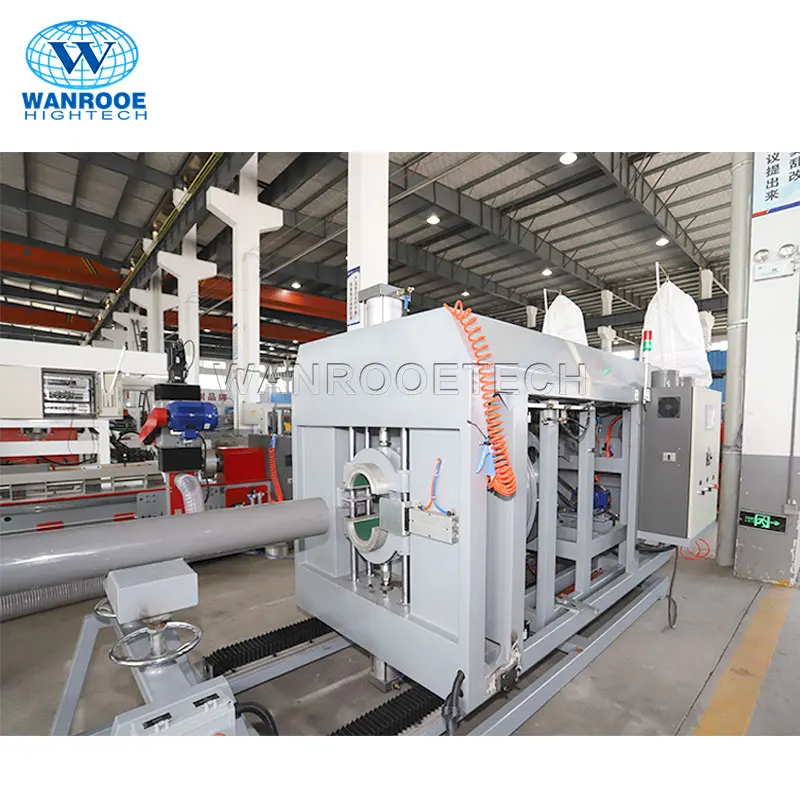

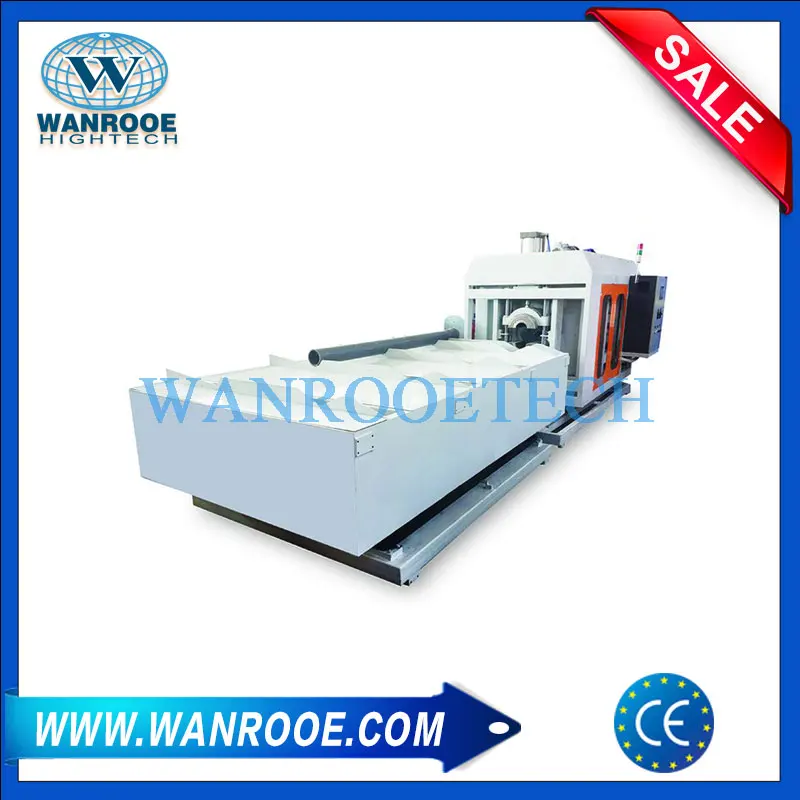

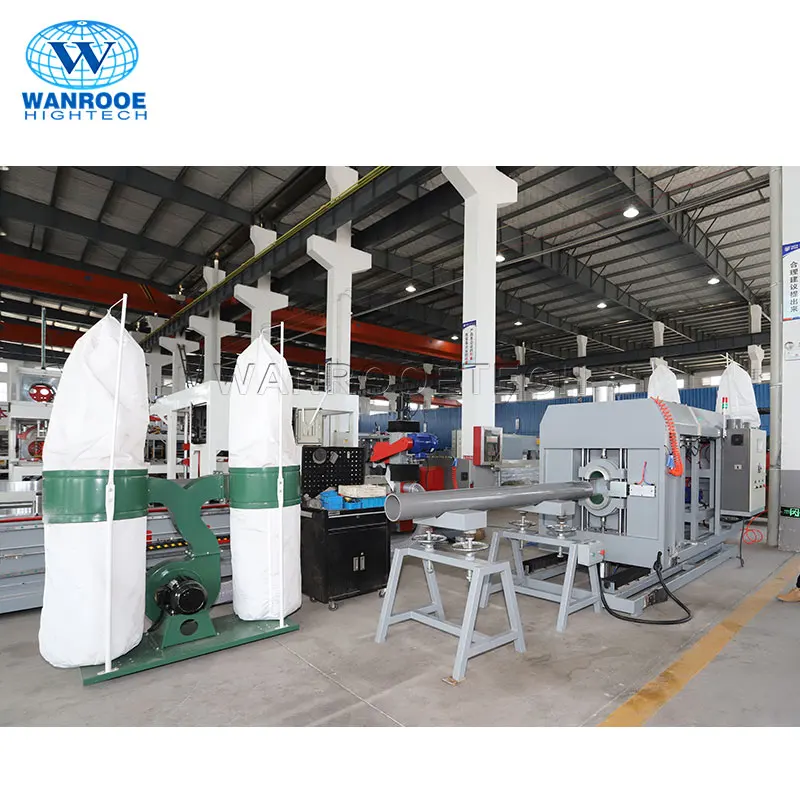

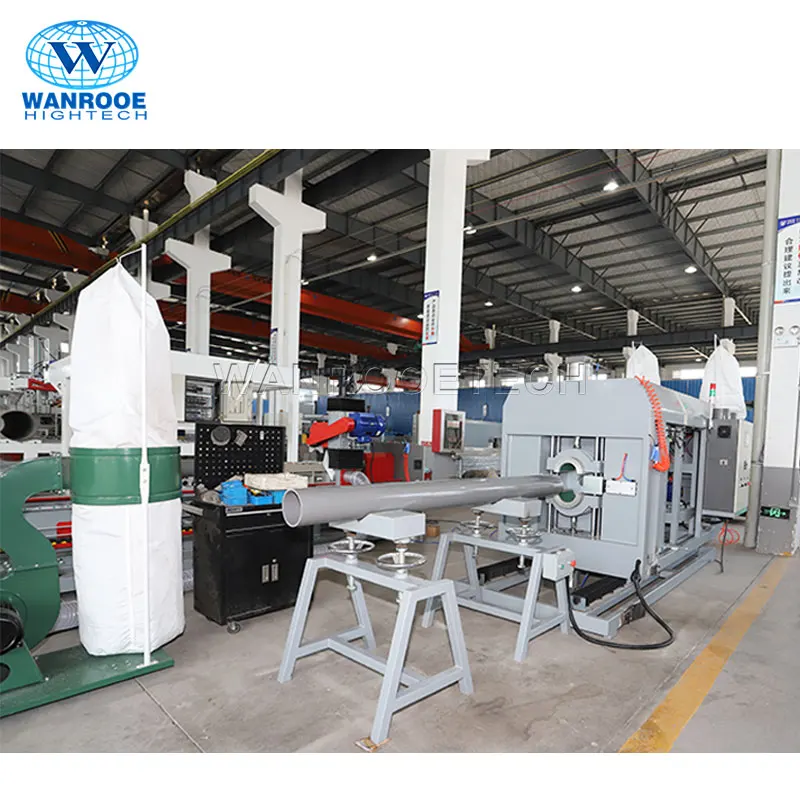

Professional Plastic Pipe Making Machine Pipe Thread Cutting Machine

Professional Plastic Pipe Making Machine Pipe Thread Cutting Machine

Application:

PVC pipe thread cutting machine is used for inside and outside thread cut. The machine is controlled by CNC, can cut the thread and offload finished pipe automatically. You just need to change the predefined program if you want to cut different diameter pipes, so it is very high-efficiency.

PVC pipe thread cutting machine is forming fast, efficient, good quality thread and can process various threads with different tooth types and tooth pitches, such as casing, pipeline pipe, mine pipe, water pump tube, borehole pipe, deep well pipe, etc.

Features:

1. CNC controller, stable performance and high precision

2. Hard alloy cutter, which drived by cutter spindle, rotate with high speed(primary motion)

3. The work table will do axial motion automatically according to predefined program (Feeding motion)

4. The cutter spindle will do compasses movement, which is driven by machine head( Cutting motion)

5. Can cut inside and outside thread of ø100-315mm pipe, or design according to your request.

6. Upload and offload automatically

7. PVC pipe thread cutting machine is easy to adjust, we can set the program and save it on the controller, the customers can choose a different program according to the different pipes.

8. PVC pipe thread cutting machine is easy to operate. The customers can do upload pipe, automatically locate, automatic fixed, automatic thread cutting, automatic offload pipe by one key, and automatic repeat all actions, no need repeat by man.

9. Good thread quality. The machine use forming cutter can cut thread one time, no need more cutting, and the thread can reaslize the best quality.

10. Highly polished thread. The cutter will mill the thread at 2800rpm high speed.

11. Machining stability. The pipe doesn’t need rotating, and the cutter cuts the pipe automatically. No need to worry about trouble from pipe rotates.

12. Plastic scrap doesn’t entangle, PVC pipe thread cutting machine uses a milling cutter tool, so the scrap will be chip. It can improve thread quality.
