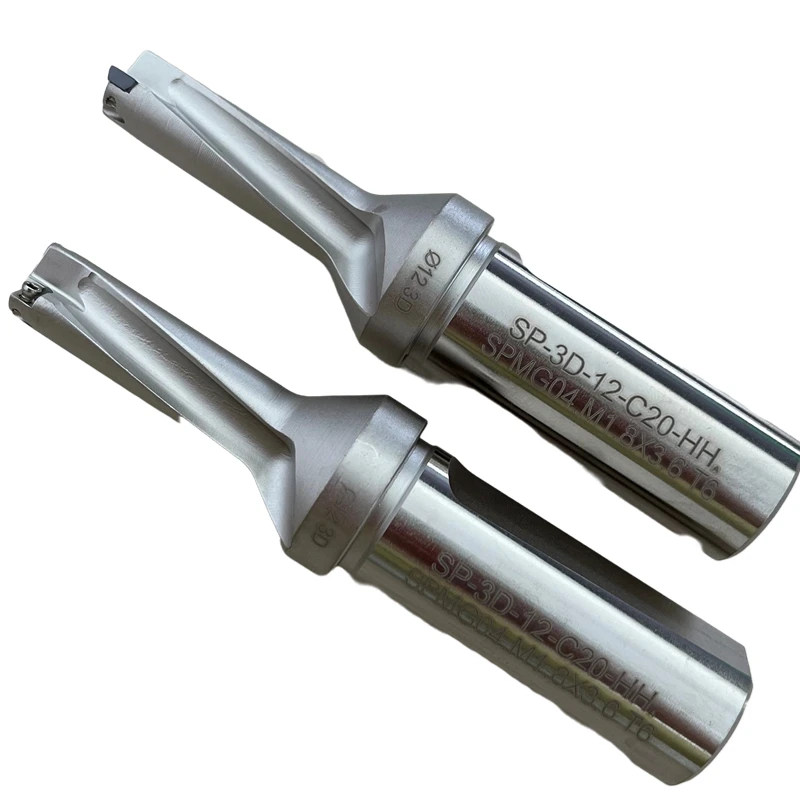

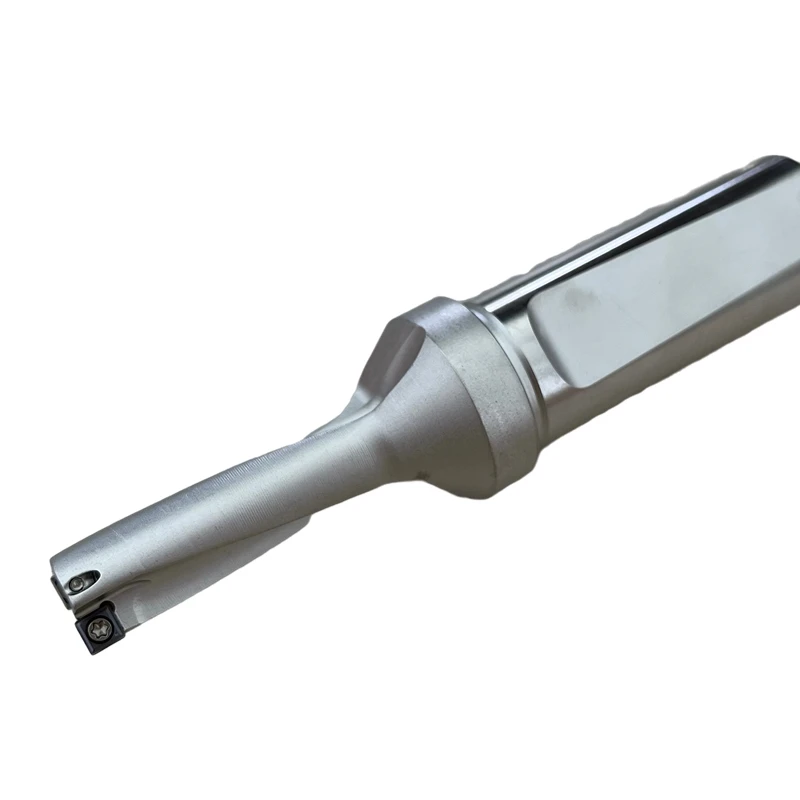

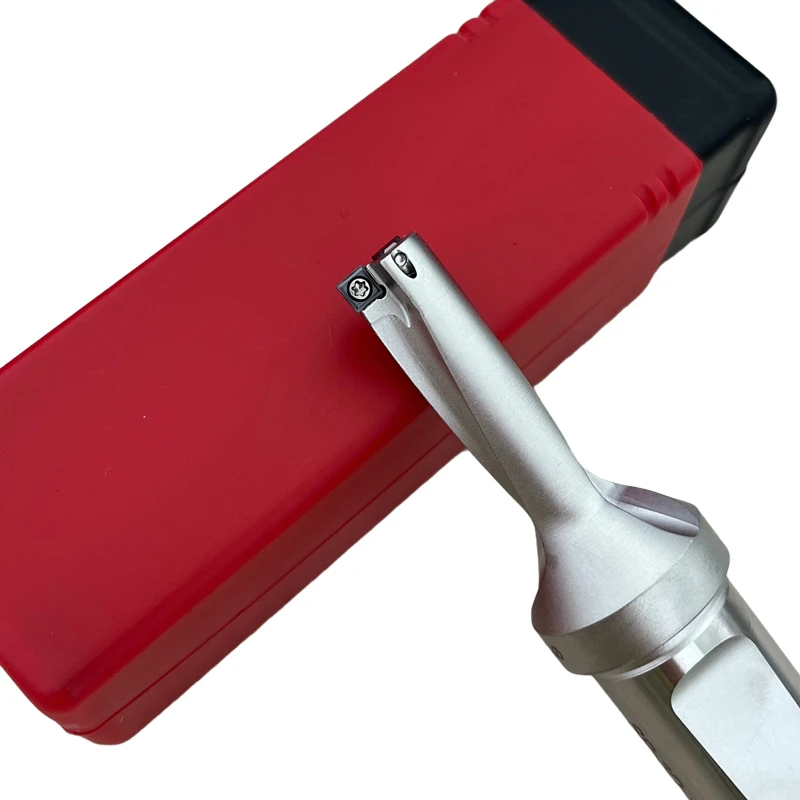

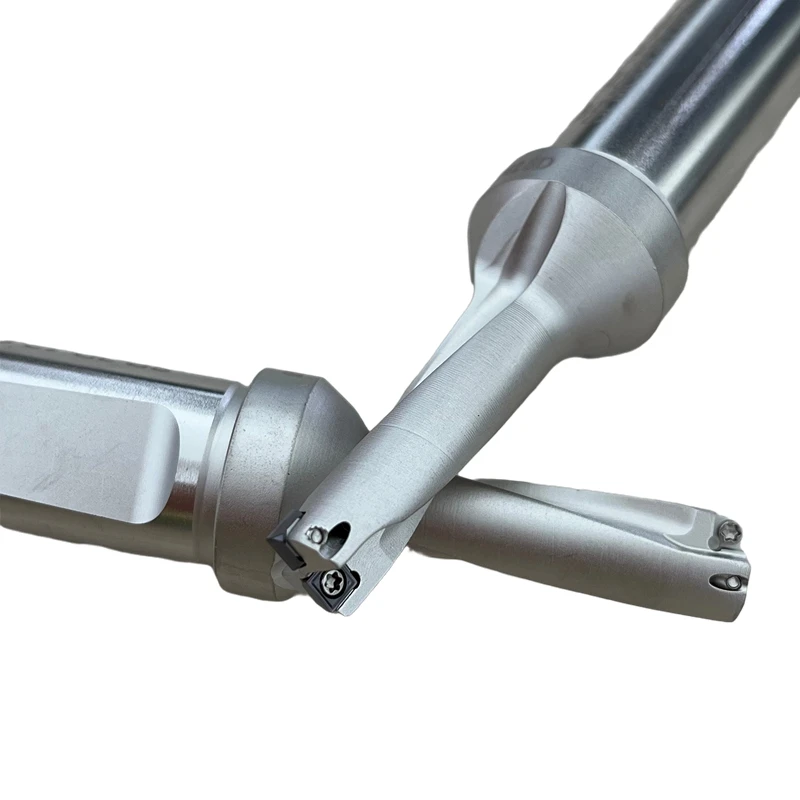

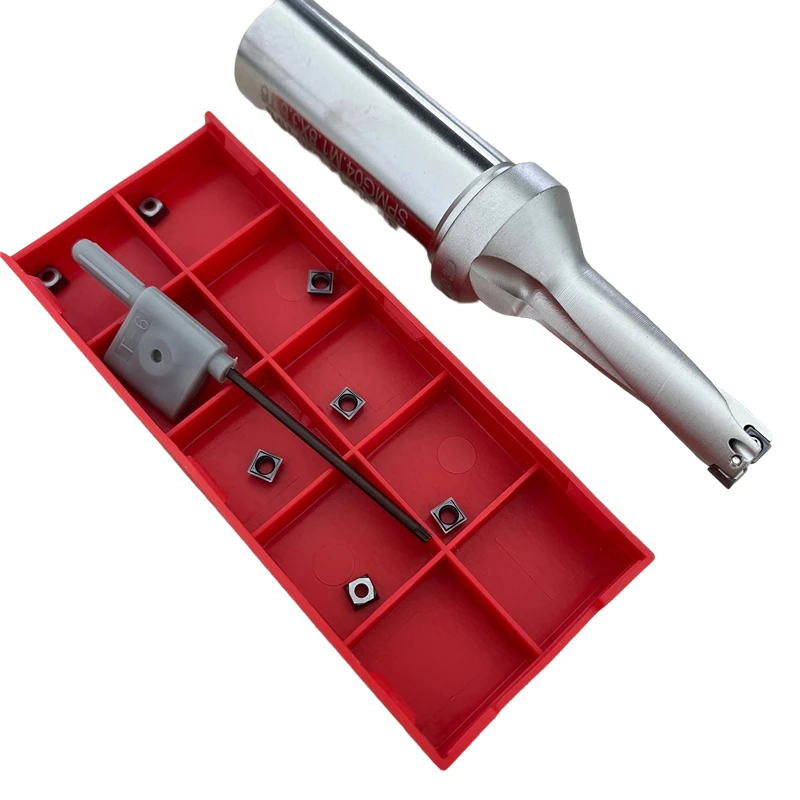

U Drill SOMT 2D/3D/4D/5D Indexable Cutting Fast Speed Drilling Cutter Body
- Category: >>>
- Supplier: Zhuzhou Laiwei Cemented Carbide Co. Ltd.
Share on (1600934739808):
Product Overview
Description
Product Description
Manufacturer of Drills Description:
1: Can be used on cnc lathe machine
2: Matched with CNC inserts .
3:Spare part imported from Taiwan/Korea/Switzerland .
4:Material H3=SKD61 and whole forging processing make the turning tool with long service life, better wear-resistantce,strength and rigidity,high working efficiency.
5:Using 0.01mm feeler gauge to insure the tightly connection between the inserts and the tool .
6: Processed with high precision CNC machining centre.
1: Can be used on cnc lathe machine
2: Matched with CNC inserts .
3:Spare part imported from Taiwan/Korea/Switzerland .
4:Material H3=SKD61 and whole forging processing make the turning tool with long service life, better wear-resistantce,strength and rigidity,high working efficiency.
5:Using 0.01mm feeler gauge to insure the tightly connection between the inserts and the tool .
6: Processed with high precision CNC machining centre.
1. U drilling bits are made from 100% virgin material.
2. Produced with advanced equipments and process.
3. All U drilling bits go through in-process and final inspection.
4. U drilling bits have Long used tool-life andperfect cutting effect.
5. High efficient and wear resistant of U drilling bits .
6. U drilling bits are of stable and continuous production ability.
Specifications of U drilling bits :
1.Drilling depth: 2D 3D 4D 5D
2.Suitable insert: WCMT WCMX SPMG SOMT XOMTdrill insert
3.Cutting type: High speed drilling
4.Color: Silver Steel Color
5.Coating: Nickel
Specification
Precautions for using U diamond
1. When using a U-drill, the center water outlet has the best effect, which increases the tool life and is conducive to chip removal.
2. When using a machining center or lathe, the center point of the tool should be as parallel as possible to the center of the machine tool spindle.
3. When the U drill is used for hole expansion, the outer edge of the blade must be parallel to the movement angle of the turret.
4. If there is abnormal noise or chip breaking during processing, stop using it immediately and make timely adjustments.
5. If the drill bit flying rotation operation is in fixed passive processing during use, it is recommended to use the SP type four-corner blade.
1. When using a U-drill, the center water outlet has the best effect, which increases the tool life and is conducive to chip removal.
2. When using a machining center or lathe, the center point of the tool should be as parallel as possible to the center of the machine tool spindle.
3. When the U drill is used for hole expansion, the outer edge of the blade must be parallel to the movement angle of the turret.
4. If there is abnormal noise or chip breaking during processing, stop using it immediately and make timely adjustments.
5. If the drill bit flying rotation operation is in fixed passive processing during use, it is recommended to use the SP type four-corner blade.
D | SHK | screw | wrench | insert | holder |
13-15 | 20 | M2*5 | T6 | SP..050204 | BT30/40/50-SLN20 |
15.5-19 | 20 | M2.2*5 | T6 | SP..060204 | BT30/40/50-SLN20 |
13.0-15.0 | 25 | M2*5 | T6 | SP..050204 | BT30/40/50-SLN20 |
15.5-21.5 | 25 | M2.2*5 | T6 | SP..060204 | BT30/40/50-SLN25 |
22-25 | 25 | M2.5*6 | T8 | SP..07T308 | BT30/40/50-SLN25 |
25.5-27.5 | 32 | M2.5*6 | T8 | SP..07T308 | BT30/40/50-SLN32 |
28-28.5 | 32 | M3.5*8 | T15 | SP..090408 | BT30/40/50-SLN32 |
29-33.5 | 32 | M3.5*8 | T15 | SP..090408 | BT30/40/50-SLN32 |
34-39.5 | 32 | M4*10 | T15 | SP..110408 | BT30/40/50-SLN32 |
40-41 | 40 | M4*10 | T15 | SP..110408 | BT30/40/50-SLN40 |
42-45 | 40 | M5*10 | T20 | SP..140512 | BT30/40/50-SLN40 |
46-50 | 40 | M5*10 | T20 | SP..140512 | BT30/40/50-SLN40 |
51-55 | 40 | M3.5*8 | T15 | SP..090408 | BT30/40/50-SLN40 |
56-60 | 40 | M3.5*8 | T15 | SP..090408 | BT30/40/50-SLN40 |
15-20 | 20 | M2.5*6 | T8 | WC..030208 | BT30/40/50-SLN20 |
15-20.5 | 25 | M2.5*6 | T8 | WC..030208 | BT30/40/50-SLN25 |
21-24.5 | 25 | M2.5*6 | T8 | WC..040208 | BT30/40/50-SLN25 |
25 | 25 | M3*8 | T8 | WC..050308 | BT30/40/50-SLN25 |
25.5-30.5 | 32 | M3*8 | T8 | WC..050308 | BT30/40/50-SLN32 |
31-39.5 | 32 | M3.5*8 | T8 | WC..06T308 | BT30/40/50-SLN32 |
40-41 | 40 | M3.5*8 | T15 | WC..06T308 | BT30/40/50-SLN40 |
42-63 | 40 | M4*10 | T15 | WC..080412 | BT30/40/50-SLN40 |
64-70 | 40 | M4*10 | T15 | WC..06T308 | BT30/40/50-SLN40 |
Company Profile
Zhuzhou LAIWEI Cemented Carbide Co.,Ltd
Zhuzhou LAIWEI Cemented Carbide Co.,Ltd is a professional manufacturer and exporter that is concerned with design,development and production of cemented carbide tools and related product.We are a very young team with strong creativity and full of energy.
The company mission and vision are to all work of customers’ standard, Co-development with customers,try to produce more high quality products,ensuring the stable quality and maintaining the competitiveness of our customers.Finally, we sincerely hope to establish friendly business relations with customers from all over the world.
Packing & Delivery
Packing Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Shipment by DHL,Fedx,TNT,UPS etc.
BY SEA or BY Air
BY SEA or BY Air
The first of all to be ensure the safety of the package, it is very important
1. Finished product
1. Finished product
Check whether the size is qualified and label it according to different specifications and models (easy to distinguish)
2. Put all products safely into No. 22 carton
3. Use bubble film to fill the box so that the box cannot shake, ensuring the safety of the product in the box.
4, Use yellow tape to wrap to export standard
5. Complete the packaging and notify the picker to pick up the goods and send them out.
3. Use bubble film to fill the box so that the box cannot shake, ensuring the safety of the product in the box.
4, Use yellow tape to wrap to export standard
5. Complete the packaging and notify the picker to pick up the goods and send them out.
FAQ
1, Who are we?
Zhuzhou Laiwei Cemented Carbide Co.,ltd is a professional manufacturer and exporter that is concerned with design,development and production of cemented carbide tools and related product.We are a very young team with strong creativity and full of energy.
2, How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3, What can you buy from us?
A series of Cemented carbide products such as carbide end mill,carbide drill,carbide burrs,carbide saw blade,CNC insert, woodworking tools and tungsten carbide customized tools.
4, why should you buy from us not from other suppliers?
we have more than 20 years of manufacturing experience and 10 year of tungsten carbide export business. we have a very good team with young sales representatives who works with passion and patience. we have strict desire on the quality of the carbide tools.
5, Is your product customized or standard?
We have the regular product and also have rich experience for customized parts. We have many success projects that make the product based on your own designs.
6, How long is the delivery time?
Stock product: We have stock for some regular product, we can send them immediately once order confirmed. For Non-stock product: around 30 days.
Zhuzhou Laiwei Cemented Carbide Co.,ltd is a professional manufacturer and exporter that is concerned with design,development and production of cemented carbide tools and related product.We are a very young team with strong creativity and full of energy.
2, How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
3, What can you buy from us?
A series of Cemented carbide products such as carbide end mill,carbide drill,carbide burrs,carbide saw blade,CNC insert, woodworking tools and tungsten carbide customized tools.
4, why should you buy from us not from other suppliers?
we have more than 20 years of manufacturing experience and 10 year of tungsten carbide export business. we have a very good team with young sales representatives who works with passion and patience. we have strict desire on the quality of the carbide tools.
5, Is your product customized or standard?
We have the regular product and also have rich experience for customized parts. We have many success projects that make the product based on your own designs.
6, How long is the delivery time?
Stock product: We have stock for some regular product, we can send them immediately once order confirmed. For Non-stock product: around 30 days.

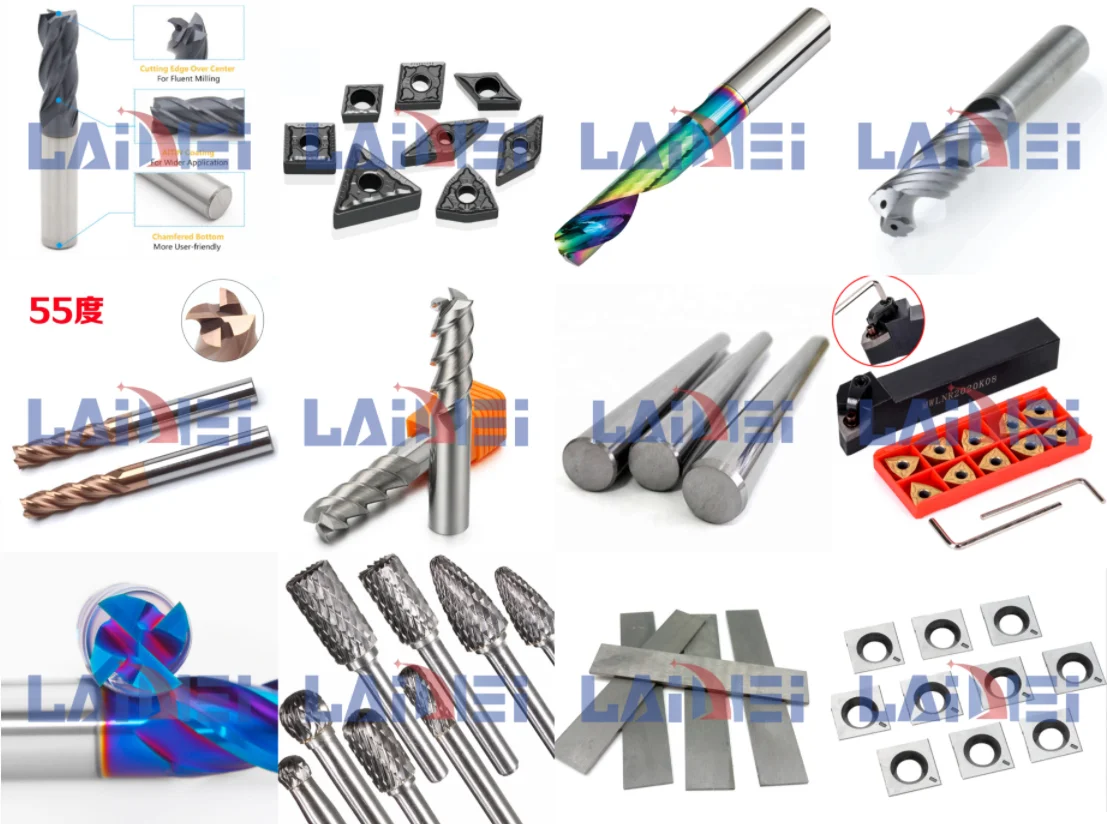

Recommend Products
We are located in Zhuzhou city, Hunan province. We have many years of experience in supplying carbide tools such as below:
CNC cutting tool series: carbide end mills,drills,taps,reamers,CNC inserts,tool holder,face milling cutter etc...
Cemented carbide wear-resistant parts series: carbide rod, carbide blank,carbide plate,carbide mould,mining bit,nozzles,grinding wheel ,preformed carbide parts etc.
And various CNC accessories and tools,we can also customize it for you based on your drawings.
CNC cutting tool series: carbide end mills,drills,taps,reamers,CNC inserts,tool holder,face milling cutter etc...
Cemented carbide wear-resistant parts series: carbide rod, carbide blank,carbide plate,carbide mould,mining bit,nozzles,grinding wheel ,preformed carbide parts etc.
And various CNC accessories and tools,we can also customize it for you based on your drawings.

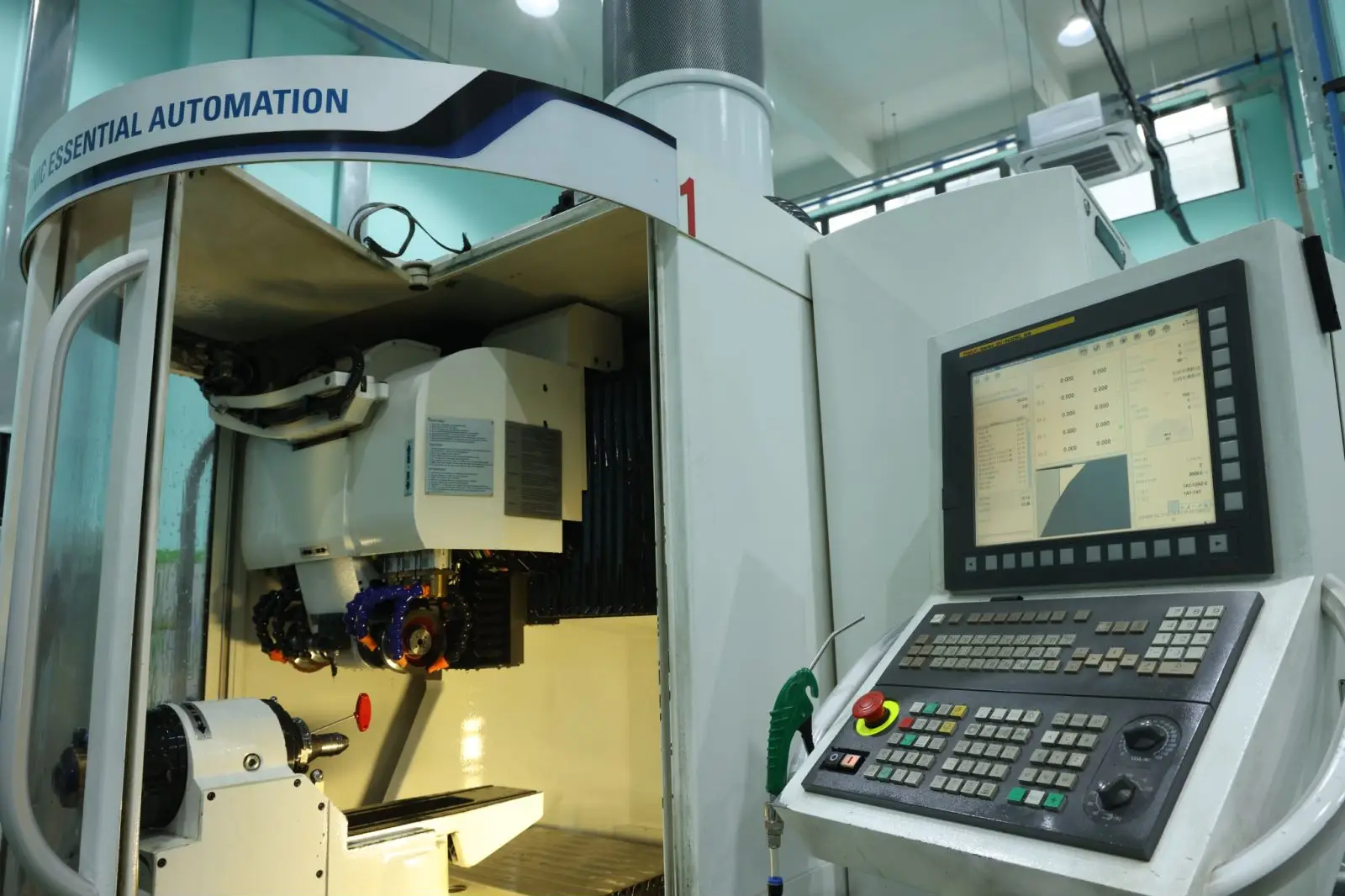

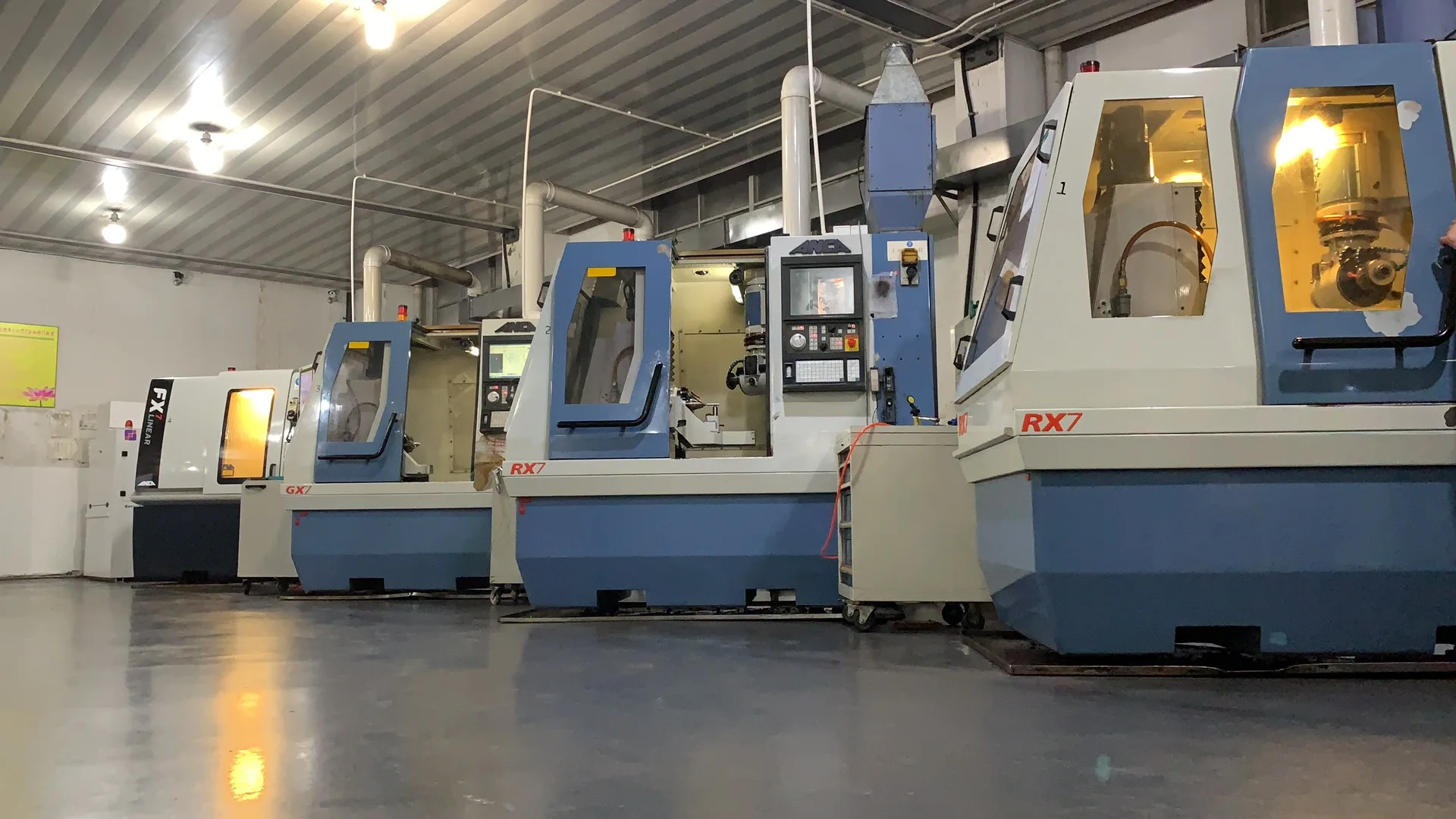

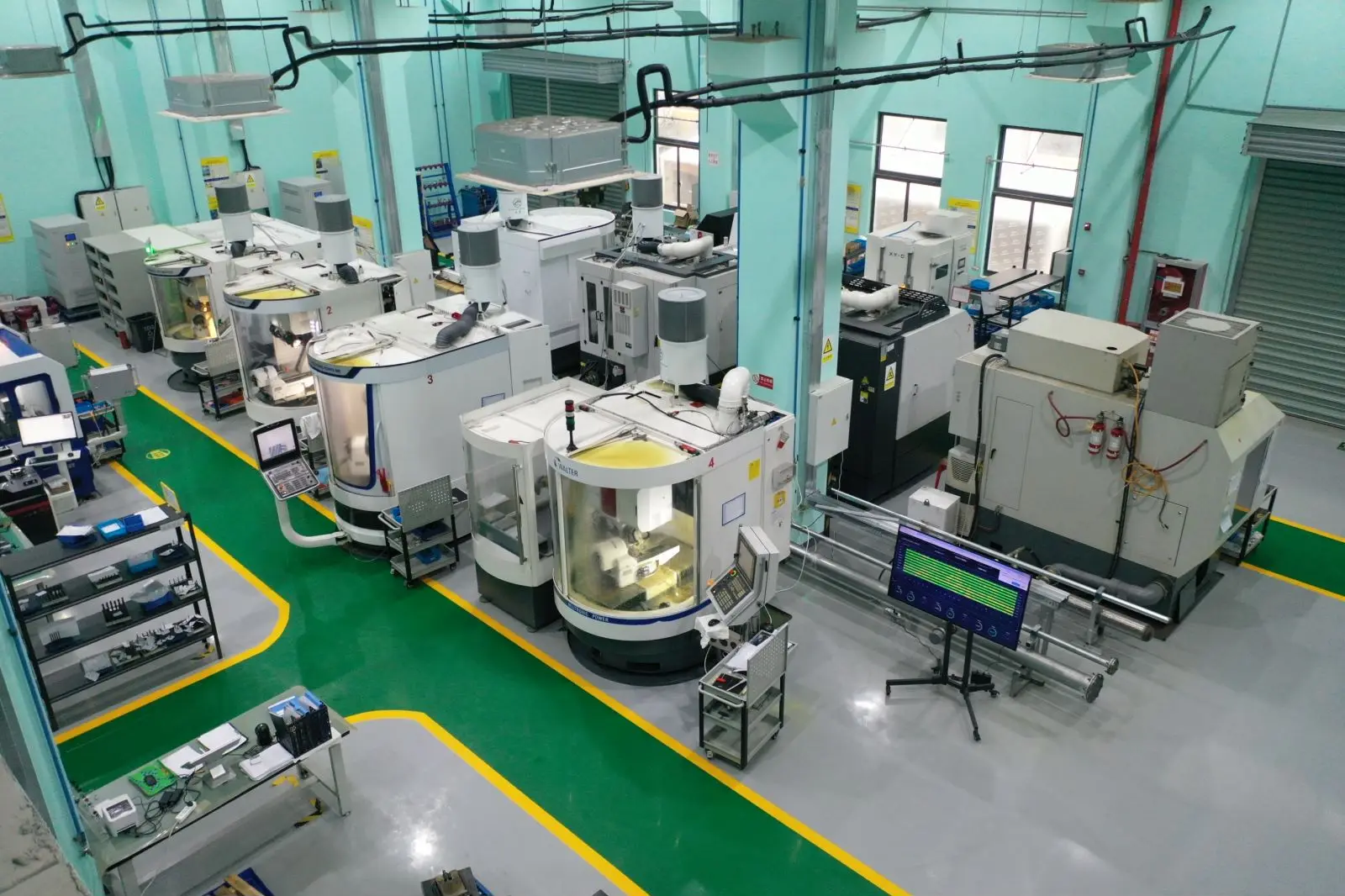

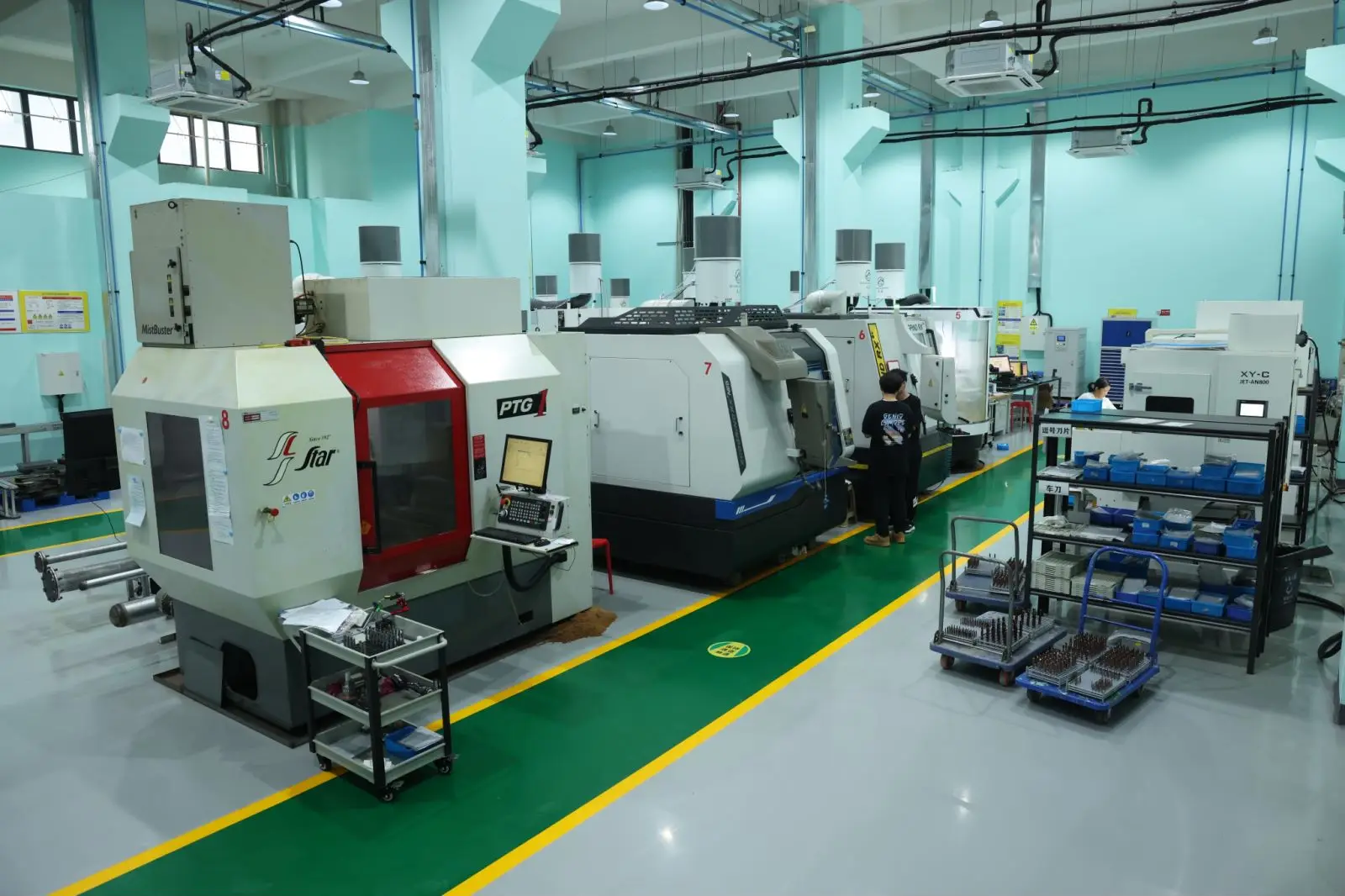

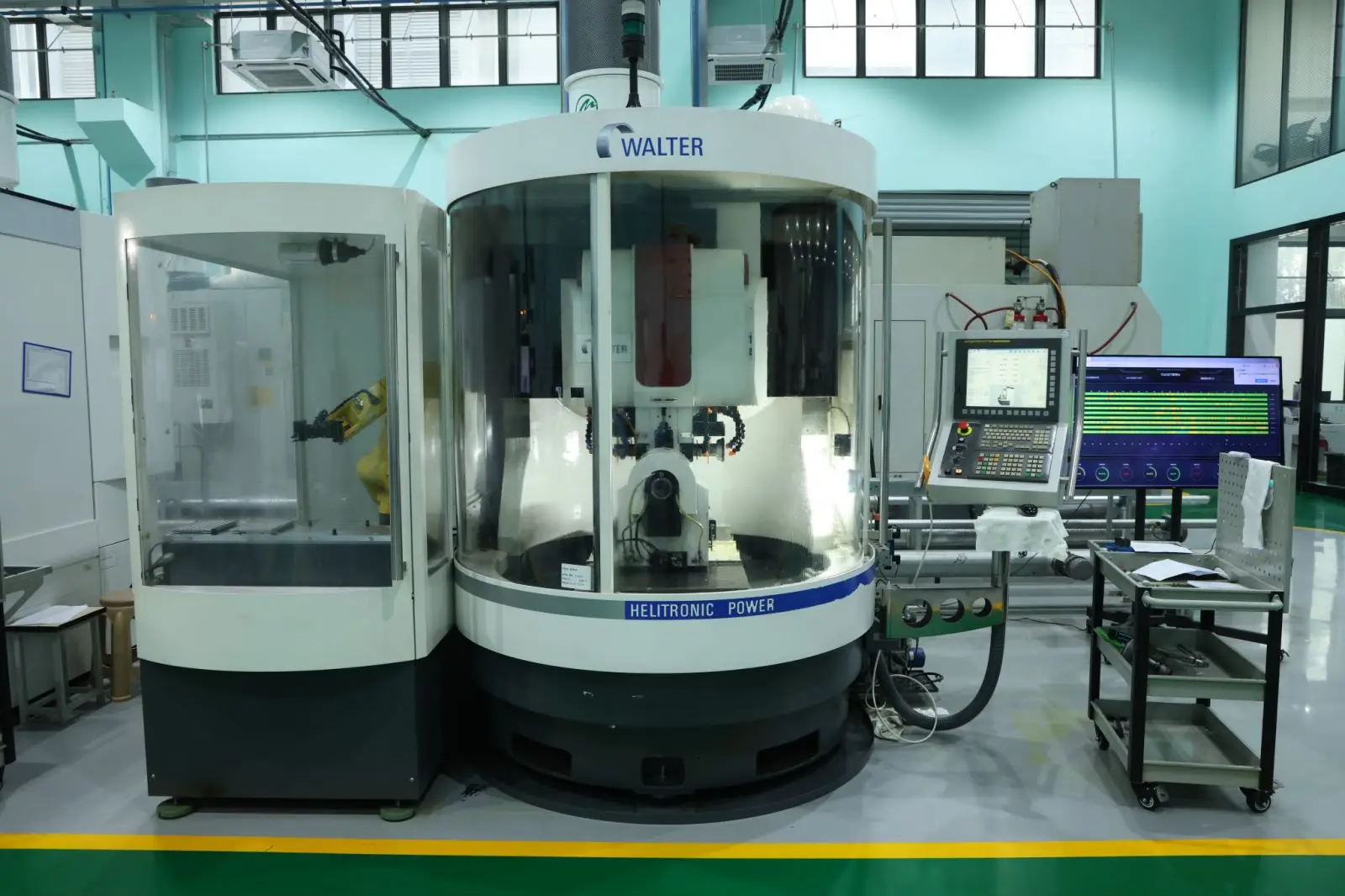

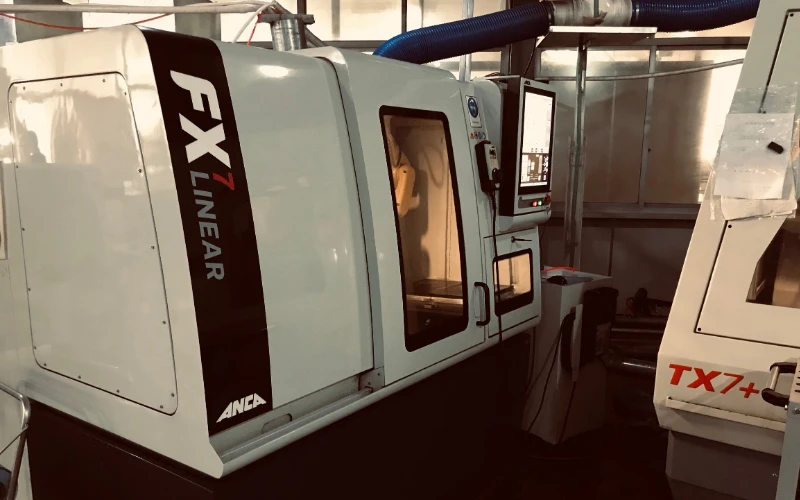

Production Line
