M2 M8 Threaded Bolt M6 Bushing1.5KW 5 Inch Touch Screen Doual Pump Driven Self clinching Fastener Insertion Machine
- Category: >>>
- Supplier: Dongguan Insertion Machinery Co. Ltd.
Share on (1600934748096):
Product Overview
Description
Product Futrue
- 6 ton (57KN) ram force , 18 inch(457mm) throat depth.
-double pump 200mm/s:equipped with PLC control system and safety system.
-Easy Operation:Proprietary stress test adjustment button, allowing you to find the right riveting pressure within 10 seconds. Ram force repeat accuracy ±1%
-Lazer location lightAssist to hardling the big warkpiece to cover lower tool by laser locating light refeence.

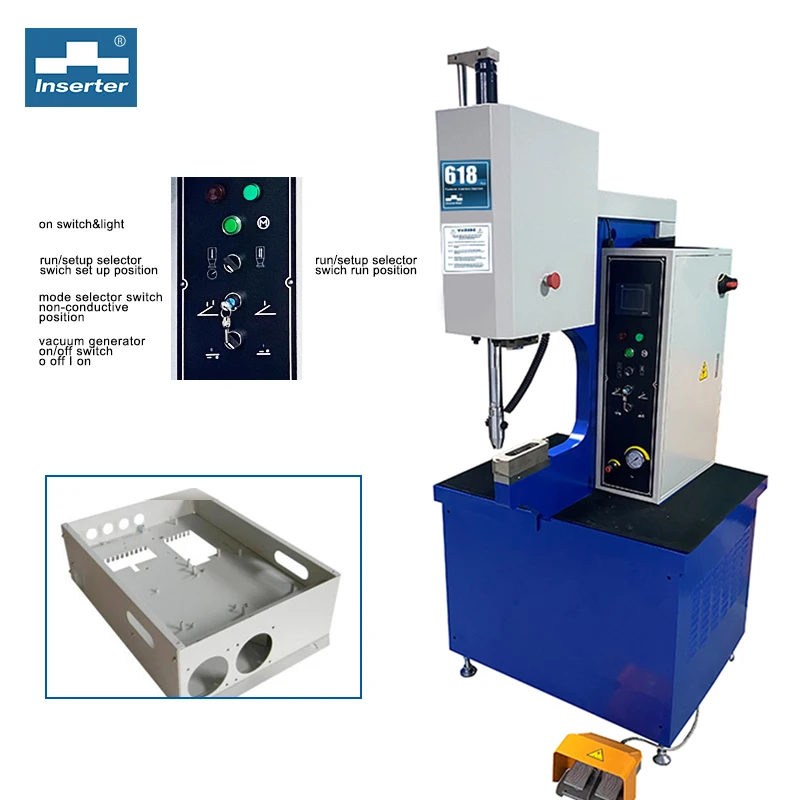

-Safety System:Making the operator to full protection on the conductive non-conductive work mode.which greatly enhanced the confidence and plua efficiency for e operator. No security risks.
-100% Safety svstem
-PLC Programming

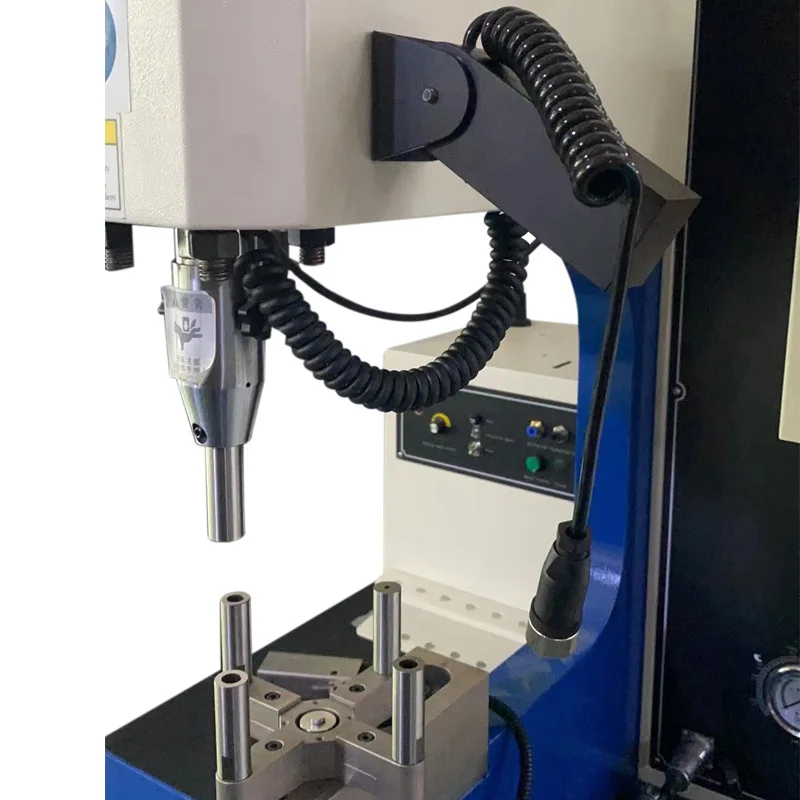

-Automatic Feeding System
Product Parameters
Product name | Fastener insertion machine |
Max riveting capacity | M10 NUT M8 standoff M6 stud carbon steel |
Model | 618Plus |
Force | 450LBS.(2KN) TO 12000LBS.( 57KN ) |
Throat depth | 450MM |
Throat lengh | 400MM |
Stroke lengh | 200MM |
Main power | 1.5kw |
Current | 4A |
Hydraulic oil | 46#/32# |
Oil tank reawevoir | 60L |
Air press | 0.4-0.7Mpa |
Power supply | 380V 3phase 50/60HZ 5 core |

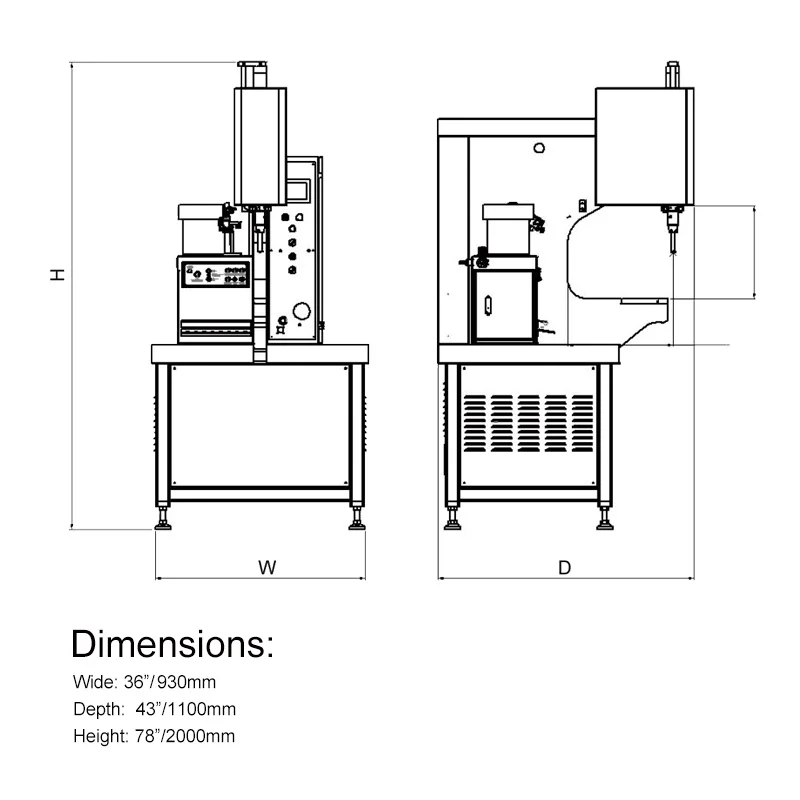

Dimension(L*W*H) | 41*37*78(1060MM*960MM*2000MM) |
Weight | (650KG) |
Product Description
Related Products
FAQ
1. What are the optional configurations？
①Modular Autofeed System
①Modular Autofeed System

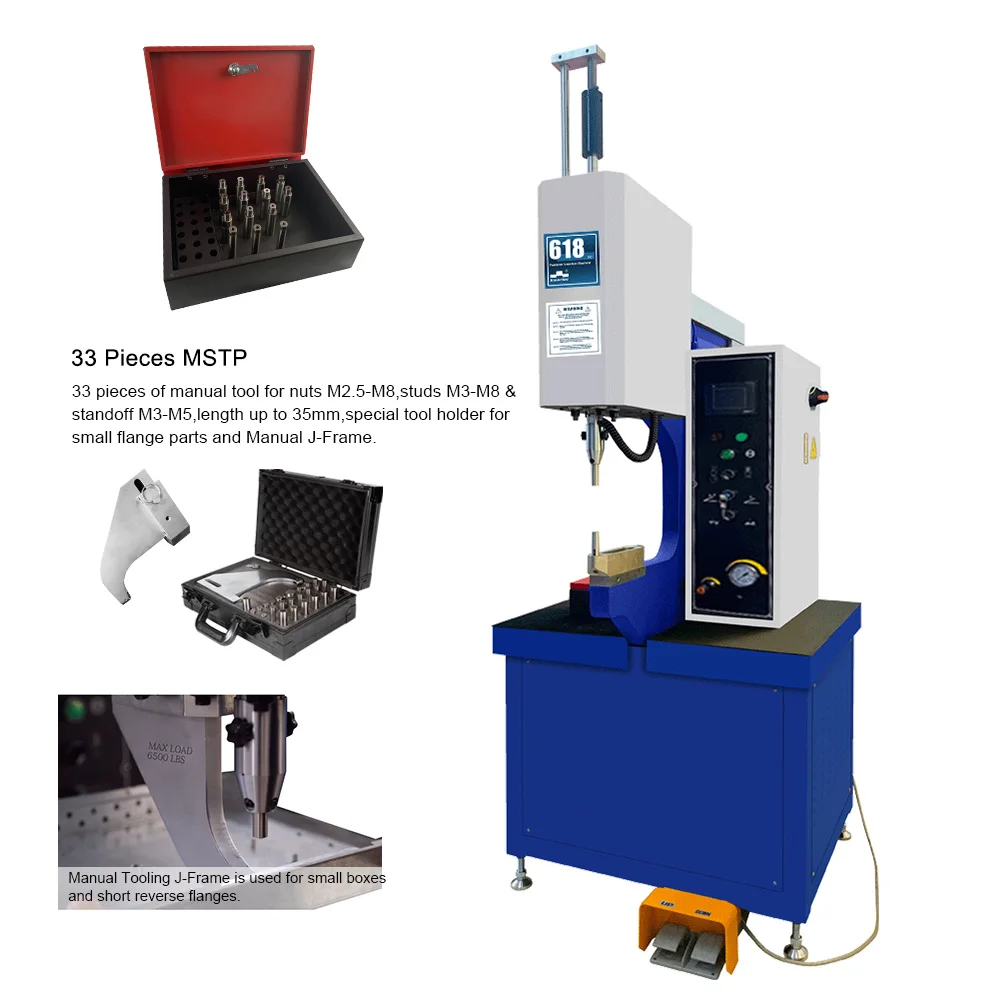

②MSTP-14/33
2. What should I do if I do not want to reset the pressure by pressing screws and nuts of different specifications?
The MSP type riveting machine of the Inserter brand can be selected,
3:There is no pressure when the upper die comes down during riveting. What is the reason?
1. There is oil on the installed mold, just sand it with sandpaper
2. What should I do if I do not want to reset the pressure by pressing screws and nuts of different specifications?
The MSP type riveting machine of the Inserter brand can be selected,
which can be achieved by setting a certain program without having to reset the pressure every time
3:There is no pressure when the upper die comes down during riveting. What is the reason?
1. There is oil on the installed mold, just sand it with sandpaper
2. The 24V relay of the electric control box is not working properly, all the 24V relays are unplugged and confused and plugged in again
4. why should you buy from us not from other suppliers?
INSERTER MACHINERY CO.LTD is an enterprise specializing in Resource Sheet Metal Joint solution.Specializing in Inserting, Clinching, Punching, Riveting, Spot welding, tapping , assembling and all kinds of rivet & welding fasteners.
5. Is there CE certification?
Yes,we have
4. why should you buy from us not from other suppliers?
INSERTER MACHINERY CO.LTD is an enterprise specializing in Resource Sheet Metal Joint solution.Specializing in Inserting, Clinching, Punching, Riveting, Spot welding, tapping , assembling and all kinds of rivet & welding fasteners.
5. Is there CE certification?
Yes,we have
