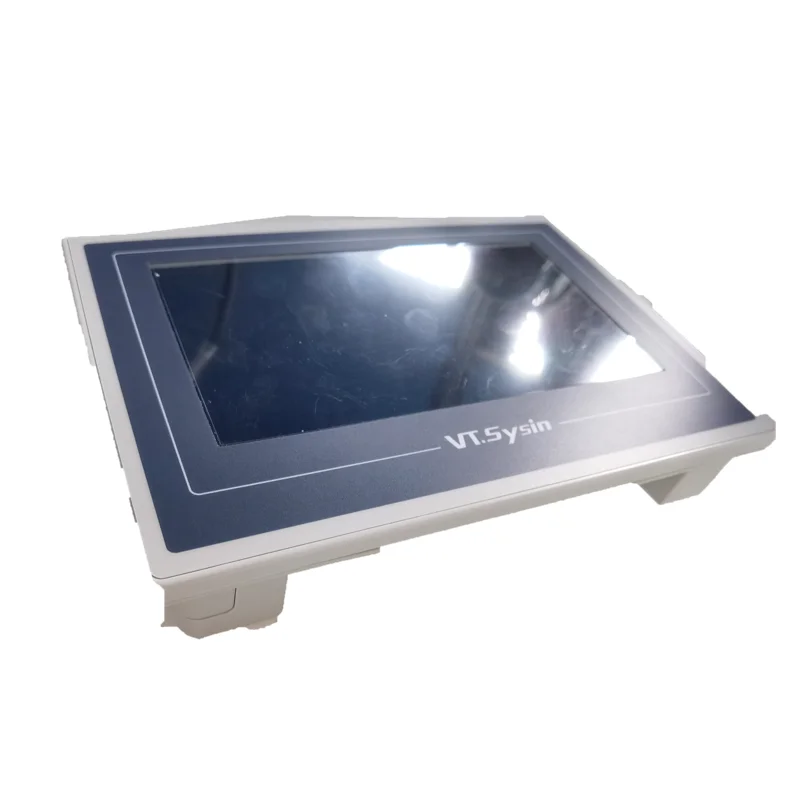

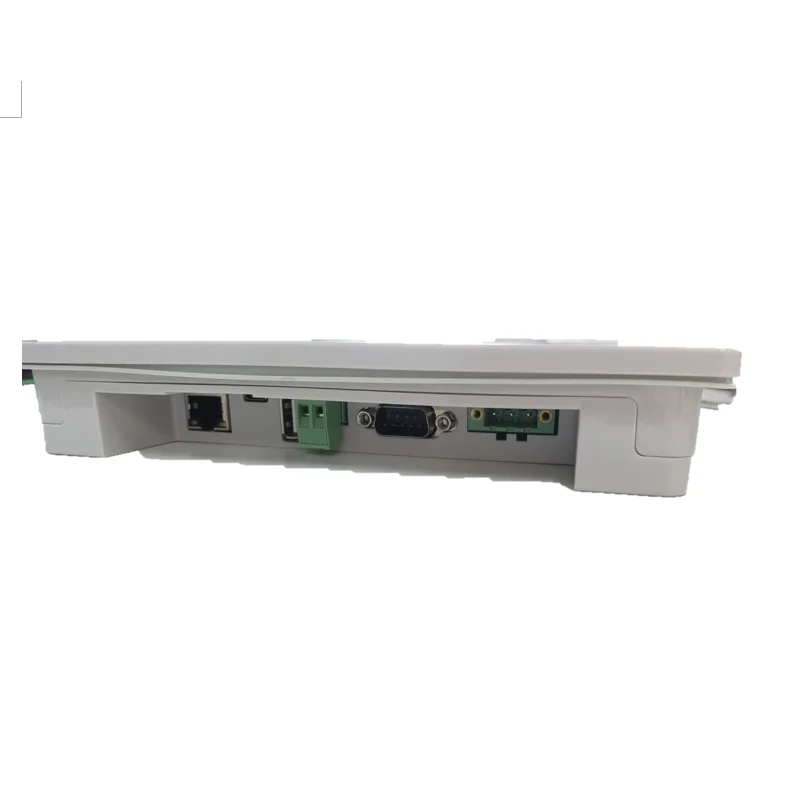

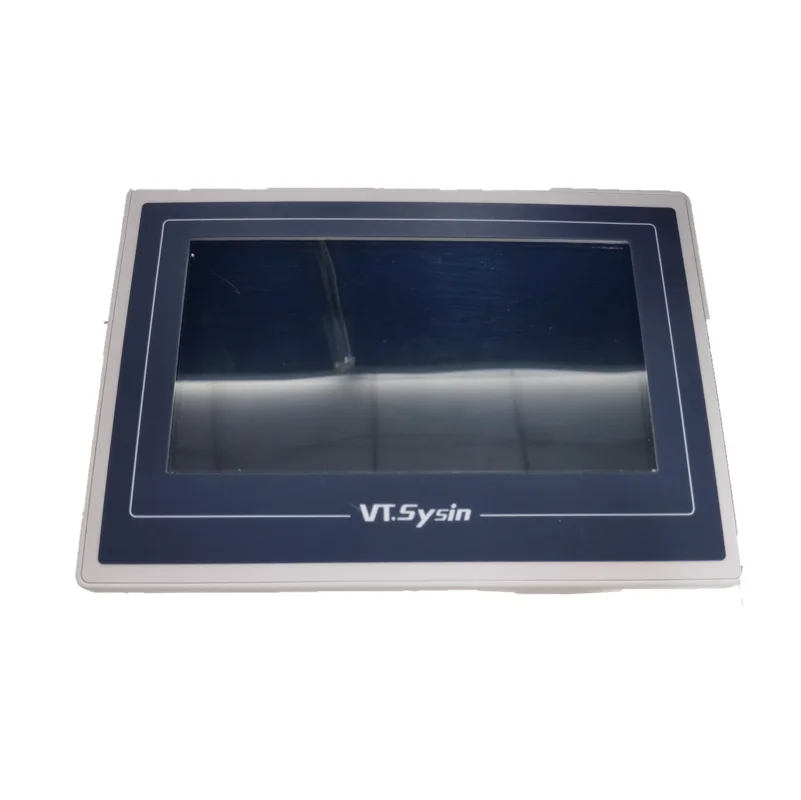

VT DP 2000 series Multi Way Intelligent Thermostat HMI
- Category: >>>
- Supplier: Shenzhen V&T Technologies Co. Ltd.
Share on (1600934751615):
Product Overview
Description
Product Description
Output power | 0.75kW-630kW |
Input voltage | 3 phase 380V/480V |
Output voltage | 3 phase 0 to rated input voltage |
Input Frequency | 50Hz/60Hz |
Type | AC-DC-AC Inverter |
Overload capacity | 150% 1 minute, 180% 10 seconds, 200% 0.5 second, interval: 10 minutes (inverse time lag feature) |
Adaptable Motor | Asynchronous Motor, Synchronous Motor |
Communication | Modbus485 CANOpen P |
Protection class | IP20 |
Samples | 0.75kW-630kW , 380V |
Size | Depend Actually |
Weight | Depend Actually |
Shipment | 5-7 working days for standard series AC drives and 7-14 working days for customized AC drives |
Packaging | Standard Export Package |
Feature
■ Fast and accurate motor parameter self-learning, suitable for a variety of motors:
synchronous/asynchronous/reluctance/high-speed/torque motor, VF vector encoder closed loop integrated
■ Asynchronous and non-inductive VF control, 200% torque output at 0.25Hz in electric state, 200% torque output at 1Hz in power generation state
■ Good voltage and current control, high speed, high frequency, deep field weakening, wave-by-wave current limiting, multiple protections
■ Modular compact structure design, high power density

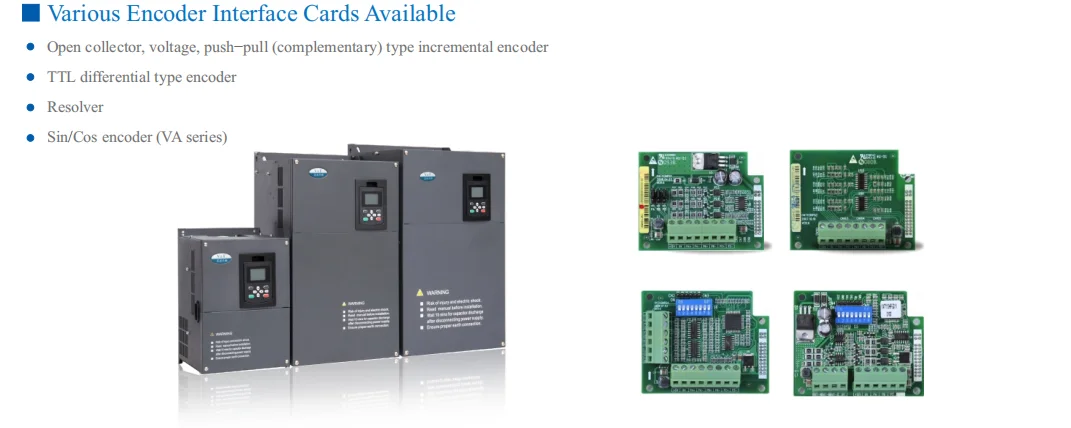

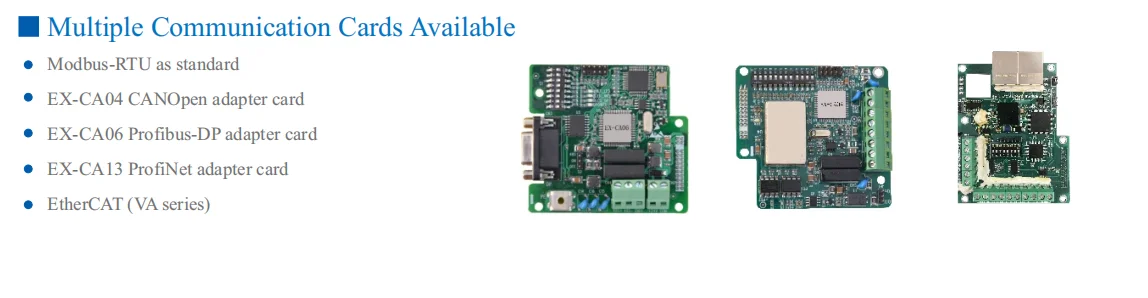

■ Support multiple encoders and multiple high-speed communication protocols
■ Integrated drive and control, expandable PLC and motion control card

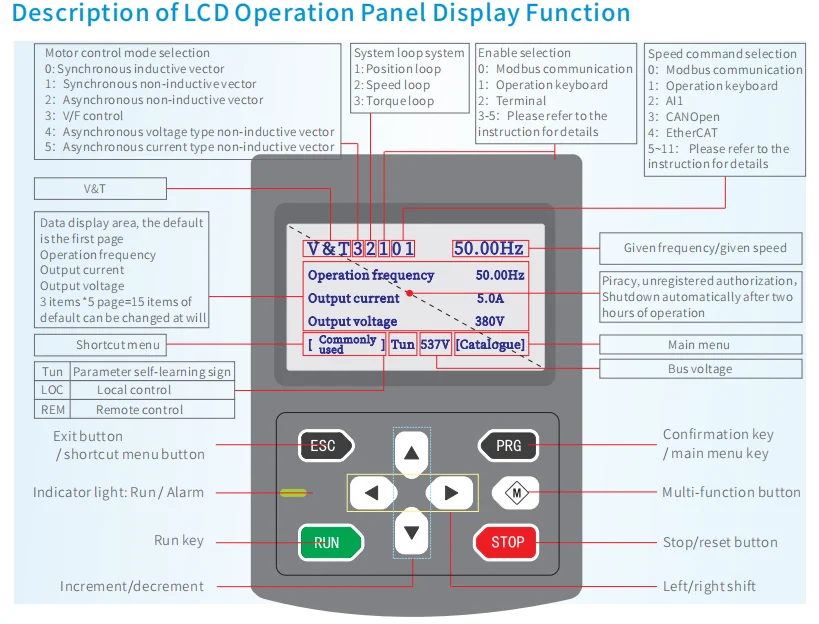

■ Multiple language keyboard, friendly interface, reliable and easy to use
■ Fast and accurate motor parameter self-learning, suitable for a variety of motors:
synchronous/asynchronous/reluctance/high-speed/torque motor, VF vector encoder closed loop integrated
■ Asynchronous and non-inductive VF control, 200% torque output at 0.25Hz in electric state, 200% torque output at 1Hz in power generation state
■ Good voltage and current control, high speed, high frequency, deep field weakening, wave-by-wave current limiting, multiple protections
■ Modular compact structure design, high power density
■ Support multiple encoders and multiple high-speed communication protocols
■ Integrated drive and control, expandable PLC and motion control card
■ Multiple language keyboard, friendly interface, reliable and easy to use

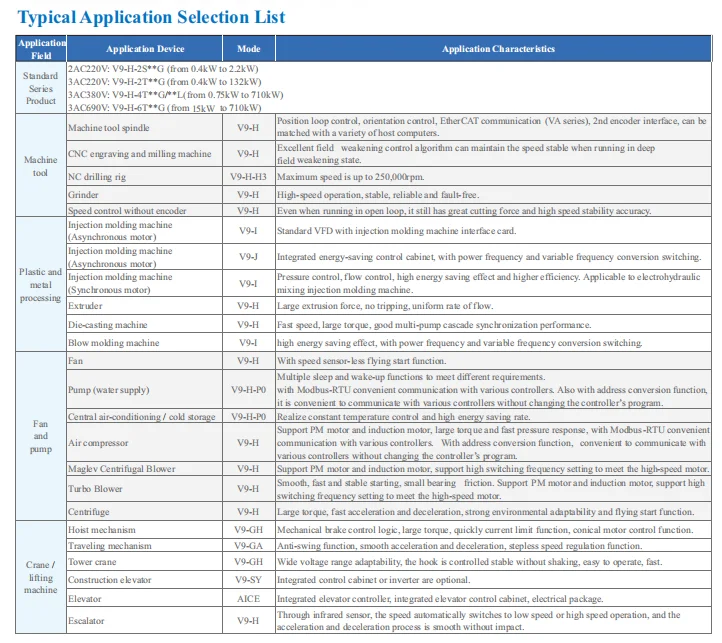

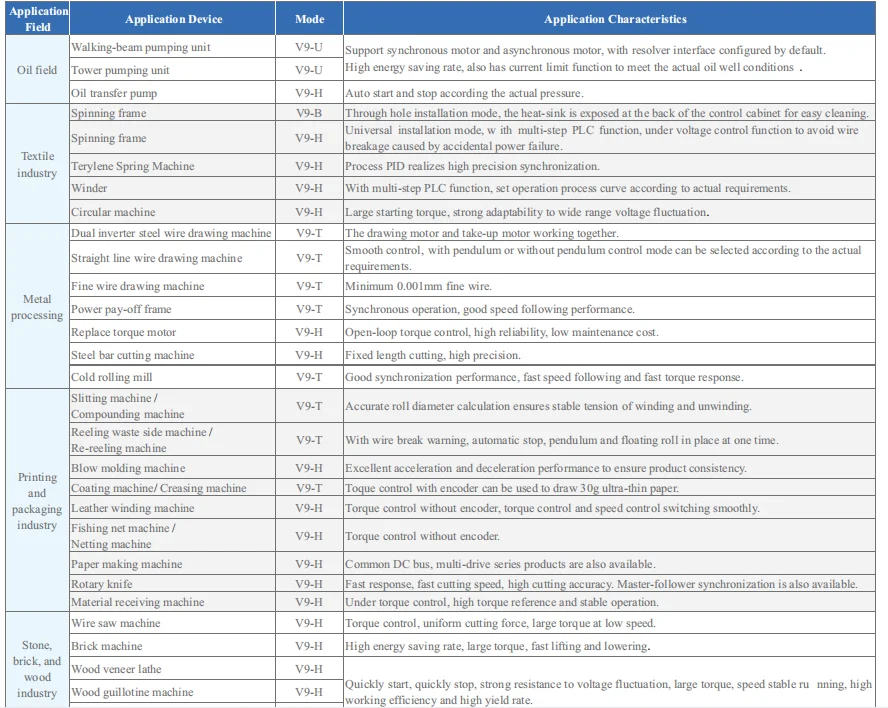

Application
