$12,600

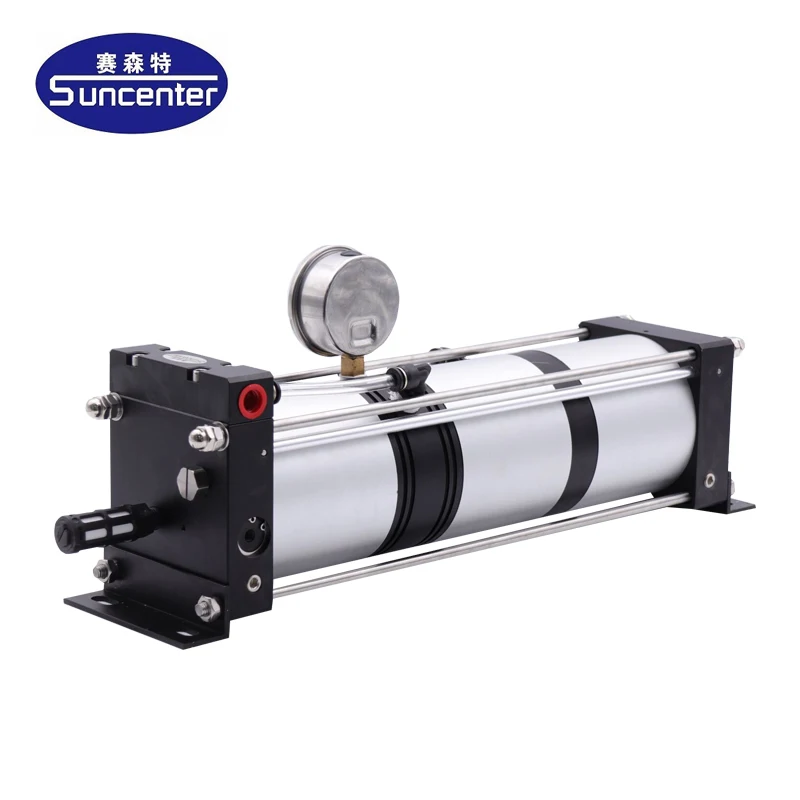

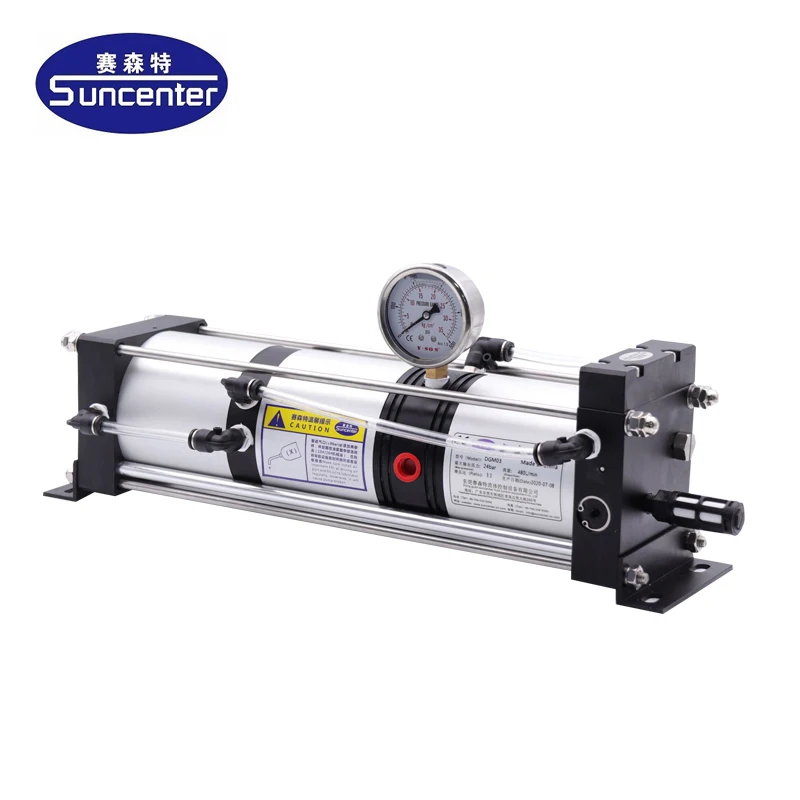

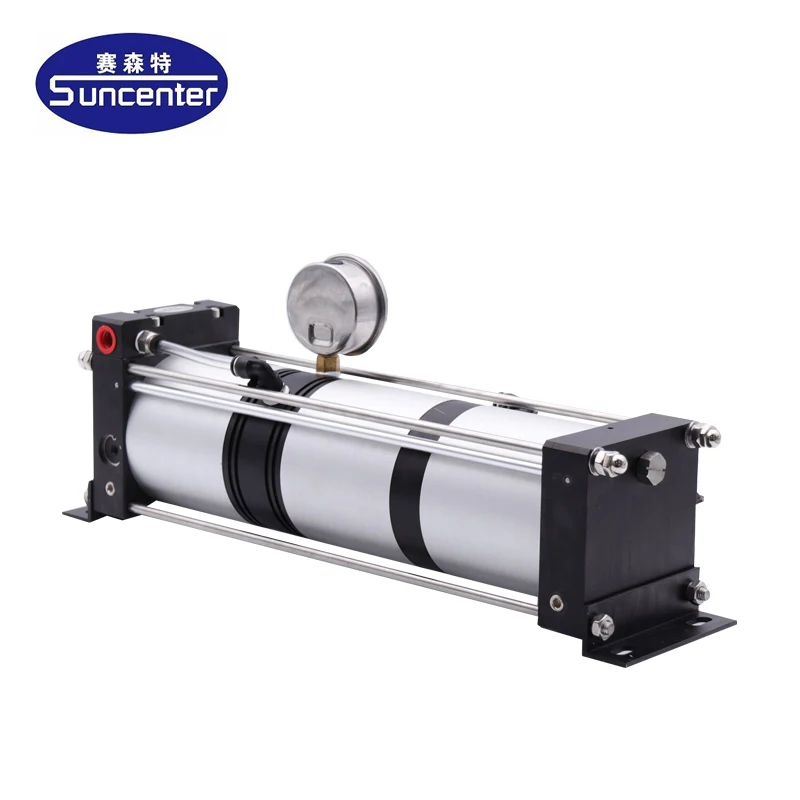

DGMA03 Compressed Air Amplifier Air Pressure Intensifier Booster Pump
- Category: >>>
- Supplier: Dongguan Suncenter Fluid Control Equipment Co. Ltd.
Share on (1600934758161):
Product Overview
Description

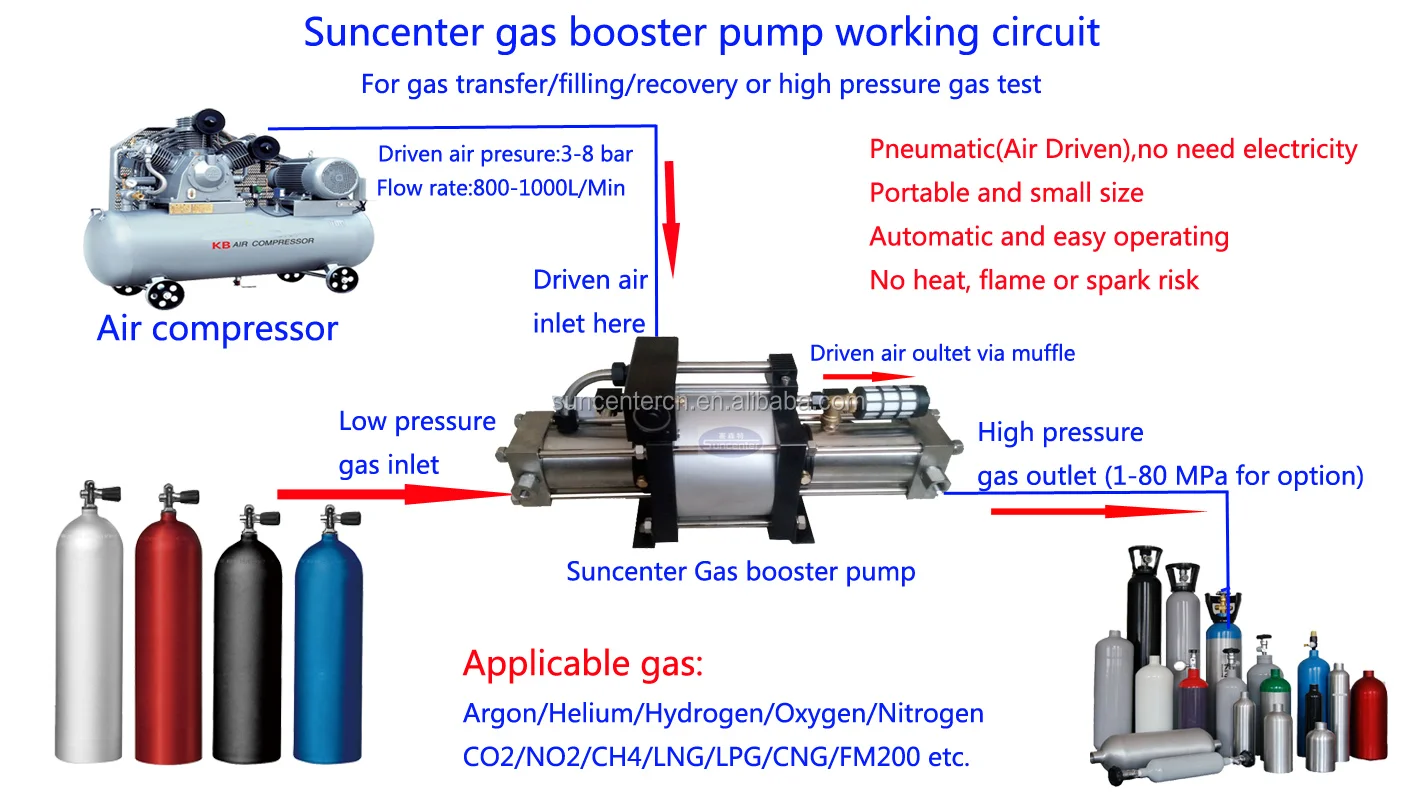

Air Booster Pump
Model | Pressure boost ratio | Max. air outlet pressure | Formula to calculate air outlet pressure PB | Connection: (NPT thread) | Max. flow rate (L/min) |
DGMA02 | 2：1 | 16 bar | 2XPL | 1/2 / 1/2 | 580 |
DGVA02 | 2：1 | 16 bar | 2XPL | 1/2 / 1/2 | 1600 |
DGMA03 | 3：1 | 24 bar | 3XPL | 3/8 / 3/8 | 420 |
DGVA04 | 4：1 | 30 bar | 4XPL | 3/8 / 3/8 | 500 |
DGVA05 | 5：1 | 40 bar | 5XPL | 3/8 / 3/8 | 820 |
DGVA07 | 7：1 | 56 bar | 7XPL | 3/8 / 3/8 | 280 |
DGVA08 | 8：1 | 64 bar | 8XPL | 3/8 / 3/8 | 500 |
DGVA10 | 10：1 | 80 bar | 10XPL | 3/8 / 3/8 | 220 |

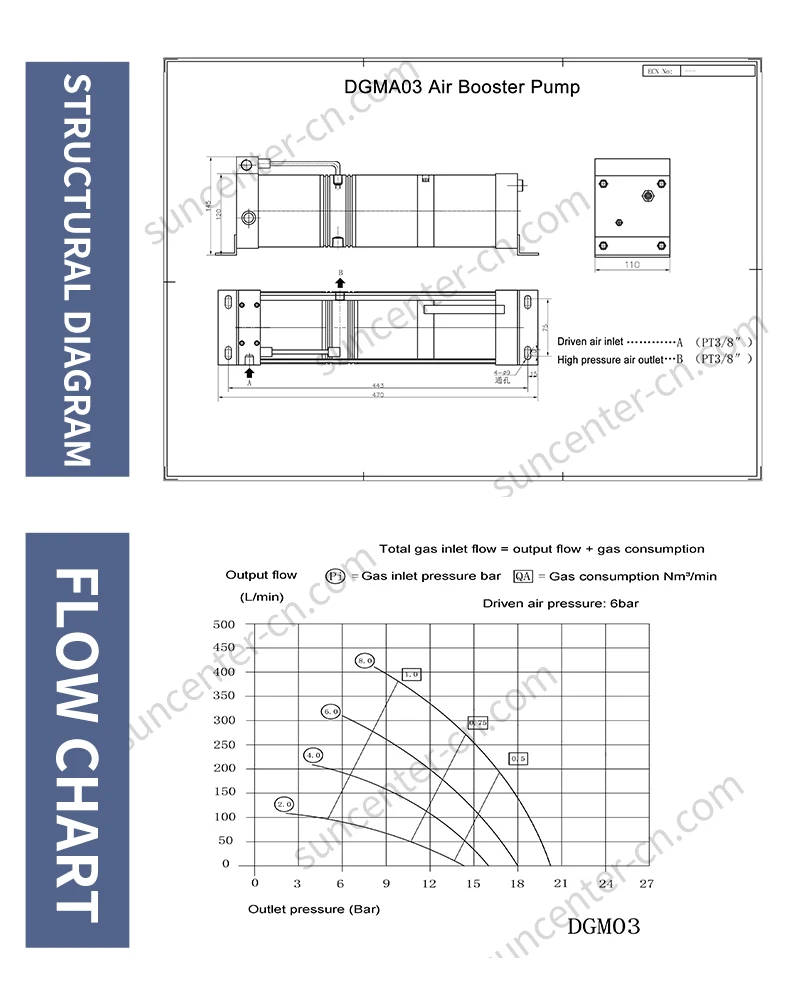

DGMA03
technical parameters
Driven source: clean compressed air
Air pressure control system
Drive compressed air pressure: 1-8bar (recommended drive pressure <8bar)
Boost Ratio:3:1
Maximum flow rate : 420L/min
Maximum air output pressure: 24bar.
Applicable medium: clean air
Air inlet minimum pressure: 1bar
Driven source: clean compressed air
Air pressure control system
Drive compressed air pressure: 1-8bar (recommended drive pressure <8bar)
Boost Ratio:3:1
Maximum flow rate : 420L/min
Maximum air output pressure: 24bar.
Applicable medium: clean air
Air inlet minimum pressure: 1bar
Company Introduction
Certification
Packing&Shipping
FAQ
Q1: Are you a factory or trading company?
A1: Yes, we have more than 15 years experiences in high pressure fluid exchange and controlling field,we provide various kinds of pneumatic and hydraulic boosters,systems and solutions.
Q2: What is your hot items?
A2:Our company specializes in the production of pneumatic gas booster pumps, pneumatic liquid booster pumps, air-driven air booster pumps, air booster valves, air gas booster pumps, pneumatic booster pumps, pressure gauge fatigue pressure test bench, hydrostatic burst test bench, pulse burst test bench, airtightness inspection test bench and so on.
Q3.Are all your products available in stock?
A3: Some products are available in stock. Please consult customer service for details to check the inven-tory quantity at that time.
Q4. How long is your warranty?
A4: 13 months' free warranty since the purchasing date and free technical sup-port during lifetime
Q5: How to operate the machine?
A5: After you get the machine, we will send you the working video to teach you for maintenance and operating.
Q6:Do you take OEM or ODM orders?
A6:Yes, we accept OEM and ODM from customers
Q2: What is your hot items?
A2:Our company specializes in the production of pneumatic gas booster pumps, pneumatic liquid booster pumps, air-driven air booster pumps, air booster valves, air gas booster pumps, pneumatic booster pumps, pressure gauge fatigue pressure test bench, hydrostatic burst test bench, pulse burst test bench, airtightness inspection test bench and so on.
Q3.Are all your products available in stock?
A3: Some products are available in stock. Please consult customer service for details to check the inven-tory quantity at that time.
Q4. How long is your warranty?
A4: 13 months' free warranty since the purchasing date and free technical sup-port during lifetime
Q5: How to operate the machine?
A5: After you get the machine, we will send you the working video to teach you for maintenance and operating.
Q6:Do you take OEM or ODM orders?
A6:Yes, we accept OEM and ODM from customers
