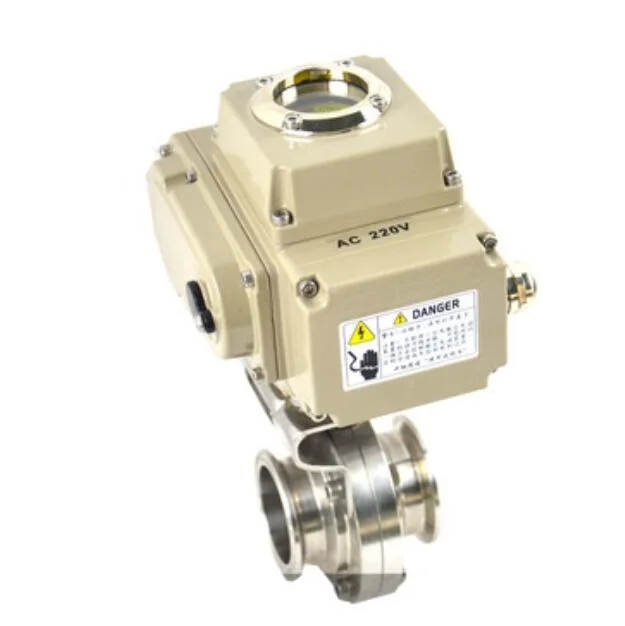

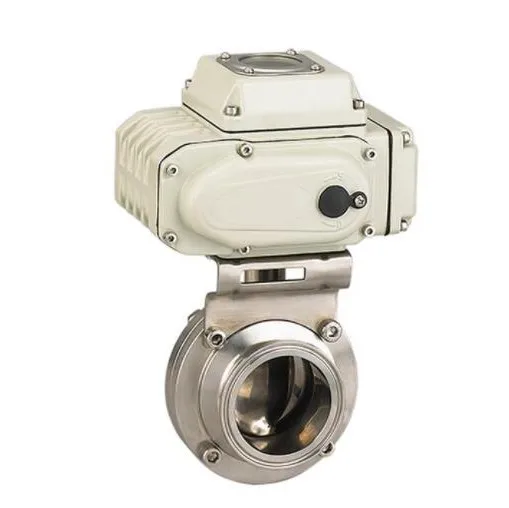

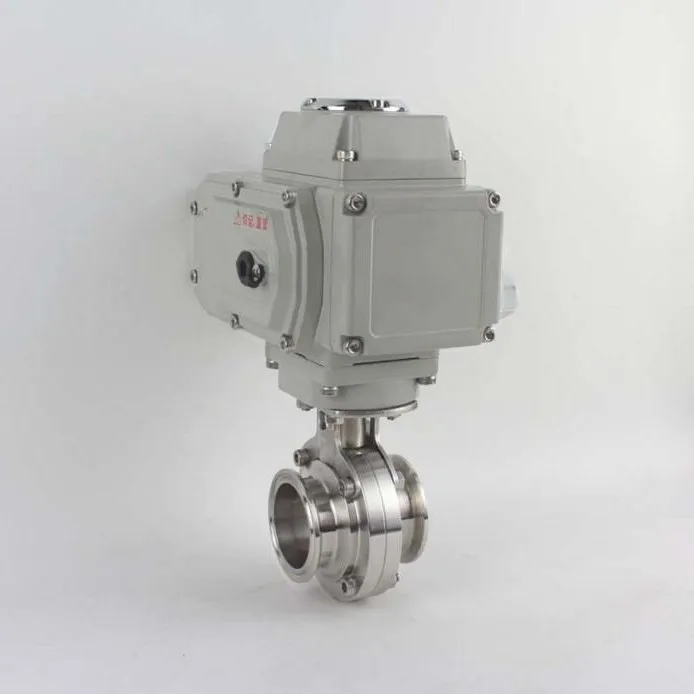

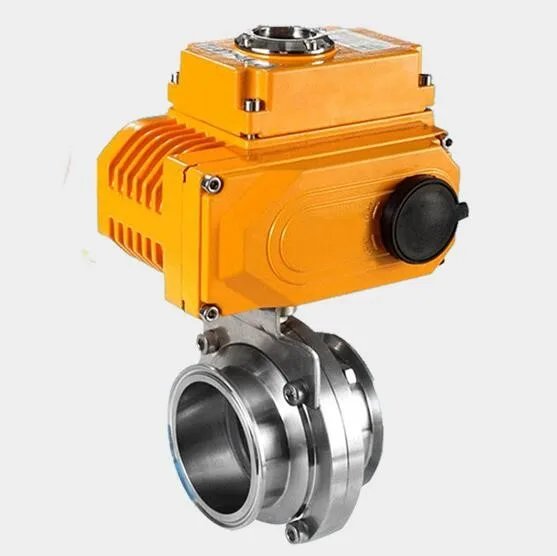

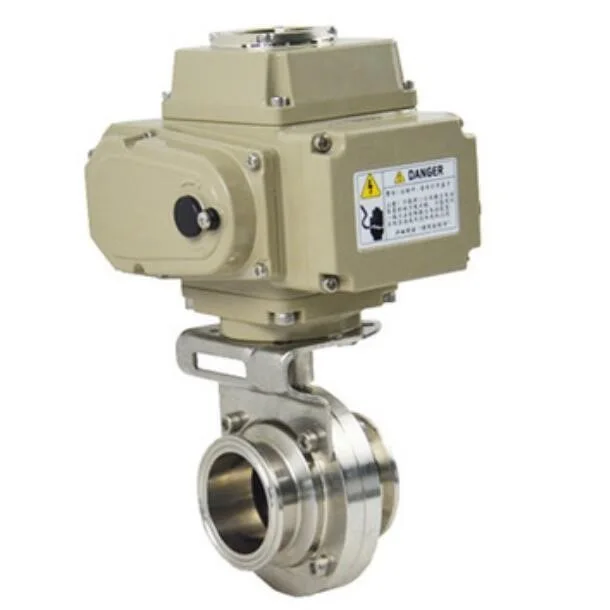

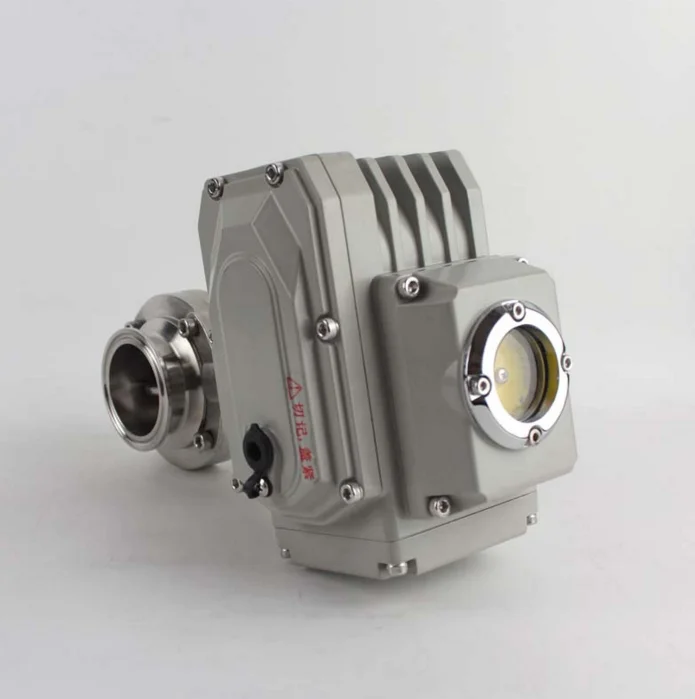

316L Stainless Steel Smart Motorized Electric Motor Operated Food Sanitary Grade Inox Tri Clamp Butterfly Valve
- Category: >>>
- Supplier: Jiangsu Shoulong Valve Co. Ltd.
Share on (1600934775412):
Product Overview
Description
Product Specification
Stainless Steel Quick Clamp Ball Valve with Electric Actuator
Stainless Steel Clamp ball valve with an electric actuator. They are typically used for on-off control or regulate the flow of water or liquid media. Through rotate 90 degrees (quarter-turn) to change the flow diretion. While they typically operate more slowly than valves with a pneumatic actuator, it is often the case that electricity is available and compressed air is not.
Clamp Connection is quick assembely and use d for sanitory food or pharmaceutical industry.
Electric Actuator | Power | DC12V, DC24V, DC220V, AC24V, AC110V, AC220V, AC380V |
Style | ON/OFF style, intelligent style | |
Run time | 5S to 100S (According to different size) | |
Input signal | 4-20mA, 1-5V, 0-10VDC, or customize (for intelligent style) | |
protection grade | IP67 | |
Stainless Steel Ball Valve | Valve Body Material | WCB, SS304, SS316, SS316L, duplex steel |
Valve Seat Material | PTFE, RPTFE, HARD ALLOY | |
End type | Threaded, Flanged, Socket-welded, Butt-welded, Clamp | |
Standard | ANSI, JIS, DIN, CNS | |
Size | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4" | |
Pressure | PN16, PN25, PN40, PN63 | |
Certification | ISO9001:2015 |
Electric Actuator with Manual wrench
Visual Window on Actuator
ISO5211 Mounting Seat

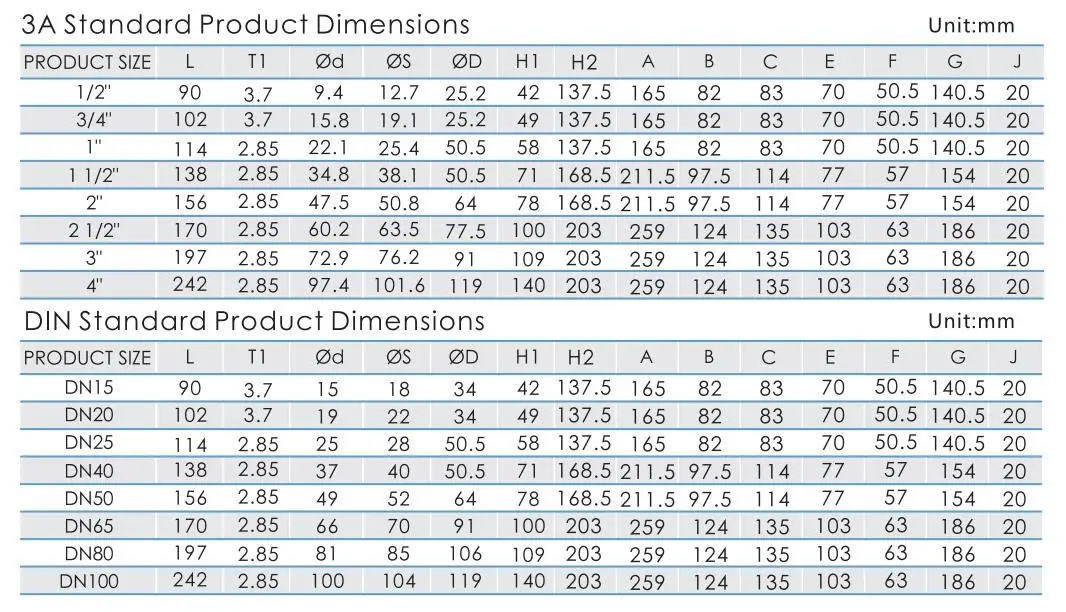

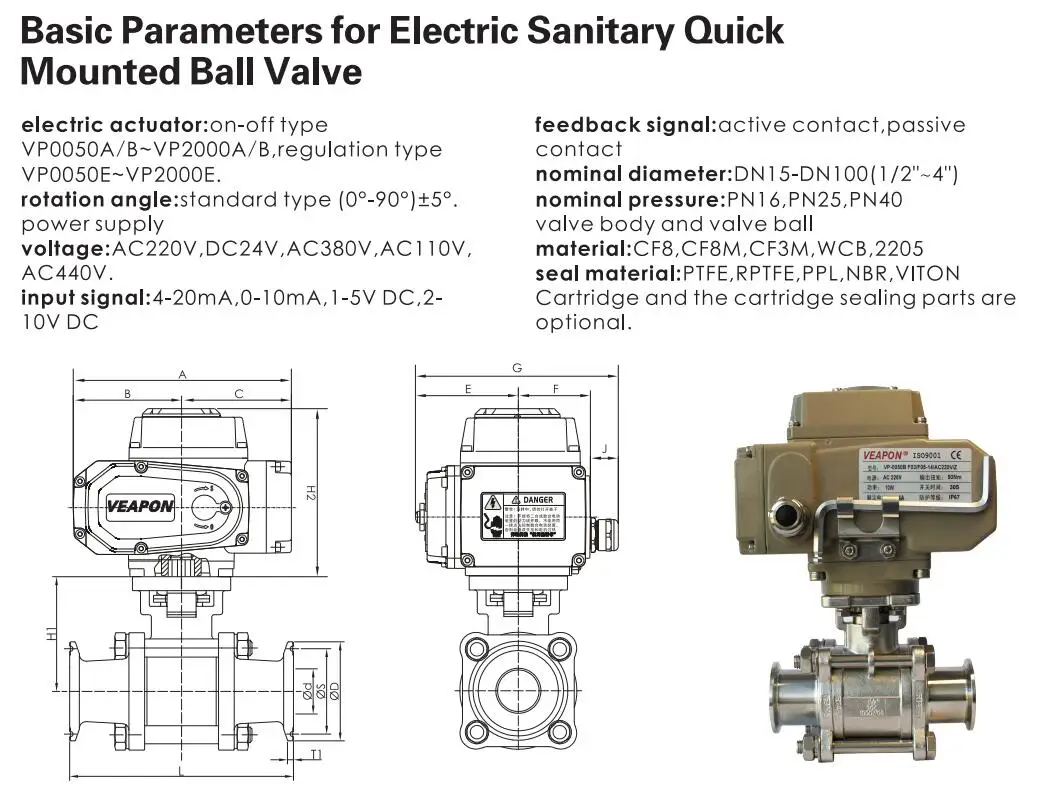

Stainless steel Electric Sanitary Quick Mounted Ball Valve Size Table
Pnuematic Sanitary Quick Mounted Ball Valve
Stainless steel ball valve with a pneumatic actuator. They are are typically used for on-off control of water and liquid media compatible with the materials of construction. Through rotate 90 degrees (quarter-turn) to change the flow diretion. Pneumatic valves are designed for quick opening and closing, it is often the case that compressed air is available.
Electric Threaded Ball Valve
Stainless steel ball valve with an electric actuator. They are are typically used for on-off control of water and liquid media compatible with the materials of construction. Through rotate 90 degrees (quarter-turn) to change the flow diretion. While they typically operate more slowly than valves with a pneumatic actuator, it is often the case that electricity is available and compressed air is not.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Packing: Carton box for small and light products. / Wooden box for big and heavy products
Company Profile
SLV-Jiangsu Shoulong Valve Co., Ltd. is a comprehensive enterprise engaged in research & development, produciton, sales and import & export of automatic control valves.
Founded in 1988, factory area in Nanjing and Wuxi: 30 acres.
Certifications
Our company has a complete set of prodction and testing equipment, perfect organization and quality system and a number of high-quality professional technicians and also has passed ISO9001-2000, TRD100, CE, API6D, API607, DNV, CNS and other certification successively.
Exhibition
FAQ
Q: Can we visit your factory before placing orders?
A: Yes, sure. Welcome to visit our factory at any time.
Q: How long is your delivery time?
A: Yes, sure. Welcome to visit our factory at any time.
Q: How long is your delivery time?
A: 5 days in stock. 15 days if the goods are not in stock.
Q: Do you provide samples? Is it free?
A: Yes, we could offer the sample with favorable price. The amount will be return after bulk order.
Q: What are your terms of payment?
A: Order<=1000USD, 100% in advance. Order>=1000USD, 30% T/T in advance,70% balance before shipment.
Q: Do you provide related accessories?
A: Yes, we can provide solenoid valve, locator, air filter regulator, limit switch and so on.
Q: How long is the warranty period for your product?
A: 18months after shipment. After the warranty period, we could also provide after-sales service.
Q: Do you provide samples? Is it free?
A: Yes, we could offer the sample with favorable price. The amount will be return after bulk order.
Q: What are your terms of payment?
A: Order<=1000USD, 100% in advance. Order>=1000USD, 30% T/T in advance,70% balance before shipment.
Q: Do you provide related accessories?
A: Yes, we can provide solenoid valve, locator, air filter regulator, limit switch and so on.
Q: How long is the warranty period for your product?
A: 18months after shipment. After the warranty period, we could also provide after-sales service.
