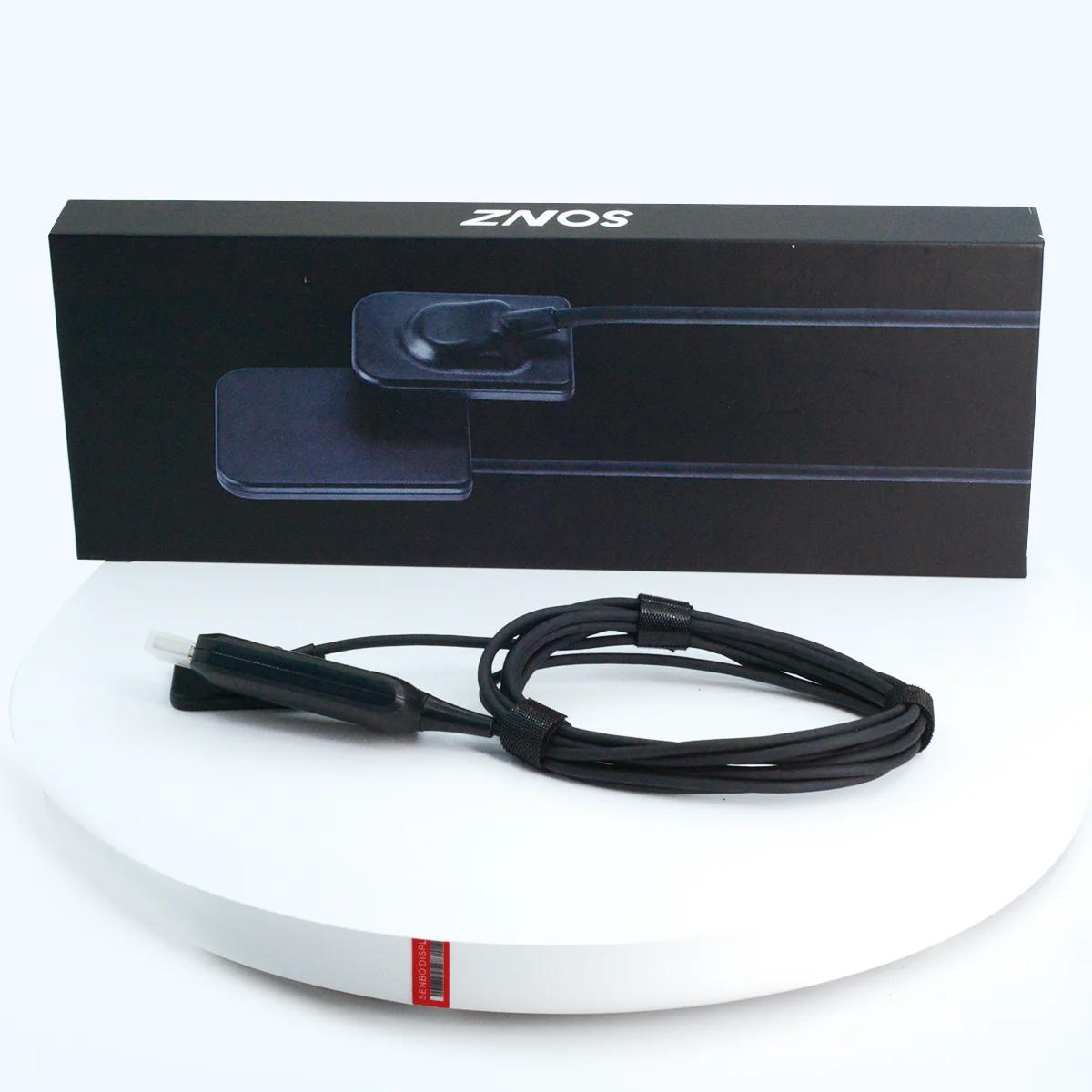

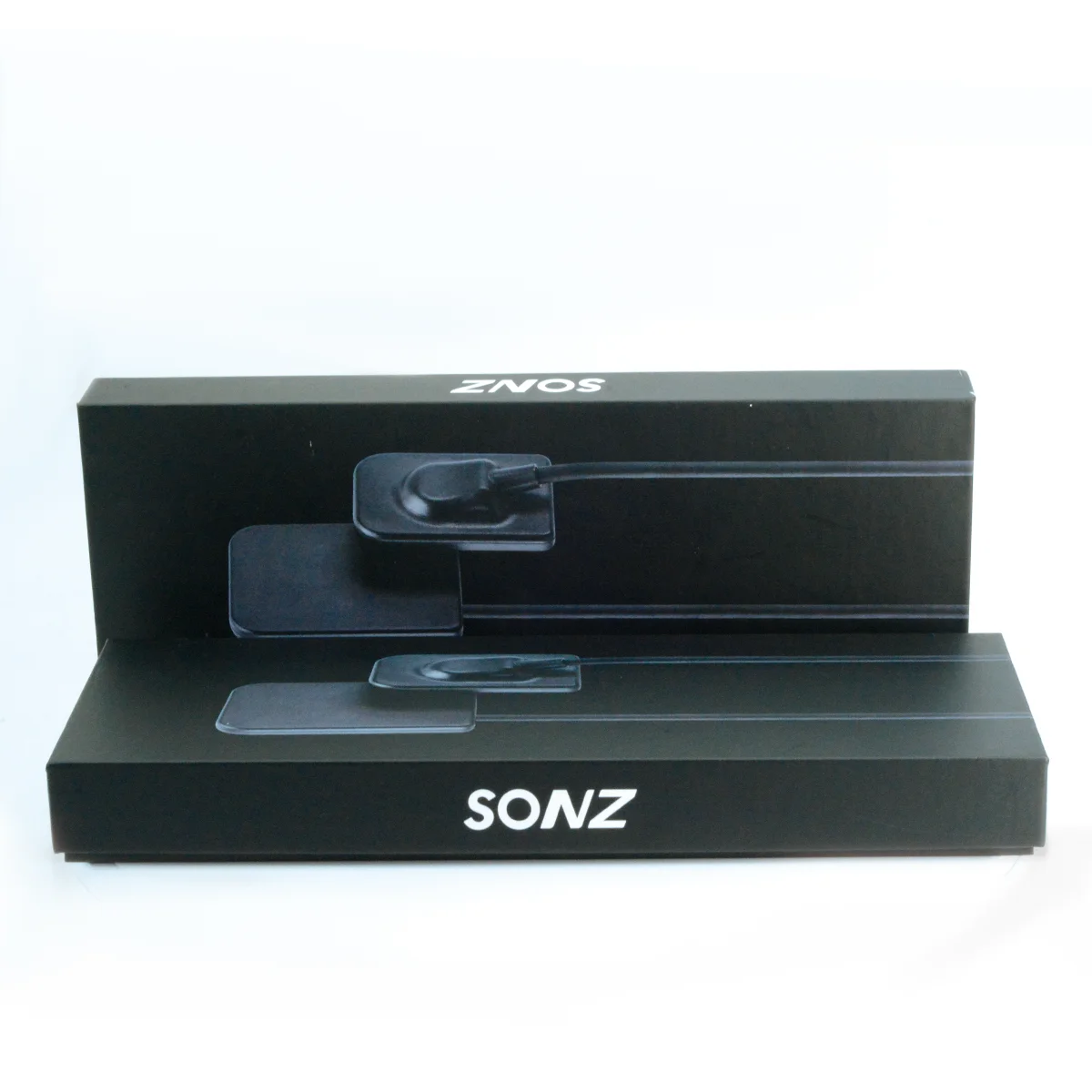

2024 Yingpai RVG Dental X Ray Sensor

Product Overview

Description

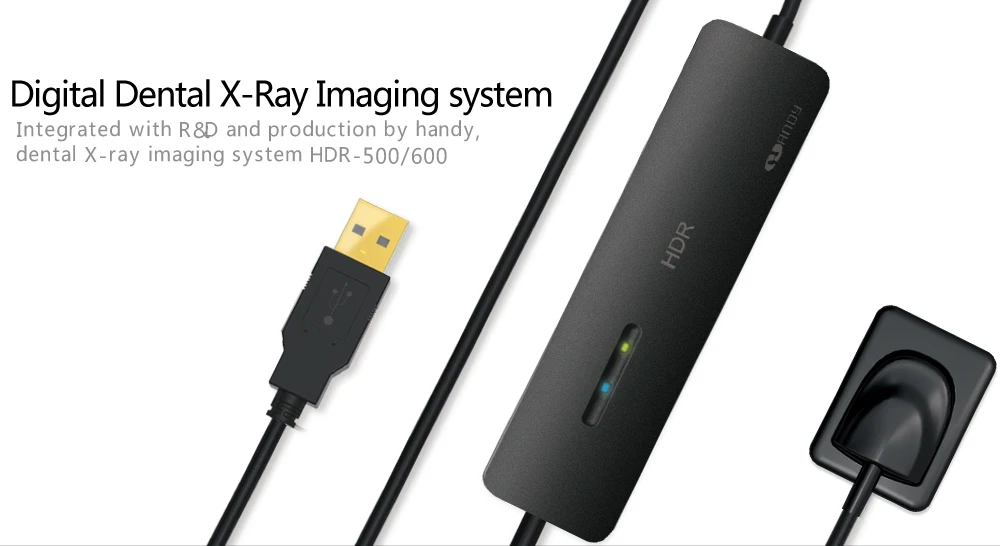

Dental HDR-500 600 USB Dental digital X-ray Intraoral sensor

1.Multi-languages with 10 types.
2.Operation system: desk top & laptop (Windows 2000, XP, Win 7, Win 8,Win 10)

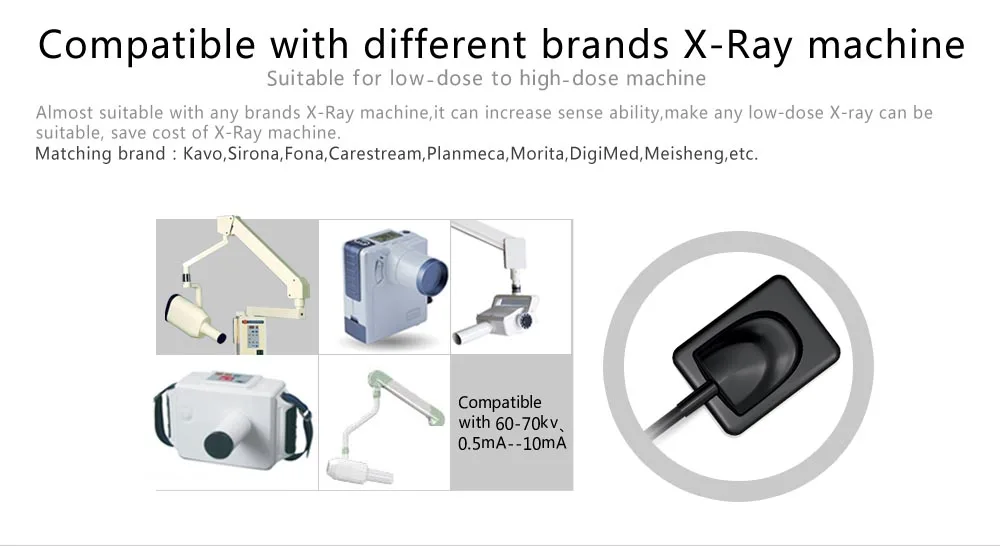

3.Twain driver: our RVG compatible with KODAK, SIRONA, SCHICK, etc.
4.Power :USB 2.0 interface
5.Excellent quality: our sensor material imported from Germany and Japan , best quality standards.

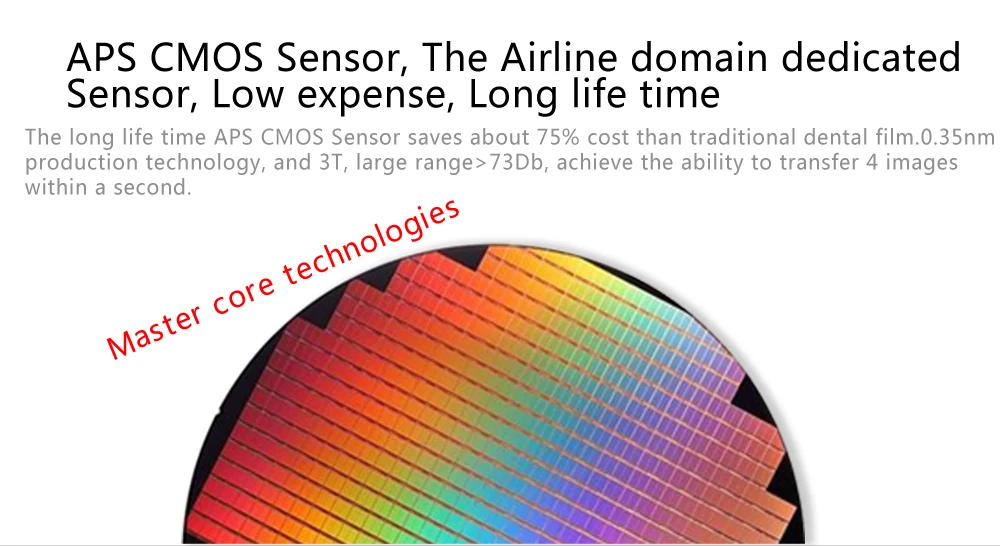

6.New APS CMOS sensor with long life time (400,000 times).
7.Warranty for 1year

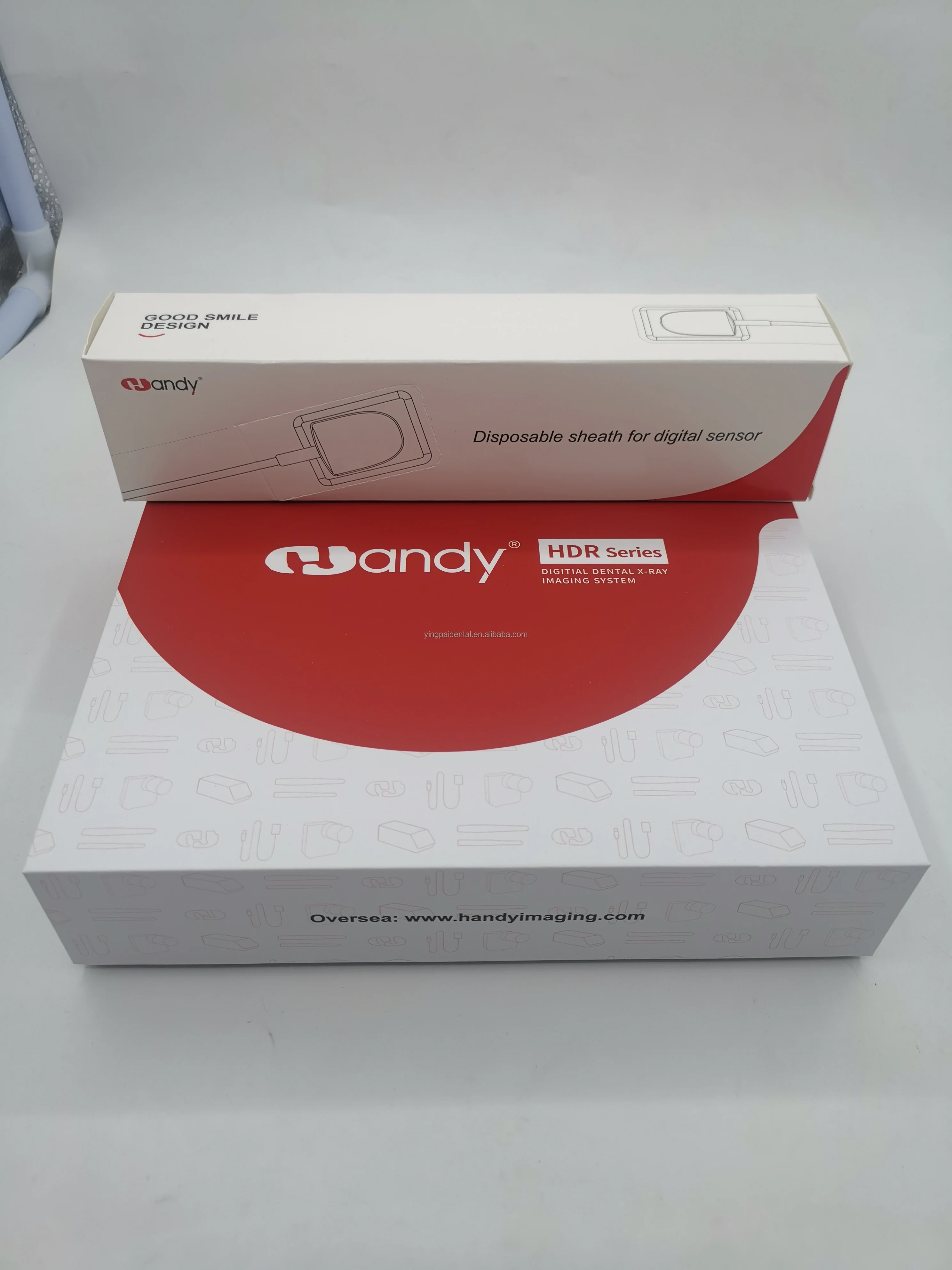

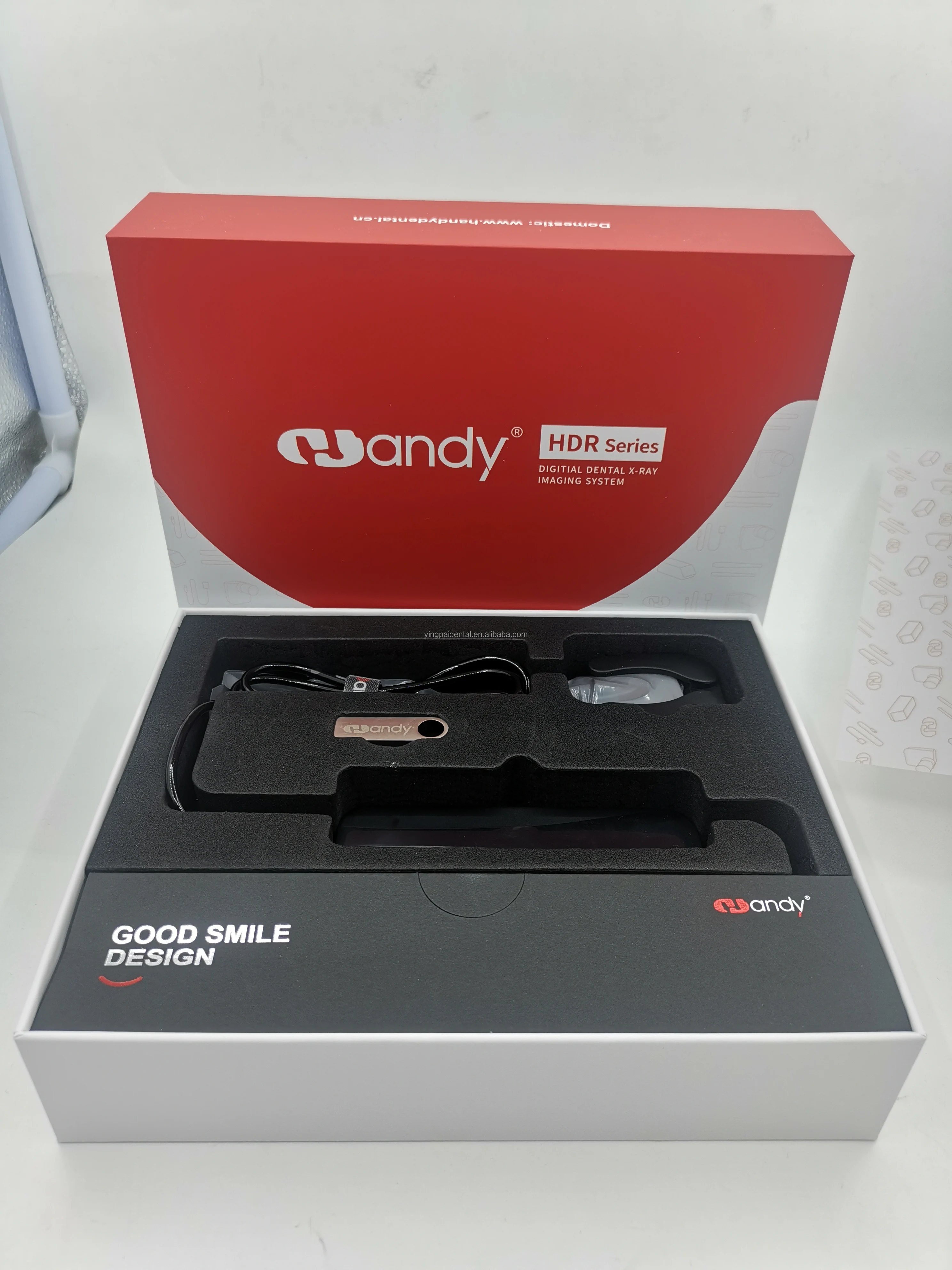

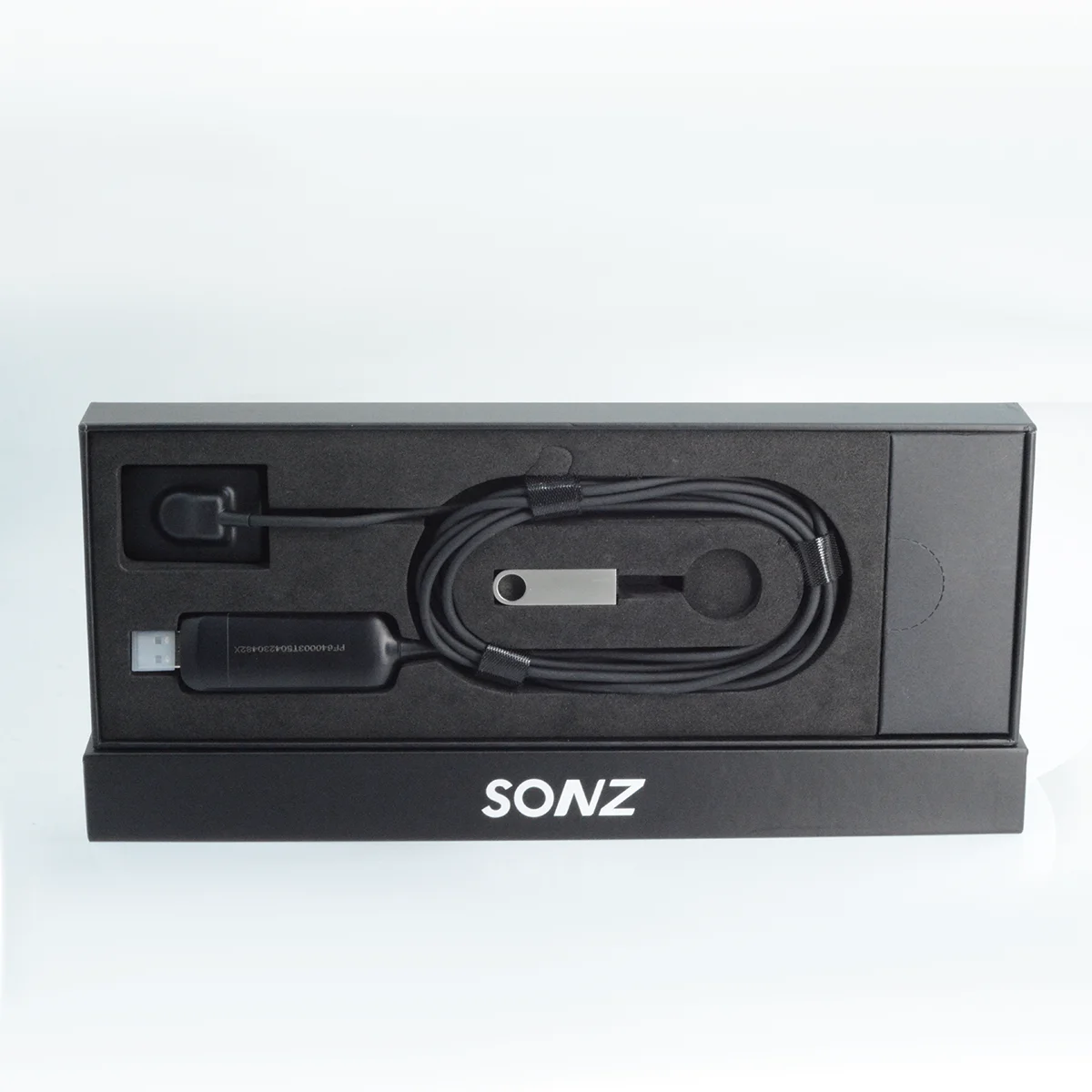

Packing list:
1. Manual 1pcs
2. CD 1pcs

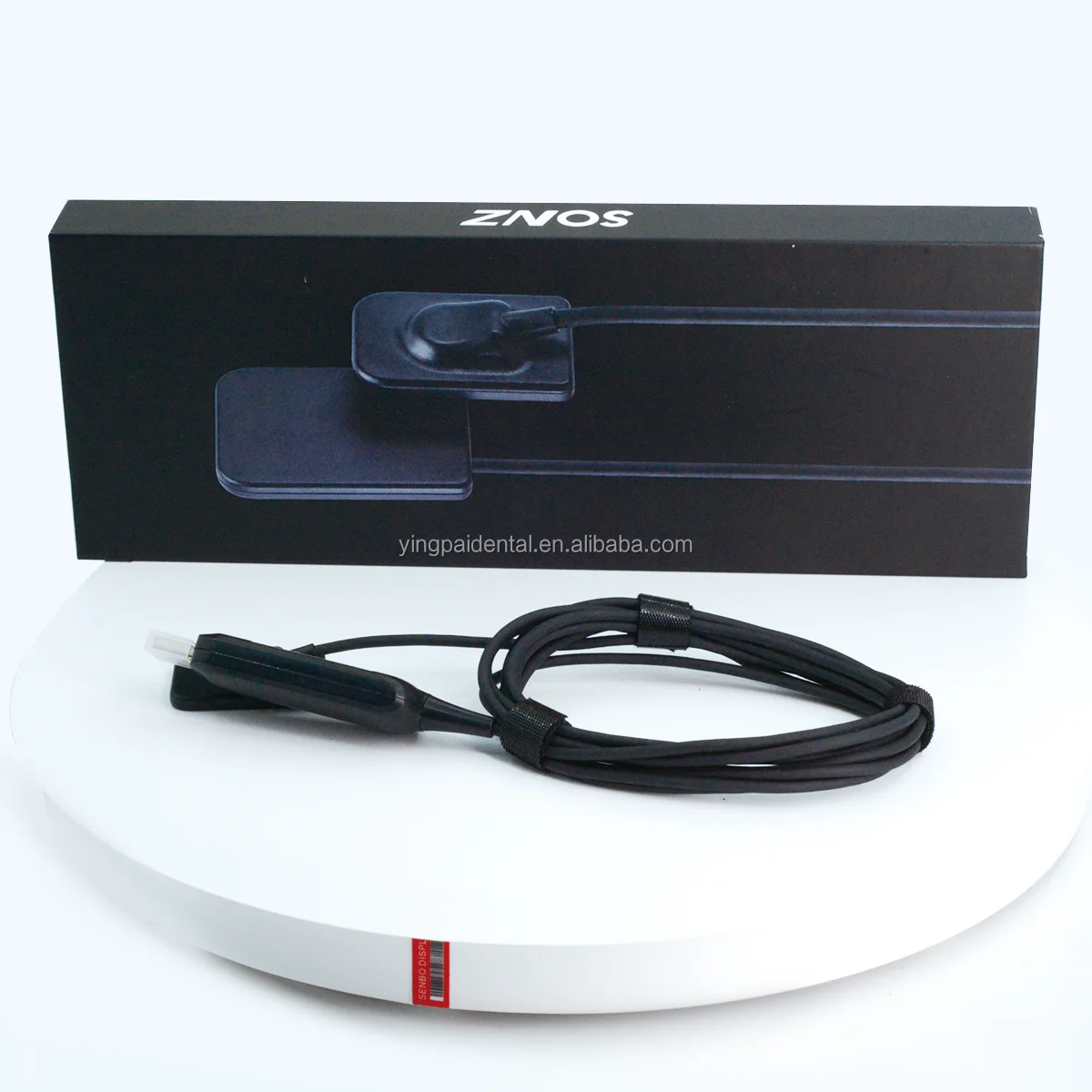

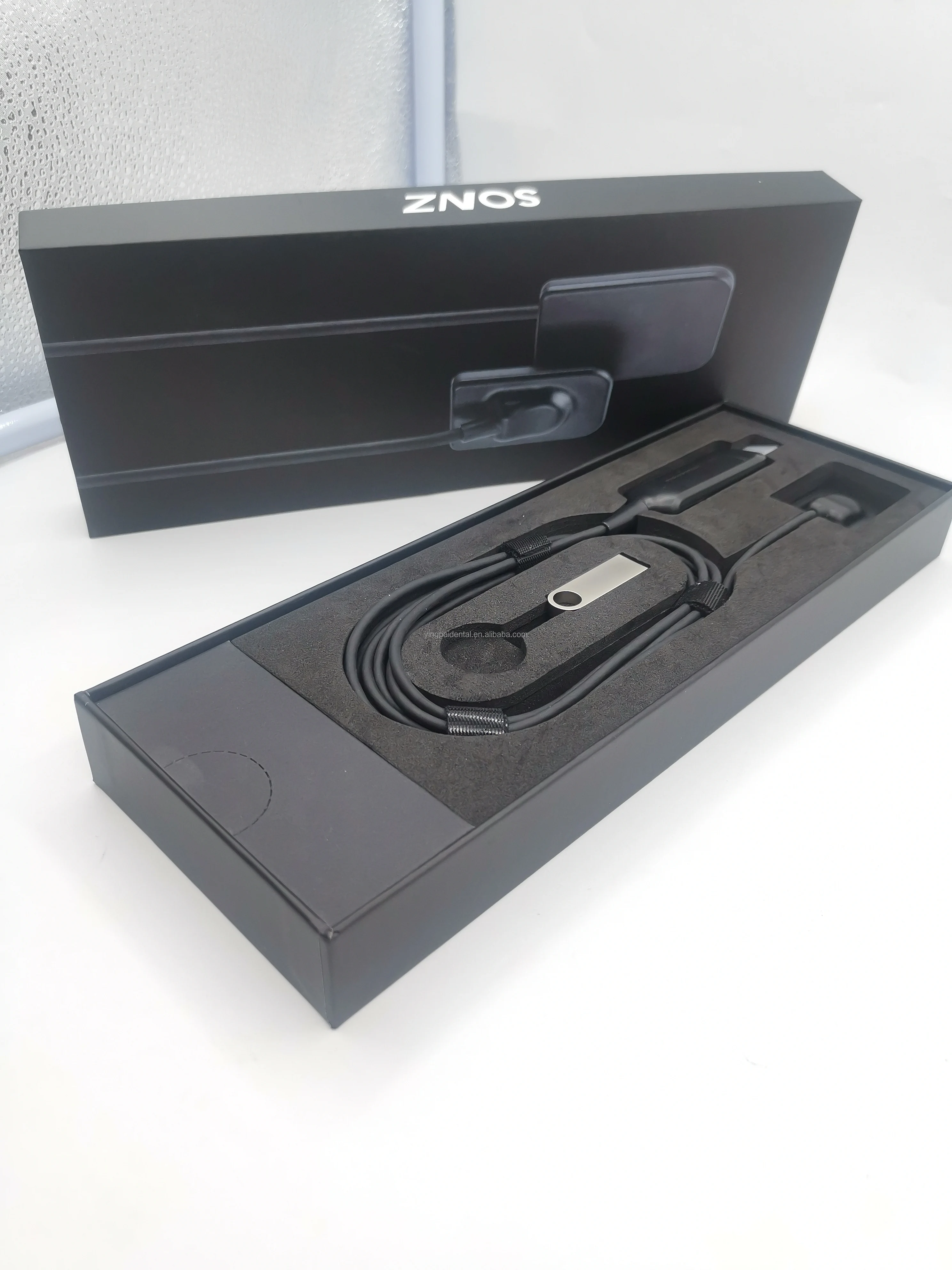

3. X-Ray Sensor and Control Box 1pcs
4. Holder 1pcs
5. Sleeves 1 bag
Packing information:
GW:2.0kgs/set;
Carton size:47*38*14cm





Model Item	HDR-500	HDR-600	HDR-360	HDR-460

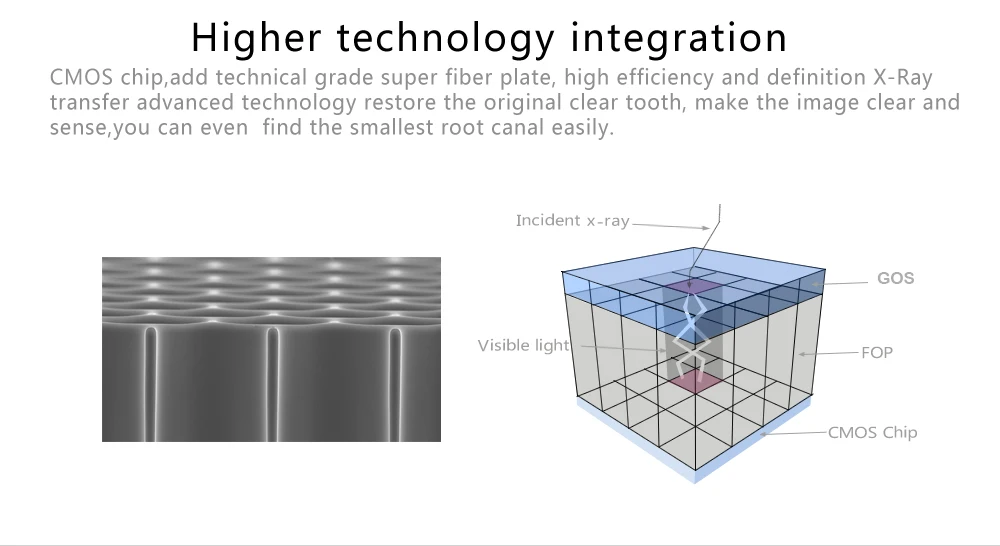

Chip Type	CMOS APS		CMOS APS
Fiber Optic Plate	Yes		Yes
Scintillator	GOS		CsI
Dimension	39 x 28.5mm	44.5 x 33mm	39 x 28.5mm	44.5 x 33mm

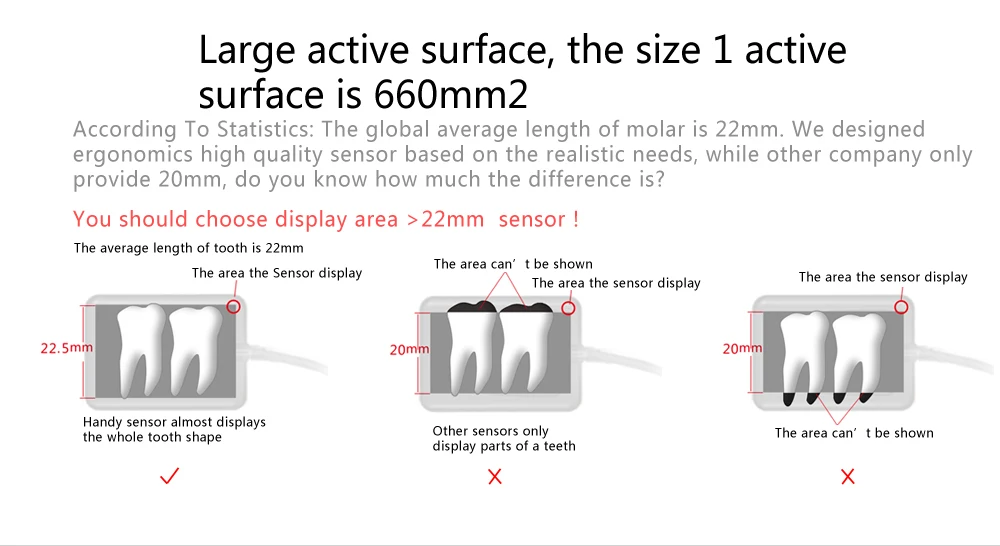

Active Area	30 x 22.5mm	36 x 27mm	30 x 22.5mm	35 x 26mm
Pixel Size	18.5μm		18.5μm
Pixels	1600*1200	1920*1440	1600*1200	1888*1402

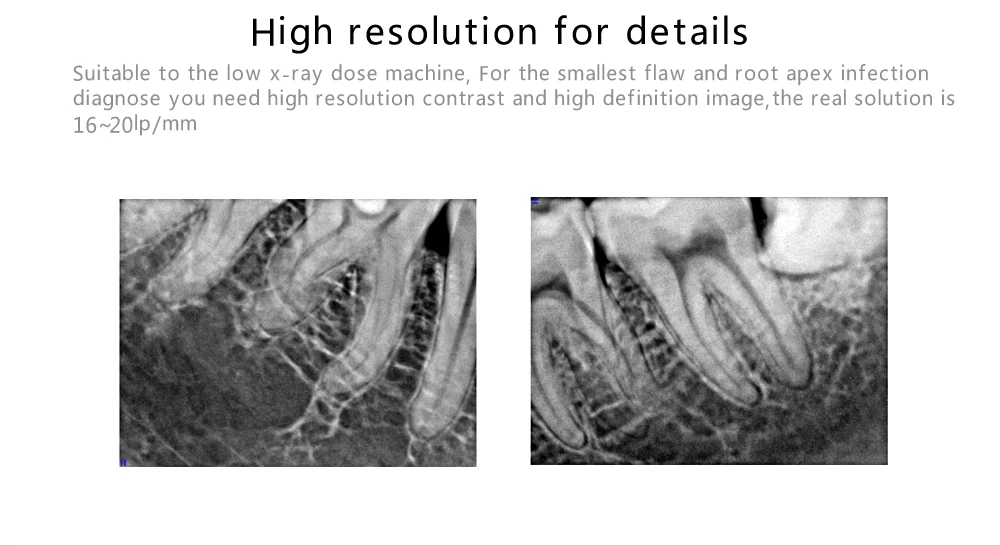

Resolution	14-20lp/mm		20-27lp/mm
Power Consumption	600mW		400mW
Thickness	6mm		6mm
Control Box	Yes		No (Direct USB)
Twain	Yes		Yes
Operation System	Windows 2000/XP/7/8/10/11 (32bit&64bit)

















  Anyang Yingpai Dental Material Co.,ltd. ever been named Linzhou Chengjiao Dental Material Co.,ltd, which set up in 1998. It is located in Shangguan Town, Hua County, Anyang city, Henan province, China.
Through choosing the international advanced CAD/CAM and vacuum-filling manufacturing process, we make our product to reachthe internation advanced level on the shape, wear-resistance and the shade. Our products are famous for the vivid shape, compact tissue, perfect articulation, strong chew and the clear pronunciation.
