B28 B42 CPE band locking 4G outdoor WIFI router IP65 waterproof protection CPE with sim card slot
- Category: >>>
- Supplier: Shenzhen Ex-Link Technology Co. Ltd.
Share on (1600934792040):
Product Overview
Description
B28 B42 CPE band locking 4G outdoor WIFI router IP65 waterproof protection CPE with sim card slot
HOR101 Cellular outdoor router is a wireless communication product developed based on gsm wcdma 3G/4G LTE network requirements. Supports 2G/3G/4G LTE global frequency bands. Supports 4G LTE CAT 4 Internet access.
Product feature
• 4G LTE data transmission ;
• 2*2 4G/WIFI MIMO antenna;
• 4G LTE /5G antenna gain: >10DBi
• Integrate 3G/4G LTE,WIFI feature;
• 2*2 4G/WIFI MIMO antenna;
• 4G LTE /5G antenna gain: >10DBi
• Integrate 3G/4G LTE,WIFI feature;
• POE power supply (+5V~+48V), Supported POE output via LAN 2 port(Optional);
• 2.4G WIFI
• Waterproof,dustproof,lightning protection. Protection level, IP67
Product Description
Product Name | 4G Long Signal access router /cpe |
Material | PCB+ Plastic |
Function | Signal access and transmit |
Accessory | 4G CPE , POE, mount ring |
Catch long distance signal from tower then transfer to WIFI or LAN port , to transmit to your terminal such as IP camera, mobile phone ,tablet ,computer.
CPU | MTK7628N |
MEMORY | FLASH 16MByte, DDR2 128MByte |
Interface | 2* LAN 10/100Mbps fast Ethernet ports. 1*USB2.0 port. |
Antenna | 2* 2 MIMO 4G LTE internal directional antennas, with 50 Ω impedance. 1* GPS antenna (option) |
SIM card | Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. |
Protectionlevel | Ethernetport,Contactelectricshock,+/-4KV,airdischarge:+/-8KV |
StandardPower | POEpowersupplyinput.DC24V/1A |
working termperature | Operating Temperature. -20 ºC ~+65ºC, Storage Temperature. -30 ºC ~+70ºC |
Protocol | SupportsPPTP,L2TP,IPSECVPN,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSHetcprotocols. |
Bridge | Supports4G/5Gbridgemodefeature. |
WLAN | IEEE 802.11b/g/n. Supports 20MHz,40MHz channel bandwidth in 2.4GHz band. Max bandwidth 300Mbps in 2T/2R 2.4GHz band. |
Wireless mode | Access Point (AP), Client |
Wireless speed | 300Mbps @2.4GHz. |
Wireless Security | Supports WPA, WPA2,WPAI, WEP, TKIP encryption. |
VPN Feature | SupportsOpenVPN,IPSECVPN,PPTP,L2TPetcVPNfeature. |
Watchdog | Built-in watchdog feature. |
LED status indicator | PWR ,SYS, Net, WAN, LAN,WLAN |
Dimension | 250mm*145mm*67.5mm |
Frequency bands
Version LA
LTE-FDD. B1, B2, B3, B4 , B5, B7, B8 ,B28
LTE-TDD. B40
WCDMA. B1, B2, B5 ,B8
GSM.B2 ,B3,B5 ,B8
Version E.
LTE FDD: B1/B3/B5/B7/B8/B20,B28A
LTE TDD: B38/B40/B41 WCDMA: B1/B8
GSM: B3/B8
Version A.
LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
WCDMA: B2/B4/B5 Version
Version J
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41 WCDMA: B1/B6/B8/B19
remarks.
More 4G LTE frequency bands,Please feel free to contact us.

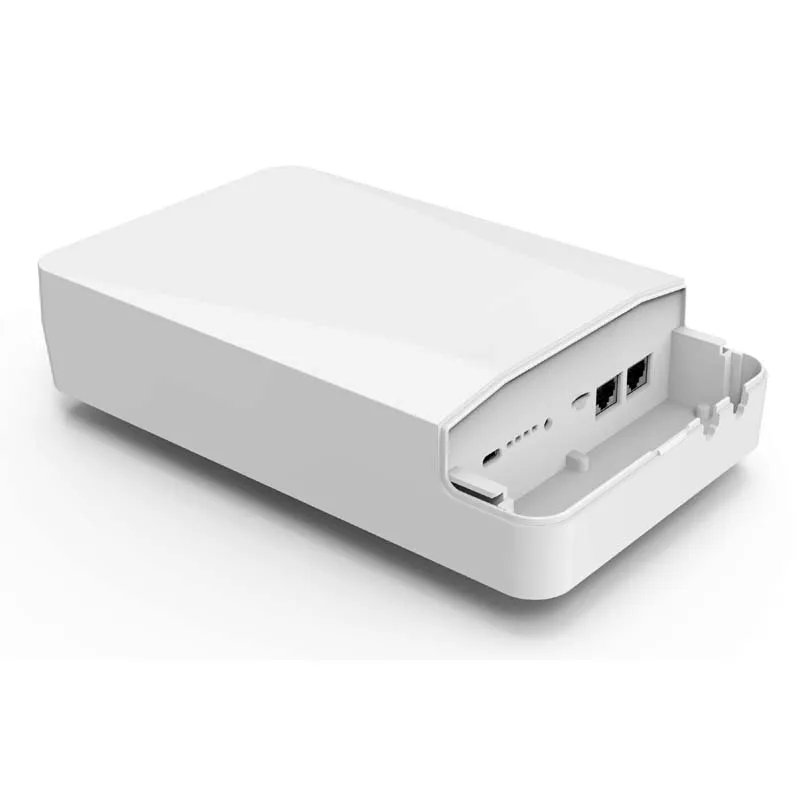

Details Images

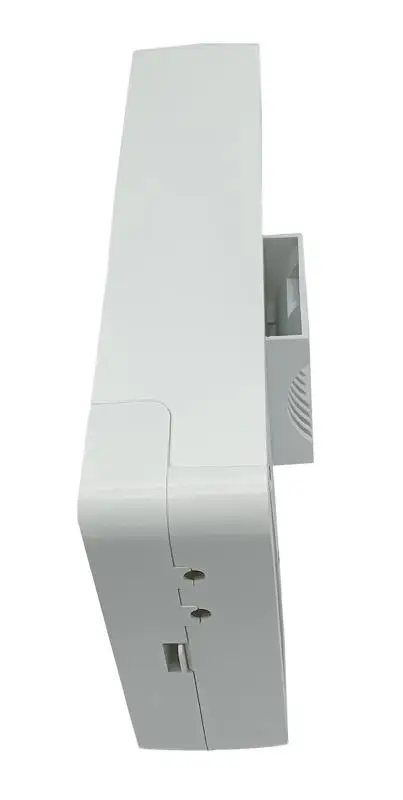

small sim insert ,support eSIM

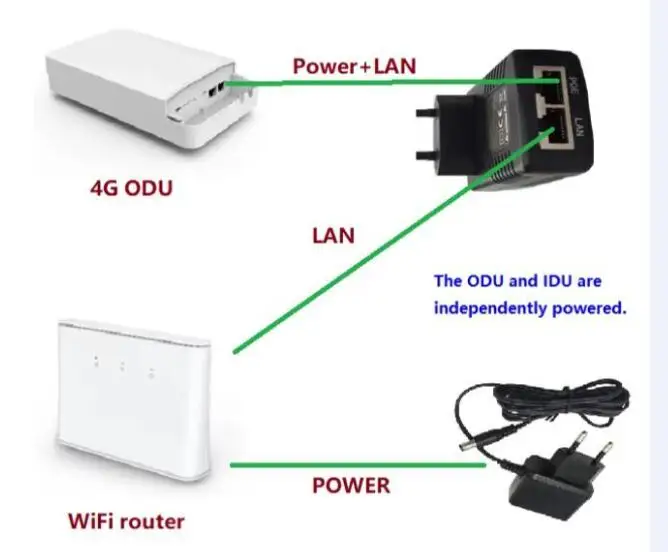

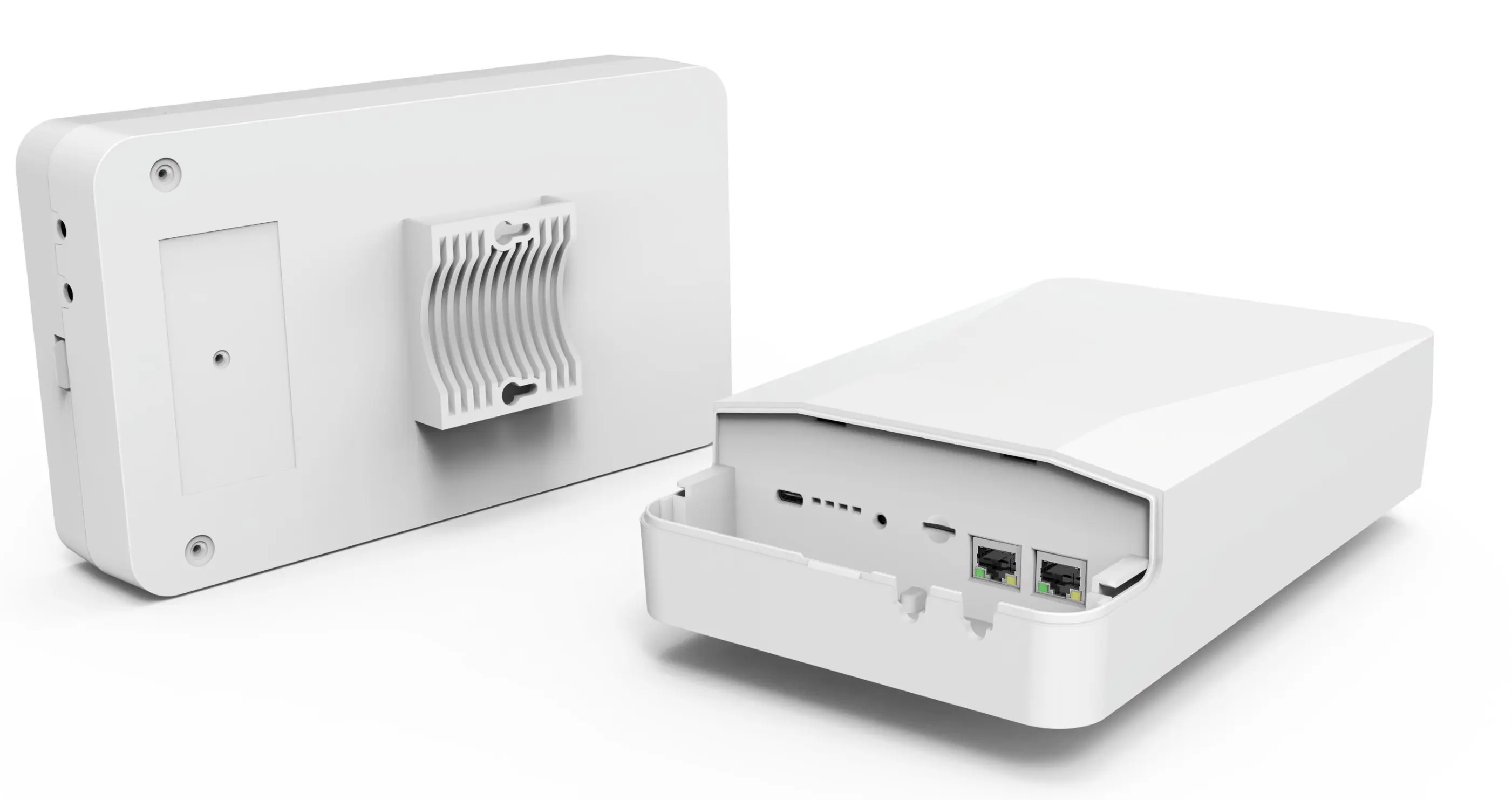

with POE and mount

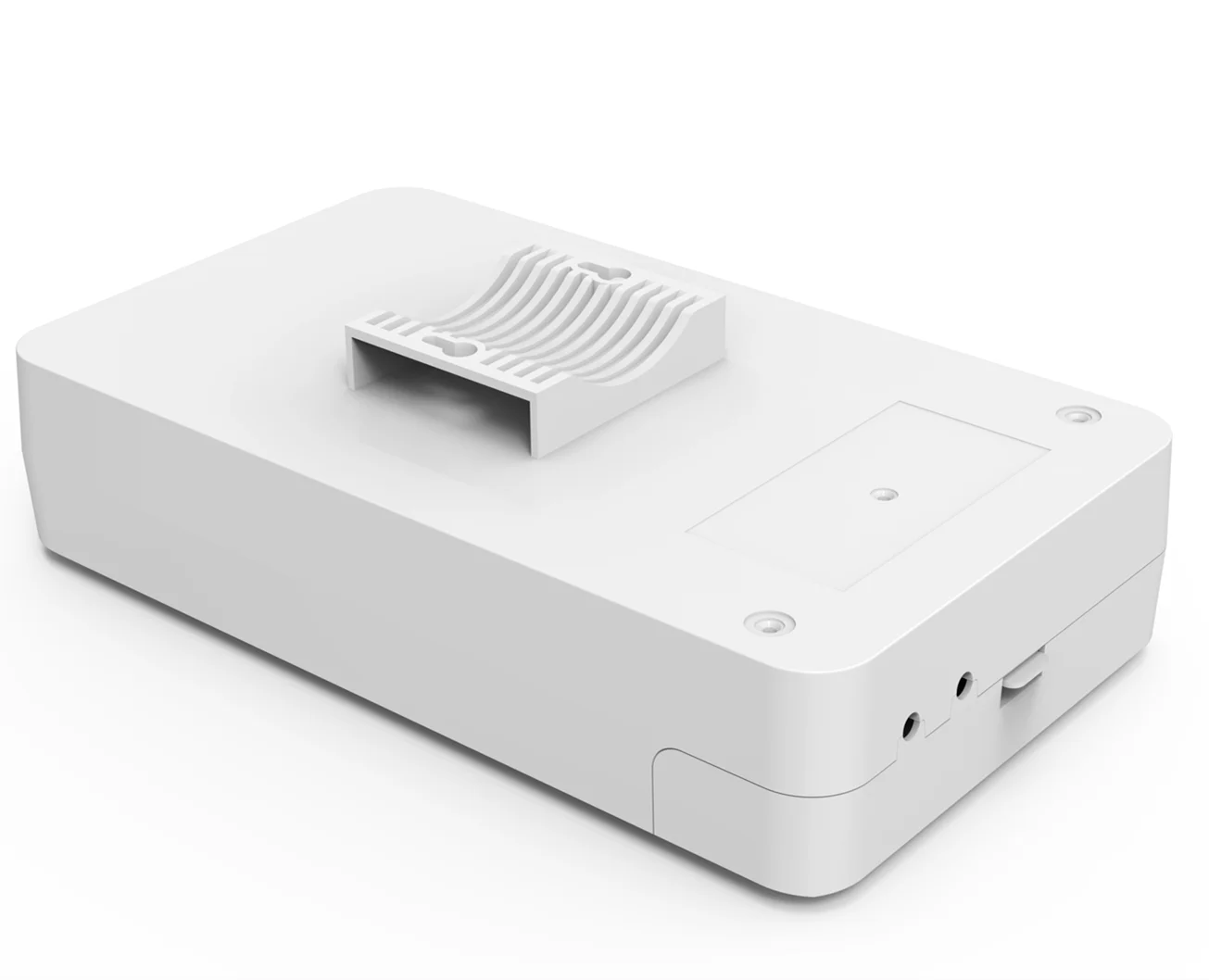

installation: Wall or pole mounted.
Product Usage
