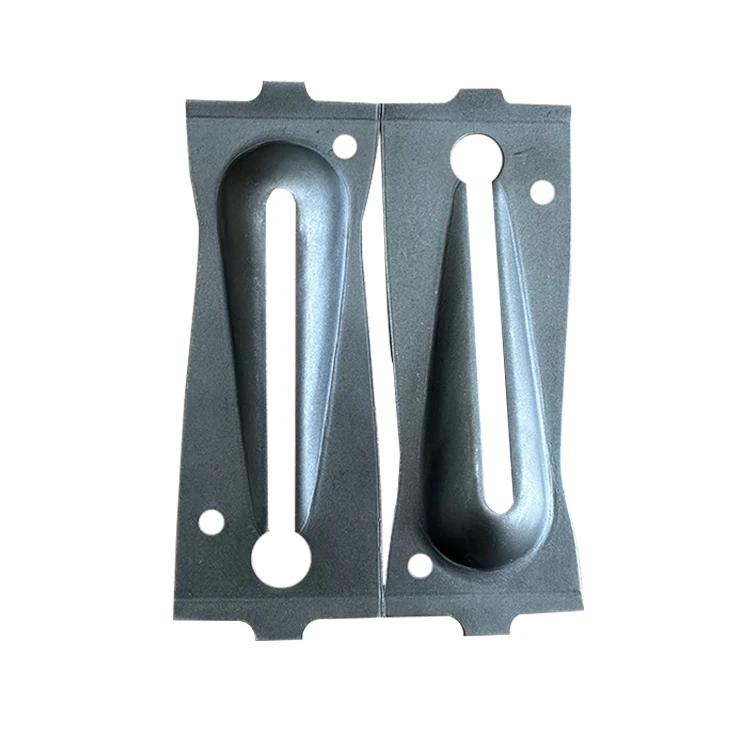

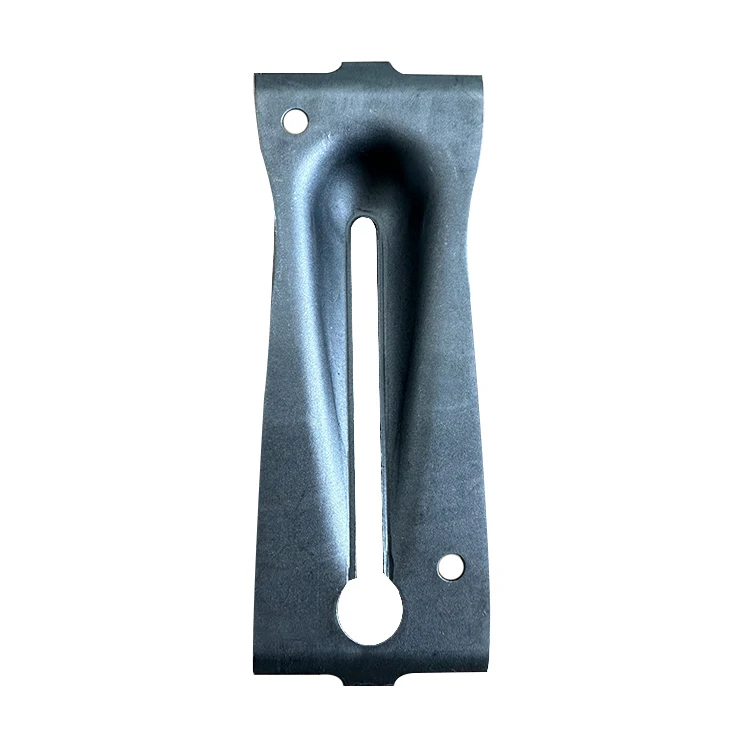

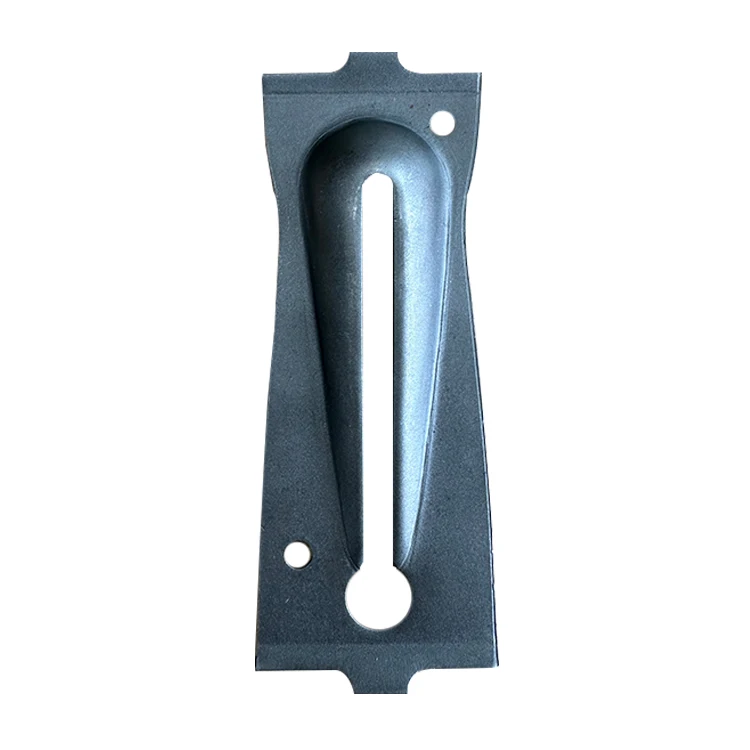

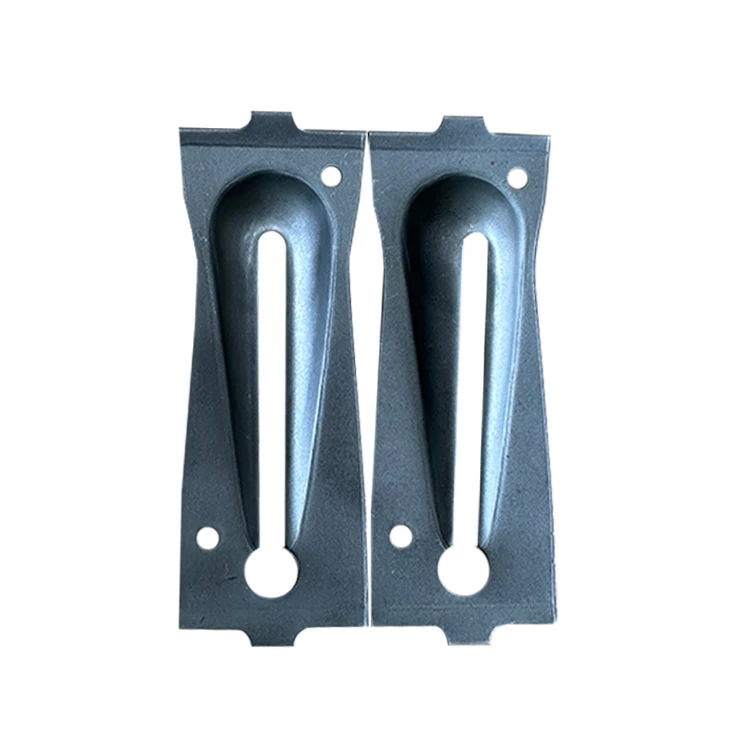

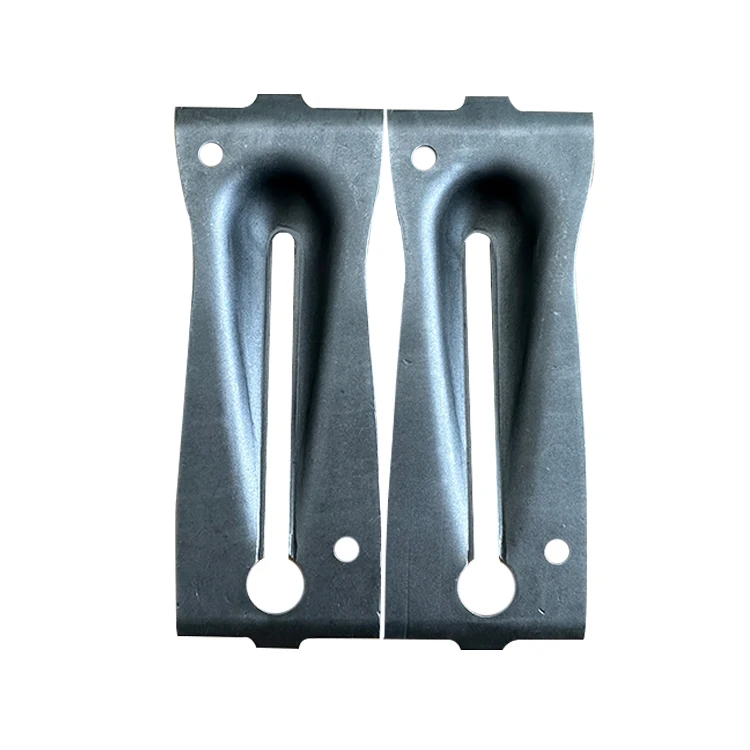

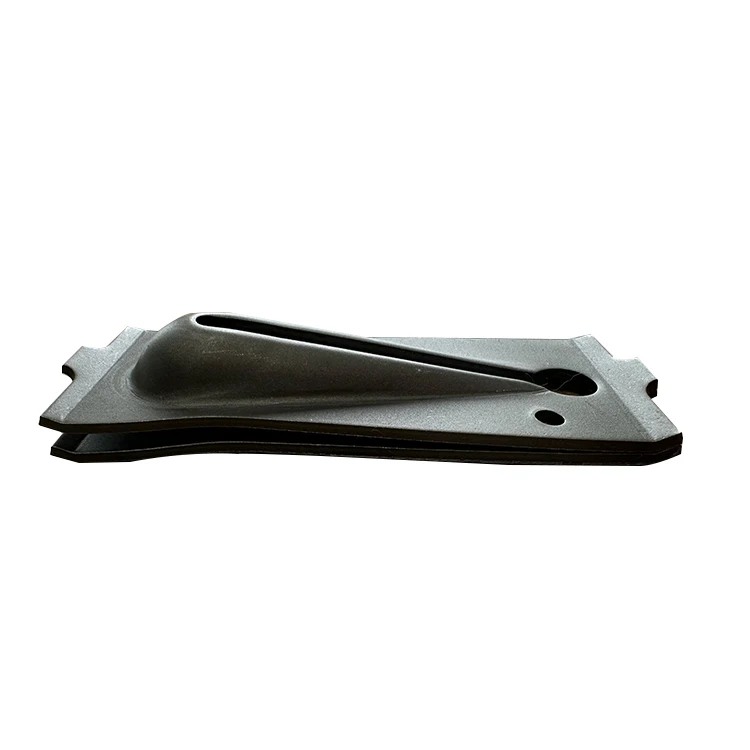

Hvy Duty Snaptie Wedge Plain

Product Overview

Description





Sales Code	PCN	Description	Surface	Ultimate Load LBS	Safety Working Load LBS	Safety Factor	Material	Unit Weight LBS	Unit Weight KGS
A16	116001	Hvy Duty Snaptie Wedge - Plain	Plain	6,500	3,250	2:1	Carbon Steel	0.397	0.180
A16	116002	Hvy Duty Snaptie Wedge - E-galv.	E-galv	6,500	3,250	2:1	Carbon Steel	0.397	0.180
A22	122101	5 5/8" x 3/4" Spreader Cleat	Plain	1,500	750	2:1	Carbon Steel	0.312	0.142
A22	122102	5 5/8" x 1-1/8" Spreader Cleat	Plain	1,500	750	2:1	Carbon Steel	0.338	0.153
A22	122201	6" x 3/4" Spreader Cleat	Plain	1,500	750	2:1	Carbon Steel	0.317	0.144
A22	122202	6" x 1-1/8" Spreader Cleat	Plain	1,500	750	2:1	Carbon Steel	0.343	0.156
A22	122301	7 5/8" x 3/4" Spreader Cleat	Plain	1,500	750	2:1	Carbon Steel	0.381	0.173
A22	122302	7 5/8" x 1-1/8" Spreader Cleat	Plain	1,500	750	2:1	Carbon Steel	0.407	0.185
A22	122401	8" x 3/4" Spreader Cleat	Plain	1,500	750	2:1	Carbon Steel	0.386	0.175
A22	122402	8" x 1-1/8" Spreader Cleat	Plain	1,500	750	2:1	Carbon Steel	0.412	0.187
A22	122501	10" x 3/4" Spreader Cleat	Plain	1,500	750	2:1	Carbon Steel	0.464	0.210
A22	122502	10" x 1-1/8" Spreader Cleat	Plain	1,500	750	2:1	Carbon Steel	0.490	0.222
A22	122601	12" x 3/4" Spreader Cleat	Plain	1,500	750	2:1	Carbon Steel	0.533	0.242
A22	122602	12" x 1-1/8" Spreader Cleat	Plain	1,500	750	2:1	Carbon Steel	0.559	0.253



Sales Code	PCN	Carton Size mm	Skid Size mm	Container Size	PCS per Carton	PCS per Skid	Qty per Container US	Qty per Container CA	KGS per Carton	KGS per Skid	KGS per Container US	KGS per Container CA
A16	116001	345x235x115	1220x1070	20'GP	100	5,000	90,000	100,000	18.00	900	16,200	18,000
A16	116002	345x235x115	1220x1070	20'GP	100	5,000	90,000	100,000	18.00	900	16,200	18,000
A22	122101	tba	1220x750	20'GP	100	5,000	90,000	100,000	14.17	708	12,752	14,168
A22	122102	tba	1220x750	20'GP	100	5,000	100,000	100,000	15.34	767	15,344	15,344
A22	122201	tba	1220x750	20'GP	100	5,000	100,000	100,000	14.38	719	14,380	14,380
A22	122202	tba	1220x750	20'GP	100	5,000	100,000	100,000	15.56	778	15,556	15,556
A22	122301	tba	1220x750	20'GP	100	5,000	100,000	100,000	17.30	865	17,305	17,305
A22	122302	tba	1220x750	20'GP	100	5,000	100,000	100,000	18.48	924	18,481	18,481
A22	122401	tba	1220x750	20'GP	100	5,000	100,000	100,000	17.52	876	17,516	17,516
A22	122402	tba	1220x750	20'GP	100	5,000	100,000	100,000	18.69	935	18,693	18,693
A22	122501	tba	1220x750	20'GP	100	5,000	100,000	100,000	21.03	1,051	21,029	21,029
A22	122502	tba	1220x1070	20'GP	100	5,000	100,000	100,000	22.21	1,110	22,205	22,205
A22	122601	tba	1220x1070	20'GP	100	5,000	100,000	100,000	24.17	1,208	24,165	24,165
A22	122602	tba	1220x1070	20'GP	100	5,000	100,000	100,000	25.34	1,267	25,341	25,341



Advantages



1. We are direct manufacturer, so we can offer competitive price.

2. We have the professinal forign trade team to service you on sales, shipment and after-sale service.

3. We have the professinal producing line to confirm the quick leading time

4. We have strict quality-control progress, such as choose material manufacturers carefully, make the workers well trained, set up strict production standard, QC check each semi-product and finished one and QC supervisor do the spot-check.

5. With smart designers, advanced arts and technologies, OEM is acceptable to us.

6.LOW MOQ: small quantity orders are accepted.
