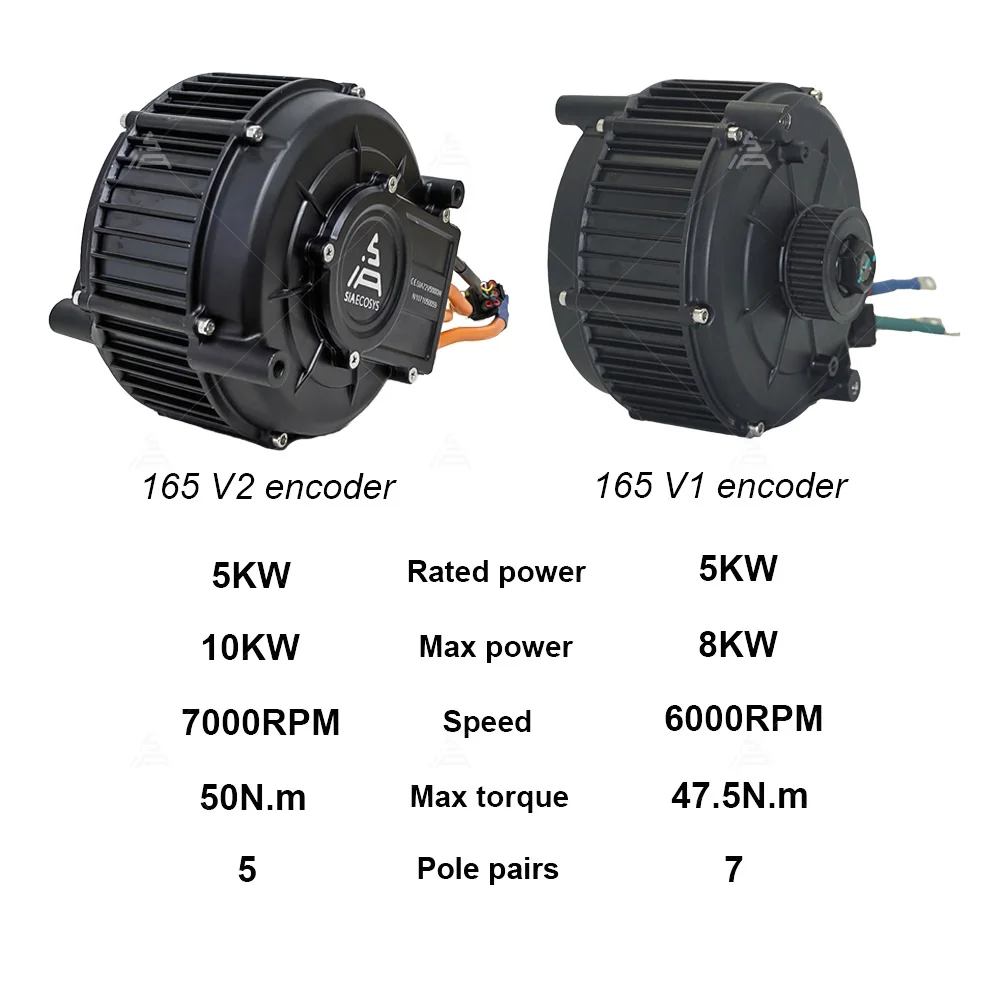

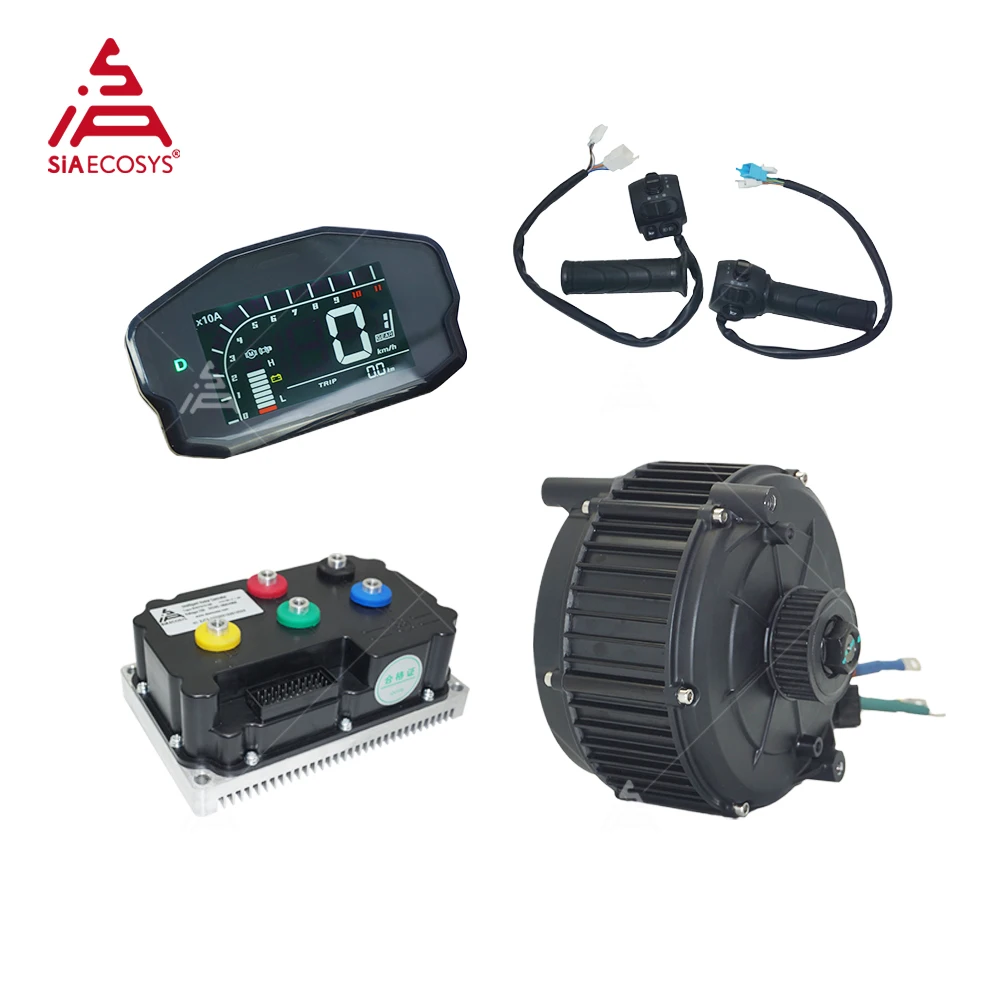

SiAECOSYS QS165 V2 5000W 35H Encoder PMSM Mid Drive Motor Kits with ND72490B Encoder Controller

Product Overview

Description

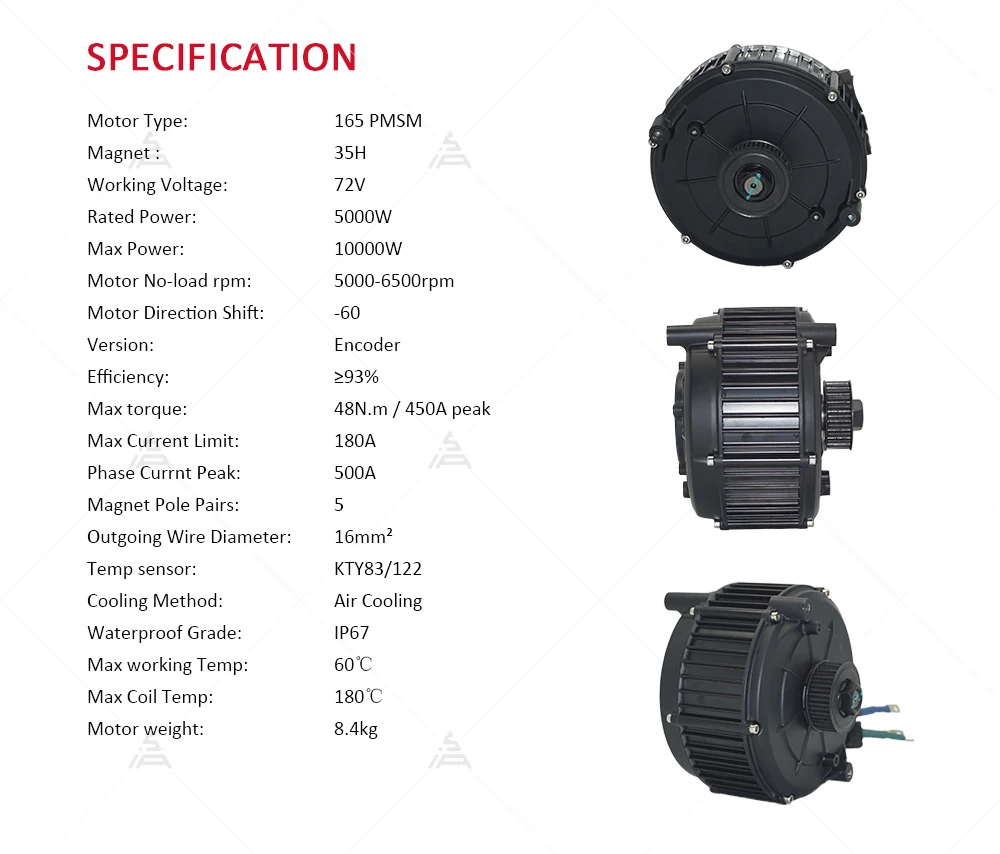

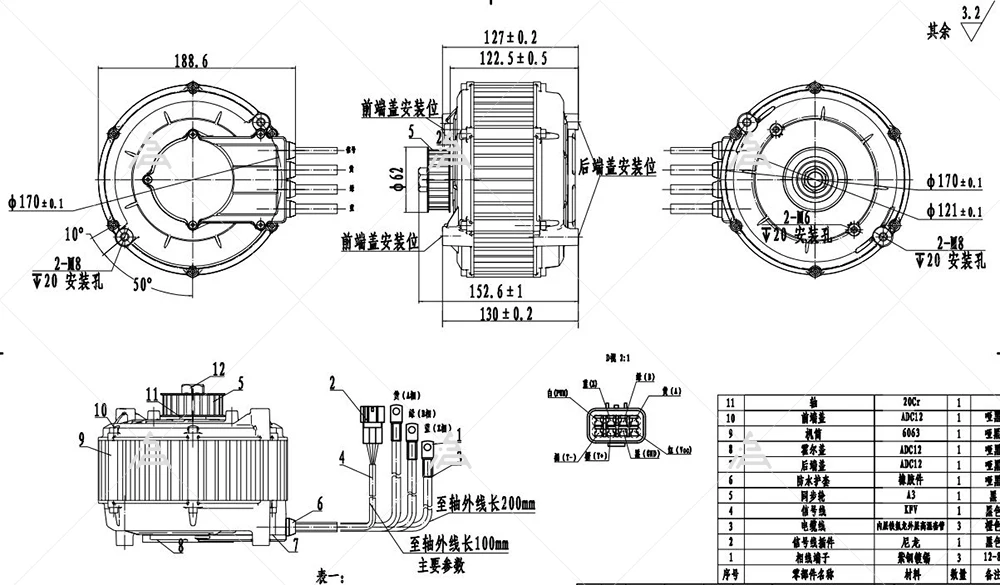

SiAECOSYS QSMOTOR QS165 V2 5000W 72V 35H Encoder PMSM Mid Drive Motor Kits with ND72490B 270A 490A Encoder Controller

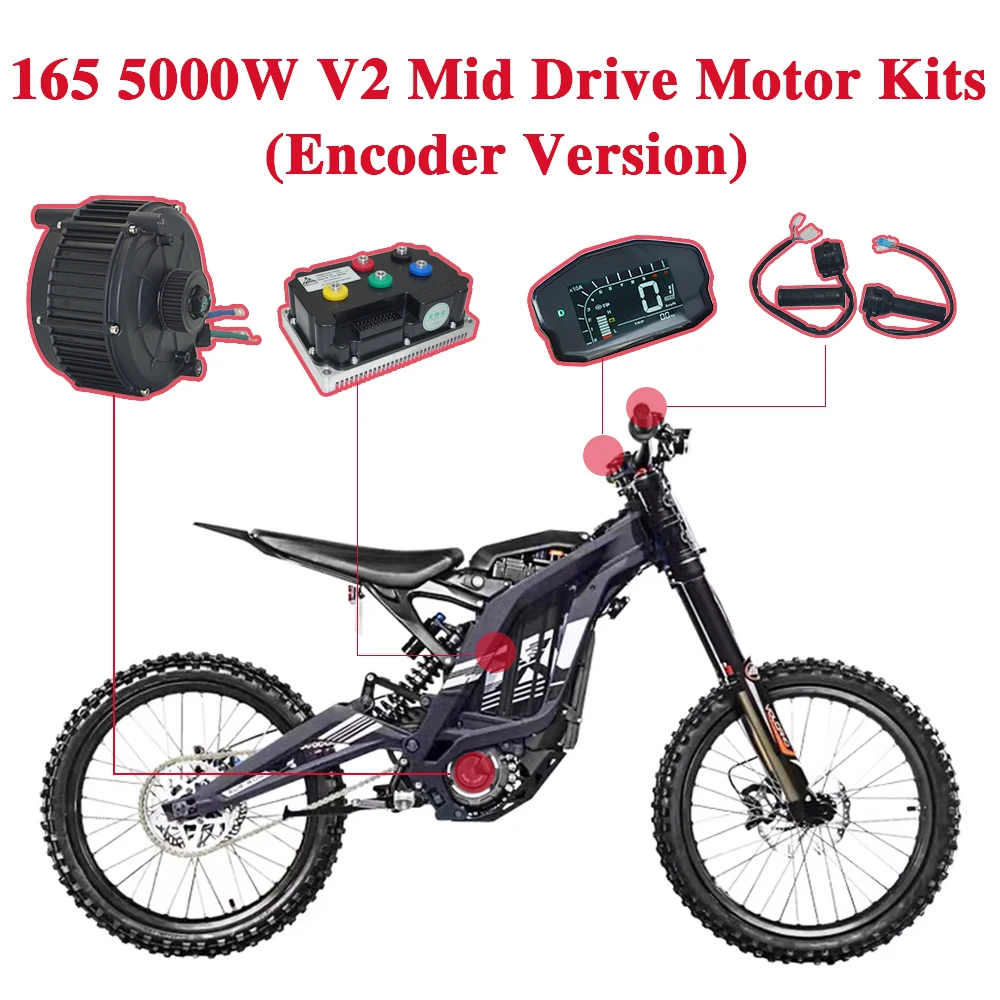

For 165 5000W motor powertrain kits, it could be used for electric motorcycle, which could be 72V 90KPH.

e.g. Similar Light bee

E-motorcycle weight, approx 80kg+1*70kg

Speed: peak 90km/h

Gear ratio: 1:4.77

Climbing slope: 20°@10kph@150kg@60s

Tire: 100/70-19

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

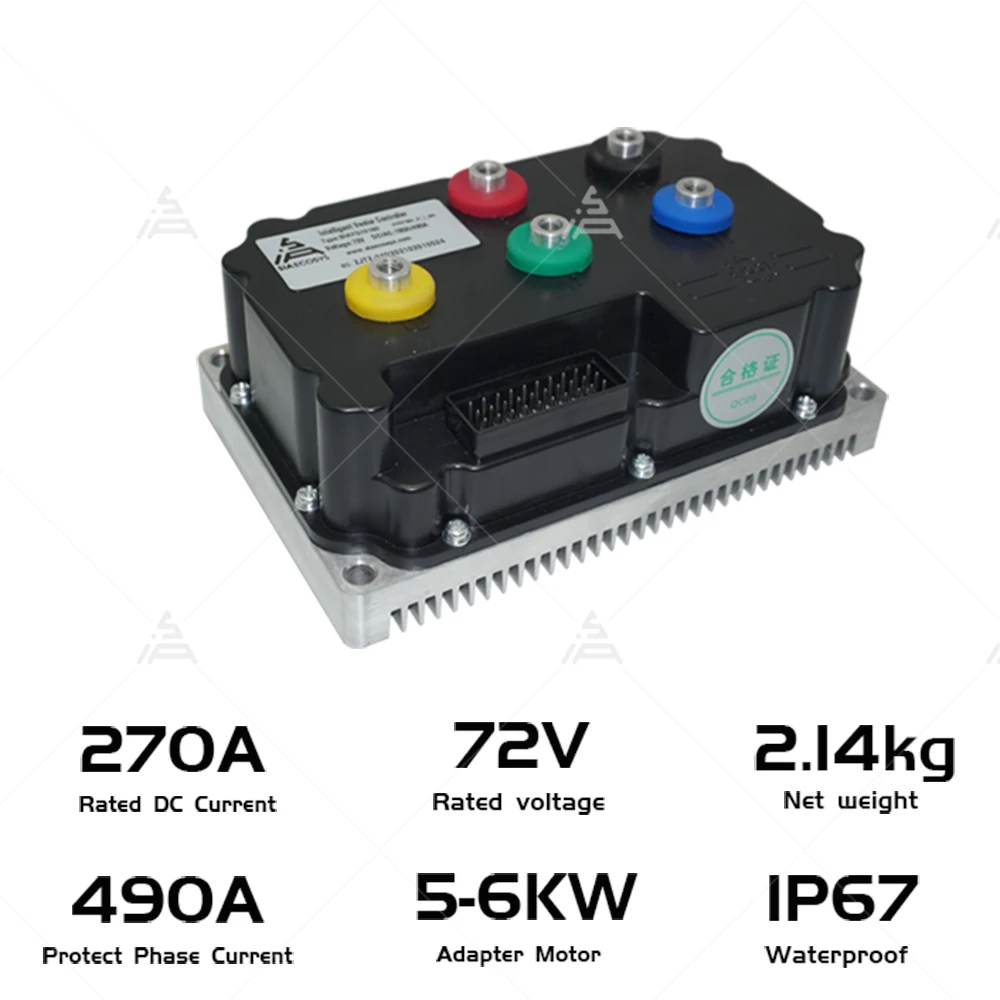

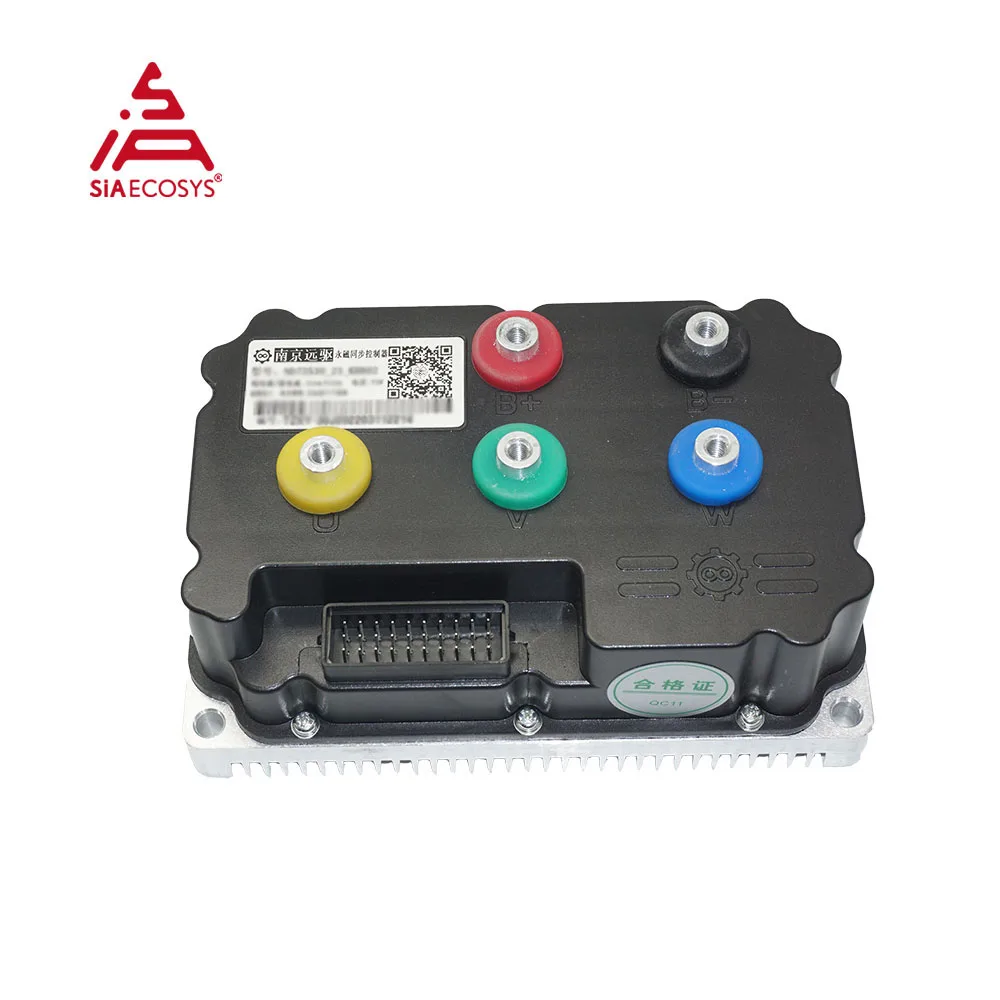

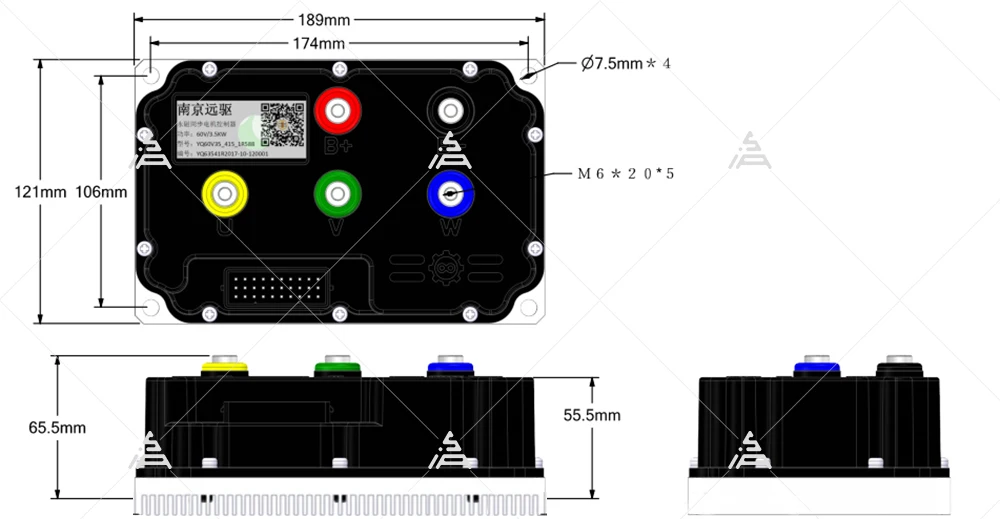

ND72490B Encoder Controller

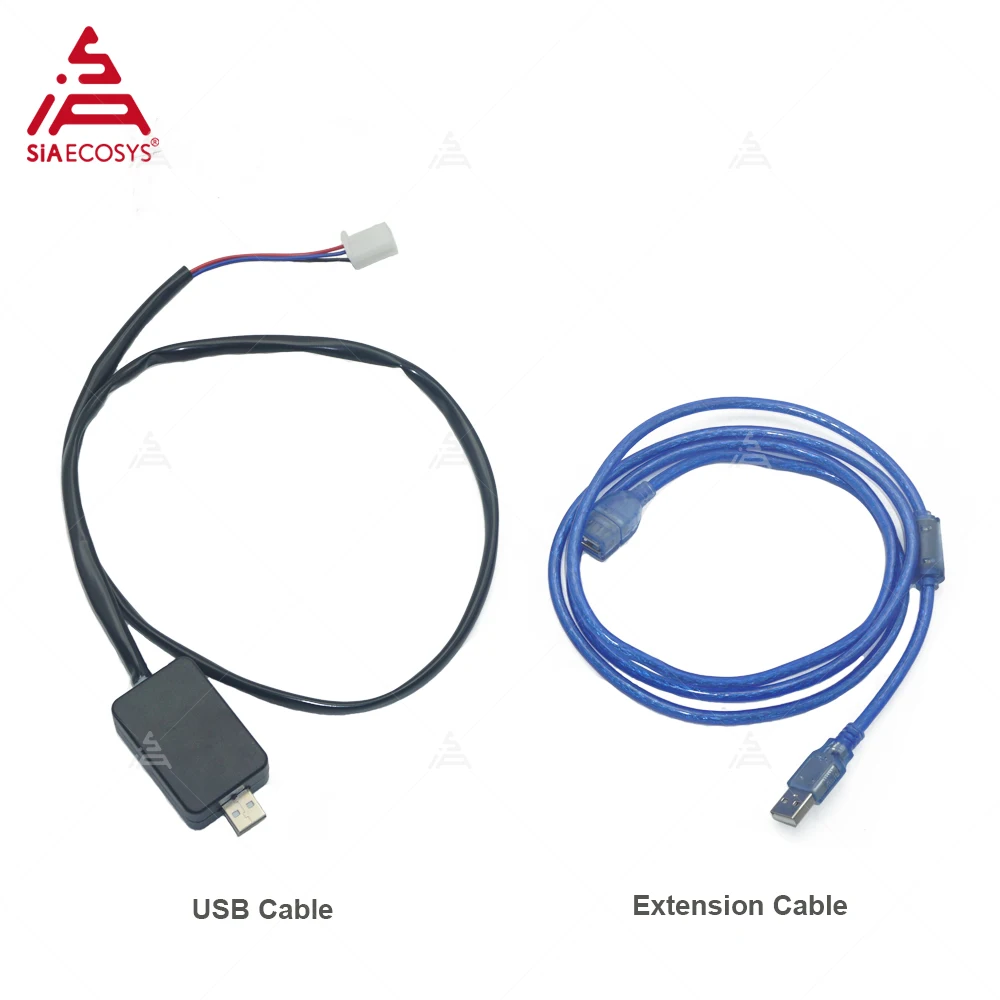

USB cable

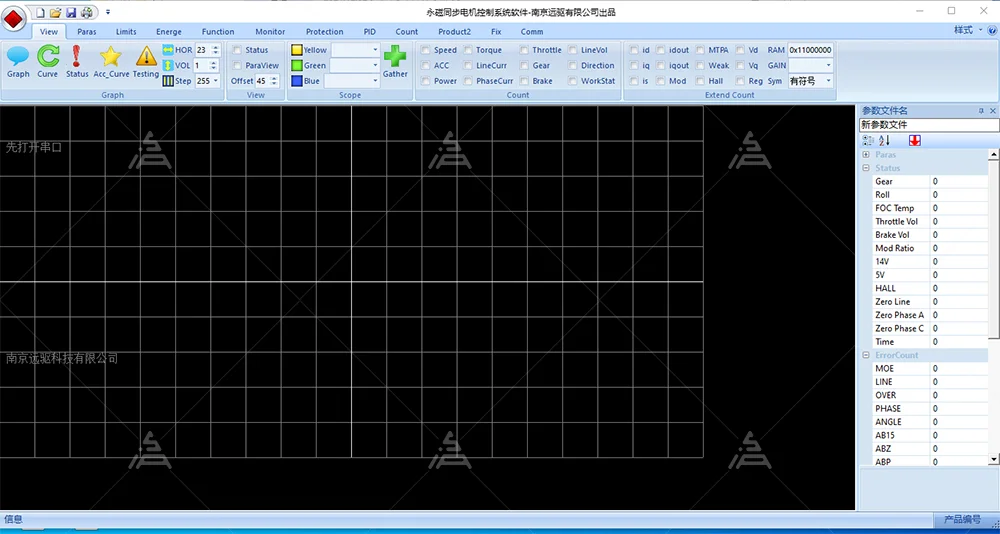

Controller Software Interface





DKD Speedometer



Key Features

Both CAN and LIN communication are supported



Product Description

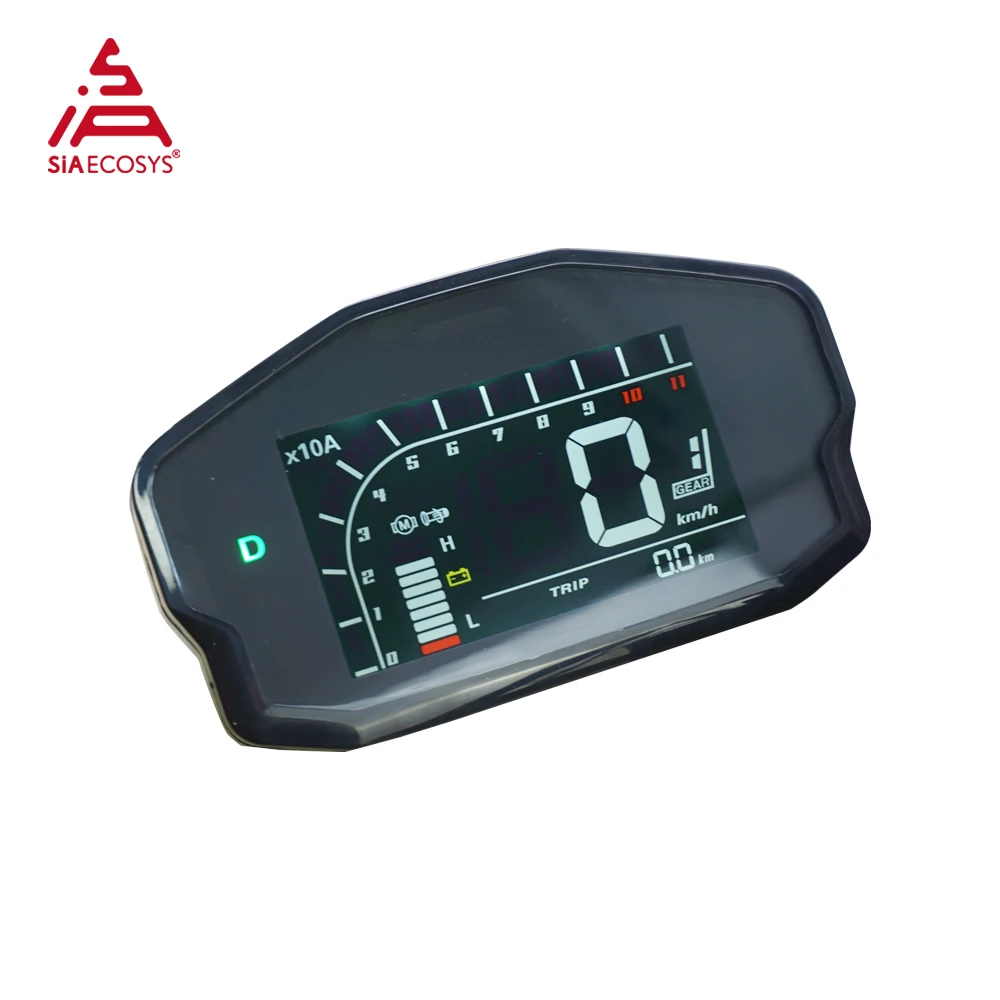

DKD LCD speedometer, Adjustable

It display D N R, P, 1 2 3 S gear, and battery current X10.

For the speed, we recommend to set it as following as default (to match with QS138 3kw 12inch assembly).

·Wheel tire size: 130/70-12

·Pole Pairs: 5

·Gear Ratio: 1: 4.77

·Voltage: 72V (20s Lithium battery)







P.s.: If the working battery doesn't have can-bus communication, then the can-bus speedometer will shows lack of electricity always.

So, we suggest to do the speedometer as Line communication version if client can't get can-bus battery.

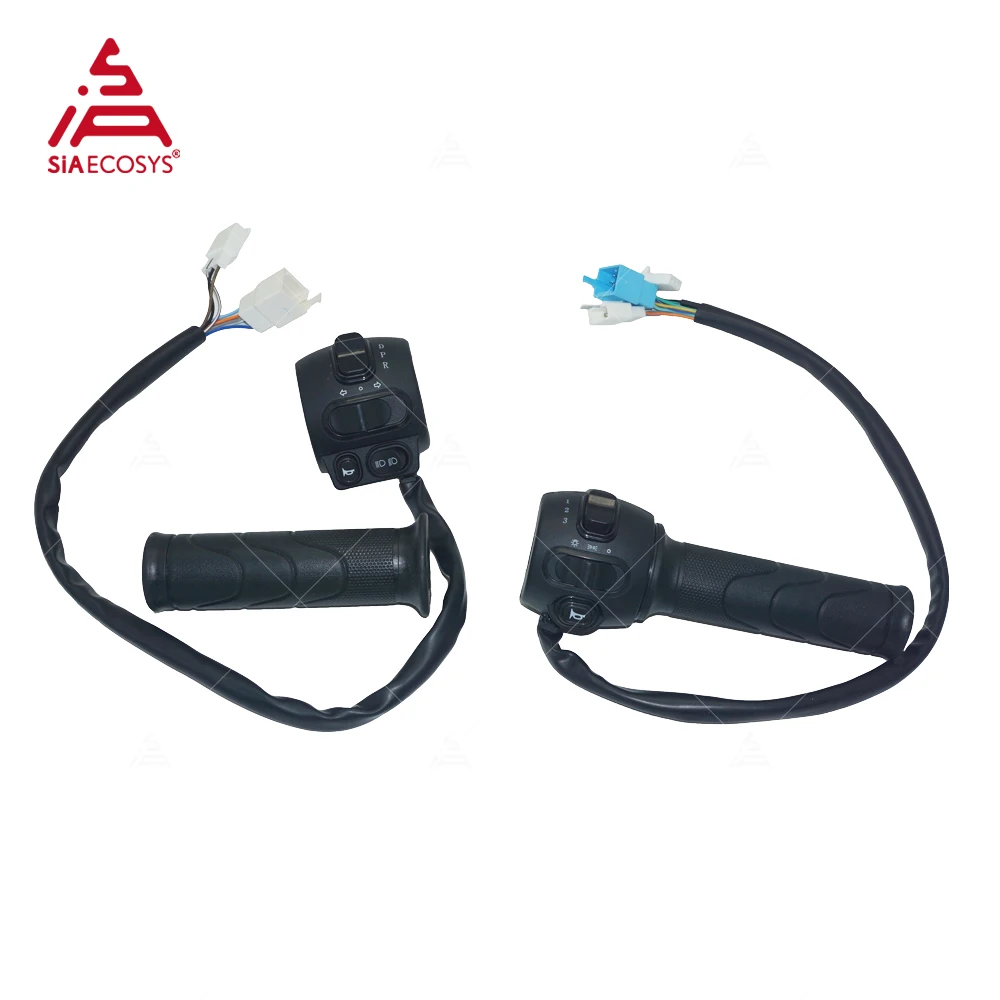

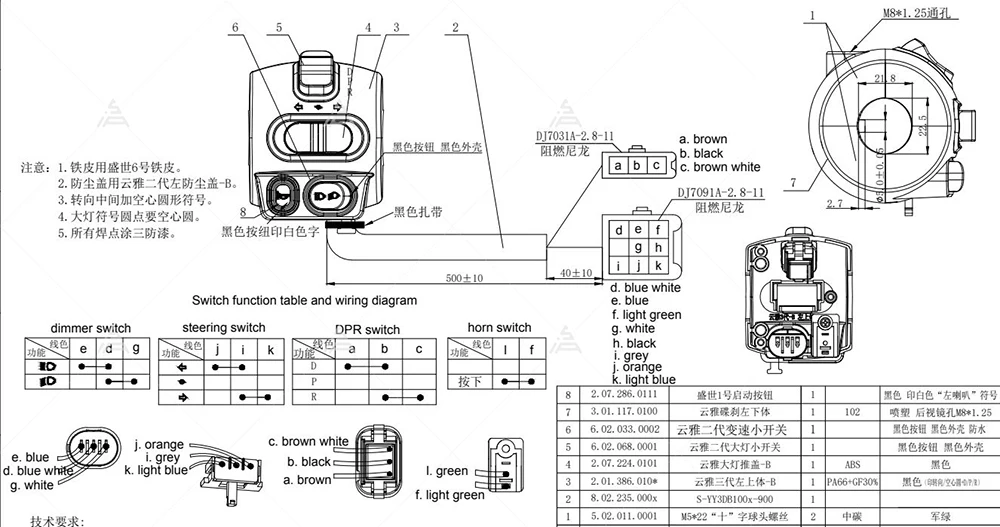

YY V3 Throttle

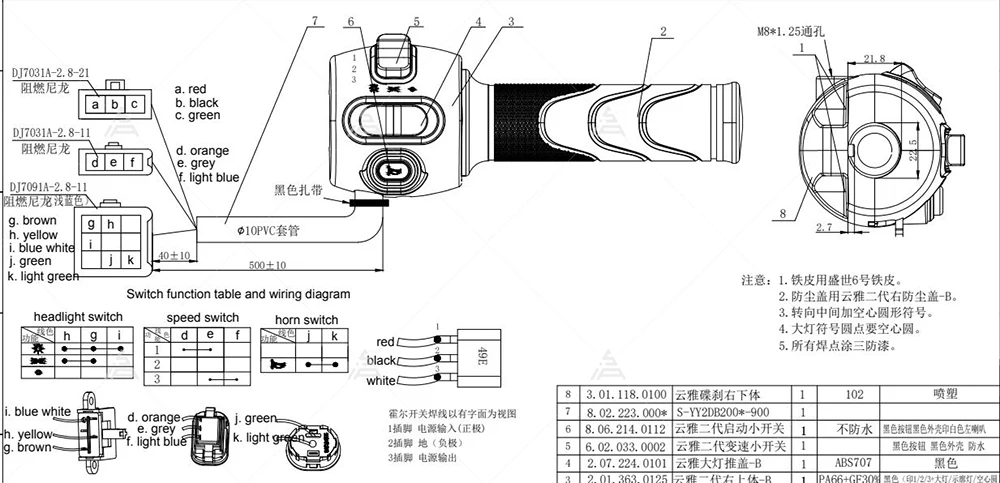

Harness definition

Right



Left
