Customized speed synchronous motors single phase ac electric motor TYC50 49tyj
- Category: >>>
- Supplier: Wuhan Zhenguan Industry And Trade Co. Ltd.Wuhan Ltd.
Share on (1600934837286):
Product Overview
Description

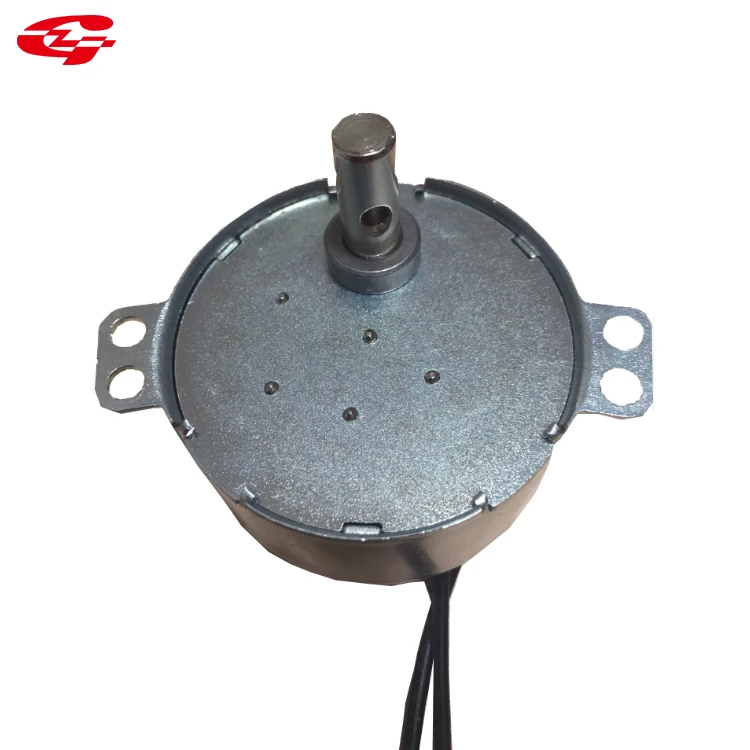

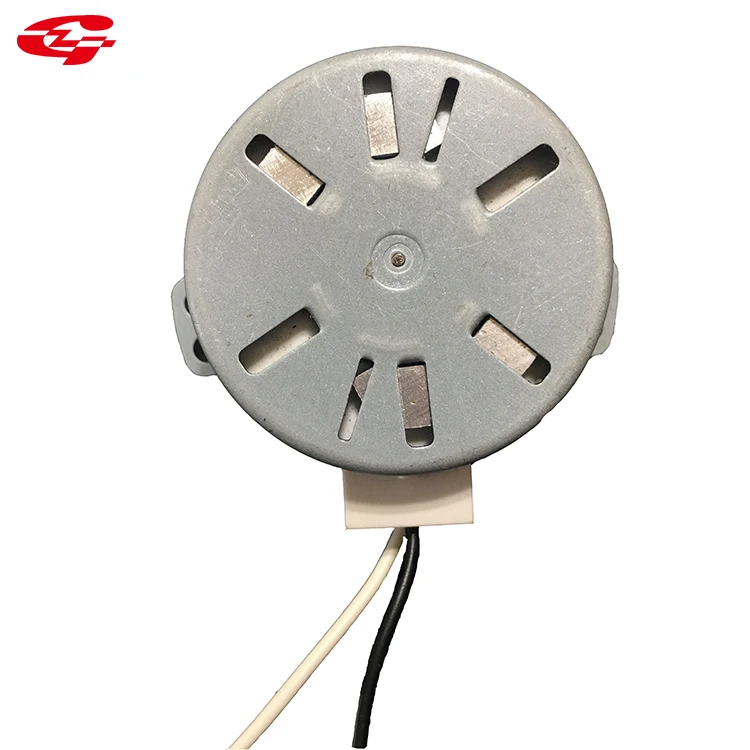

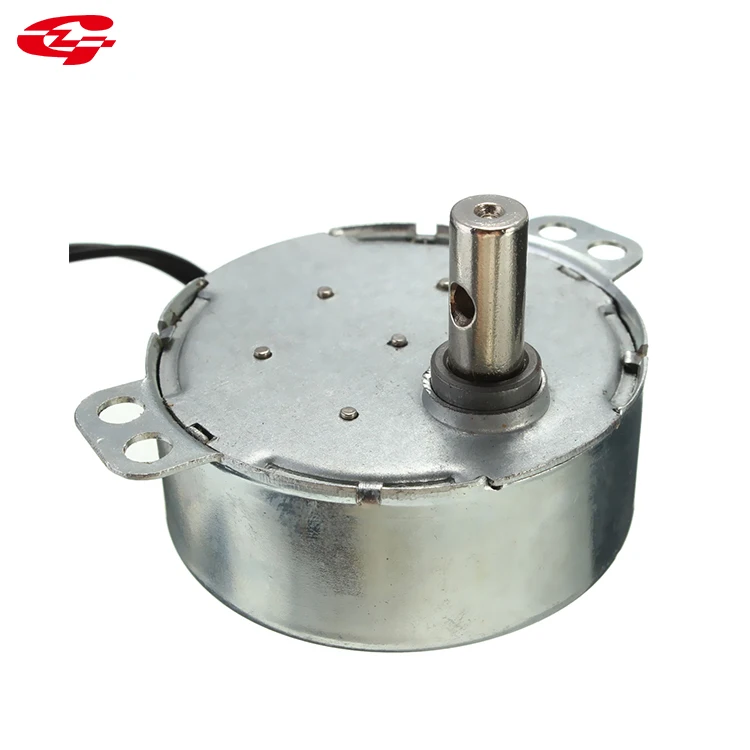

High speed synchronous motors single phase ac electric motor
Product Details
Used in: Air Condition, Fan, Hearter, Dishwasher, Fireplace, Microwave, Oven, Water Cooling, Display Turntable, Toys, Lamps , Christmas trees, it can also be used as the power of other constant speed drive devices.
This model is our popular motor, we sales to more than 10 countries.Products have been highly recognized by customers.
| Model | Rated Voltage | Speed (50hz) | Speed (60hz) | Torgue | Power Consumption | Insulation Class | Rotation Direction | Operating Temperature | Dielectric Strength |
| RPM | RPM | kgm.cm | W | MΩ | ℃ | VAC/1MIN | |||
| 49TYD | 220V-240V | 2 | 2.4 | 8 | ≤4 | ≥100 | CW/CCW | -5--40 | 1500 |
| 2.5 | 3 | 6 | |||||||
| 3 | 3.6 | 5 | |||||||
| 110V-120V | 4 | 4.8 | 4 | ||||||
| 5 | 6 | 3 | |||||||
| 21V-24V | 6 | 7.2 | 2 | ≥10 | 500 | ||||
| 8 | 9.6 | 1.8 | |||||||
| 10 | 12 | 1.2 | |||||||
| 15 | 18 | 1.1 | |||||||
| 16 | 19.2 | 1 | |||||||
| 12V | 20 | 24 | 1 | ||||||
| 33 | 39 | 0.7 | |||||||
| 50 | 60 | 0.3 |
*We can produce it according your requests.
Motor can be customized according to customers' requirement.

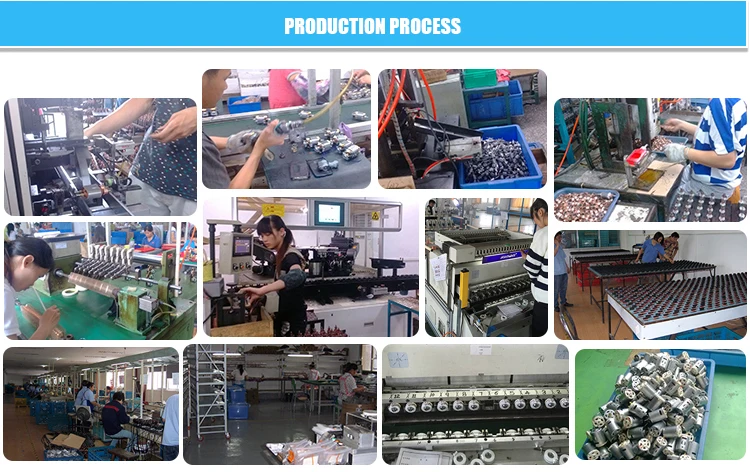

Production Flow
