Digital Image Long Range Data Link For VTOL UAV with SDI interface Industrial Drone 20km NLOS COFDM HD Video Transmitter
- Category: >>>
- Supplier: Shenzhen Xingkai Technology Co. Ltd.
Share on (1600934877207):
Product Overview
Description
Product Description
Product Name | XK-142THS |
Function | UAV Video Transmitter |
Package | Packed in a professional shipping box |
1. Product performance description

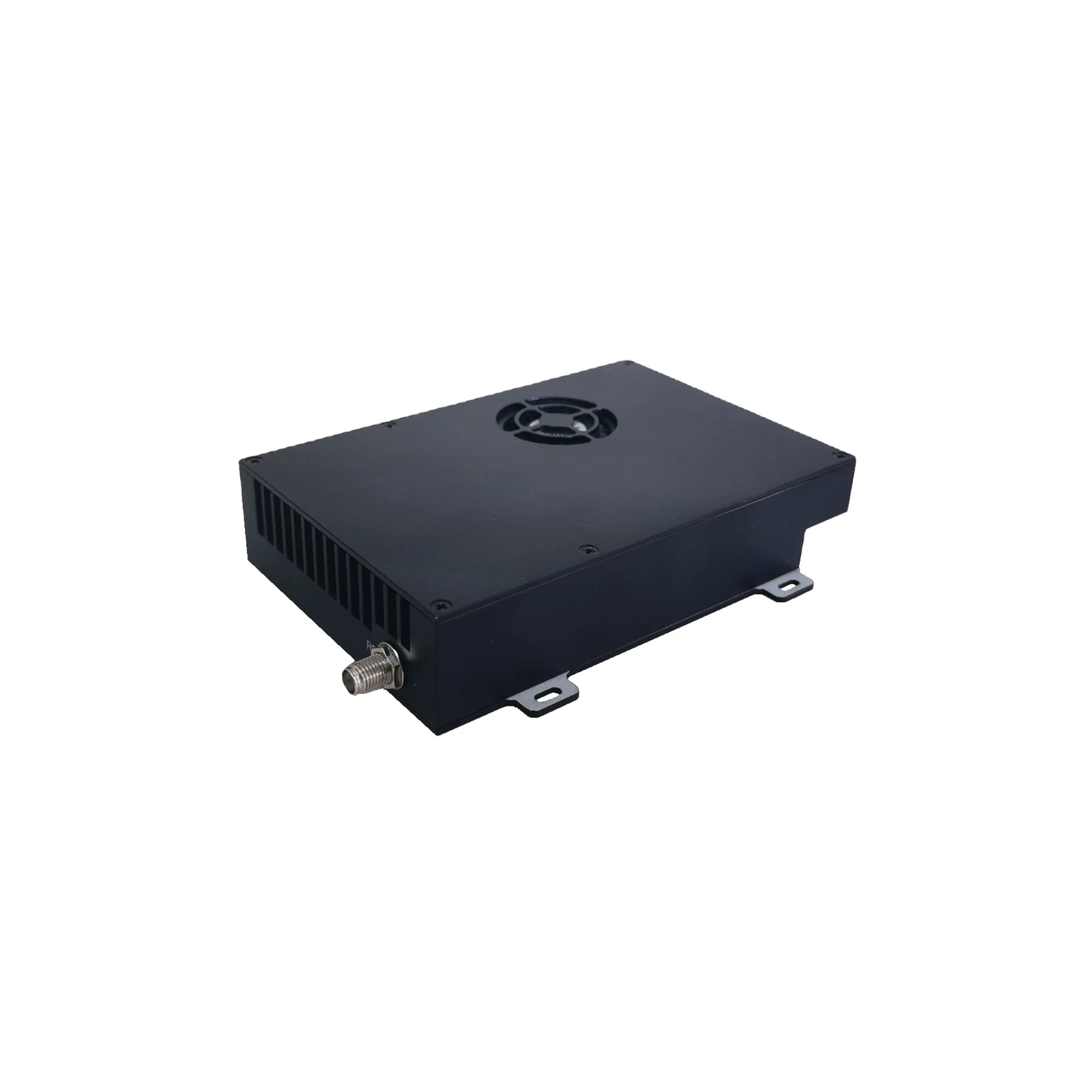

1W XK-F142THS transmitter is a micro HD wireless image transmission product with low latency. Based on COFDM modulation, H. 264
compression, and AES encryption, it is capable of stable, reliable, and real-time wireless HD image transmission in the
environment of high-speed movement and urban building occlusion.
2. Features
* Non-line-of-sight transmission, long transmission distance, and strong anti – interference capability.
* HD image transmission, the highest support 1080p60.
* Low transmission delay.
* AES encryption for transmission security and reliability.
* Good RF index, high signal-to-noise ratio, and small stray.
* Transmission frequency and bandwidth are adjustable.
* Wide input voltage range, support DC8V~DC25V voltage input.
* Small size.
* Low power consumption.
* HD image transmission, the highest support 1080p60.
* Low transmission delay.
* AES encryption for transmission security and reliability.
* Good RF index, high signal-to-noise ratio, and small stray.
* Transmission frequency and bandwidth are adjustable.
* Wide input voltage range, support DC8V~DC25V voltage input.
* Small size.
* Low power consumption.
Item | Parameter | Specification | |
Power supply | Input voltage | DC8V~DC25V, standard input DC12V | |
Overall power consumption | ≤14W @ 30dBm(1W) | ||
Digital baseband | Modulation | COFDM | |
Constellation | QPSK,16QAM,64QAM | ||
Carrier mode | 2K | ||
FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
GUI | 1/32, 1/16, 1/8, 1/4 | ||
RF | Tx frequency | 1421-1453 MHz RBW 40MHz @ 30dBm(1W) | |
RF bandwidth | 2/3/4 /6 /7 /8MHz | ||
Output power | 30dBm(1W) | ||
Adjustable attenuator | 0~31.5dB | ||
A/V | Video source | HDMI,SDI | |
Resolution | 1080p60,1080p50,1080p30,1080p25,1080p24, 1080i60,1080i50,720p60,720p50,720p30,720p25,576p50,480p60,576i50,480i60. | ||
Video bit rate | 0.5~18.8Mbps | ||
Audio bit rate | 32,48,56,64,80,96,112,128,160,192,224,256,320,384Kbps | ||
Video encode | H.264/AVC | ||
Audio encode | MPEG-1 Audio Layer 2 | ||
Serial port | Configure port | Standard RS232 level, baud rate 9600 | |
Data port | Standard RS232 level, baud rate 1200~115200 | ||
Transmission encryption | AES128,AES256 | ||
Transmission delay (end-to-end) | About 300ms | ||
Transmission distance | About 10~30 km @ 30dBm(1W) | ||
Temperature range | Working temperature | -30℃~55℃ | |
Storage temperature | -40℃~75℃ | ||
Physical specification | Transmitter size | 117*78*23mm | |
Transmitter weight | ≤241g | ||
Controller size | ≤72*70*13mm | ||
4.Related products
5.Packing&Shipping:
Port: Yantian, Shekou or Hong Kong
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery ot end-to-end communications&advanced networkings. The company attaches great importance to the construction of the R&D team, with a team who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, military radio, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of military C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.
