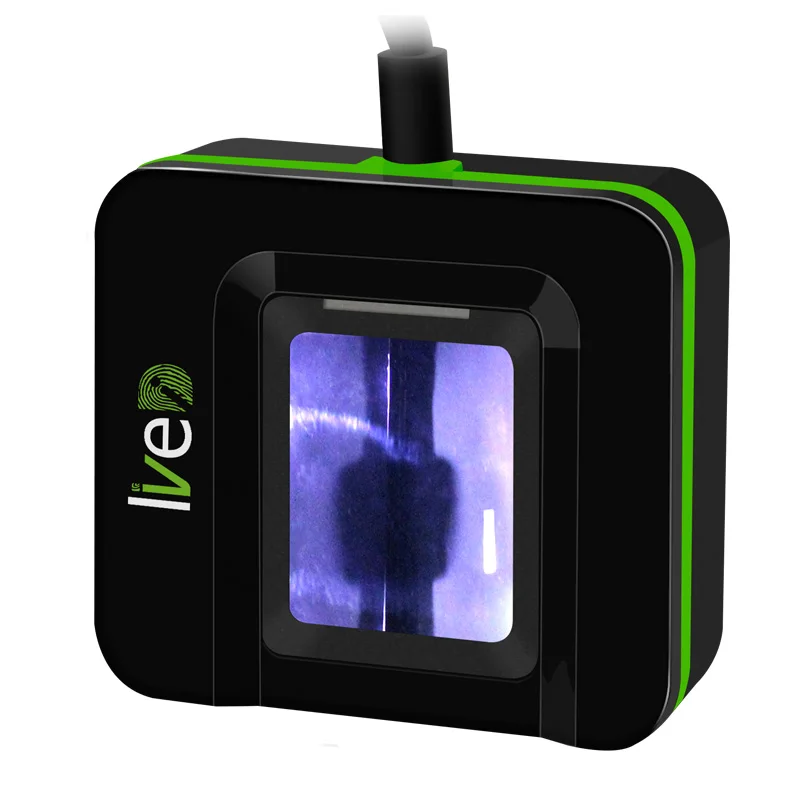

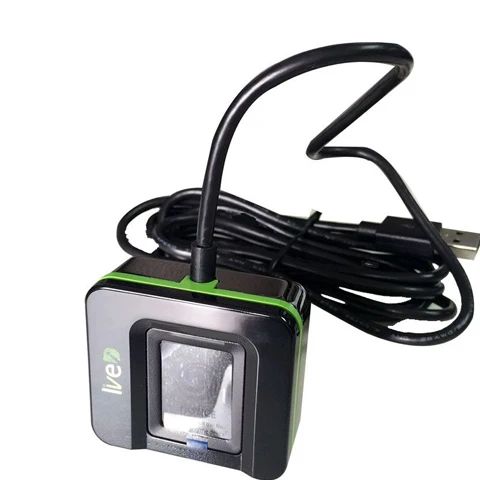

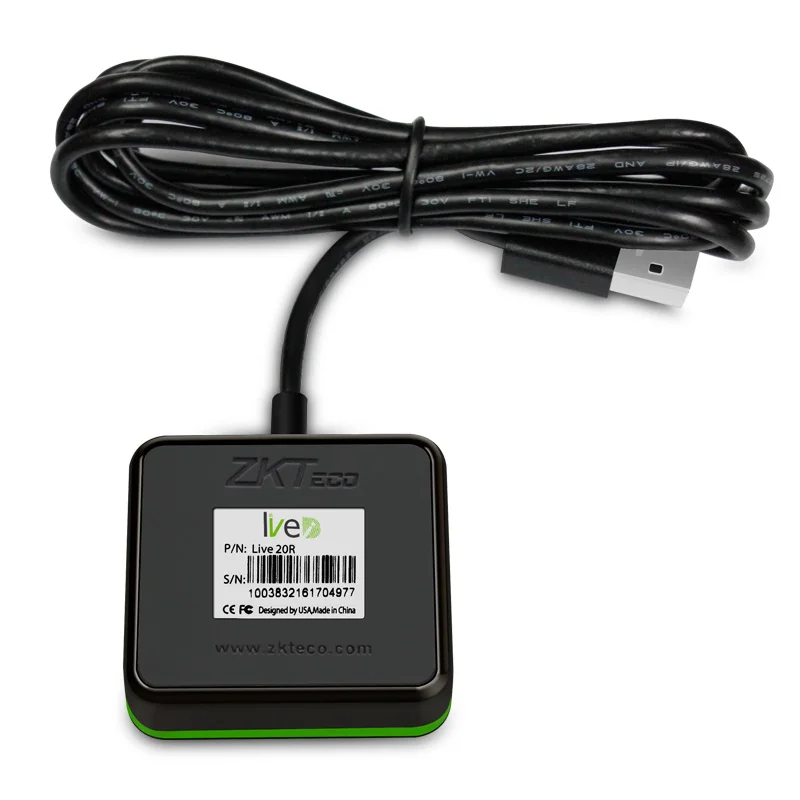

Biometric Fingerprint Scanner Live20R USB Smart Reader ZK Windows Android Linux Fingerprint Sensor
- Category: >>>
- Supplier: Shenzhen Yistar Technology Co. Ltd.
Share on (1600934936485):
Product Overview
Description
Product Description

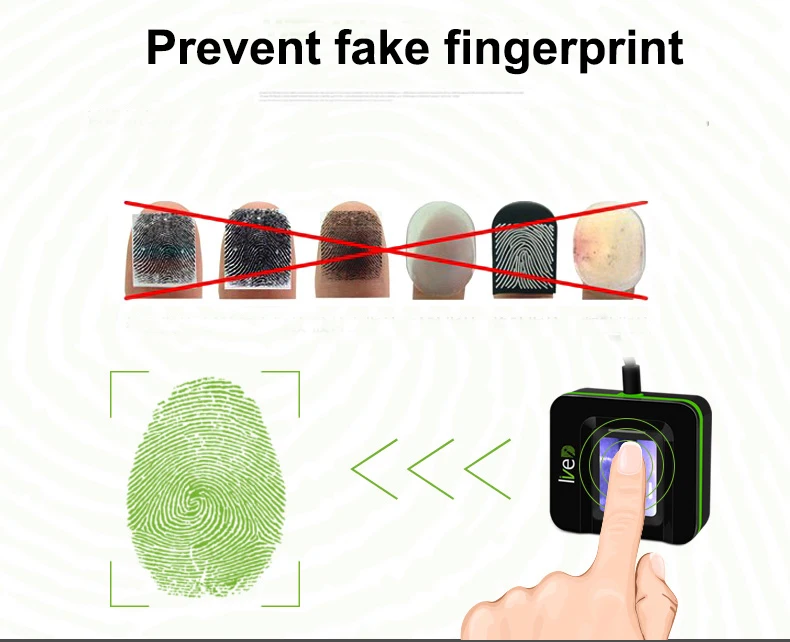

SLK20R/LIVE20R is a leading fingerprint scanner which adopts the advanced optical design. It has a superior ability to do live fingerprint detection and capture high-quality fingerprint images by 2 Megapixel camera. It can be the most comfortable and affordable desktop enrollment and identification device.
Specification
Material | Optical |
CPU | 280MHz DSP |
Flash | 32 MB |
SoC | RTOS[image out only] |
Image Quality | 2 million pixels CMOS |
Encrypted Fingerprint Data | YES |
Sunlight Operation | Yes, Dark field and Automatic Gain / Exposure |
Water Splash | YES |

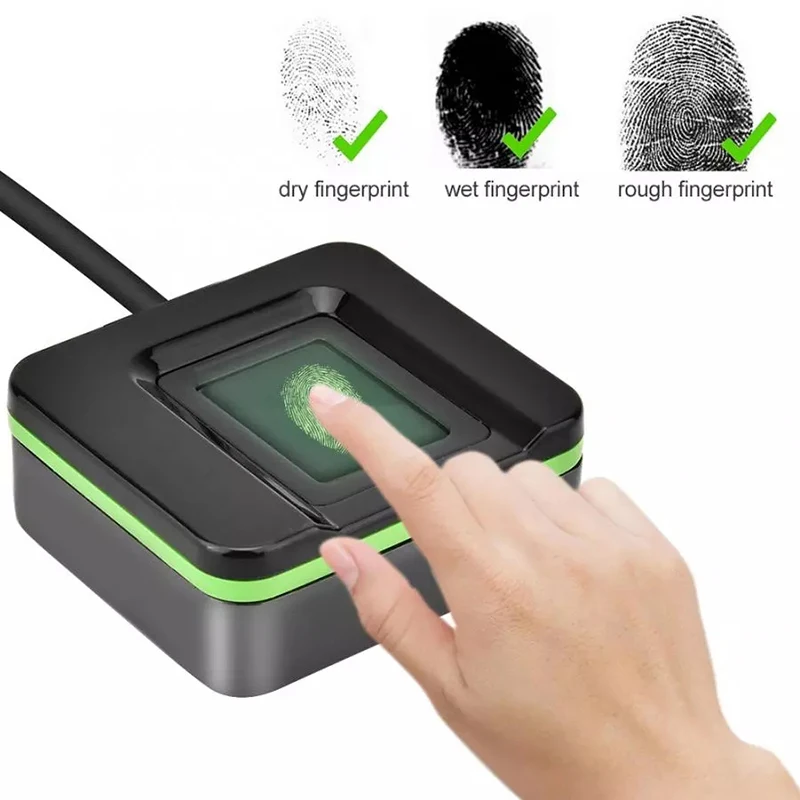

Dry, Wet, or Rough Fingerprints | Work well |
Power Consumption | 5V:200mA Scanning;5V:60mA idle (waiting for finger) |
Live Fingerprint Detection | YES |
LED | White |
Product Certifications | FCC, CE, RoHS, PIV |
Power Voltage | 5V (USB) |
Power Current | 200mA |
Communication | USB 2.0 / USB1.1 |
Interface Socket | USB Type A |
Image Resolution | 500~1000 dpi |
Effective Collecting Area | 15.24 * 20.32 mm (FAP20) |
Collecting Area | 16.5 * 23 mm |
Image Size | 300 * 400 pixel (FAP20 ) |

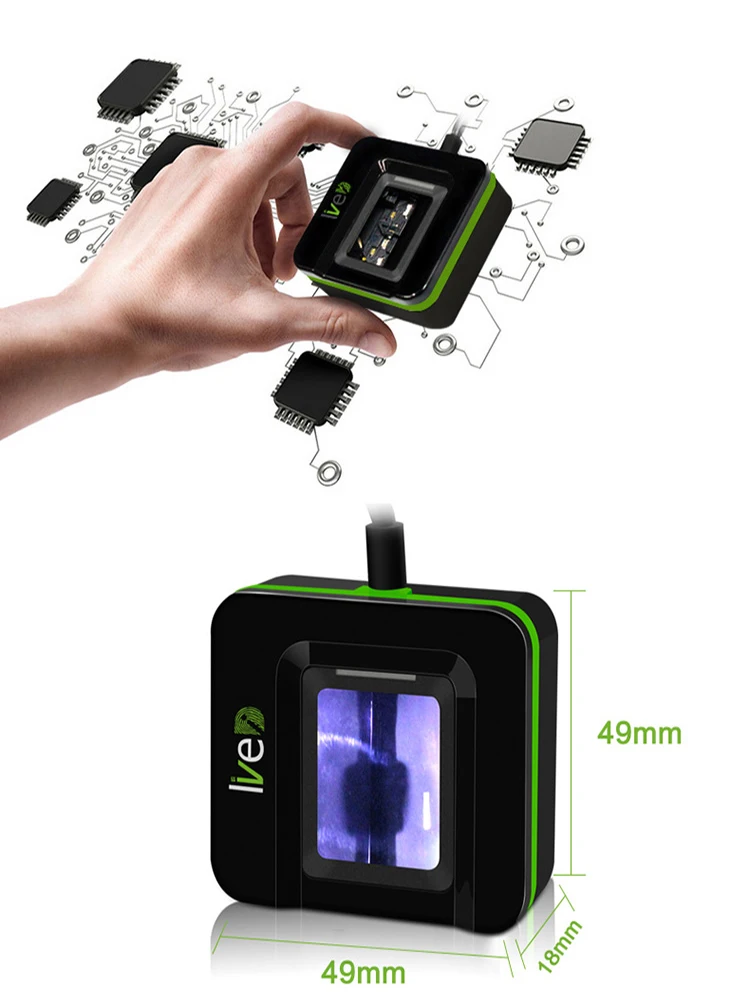

Dimension | 49 * 44 * 20.1mm (L*W*H) |
Image Format | RAW, BMP, JPG |
Template | Finger V10.0 ; ISO19794-2 ; ANSI-378 |
Template Size | 1- 4KB (Finger V10.0);1568 B (ISO 19794-2) |
Gray Level | 256 |
Weight | 0.12kg |
Operating Environment | -20 °C ~ +50 °C; 90% r.h. |

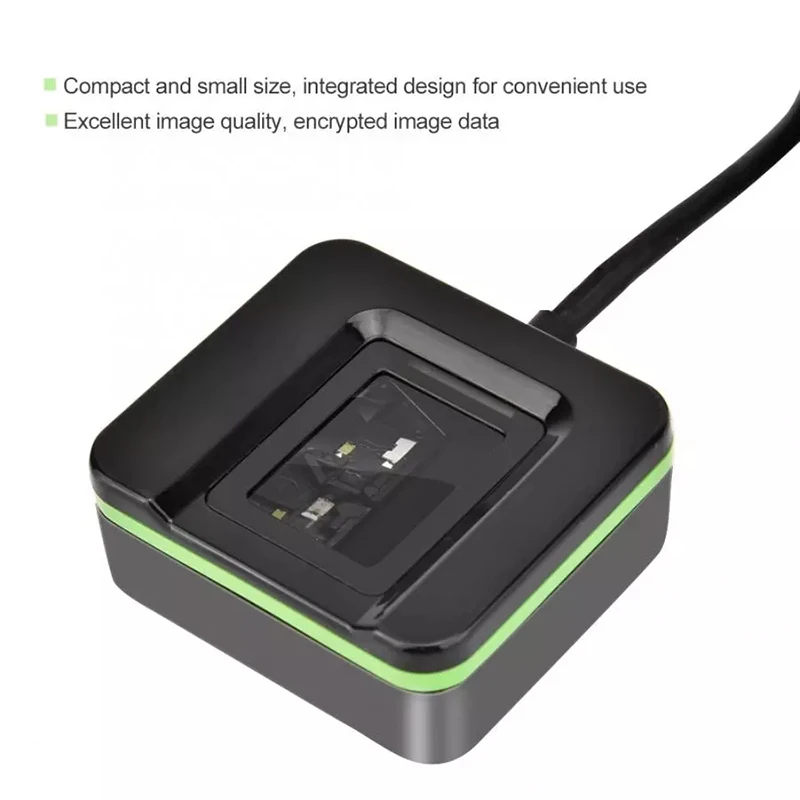

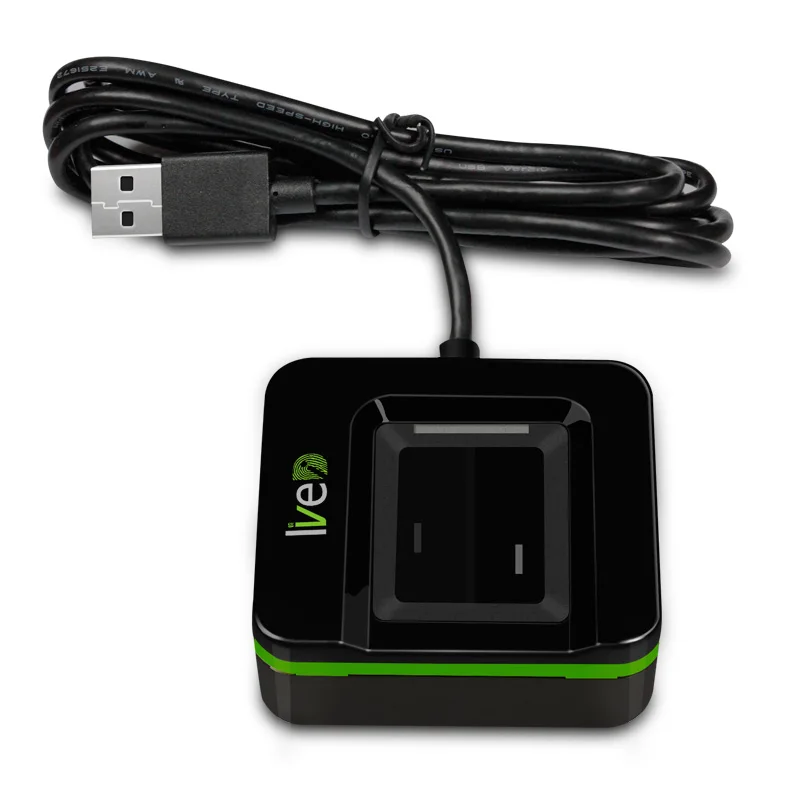

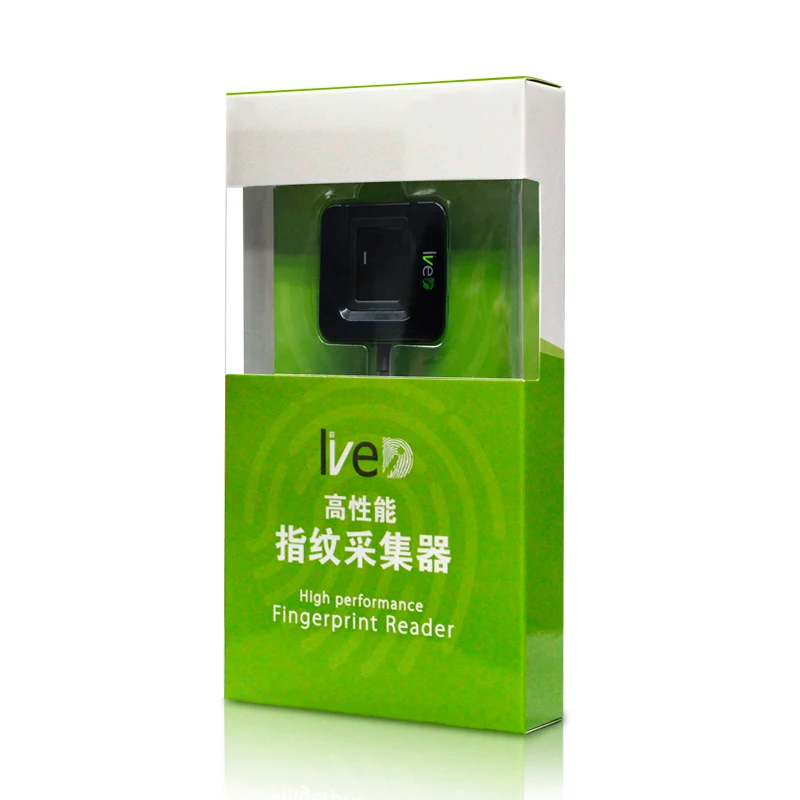

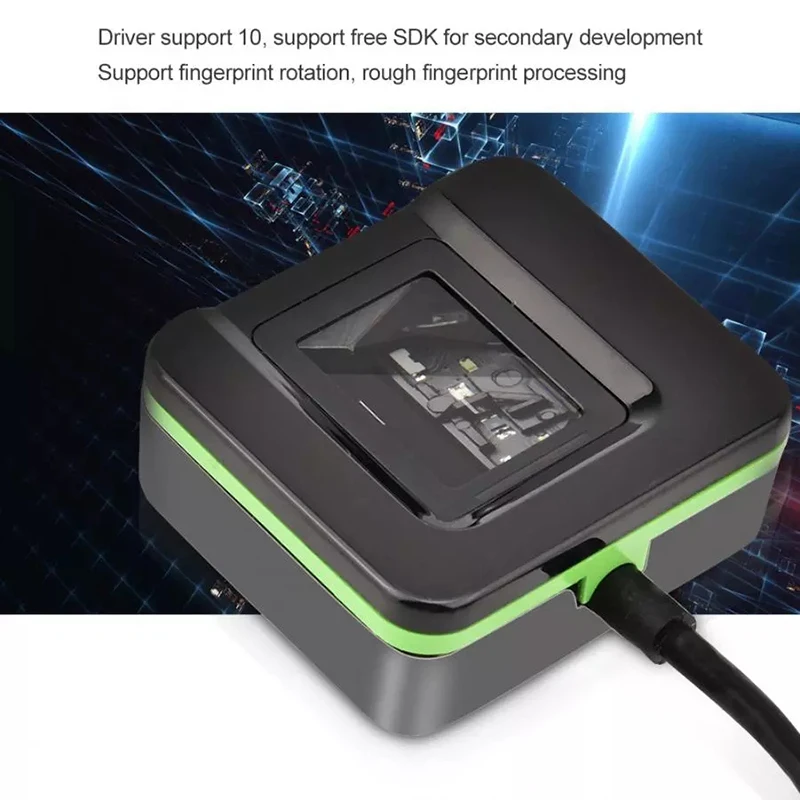

Detailed Images
After Sales Service
Warranty: 2 years.
Warranty way: Replace directly instead of fix.
Once u have any problems with the sellers, pls kindly feedback to the sales director.
Company Introduction
YSTech is one of the most professional electric locks manufacturers in Asia which has zhongshan factory and Enping factory that covering an area of 10,000 square meters. We have strong R&D skills, production capacities and distribution channels. Our products are Magnetic locks, Electric striker, Drop bolt, RFID cards, Access control reader, Fingerprint door lock, Exit buttons, Door holder, remote control and other access control accessories, which totally over 200 kinds of products.
YSTech boasts a talented and experienced team of technicians with top-notch skills in design and development. Equipped with the digitalized automatic equipments, we are dedicated to ensure the consistency and quality of each product. Our high production controls and standards to make sure every products are 100% pass. The products have 3 years warranty.
The newly-designed series of YS products are esthetic, safe and durable. In compliance with the international standard, we have been exported to more than 100 countries successfully, including Asian, European, African, South American and the Middle East countries. We are one of most important access control coorperative partners in the world. We also provides OEM&ODM services which are extensively applied in access control, communications among buildings and emergency exits, etc. Our reliable products have gained an extensive recognition from customers domestically and abroad.Currently, we have obtained intellectual property rights for our core products. They have been certified by the CE 、MA、ROSH、ISO9001、UL and PCT.
After many years development, Our product are widely used in the major airports, customs, metro stations, Olympic Games, Telecommunications, Government, Banck, Factories, Campus, Hotels, Schools, Offices, Intelligent Community And so on.
YSTech boasts a talented and experienced team of technicians with top-notch skills in design and development. Equipped with the digitalized automatic equipments, we are dedicated to ensure the consistency and quality of each product. Our high production controls and standards to make sure every products are 100% pass. The products have 3 years warranty.
The newly-designed series of YS products are esthetic, safe and durable. In compliance with the international standard, we have been exported to more than 100 countries successfully, including Asian, European, African, South American and the Middle East countries. We are one of most important access control coorperative partners in the world. We also provides OEM&ODM services which are extensively applied in access control, communications among buildings and emergency exits, etc. Our reliable products have gained an extensive recognition from customers domestically and abroad.Currently, we have obtained intellectual property rights for our core products. They have been certified by the CE 、MA、ROSH、ISO9001、UL and PCT.
After many years development, Our product are widely used in the major airports, customs, metro stations, Olympic Games, Telecommunications, Government, Banck, Factories, Campus, Hotels, Schools, Offices, Intelligent Community And so on.
Production Flow Chart
Raw materials into the factory → qualified inspection → production of silicon steel sheet → annealing treatment → winding treatment → injection molding → grinder treatment → electroplating treatment → lock body detection → circuit board detection → aging test → tension and electrical properties detection → packaging and storage
Certifications
FAQ
Q1, Do you provide OEM & ODM?
A: Yes, We do support, we have 10 years OEM & ODM experience which can satify all customers requirement.
Q2, How about Warranty?
A: We provide 1 year Warranty for all electric locks, the locks will be replaced instead of fixed.
Q3, How about the payment terms?
A: We accept T/T, Western union, Money Gram, Paypal; Trade Assurance ect..
Bulk Standard Order: 30% deposit first, 70% balance before shipment.
Bulk OEM & ODM Order: 50% deposit first, 50% balance before shipment.
Q4, How we can trust ur company？
A: Yistar is a 10 years company in security field which professional in magnetic lock, electric bolt and RFID cards, and alibaba trade assurance will protect buyers.
Q5, What is the deliver time?
A: It depends on customers order quantity , season and requirement details, the following time is for u to reference.
Standard device: Sample: < 3 days.
100pcs < 7 days.
1000pcs< 15 days.
5000pcs< 25 days.
OEM device: Sample: < 5 days.
100pcs < 10 days.
1000pcs< 20 days.
5000pcs< 30 days.
100pcs < 10 days.
1000pcs< 20 days.
5000pcs< 30 days.
Q6, What kind of certificate do u have?
A: CE, FCC, ROHS ect.
Q7, Which shipping way your company normally use?
A: DHL, TNT, UPS, FEDEX express way; By sea; By air; customers forwarder etc.
Q8, How about after-sale service.
A: We have technician team to support the install guide and technician problems, pls send email to support @yistartech.com once u need any help.
