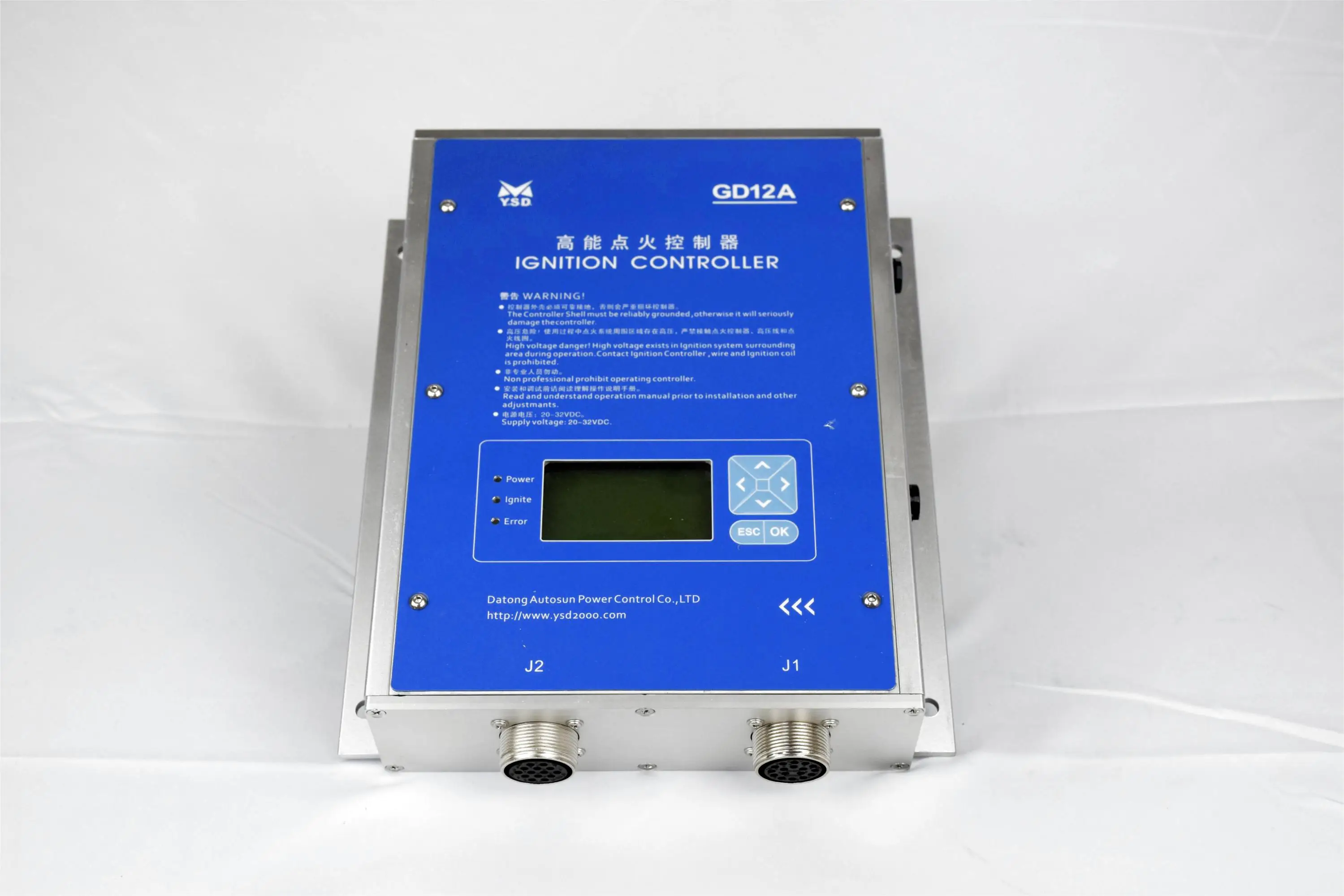

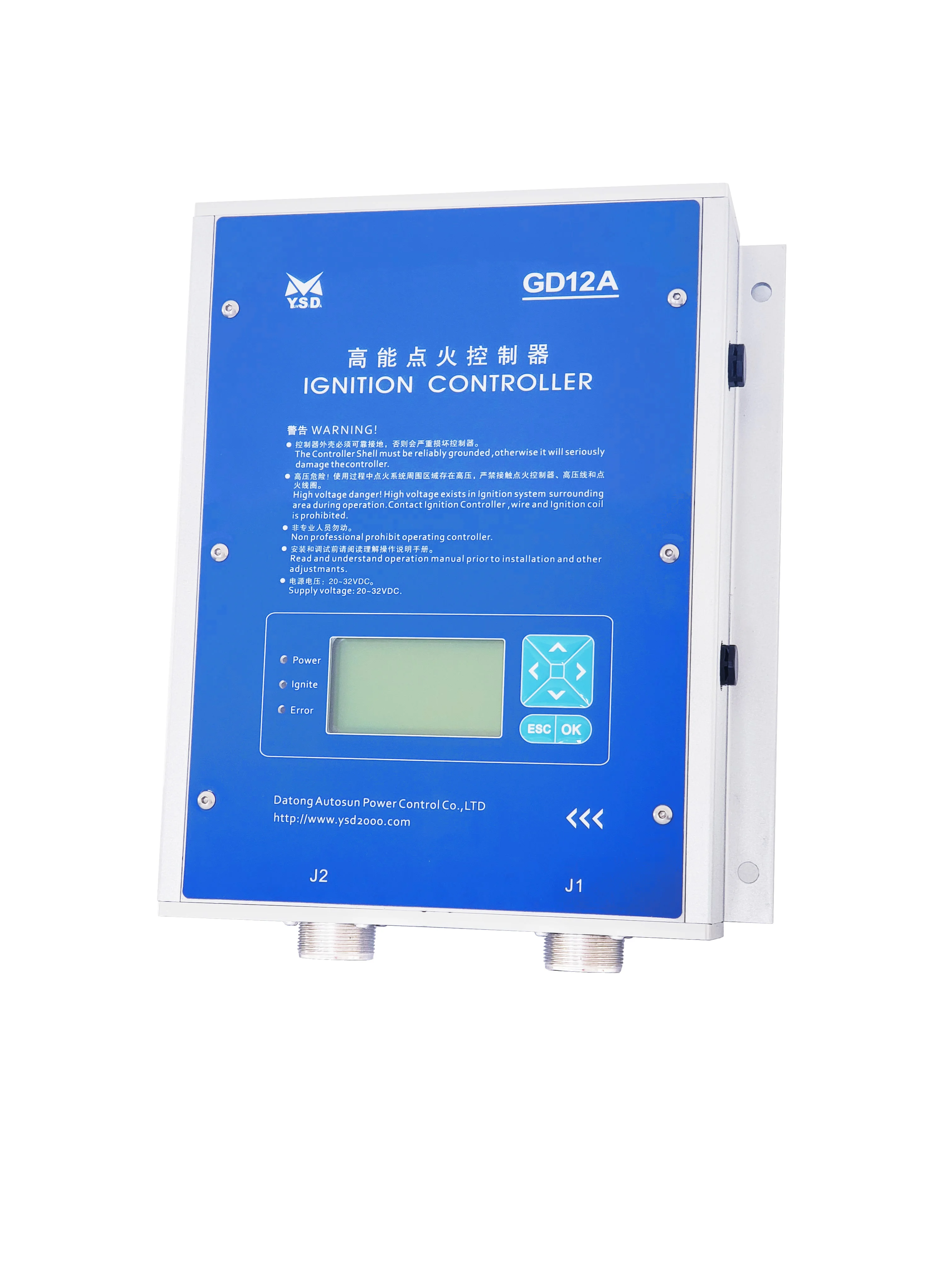

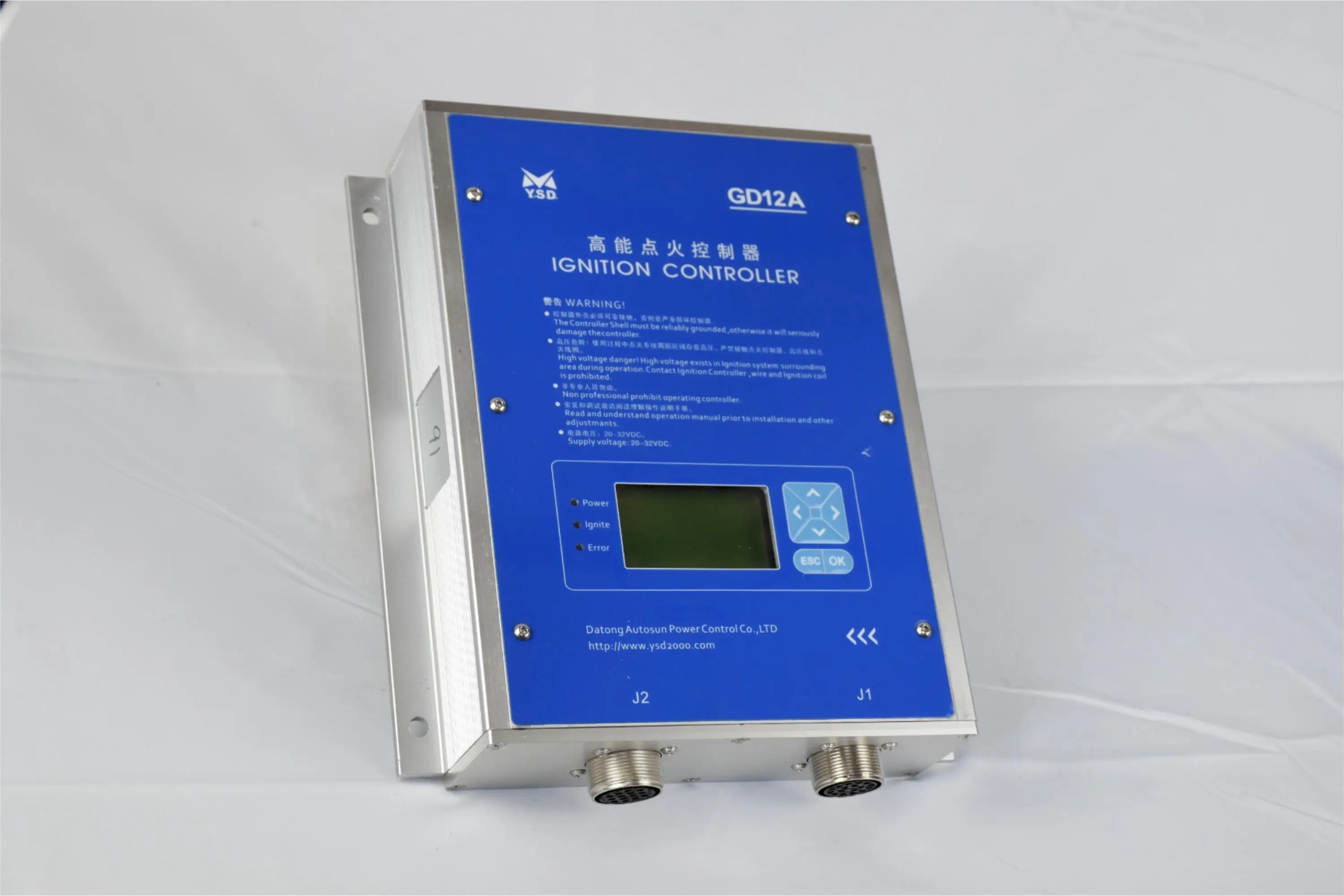

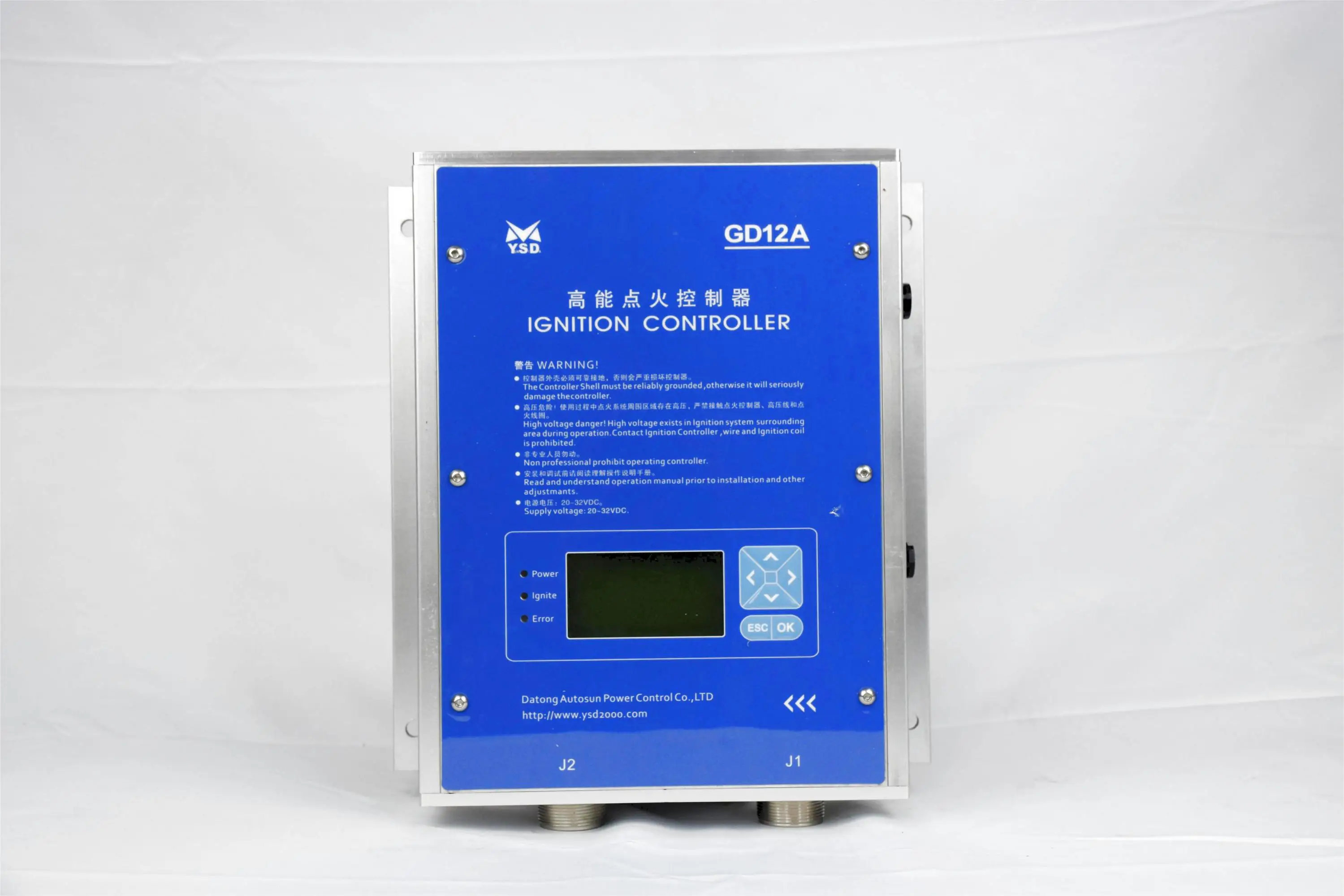

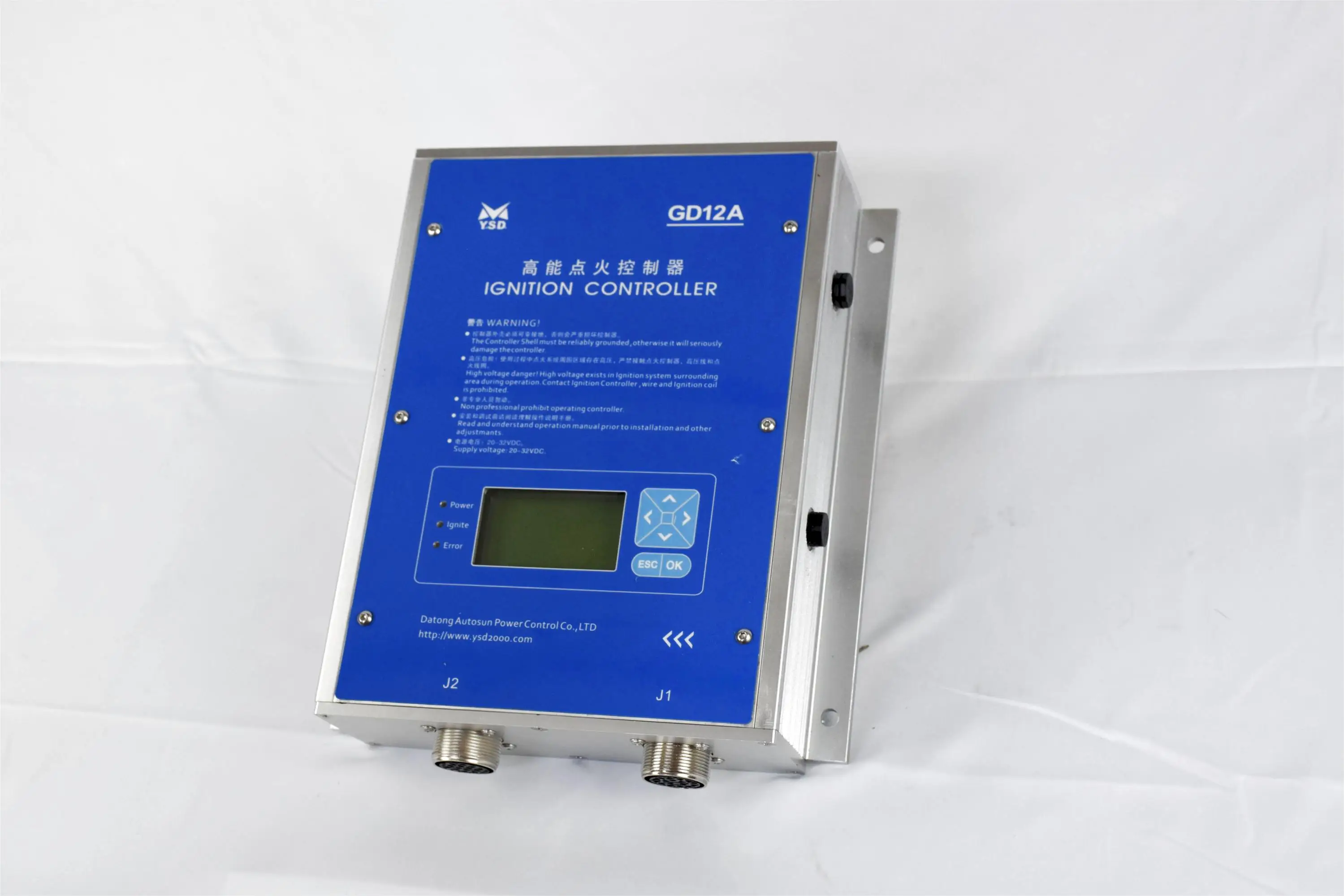

Ignition controller Motortech MIC3/4 Altronic Heinzmann woodward GD12A Gas Bigas engine generator ignition control system
- Category: >>>
- Supplier: Datong Autosun Power Control Co. Ltd.
Share on (1600934940514):
Product Overview
Description
Product Overview
FEATURES AT A GLANCE
Power supply voltage: 20 ～ 32V
Working current: 7.0A max
Power: 24V maximum power 100W
Output: 12 outputs
Output voltage: 250V
Ignition output energy: 100 ～ 500mJ
Dimensions: 258 * 292 * 66mm
Net weight: 3.8kg
Vibration conditions: <80Hz
Working temperature: -30 ℃ ～ + 60 ℃
Ambient humidity: up to 85% non-condensing
Impact: 2G
Protection level: IP65
Working current: 7.0A max
Power: 24V maximum power 100W
Output: 12 outputs
Output voltage: 250V
Ignition output energy: 100 ～ 500mJ
Dimensions: 258 * 292 * 66mm
Net weight: 3.8kg
Vibration conditions: <80Hz
Working temperature: -30 ℃ ～ + 60 ℃
Ambient humidity: up to 85% non-condensing
Impact: 2G
Protection level: IP65
Power supply voltage | 20 ～ 32V |
Working current | 7.0A max |
Output voltage | 250V |
Vibration conditions | <80Hz |
Company pictures
Exhibition
SALES AND SERVICE NETWORK
Successful Project
SIMILAR PRODUCTS
GEC100 ignition&speed control ECU
OT3120A digital speed controller
KZ85 integrated actuator throttle valve
FAQ
Q1：Can the Generator set used for biogas?
A1：Yes, our Generator set can be used for Natural gas, biogas and other different types Gas.
Q2: What is your products warranty?
A2: We provide 1 year warranty for our products.
Q3:How to use your products?
A3: Our products have english manual, you can contact our sales for our products manual details.
A2: We provide 1 year warranty for our products.
Q3:How to use your products?
A3: Our products have english manual, you can contact our sales for our products manual details.
