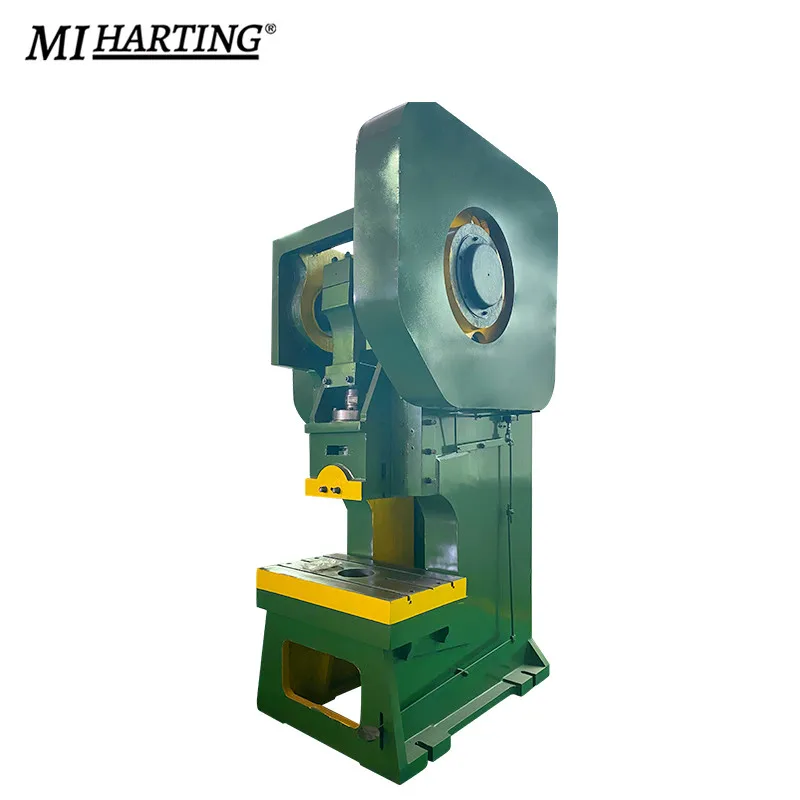

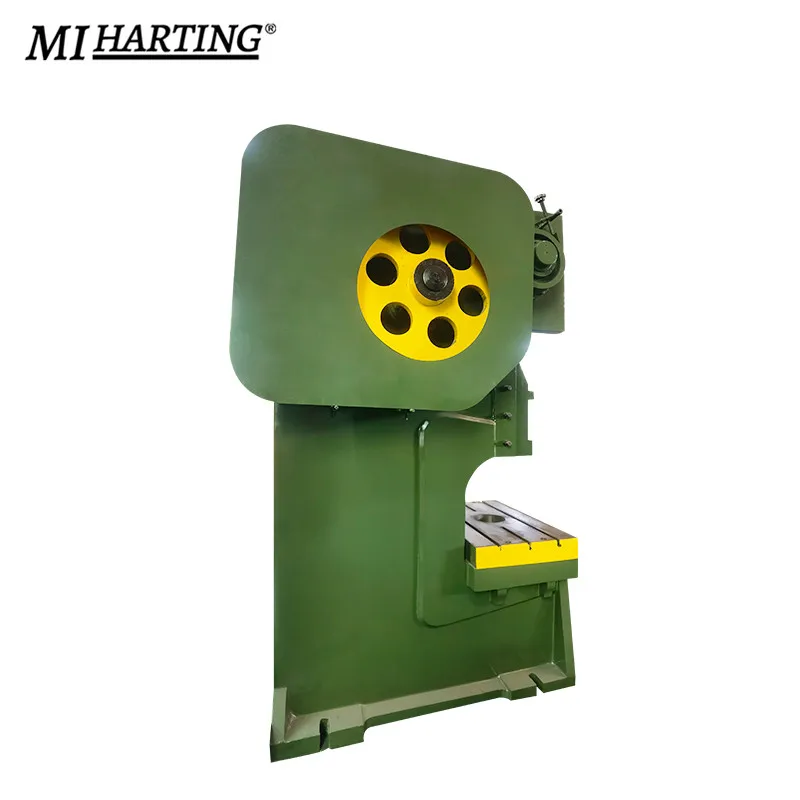

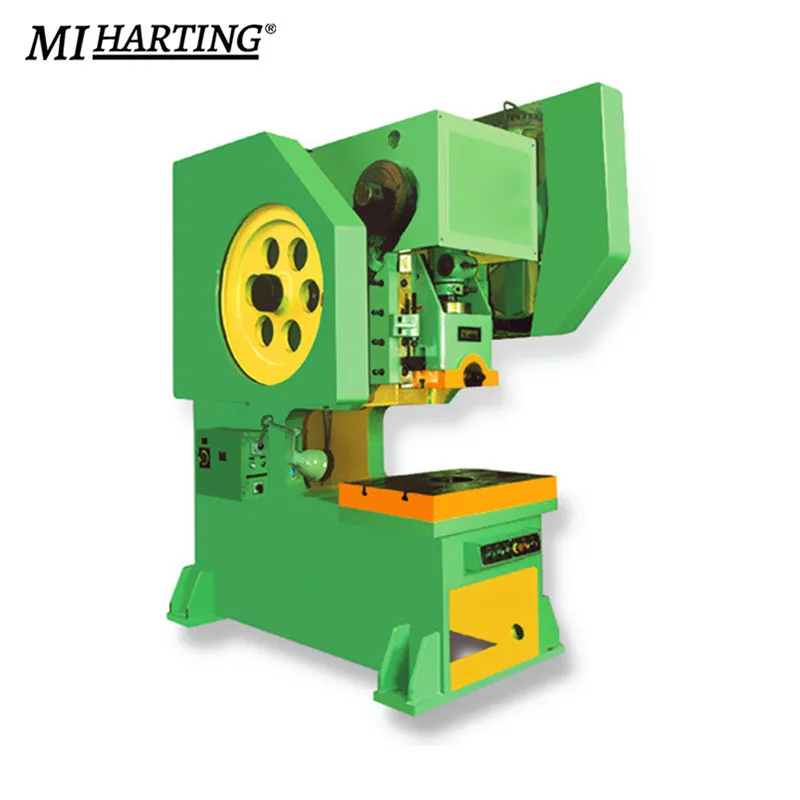

Chinese manufacturer power press machine for sheet metal punching
- Category: >>>
- Supplier: Anhui Harting Machinery Technology Co. Ltd.
Share on (1600934949405):
Product Overview
Description
Product Description
A punch machine is a stamping press. Stamping production is mainly for plates. Through the mold, it can make blanking,
punching,forming, deep drawing, trimming, fine blanking, shaping, riveting and extrusion parts, etc., which are widely used in various fields. For example, we use switch sockets, cups, cupboards, dishes, computer cases, and even missile aircraft... There are a lot of accessories that can be produced through molds with a punch.

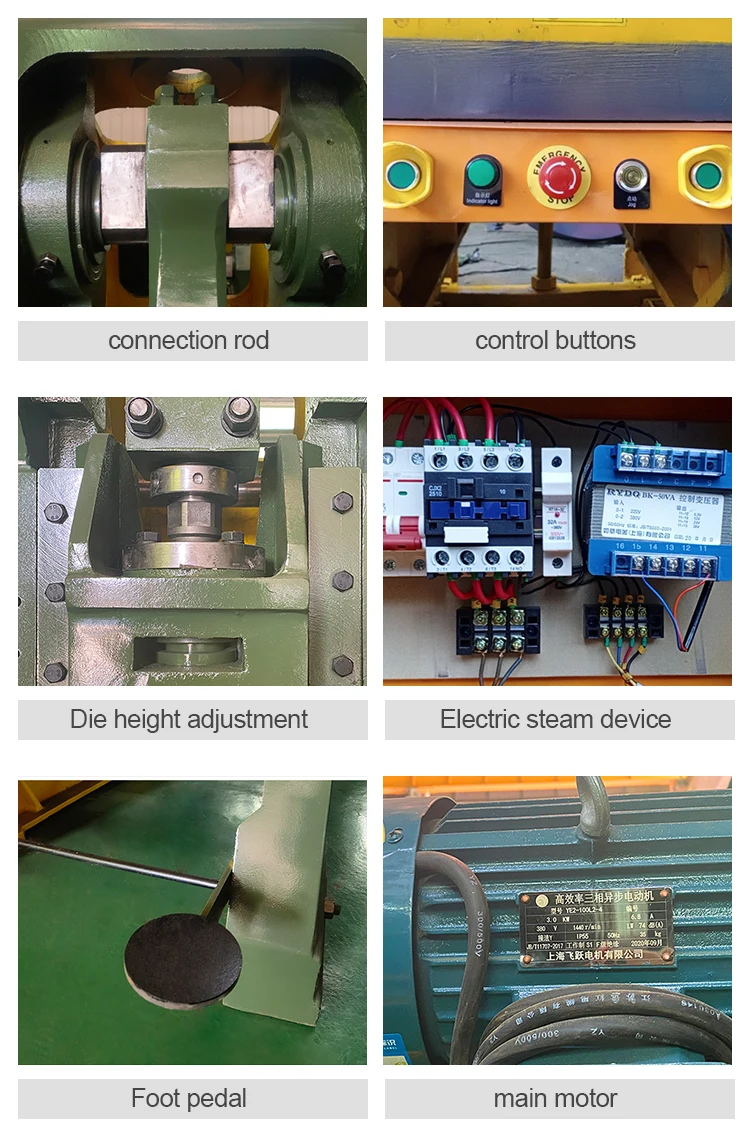

Details Images
Specification
Item | J23-10T | J23-16T | J23-25T | J23-40T | J23-63T | J23-80T | J23-100T | J23-125T |
Nominal Pressure | 100KN | 160KN | 250KN | 400KN | 630KN | 800KN | 1000KN | 1250KN |
Slide stroke (Times/min) | 145 | 140 | 70 | 55 | 50 | 45 | 45 | 38 |
Slide strokes | 50mm | 60mm | 70mm | 100mm | 110mm | 115mm | 130mm | 150mm |
Max closing height | 150mm | 170mm | 200mm | 300mm | 330mm | 380mm | 380mm | 500mm |

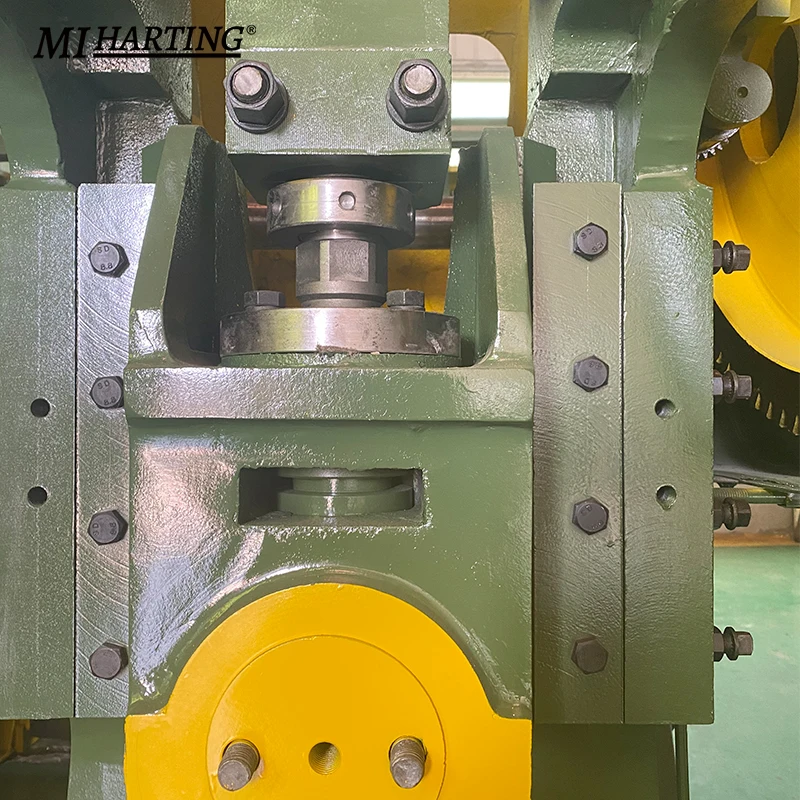

Die height adjustment | 40mm | 40mm | 40mm | 70mm | 80mm | 80mm | 100mm | 100mm |
Distance between slider center and machine | 130mm | 160mm | 180mm | 215mm | 230mm | 250mm | 280mm | 390mm |
Workbench diameter(mm) | 240x360 | 300x480 | 320x525 | 400x650 | 440x700 | 480x750 | 540x840 | 720x1100 |
Pole distance | 180mm | 220mm | 240mm | 300mm | 300mm | 300mm | 380mm | 550mm |
Shank hole diameter | 30mm | 35mm | 40mm | 50mm | 60mm | 60mm | 60mm | 60mm |
Shank hole depth | 50mm | 60mm | 60mm | 70mm | 70mm | 80mm | 80mm | 75mm |
Pad thickness | 50mm | 50mm | 50mm | 75mm | 80mm | 95mm | 100mm | 130mm |
Body tilting angle | 30° | 20° | 20° | 20° | 20° | 20° | 20° | 13° |

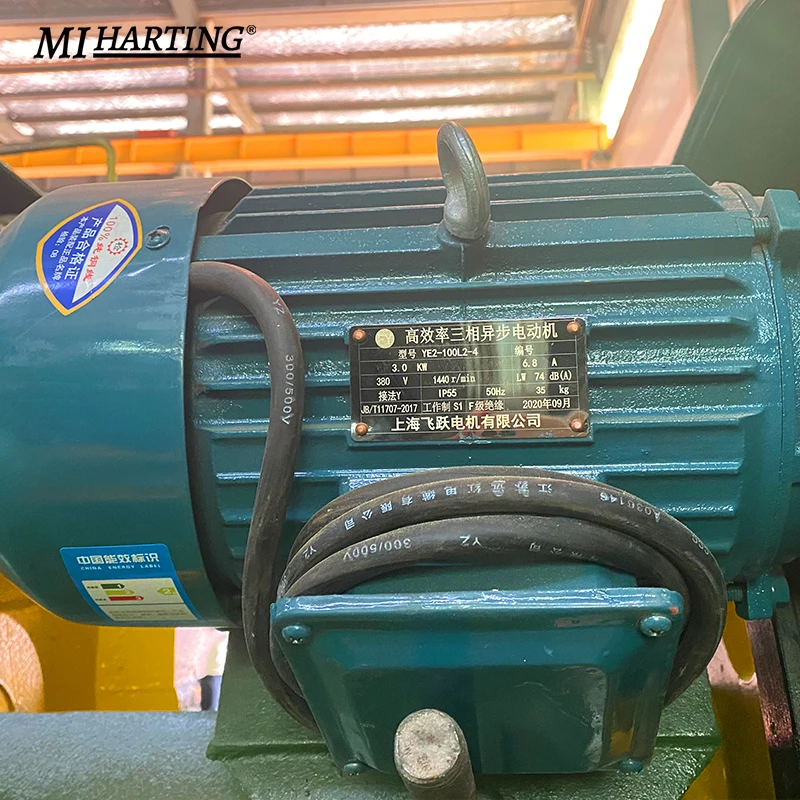

Motor power | 1.5Kw | 1.5KW | 2.2KW | 3KW | 4KW | 7.5KW | 7.5KW | 11Kw |
Weight | 450Kg | 750KG | 1500KG | 2500KG | 4000KG | 5000KG | 6000KG | 7000Kg |
Standard Execution
* JIS I accuracy.v
* Steel welded frame with high rigidity.
* Motor with inverter.
* Combined wet friction clutch.
* Rectangular hexahedron lengthened guide; OCP-315/400 with octahedral lengthened guide.
* Hydraulic overload protector.
* Lifting balance cylinder.
* Imported dual solenoid valve.
* Forced grease lubrication.
* Balance cylinder: manual oil lubrication.
* Integrated panel (elec.cam included).
* PLC control of international brand.
* Contactor and button of international brand.
* CE safety specifications
* Optional: air cushion, light curtain, automotive device.
* Steel welded frame with high rigidity.
* Motor with inverter.
* Combined wet friction clutch.
* Rectangular hexahedron lengthened guide; OCP-315/400 with octahedral lengthened guide.
* Hydraulic overload protector.
* Lifting balance cylinder.
* Imported dual solenoid valve.
* Forced grease lubrication.
* Balance cylinder: manual oil lubrication.
* Integrated panel (elec.cam included).
* PLC control of international brand.
* Contactor and button of international brand.
* CE safety specifications
* Optional: air cushion, light curtain, automotive device.
