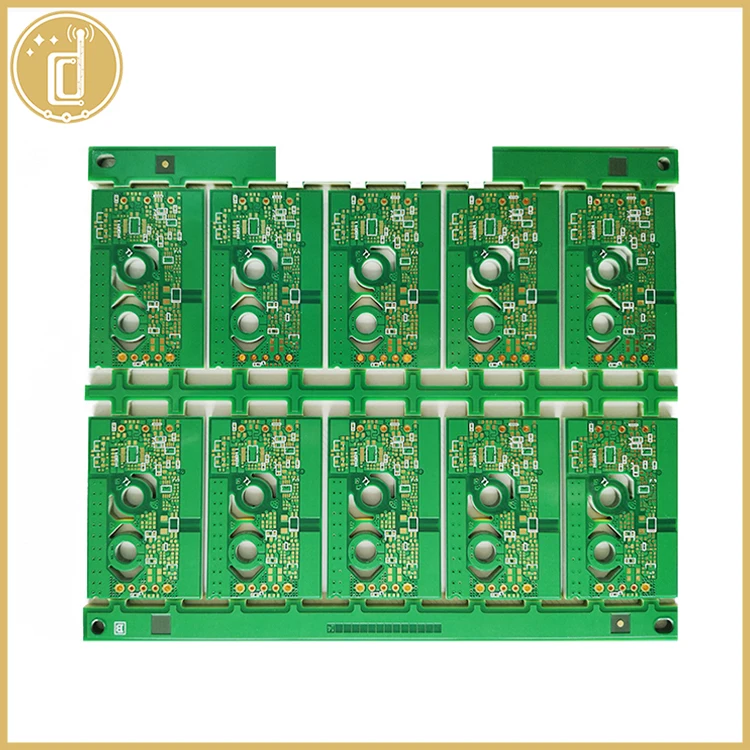

Professional Custom Multilayer PCB 2/4/6/8/10 Layers Fr4 94V0 Printed Circuit Board PCBA Manufacturer
- Category: >>>
- Supplier: Shenzhen Diancheng Circuit Board Co. Ltd.
Share on (1600934963759):
Product Overview
Description
Our Capability
Service Name | One Stop Service : PCB + PCBA |
Material | FR-4 , 94v0 , High TG , PTFE , Aluminum Base , Copper Base. |
Order type | Custom Order |
Layers | 1-40 layers |
Max. Panel Size | 610mm x 508 mm ( 24'' x 20'' ) |
Board thickness | 0.2mm-10mm |
Copper thickness | 0.5oz - 20oz |
Min. via diameter | 0.075mm (laser drilling ) , 0.2mm (CNC drilling ) |
Min. Line width | 0.075mm |
Min. Line spacing | 0.1mm |
Solder mask color | Green , Purple , Black , Blue , Red , as you want |
Surface finising | HASL , OSP , ENIG , Immersion silver , Immersion tin , Immersion gold , ENEPIG etc |
Certification | ISO9001 , ISO14001 , SGS , UL , REACH, RoHS |
MOQ | 5 pieces |
Special Processes | HDI PCB , Blind via /Buried via pcb , Resin plug hole PCB , via in Pad PCB, Heavy Copper PCB , Buried copper block PCB , Halogen free PCB , Ultra Thin PCB , Ultra Thick PCB , Carbon Ink PCB , Impedance Control PCB , Metal Edge Plating PCB , Half-hole PCB , Electroplated Hard Gold PCB, Blind Slot PCB , Gold Finger PCB . |
Lead Time
Category | Quick Lead Time | Normal Lead Time | |
Single Layer | 1-2 days | 3-4 days | |
Double-Sided Layer | 2 days | 5 days | |
4 layers | 2 days | 5 days | |
6 layers | 3 days | 6 days | |
8 layers | 4 days | 8 days | |
10 layers | 5 days | 9 days | |
12 layers | 5 days | 9 days | |
14 layers | 6 days | 12 days | |
16-20 layers | Depends on the specific requirements | ||
more than 20 layers | Depends on the specific requirements | ||
Recommend Products
Special printed circuit boards with high electromagnetic frequencies, as frequencies above 1GHz . Commonly used in fields such as automotive collision prevention systems, satellite systems, radio systems, 5G communication, and big data computing .
Heavy Copper PCB
The copper thickness up to 2oz or more . Applied to electronic products requiring higher current , higher power and higher heat dissipation . for example Power modules, motor controllers, UPS power supply, solar inverters, electronic ignition systems, electric vehicle charging stations, etc.
Blind/Burried via PCB
Always requires High Density Interconnector (HDI) . Used in electronic products with more compact design and stronger signal processing capabilities, for example computer motherboard , GPU, mobile phone, medical imaging equipment etc .
Half-Hole PCB
The main function is to facilitate welding. For board to board connection, mainly when two different technologies of boards need to be combined. Used on some precision demanding small modules, such as WiFi modules ，Bluetooth modules ，communication modules and others .
Gold Finger PCB
Surface metallized connectors are usually placed on the edge connectors of electronic devices. Their main function is to allow electronic devices to conveniently receive and transmit data and signals. Always used in electronic products such as digital cameras, mobile phones, computers, and other devices that require connection or unplugging.
Aluminum PCB
Compared to traditional materials, aluminum based PCBs can minimize thermal resistance, giving them excellent thermal conductivity . Always used in electronic products which requiring good heat dissipation，for example LED lights ，DC/AC converter etc.
Ultra Thick PCB
Some electronic products that require high power and heat generation may choose thickened PCBs to help distribute power and prevent excessive heat concentration from damaging components. Some electronic products that need to carry high-speed signals may also choose thickened PCBs to ensure signal quality. Some electronic products used in harsh environments may also choose thickened PCBs to ensure the strength of the product hardware.
Rigid-Flex PCB
Light weight, thin thickness, and can be bent and folded freely . used in small but precision electronic equipment. for example UAV， mobile phone， smart home device，sensor module，and others .
Company Introduction
About us
In 2011 , Diancheng Circuit was founded as a PCB manufacturer in Shenzhen . After more than 10 years , the company has developed into a one-stop service platform that provides comprehensive PCB Layout , PCB Fabrication , PCB Assembly , and Component Purchasing services . We are trusted by some of the big companies , including CHERY , Vivo , mindary , Haier , Midea-Smart .
Printed circuit boards may not be the most expensive components in your products , but they are certainly among the most important. The success of your products (and ultimately your business) is linked to the PCBs you order .
Factory directly pricing and service, combined with the highest quality materials , is what sets Diancheng Circuit apart from other PCB suppliers in China. Our objective has always been to provide the best solutions to make your job easier and improve your margin of profit.
Printed circuit boards may not be the most expensive components in your products , but they are certainly among the most important. The success of your products (and ultimately your business) is linked to the PCBs you order .
Factory directly pricing and service, combined with the highest quality materials , is what sets Diancheng Circuit apart from other PCB suppliers in China. Our objective has always been to provide the best solutions to make your job easier and improve your margin of profit.

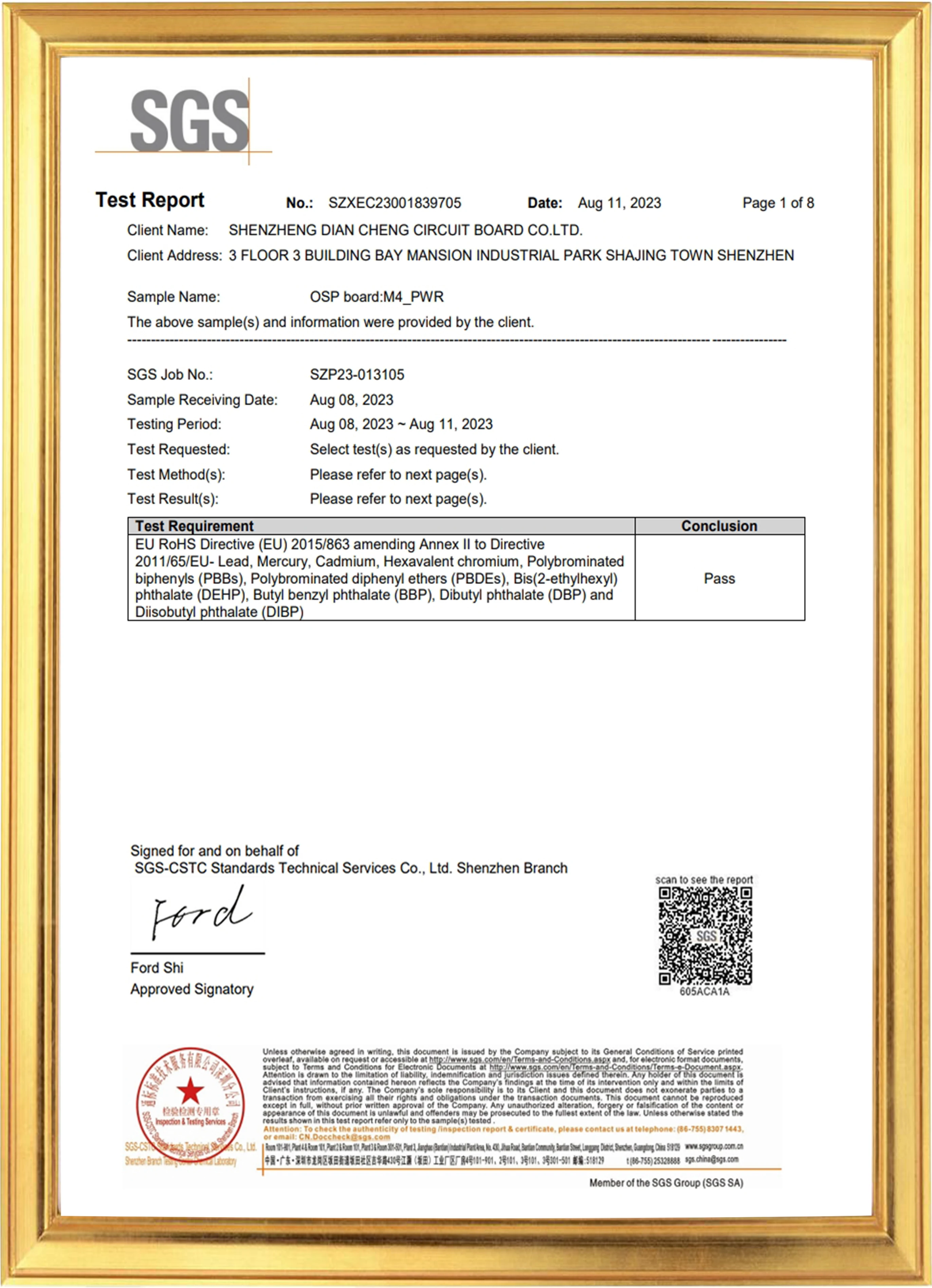

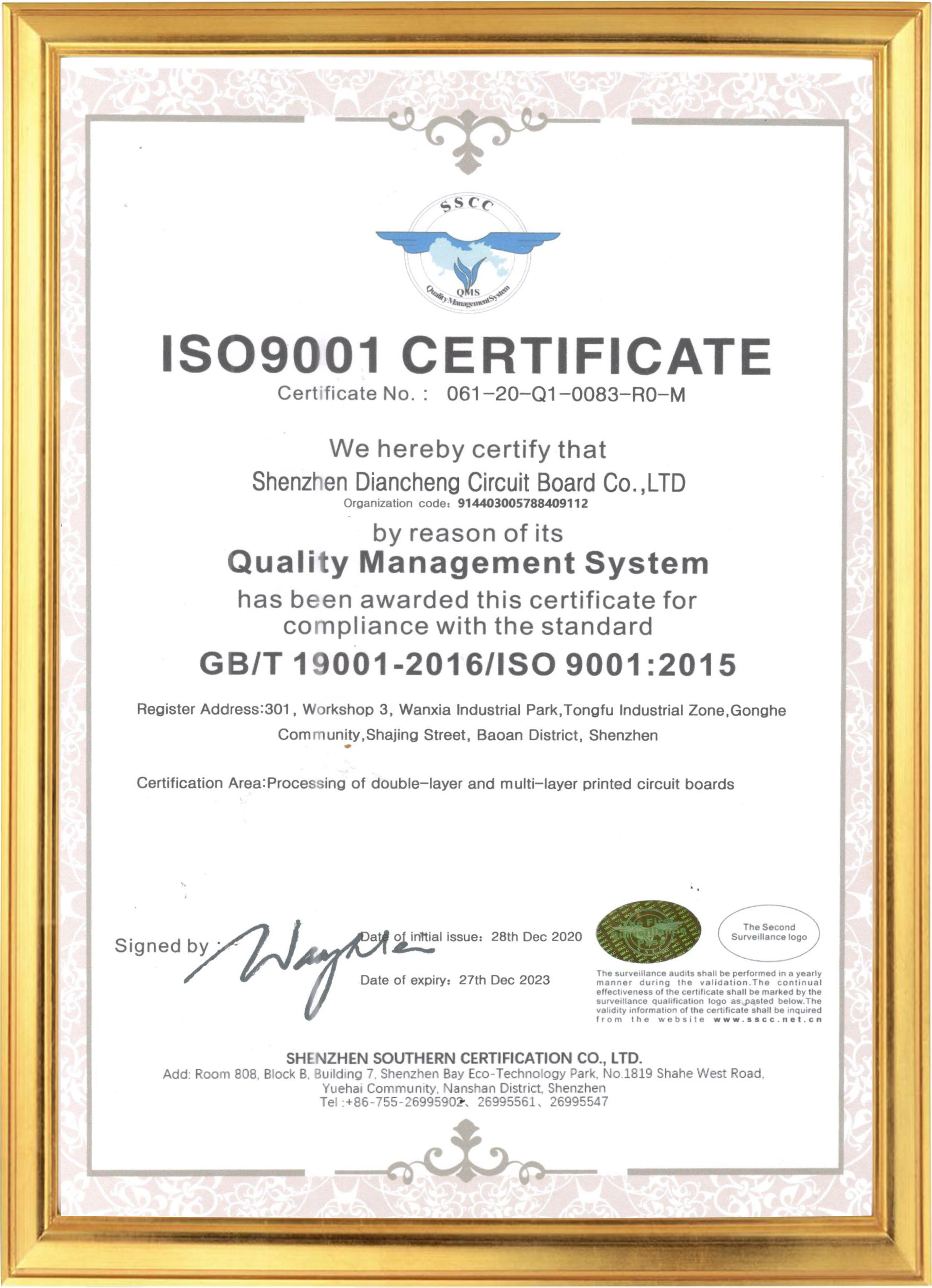

Certifications
