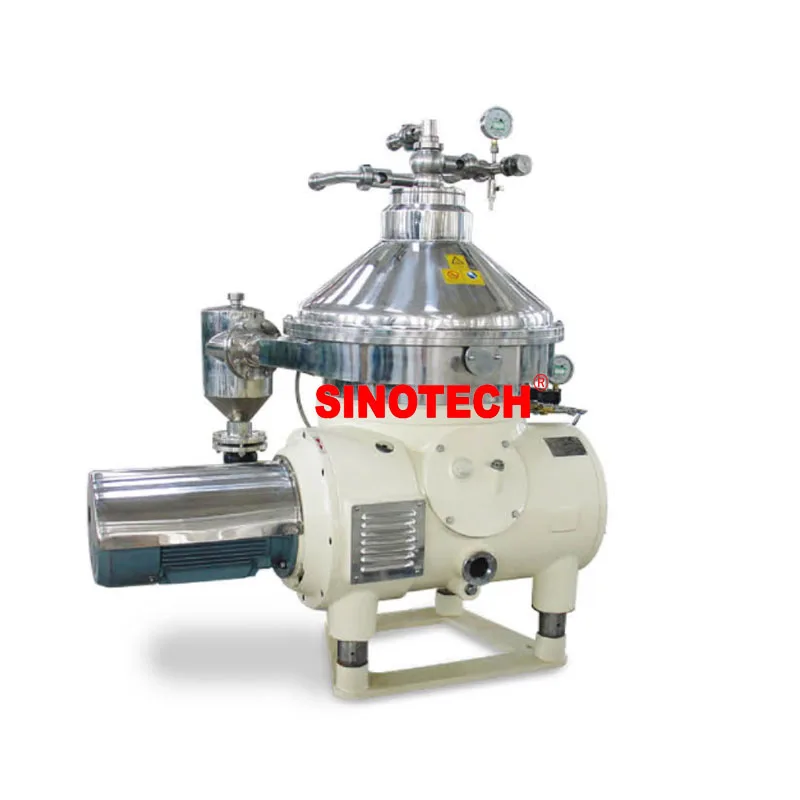

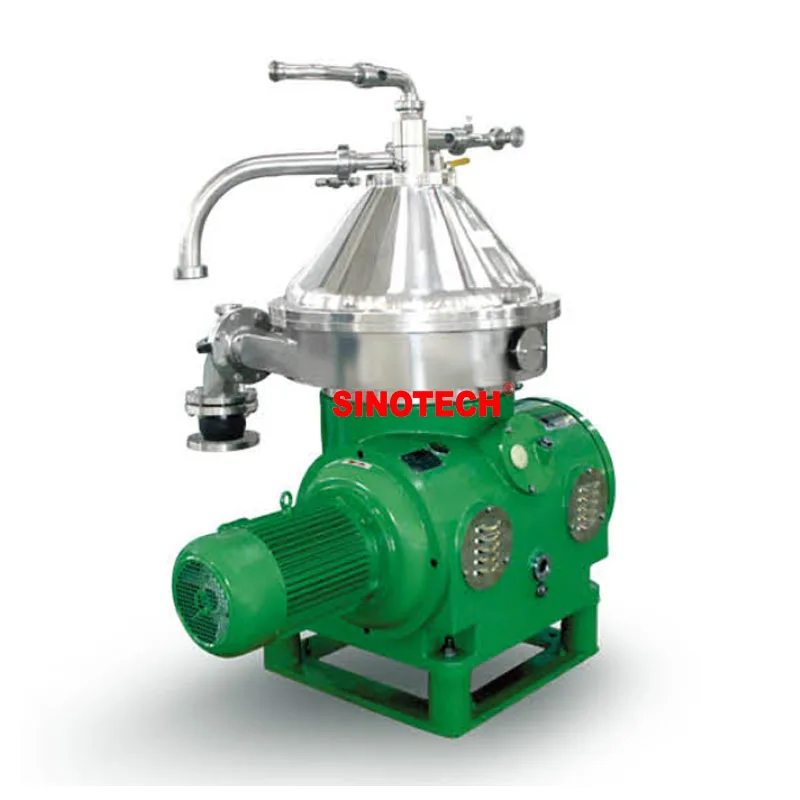

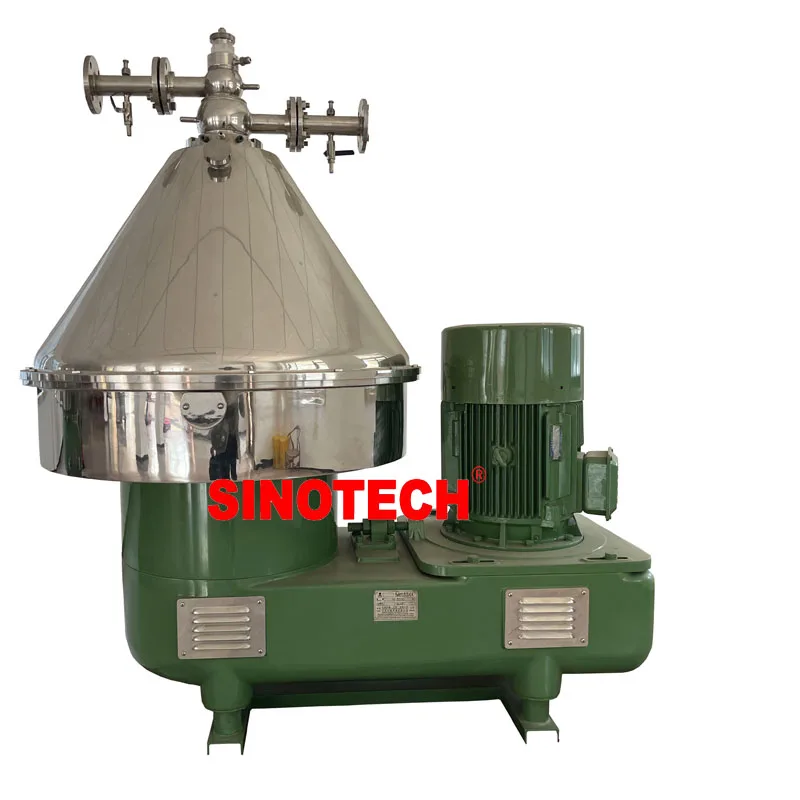

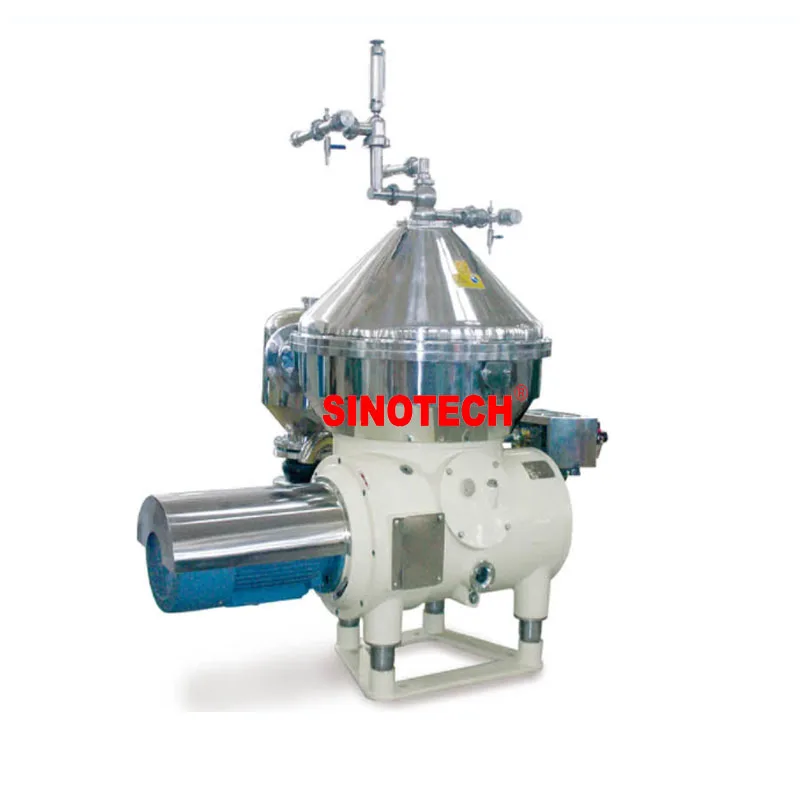

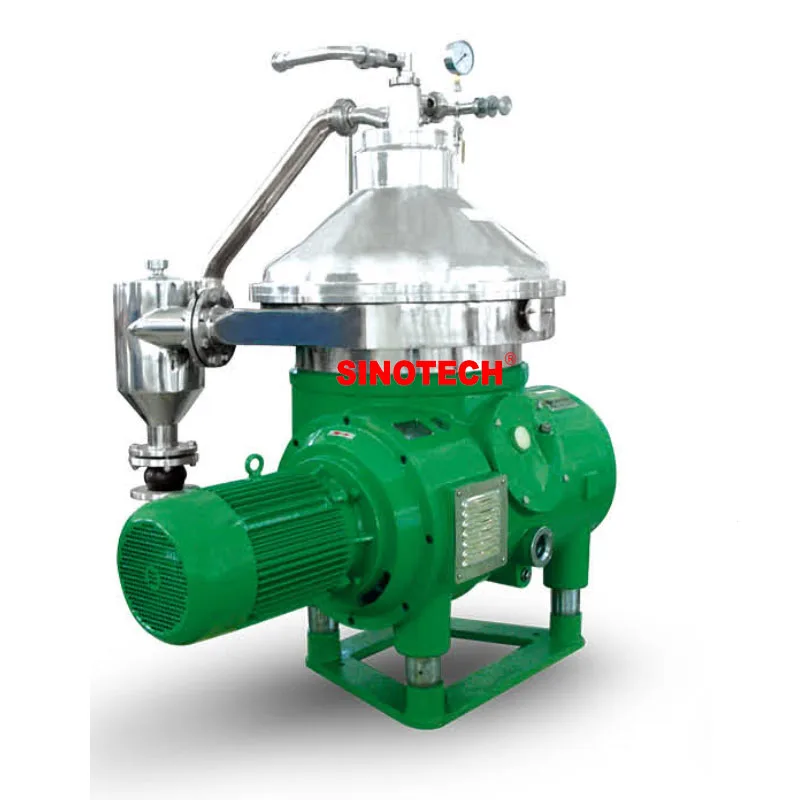

DHZ 470 Continuous Waste Oil Water Disc Centrifuge Separator Machine Centrifugal Solid Liquid Separator Competitive Price
- Category: >>>
- Supplier: Liaoyang Sinotech Technology Development Co. Ltd.
Share on (1600935000142):
Product Overview
Description
VIDEO FOR Disc Centrifuge Separator
Phone/Whatsapp/Wechat: +86 15140990256
Product Description
Main Features: It can realize liquid-solid separation. This machine has better separation. It can be operated manually or automatically or remotely with PLC control to timer the process of working and solid discharge to save lots of labour work. It is simple in structure and easy in maintenance.
Main Purposes: This machine is widely used for many industries, such as dairy, beverage, chemicals, petrol, metallurgy and biology, etc.

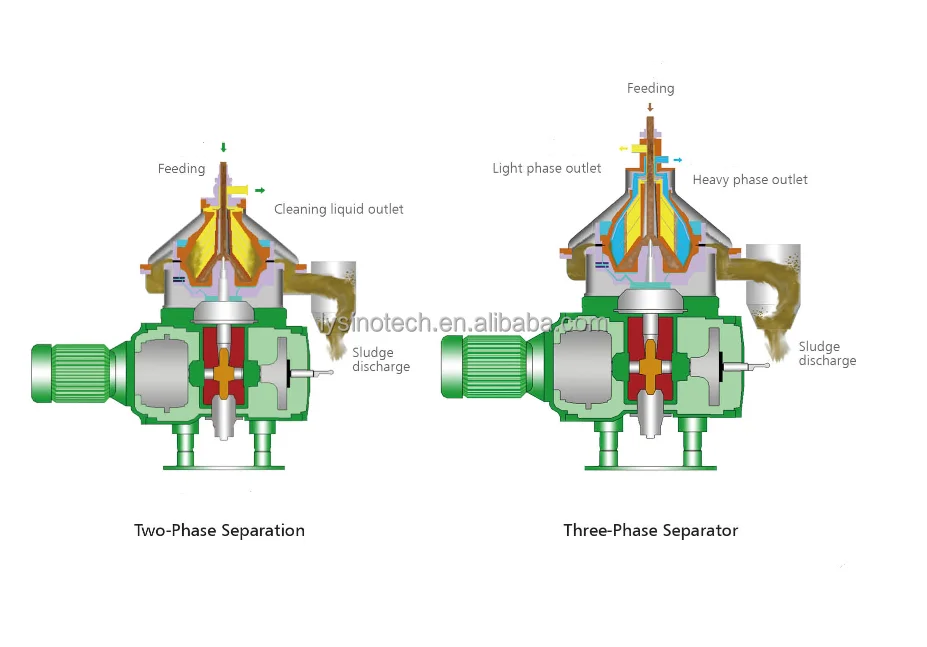

Structure and Principle: The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged through nozzle out of the sediment outlet.
Main Purposes: This machine is widely used for many industries, such as dairy, beverage, chemicals, petrol, metallurgy and biology, etc.
Structure and Principle: The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentate on the bowl's wall and then will be discharged through nozzle out of the sediment outlet.
Drawing
Technical parameter
Model | DHC220 | DHC270 | DHC360 | DHC470 | DHC550 |
Inner diameter (mm) | 220 | 270 | 360 | 470 | 550 |
Motor(kw) | 4 | 4 | 7.5 | 15 | 22 |
Gross weight (kg) | 580 | 600 | 1000 | 1720 | 2500 |

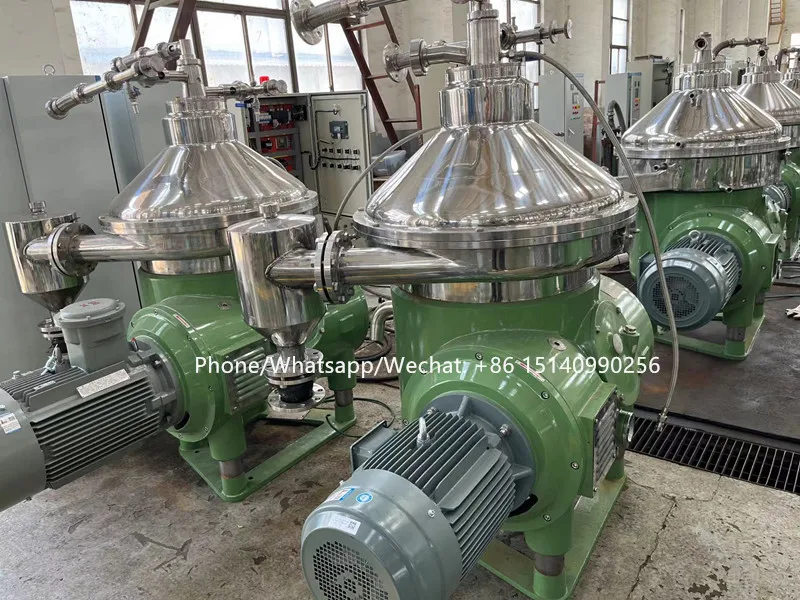

Detail picture

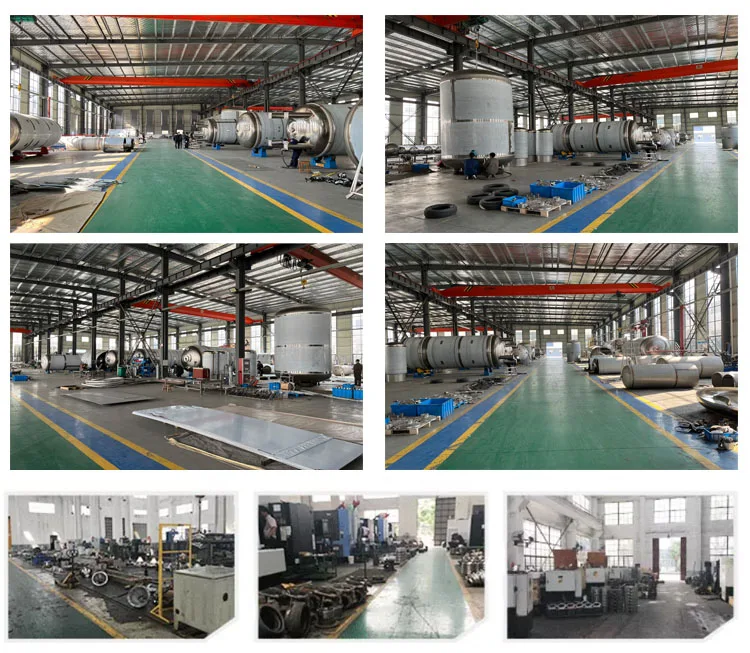

Our company
Customer Photos
FAQ
Q1: Where is your factory? How can I visit there?
A1: Our factory location is Liaoyang City , Liaoning Province, China.If want to visit our company , you can fly to Shenyang
Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
A1: Our factory location is Liaoyang City , Liaoning Province, China.If want to visit our company , you can fly to Shenyang
Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
