Best Selling EU Stock 3.2V 105Ah LF105 LFP LiFePO4 Lithium Ion Batteries
- Category: >>>
- Supplier: Shenzhen Wisdom Science And Technology Co. Ltd.
Share on (1600935142374):
Product Overview
Description
Best Selling EU Stock 3.2V 105Ah LF105 LFP LiFePO4 Lithium Ion Batteries
Description
Provide brand new, grade A EV E 3.2V 105Ah lifepo4 prismatic cell, which has passed UL1642, CB, BIS,IEC,PSE,UN38.3, MSDS certification.

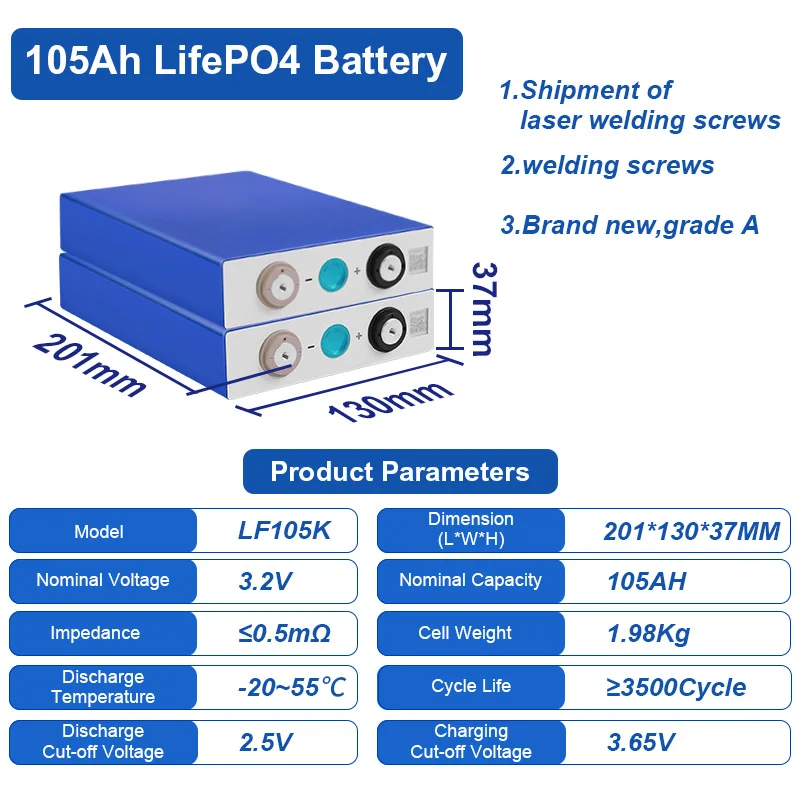

Item | Parameter | |
Product Name | 3.2V 105Ah Prismatic LiFePO4 Battery Cell | |
Quality | Grade A,brand new | |
Nominal Voltage | 3.2V | |
Nominal Capacity | 105Ah(105 ampere hour) | |
Real Capacity | More 105Ah,Up 115Ah | |
AC Impedance Resistance | ≤0.5mΩ | |
Charging Current Rate | 1C(105A) | |
Discharging Current Rate | 1C(105A) | |
Peak Current | 3C(300A) | |
Charging Temperature | 0℃～55℃ | |
Discharging Temperature | -20℃～55℃ | |
Cycle Life | 6000 Times | |
Weight | 1980±50g | |
Self-discharge | 3% per month | |
Dimensions (L*W*H) | 130*36*200mm | |
Certifications | UL1642,CB,BIS,IEC,CE,MSDS.NU38.3,FCC | |
Accessories | Busbars+screws+bolts for free | |
Terminal | M4 | |
Applications | Solar Energy System,RV,Golf Carts,Boats,Yacht,Trolling Motor,Motorcycle,EV... | |
Note: This model LF105 does not have welded bolts. Provide corresponding barbus, nuts. If you purchase 4pcs 105ah cells, we will send 4pcs 105ah cells+4pcs barbus+8pcs nuts(screws). ... Accessories as follows | ||
Details Images

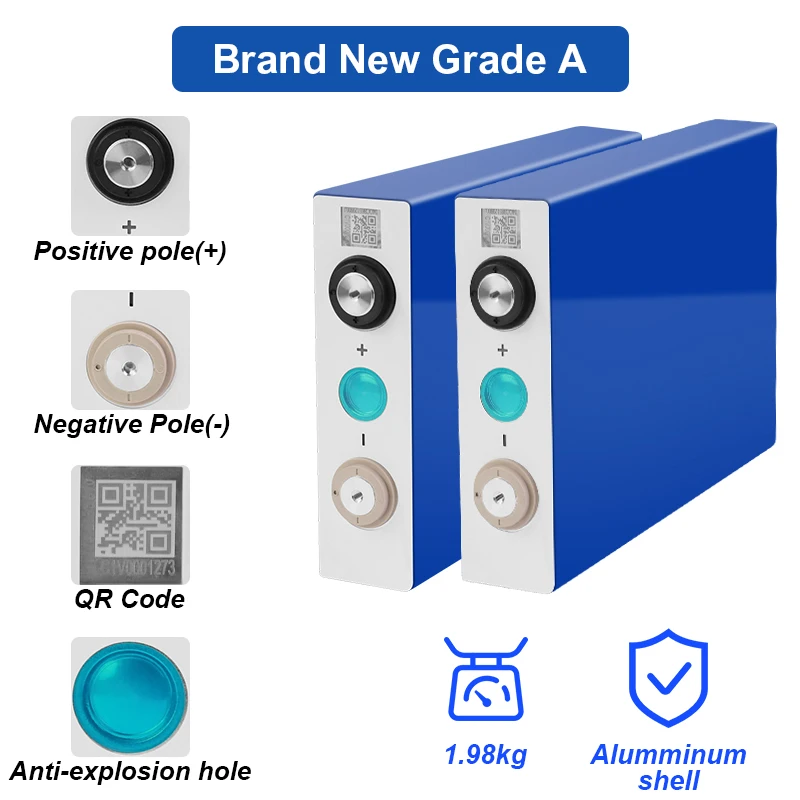

Grade A,brand new 3.2V 105Ah lifepo4 battery cell
Clear QR code and electrodes, smooth blue PVC packaging, flat and non-expanding.

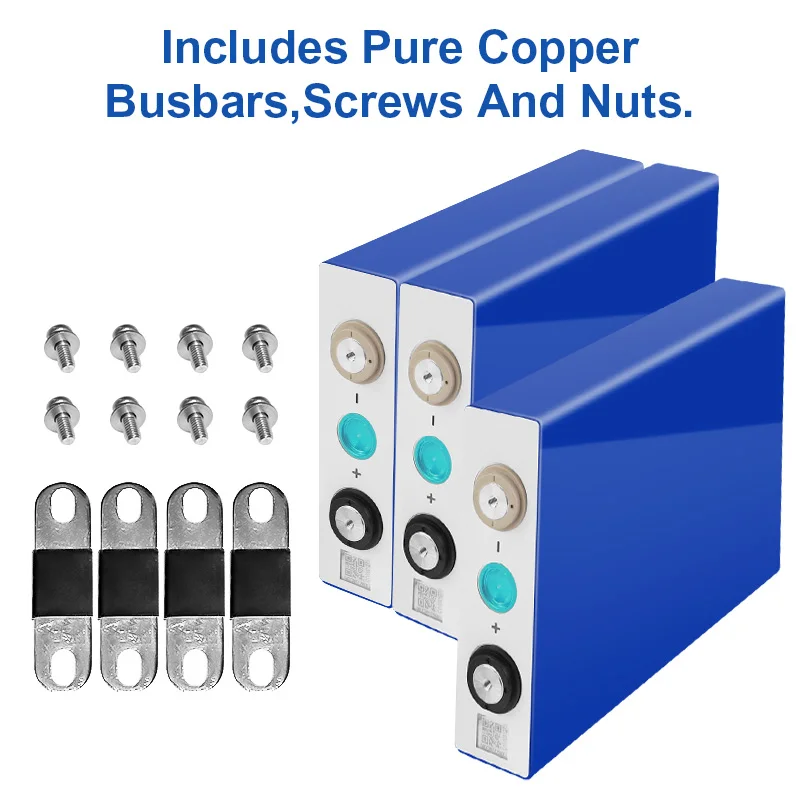

Free Gift
busbar(jumper)+bolts(screws) for free.
If you purchase 4pcs 3.2V 105Ah lithium iron phosphate cells, we will give you 4pcs burbars+8pcs bolts+8pcs screws for free.
...
...
The busbar and nut dimensions are as follows.
Assembly Schematic
The LF105 cell does not use laser welded studs at the electrodes, the screwing process is used.
The type of stud is M4.
Please check the LF105 specification carefully when assembling.
The type of stud is M4.
Please check the LF105 specification carefully when assembling.
The pole is a double aluminium pole structure with M4 internal thread, the torsion resistance of the pole is 8Nm, and the torsion should be less than 8Nm when it is used, and the depth of the effective threaded hole is 6mm.
Cells are flat and do not swell
The two cells are placed side by side with no visible gaps, while a level was placed on the surface with a good fit.
Electrical Performance Pictures
Why Choose Us
Real capacity around 115A
A professional cell test report is provided. Before transportation, all cells will be tested for capacity. The actual capacity of LF105 is approximately 115Ah.
Original factory packaging
All cells come with the original QR code, and the serial number on the QR code will correspond one-to-one with the test report.
You can check the authenticity of QR codes through professional websites.
If you need relevant website links, please contact us.
You can check the authenticity of QR codes through professional websites.
If you need relevant website links, please contact us.
Voltage and internal resistance testing
Before shipping, we will test all battery cells, cells appearance, voltage and internal resistance to conform to meet the specification requirements.
Capacity testing
A complete charge/discharge test will be performed on all cells to screen those that meet the capacity requirements.
Storage conditions
Scientific and safe storage environment, place the battery cells in a dry, ventilated and cool place at 0-35℃. Keep the capacity between 30%-80%.
Professional packaging and transportation
Packaging meets the requirements of UN38.3 and complies with export requirements.
5 layers of dangerous goods export corrugated carton
Use high hardness custom sponge to strengthen the battery
5 layers of dangerous goods export corrugated carton
Use high hardness custom sponge to strengthen the battery
Customer Feedback

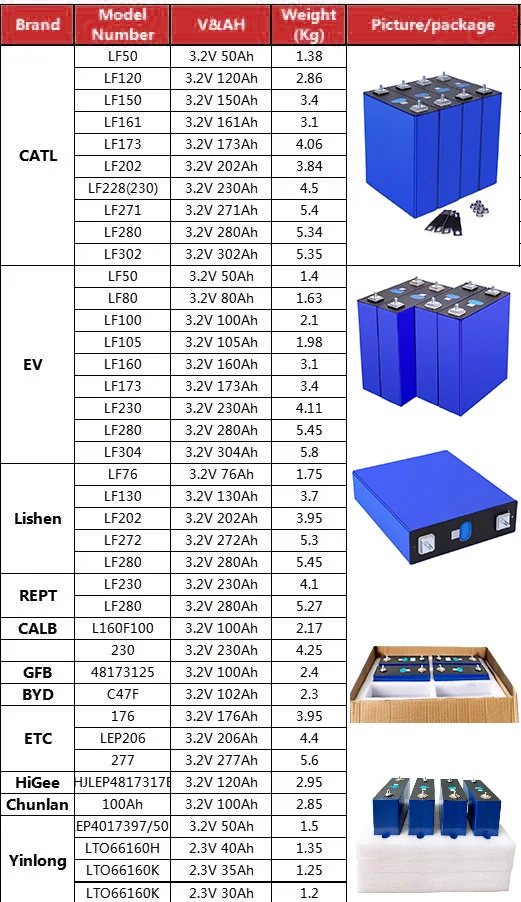

Other Cells Recommended
Product packaging
We will use professional export packaging.
1,Use high hardness custom sponge to strengthen the battery
2,5 layers of dangerous goods export corrugated carton
3,Positive and negative paste insulation tape
1,Use high hardness custom sponge to strengthen the battery
2,5 layers of dangerous goods export corrugated carton
3,Positive and negative paste insulation tape
About US
FAQ
1, How do I know prismatic lifepo4 battery cell brand?
We will provide the original professional datasheet to test the data of prismatic cell, the test data will meet all the parameters of the datasheet.
2,Are the cells you provide grade A, brand new?
Yes, we only provide grade A, brand new cells.
3,How can I judge if the cells are grade A?
Before shipping, we will share the shipping inspection report, which contains the check of voltage, internal resistance, capacity, appearance, and meet all the requirements in the data sheet.
Complete and undamaged QR code.
4, Will the battery cell be equipped with busbar (jumper) and bolt?
Yes, we will configure the appropriate busbar and bolt for you for free.
For example, for 4pcs 3.2V 105Ah prismatic cell, we will ship 4pcs cells+4pcs busbars+8pcs bolts+8pcs screws together.
5, How will you pack the cells?
Hard paper case with built-in sponge, busbars, bolts and screws will be packed separately from the cells.
We will provide the original professional datasheet to test the data of prismatic cell, the test data will meet all the parameters of the datasheet.
2,Are the cells you provide grade A, brand new?
Yes, we only provide grade A, brand new cells.
3,How can I judge if the cells are grade A?
Before shipping, we will share the shipping inspection report, which contains the check of voltage, internal resistance, capacity, appearance, and meet all the requirements in the data sheet.
Complete and undamaged QR code.
4, Will the battery cell be equipped with busbar (jumper) and bolt?
Yes, we will configure the appropriate busbar and bolt for you for free.
For example, for 4pcs 3.2V 105Ah prismatic cell, we will ship 4pcs cells+4pcs busbars+8pcs bolts+8pcs screws together.
5, How will you pack the cells?
Hard paper case with built-in sponge, busbars, bolts and screws will be packed separately from the cells.
6,Can you provide other battery accessories, BMS?
Yes, we can configure suitable BMS according to your requirements, extra charge is needed.
7,What brands of BMS can you provide?
Daly,JBD,JK,Xiaoxiang...
