Chinese Factory Needle Punched Loom Nonwoven Felt Blanket Making Machine
- Category: >>>
- Supplier: Gaomi Rongda Machinery Co. Ltd.
Share on (1600935148432):
Product Overview
Description
Mytest Needle Punched Production Line Machine
Product discription:

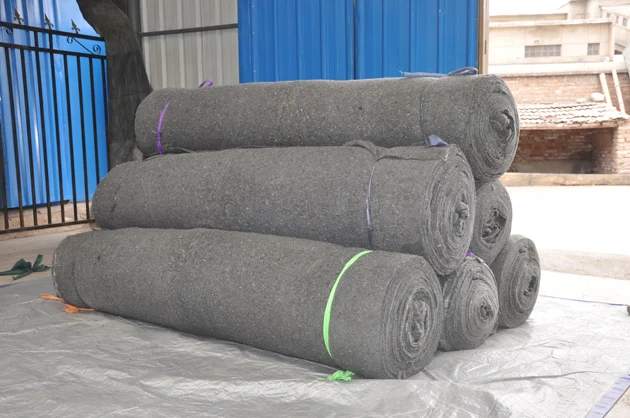

Needle -punching machine can convert the fleeciness textile fiber into Acupuncture cotton ,hign density and high-spring such as themal insuation blanket,Greenhouse quilt raw materials ,Mattresses,sofa,cushion,Car mats,Chemcical products and Non-woven fabrics for engineering etc,through Carding process,Spreading process,Acpcucture process,strengthening process.

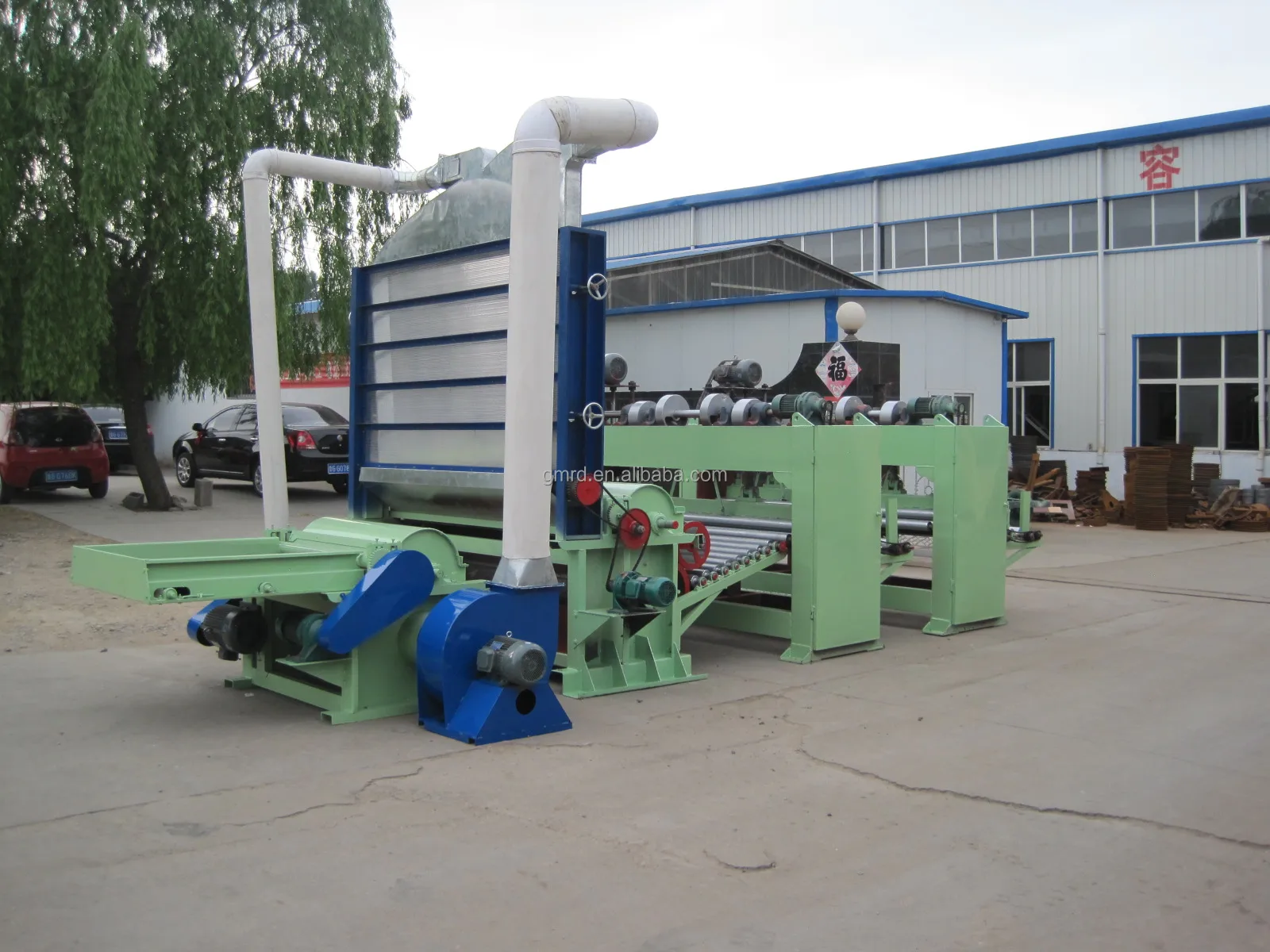

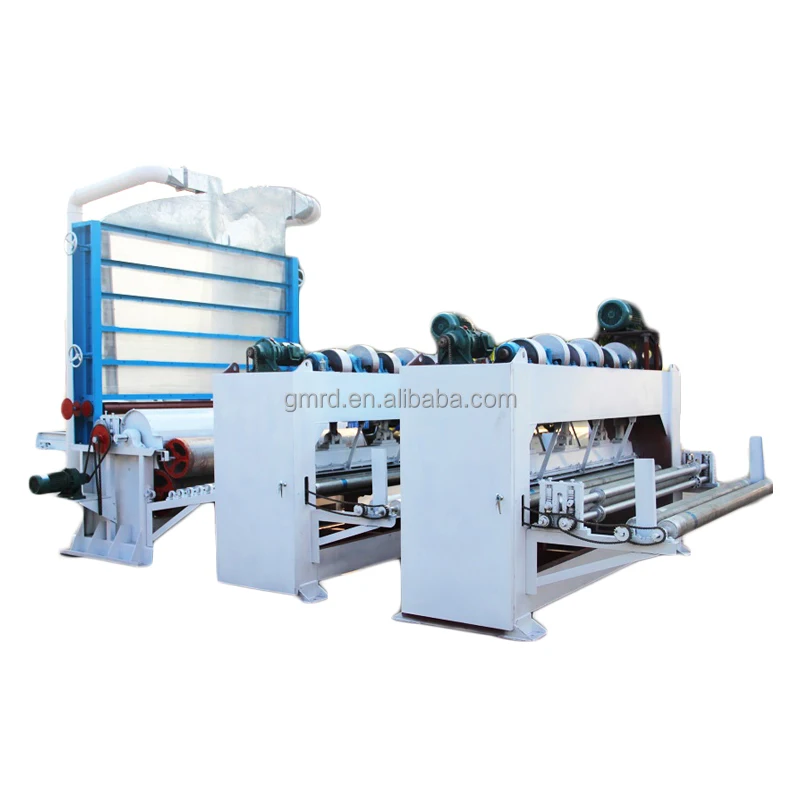

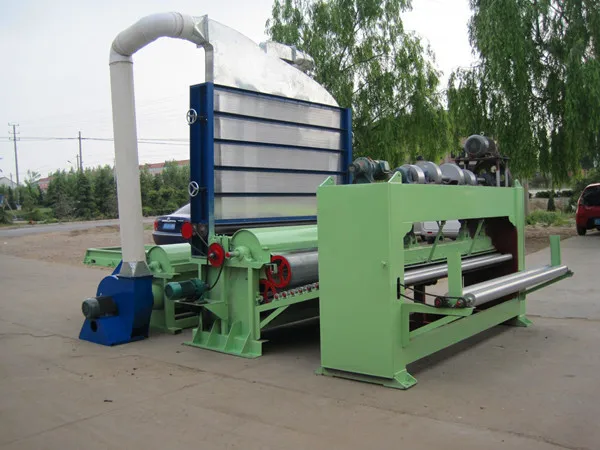

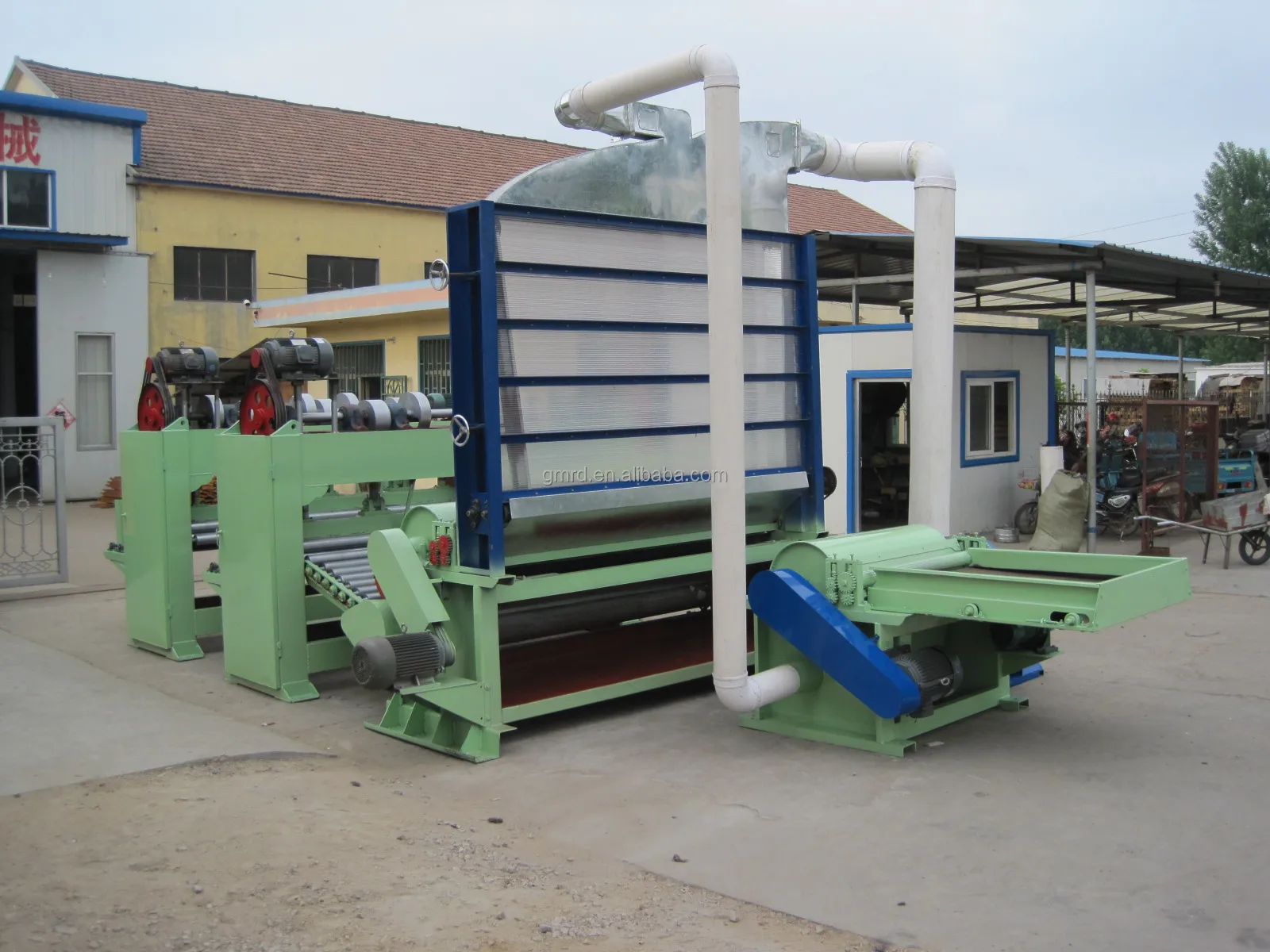

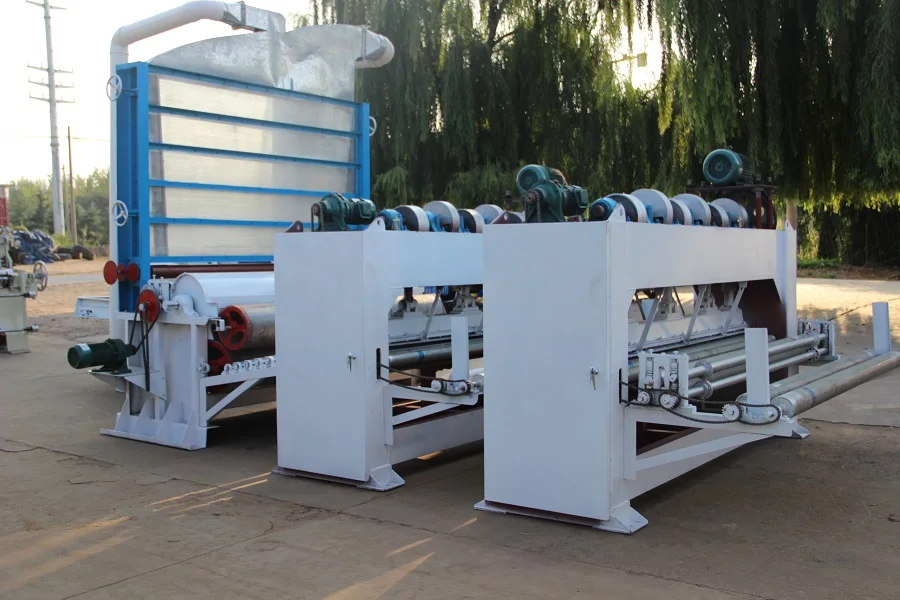

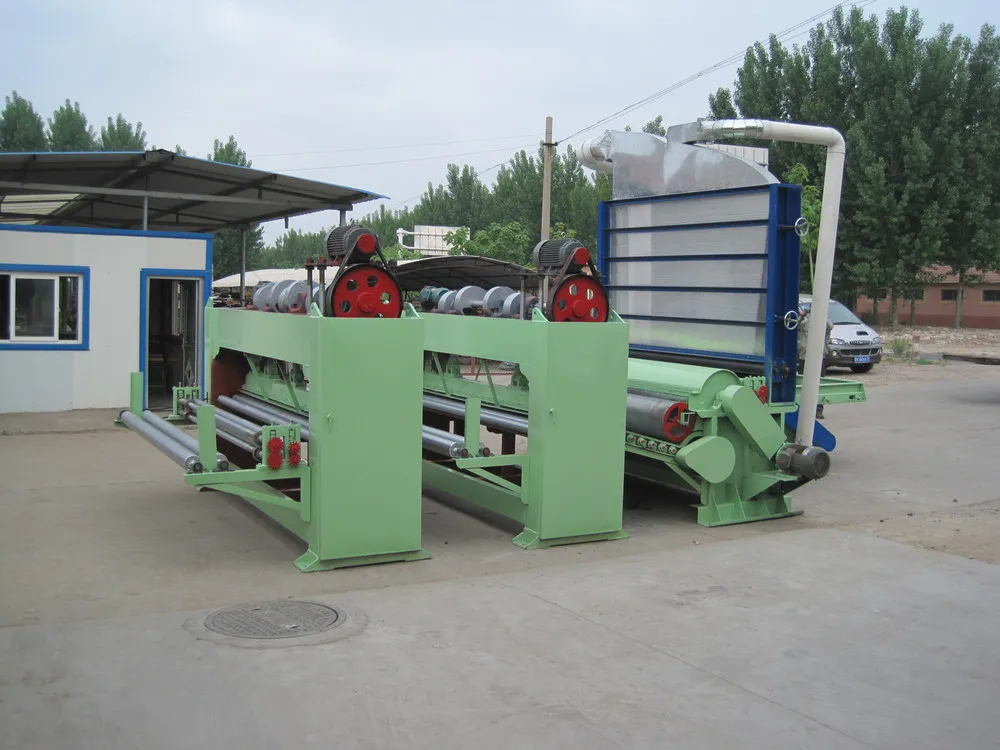

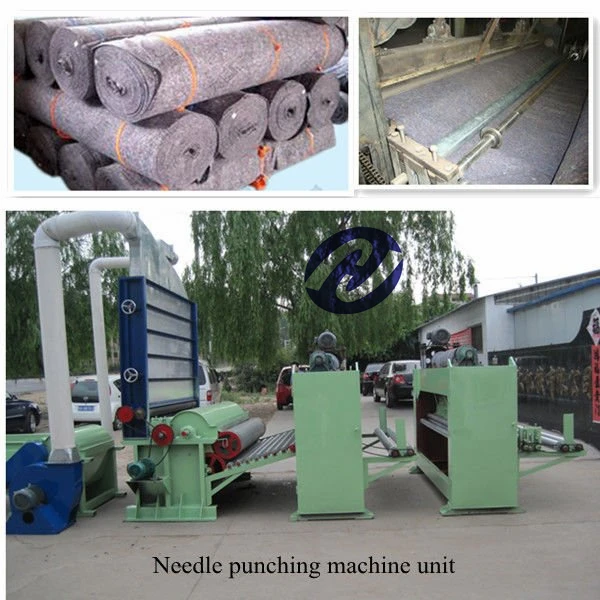

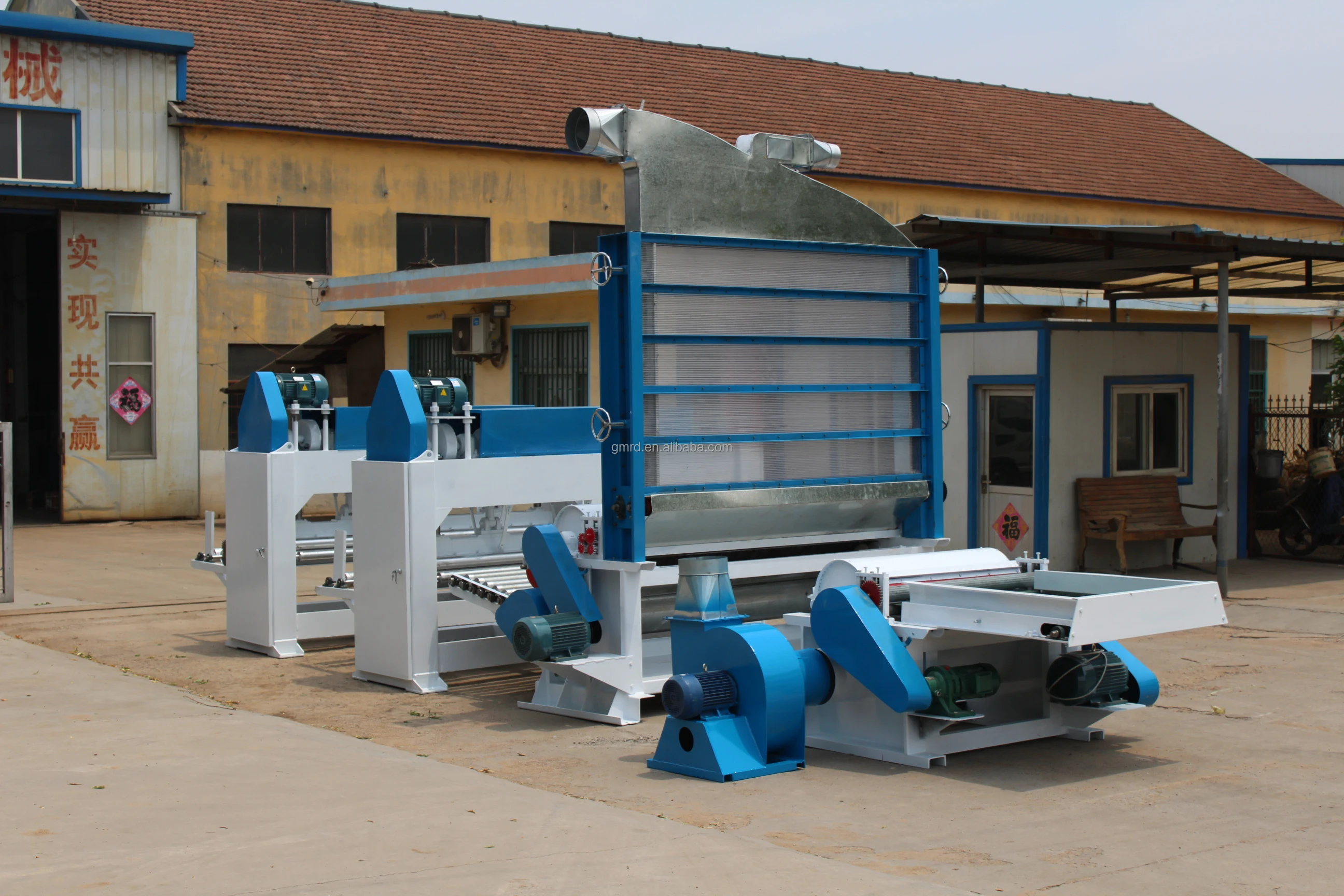

The needle punching machine unit consist of opening machine ,carding machine with chute feeder ,needle machine with winder and cutter .The necessary parts include Fan motor ,Speed reducers and electric control cabinet.We can match machineary for you according to customer's requirement .
Advantage :
widthcan be adjusted
speed ca be adjusted
thickness can be adjusted
strong degree canbe adjsted
Width of products | 2350mm |
Thickness of products | 5~15mm |
Output | 7~8m/min 400g/m2 |
Needling Frequency | 100~650times/min |
Needling Travel | 35~65mm |
Number of Needle | 5000pcs(first)/6000pcs(second) |
Power | 26.5KW |
Cylinder of caring machine | 450mm |
Speed of carding machine cylinder | 1100r/min |
size of one machine(mm) | 2600*700*1220/2600*700*2000 |
Covering area | 10*4*3.5m |
Weight | about 5600kg |
Spare | 3sets motor/1set fan/1set control cabinet/chute feed |
Machine | 1set carding machine+2sets |
