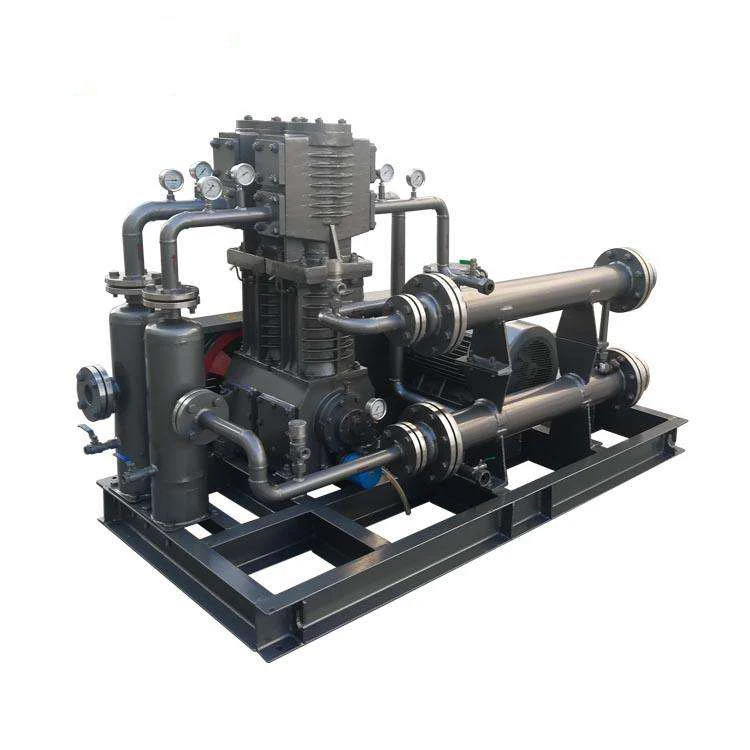

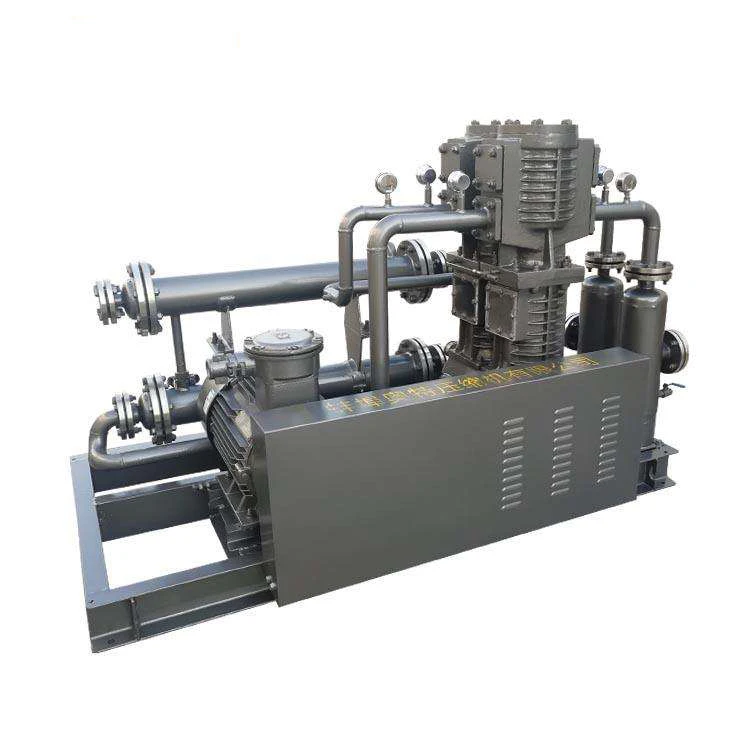

Custom Special Gas Compressor Carbon Monoxide Nitrogen Dioxide H2S Hydrogen Sulfide Nitric Oxide Gas Diaphragm Compressor
- Category: >>>
- Supplier: Bengbu Aot Compressor Co. Ltd.
Share on (1600935171696):
Product Overview
Description
Product Description
The compressor adopts oil-free lubrication structure and can run continuously for a long time. Meet the process requirements, suitable for all kinds of gases. All oil-free lubrication compressors with various parameters and requirements can be customized according to customer requirements.
Features:
small volume, light weight, small power, the cylinder adopts oil-free lubrication design.Piston ring, oil scraping seal
ring and other seals using CRPTWFE, zero leakage, more reliable.
Main Industry: compression equipment
Various types of gas compressor: ammonia compressor/oxygen compressor/hydrogen compressor/hydrogen chloride gas compressor/compressor/freon compressor/nitrogen compressor/co2 compressor/methane compressor/liquefied petroleum gas compressor/propylene compressor/gas compressor/mixture compressor/BOG compressor/raw material gas compressor

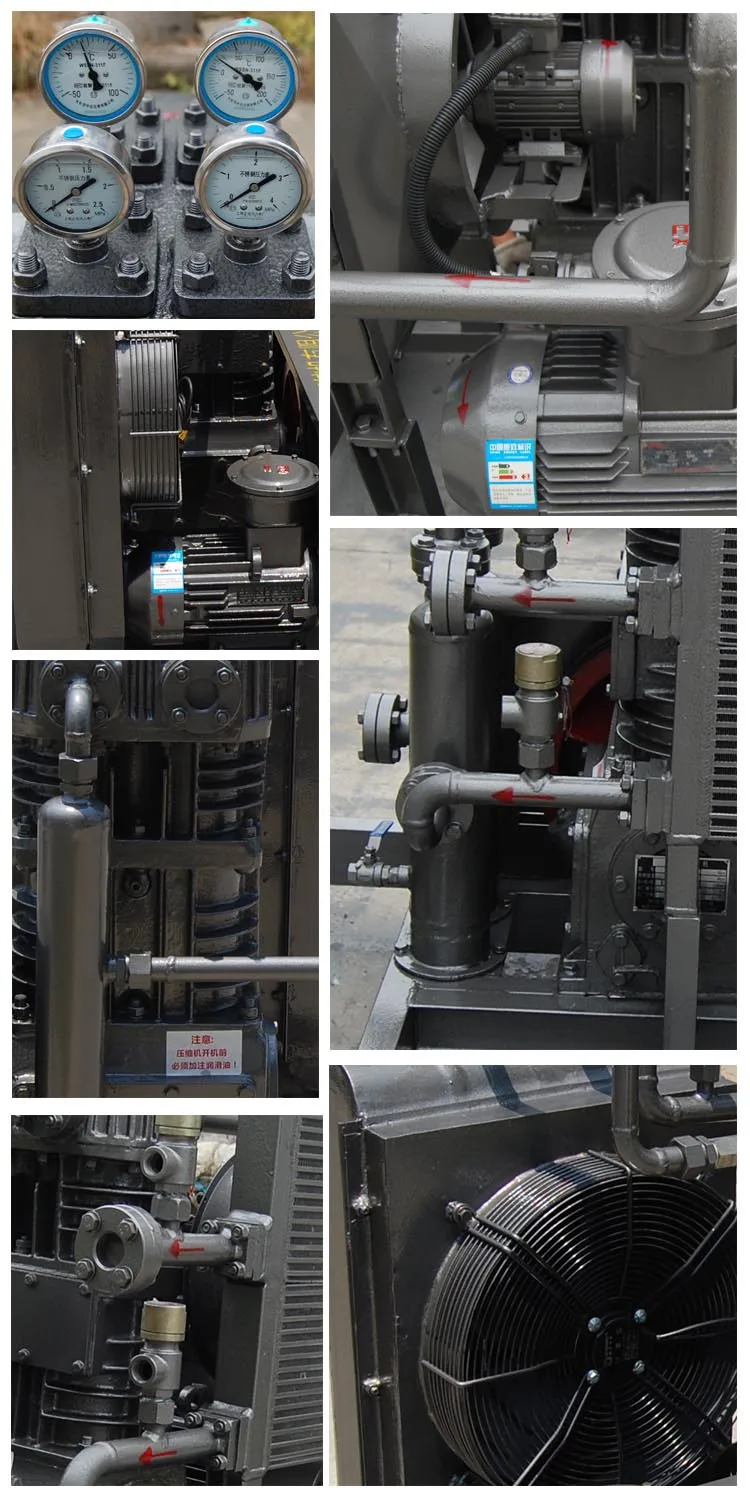

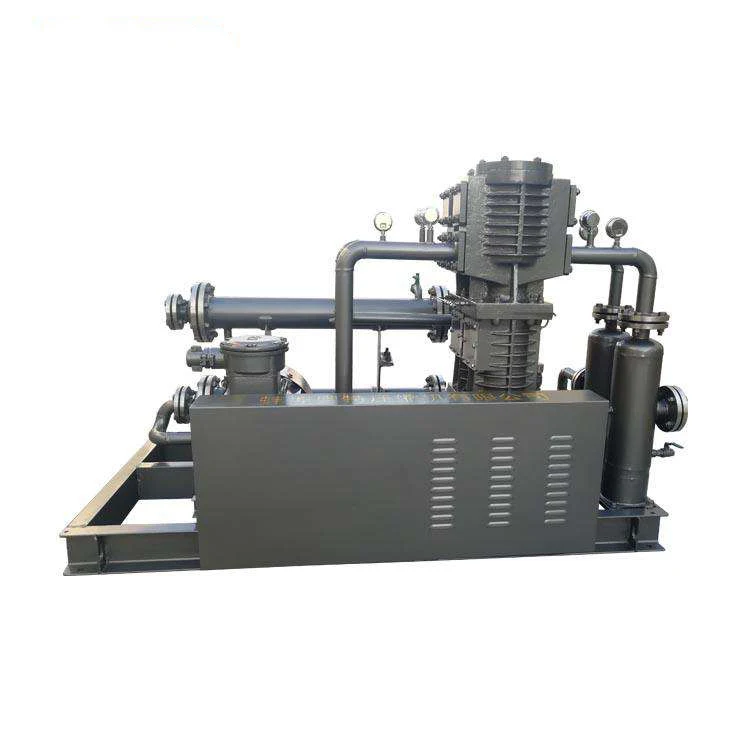

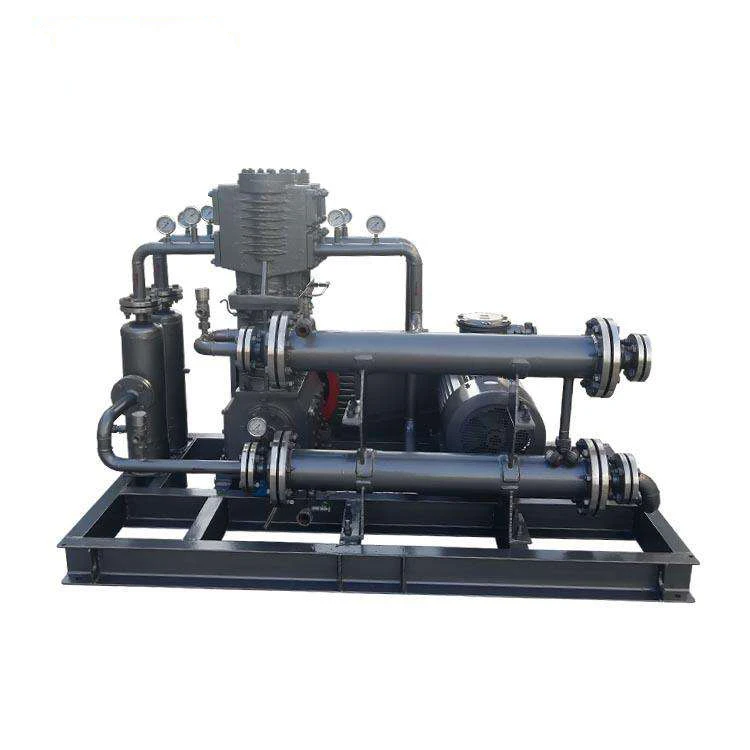

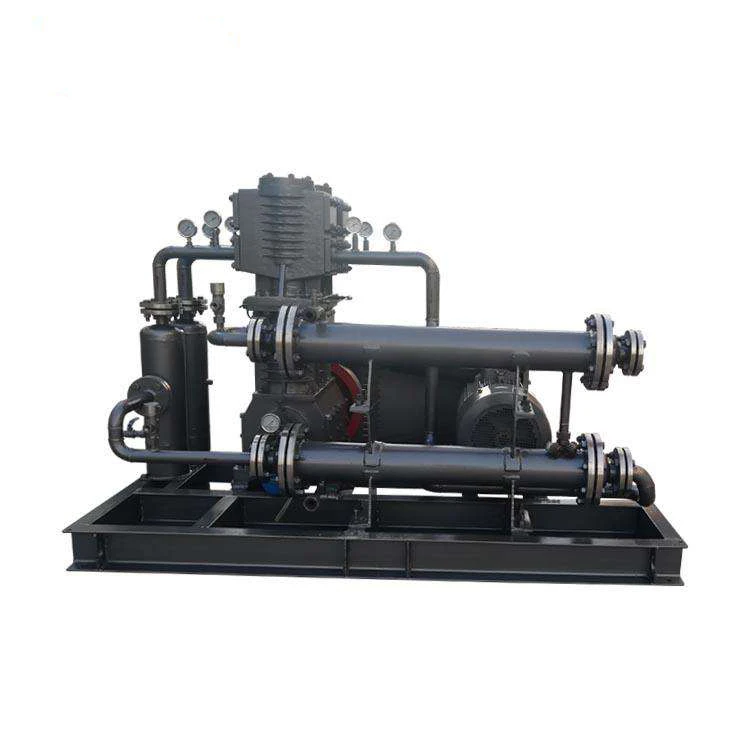

Details Images
Scope of business: compressor and accessories production and sales;Compressor maintenance and technical service;Processing and sales of mechanical equipment and parts;Import and export business of goods and technology.
Technical Parameters
Compressor | Product Model | ZW-0.05/0.2-10 | |||
Type | Z Type | ||||
Compressed medium | H2S | ||||
Nominal volume flow(Nm³/h) | 5 | ||||
Compression stage | 2 | ||||
Cylinder number | 2 | ||||
Driving mode | Belt | ||||
Noise (sound pressure level) dB(A) | ≤75 | ||||
Cooling mode | Water-cooling | ||||
Rotational speed (r/min) | 550 | ||||
Suction pressure (MPa G) | 0.02 | ||||
Discharge Pressure (MPa G) | 1.0 | ||||
Suction temperature (℃) | ≤40 | ||||
Discharge temperature (℃) | ≤150~≤50 | ||||
Lubrication type | Crankshaft, connecting rod, cross head | Oil lubrication | |||
Cylinder, Filler | Oil-free lubrication | ||||
Motor | Model | Y3-90L-2 | |||
Explosion-proof grade | / | ||||
Rotational speed (r/min) | 2850 | ||||
Rated voltage (V) | 380 | ||||
Rated frequency(Hz) | 50 | ||||
Rated current (A) | 4.59 | ||||
Rated power (Kw) | 2.2 | ||||
Compressor size (L×W×H) mm | ≈800×500×700 | ||||
Weight(kg) | ≈280 | ||||
Note:With the parameters of the logo will be subject to leave the factory
Scope of supply
No. | Name | Number | Note |
1 | Compressor host | 1 | Hydrogen sulfide anticorrosive treatment |
2 | Explosion-proof motor | 1 | / |
3 | Water cooler | 2 | / |
4 | Gas-liquid separator | 2 | / |
5 | Safety Valves | 2 | / |
6 | Common chassis | 1 set | / |
7 | Gearing | 1 set | / |
8 | Line component | 1 set | Stainless steel |
9 | Random spare parts | 1 set | / |
10 | Technical Documents | 1set | / |
11 | Nitrogen protection | 1set | / |
12 | Control cabinet | 1 | The intake pressure is low and automatic alarm stops High intake pressure will automatically alarm and stop High exhaust pressure will automatically alarm and stop |
Our Company
Certifications
Why Choose Us

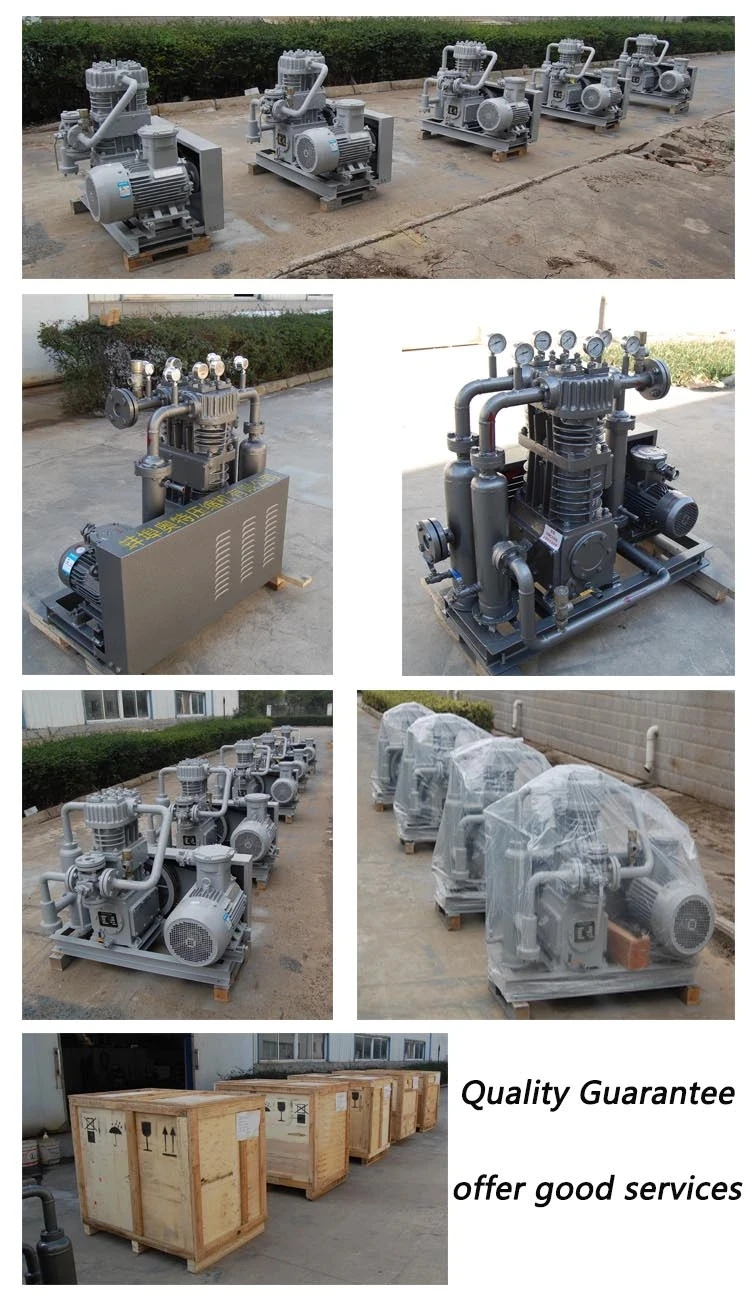

Packing & Delivery
FAQ
Q1: Why choose us?
A: Bengbu AOT Compressor Co., Ltd., is specialized in Special Gas Compressor. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Anhui, China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 30 to 60 days, if urgently order, please contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 15 years.
Q6: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours online service available. 48hours problem solved promise.
A: Bengbu AOT Compressor Co., Ltd., is specialized in Special Gas Compressor. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Anhui, China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 30 to 60 days, if urgently order, please contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 15 years.
Q6: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours online service available. 48hours problem solved promise.
Q8: How about your after-sales service?
A: Installation Services and online instructions. Well-trained engineers available to overseas service.
A: Installation Services and online instructions. Well-trained engineers available to overseas service.
