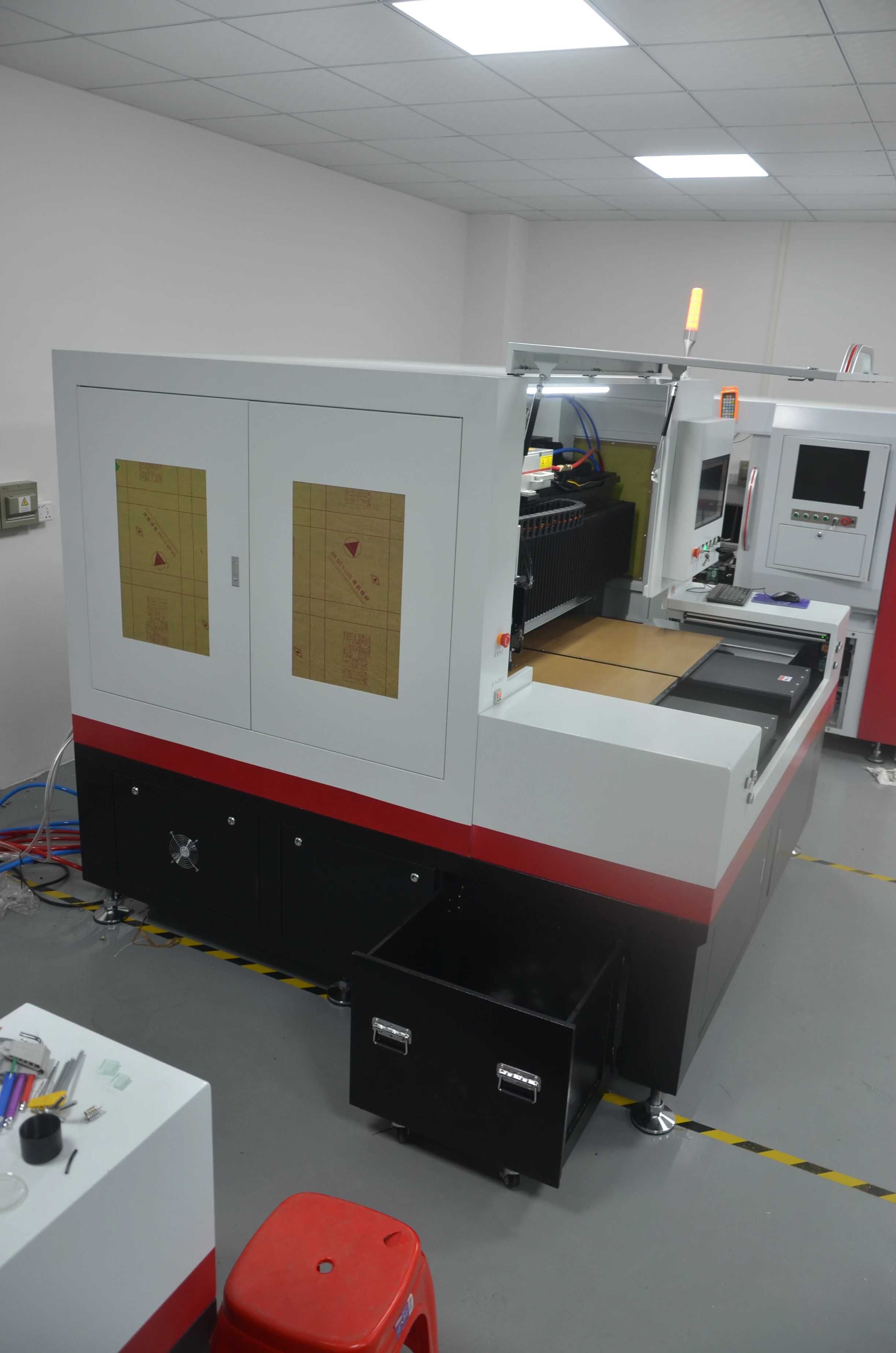

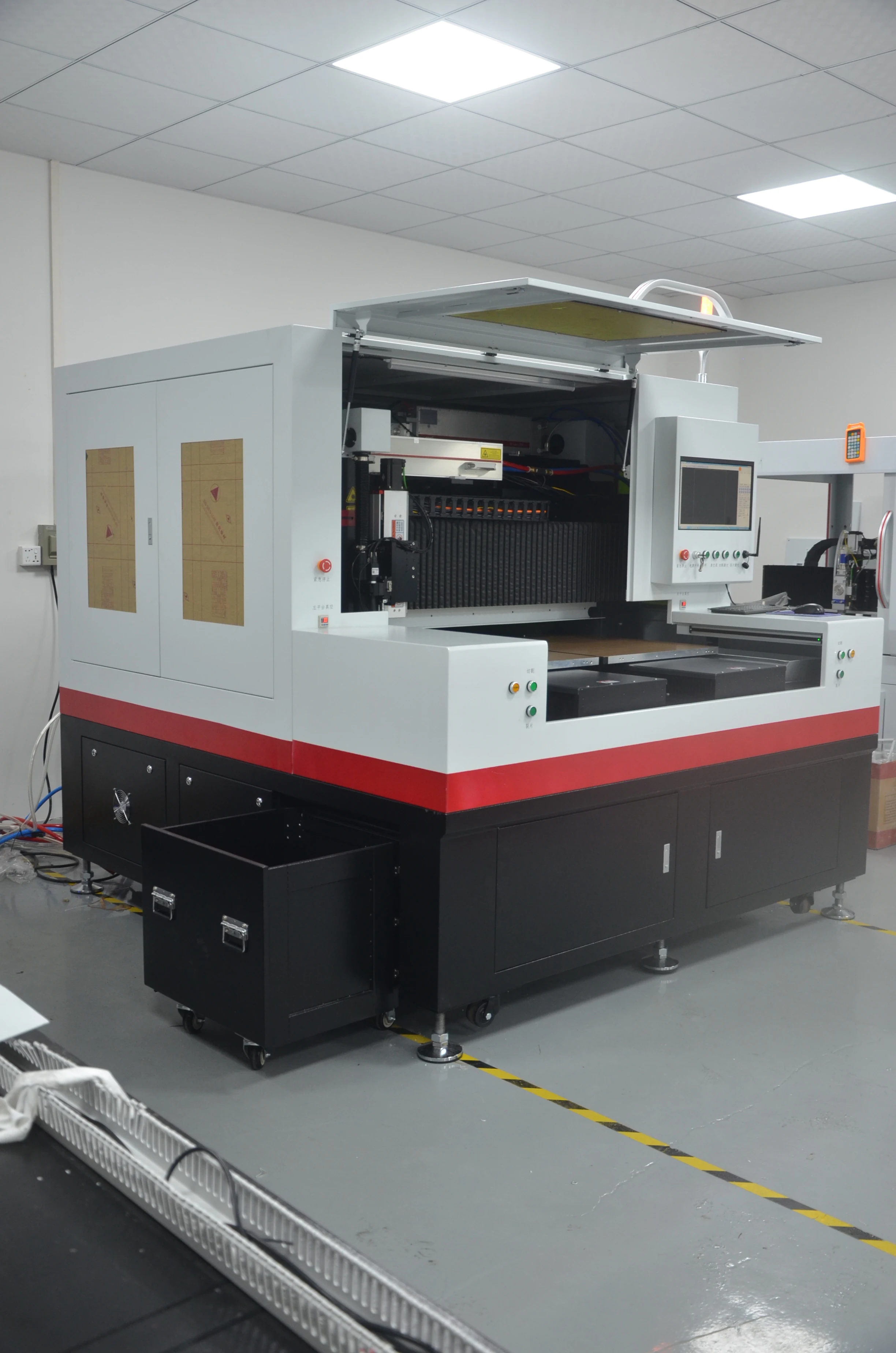

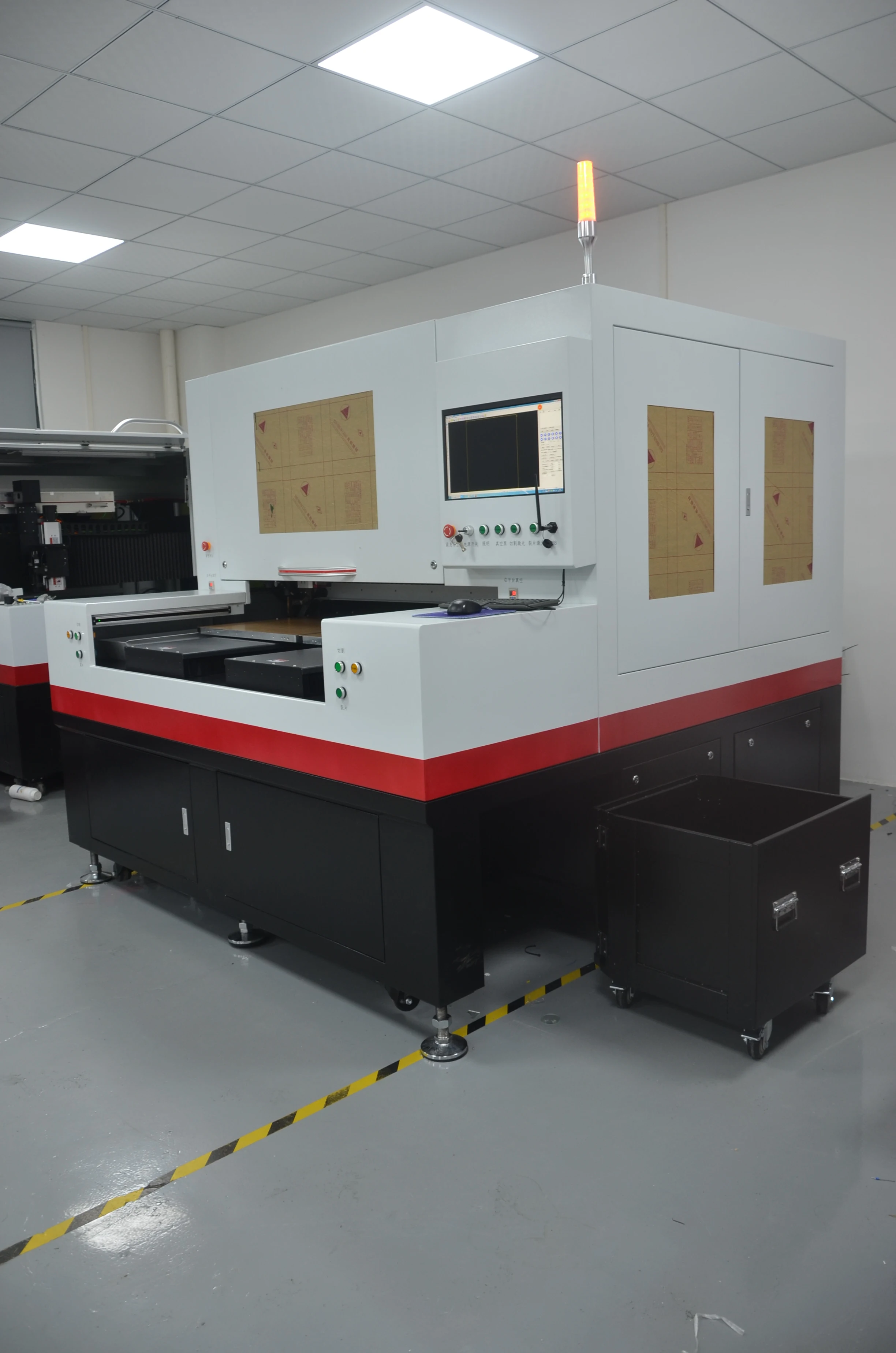

Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
optical glass optical windows lens ultra fast high precision laser cutting and separating machine
- Category: >>>
- Supplier: Shenzhen CKD Precision Mechanical &Electrical Co. Ltd.
Share on (1600935194001):
Product Overview
Description

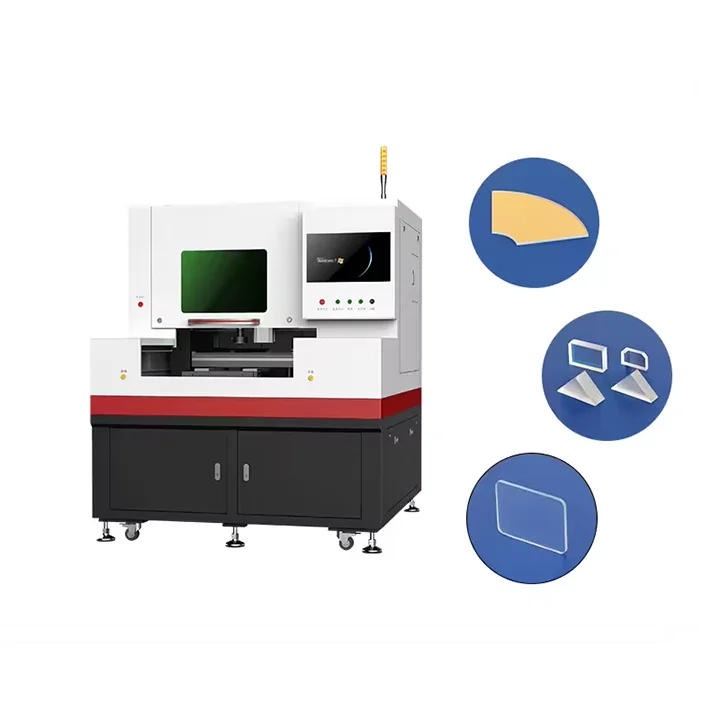

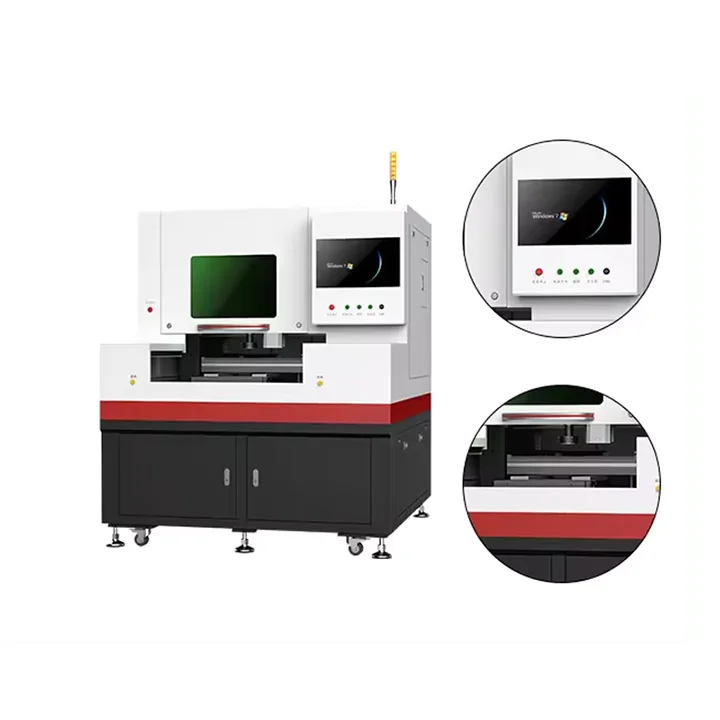

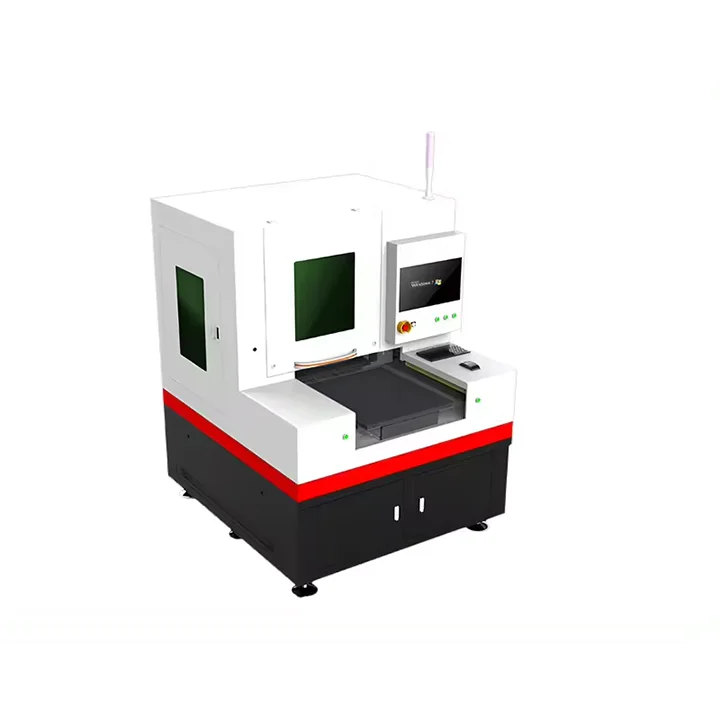

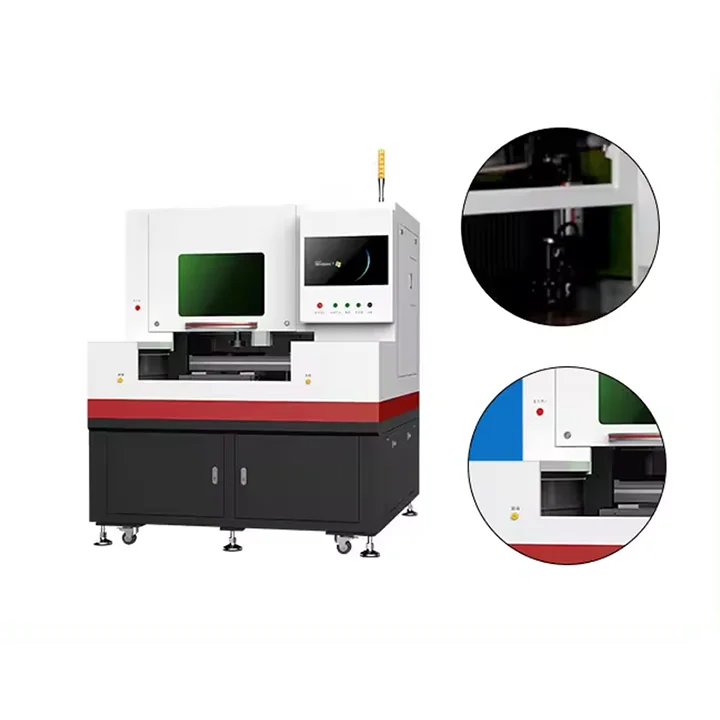

optical glass optical windows lens ultra fast high precision laser cutting and separating machine
Product Description
Advantage
1. High Cutting Quality: The cutting process is capable of producing a high-quality surface finish.
2. No Taper: The edges of the cut do not gradually narrow, maintaining parallelism of the cut surface.
3. No Burrs: The cutting process leaves no sharp edges or burrs, eliminating the need for additional deburring operations.
4. Small Chipping: Minimal chipping occurs at the material edges during the cutting process.
5. Low-Cost: The operational costs of the equipment or technology are low.
6. High-Yield Rate: The process allows for more material to be processed within a given time frame, increasing production efficiency.
7. Low Consumables and Energy-Saving: The production process uses fewer auxiliary materials and consumes less energy.
8. Irregular-Shape High-Speed Cutting: The technology enables high-speed cutting of materials with irregular shapes.
9. No Pollution: The cutting process does not produce environmental pollutants.
10. No Powder and No Wastewater: The cutting process is environmentally friendly, as it does not generate dust or wastewater.
2. No Taper: The edges of the cut do not gradually narrow, maintaining parallelism of the cut surface.
3. No Burrs: The cutting process leaves no sharp edges or burrs, eliminating the need for additional deburring operations.
4. Small Chipping: Minimal chipping occurs at the material edges during the cutting process.
5. Low-Cost: The operational costs of the equipment or technology are low.
6. High-Yield Rate: The process allows for more material to be processed within a given time frame, increasing production efficiency.
7. Low Consumables and Energy-Saving: The production process uses fewer auxiliary materials and consumes less energy.
8. Irregular-Shape High-Speed Cutting: The technology enables high-speed cutting of materials with irregular shapes.
9. No Pollution: The cutting process does not produce environmental pollutants.
10. No Powder and No Wastewater: The cutting process is environmentally friendly, as it does not generate dust or wastewater.
Applied Materials
1. Ultra Clear Class: Refers to a category of glass with exceptional clarity.
2. Plain White Glass: A type of glass that is uniformly white and often used for various applications.
3. High Borosilicate Glass: A type of glass known for its high boron content, which provides greater resistance to thermal stress.
4. Quartz Glass: A high purity glass that is low in impurities and has unique properties such as a high melting point and
resistance to chemicals.
5. Phone Glass Cover: The protective glass used as a cover for smartphone screens.
6. Car Glass: Glass used in automotive applications, such as windshields or windows.
7. Camera Glass Cover: The protective glass cover for camera lenses or display screens.
8. LCD Screen: The liquid crystal display screen used in a variety of electronic devices.
9. K9 Glass: A type of optical glass that is often used in the manufacturing of optical instruments.
10. Filter Cutting: The process of cutting glass or other materials to create filters for various applications.
11. Mirror Cutting: The process of cutting glass to produce mirror surfaces for decorative or functional use.
2. Plain White Glass: A type of glass that is uniformly white and often used for various applications.
3. High Borosilicate Glass: A type of glass known for its high boron content, which provides greater resistance to thermal stress.
4. Quartz Glass: A high purity glass that is low in impurities and has unique properties such as a high melting point and
resistance to chemicals.
5. Phone Glass Cover: The protective glass used as a cover for smartphone screens.
6. Car Glass: Glass used in automotive applications, such as windshields or windows.
7. Camera Glass Cover: The protective glass cover for camera lenses or display screens.
8. LCD Screen: The liquid crystal display screen used in a variety of electronic devices.
9. K9 Glass: A type of optical glass that is often used in the manufacturing of optical instruments.
10. Filter Cutting: The process of cutting glass or other materials to create filters for various applications.
11. Mirror Cutting: The process of cutting glass to produce mirror surfaces for decorative or functional use.
specifications
Specification | Description |
The parameters of the cutting laser source | |
Cooling Method | Water cooling |
Pulse Width | <10ps |
Pulse Frequency | 1Hz - 1000kHz |
Wavelength | 1064nm |
Beam Quality | M^2 < 1.2 |
Power | 50W (options: 10W, 20W, 30W, 60W, 80W, etc.) |
Laser Type | Infrared picosecond pulse laser |
Cutting Performance | |
Drive Motor | XY Linear Motor + Optical Grating Scale |
Positioning Accuracy | ±2um |
Repeatability | ±1.5um |
Acceleration | 1G |
Linear Speed | Up to 1000mm/s |
Cutting Speed | Adjustable from 0-500mm/s |
Cutting Thickness | Ultra-clear glass single cut ≤19mm, Blue glass double cut ≤19mm (laser power and cutting head focus depth may need to be selected based on product material, thickness, and cutting speed requirements) |
Minimum Cutting Burr | ≤5um |
Cutting Precision | ±0.01mm |
X/Y Cutting Range | 610×700mm |
Splitting laser source | |
Laser Type | RFC02 (Radio Frequency CO2) |
Cooling Method | Water cooling |
Wavelength | 10.6µm |
Power | 150W (options: 250W/350W) |
Pulse Frequency | 1-100kHz |
Parameters of power, size, and weight | |
Weight | Approximately 2000KG /2500KG/3000KG |
Machine Dimensions (Option 1) | Length 1600mm x Width 1700mm x Height 1960mm |
Machine Dimensions (Option 2) | Length 1700mm x Width 1700mm x Height 1960mm |
Machine Dimensions (Option 3) | Length 1900mm x Width 1700mm x Height 1960mm |

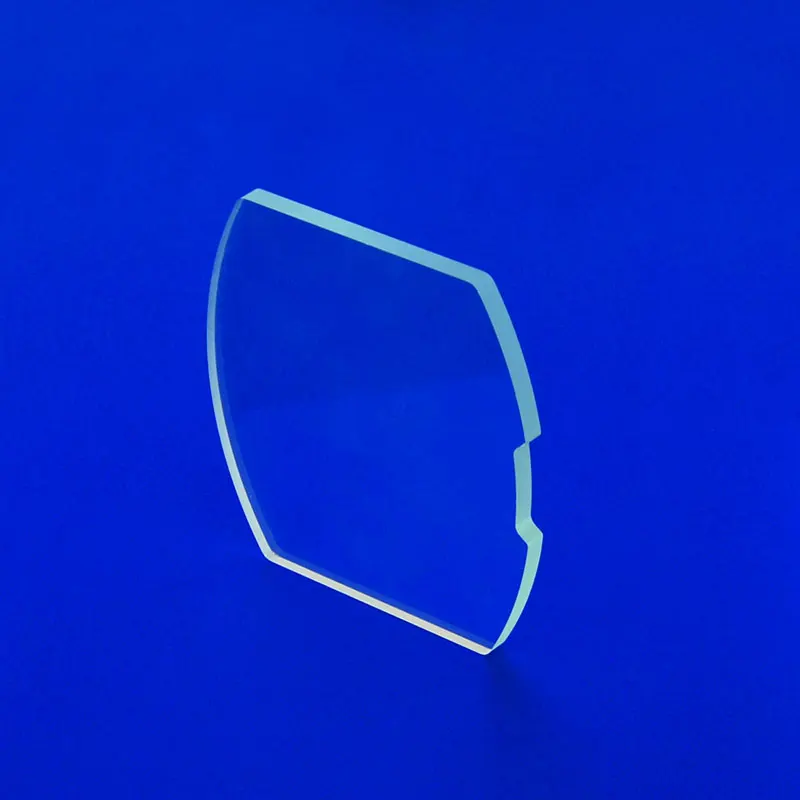

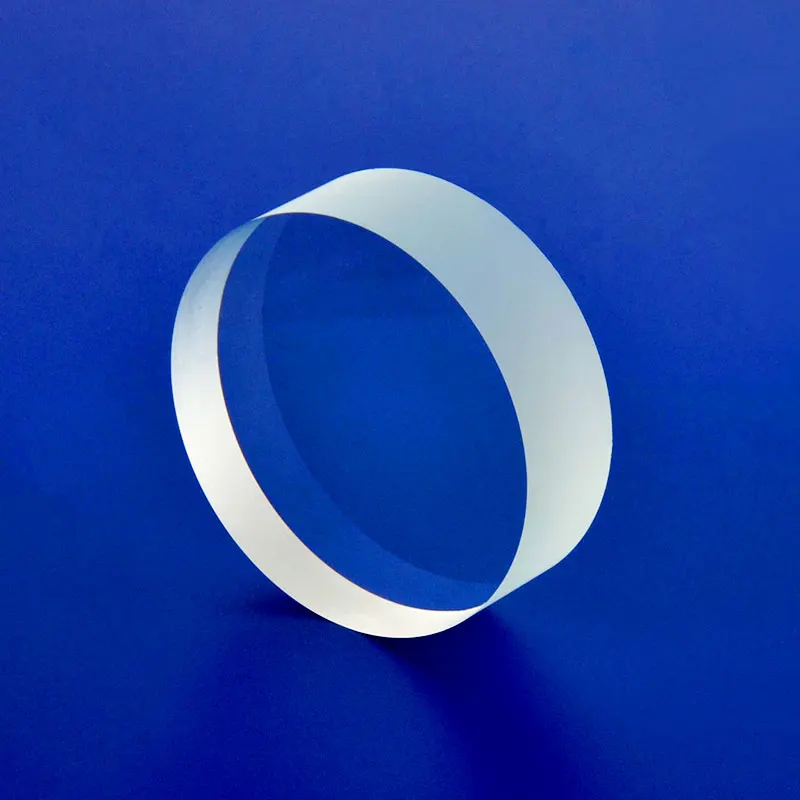

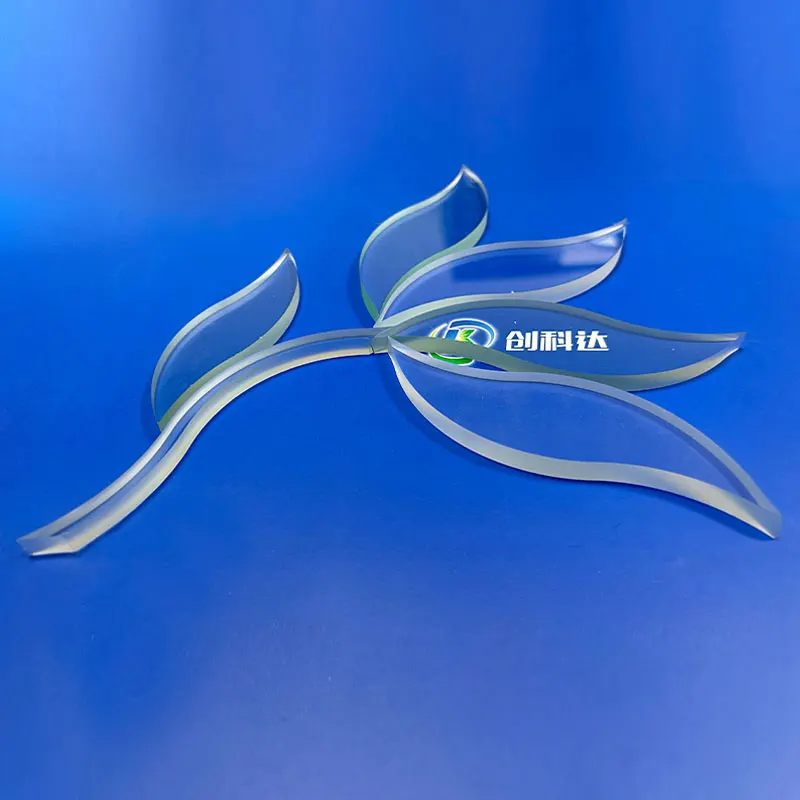

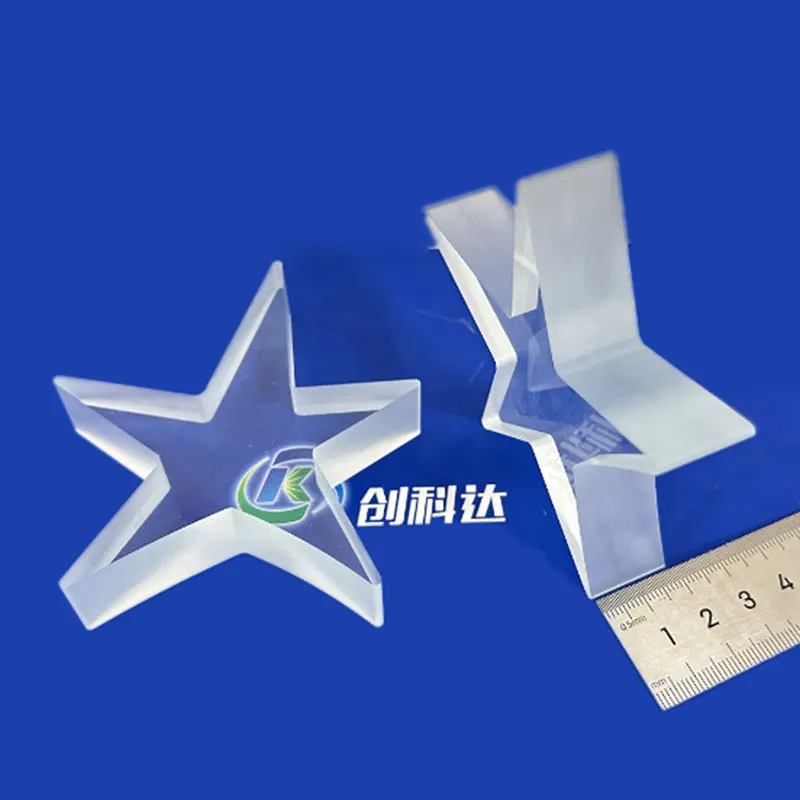

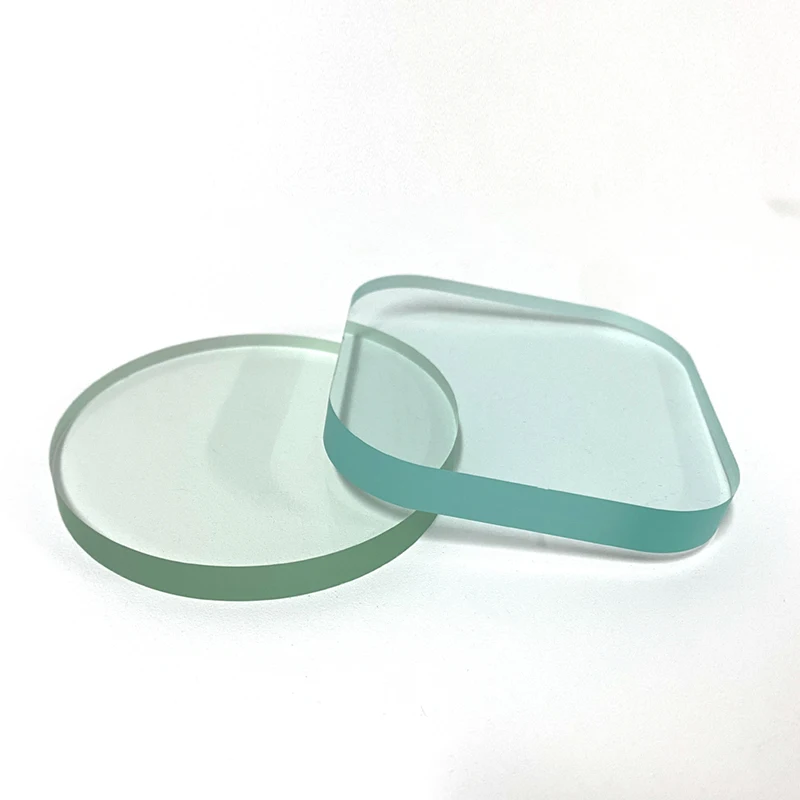

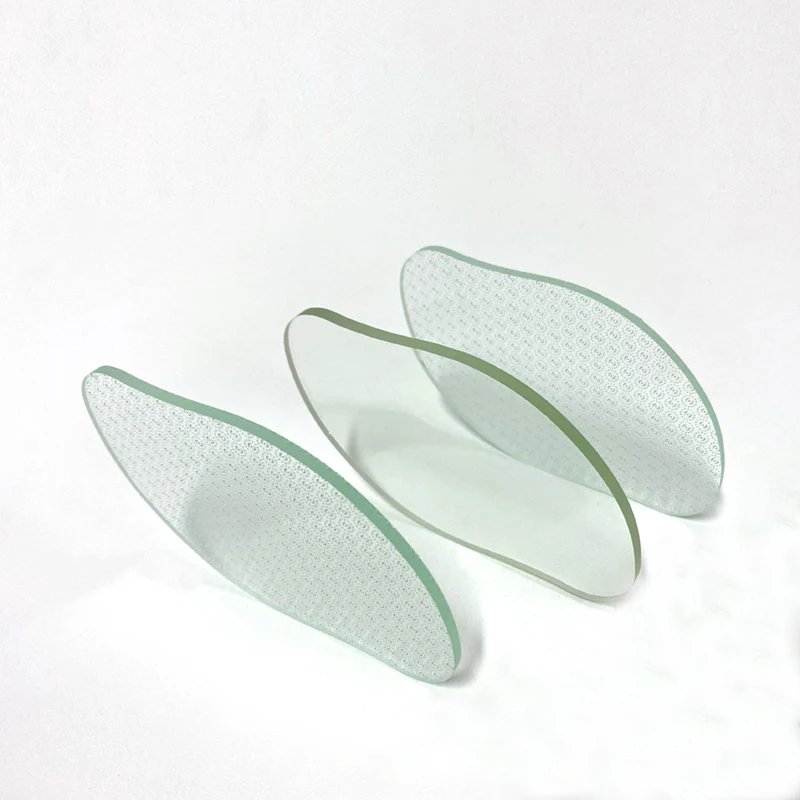

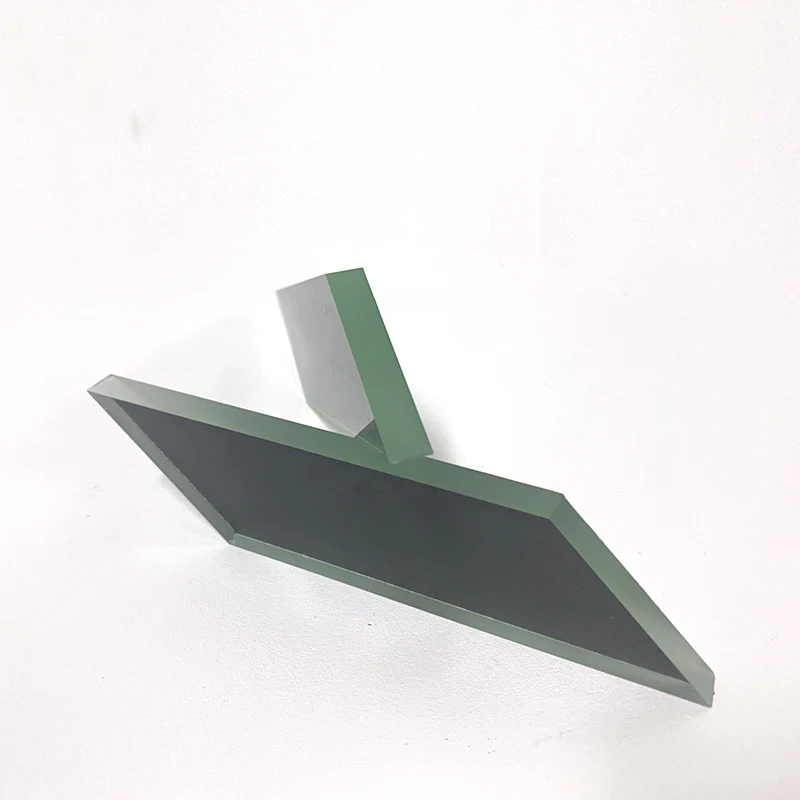

Sample
Glass
Optic/UTG/Willow/Brittle Biomedical glass
Real Estate
Architectural decoration Bathroom glass
Automobile
Car glass/Instrumentation panel
Communication Media
Mobile/Watch sapphire cover
Camera/CCTV Lens
Camera/CCTV Lens
Home Appliance
Home appliance glass panel Lighting glass
New Energy
Photovoltaic glass

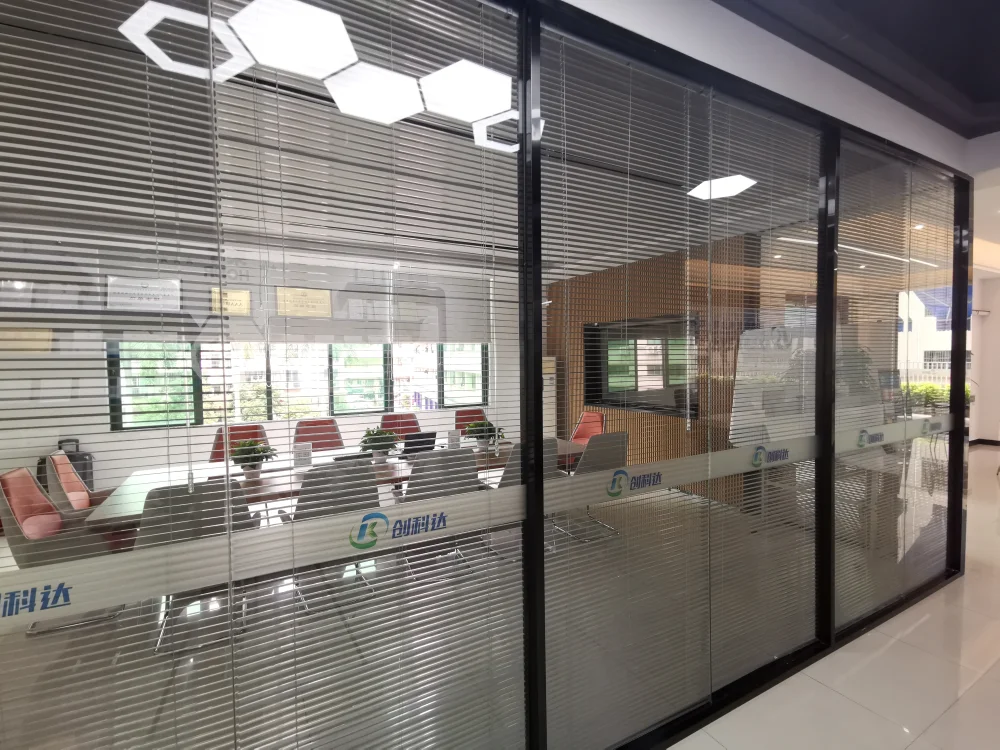

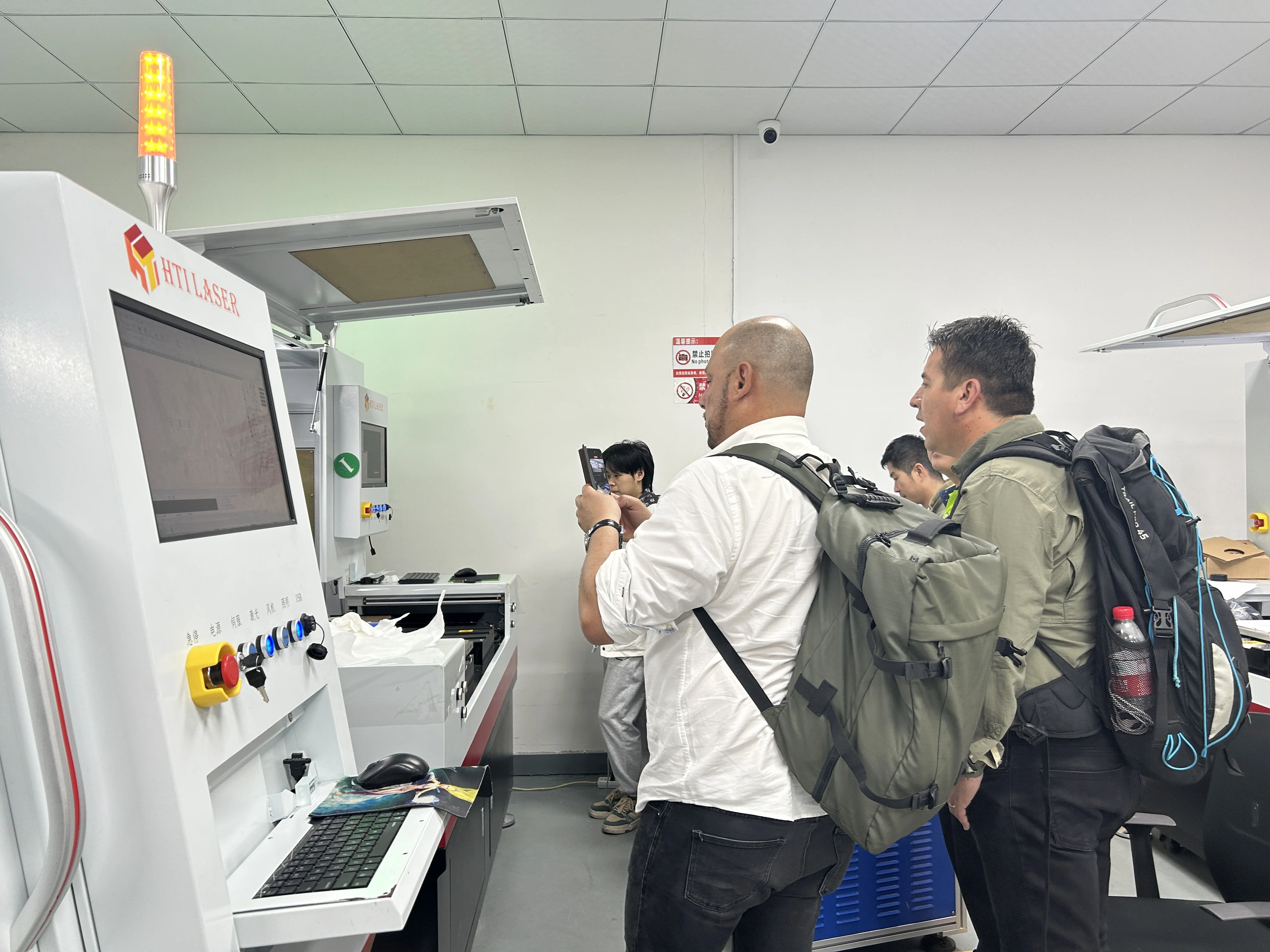

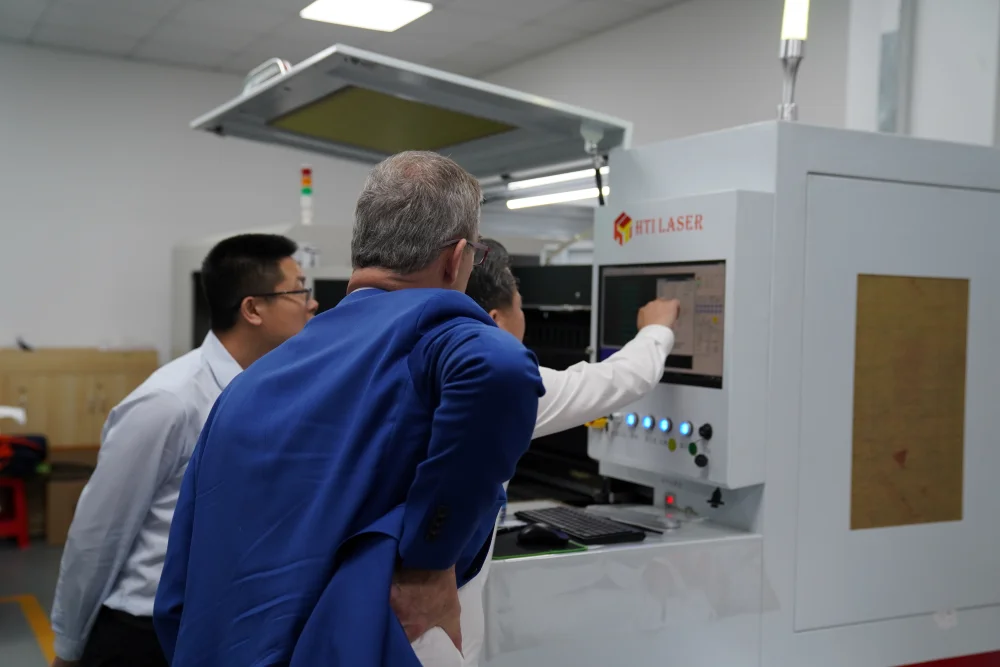

Customer visits and services
Shenzhen CKD Precision Mechanical &Electrical Co., Ltd.
Shenzhen CKD Precision Mechanical & Electrical Co., Ltd is a laser equipment manufacturer and automation New Intelligent Manufacturing solution provider, specializing in the R&D, production, sales, and service. After more than ten years of deep cultivation and accumulation, CKD has obtained more than 40 patents, passed CE certification, ISO9001 quality management system certification, and intellectual property management system certification, and gained the status of a National H-Tech enterprise. Thanks to our strong R&D team and core software technology, our product technology has achieved innovation and breakthroughs in fields such as ultra-fast laser cutting, laser drilling, TFT-LCD screen laser repair, laser welding, and laser marking. Especially in the automation new intelligent manufacturing of glass brittle material processing and TFT-LCD repair industry, the company provides customers with low-cost, high-quality, and efficient solutions, making contributions to customer value, innovation, and development.
Main products:
1. Laser marking or engraving machine, such as fiber, CO2, UV, Green, and YAG laser machines.
2. Laser welding machine.
3. Laser cutting machine.
4. Laser slicer machine.
5. LCD screen repairing laser machine.
6. 3D inner engraving laser machine.
7. 3D marking laser machine.
8. Fiber and CO2 laser sources.
Our quality policy: Credit comes from quality. Quality comes from quality; With quality in hand, carry forward the spirit of high quality; No quality, no market. No improvement, no progress.
Our laser equipment are widely used in industries such as hardware tools, solar energy, auto accessories, electronics, electric appliances, medical, glasses, leather, optical accessories, advertising, commodities, communication, sheet metal industry, jewelry industry, kitchenware, jet coding, and crafts gifts, etc.
Welcome and Thanks: We welcome new customers' attention and thank old customers' support! We will, as always, provide and feedback you with higher performance, cost-effective, better quality products and timely service.
Main products:
1. Laser marking or engraving machine, such as fiber, CO2, UV, Green, and YAG laser machines.
2. Laser welding machine.
3. Laser cutting machine.
4. Laser slicer machine.
5. LCD screen repairing laser machine.
6. 3D inner engraving laser machine.
7. 3D marking laser machine.
8. Fiber and CO2 laser sources.
Our quality policy: Credit comes from quality. Quality comes from quality; With quality in hand, carry forward the spirit of high quality; No quality, no market. No improvement, no progress.
Our laser equipment are widely used in industries such as hardware tools, solar energy, auto accessories, electronics, electric appliances, medical, glasses, leather, optical accessories, advertising, commodities, communication, sheet metal industry, jewelry industry, kitchenware, jet coding, and crafts gifts, etc.
Welcome and Thanks: We welcome new customers' attention and thank old customers' support! We will, as always, provide and feedback you with higher performance, cost-effective, better quality products and timely service.

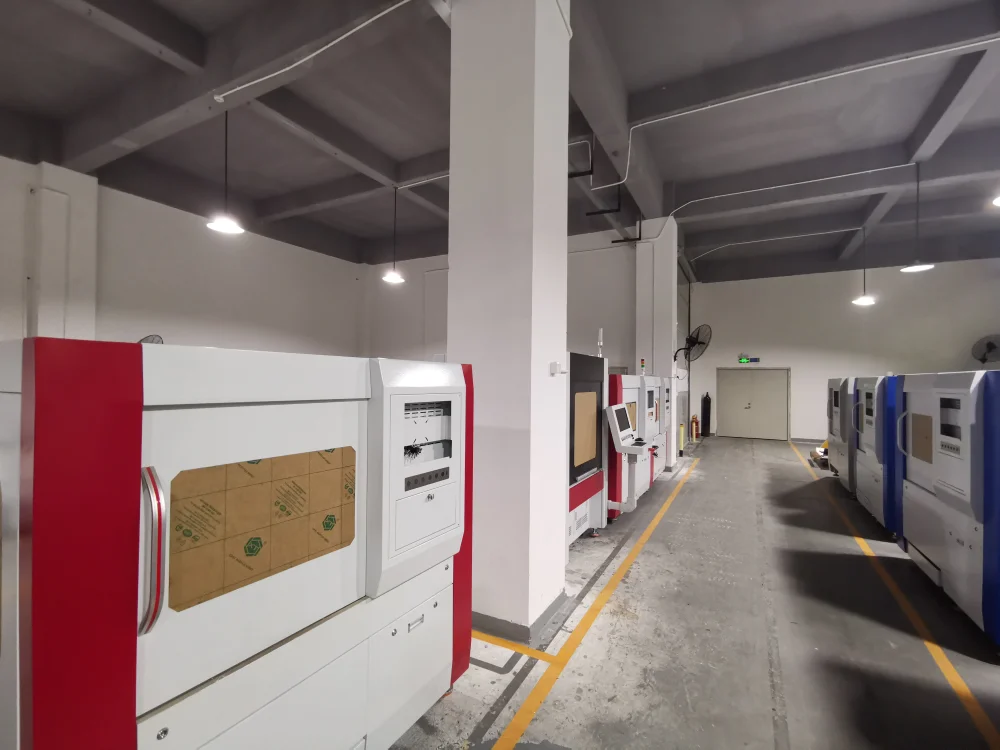

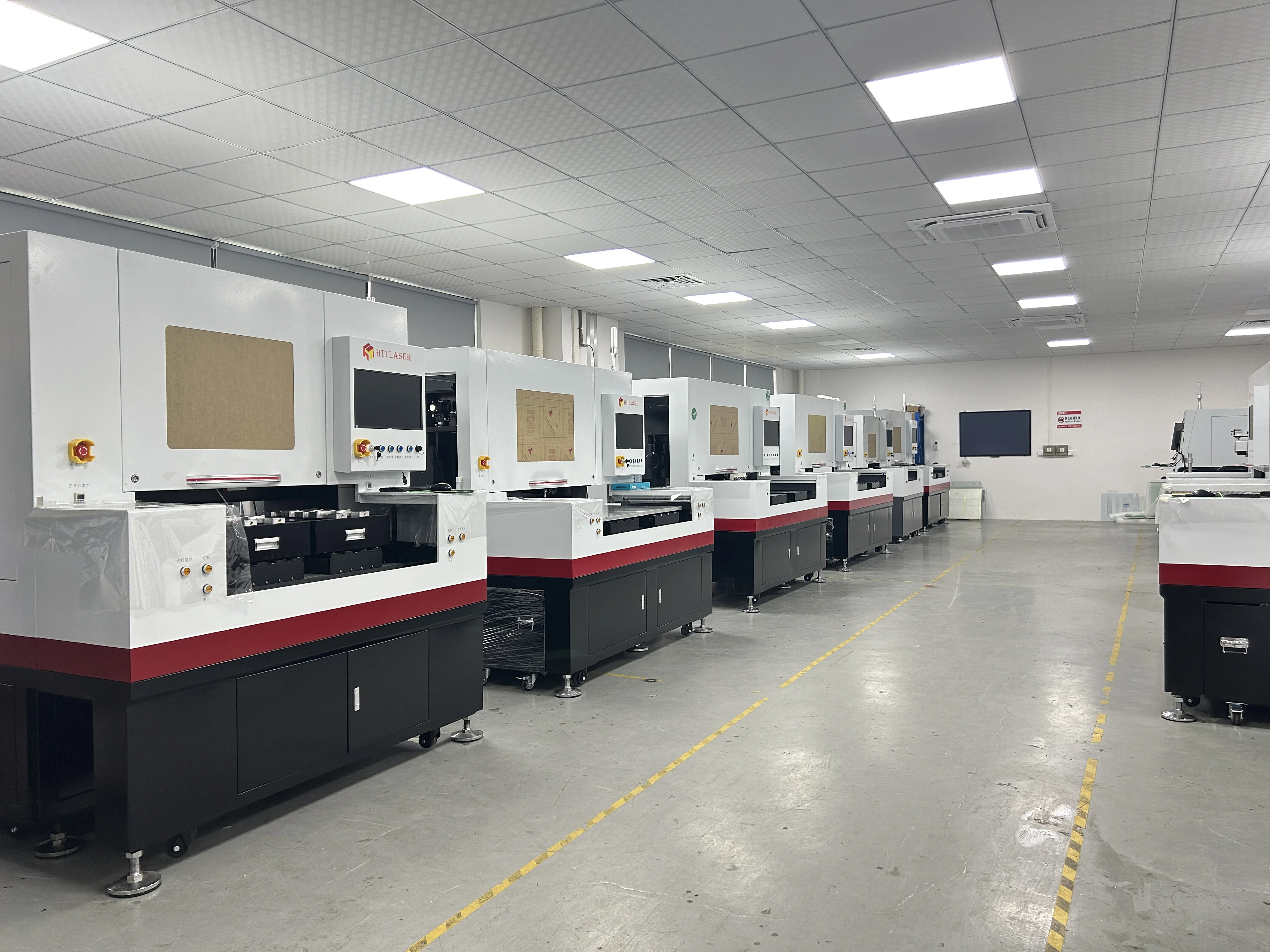

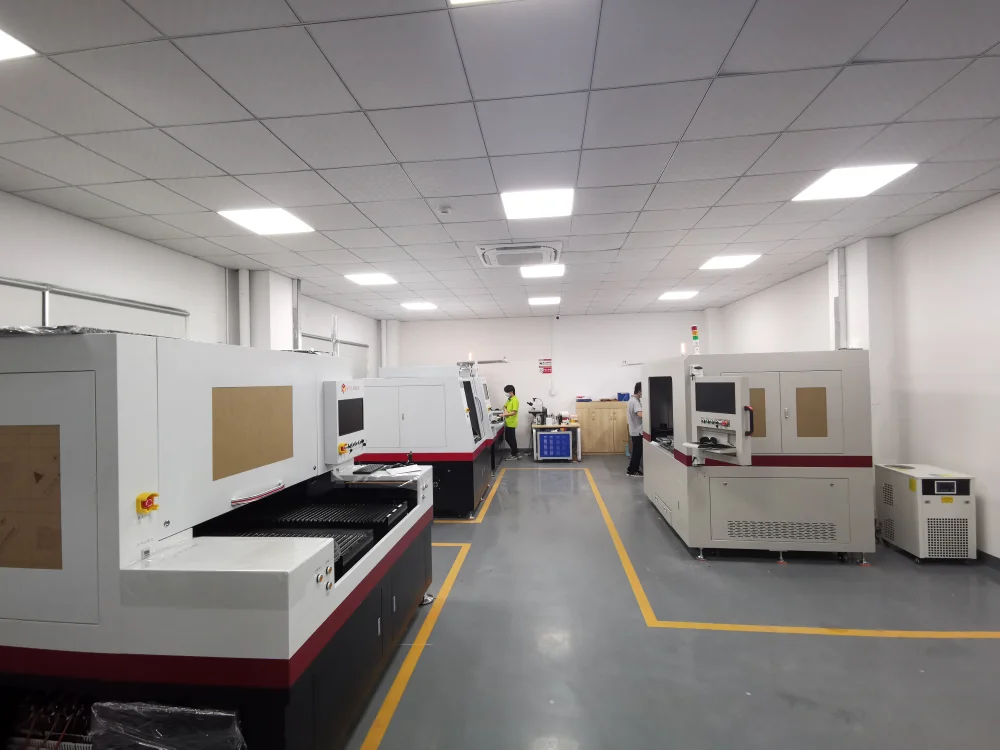

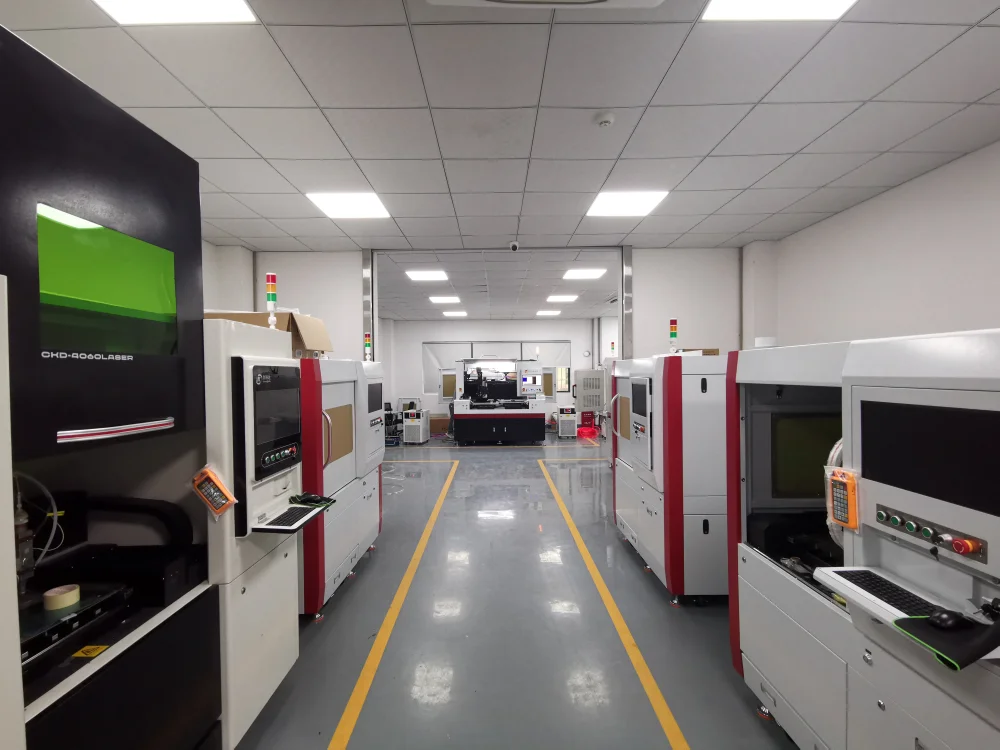

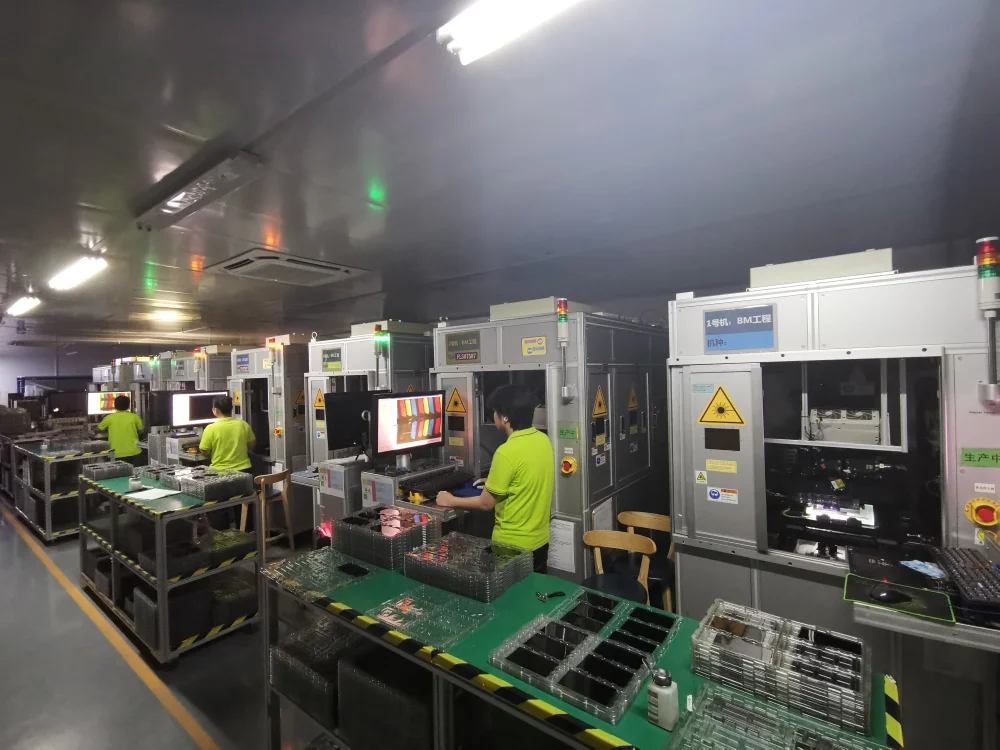

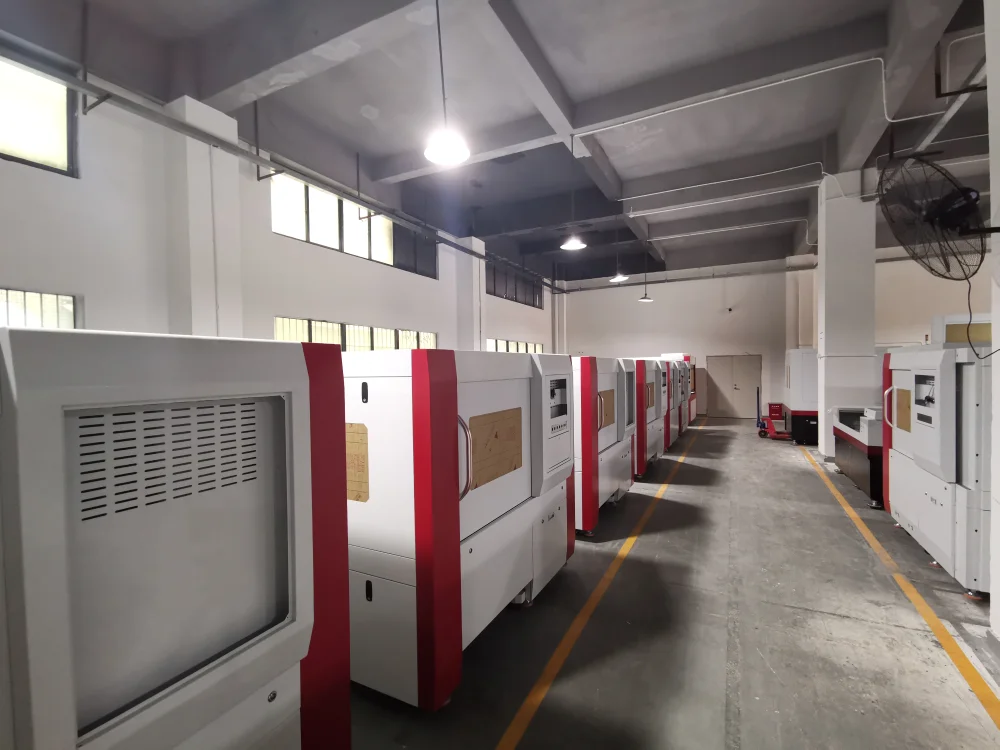

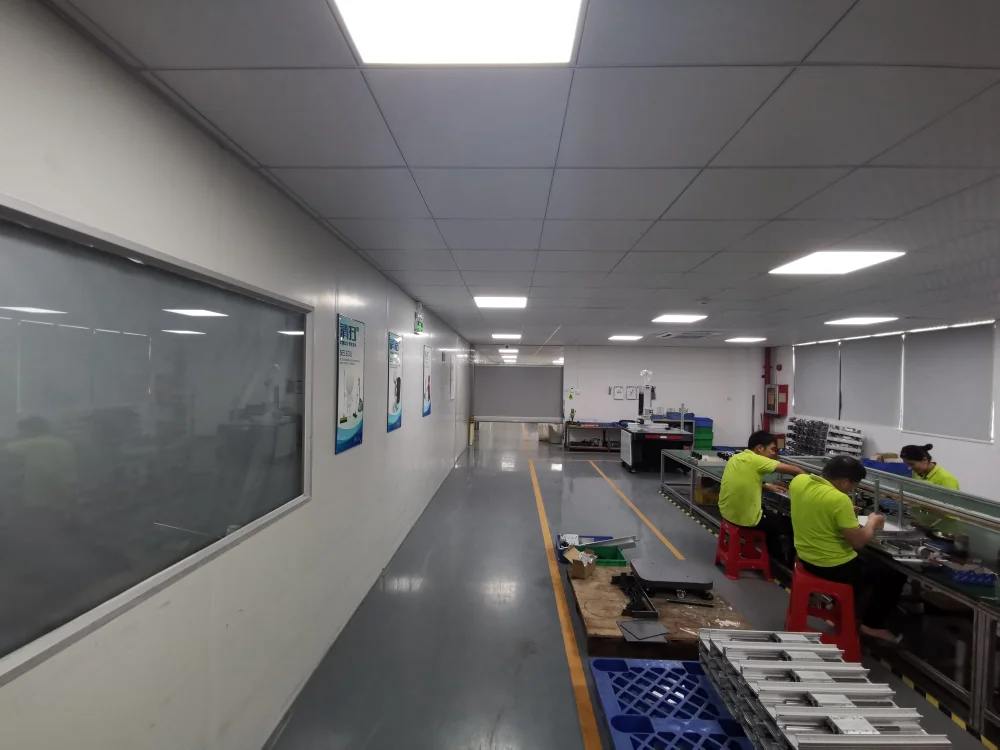

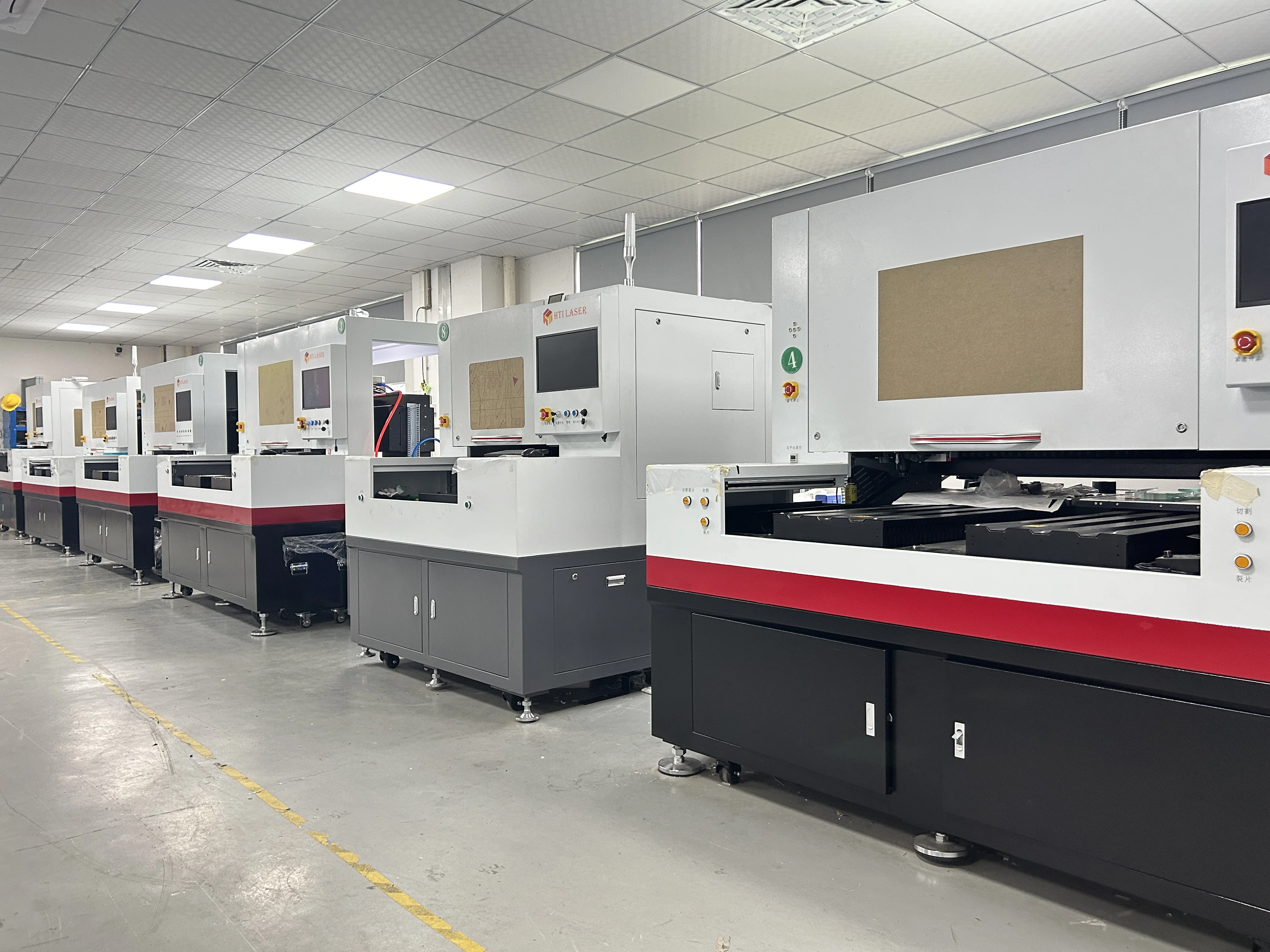

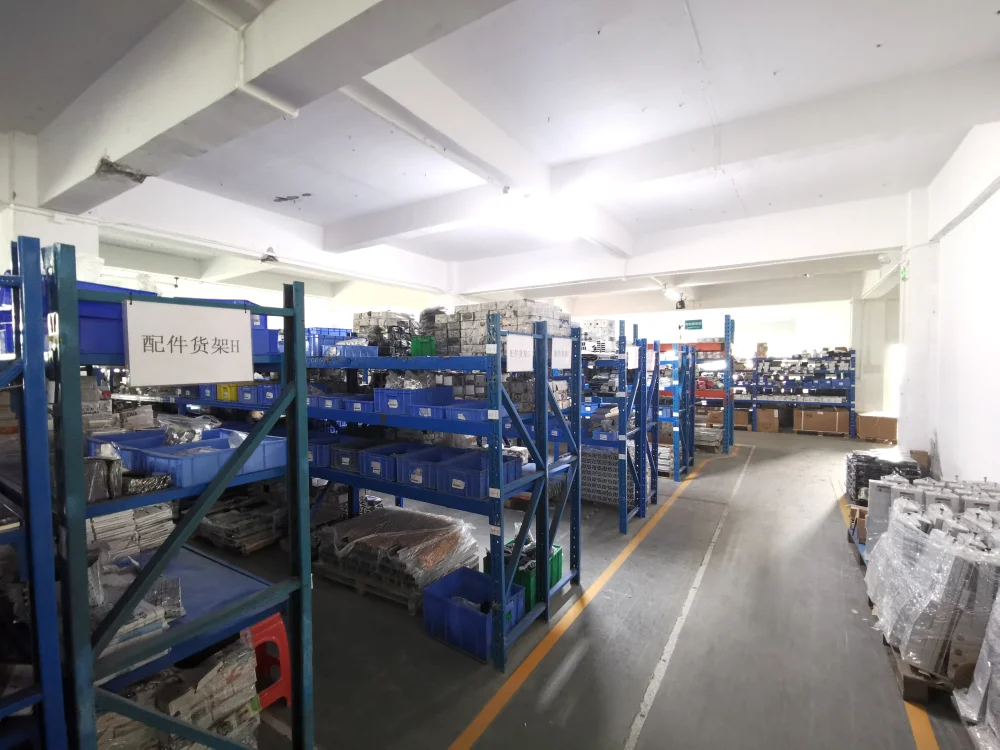

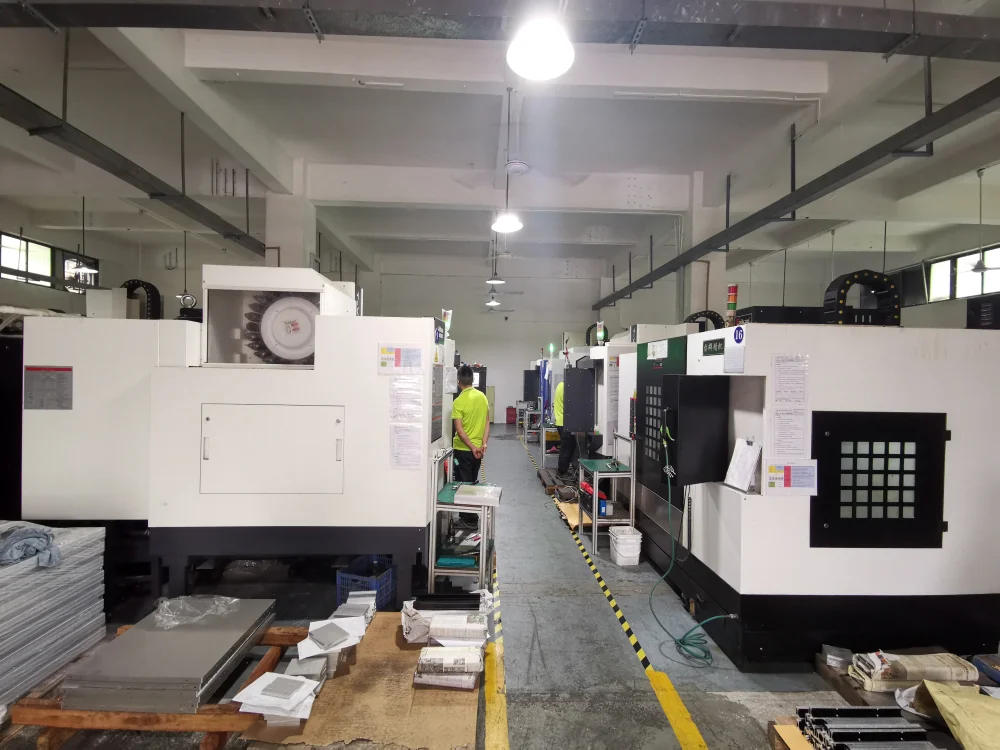

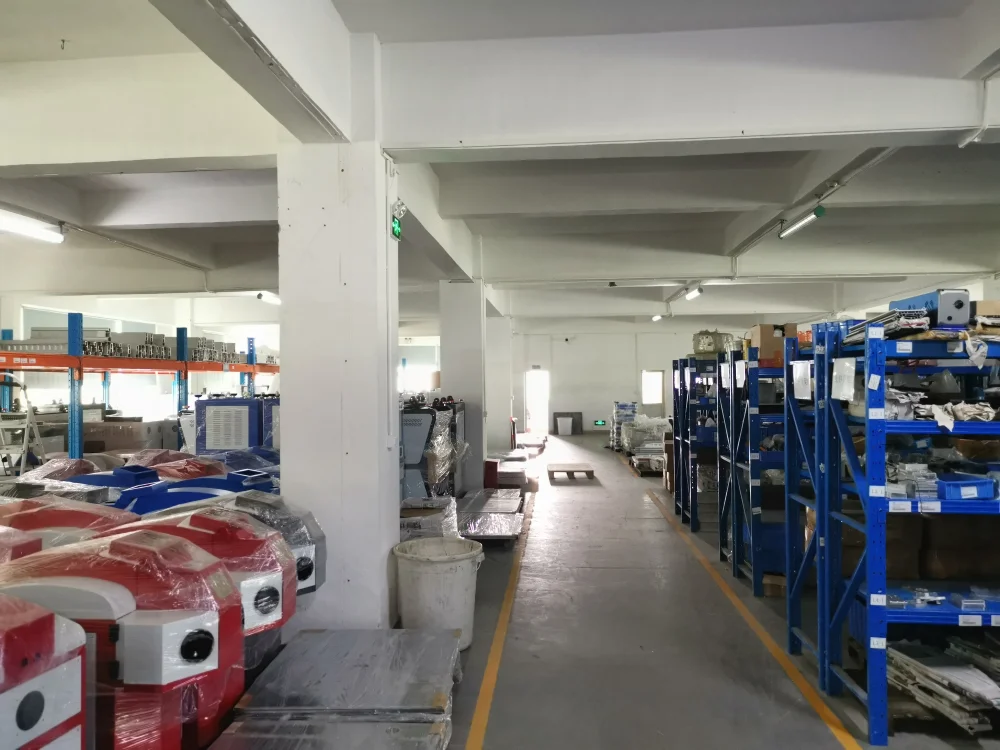

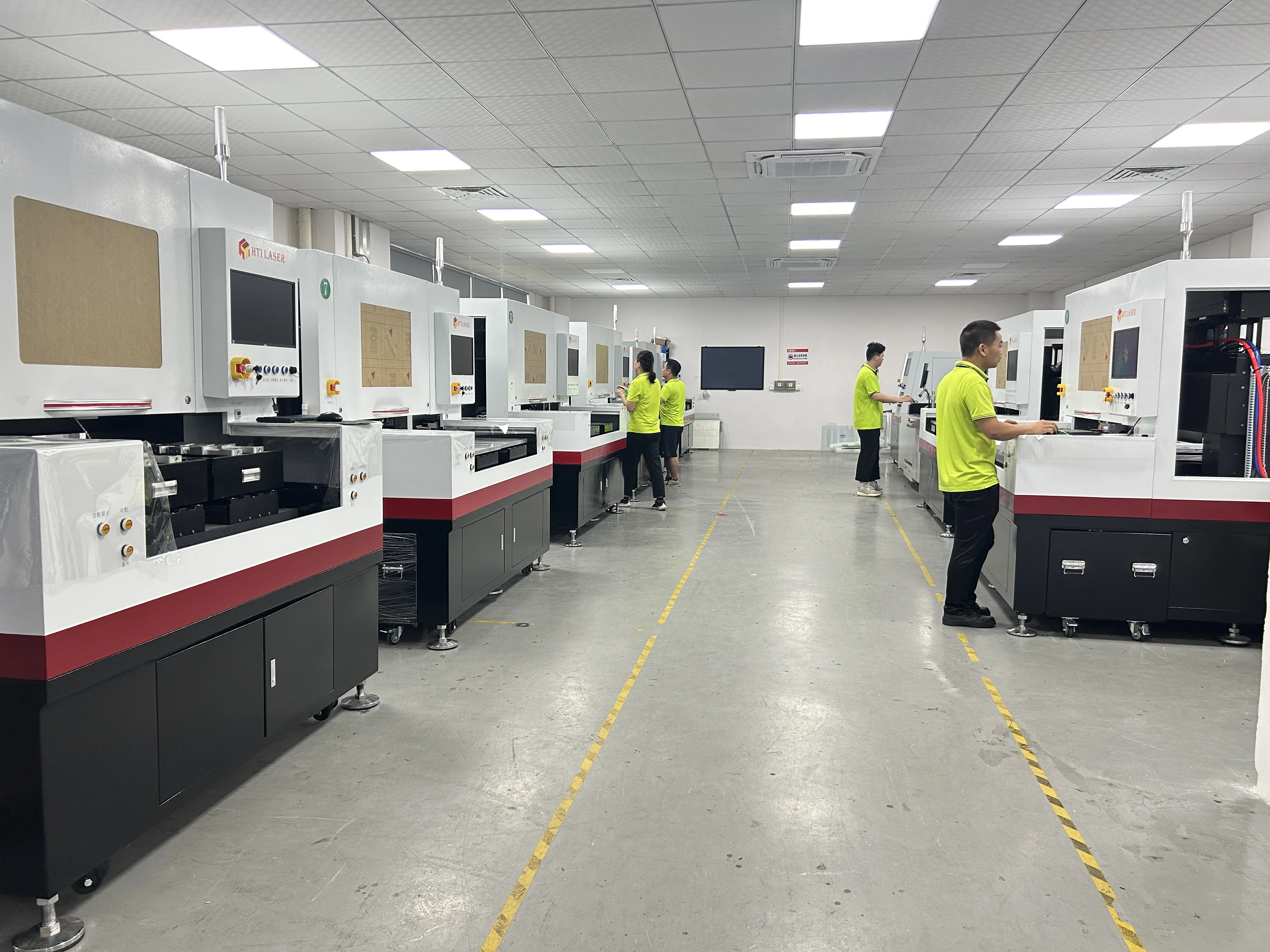

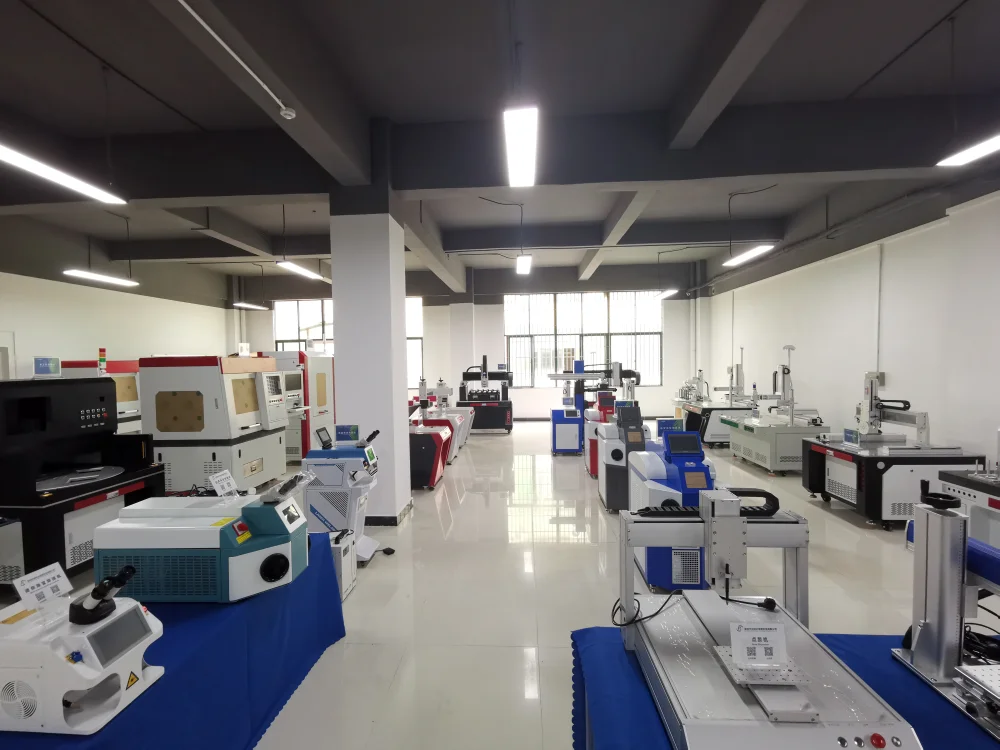

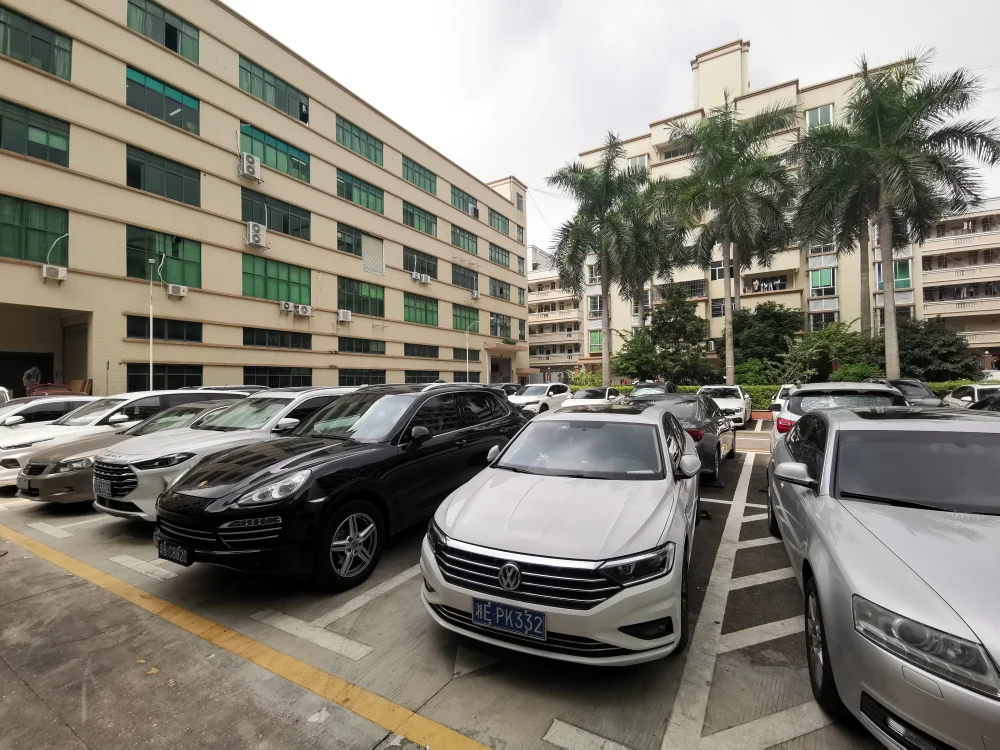

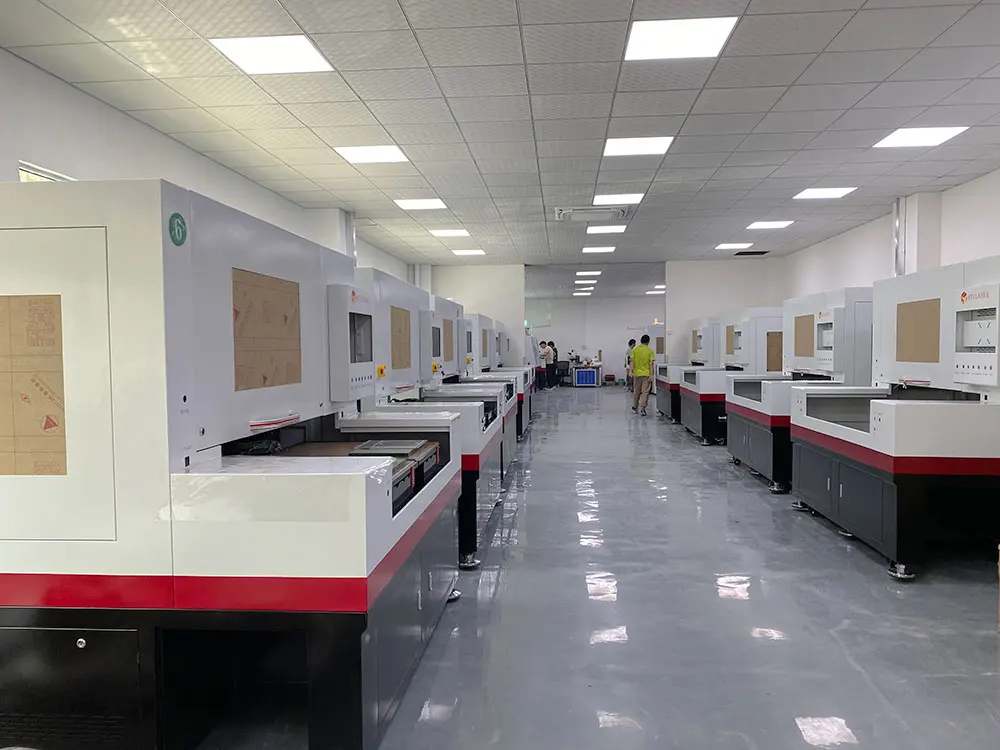

Factory

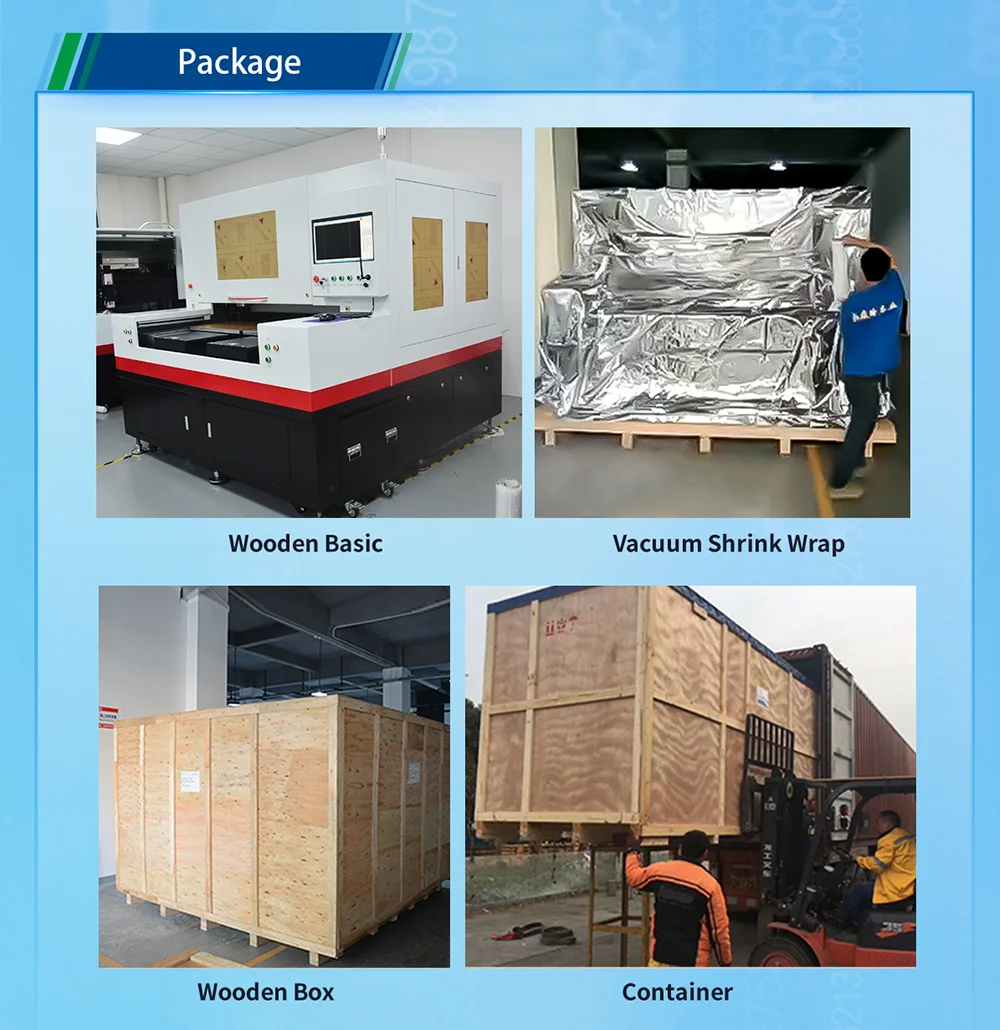

Product packaging

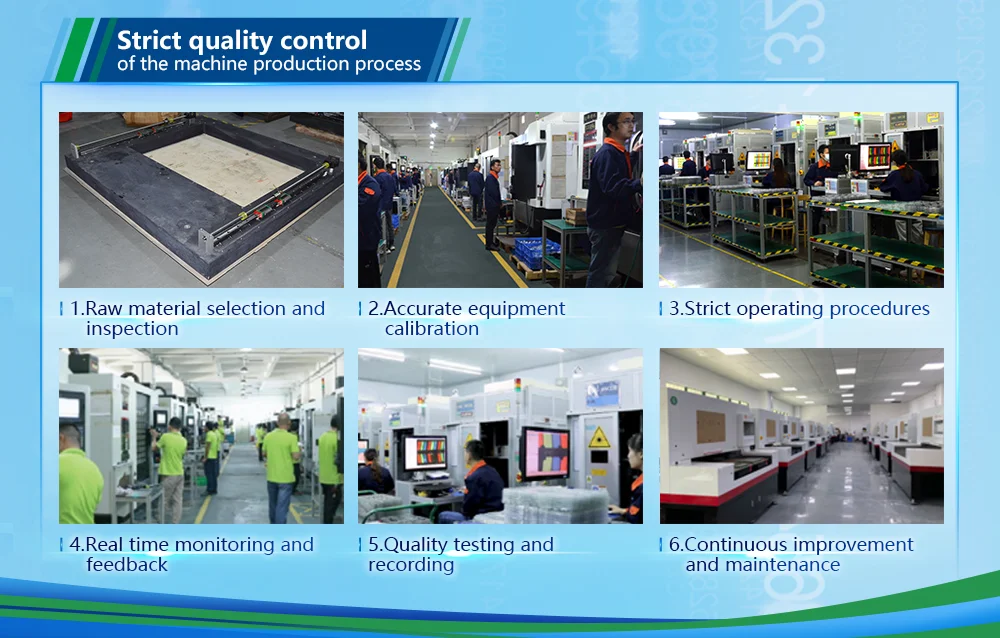

Quality control

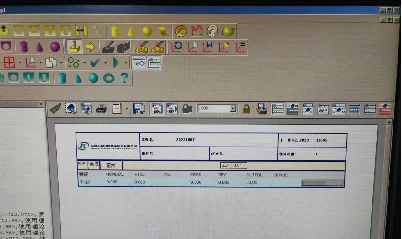

1.Laser Interferometer Measurement Technology
Compensation Ensures the high accuracy & stability

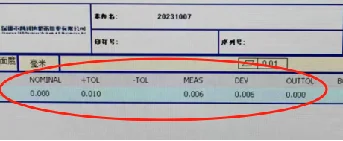

2.Before Compensation
3.After Compensation

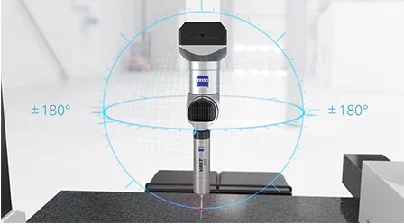

4.CMM ensure high accuracy and pricision

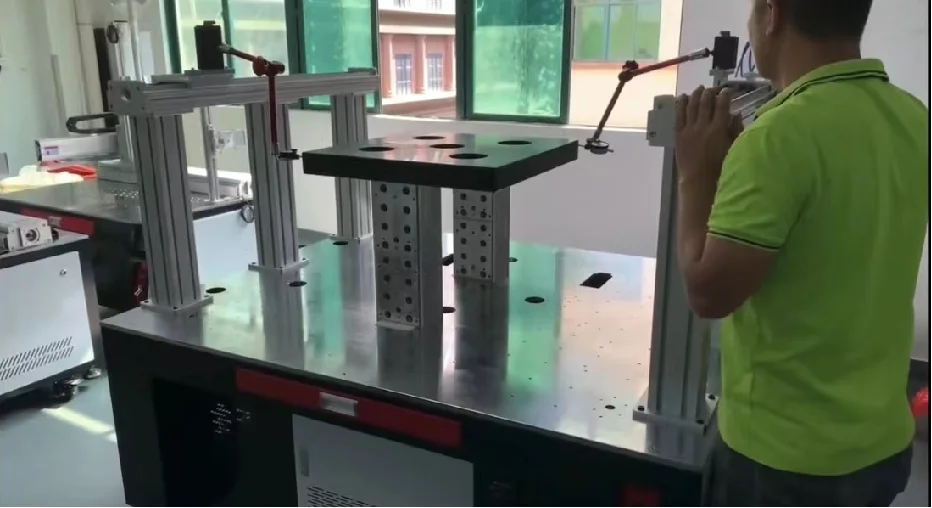

5.Platform Balance Testing Ensure Stablity & Balance
FAQ
Q1: Could I visit your factory?
A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from
bao'an International airport to our factory.
Q2: How many years do you do this business?
A2: From 2008.
Q3: Does your factory have the design & development capacities, we need customized products?
A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.
We can make customized products especially for you; Please kindly contact us for more details.
Q4: What is payment terms?
A4: 100% T/T advanced.
Q5: About shiping?
A5: 3-10 days after payment for standard products, please consult our sales for customized products.
Q6: How about your after service?
A6: Our engineers who has long time professional experience and sales will help you within 24h.
Q7: Do you have patents or core technology?
A7: Yes, for details, please contact our sales.
Q8: Where have you sold your products?
A8: Europe, Americas, Africa, and Asia.
A1: Yes, We will warmly welcome you anytime. It's tooks about 1 hours from
bao'an International airport to our factory.
Q2: How many years do you do this business?
A2: From 2008.
Q3: Does your factory have the design & development capacities, we need customized products?
A3: yes. The staffs in our design department are well experienced in laser machine, with more than 5 to 10 years experience.
We can make customized products especially for you; Please kindly contact us for more details.
Q4: What is payment terms?
A4: 100% T/T advanced.
Q5: About shiping?
A5: 3-10 days after payment for standard products, please consult our sales for customized products.
Q6: How about your after service?
A6: Our engineers who has long time professional experience and sales will help you within 24h.
Q7: Do you have patents or core technology?
A7: Yes, for details, please contact our sales.
Q8: Where have you sold your products?
A8: Europe, Americas, Africa, and Asia.
