Deep Cycle Rechargeable Energy Storage Batterie Lifepo4 48V 24V 12V 300Ah 200Ah 100Ah Lithium Ion Battery Pack
- Category: >>>
- Supplier: Shenzhen Hani Energy Technology Co. Ltd.
Share on (1600935233209):
Product Overview
Description
Deep Cycle Rechargeable Energy Storage Batterie Lifepo4 48V 24V 12V 300Ah 200Ah 100Ah Lithium Ion Battery Pack
Specification
Nominal Voltage | 12.8V | 12.8V | 12.8V | ||
Nominal Capacity | 54Ah@0.2C | 100Ah@0.2C | 200Ah@0.2C | ||
Power | 691.2Wh | 1280Wh | 2560Wh | ||
Internal Resistance | ≤55mΩ | ≤50mΩ | ≤40mΩ | ||

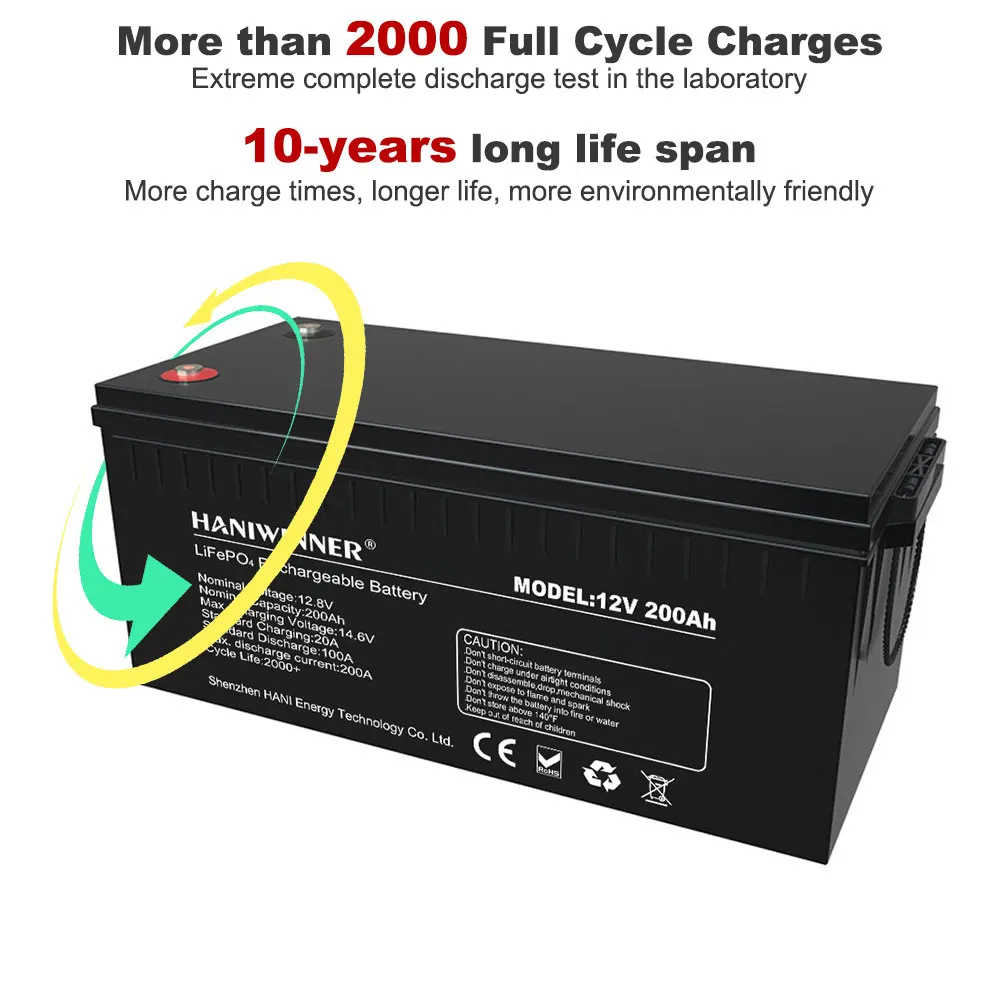

Cycle Life | ≥2000 cycles（0.2C 100% DOD Charge/discharge cycle until the capacity decays to 70%） | ||||
Self Discharge | ≤3.5%/Per month（25±5℃） | ||||
Max.Charging Voltage | 14.6±0.2V | 14.6±0.2V | 14.6±0.2V | ||
Charging Mode | At 0℃~45℃, cconstant current 0.2C5A charging to 14.6V, then constant voltage 14.6V charging until the current is reduced to 0.02C5A and then stop | ||||
Charging Current | 10A | 20A | 40A | ||
Max.Charging Current | 25A | 50A | 80A | ||
Discharging Cut-off Voltage | 10.0V | 10.0V | 10.0V | ||
Discharging Current | 10A | 20A | 40A | ||
Max. continuous discharge current | 50A | 100A | 100A | ||
Charge Temperature | 0℃~45℃（40-75% Humidity） | ||||
Discharge Temperature | -20℃~60℃（40-75% Humidity） | ||||
Storage Temperature | 0℃~45℃（40-75% Humidity） | ||||
Water Dust Resistance | IP55 | IP55 | IP55 | ||
Cell & Format | IFR32700/6000mAh,4S9P | IFR32700/6000mAh,4S17P | IFR32700/6000mAh,4S34P | ||
Casing | ABS | ABS | ABS | ||

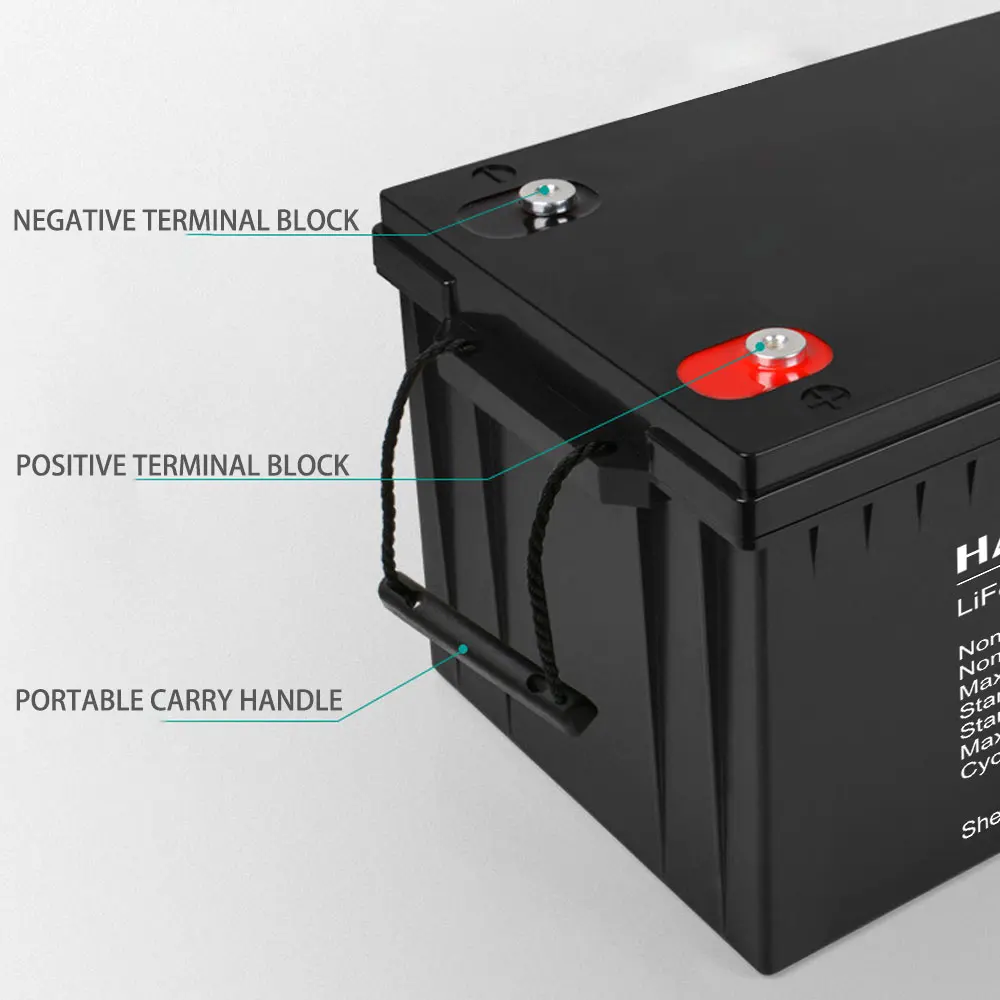

Terminal | M6 | M8 | M8 | ||
Dimension(L*W*H） | 229*138*212*217mm | 328*172*215*220mm | 522*238*218*220mm | ||
Weight | Approx. 6.7Kg | Approx. 13.1Kg | Approx. 26.8Kg | ||
Products Description
*Customize Voltage: 12V / 24V / 36V / 48V / 51.2V / 60V / 72V, etc. |
*Customize Any Capacity: 6Ah, 12Ah, 18Ah, 24Ah, 30Ah, 42Ah, 50Ah, 100Ah, 150Ah, 200Ah, 300Ah, 400Ah, etc |

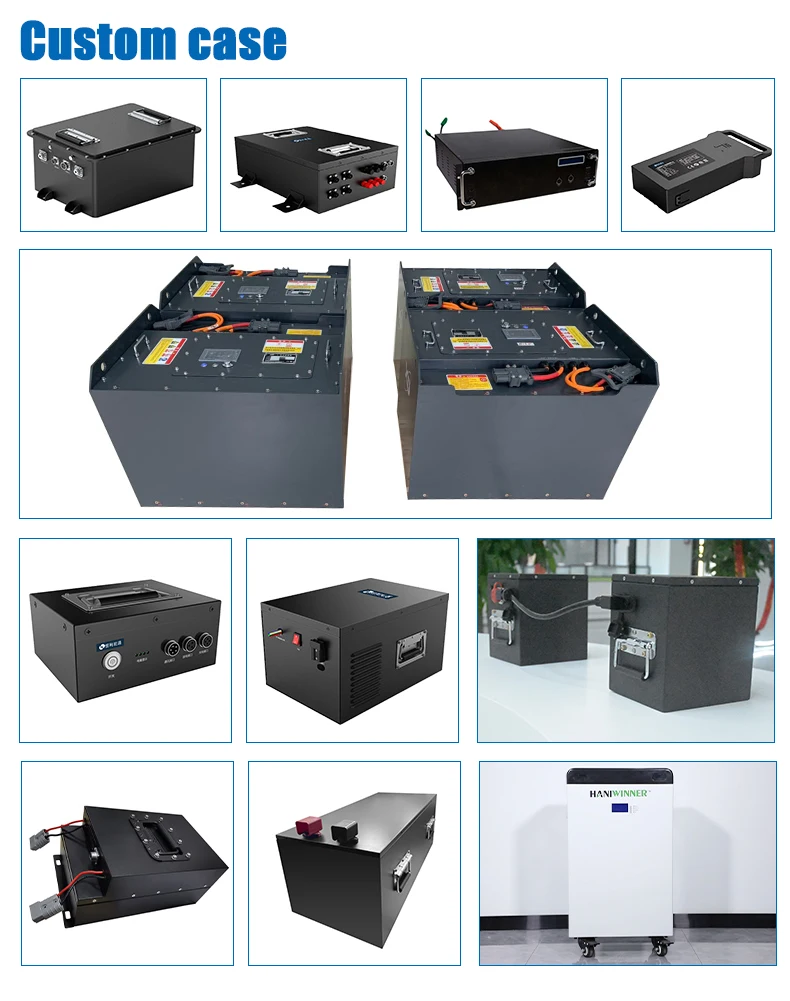

*Customize Size and Shell Material |
*Customize Connect Plug, Socket, Connector Wire |

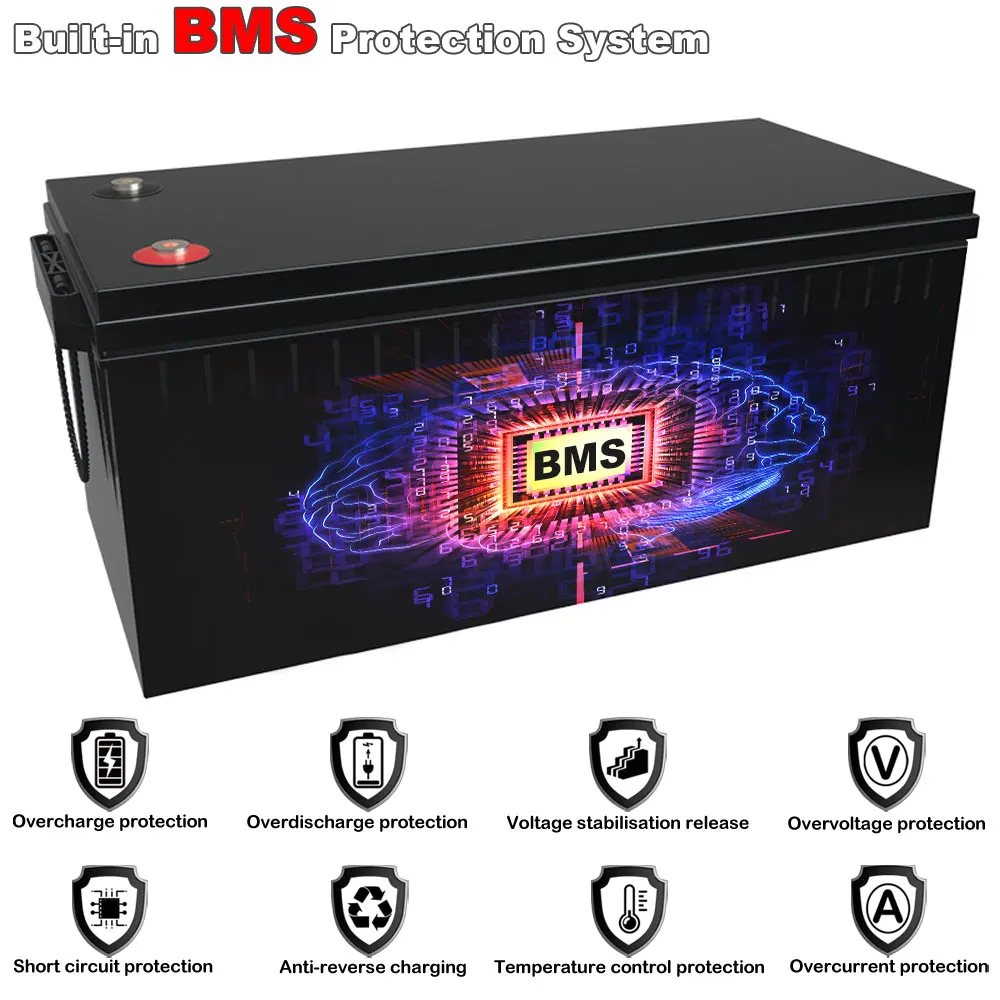

*Customize BMS Module |
*Customize BT Monitoring/GPS/ LCD Display |
*Customize Logo, Sticker and Package |
*Customizable Product Areas: Replacement of Lead-acid Battery / Golf Cart Battery / Electric Forklift Battery / Cleaning Car Battery / AGV Battery / Robot Battery / Marine Battery / RV Battery / Outdoor Camping Battery / Home Energy Storage Battery |
Company Profile
About us>>>
ShenZhen Hani Energy Technology Co., Ltd was established in 2012, a national high-tech enterprise sales of lithium batteries for 10 years specializing in R & D, design and sales of lithium batteries for 10 years. Our factory owns strong productivity strength which covers an area of 8000㎡ , and has more than two hundred employees.
Professional engineers monitor the entire production process at any time to ensure battery quality. Professional R&D team,
providing professional OEM, ODM, OBM customization services.
Shenzhen Hani Energy Technology Co., Ltd engaging itself in offering innovative batteries and energy solutions, will continue to concern customer needs in other fields of batteries, and strengthen the technical superiority, support energy conservation and environmental protection, sustainably provide customers with valuable products and services, become a genuine lithium battery
expert.
Certifications
Why Choose Us
10+ YEARS RICH EXPERIENCE
Our R&D team has focused on lithium battery solutions and batteries customization for already 10 years by provided battery packs for the world famous companies in the field.
QUALITY GUARANTEE
All batteries are produced according to the strictest industry standards. we've cooperated with brand cells like Samsung, LG, Panasonic, etc for all battery packs.
Our R&D team has focused on lithium battery solutions and batteries customization for already 10 years by provided battery packs for the world famous companies in the field.
QUALITY GUARANTEE
All batteries are produced according to the strictest industry standards. we've cooperated with brand cells like Samsung, LG, Panasonic, etc for all battery packs.
COMPLETE CERTIFICATES
ISO9001, MSDS, UN38.3, CE, FCC, RoHS, REACH, IEC62133, CB, UL2271, UL2272, UL1973, BIS, KC, PSE, ISO 13849...
OEM & ODM SERVICES
Customized Solutions Acceptable. Customized range design for Golf Carts, Yachts, RV, Forklift, AGV Robot, Cleaning Machines, Electric Vehicles, Solar Energy, Solar Street Light, Wind Energy, Household Energy, RV campers, Marine, Trolling Motor, Replace Lead-acid Batteries, UPS Backup battery and many other areas. WORLDWIDE AFTER-SALES SERVICE
We have Hani Poland/Germany Office & After-sales Team, Wherever you are we try the best to response to your complaints at the first time. And we provide full 12+ months warranty after ex-factory.
CONVENIENT AND FAST
We have warehouses in Poland USA and UK. After you place an order, we will send it directly through express. Generally, if in stock, batteries will be send in 3-7 days.
CONVENIENT AND FAST
We have warehouses in Poland USA and UK. After you place an order, we will send it directly through express. Generally, if in stock, batteries will be send in 3-7 days.
FAQ
1.How long is your warranty period?
A: 12+ months. If it is our problems, we will provide new spare parts and guide you to repair by video.
2. How about your delivery time?
A: Generally, if in stock, batteries will be send in 5-7days. If no stock, the delivery time is 7-10 days. The specific delivery
time depends on the items and the quantity of your order.
3.How do you ship the goods?
A: We have warehouses in Poland, UK and USA . After you place an order, we will send it directly through express.
4.Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
5.can you accept OEM?
A: Yes, OEM is available, we can print your picture or logo on the battery case, and you can offer your logo.
6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: 12+ months. If it is our problems, we will provide new spare parts and guide you to repair by video.
2. How about your delivery time?
A: Generally, if in stock, batteries will be send in 5-7days. If no stock, the delivery time is 7-10 days. The specific delivery
time depends on the items and the quantity of your order.
3.How do you ship the goods?
A: We have warehouses in Poland, UK and USA . After you place an order, we will send it directly through express.
4.Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
5.can you accept OEM?
A: Yes, OEM is available, we can print your picture or logo on the battery case, and you can offer your logo.
6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
