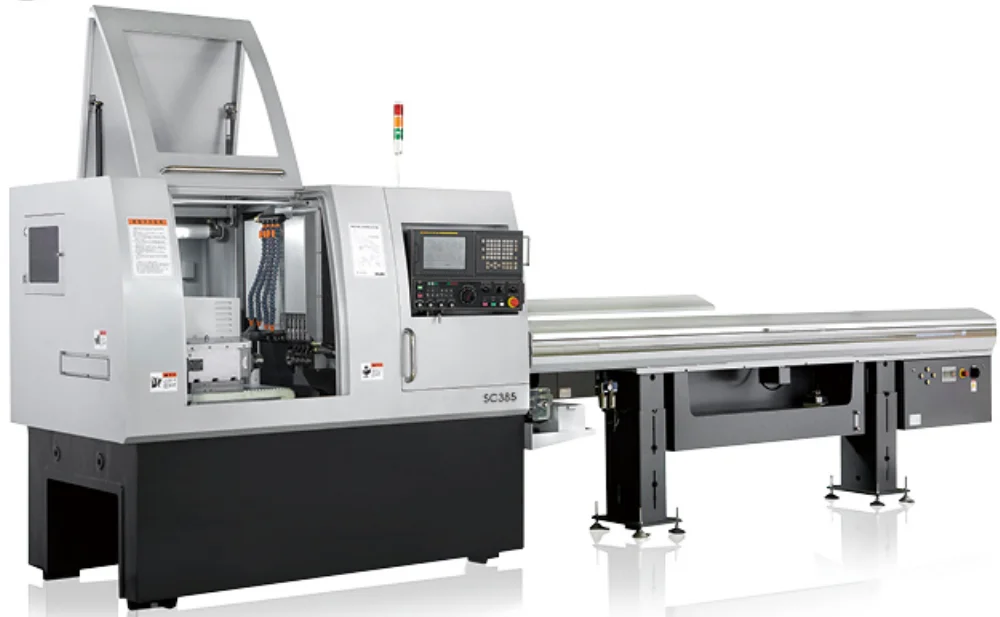

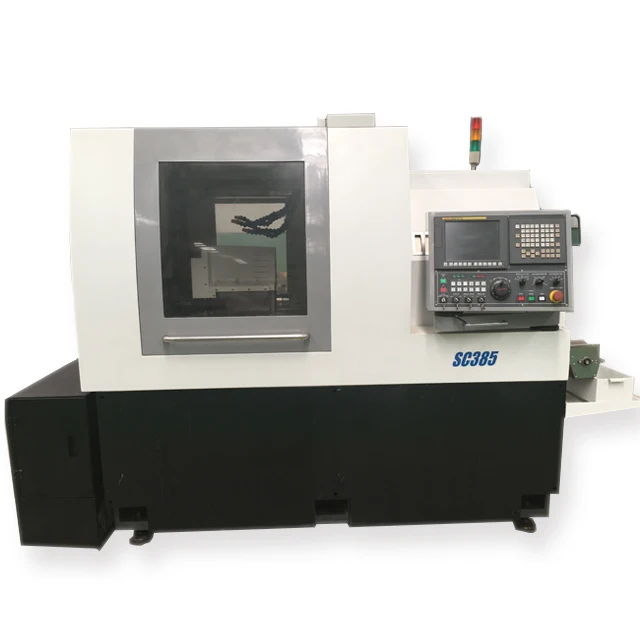

swiss type cnc lathe price China made sliding head lathes with bar feeder high speeding cnc
- Category: >>>
- Supplier: Liaocheng Dongyuan Materials Industry Co. Ltd.
Share on (1600935269863):
Product Overview
Description

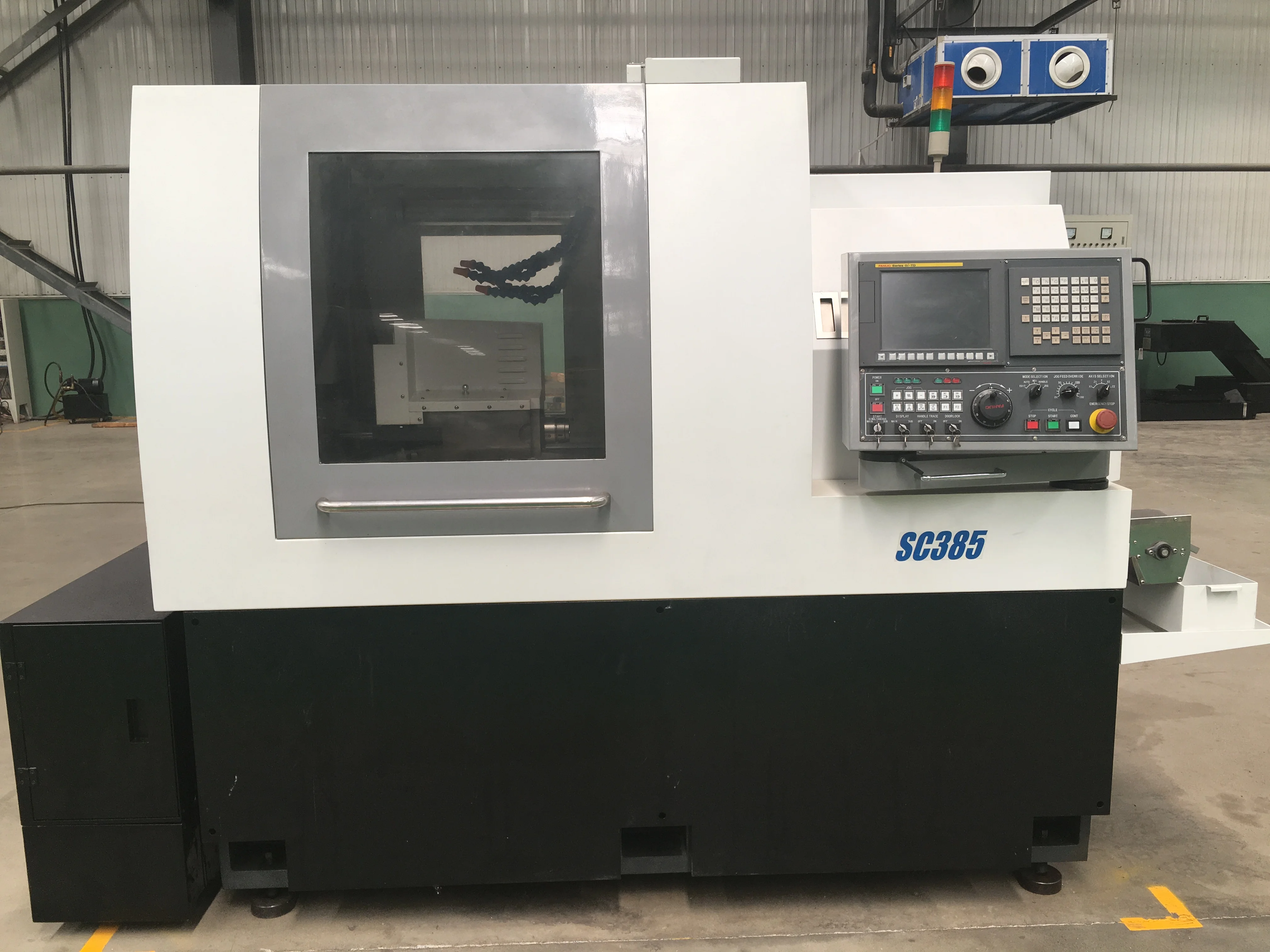

swiss type cnc lathe price China made sliding head lathes with bar feeder high speeding cnc
item | SC385 | value | |||
Mechanic | System | FANUC 0i TF-PLUS | SYTENC 22TB | ||
Max.RPM | Main8,000min-1/Sub8,000min-1 | Main6,000min-1/Sub8,000min-1 | |||
Max.Turning Diameter | φ38mm | ||||
Main Spindle Stroke | 210mm | ||||
Rapid traverse speed | 32m/min（X1：24m/min） | 24m/min | |||

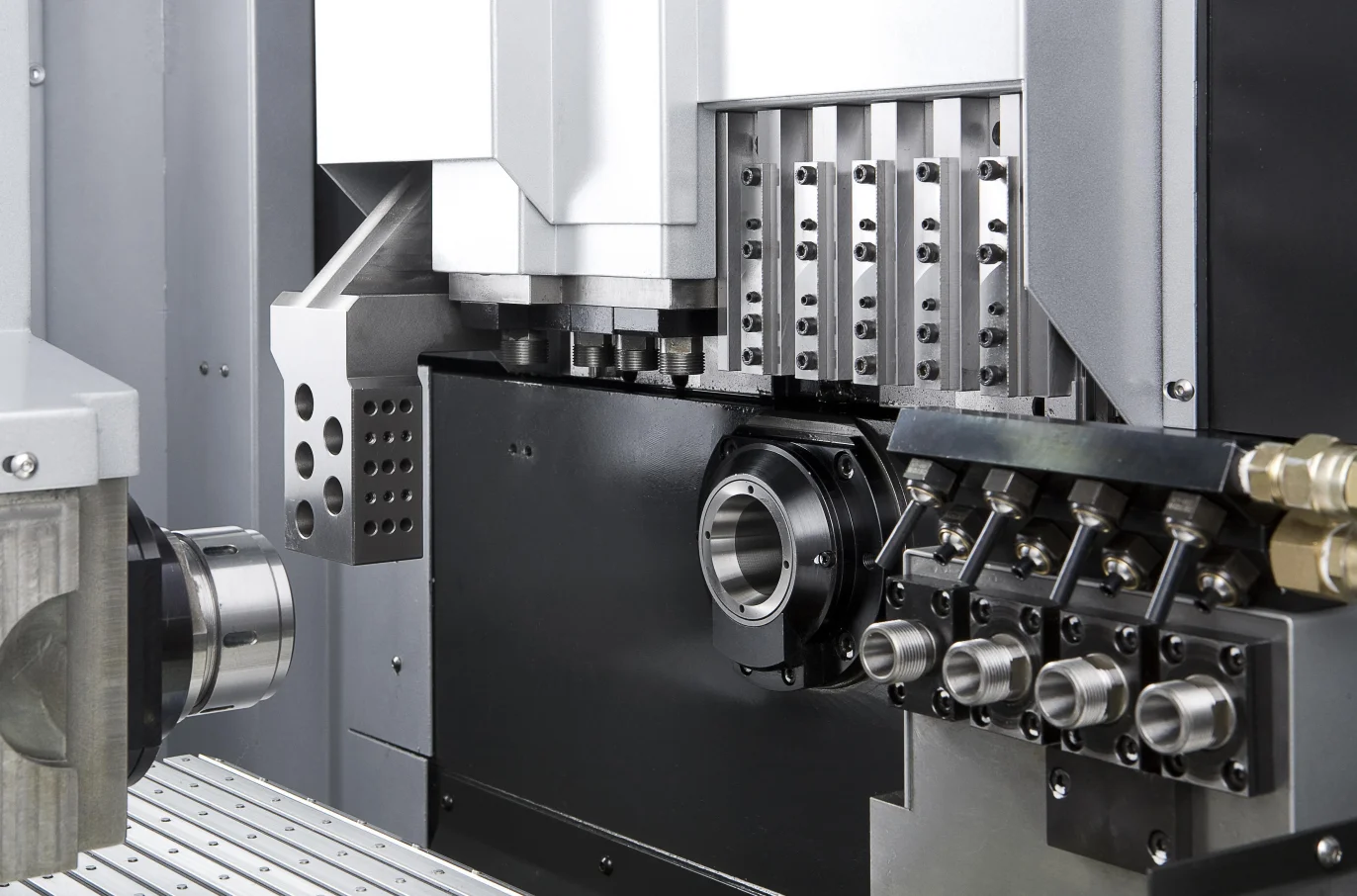

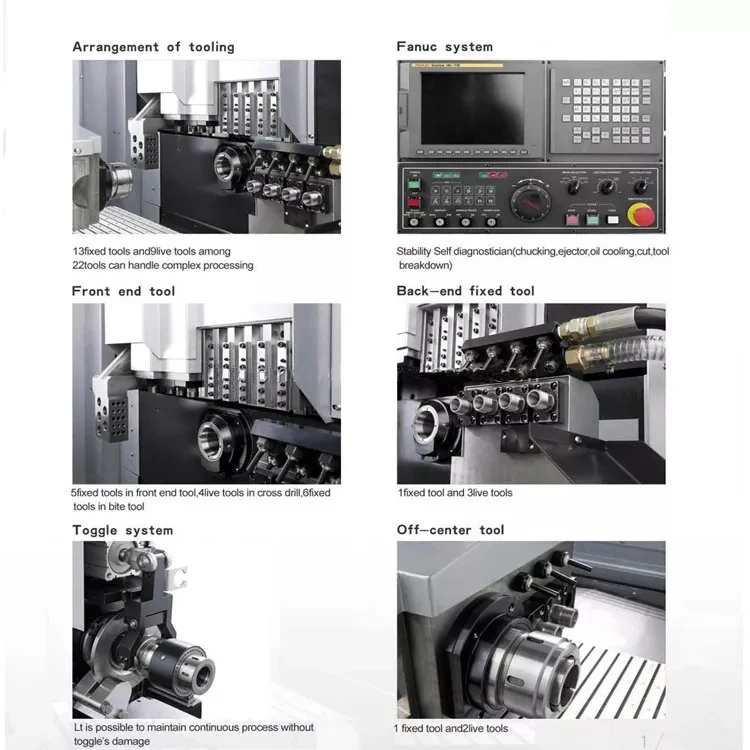

Tools | O.D Tools | 5X [□16×16] | |||
I.N Tools | 3X [φ25-ER16]+2X [φ20-ER16] | ||||
Cross Driven Tools（integration） | 4X[ER16] | ||||
Back end tools（fixed） | 4X [φ20-ER16] | ||||
Motors | Main | 5.5/7.5KW | 5.9KW | ||
Sub | 1.5/2.2KW | 3.9KW | |||
Cross | 0.75KW | 0.75KW | |||
Cross | 0.75KW | 1KW | |||
Drive | 0.75KW | 1KW | |||
Coolant | 0.9KW | ||||
Others | Coolant tank capacity | 200L | |||
Lubrication tank capacity | 1.8L | ||||
Central Height | 1,000mm | ||||
Weight | 4，500Kg | ||||
The size （L×W×H） | 2760×1564×1882mm | ||||
NC Control | Controllable Axes | 7axis/4axis | |||
LCD | LCD 10.4" | ||||
System standard parameters | 标准 Standard | ||||
Rigid tapping | 标准 Standard | ||||
NC Control | Hand wheel | 标准 Standard | |||
Synchronous/hybrid control | 标准 Standard | ||||
Helical interpolation | 标准 Standard | ||||
What is the setup time for a Swiss CNC lathe?
The setup time for a Swiss CNC lathe can vary depending on the complexity of the part being machined, but generally ranges from several minutes to a few hours.
In general, setting up a Swiss CNC lathe can take several hours to a full day. This includes tasks such as selecting and
installing the appropriate tooling, programming the machine for the specific part being machined, and adjusting the machine settings for optimal performance.
However, with advancements in automation and software, the setup time for Swiss CNC lathes has been reduced significantly. Some newer models come equipped with automated tool changers and preset tool libraries, which can greatly reduce the time required to set up the machine. Additionally, some machines have integrated software systems that allow for quicker and more efficient programming.
Ultimately, the setup time for a Swiss CNC lathe will depend on the specific machine and the part being machined. It’s important to work with an experienced operator and to carefully plan the setup process to minimize downtime and ensure optimal performance.
The setup time for a Swiss CNC lathe can vary depending on the complexity of the part being machined, but generally ranges from several minutes to a few hours.
In general, setting up a Swiss CNC lathe can take several hours to a full day. This includes tasks such as selecting and
installing the appropriate tooling, programming the machine for the specific part being machined, and adjusting the machine settings for optimal performance.
However, with advancements in automation and software, the setup time for Swiss CNC lathes has been reduced significantly. Some newer models come equipped with automated tool changers and preset tool libraries, which can greatly reduce the time required to set up the machine. Additionally, some machines have integrated software systems that allow for quicker and more efficient programming.
Ultimately, the setup time for a Swiss CNC lathe will depend on the specific machine and the part being machined. It’s important to work with an experienced operator and to carefully plan the setup process to minimize downtime and ensure optimal performance.
What makes a Swiss lathe different?
Swiss-type lathe machines are designed for making small, precise parts. The Swiss-type lathe is different from a conventional lathe in several ways.
First, Swiss-type lathes have a smaller footprint and require less floor space than a conventional lathe. Second, Swiss CNC lathes have a shorter bed length, which allows for more accurate machining of smaller parts. Third, Swiss-type lathes are equipped with high-pressure coolant systems that enable the machining of difficult-to-cut materials. Finally, Swiss-type lathes are equipped with live tooling, which allows for the machining of complex parts with multiple axes of rotation.
Swiss type lathes offer many advantages over conventional lathes and are an essential tool for any shop that specializes in the machining of small part
Swiss-type lathe machines are designed for making small, precise parts. The Swiss-type lathe is different from a conventional lathe in several ways.
First, Swiss-type lathes have a smaller footprint and require less floor space than a conventional lathe. Second, Swiss CNC lathes have a shorter bed length, which allows for more accurate machining of smaller parts. Third, Swiss-type lathes are equipped with high-pressure coolant systems that enable the machining of difficult-to-cut materials. Finally, Swiss-type lathes are equipped with live tooling, which allows for the machining of complex parts with multiple axes of rotation.
Swiss type lathes offer many advantages over conventional lathes and are an essential tool for any shop that specializes in the machining of small part

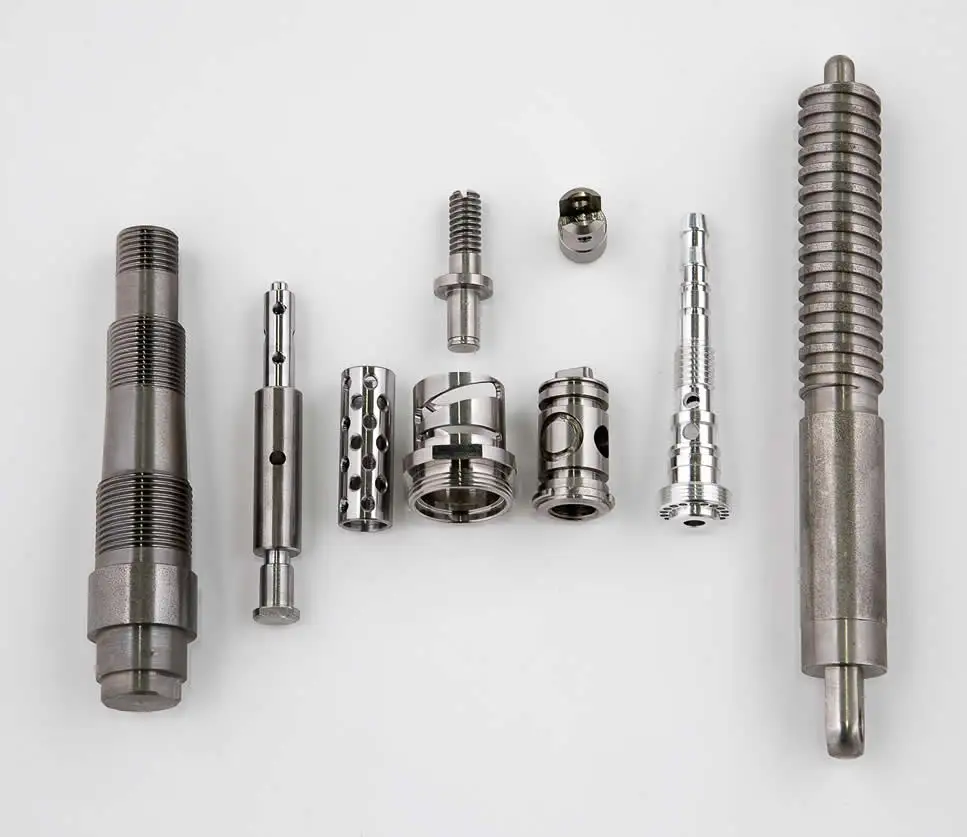

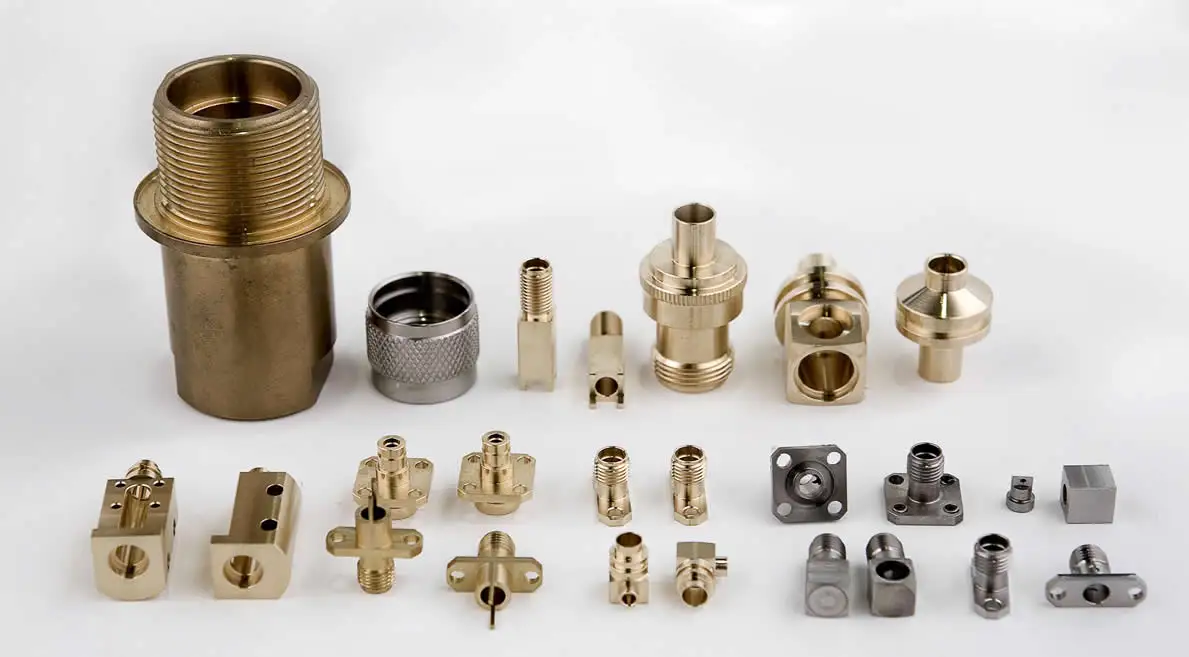

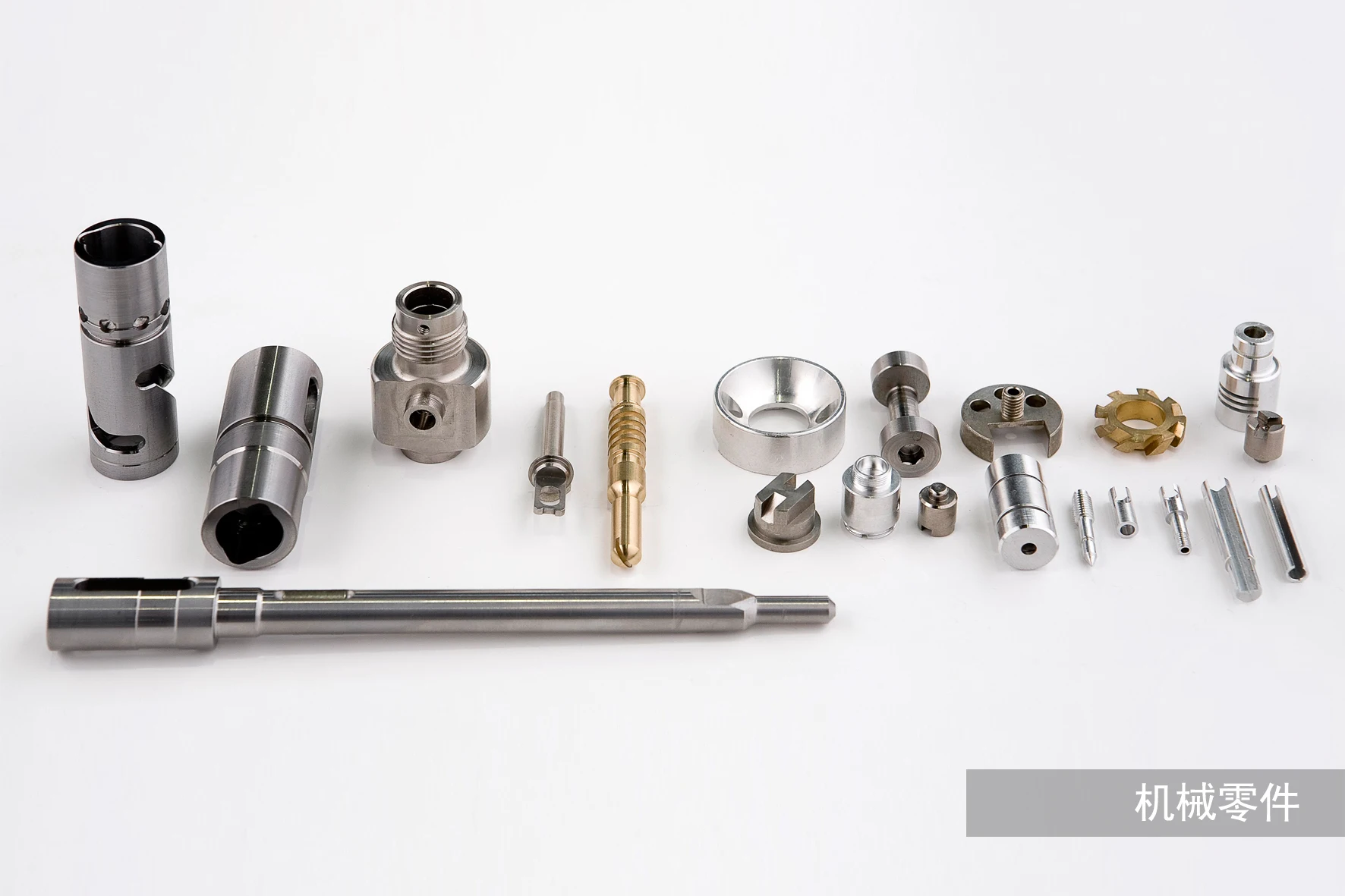

What types of parts are typically produced on Swiss CNC lathes?
Swiss CNC lathes are commonly used for producing small parts with complex geometries and tight tolerances, such as medical
components, aerospace parts, and electronics. Some examples of applications include:
– Medical components, such as surgical instruments, implants, and prosthetics
– Aerospace parts, such as connectors, fittings, and valves
– Electronics components, such as connectors, pins, and sockets
– Automotive components, such as fuel injectors, valves, and connectors
– Precision watch parts, such as gears, screws, and pins
– Firearms components, such as triggers, barrels, and firing pins
– Hydraulic and pneumatic components, such as fittings and connectors
– Dental components, such as implants, abutments, and brackets
– Optical components, such as lenses, prisms, and mirrors
– Fasteners, such as screws, bolts, and nuts
Swiss CNC lathes are commonly used for producing small parts with complex geometries and tight tolerances, such as medical
components, aerospace parts, and electronics. Some examples of applications include:
– Medical components, such as surgical instruments, implants, and prosthetics
– Aerospace parts, such as connectors, fittings, and valves
– Electronics components, such as connectors, pins, and sockets
– Automotive components, such as fuel injectors, valves, and connectors
– Precision watch parts, such as gears, screws, and pins
– Firearms components, such as triggers, barrels, and firing pins
– Hydraulic and pneumatic components, such as fittings and connectors
– Dental components, such as implants, abutments, and brackets
– Optical components, such as lenses, prisms, and mirrors
– Fasteners, such as screws, bolts, and nuts
What is the setup time for a Swiss CNC lathe?
The setup time for a Swiss CNC lathe can vary depending on the complexity of the part being machined, but generally ranges from several minutes to a few hours.
In general, setting up a Swiss CNC lathe can take several hours to a full day. This includes tasks such as selecting and
installing the appropriate tooling, programming the machine for the specific part being machined, and adjusting the machine settings for optimal performance.
However, with advancements in automation and software, the setup time for Swiss CNC lathes has been reduced significantly. Some newer models come equipped with automated tool changers and preset tool libraries, which can greatly reduce the time required to set up the machine. Additionally, some machines have integrated software systems that allow for quicker and more efficient programming.
Ultimately, the setup time for a Swiss CNC lathe will depend on the specific machine and the part being machined. It’s important to work with an experienced operator and to carefully plan the setup process to minimize downtime and ensure optimal performance.
The setup time for a Swiss CNC lathe can vary depending on the complexity of the part being machined, but generally ranges from several minutes to a few hours.
In general, setting up a Swiss CNC lathe can take several hours to a full day. This includes tasks such as selecting and
installing the appropriate tooling, programming the machine for the specific part being machined, and adjusting the machine settings for optimal performance.
However, with advancements in automation and software, the setup time for Swiss CNC lathes has been reduced significantly. Some newer models come equipped with automated tool changers and preset tool libraries, which can greatly reduce the time required to set up the machine. Additionally, some machines have integrated software systems that allow for quicker and more efficient programming.
Ultimately, the setup time for a Swiss CNC lathe will depend on the specific machine and the part being machined. It’s important to work with an experienced operator and to carefully plan the setup process to minimize downtime and ensure optimal performance.
Company Profile
Liaocheng Dongyuan Materials Industry Co., Ltd was established in August 2010 with a registered capital of CNY 50,000,000.00. As the wholly-owned subsidiary of local state-owned enterprise, Liaocheng Dongyuan, with years of precipitation and accumulation, has developed into a modern enterprise specialized in the CNC machinery industry, integrating research & development, manufacturing and sales of CNC machines. Our products include CNC lathe machines, CNC pipe threading lathes, CNC pipe cutting machines, rim repair machines and machining centers. Our company has established strategic partnership with Shenyang Institute of Computing Technology of Chinese Academy of Sciences and industry-university-research cooperation with several universities. Thanks to the hard work of the research & development team and strong technology support from the scientific research institutions and universities, our company has won 20 patents for utility models, 5 patents for invention and the ISO 9001 quality management system certification. Taking customer demand as its top priority, Liaocheng Dongyuan has been devoting itself to providing one-stop and overall machine solutions to customers from all over the world. Excellent machine performance, competitive price and reliable after-sales service makes our product quick seller in South America, Southeast Asia and Africa etc. Adhering to the vision of achieving mutual benefit and win-win situation, Liaocheng Dongyuan aims to provide customers with top quality CNC machines to help them raise their products quality and technical level and achieve maximum benefits from their investment. Let us work together for a brighter future.
FAQ
1. who are we?
We are based in Shandong, China, start from 2010,sell to Africa(80.00%),Southeast Asia(10.00%),South America(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Lathe Machine,VMC,Manual Lathe
4. why should you buy from us not from other suppliers?
We are wholly-owned by local state-owned enterprise and we have more than ten years experience in cnc machinery industry. We offer professional after-sale service and excellent performance machine at competitive price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese
We are based in Shandong, China, start from 2010,sell to Africa(80.00%),Southeast Asia(10.00%),South America(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CNC Lathe Machine,VMC,Manual Lathe
4. why should you buy from us not from other suppliers?
We are wholly-owned by local state-owned enterprise and we have more than ten years experience in cnc machinery industry. We offer professional after-sale service and excellent performance machine at competitive price.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese
