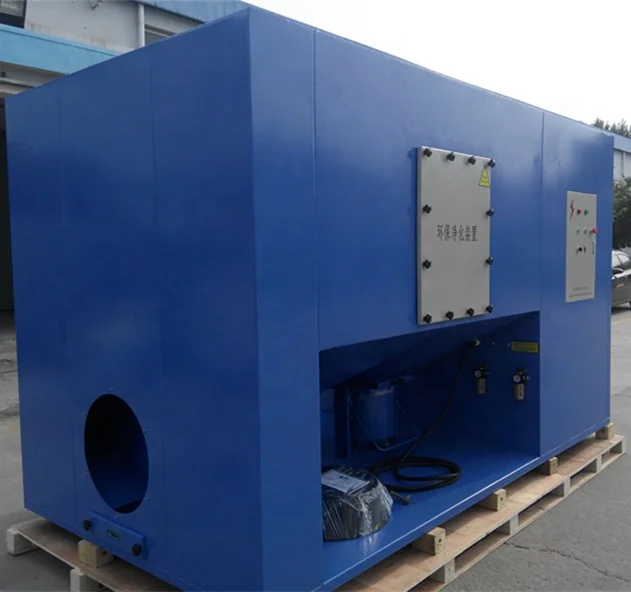

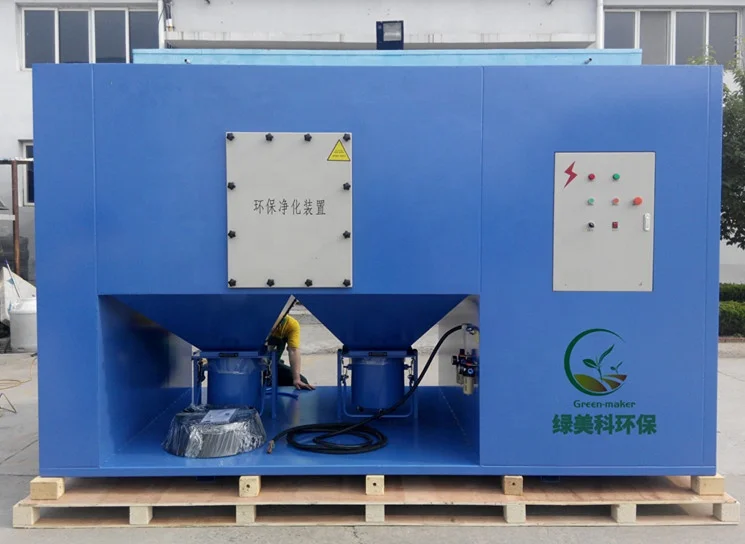

Laser plasma cutting multi station welding polishing and dust removal dust collector Filter cartridge
- Category: >>>
- Supplier: Qingdao Lumeike Environmental Protection Technology Co. Ltd.
Share on (1600935317251):
Product Overview
Description
Typical use:
It is suitable for multi-station centralized collection in large-scale welding or grinding workshops, or welding centers, robot welding production lines, plasma, laser cutting and blanking production lines, etc. as a purification and dust removal host.
It is suitable for multi-station centralized collection in large-scale welding or grinding workshops, or welding centers, robot welding production lines, plasma, laser cutting and blanking production lines, etc. as a purification and dust removal host.

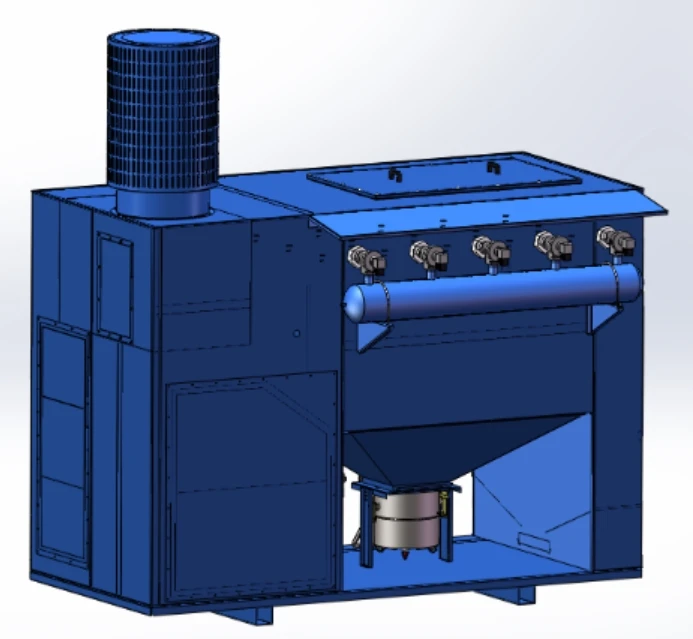

Working principle
Through the gravitational force of the fan, the smoke and dust exhaust gas is sucked into the air inlet of the equipment through the ventilation pipeline. A flame arrester is installed at the air inlet of the equipment. Directly down to the ash hopper, the particulate smoke is captured on the outer surface by the filter element, the clean gas is filtered and purified by the filter element, and then flows into the clean room from the center of the filter element, and the clean air is further purified by the activated carbon filter and then discharged through the air outlet.
PRODUCT SPECIFICATIONS
Item | LMK-YT-3 | LMK-YT-5.5 | LMK-YT-5.5S | LMK-YT-7.5 | LMK-YT-11 |
Volume m³/h | 2200-3000 | 3500-4500 | 4800-6500 | 7500-8600 | 8900-9750 |
Filter area ㎡ | 26 | 39 | 52 | 78 | 97.5 |
Efficiency % | 99.9 | 99.9 | 99.9 | 99.9 | 99.9 |
Voltage V/HZ | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
Power KW | 3 | 5.5 | 5.5 | 7.5 | 11 |
Dimensions | 1300*1100*1700 | 1300*1100*1700 | 1600*1100*1700 | 2250*2077*1720/1400 | 2950*2077*1720/1400 |
CNC plasma cutting dust removal

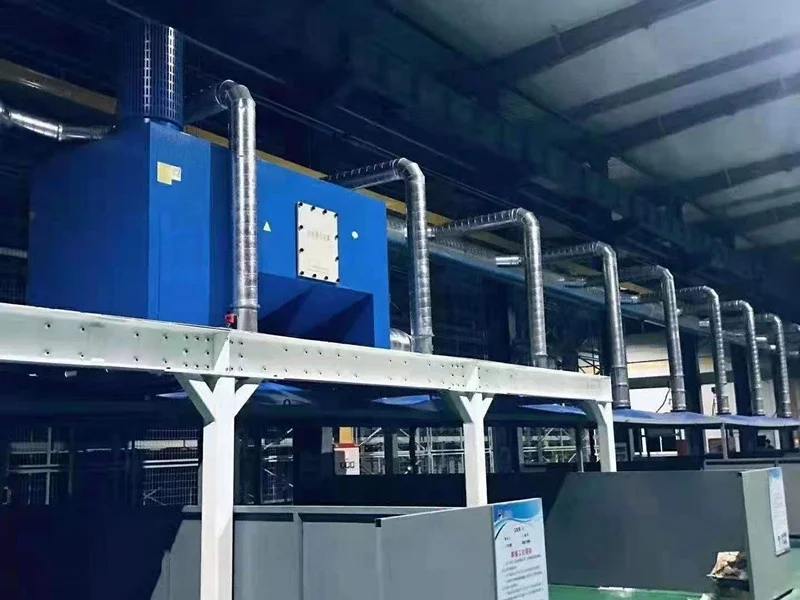

Multi-station robot welding dust removal

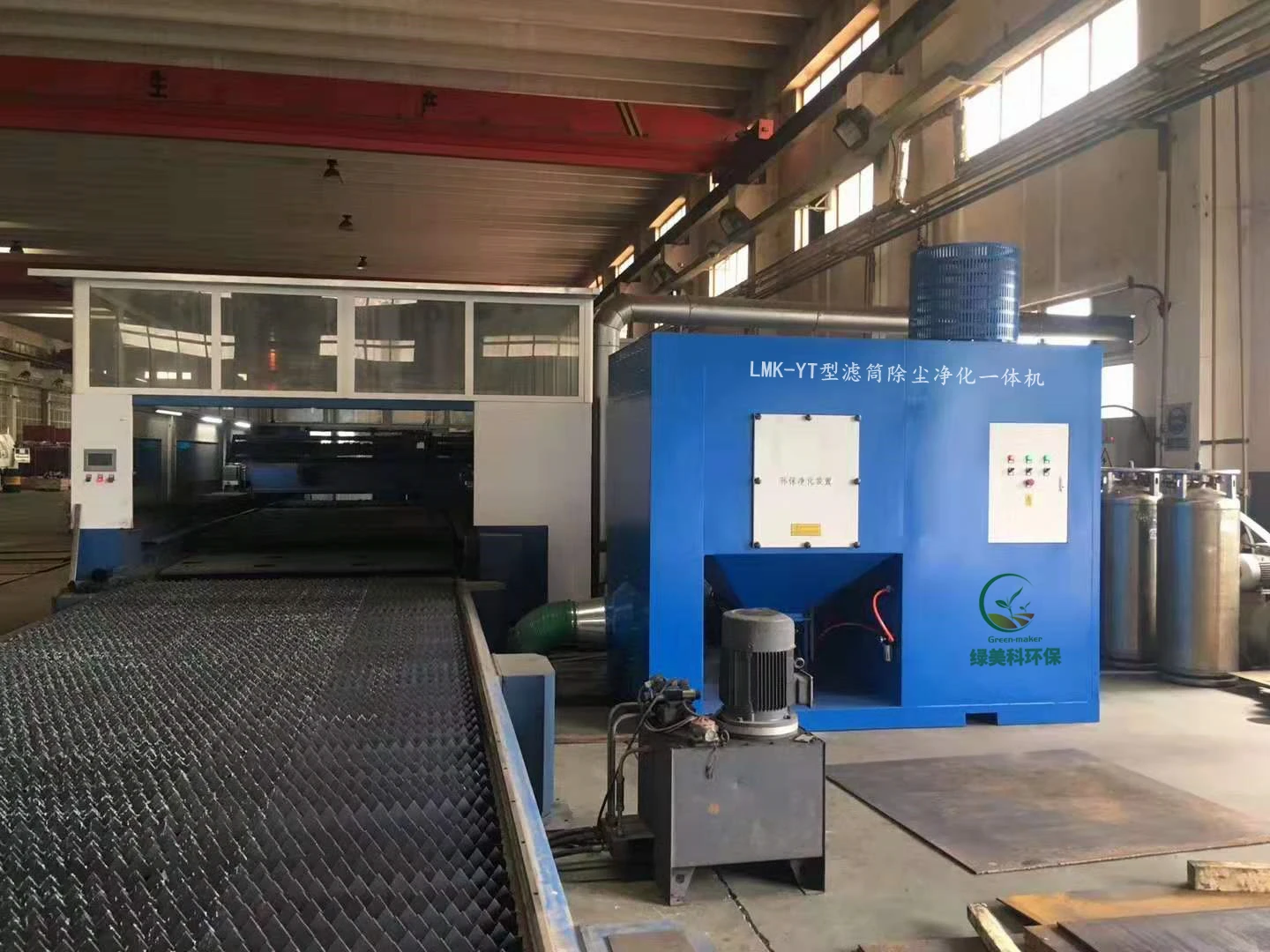

Laser cutting dust removal
Multi-station robot welding dust removal
Robot welding dust removal
PRODUCT CONFIGURATION
Wrapping with plastic film and packed by wooden pallet or wooden case
Without package.

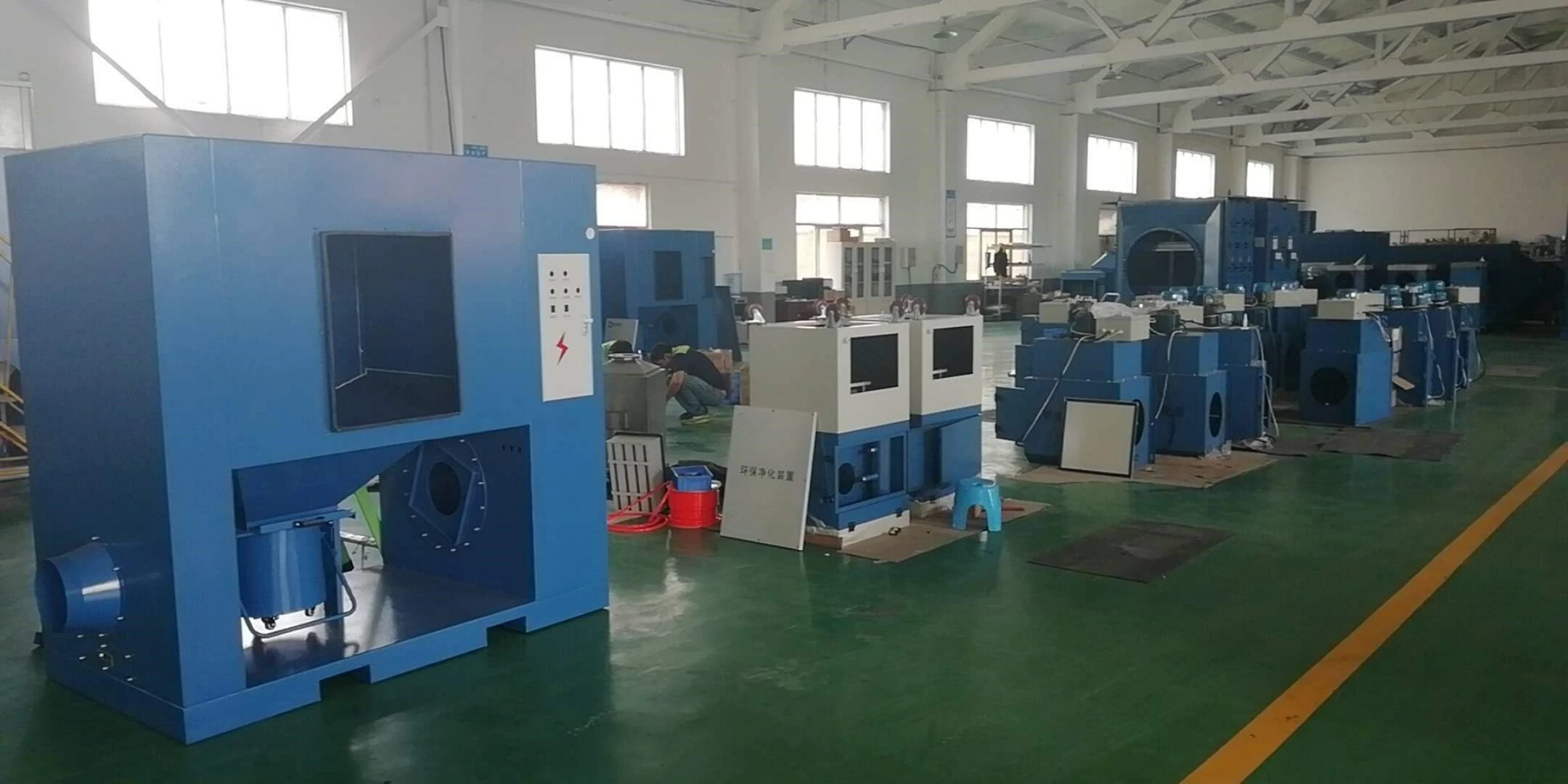

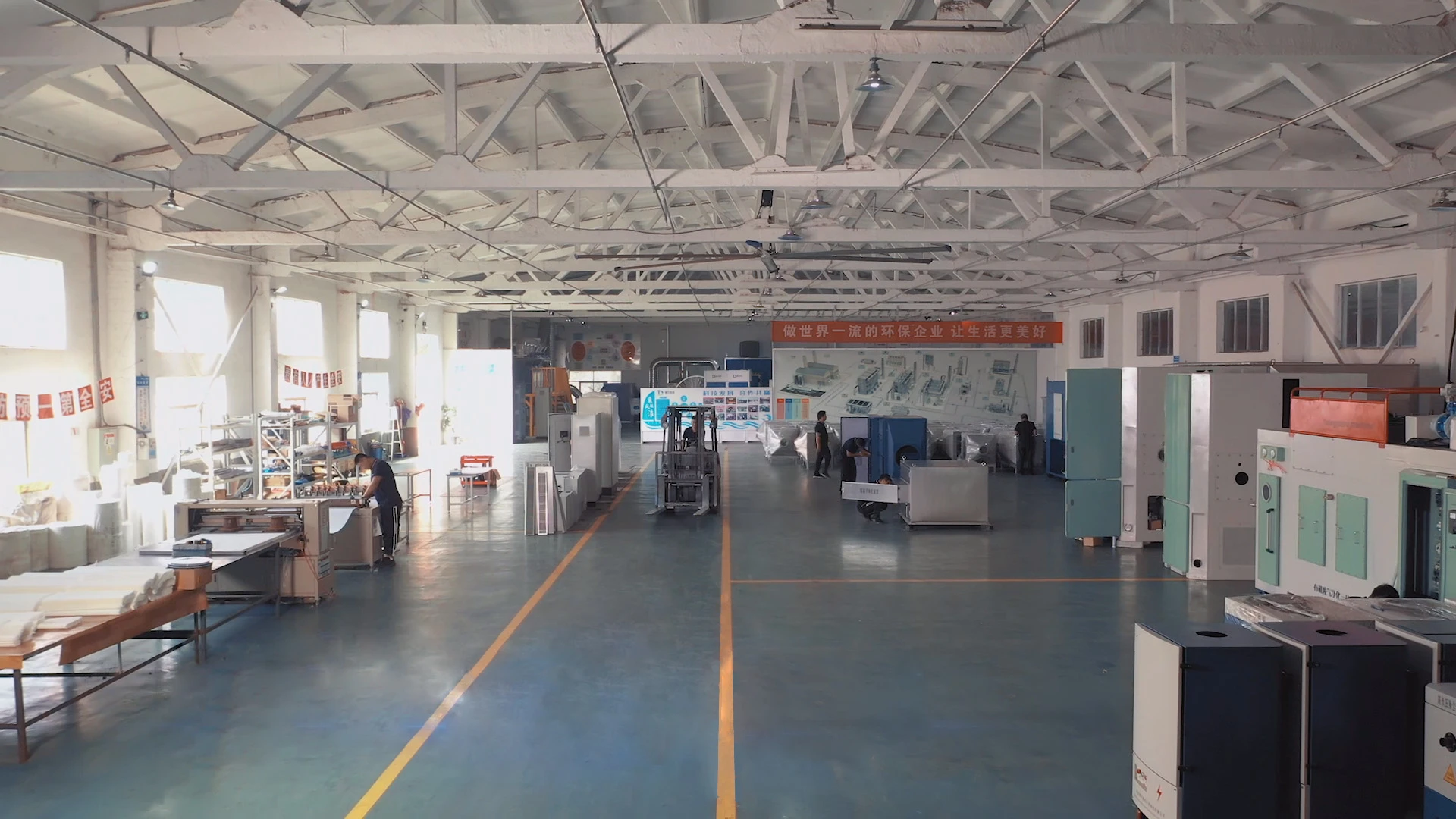

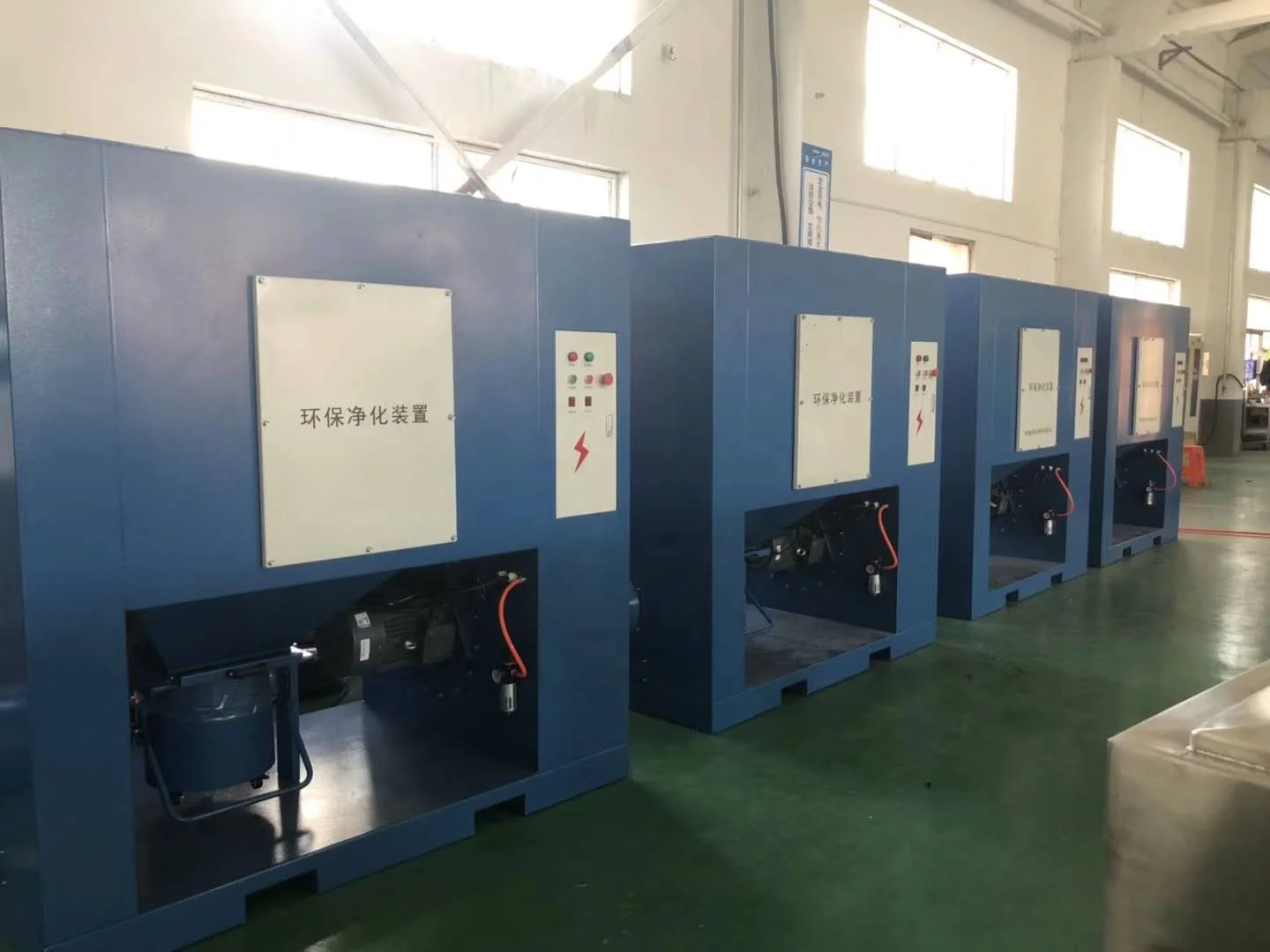

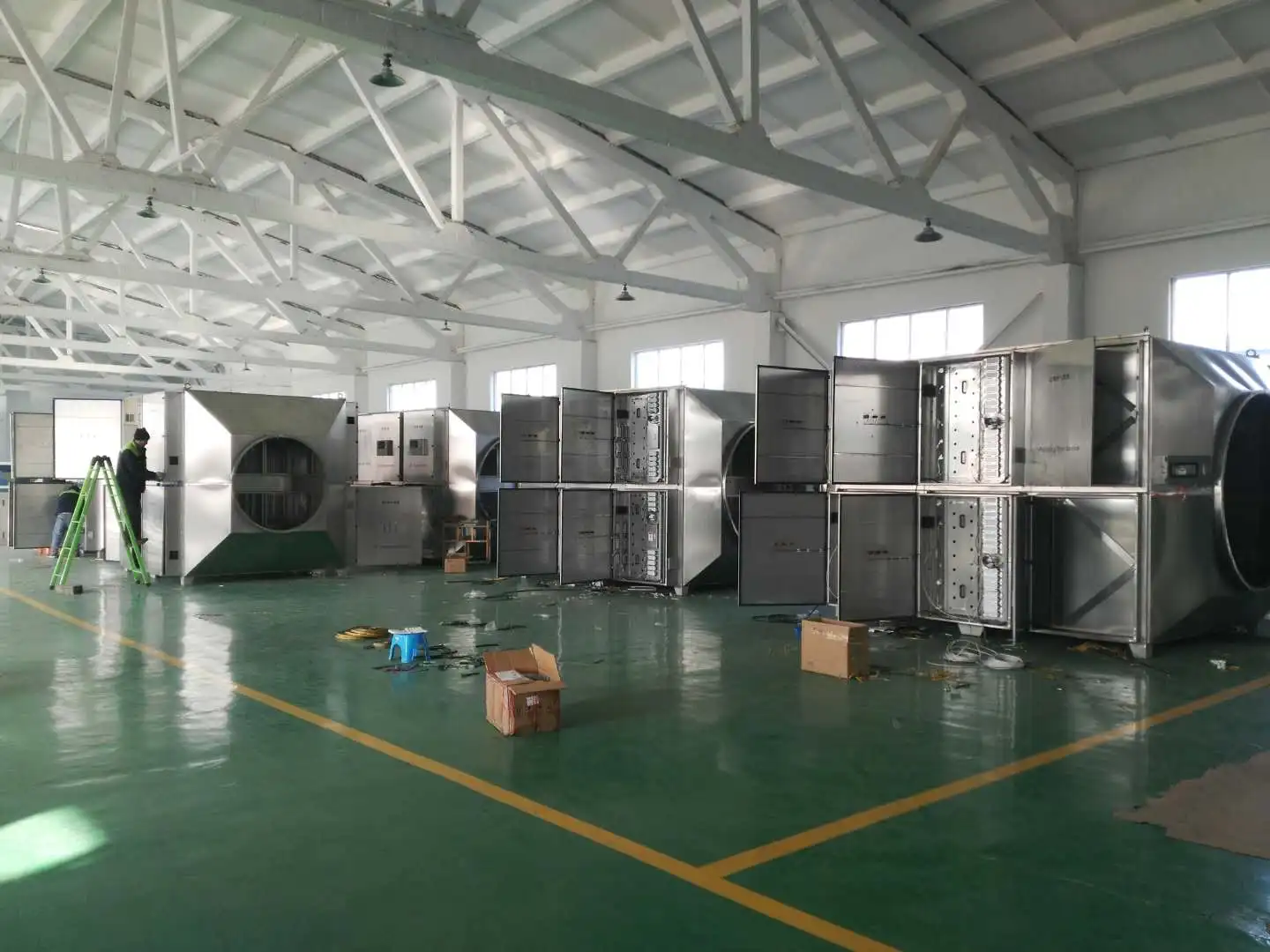

Factory Photos
1. What’s the shipping cost from China to your country?
Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
2. Payment terms, MOQ, warranty, FOB.
Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
Warranty: 12 months.
FOB: Qingdao or others port in CHINA.
3. What’s the package?
Re:Wrapping with plastic film and packed by wooden pallet or wooden case or without package.
4. What about commissioning service?
Re:We can offer commissioning service, the buyer need to afford air tickets.
5. What’s policy for guarantee and broken parts?
Re:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free
Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
2. Payment terms, MOQ, warranty, FOB.
Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
Warranty: 12 months.
FOB: Qingdao or others port in CHINA.
3. What’s the package?
Re:Wrapping with plastic film and packed by wooden pallet or wooden case or without package.
4. What about commissioning service?
Re:We can offer commissioning service, the buyer need to afford air tickets.
5. What’s policy for guarantee and broken parts?
Re:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free
