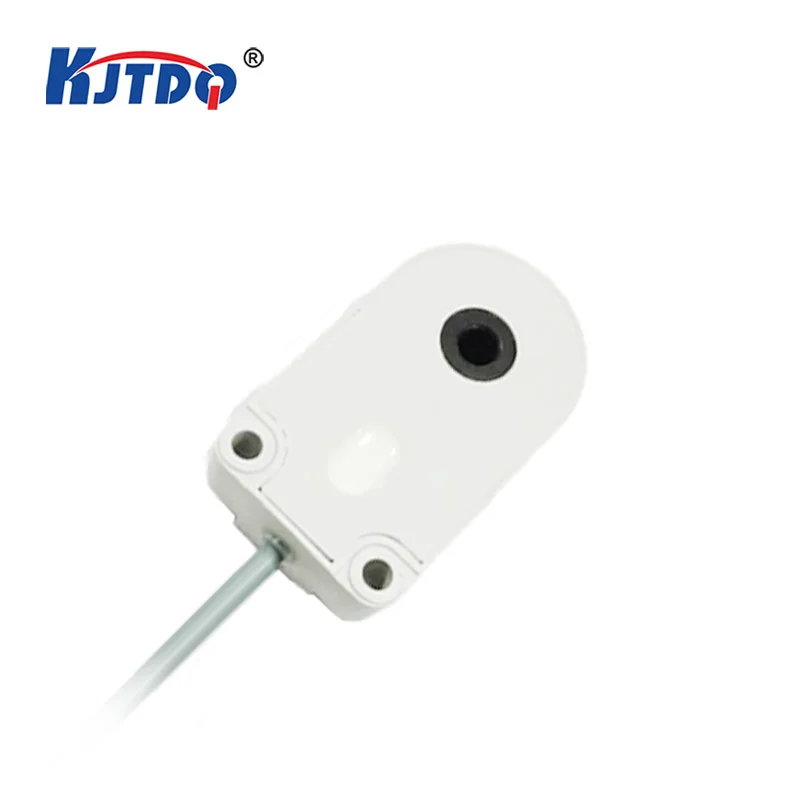

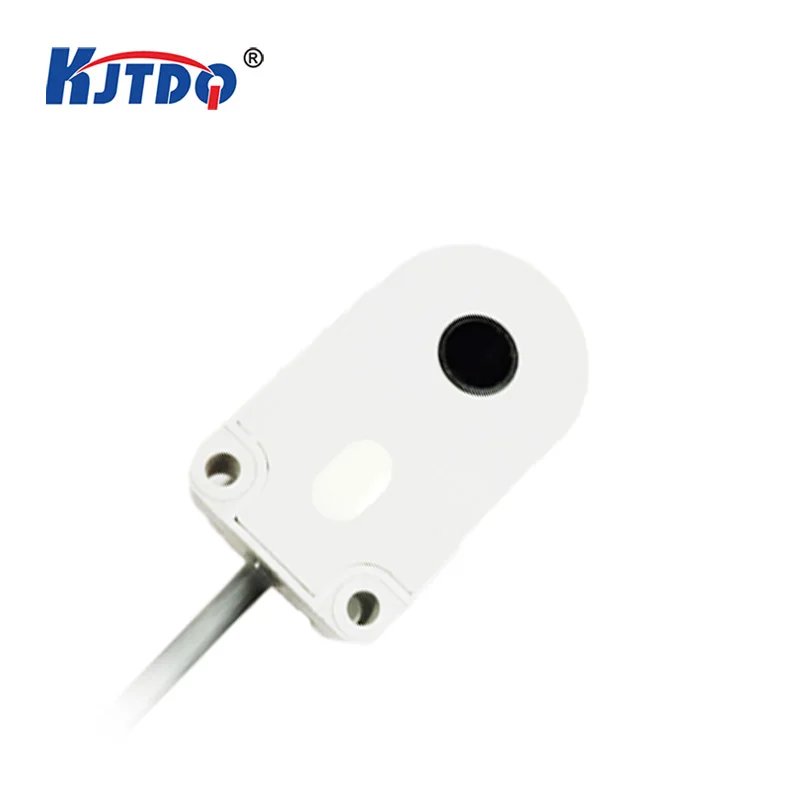

KJT New Choose T10 Ring Type Inductive Proximity IFM Sensor With 10 36V DC Voltage
- Category: >>>
- Supplier: Nanjing KJT Electric Co. Ltd.
Share on (1600935339784):
Product Overview
Description
Products Description
Product Paramenters
Product No | SN-6MM | SN-10MM | SN-15MM | SN-21MM | |||
Installation method | Non-Flush | ||||||
Detection distance | 6mm | 10mm | 15mm | 21mm | |||
Specification size (mm) | 60*35-20 | 60*35-20 | 60*35-20 | 60*35-20 | |||
Output Mode | NPN/PNP/NC/NO | ||||||
Response Frequency | 1000hz | 1000hz | 1000hz | 1000hz | |||
Movement Differential | Less than 10% of detection distance | ||||||
Supply Voltage Service Voltage Range | DC12-24V ripple (P-P) 10% or less (DC10-30V) | ||||||
Consumed Current | less than 13mA | ||||||
Switching capacity | less than 200mA | ||||||
Residual voltage | Under 2V (load current 200mA, conductor 2m long) | ||||||
Indicator | Action display (red) | ||||||
Protection circuit | Reverse protection, surge absorption, load short circuit protection | ||||||
Ambient temperature range | Working: -25~ + 70°C, Storing: -40~+ 85°C(no freeze, no dew) | ||||||
Ambient humidity range | Working / Storing: 35~95%RH (no dew) | ||||||
Temperature Effect | Temperature range from-25 °C to 70 °C is 23 °C, detection distance is less than ±10% | ||||||
Insulation Resistance | Above 50MΩ ( DC500V megger) between the whole charging part and the shell | ||||||
Withstand voltage | AC1, 000V 50/60Hz lmin between the whole charging part and the shell | ||||||
Vibration (Durability) | 10~55Hz up and down amplitude is 1.5mm, 2 hours in X,Y,Z directions | ||||||
Impact (Durability) | 300m/s² 10 times in X, Y, Z directions | ||||||
IP Grade | IEC standard IP67 | ||||||
Connection mode | 2m PVC cable | M12 4-pin connector | |||||
weight | About 52-54kg | About 14-15kg | |||||
Material | Case: nickel-plated brass, Test surface: heat-resistant ABS, standard cable (black) PVC | ||||||

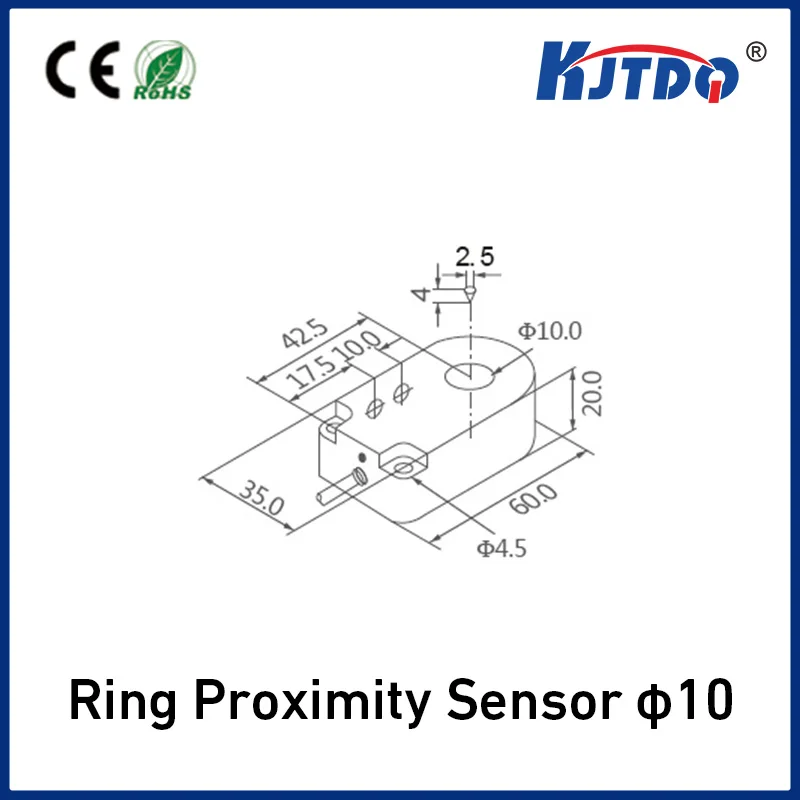

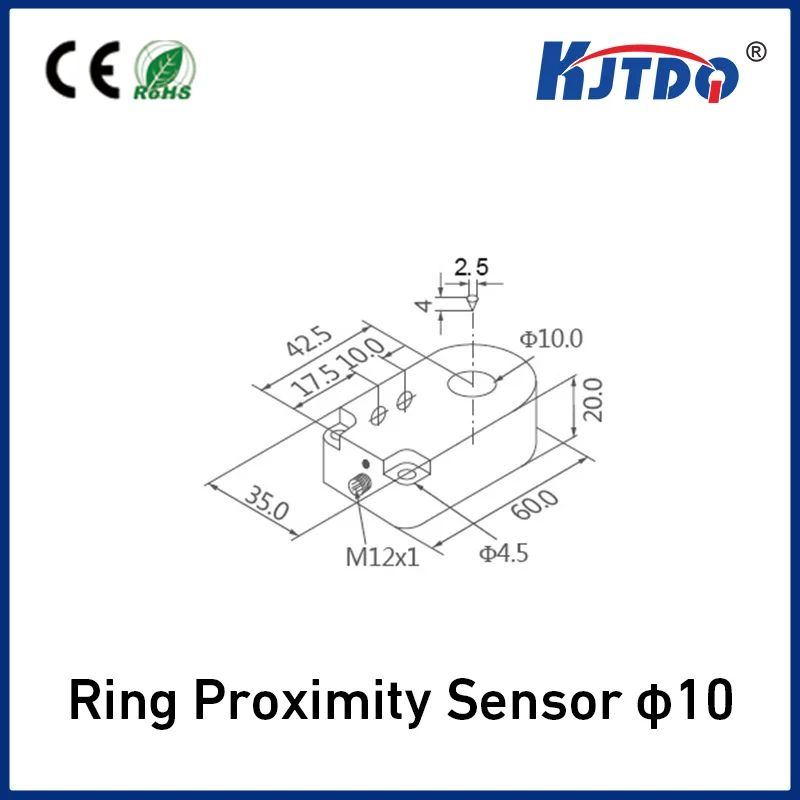

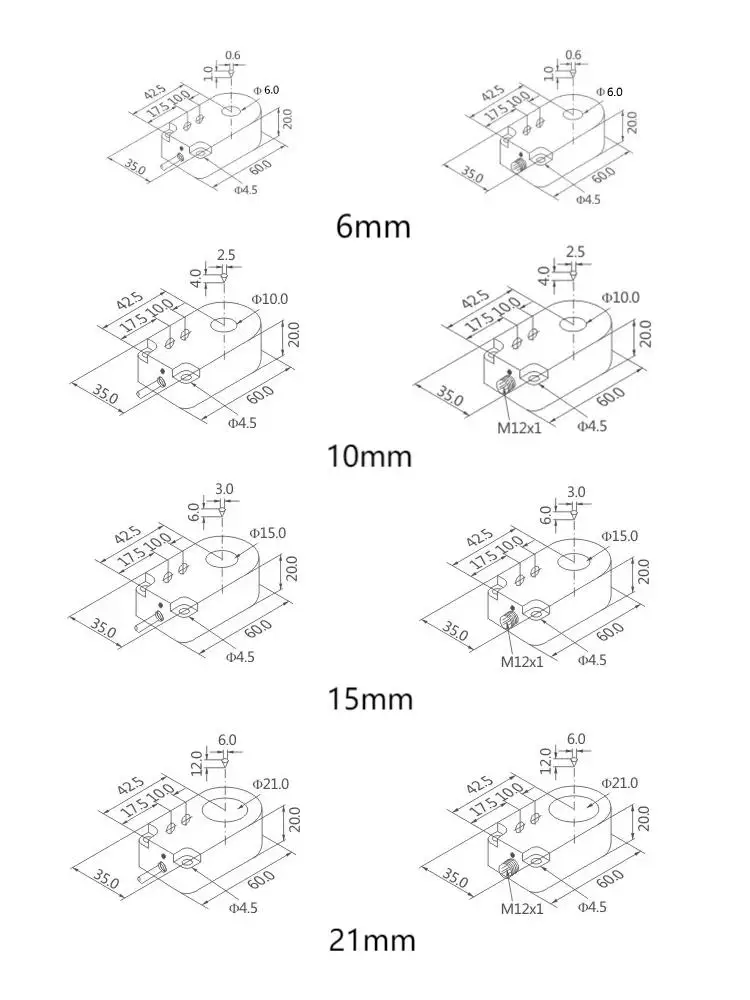

Product Dimensions

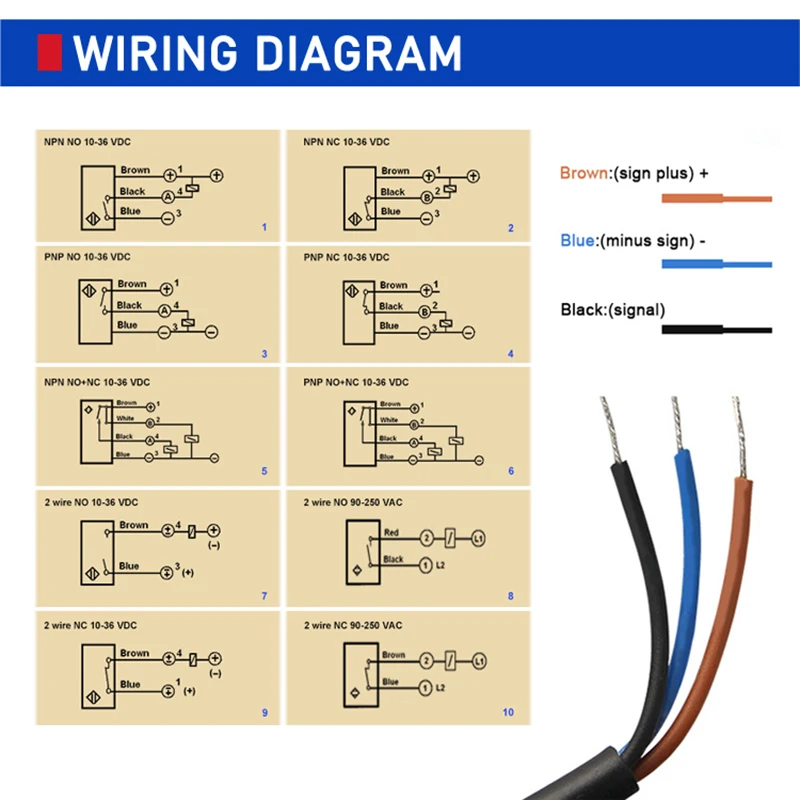

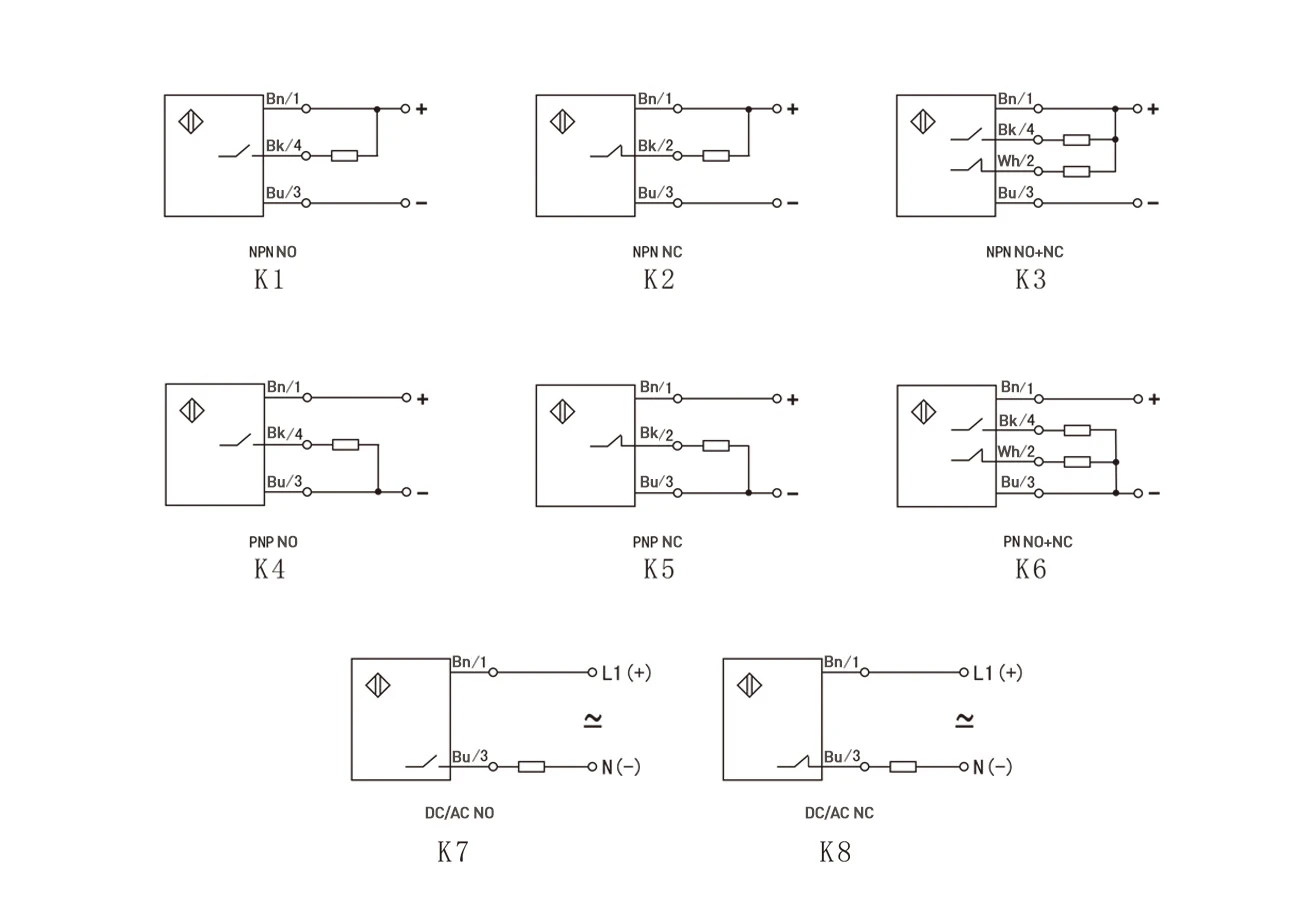

Product Wiring Diagram
PRODUCT APPLICATION
FAQ
Q1. Are you a trader or a manufacturer?
A: KJT electric is a manufacturing enterprise. We have more than 12 years of experience in R&D and production.
Q2: Can you send a sample for us to test ?
A: For proximity sensors ,it is available to send samples .
Q3: What is the minimum order quantity(MOQ)?
A: Small quantity is also available.MOQ can be negotiated for customized products.
Q4. Does your company accept customization?
A: Yes, we welcome OEM&ODM and label customization according to your requirements.
Q5 : How about the quality guarantee period ?
A : Our warranty period is 18-month since from shipping date.
Q6 : What's your leadtime?
A : 1-3 working days shipping guarantee for stock item , for non-stock items, our delivery date will be determined according to
the quantity you order. If your need is urgent, we will try our best to shorten the delivery time.
Q7 : What's your payment term?
A : We accept T/T, Credit card , Paypal and Western Union.
Q8: What is your shipping way?
A: We support DHL, UPS, FedEx, TNT, EMS express and so on.
A: KJT electric is a manufacturing enterprise. We have more than 12 years of experience in R&D and production.
Q2: Can you send a sample for us to test ?
A: For proximity sensors ,it is available to send samples .
Q3: What is the minimum order quantity(MOQ)?
A: Small quantity is also available.MOQ can be negotiated for customized products.
Q4. Does your company accept customization?
A: Yes, we welcome OEM&ODM and label customization according to your requirements.
Q5 : How about the quality guarantee period ?
A : Our warranty period is 18-month since from shipping date.
Q6 : What's your leadtime?
A : 1-3 working days shipping guarantee for stock item , for non-stock items, our delivery date will be determined according to
the quantity you order. If your need is urgent, we will try our best to shorten the delivery time.
Q7 : What's your payment term?
A : We accept T/T, Credit card , Paypal and Western Union.
Q8: What is your shipping way?
A: We support DHL, UPS, FedEx, TNT, EMS express and so on.
