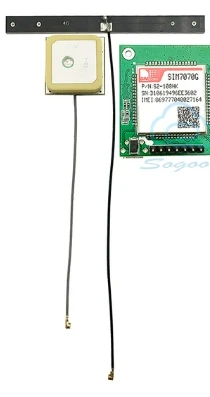

SIMCOM SIM7070G Board with PCB &GPS Antenna

Product Overview

Description



SIMCOM SIM7070G CAT-M&NB-IoT Module 100% New&Original



Feel free to contact us if you need any AT Command Newest Firmware datasheet hardware design windows drivers Linux Android drivers documents and so on



We can supply the customized PCB Board for SIM7070G













CAT-M&NB-IoT Module



The SIM7070G is Multi-Band CAT-M, NB-IoT and GPRS module solution in a SMT type .

It has strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, I2C etc. The module provides much flexibility and ease of integration for customer's application.

It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..

Product advantages

• With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7070G can extend battery life to 10 years.

• CAT-M, NB-IoT , GPRS triple mode

• The package of SIM7070G is compatible with SIM7000/SIM800F/SIM900

General Features

Support Bands:

CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B2 6/B27/B28/B66/B71/B85

CAT-NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B2 8/B66/B71/B85

GSM/GPRS:

850/900/1800/1900MHz

Control Via AT Commands
Supply voltage range: 3.0V-4.6V(TBD)
Operation temperature: -40℃ to +85℃

Dimensions: 24X24X2.3mm

Weight: 2.9±0.2g



Date

Cat-M:

- Uplink: up to 1119Kbps Downlink: up to 589Kbps

NB-IoT:

- Uplink: up to 150Kbps Downlink: up to 136Kbps

EDGE:

- Uplink up to 236.8Kbps, Downlink up to 236.8Kbps

GPRS:

- Uplink up to 85.6Kbps, Downlink up to 85.6Kbps

Other Features

TCP/UDP HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT Ayla Cloud

Firmware update via USB

FOTA

EAT



Interfaces

UART



SIM card

PCM/I2S

SPI

I2C

GPIO

ADC

USB

Embedded SIM (optional)

Consumption

PSM: TBD
Sleep: TBD
Idle: TBD
eDRX: TBD



Certifications(plan)

FCC/IC/ANATEL

PTCRB

AT&T/TMOBILE/VERIZON RoHS/REACH
