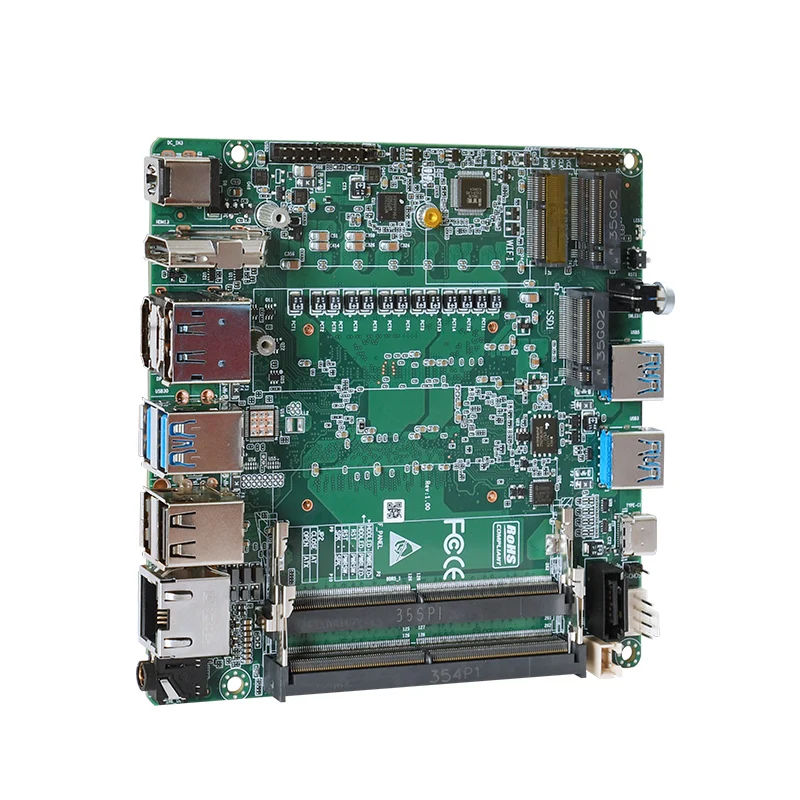

I5 1240P 12th Processor 2*DDR5 Slot Dual 2.5G Network Support SSD Slot WIFI Module NANO Motherboard
- Category: >>>
- Supplier: Chengqin Precision Technology (Shenzhen) Co. Ltd.
Share on (1600935436484):
Product Overview
Description
Products Description
Main Features:

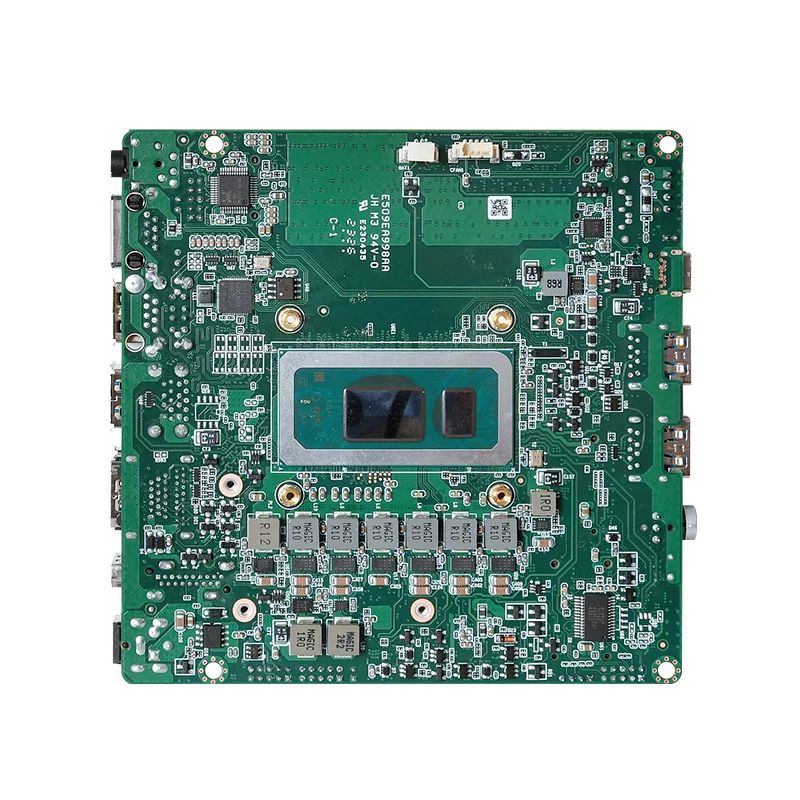

Onboard Intel Alder Lake-U/-P series processor
Onboard Intel Alder Lake-U/-P series processor
2*DDR5 SO-DIMM, total maximum 64GB
Intel 2.5G network, single and double network optional TPM2.0, M.2 SSD, M.2 WIFI 2*HDMI2.0, 2*Type-C (USB+DP)
DC 12-19V;
Size: 120x120mm
processor system | Onboard Intel Alder Lake-U/-P series processors |
EFI BIOS | |
Memory | 2*DDR5 SO-DIMM, total maximum 64GB |
storage | 2*M.2 M-Key 2280 (NVMe PCIe 3.0 x4/SATA3.0 protocol) |
1*SATA3.0 interface, 2Pin 5V power supply | |
Display | 2*HDMI2.0 interface, support 4096x2160@60Hz |
1*DP,support 7680x4320@60Hz | |
1*Type-C interface, support DP 7680x4320@60Hz and USB3.2 Gen2 | |

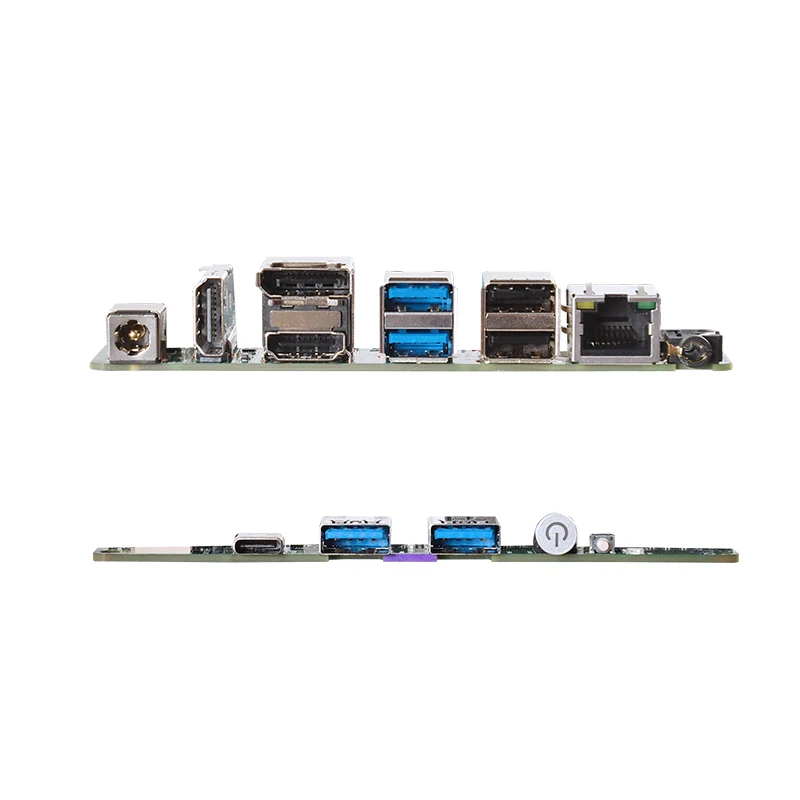

Board edge I/O interface | Power button, 2-in-1 audio jack, reset button, 4*USB3.0 |
DC JACK, 2*HDMI, 1*Type-C, 1*DP | |
Single and double networks are optional: for single network, 1*USB3.2 is used; for dual network, 1*USB3.2 is required | |
Extended Interface/Function | External TPM2.0 is optional, but not by default. The default is CPU built-in TPM2.0 |
1*M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module) | |
1*RS232 header, pitch 2.0mm | |
1*USB2.0 header, 2x5Pin, pitch 2.0mm | |
1*4Pin PWM CPU FAN | |
power supply | DC 12-19V, above 120W |
working environment | Working temperature: -20℃ ~ +60℃; Working humidity: 5% ~ 90% |
Storage temperature: -40℃ ~ +85℃; storage humidity: 5% ~ 90% | |
operating system support | Windows10, Windows11, Linux |
size | 120x120mm |

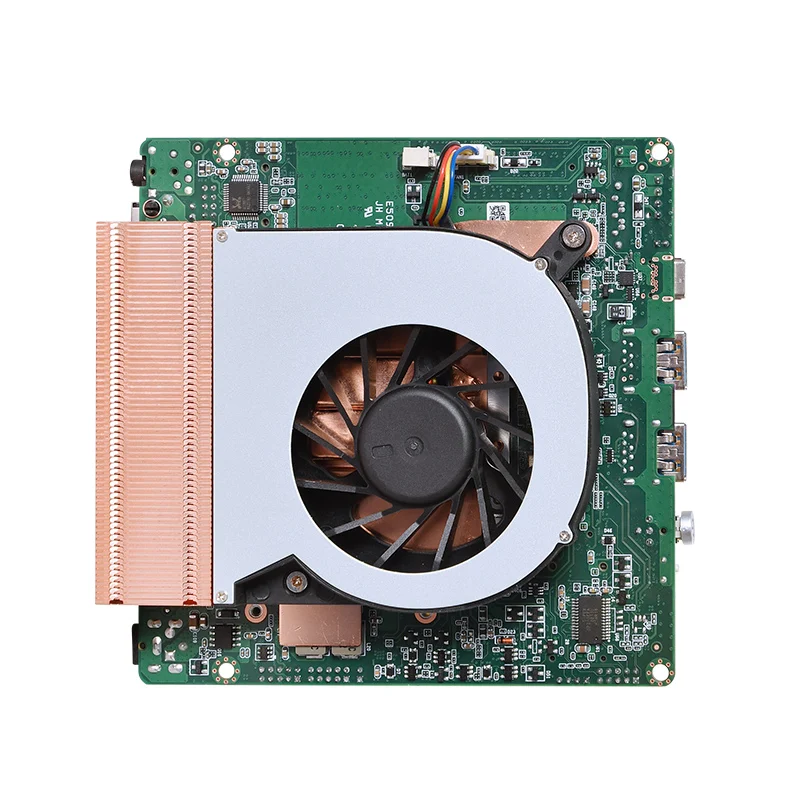

net weight | About 130g without radiator, about 250g with radiator |

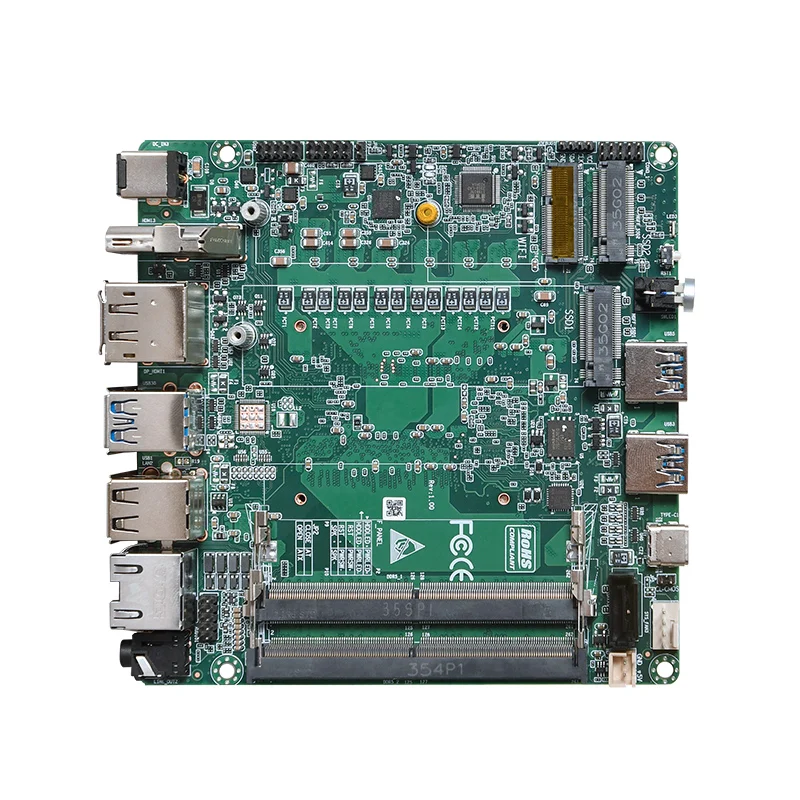

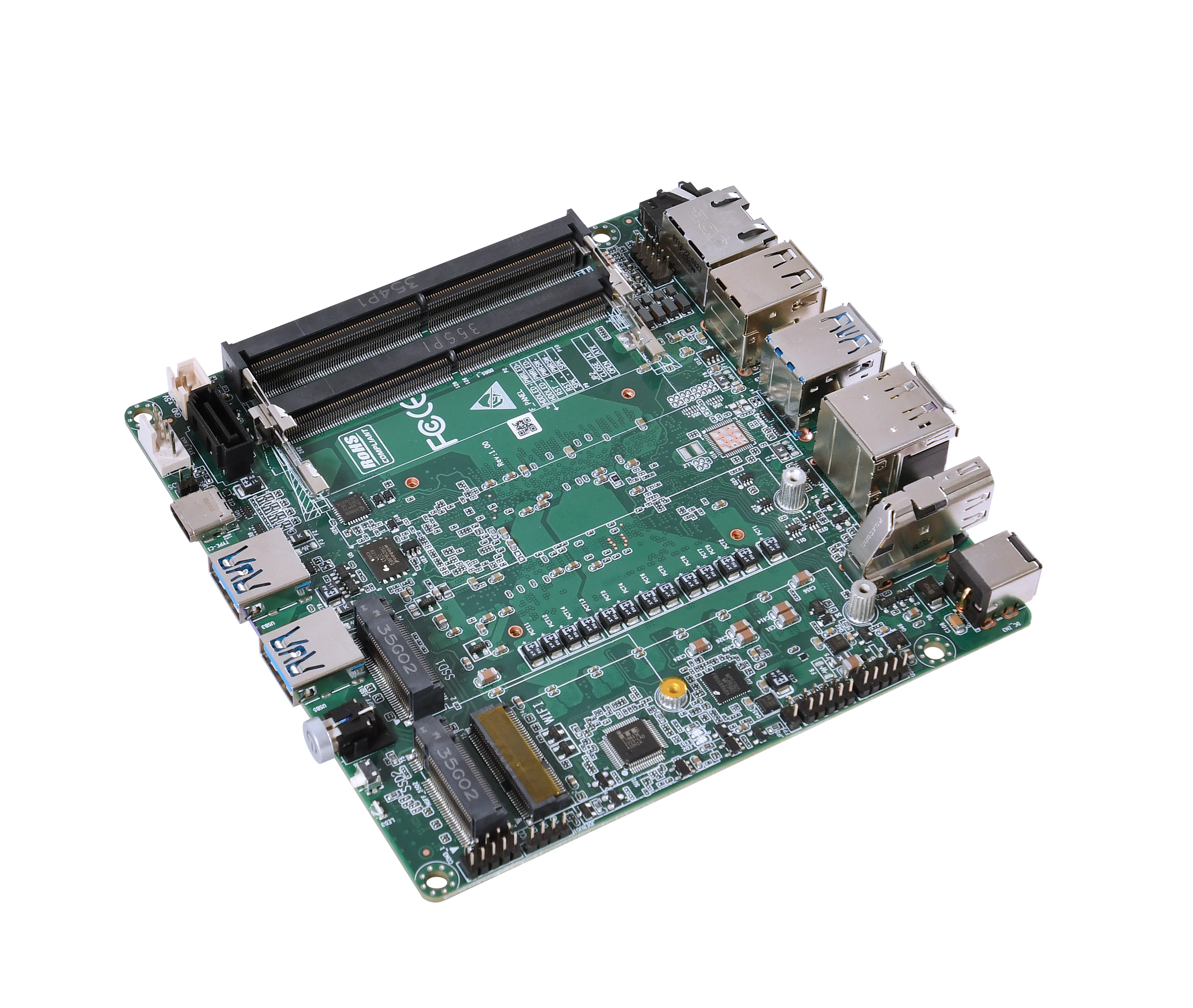

Details Images
Services
1.Quality: we check every product carefully before the delivery, and provide 2 years warranty time, if you find problems please contact us in time.
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer
About Piesia
Package&Delivery
FAQ
Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
