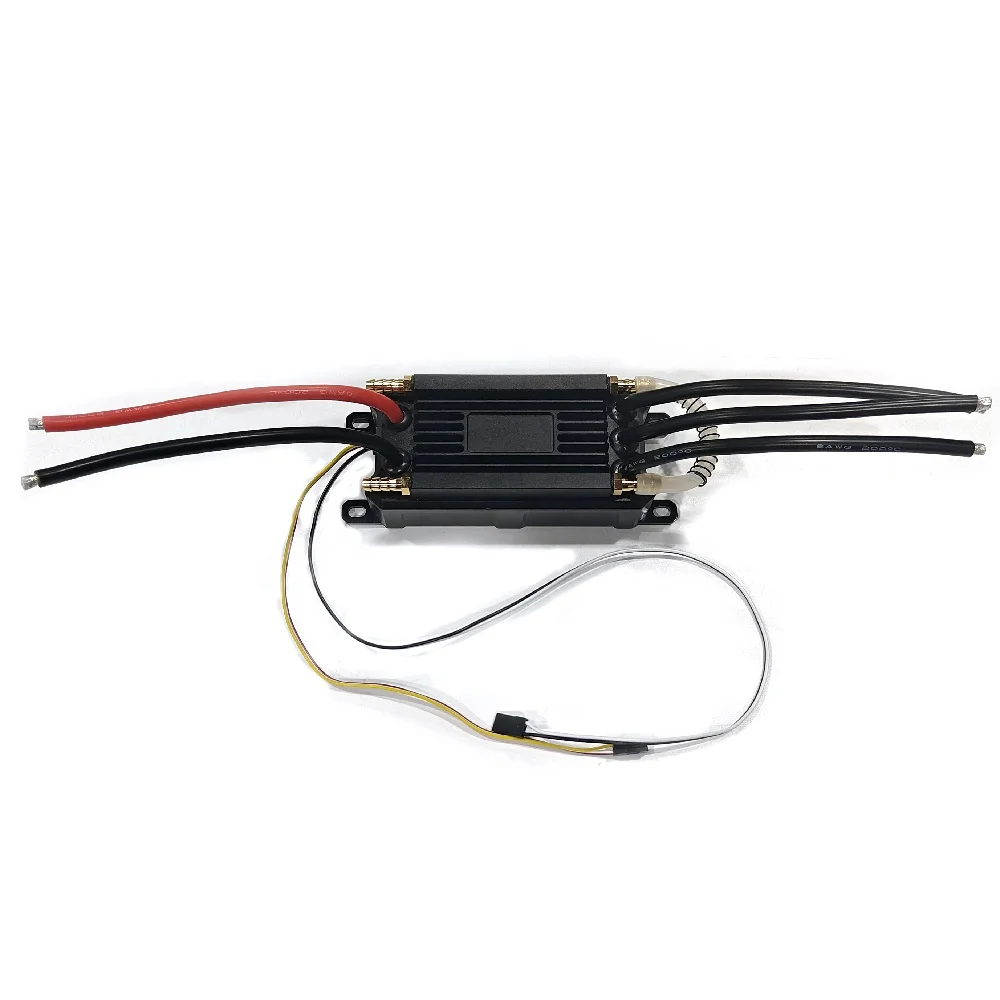

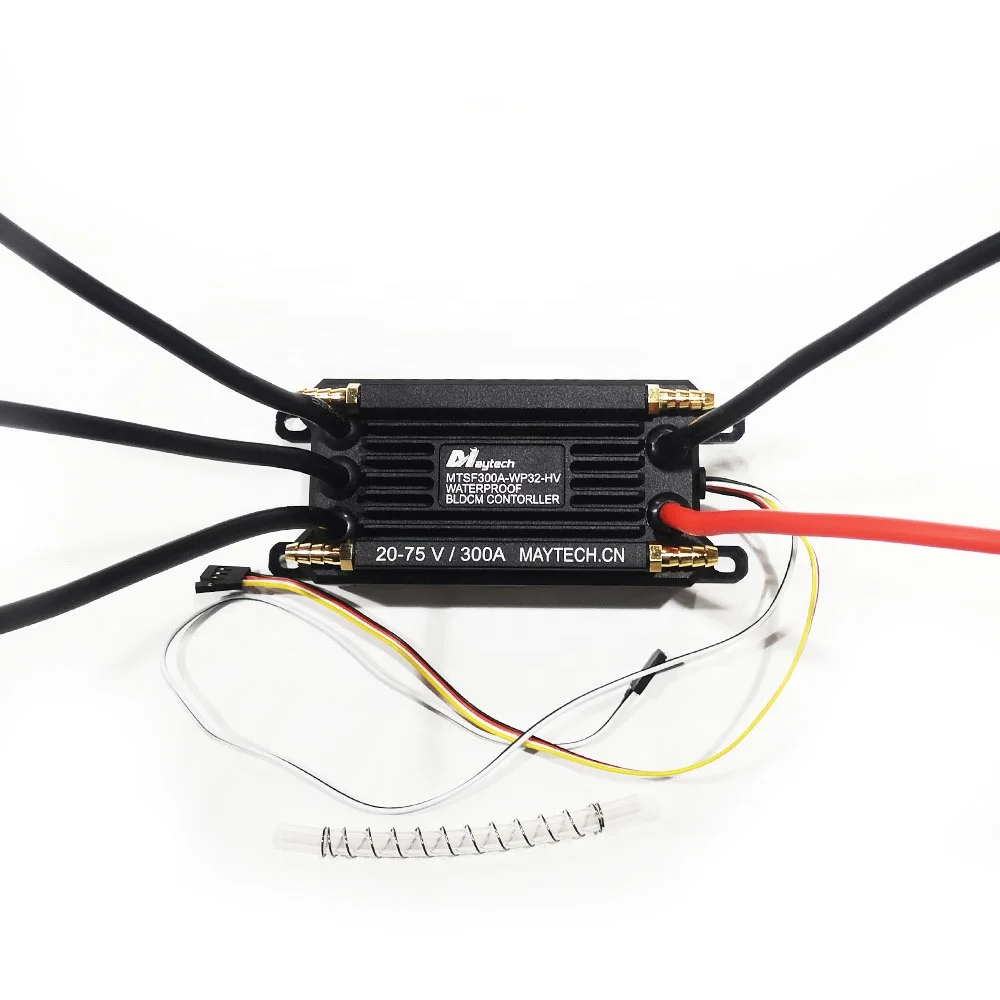

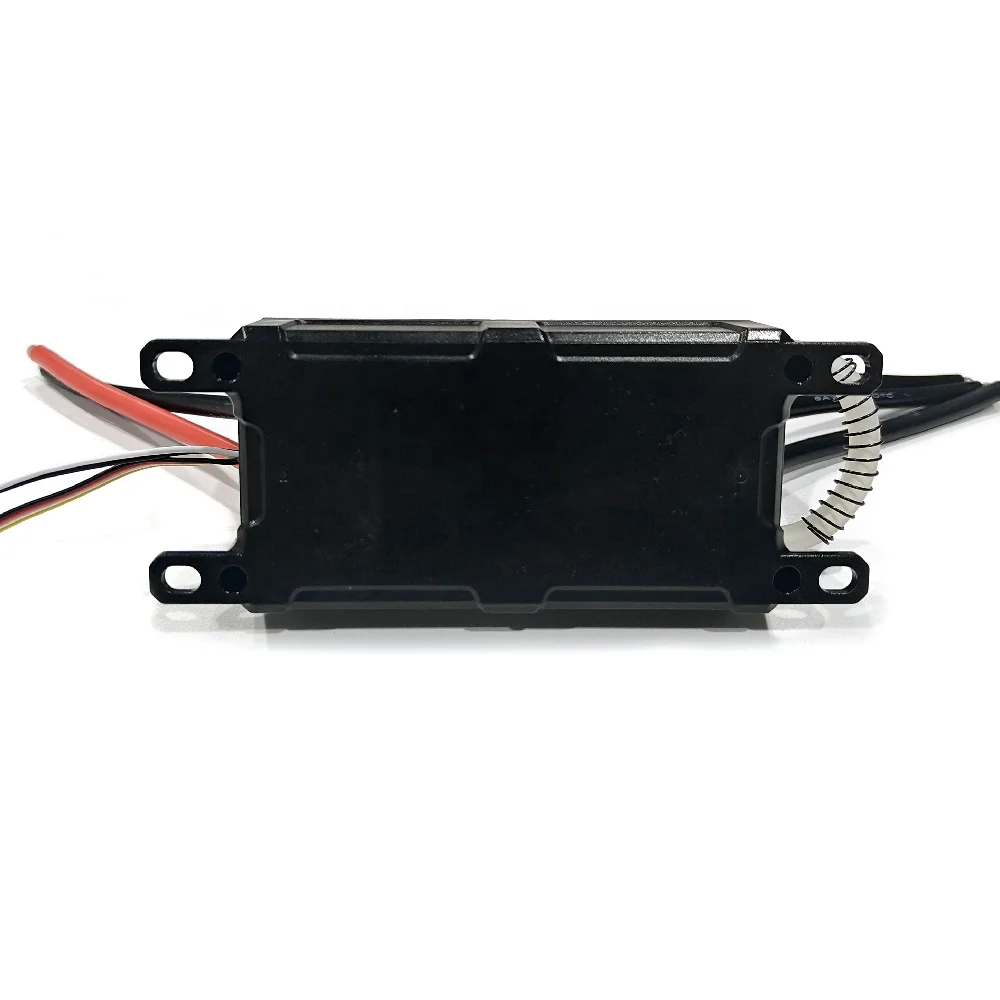

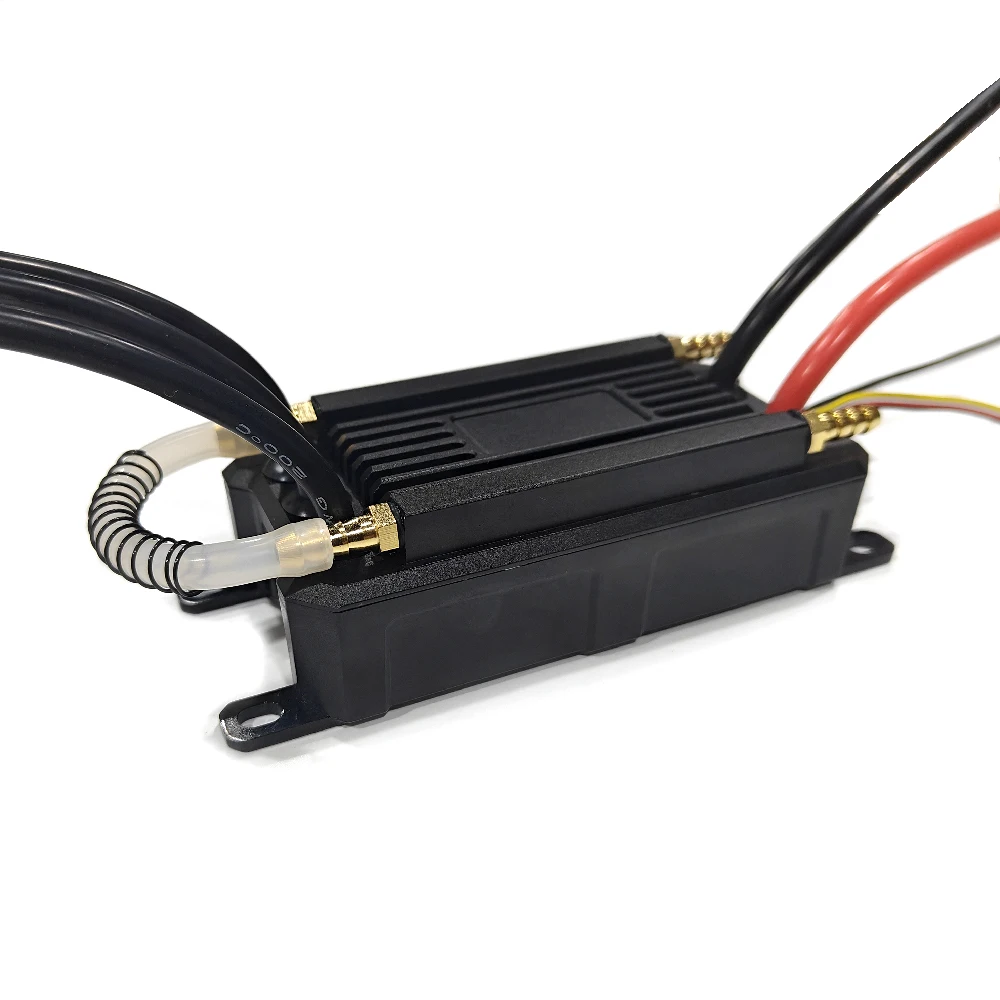

Maytech Efoil 300A Waterproof ESC IP68 Waterproof Speed Controller for Electric PodDrive Underwater Thruster Electric Foil
With IP68 waterproof and cooling aluminum case
300A Cont Current
Great start-up torque with sensorless motor
With Progcard
Alloy Aluminum Case
With IP68 Waterproof connector protector
Great start-up torque with sensorless motor
With Progcard
Alloy Aluminum Case
With IP68 Waterproof connector protector
Max ERPM: 100000
32BIT Micropprocessor
32BIT Micropprocessor
Model No. | MTSF300A-WP32 (25-60V) MTSF300A-WP32-HV (25-75V) | Cont Current | 300A |
Input Voltage | 6-14S Lipo (25-60V) 6-18S Lipo (25-75V) | Burst Current | 320A at 10S |
Size | As picture | Water-cooling | With |
Waterproof Rank | IP68 | Certificate | CE, ROHS |
Programmable | Yes | Application | Electric Surfboard /Efoil /Jetski /Jetboard /Jetsurf/RC Boat/Foil Boat, etc., |

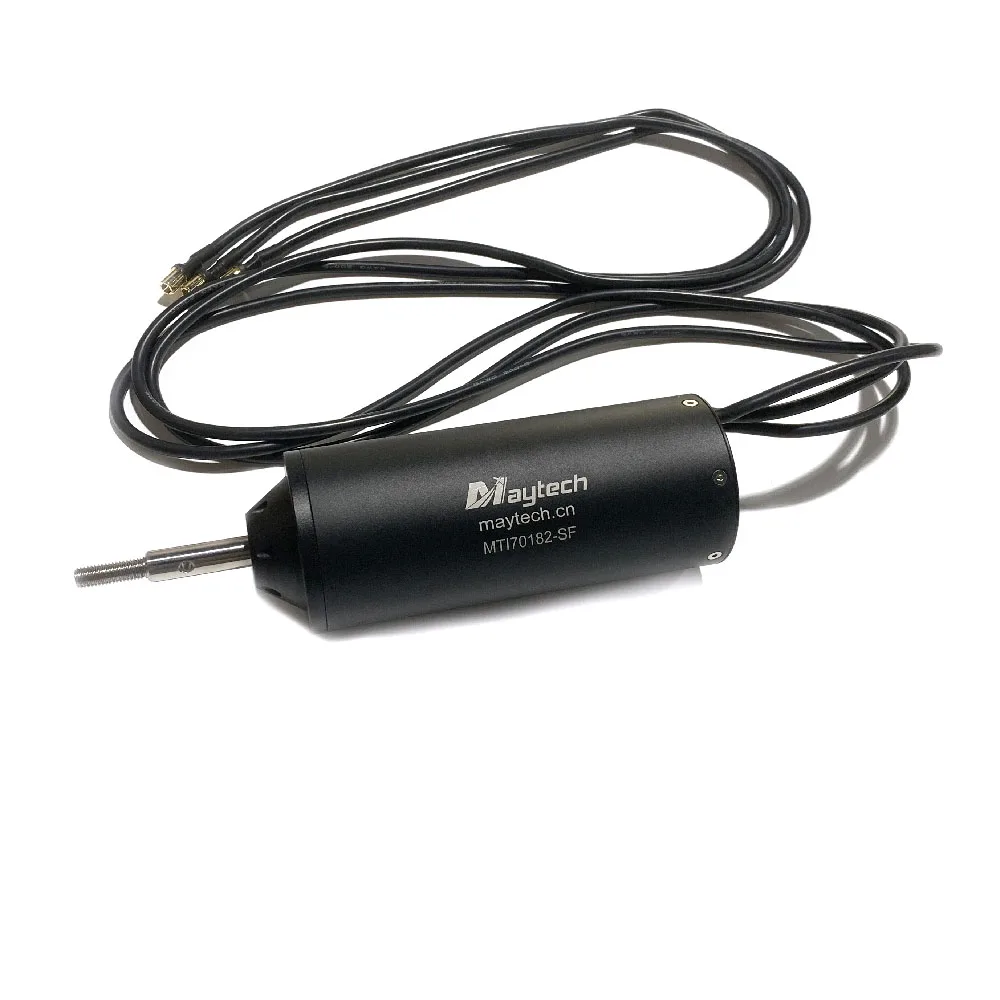

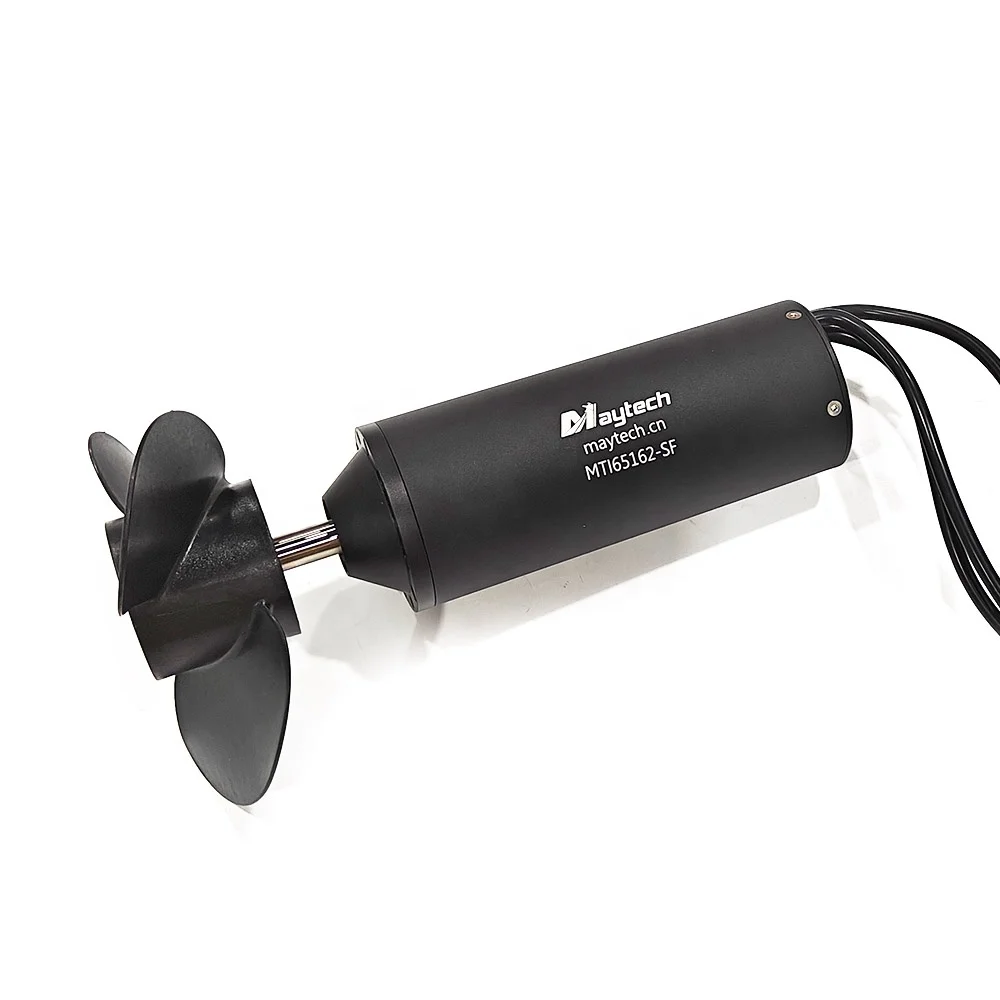

The New MTSF300A-WP32 ESC is recommended for following 65162 and 70182 motors: (please click picture to check motor details)
Features:
1. Fully new circuit design, excellent algorithm
--With high performance 32bit MCU processor, greatly improved data computing ability;
--Faster respond, smoother startup;
--Throttle linear is optimized, more accurate and smoother, better compatibility;
2. Seperate control board and power board design
--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.
3. Support forward and reverse rotation
--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.
--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,
4. With kinetic energy recovery function
--Save more energy;
--Extend battery working time;
--Reduce heat
5. Built in upgrade high power BEC with on & off
--Adjustable 5V and 6V output;
--Continues output 8A current, peak current 15A;
--High loading power, able to drive more higher power external device.
6. Multiple protections
--Startup protection;
--Over-temp protection;
--Low voltage protection;
--Phase loss protection;
--Signal loss protection
--With high performance 32bit MCU processor, greatly improved data computing ability;
--Faster respond, smoother startup;
--Throttle linear is optimized, more accurate and smoother, better compatibility;
2. Seperate control board and power board design
--Elegant PCB layout and circuit design,control board won’t be influenced even when ESC gets heat at high power condition, which makes the ESC more reliable and has stronger anti-interference.
3. Support forward and reverse rotation
--The ESC filled with waterproof glue to make sure its IP68 waterproof, flat water cooling design to make sure high efficient heat dissipation.
--Suitable to use on various water sports like Efoil, surfboard, underwater thruster, etc.,
4. With kinetic energy recovery function
--Save more energy;
--Extend battery working time;
--Reduce heat
5. Built in upgrade high power BEC with on & off
--Adjustable 5V and 6V output;
--Continues output 8A current, peak current 15A;
--High loading power, able to drive more higher power external device.
6. Multiple protections
--Startup protection;
--Over-temp protection;
--Low voltage protection;
--Phase loss protection;
--Signal loss protection
