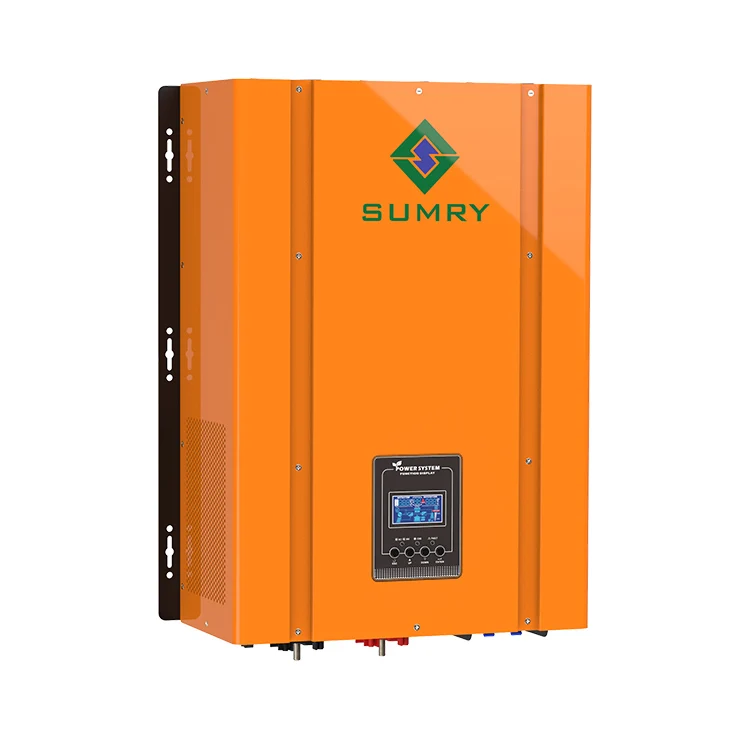

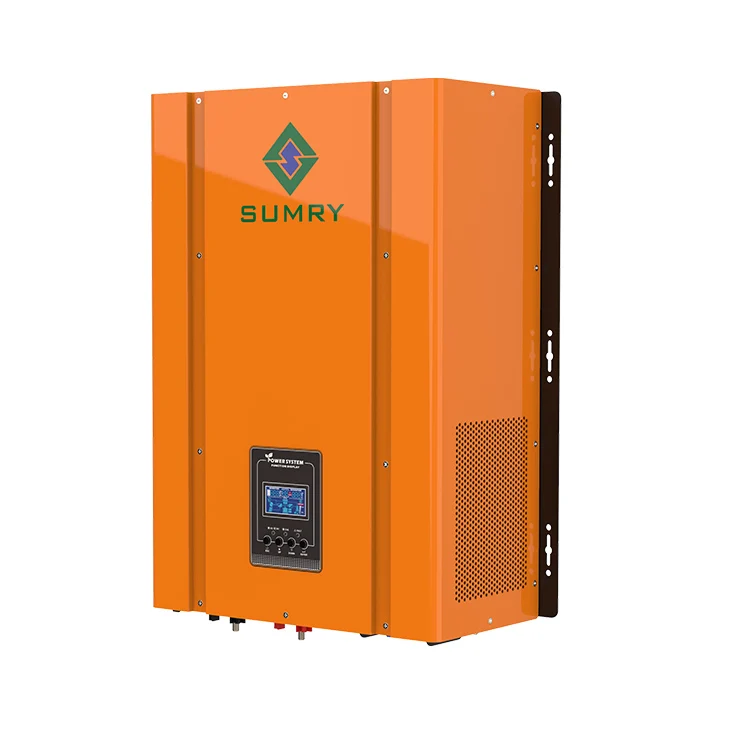

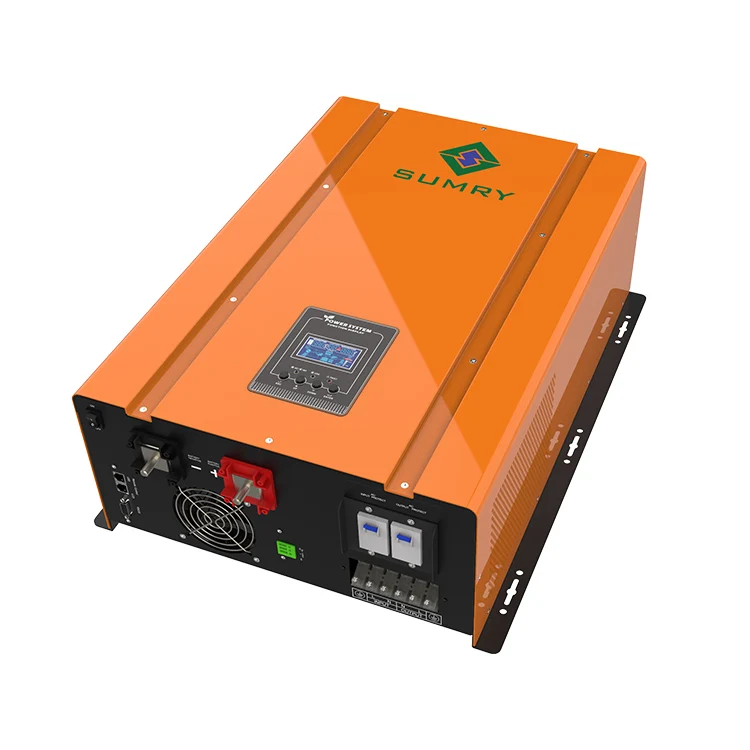

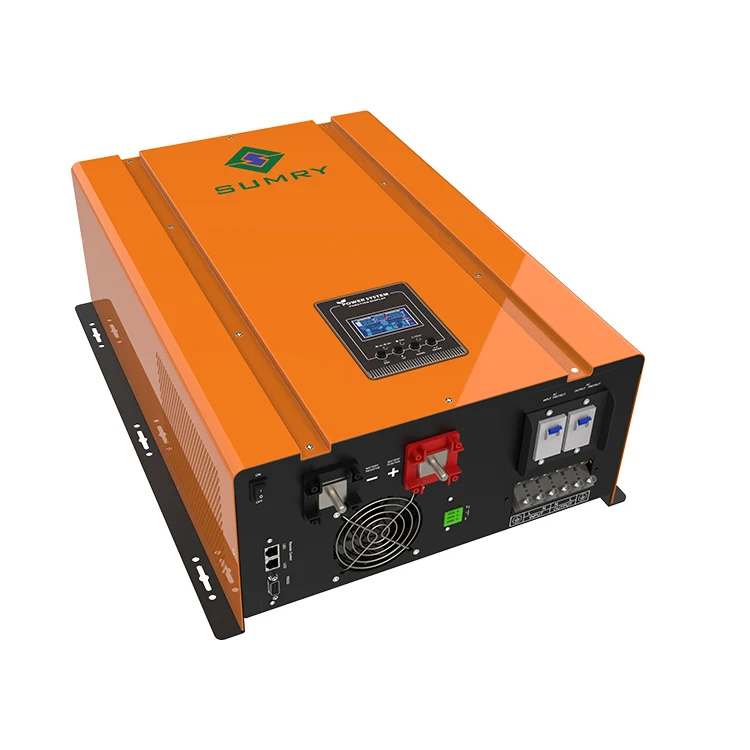

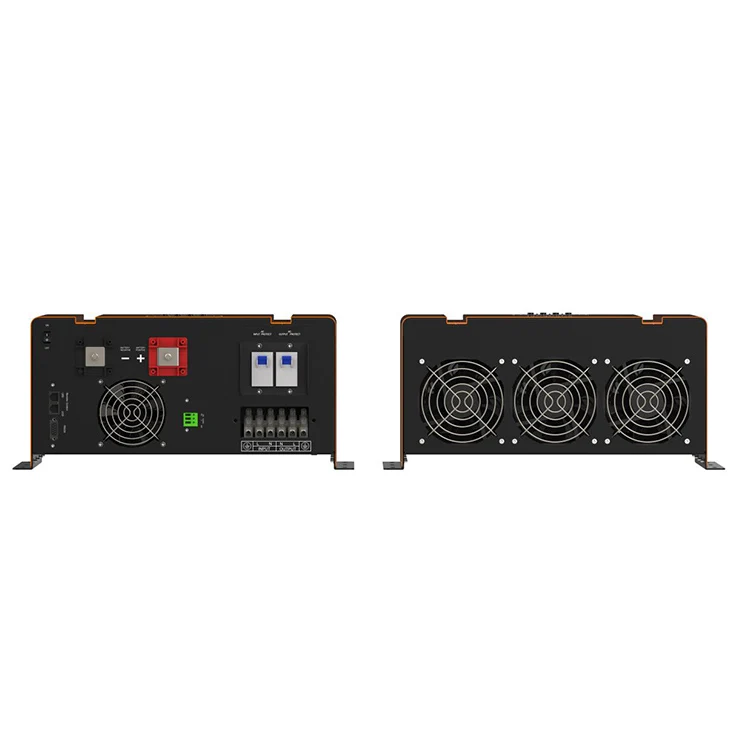

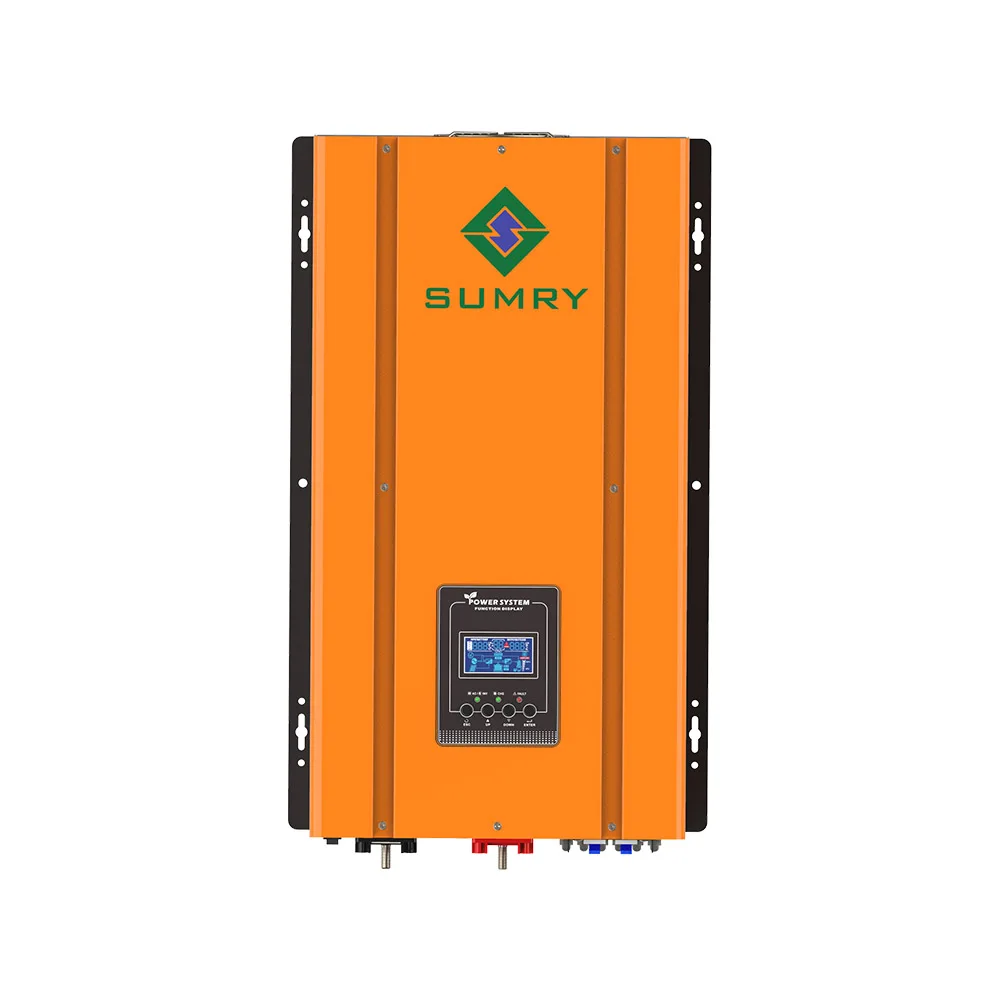

RP series 8kw 10kw 12kw 48v 96v dc 220v 230v ac 50hz off grid low frequency pure sine wave inverter
- Category: >>>
- Supplier: Shenzhen Sumry Electronics Co. Ltd.
Share on (1600935492886):
Product Overview
Description
Pure sine wave inverter
Output power factor 1
Selectable high power charging current
Selectable input voltage range for home appliances and personal computers
Configurable AC/battery input priority via LCD setting
Compatibe with generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Color LCD display
Support the use lithium batteries
Output power factor 1
Selectable high power charging current
Selectable input voltage range for home appliances and personal computers
Configurable AC/battery input priority via LCD setting
Compatibe with generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Color LCD display
Support the use lithium batteries
Smart fan running control to extend service life and reduce noise
Wave by wave phase detection, more stable and reliable
RS232/RS485/CAN communicate port and remote control panel optional
Model | RP 8K | RP 10K | RP 12K | |||||||||
Rated Power | 8000W | 10000W | 12000W | |||||||||
INPUT | ||||||||||||
Voltage | 100/110/120Vac;220/230*/240Vac | |||||||||||
Selectable Voltage Range | Wide Range : 75vac~138Vac; 155Vac~275Vac(for home appliances) Narrow Range: 82Vac~138Vac; 165Vac~275Vac(for personal computer) | |||||||||||
Frequency Range | 40-70Hz( 50Hz/60Hz) | |||||||||||
OUTPUT | ||||||||||||
AC Voltage Regulation (Battery. Mode) | 100/110/120Vac;220/230*/240Vac | |||||||||||
Surge Power | 24KVA | 30KVA | 36VA | |||||||||
Efficiency (Peak) | 90% | |||||||||||
Transfer time | <20ms | |||||||||||
Waveform | Pure sine wave | |||||||||||
BATTERY | ||||||||||||
Battery Voltage | 48V | 96V | 48V | 96V | 48V | 96V | ||||||
Charge current | 70A | 35A | 75A | 40A | 75A | 50A | ||||||
Fast charge voltage | 57.2V | 114.4V | 57.2V | 114.4V | 57.2V | 114.4V | ||||||
Float charge voltage | 54.8V | 109.6V | 54.8V | 109.6V | 54.8V | 109.6V | ||||||
Over voltage protect | 66.0V | 132.0V | 66.0V | 132.0V | 66.0V | 132.0V | ||||||
Battery low voltage alarm | 42.0V | 84.0V | 42.0V | 84.0V | 42.0V | 84.0V | ||||||
Battery low voltage shutdown | 40.0V | 80.0V | 40.0V | 80.0V | 40.0V | 80.0V | ||||||
Protection | Over charging, over temp, over battery voltage, over load, short circuit | |||||||||||
Operating environment Temp | 55°C | |||||||||||
Cooling | Intelligent Fan | |||||||||||
Display | Color LCD | |||||||||||
Parameter setting | By LCD or Position Machine: Charging current , battery type , input voltage , output frequency, Wide and Narrow range of ac input voltage , Power saver mode, ac/battery priority | |||||||||||
PHYSICAL | ||||||||||||
Dimension D*W*H(mm) | 584*425*180 | |||||||||||
Net Weight | 58.7/59 | 67/66.5 | 71.8/72 | |||||||||
ENVIRONMENT | ||||||||||||
Humidity | 5-95% Relative Humidity (Non-condensing) | |||||||||||
Operating Temp | -10°C to 50°C | |||||||||||
Storage Temp. | -15°C to 60°C | |||||||||||
