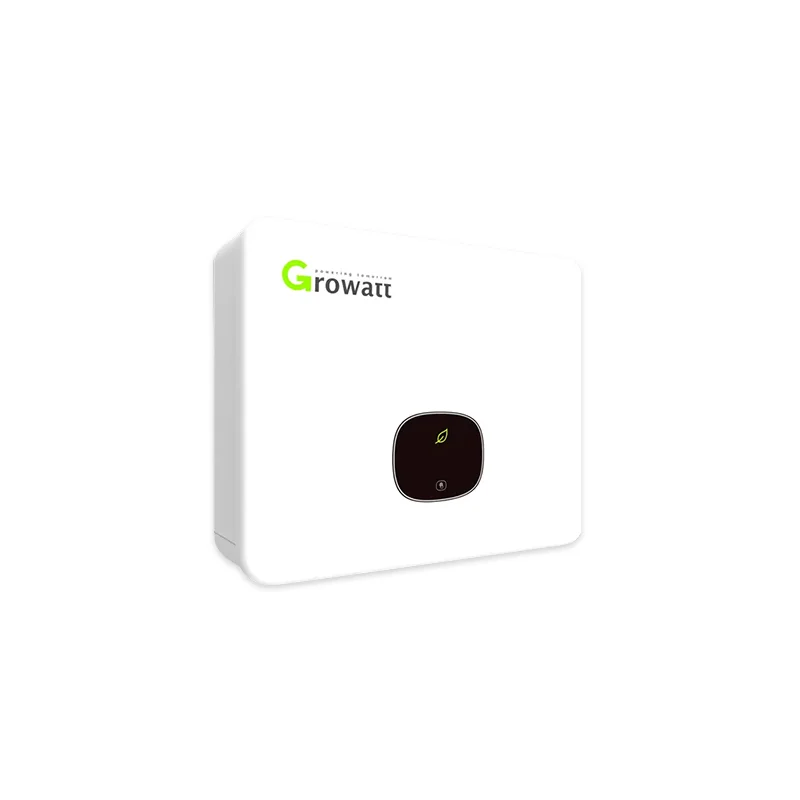

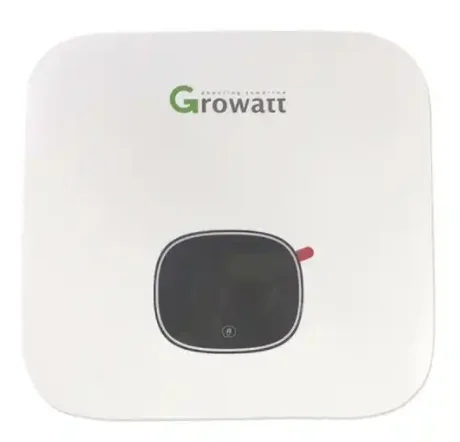

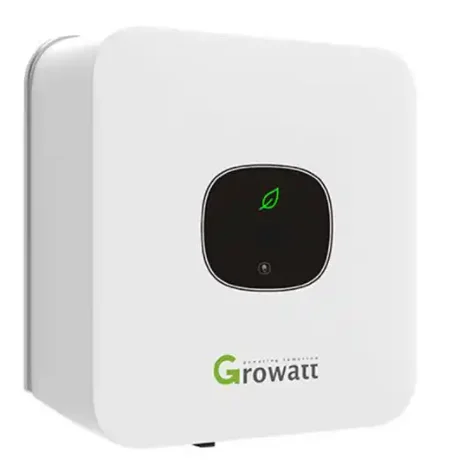

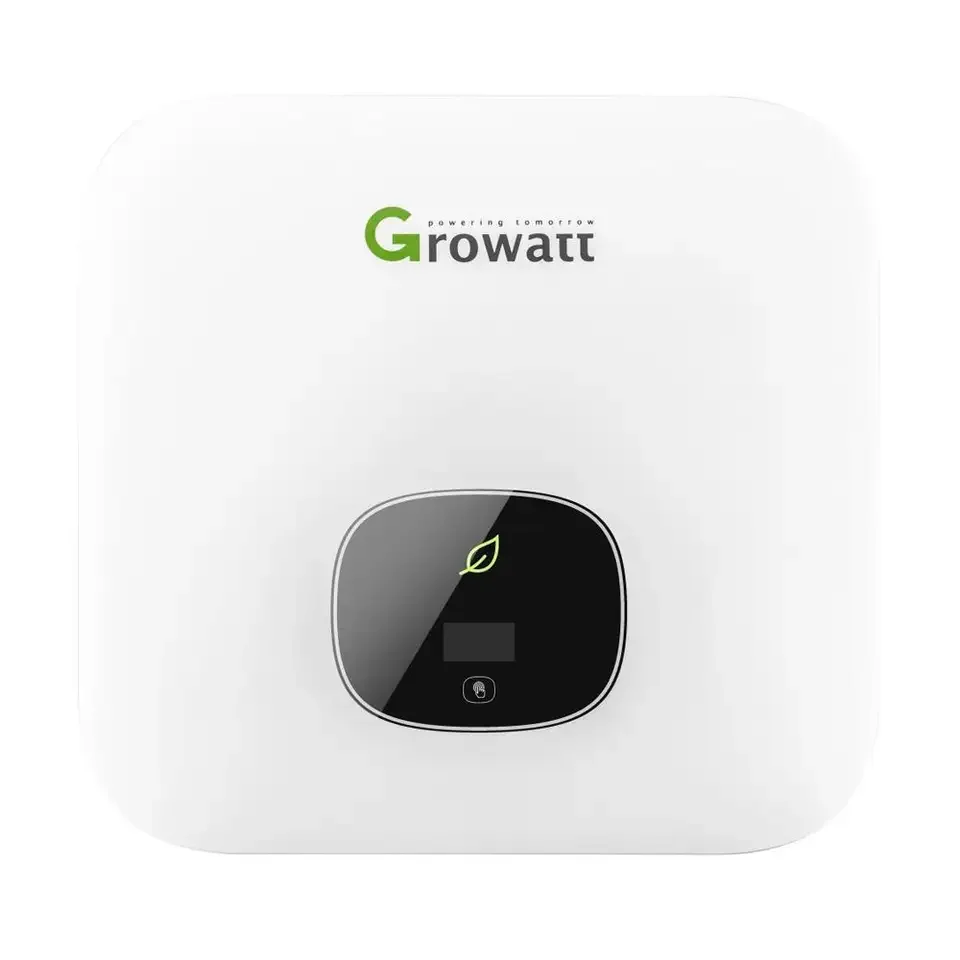

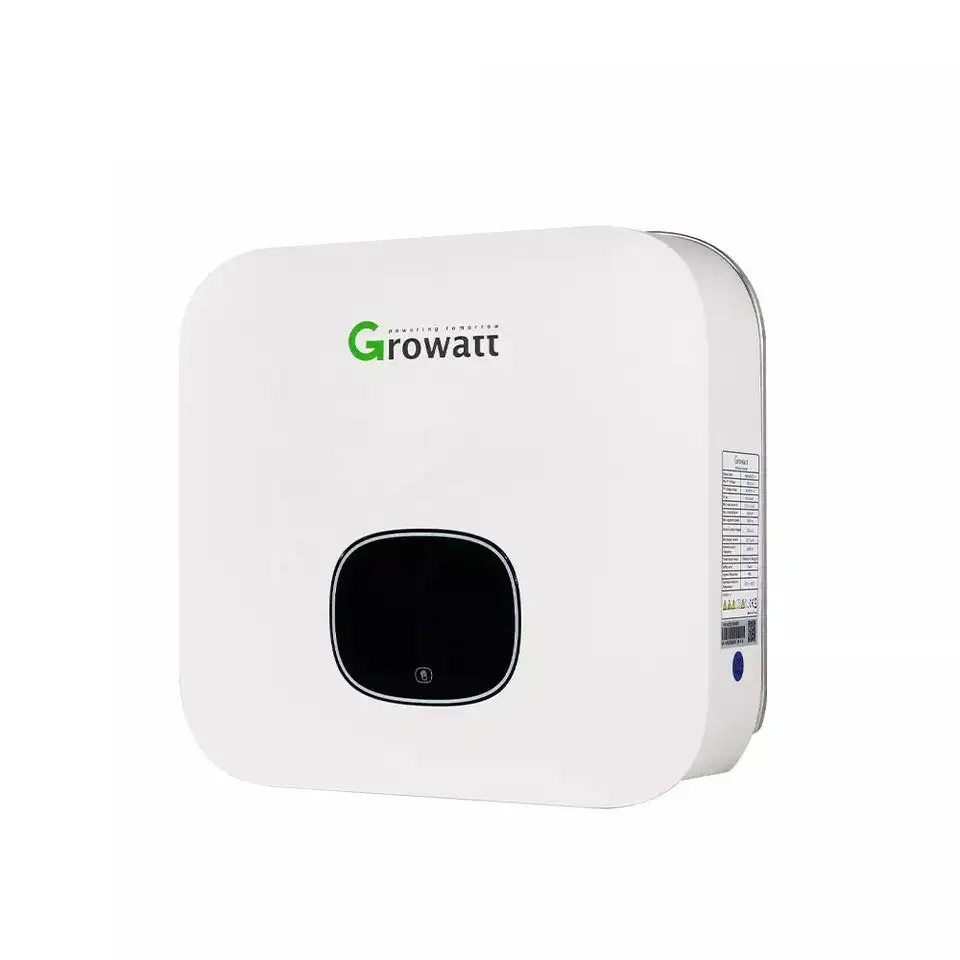

MIN 5000TL X solar inverter growatt 3KW 5KW 6KW inverter on grid single phase one phase MIN5000 growatt inverter
- Category: >>>
- Supplier: Jiangsu Gaoyue New Energy Technology Group Co. Ltd.
Share on (1600935504657):
Product Overview
Description
Growatt 3kw 5kw 6kw solar inverter on grid MIN5000 MIN6000 in stock low price with WIFI
Maximum efficiency of 98.4%Dual MPP trackers
Type II SPD on DC side
Supports export control
Touch key and OLED display
Data storage up to 25 years
Type II SPD on DC side
Supports export control
Touch key and OLED display
Data storage up to 25 years

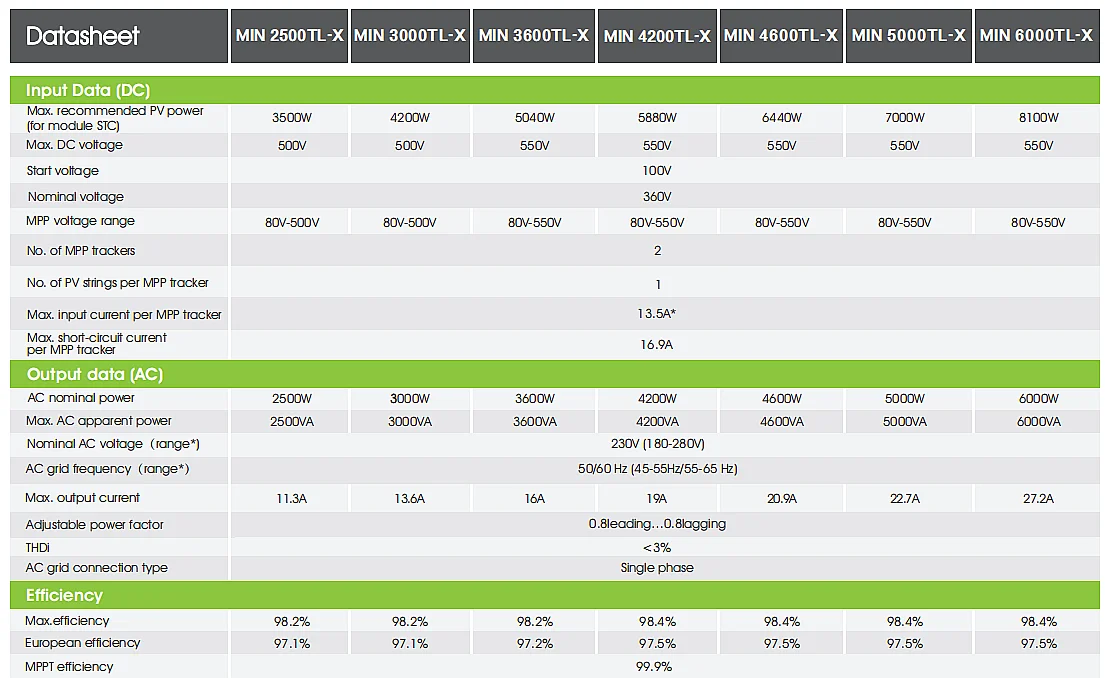

Input Date(DC) | MIN 3000TL-X | MIN 4200TL-X | MIN 5000TL-X | MIN 6000TL-X | |||
Max. recommended PV power (for module STC) | 4200W | 5880W | 7000W | 8100W | |||
Max. DC voltage | 500V | 550V | 550V | 550V | |||
Start voltage | 100V | ||||||
Nominal voltage | 360V | ||||||
MPP voltage range | 80-500V | 80-550V | 80-550V | 80-550V | |||
No. of MPP trackers | 2 | ||||||
No. of PV strings per MPP tracker | 1 | 1 | |||||
Max. input current per MPP tracker | 13.5A/13.5A/13.5A | 13.5A/13.5A/13.5A+13.5A | |||||
Max. short-circuit current per MPP tracker | 16.9A/16.9A/16.9A | 16.9A/16.9A/16.9A+16.9A | |||||
OUtput data(AC) | |||||||
AC nominal power | 3000W | 4200W | 5000W | 6000w | |||
Max. AC apparent power | 3000VA | 4200VA | 5000VA | 6000VA | |||
Nominal AC voltage(range*) | 230V(180-280V) | ||||||
AC grid frequency(range*) | 50/60Hz(45-55Hz/55-65HZ) | ||||||
Max. output current | 13.6A | 19A | 22.7A | 27.2A | |||
Adjustable power factor | 0.8leading…0.8lagging | ||||||
THDi | <3% | ||||||
AC grid connection type | Single phase | ||||||
Efficiency | |||||||
Max.efficiency | 98.1% | ||||||
European efficiency | 97.1% | 97.5% | 97.5% | 97.5% | |||
MPPT efficiency | 99.9% | ||||||
Protection devices | |||||||
DC reverse polarity protection | Yes | ||||||
DC switch | Yes | ||||||
DC/AC surge protection | Type II / Type III | ||||||
Insulation resistance monitoring | Yes | ||||||
AC short-circuit protection | Yes | ||||||
Ground fault monitoring | Yes | ||||||
Grid monitoring | Yes | ||||||
Anti-islanding protection | Yes | ||||||
Residual-current monitoring unit | Yes | ||||||
AFCI protection | Optional | ||||||
Why choose it

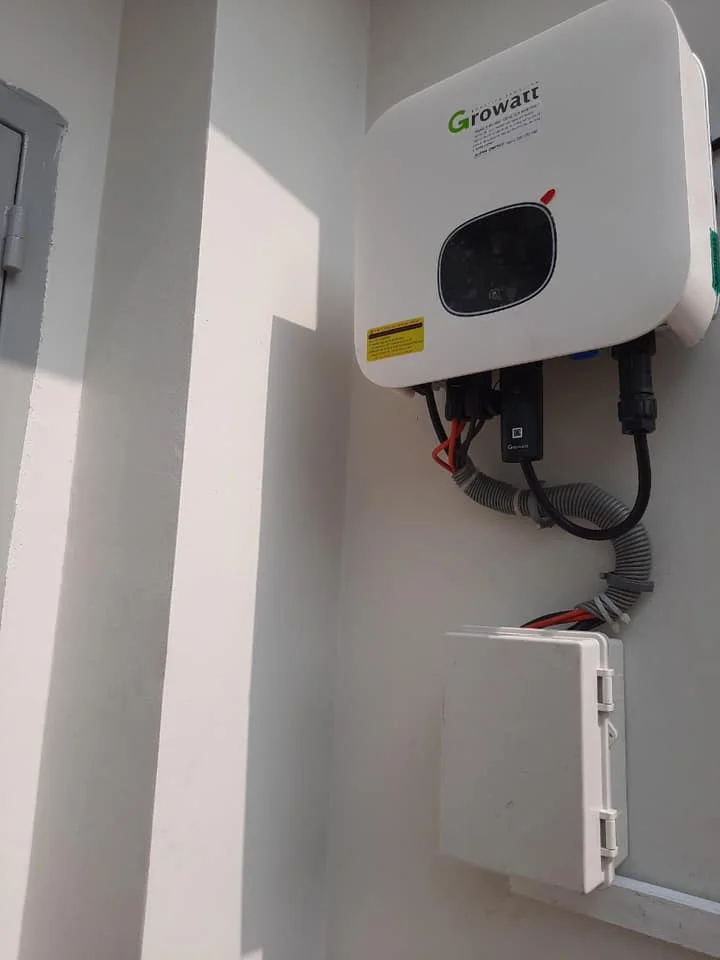

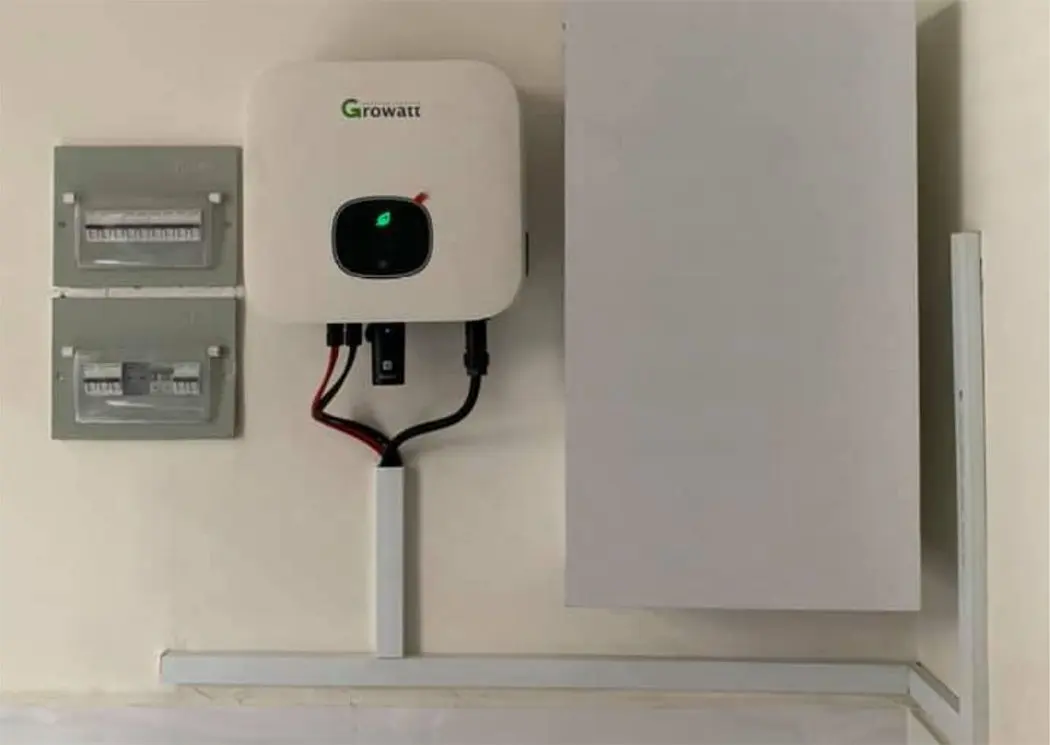

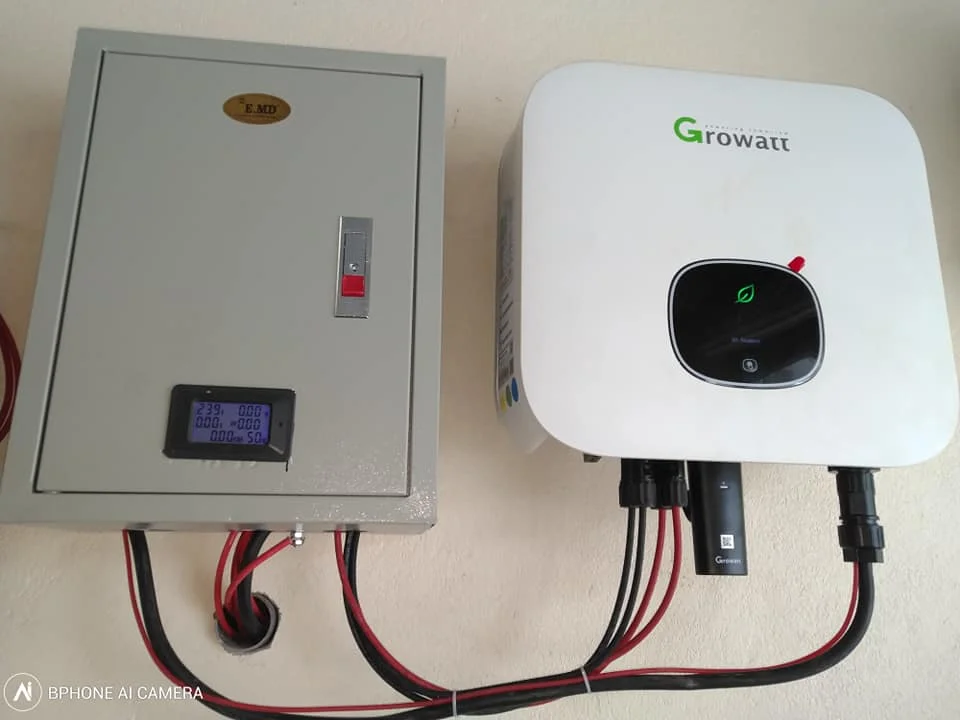

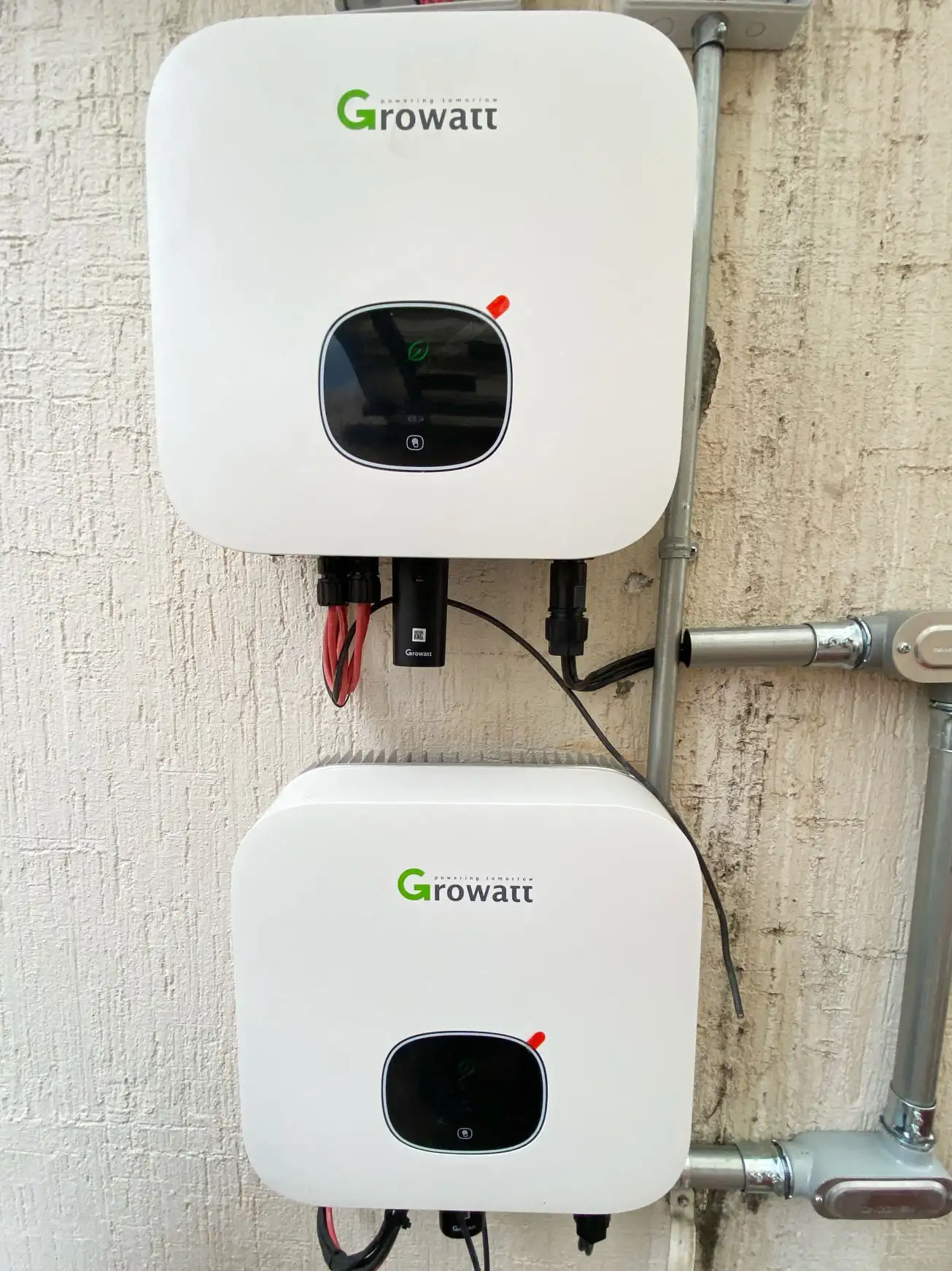

Project case

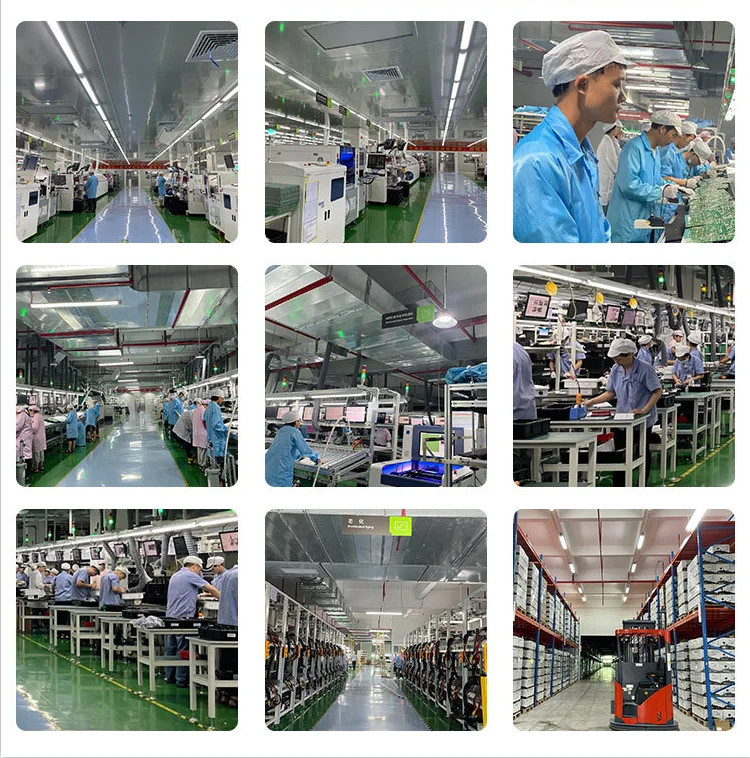

Production Process

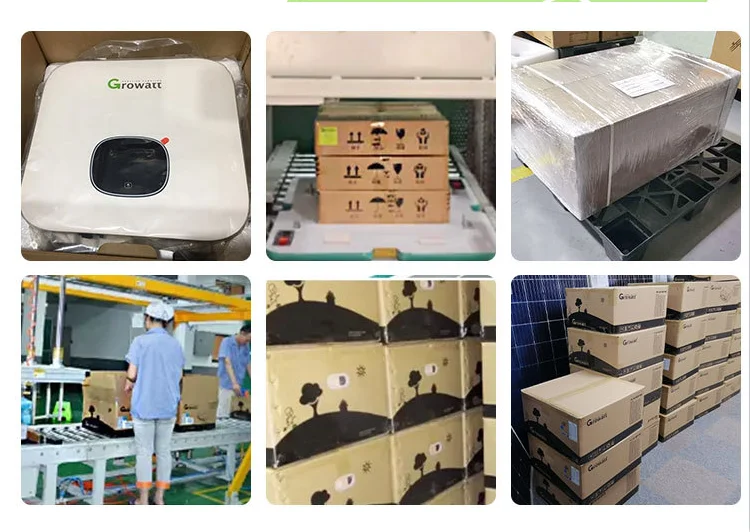

Packing & Delivery
Contact us
FAQ
GOYOR group production of solar panels have passed CE, CQC, Rohs, FCC test certificate, made up of crystalline silicon solar cell components, and in the process of production according to the strict quality standard for a series of performance tests, the quality of security components can be in the normal work of all kinds of bad environment, guarantee the output power of the components in electric power generation. GOYOR is committed to providing customers with cost-effective photovoltaic products for a wide range of residential, commercial and public applications.
1. What advantages do we have?
The price is cheap, we have a certain price advantage in bulk purchase and factory purchase. The delivery time is short, the goods can be delivered within 15days upon receipt of the money.
Many brands, with a variety of brands, a variety of categories.
One-stop, you only need to face one of our suppliers, saving you a lot of energy and time.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. why should you buy from us not from other suppliers?
With over 15 years of combined solar energy experience, Goyor Group continues to be part of the renewable energy transition by
helping you harvest clean energy at any given location in the world.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
1. What advantages do we have?
The price is cheap, we have a certain price advantage in bulk purchase and factory purchase. The delivery time is short, the goods can be delivered within 15days upon receipt of the money.
Many brands, with a variety of brands, a variety of categories.
One-stop, you only need to face one of our suppliers, saving you a lot of energy and time.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. why should you buy from us not from other suppliers?
With over 15 years of combined solar energy experience, Goyor Group continues to be part of the renewable energy transition by
helping you harvest clean energy at any given location in the world.
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
