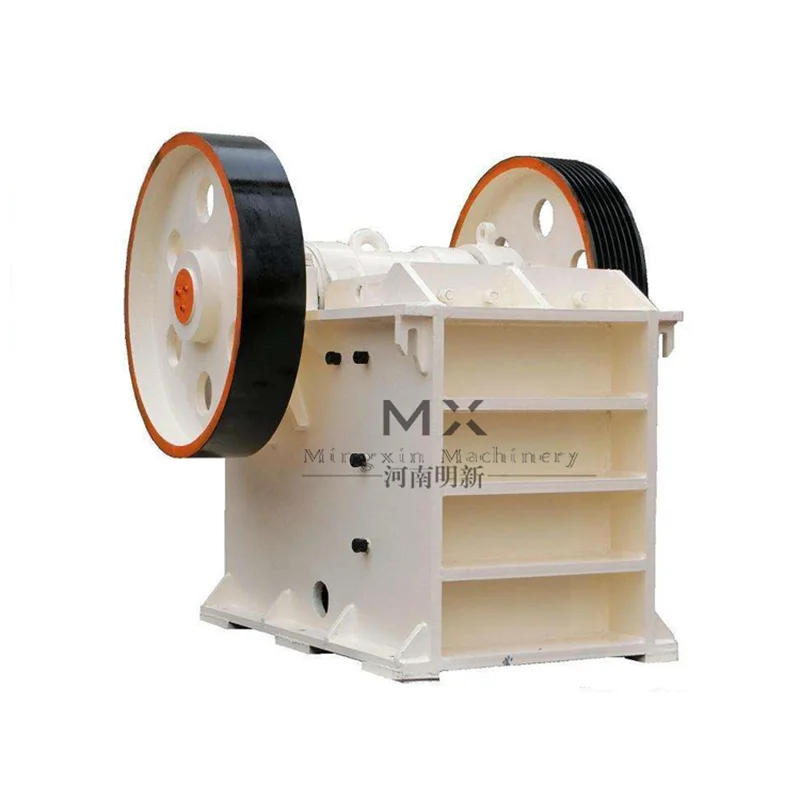

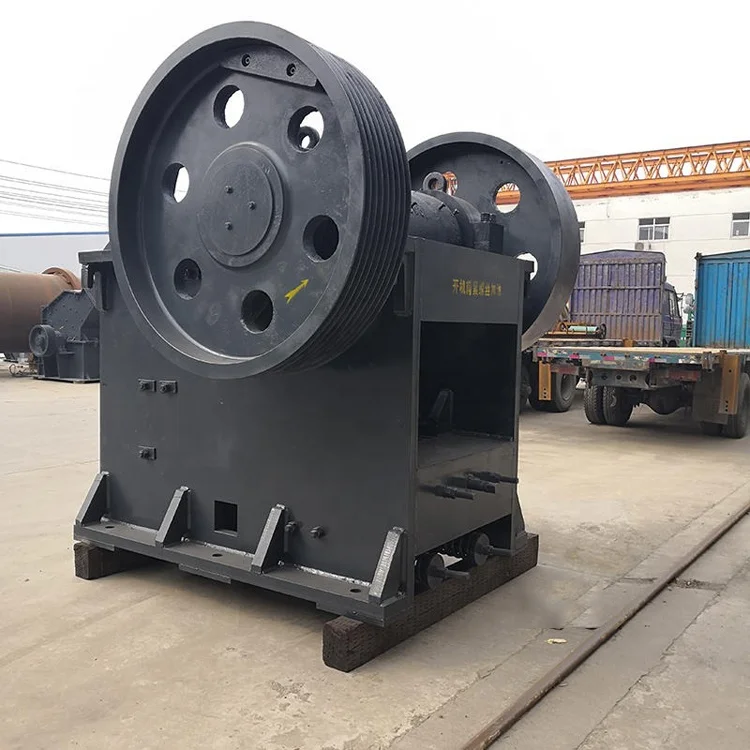

PE250*400 High Hardness Ore Stone Construction Waste Pavement Concrete Cement Brick Jaw Crusher
- Category: >>>
- Supplier: Henan Mingxin Machinery Co. Ltd.
Share on (1600935522058):
Product Overview
Description
Product Description
PE 400x600 Mobile Gold Ore Crushing Machine Basalt Granite Jaw Crusher is also called the tiger’s mouth and is widely used in the crushing of various ores and large materials in mining smelting, building materials, roads, railways, water conservancy and chemical industries and so on. The maximum compressive strength of the crushed material is 320 Mpa.
PE 400x600 Mobile Gold Ore Crushing Machine Basalt Granite Jaw Crusher is mainly used as the coarse crusher and intermediate crusher in the mining, building materials, infrastructure and other sectors.
Features Of PE 400x600 Mobile Gold Ore Crushing Machine Basalt Granite Jaw Crusher:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization, no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization, no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.
Model | Feed inlet size (mm) | Maximum feed size (mm) | Outlet size (mm) | Capacity(t/h) | Motor power(kw) | Weight (t) | Dimension(mm) |
PE250*400 | 250*400 | 200 | 20-50 | 5-20 | 15 | 3 | 1430*1310*1340 |
PE400*600 | 400*600 | 350 | 40-100 | 15-60 | 30-37 | 7 | 1700*1732*1653 |
PE500*750 | 500*750 | 425 | 50-100 | 40-110 | 45-55 | 12 | 2035*1921*2000 |
PW600*900 | 600*900 | 480 | 65-160 | 90-180 | 55-75 | 17 | 2290*2206*2370 |
PE750*1060 | 750*1060 | 630 | 80-140 | 110-320 | 90-110 | 29 | 2655*2302*3110 |
PE900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 110-132 | 58 | 3800*3166*3045 |
PE1000*1200 | 1000*1200 | 850 | 200-300 | 280*560 | 110-160 | 69 | 5350*4280*3050 |
PE1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 160-220 | 100.9 | 6380*5310*3710 |
PE1500*1800 | 1500*1800 | 1200 | 210-360 | 520-1100 | 280 | 132 | 7460*6235*4249 |
PEX150*250 | 150*250 | 125 | 10-40 | 1-3 | 5.5 | 1.5 | 896*745*935 |
PEX150*750 | 150*750 | 125 | 18-48 | 5-16 | 15 | 3.8 | 1200*1500*1200 |
PEX250*1000 | 250*1000 | 210 | 25-60 | 15-50 | 30-37 | 7 | 1550*1964*1380 |
PEX250*1200 | 250*1200 | 210 | 25-60 | 20-60 | 37-45 | 8.5 | 2192*1900*1950 |
PEX300*1300 | 300*1300 | 250 | 20-90 | 30-90 | 55-75 | 11.5 | 1750*2320*1724 |

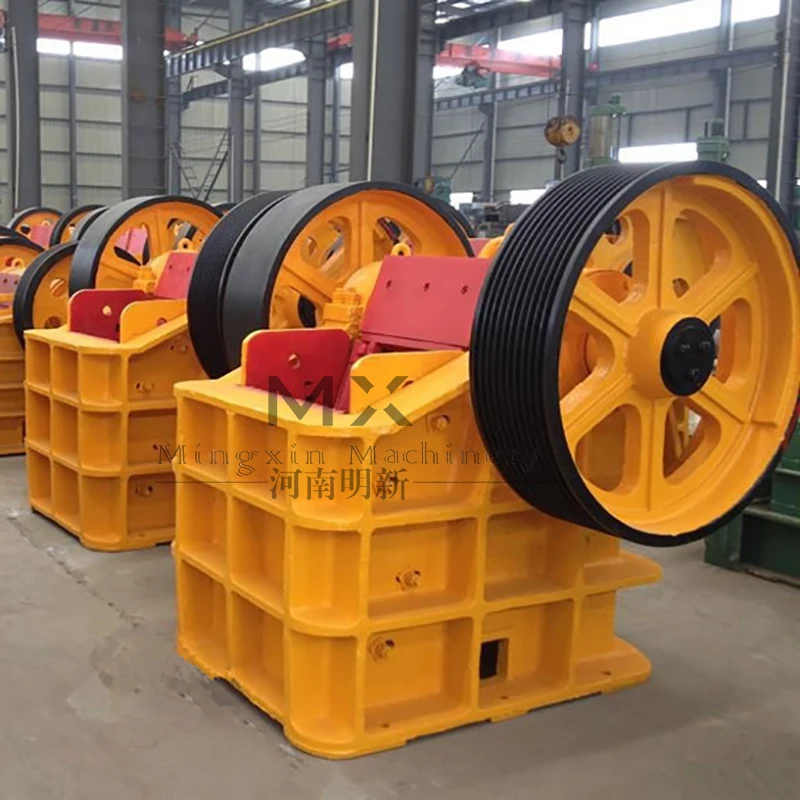

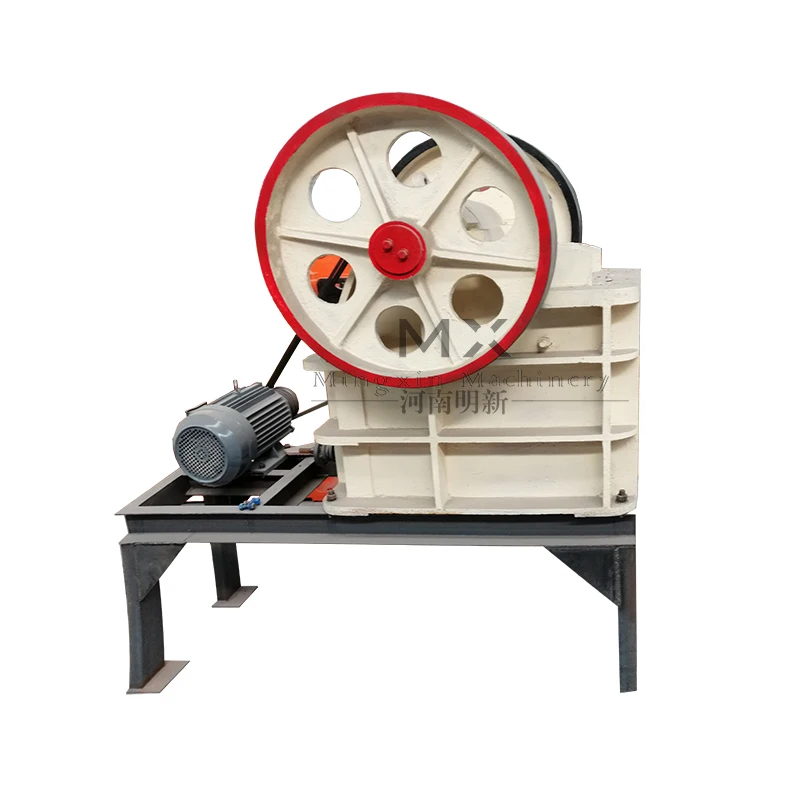

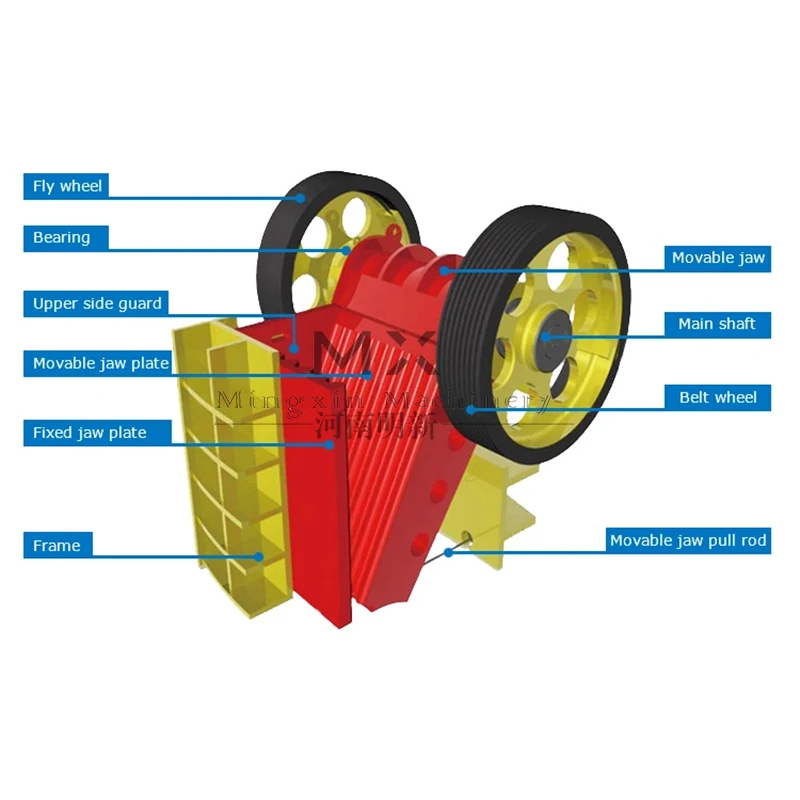

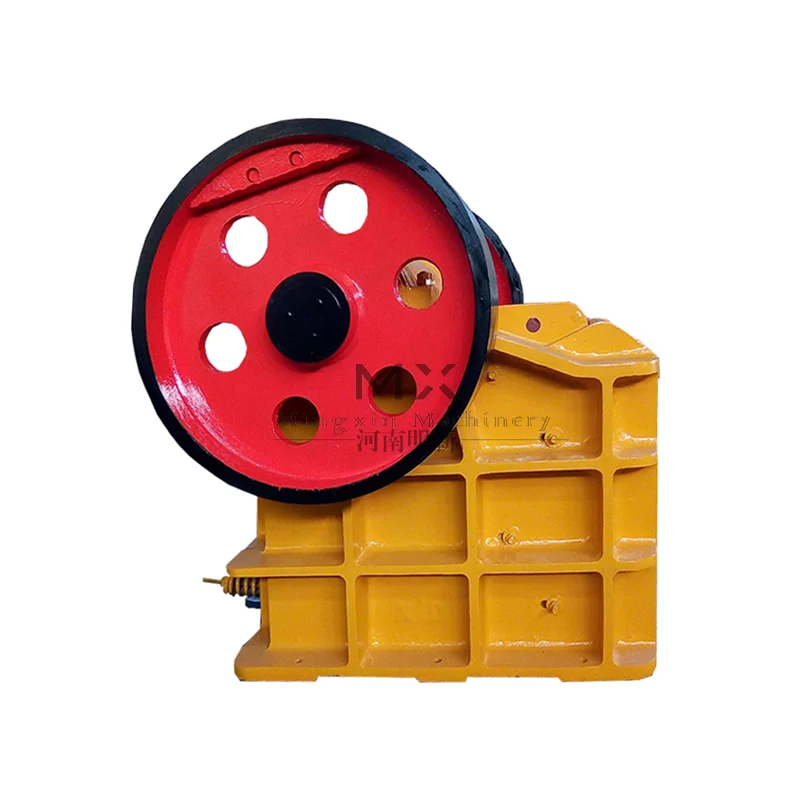

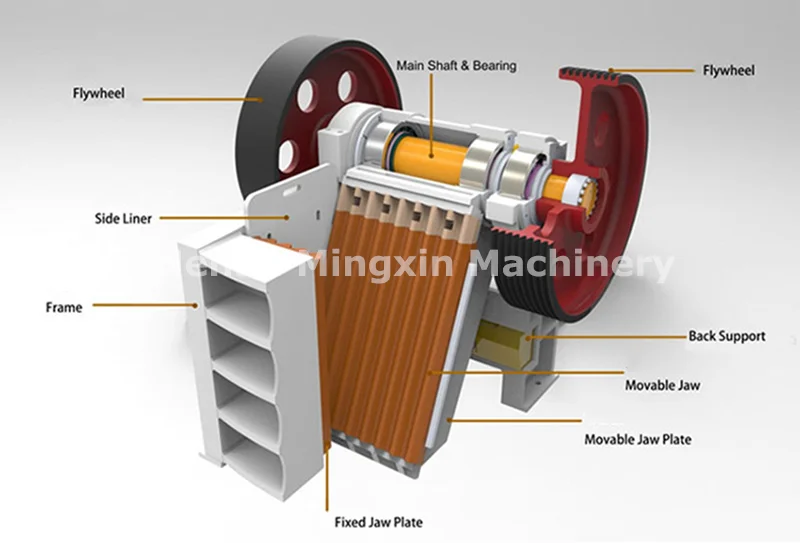

Detailed Images
Application
Application area:
stand stone field, mining, coal mining, concrete mixing station, dry powder mortar, power plant desulfurization, quartz sand, etc..
Raw Materials:
gravel, granite, basalt, iron ore, limestone, quartz rock, diabase, gold, copper and so on.
Packing & Delivery
Inner packing Of Jaw Crusher: Plastic packing.
Outer packing Of Jaw Crusher: Wooden case packing.

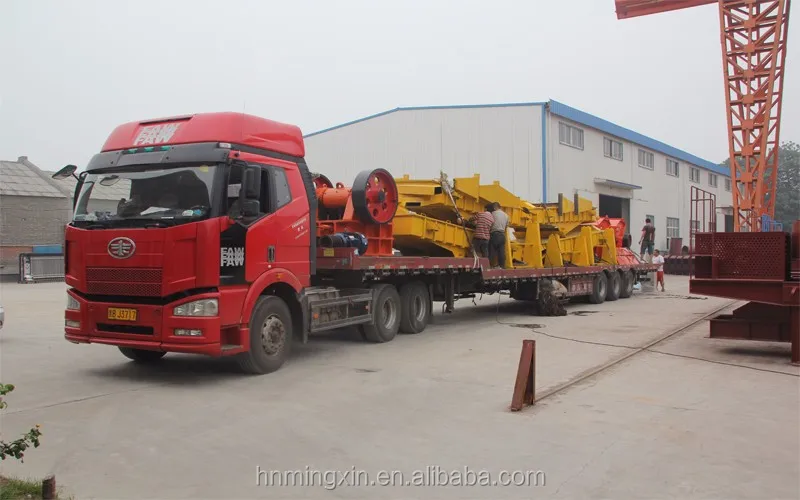

Shipping of Jaw Crusher: Sea shipping
